◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#11295) — 122 parça

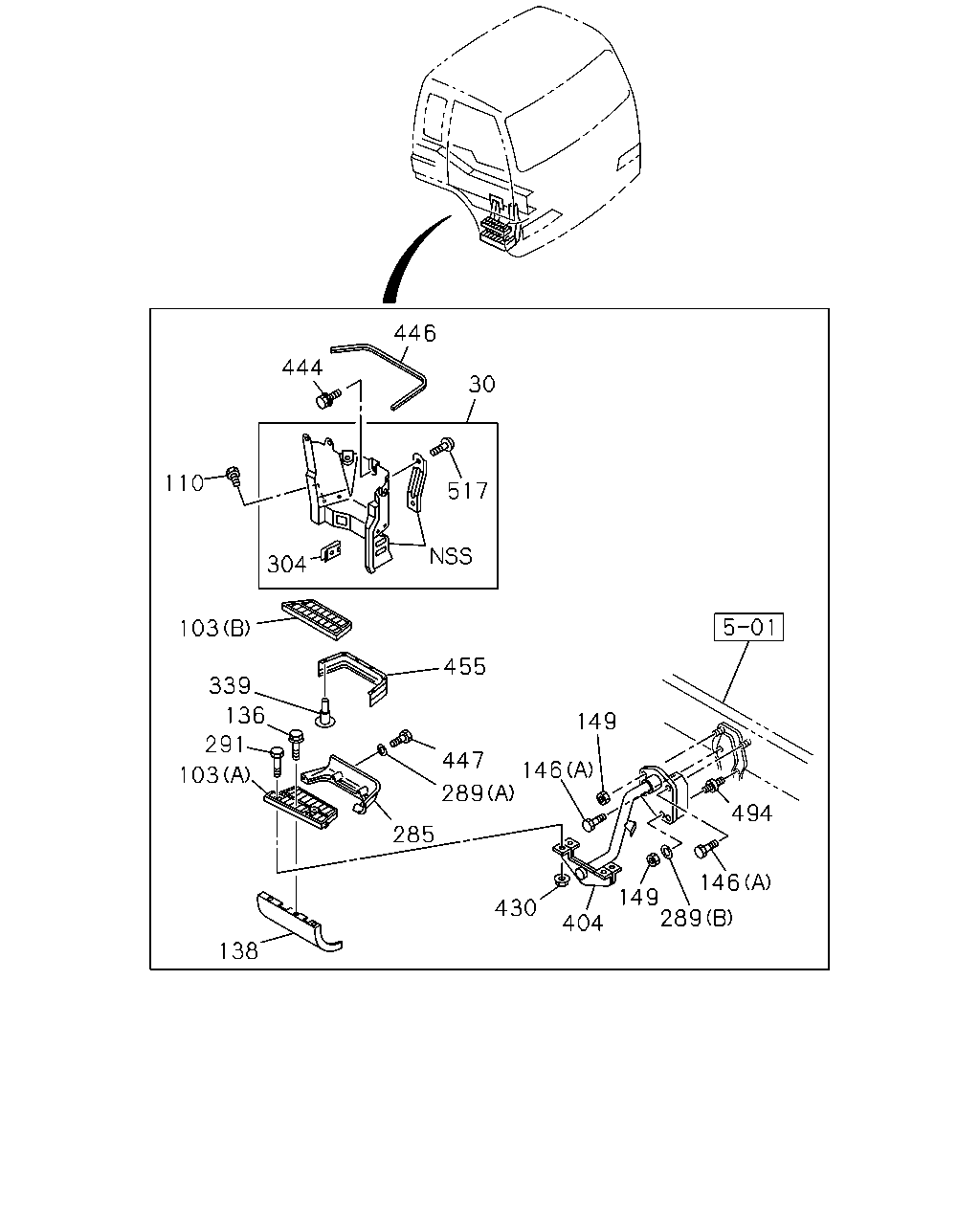

çizim 74867
444 446 517 30 304 110 103 339 136 291 103 455 447 289 285 138 430 404 149 289 146 494 149 146
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0106-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0106-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0106-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0106-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0106-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0106-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0106-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0106-
138 FENDER; OVER 1-79931-264-0 01 1 0106-
138 FENDER; OVER 1-79931-263-0 01 1 0106-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0106-0512
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0601-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0106-0512
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0106-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0106-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0106-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0106-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0106-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0106-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0106-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0106-
404 BRACKET 1-53414-201-0 01 1 0106-
404 BRACKET 1-53414-200-0 01 1 0106-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0106-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0106-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0106-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0106-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-187-1 01 1 0106-
455 PROTECTOR; STEP 1-71907-186-1 01 1 0106-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 0106-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0106-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-

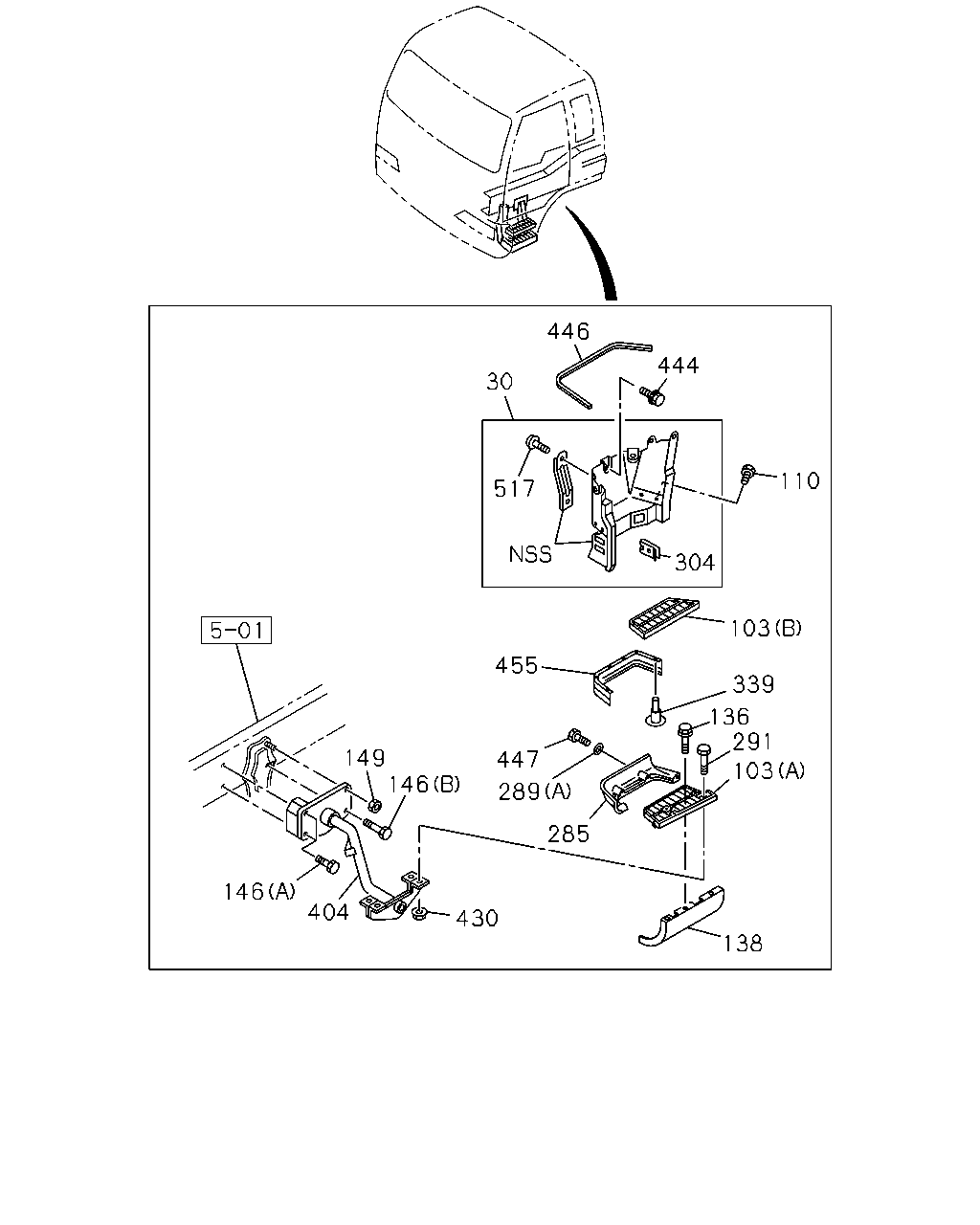

çizim 74892
446 444 30 517 304 110 103 339 136 291 103 285 289 447 146 149 430 404 146 138 455
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0106-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0106-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0106-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0106-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0106-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0106-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0106-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0106-
138 FENDER; OVER 1-79931-264-0 01 1 0106-
138 FENDER; OVER 1-79931-263-0 01 1 0106-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0106-0512
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0601-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0106-0512
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0106-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0106-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0106-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0106-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0106-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0106-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0106-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0106-
404 BRACKET 1-53414-201-0 01 1 0106-
404 BRACKET 1-53414-200-0 01 1 0106-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0106-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0106-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0106-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0106-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-187-1 01 1 0106-
455 PROTECTOR; STEP 1-71907-186-1 01 1 0106-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0106-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-

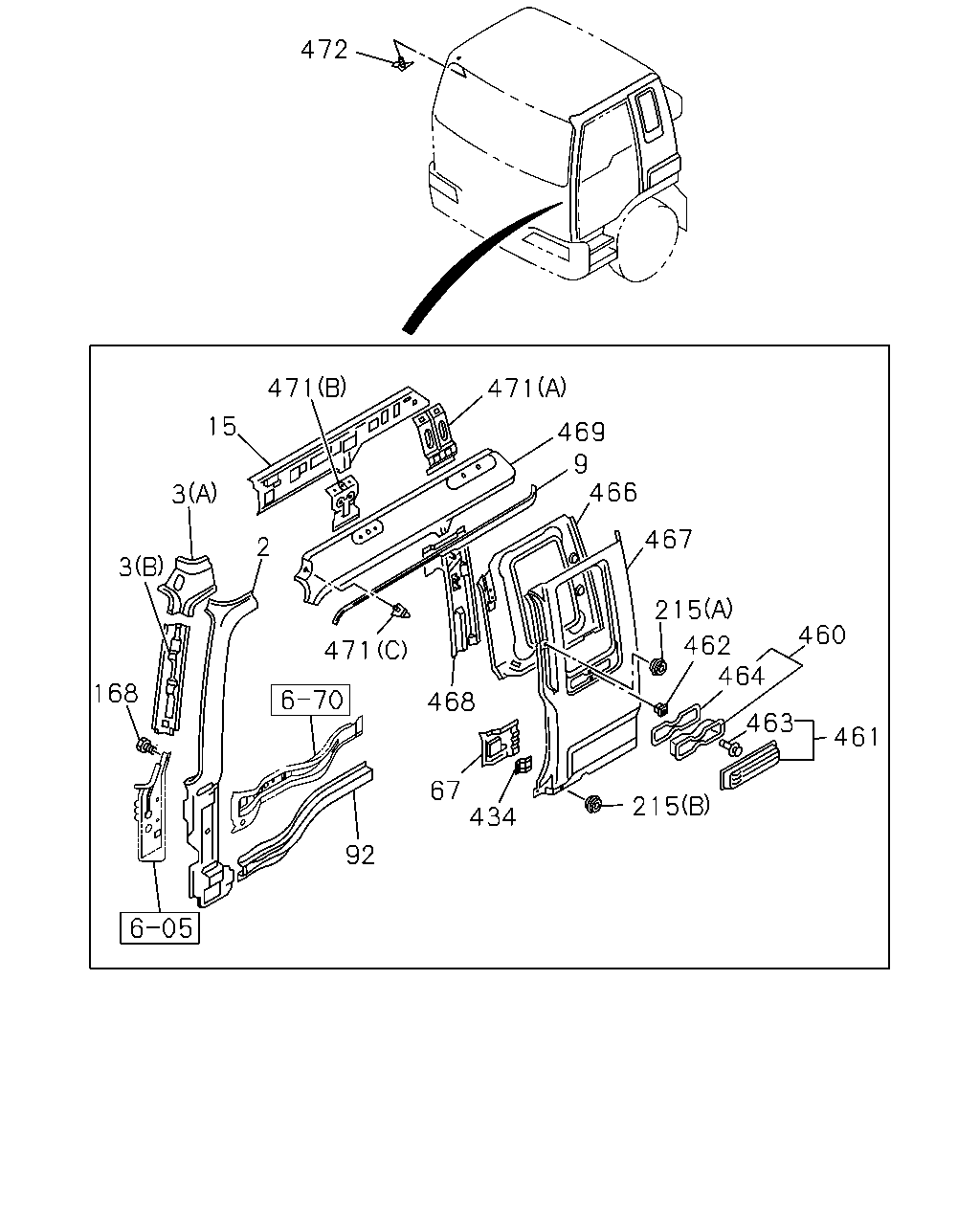

çizim 76951
472 471 15 3 3 168 2 471 468 67 434 92 215 461 463 460 464 462 215 467 466 9 469 471
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 0106-
2 PILLAR; FRT 1-61281-409-2 01 1 0106-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0106-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0106-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0106-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0106-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0106-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0106-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 0106-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 0106-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0106-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0106-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0106-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0106-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0106-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0106-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0106-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0106-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0106-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0106-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0106-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0106-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0106-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0106-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0106-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0106-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0106-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0106-
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 0106-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CH INA EQUIPMENT(YT2) 		1-61270-773-2 01 1 0106-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-939-1 01 1 0106-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-476-2 01 1 0106-
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),CHINA EQUIPMENT(YT2) 		1-61281-204-3 01 1 0106-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0106-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0106-
469 ROOF; SIDE 1-61281-199-8 01 1 0106-
469 ROOF; SIDE 1-61281-198-8 01 1 0106-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0106-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0106-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0106-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0106-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0106-
