Sayfa 2-61 - Isuzu EPC

2-61 — TRANSFER CASE AND GEAR SHIFTER (#112949) — 82 parça

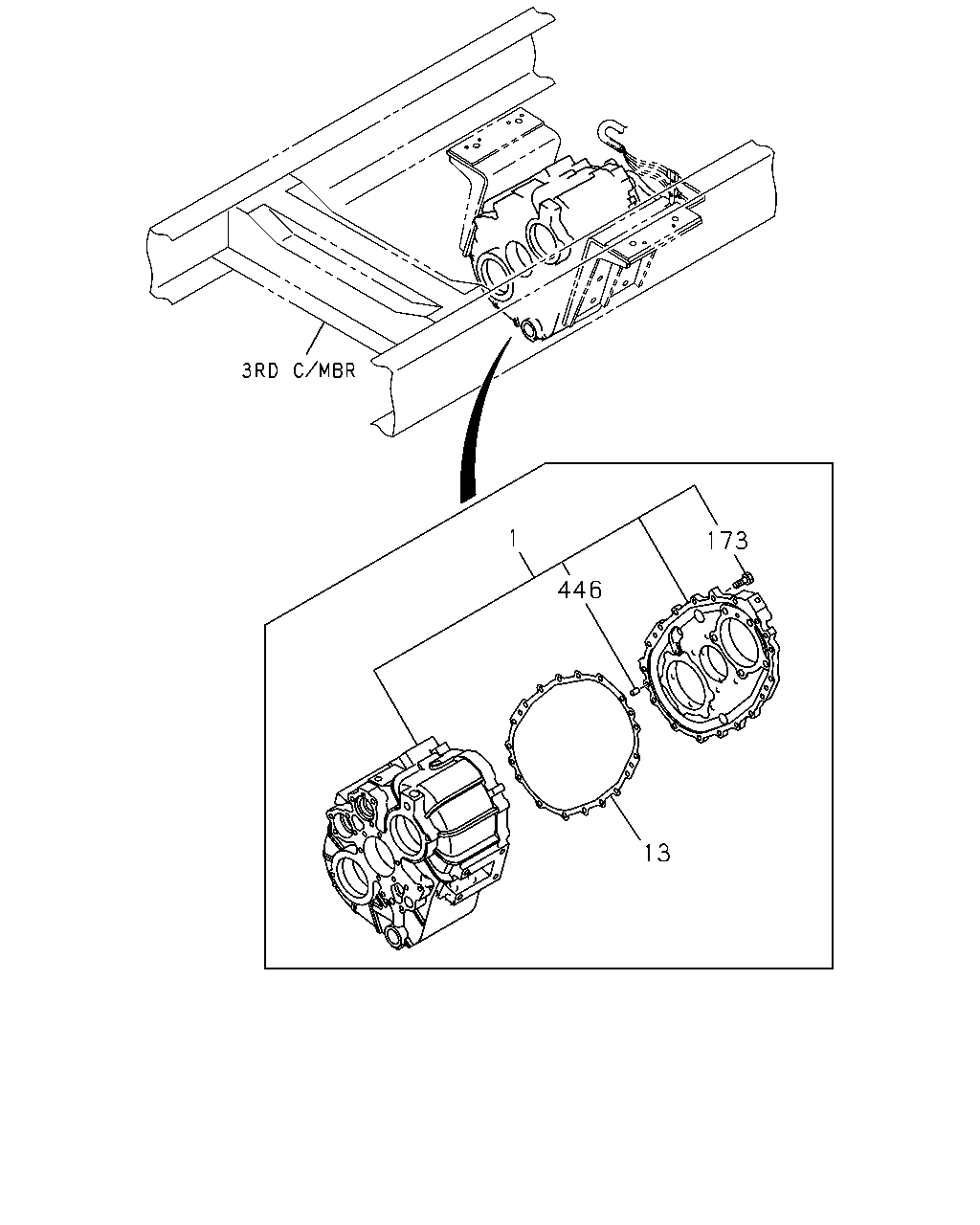

13 446 173 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TRANSFER	1-36110-050-0	01	1	1302-	●	●
13	GASKET; COVER TO TRANSFER CASE ALSO INCLUDED IN REPAIR KIT(T/F).	1-36132-003-0	01	1	1302-	●	●
173	BOLT; COVER M10X30 W/LK WASHER	0-50551-030-0	14	1	1302-	●	●
446	PIN; STRAIGHT	9-08161-016-0	02	1	1302-	●	●

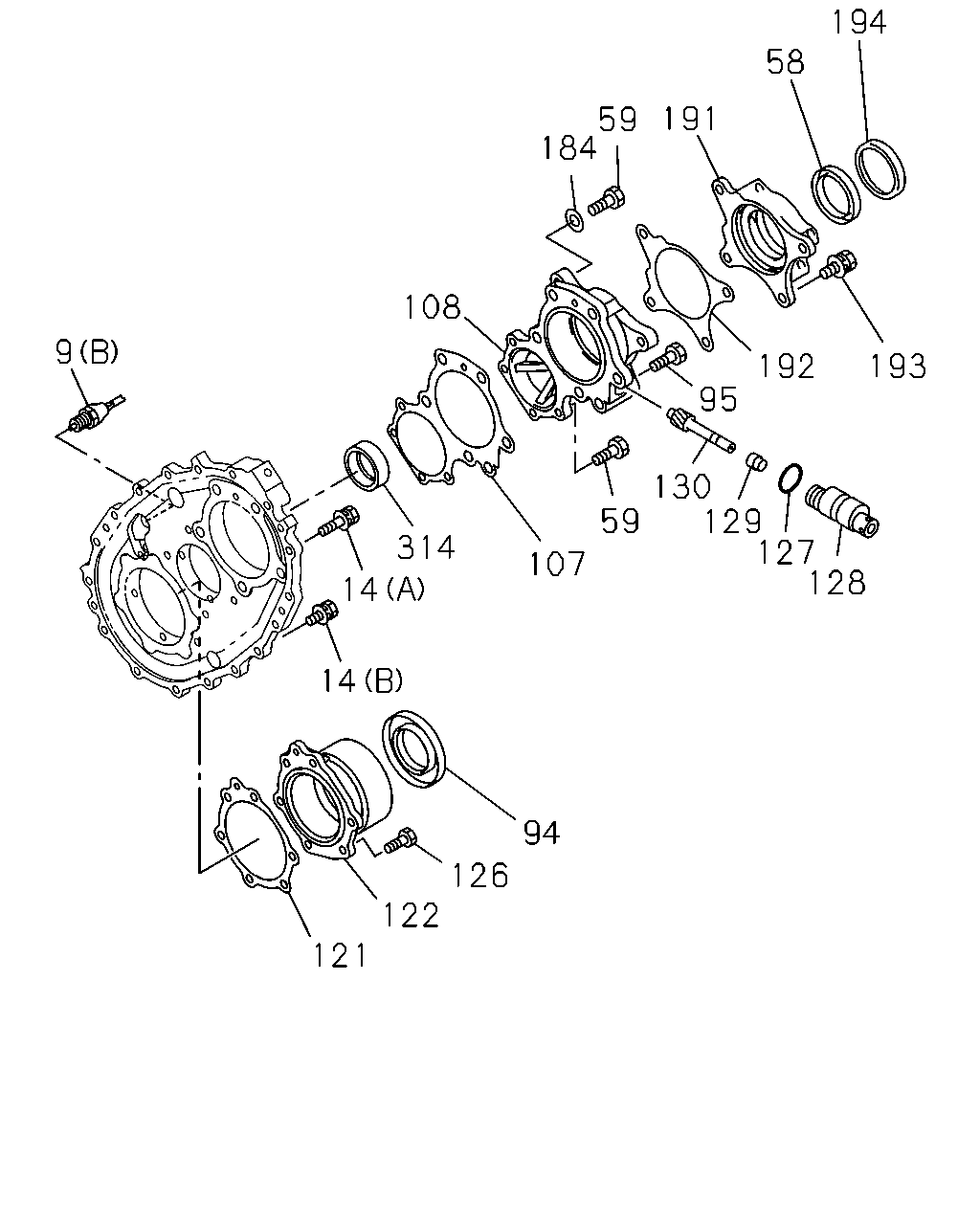

9 108 314 14 14 94 126 122 121 107 59 184 59 191 58 194 192 95 193 130 129 127 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	1302-	●	●
9	SWITCH; TRANSFER (B)	1-82440-082-0	01	1	1302-	●	●
14	BOLT; COVER TO TRANSFER CASE (A) M10X30 W/LK WASHER	0-50551-030-0	01	1	1302-	●	●
14	BOLT; COVER TO TRANSFER CASE (B) M10X45 W/LK WASHER	0-50551-045-0	02	1	1302-	●	●
58	SEAL; OIL,RR UPR NOK	1-09625-173-0	01	1	1302-	●	●
59	BOLT; UPR COVER M14X65	0-16806-465-0	01	1	1302-	●	●
59	BOLT; UPR COVER M14X40	0-23851-440-0	04	1	1302-	●	●
59	BOLT; UPR COVER M10X30 W/LK WASHER	0-50551-030-0	04	1	1302-	●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-484-1	01	1	1302-	●	●
95	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	1302-	●	●
107	GASKET; COVER TO CASE ALSO INCLUDED IN REPAIR KIT(T/F).	9-36123-009-0	01	1	1302-	●	●
108	COVER; UPR,TRANSFER	1-36121-006-2	01	1	1302-	●	●
121	GASKET; RR COVER,LWR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-006-0	01	1	1302-	●	●
122	COVER; RR,OUTPUT	1-36121-005-0	01	1	1302-	●	●
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50551-025-0	06	1	1302-	●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-370-0	01	1	1302-	●	●
128	BUSHING; DRIVEN GEAR	1-33373-039-1	01	1	1302-	●	●
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-510-0	01	1	1302-	●	●
130	GEAR; DRIVEN,SPD,TRANSFER Z=12	1-33372-074-5	01	1	1302-	●	●
184	WASHER; LK,UPR COVER ID=14.2	0-91510-514-0	05	1	1302-	●	●
191	RETAINER; OIL SEAL,RR UPR	1-36155-007-0	01	1	1302-	●	●
192	GASKET; RET,RR UPR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-005-0	01	1	1302-	●	●
193	BOLT; RET M12X28	0-50051-228-0	04	1	1302-	●	●
194	COVER; OIL SEAL,RR UPR	1-33139-001-1	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.5	1-36355-022-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.7	1-36355-023-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.9	1-36355-024-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.1	1-36355-025-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.3	1-36355-026-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.5	1-36355-027-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.7	1-36355-028-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.9	1-36355-029-0	01	1	1302-	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=21.1	1-36355-030-0	01	1	1302-	●	●

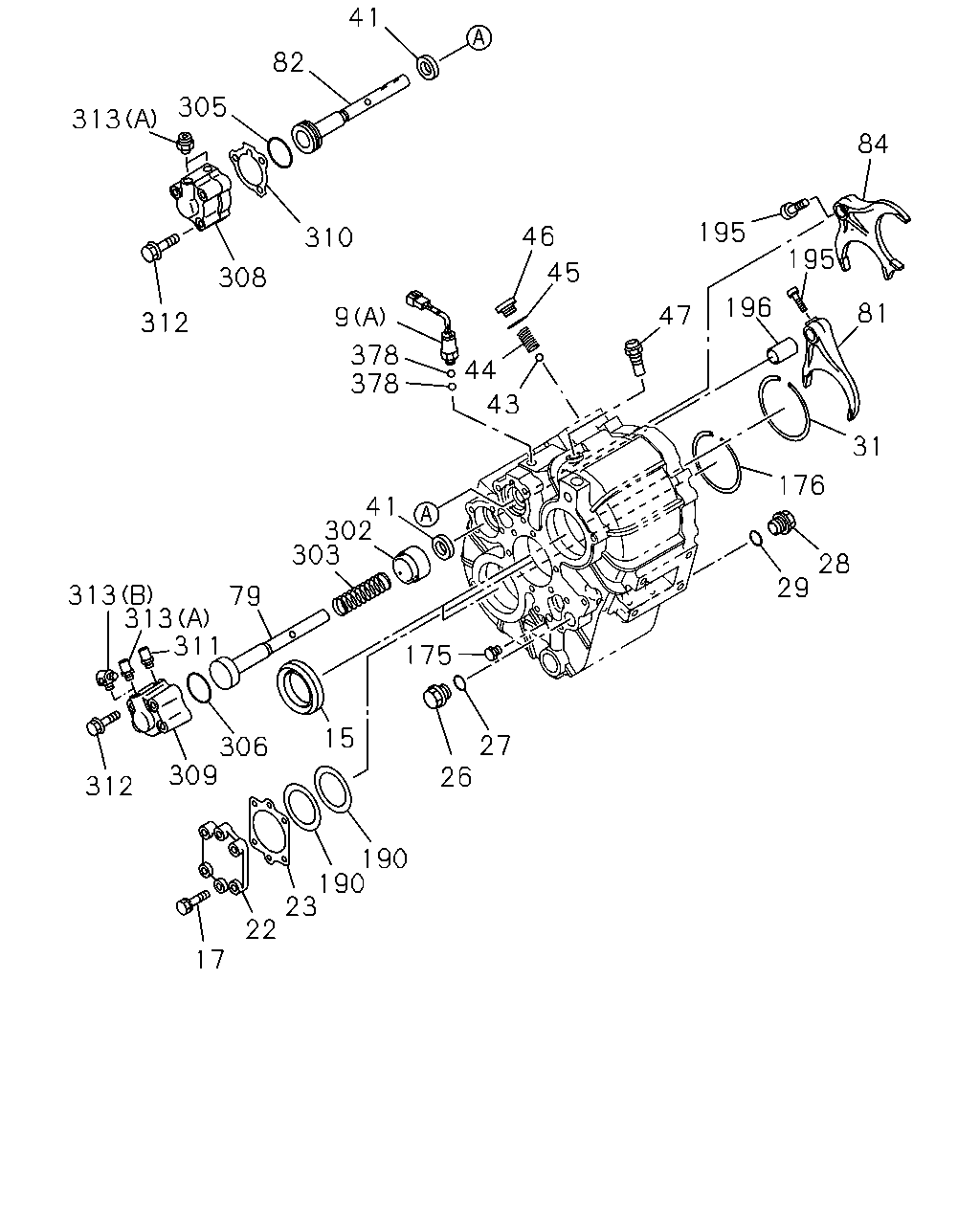

17 190 23 22 190 26 175 27 29 176 31 28 81 195 196 195 84 45 46 44 378 378 43 41 302 15 306 309 312 313 313 311 303 79 47 9 308 312 310 41 82 305 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	1302-	●	●
9	SWITCH; TRANSFER (B)	1-82440-082-0	01	1	1302-	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-202-1	02	1	1302-	●	●
17	BOLT; BRG COVER M10X28	0-50551-028-0	06	1	1302-	●	●
22	COVER; BRG,IDLE SHAFT	1-36151-006-1	01	1	1302-	●	●
23	GASKET; BRG COVER ALSO INCLUDED IN REPAIR KIT(T/F).	9-36152-003-0	01	1	1302-	●	●
26	PLUG; FILLER,TRANSFER CASE M24X17 FLANGE	1-09604-022-0	01	1	1302-	●	●
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	1302-	●	●
28	PLUG; DRAIN,TRANSFER CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-	●	●
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	1302-	●	●
31	RING; SNAP,INPUT	9-09950-184-0	01	1	1302-	●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-377-0	02	1	1302-	●	●
43	BALL; LK,SHIFT ROD	9-00097-013-0	01	1	1302-	●	●
44	SPRING; COIL,LK	9-09940-323-0	01	1	1302-	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0	9-09571-420-0	01	1	1302-	●	●
46	SEAT; SPR	9-09862-175-0	01	1	1302-	●	●
47	BREATHER; TRANSFER CASE	9-36122-015-1	01	1	1302-	●	●
79	ROD; SHIFT,NEUTRAL & FRT DRIVE	1-36564-027-0	01	1	1302-	●	●
81	FORK; SHIFT,NEUTRAL & FRT DRIVE	1-36561-020-0	01	1	1302-	●	●
82	ROD; SHIFT,LOW & HIGH	1-36564-026-0	01	1	1302-	●	●
84	FORK; SHIFT,LOW & HIGH	1-36561-019-1	01	1	1302-	●	●
175	PLUG; LEVEL,TRANSFER CASE	9-09864-007-1	01	1	1302-	●	●
176	RING; SNAP,FRT OUTPUT	9-09950-089-0	01	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.10	9-36153-020-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.12	9-36153-021-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.14	9-36153-022-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.16	9-36153-023-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.18	9-36153-024-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.20	9-36153-025-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.50	9-36153-026-0	AR	1	1302-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=1.00	9-36153-027-0	AR	1	1302-	●	●
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	02	1	1302-	●	●
196	COLLAR; DIST,SHIFT ROD	1-36577-004-0	01	1	1302-	●	●
302	SEAT; SPRING	1-36572-002-1	01	1	1302-	●	●
303	SPRING; NEUTRAL-FRONT	1-09580-489-0	01	1	1302-	●	●
305	GASKET; PISTON,LOW-HIGH ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7	9-09561-344-0	01	1	1302-	●	●
306	GASKET; PISTON,NEUTRAL-FRONT ID=43.7	9-09561-344-0	01	1	1302-	●	●
308	CYLINDER; AIR SHIFT,LOW-HIGH	1-36569-010-0	01	1	1302-	●	●
309	CYLINDER; AIR SHIFT,NEUTRAL-FRONT	1-36569-009-0	01	1	1302-	●	●
310	GASKET; AIR CYL	1-36579-001-0	01	1	1302-	●	●
311	BREATHER; AIR CYL	9-36122-013-0	01	1	1302-	●	●
312	BOLT; AIR CYL M10X65 FLANGE	8-94344-540-1	07	1	1302-	●	●
313	CONNECTOR; AIR CYL (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-	●	●
313	CONNECTOR; AIR CYL (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●	●
378	BALL; CONT SWITCH	9-00097-013-0	02	1	1302-	●	●
