Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112944) — 337 parça

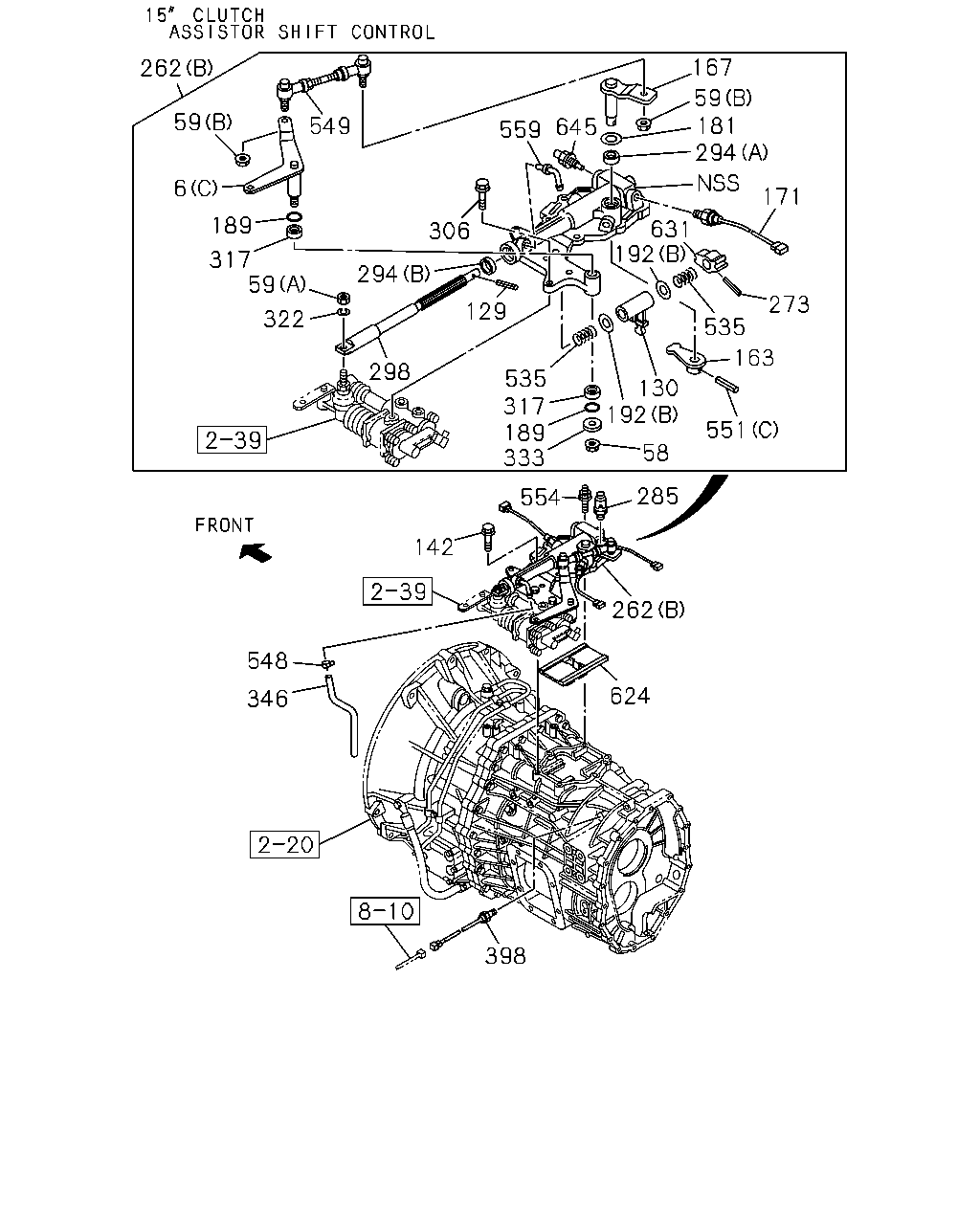

262 167 181 294 59 549 189 317 243 59 6 128 294 559 171 317 189 333 58 129 551 163 645 631 535 130 273 192 192 285 262 142 548 346 624 554 398 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

192 66 99 551 89 684 32 551 78 51 82 551 682 551 551 683 6 102 551 192 234 453 685 320 192 6 65 192 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

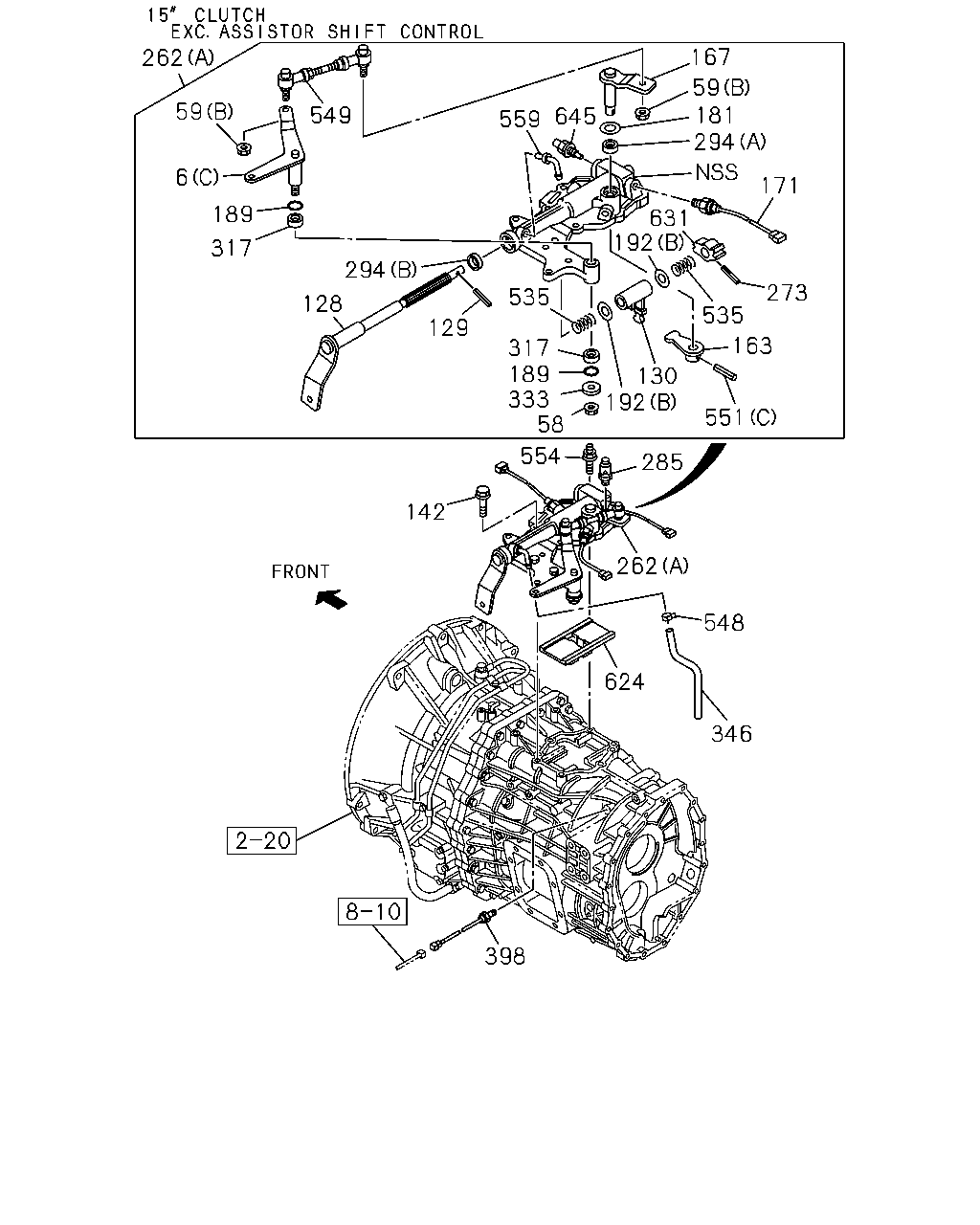

167 59 181 294 171 273 535 163 130 192 58 551 535 317 189 333 554 142 285 262 624 398 298 294 306 129 559 645 631 192 322 59 317 189 6 59 549 262 548 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

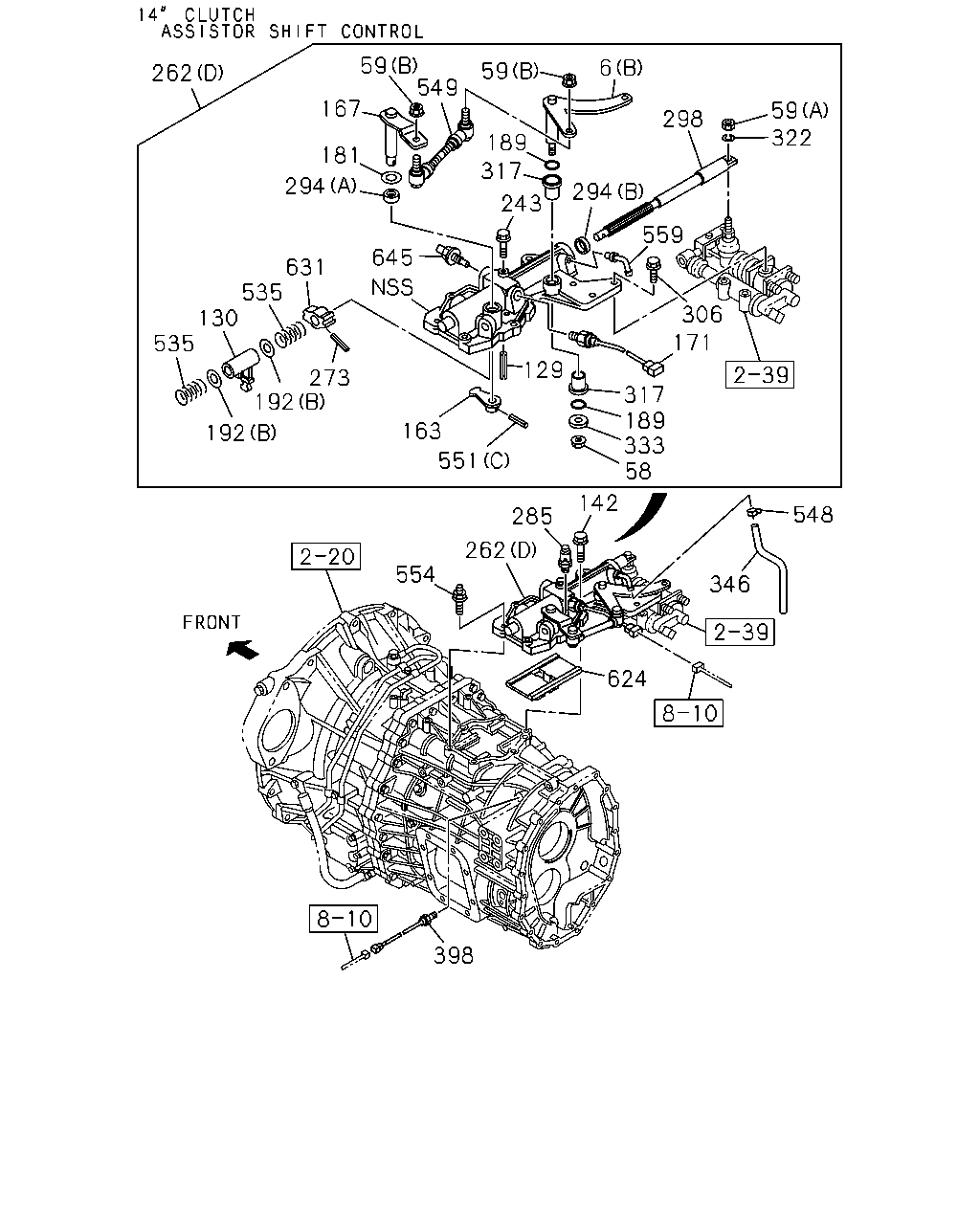

262 59 549 6 189 317 294 128 129 559 645 167 59 181 294 171 631 192 273 535 163 130 192 551 535 317 189 333 58 554 142 285 262 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

637 636 406 158 636 637 406 158 630 391 381 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP (A)	8-97610-096-2	01	1	1302-1304
636	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1305-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B)	8-97610-092-1	01	1	1305-1502
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1503-

262 167 59 181 294 631 535 130 535 192 192 273 645 549 59 6 298 59 322 294 559 306 171 317 189 333 58 129 243 317 189 163 551 142 548 346 624 285 262 554 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
