Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112942) — 1023 parça

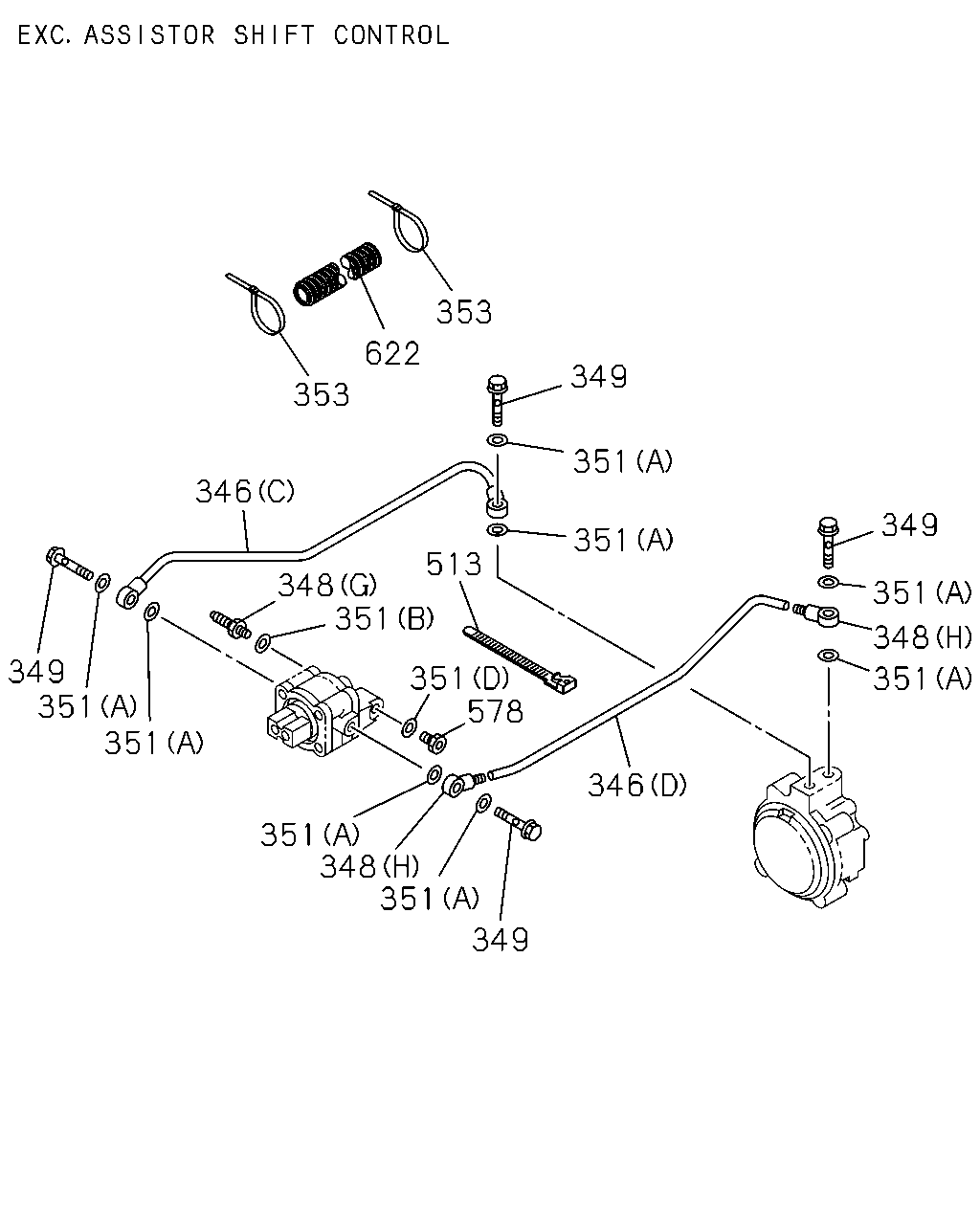

349 351 351 351 348 351 349 346 578 351 351 348 346 513 351 348 351 349 351 351 349 353 622 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-	●
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-	●
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305	●
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305	●
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-	●
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305	●
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-	●
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-	●
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-	●
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305	●
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●

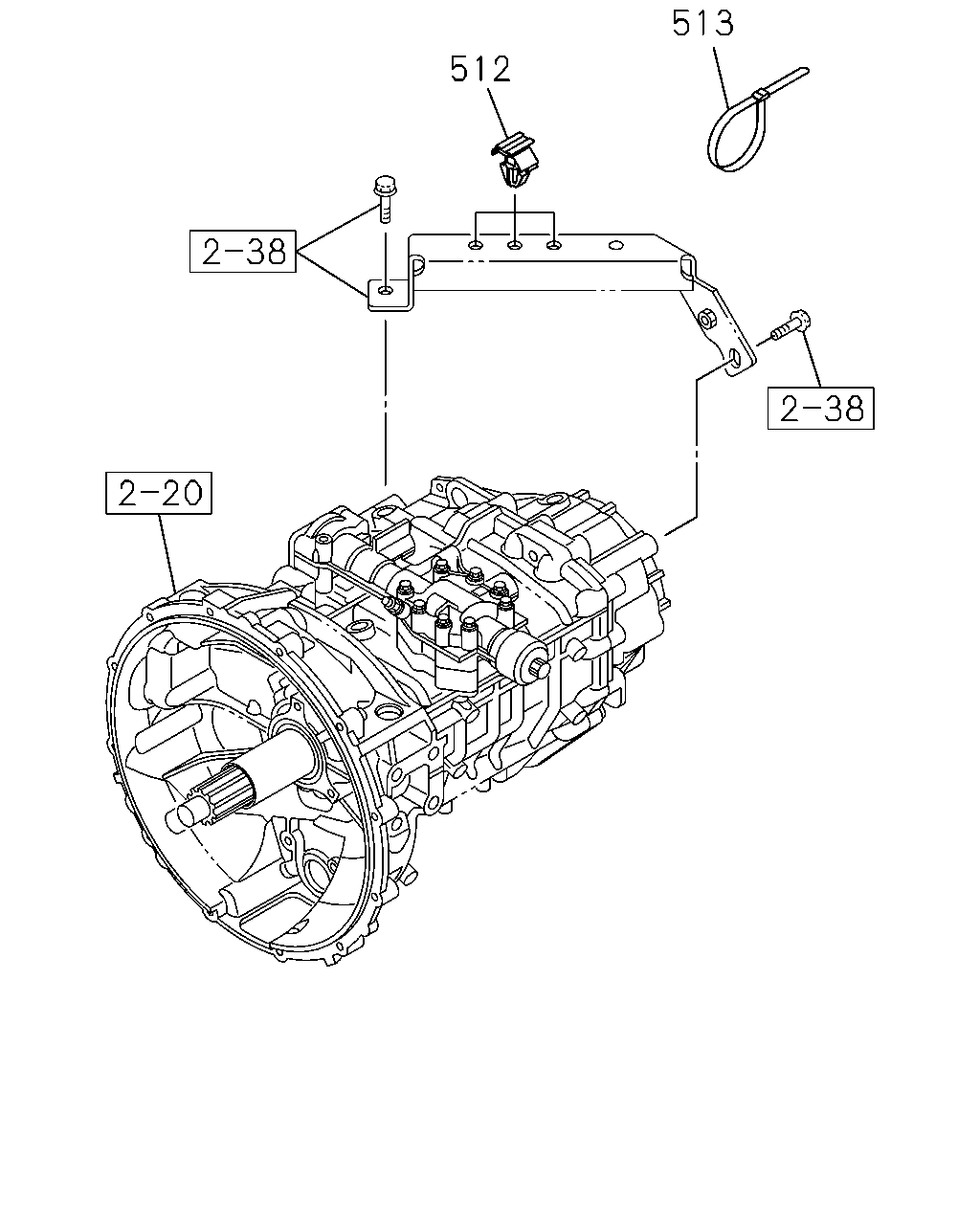

513	CLIP; BAND L=250	5-09707-030-1	02	1	1302-		●
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-	●
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-	●
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-	●
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-	●

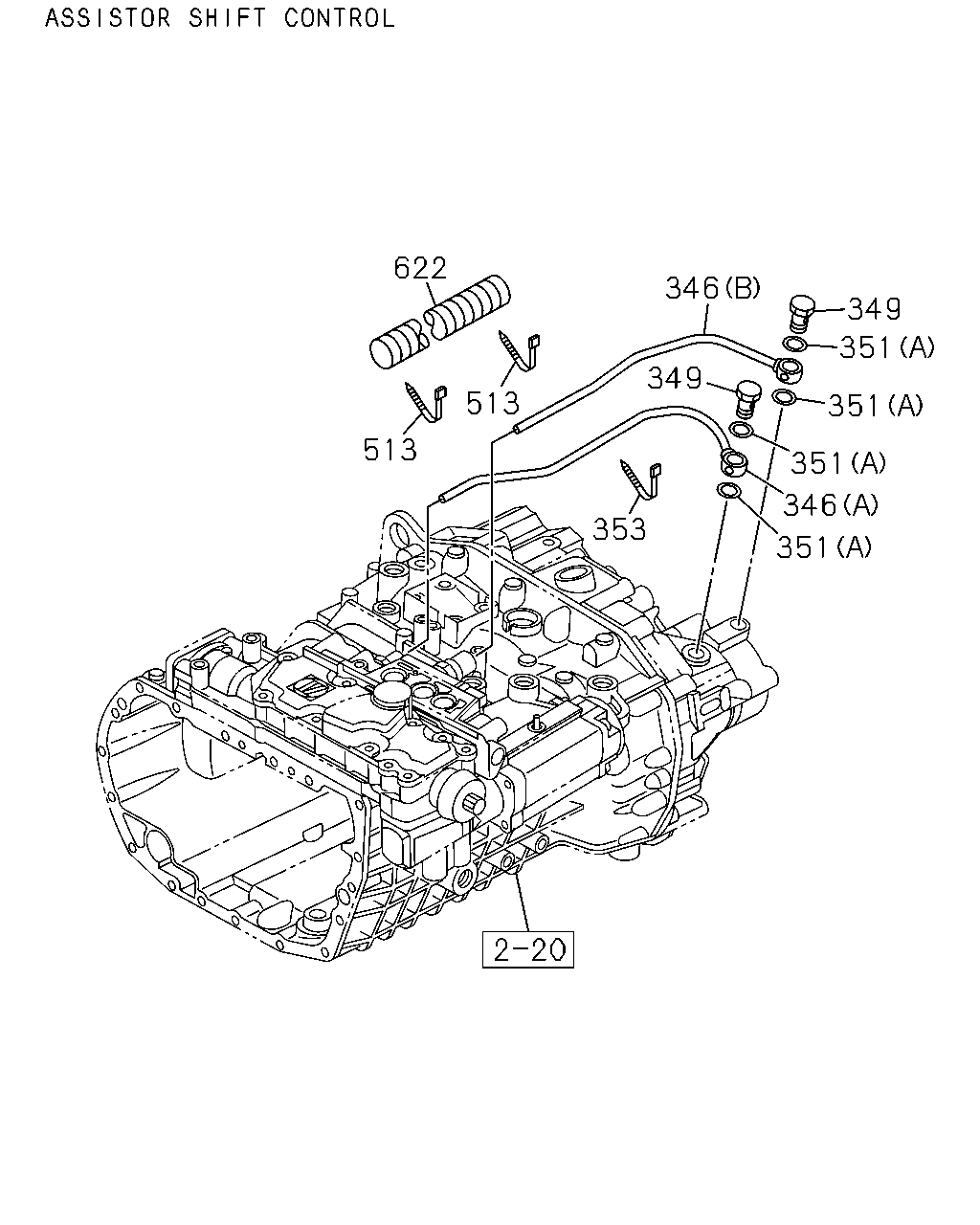

622 513 353 513 346 349 351 351 351 351 346 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-	●
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305	●
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-	●
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305	●
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-	●
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305	●
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-	●
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-	●
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-	●
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305	●
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-	●
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
513	CLIP; BAND L=250	5-09707-030-1	02	1	1302-		●
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-	●
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-	●

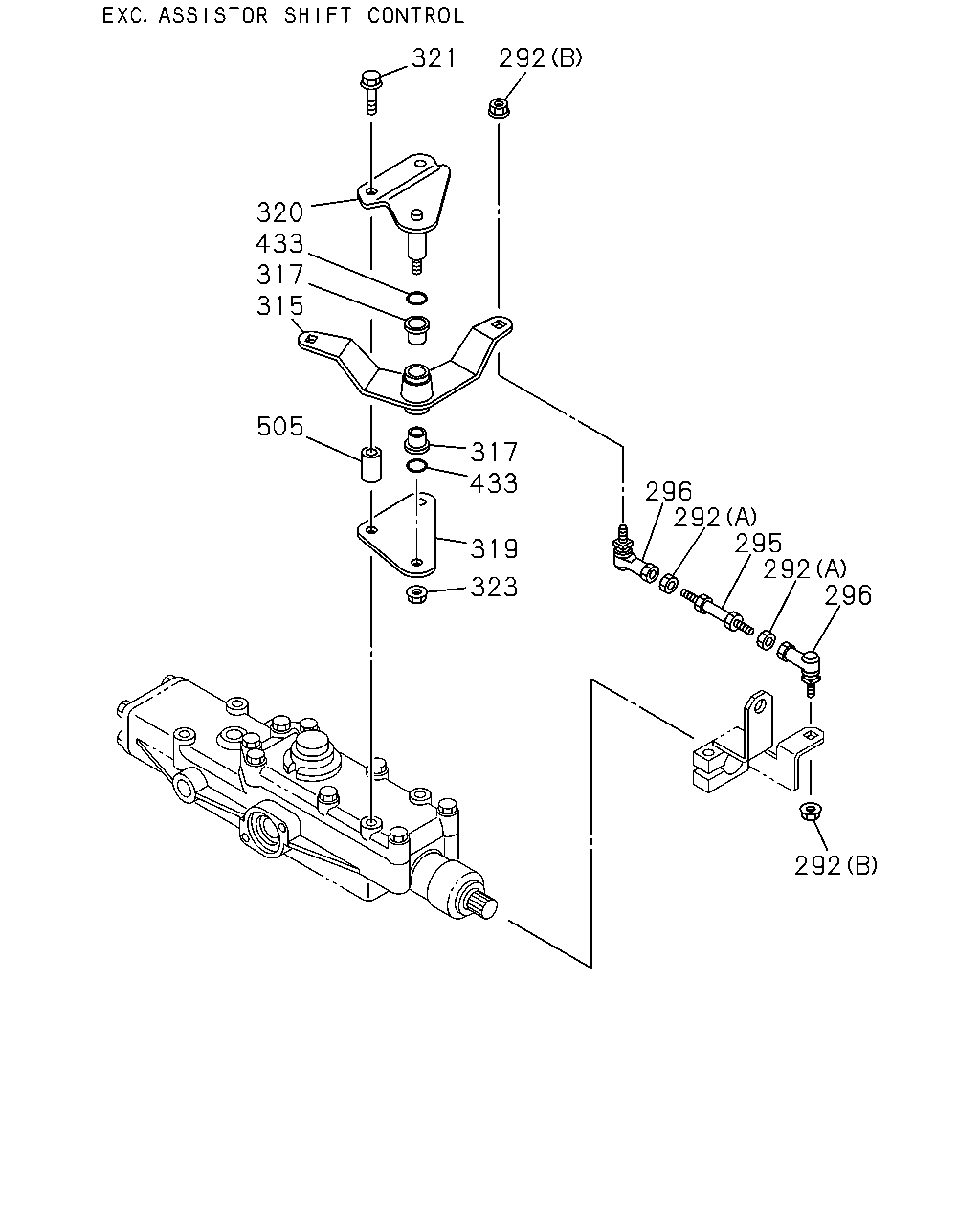

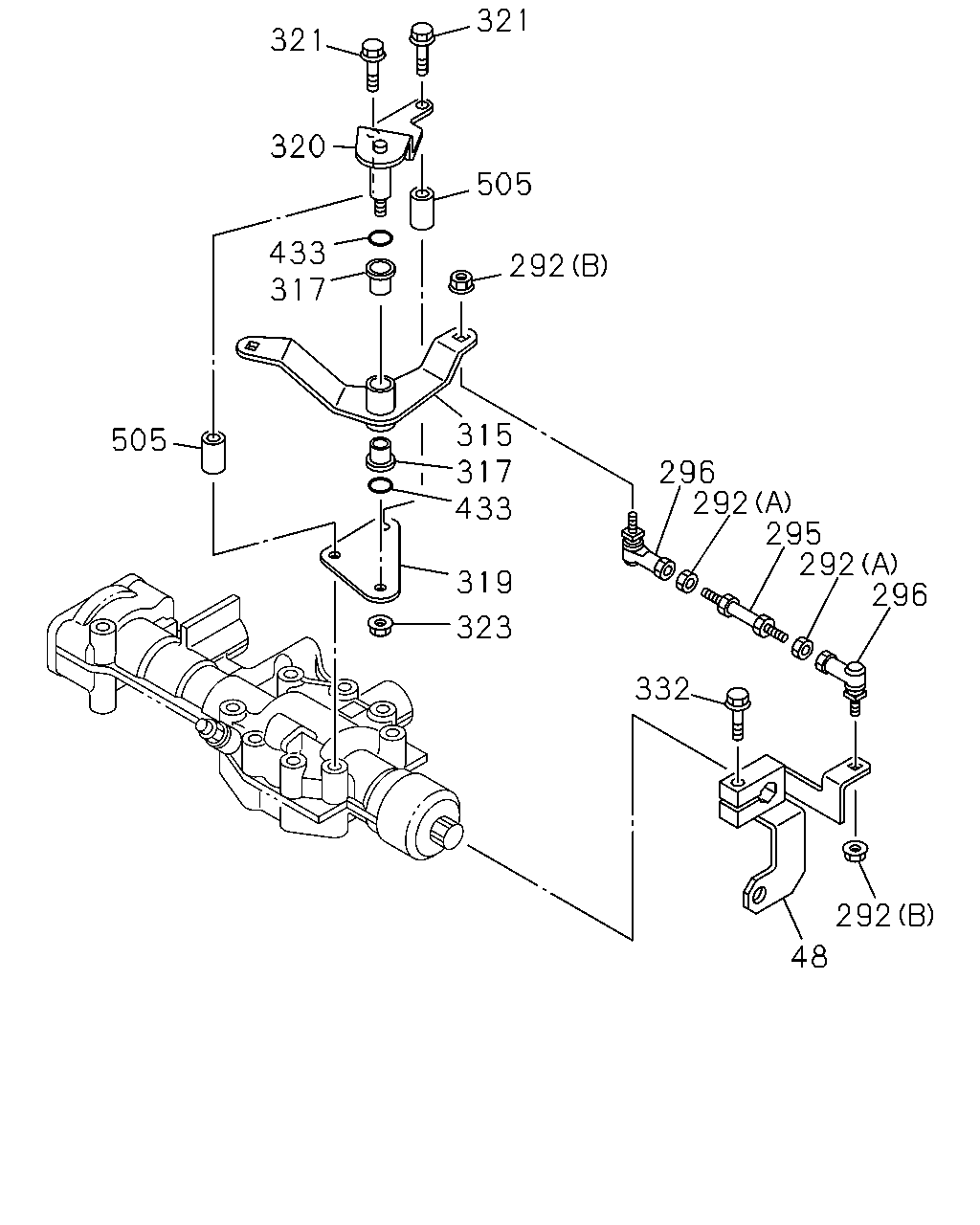

321 292 320 317 433 315 505 317 319 433 323 296 295 292 292 292 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1302-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1302-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1302-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1302-	●
295	ROD; LINK,RELAY LEVER M8 L=50	9-08400-805-0	01	1	1302-		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1302-	●
296	ROD END	1-09760-108-0	02	1	1302-		●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1302-	●
315	LEVER; SELECT	8-98071-417-0	01	1	1302-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1302-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1302-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-		●
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-	●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1302-	●
319	BRACKET; SELECT LEVER	8-98071-419-0	01	1	1302-		●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1302-	●
320	SHAFT; LEVER	8-98071-418-0	01	1	1302-		●
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-	●
321	BOLT; BRKT,RELAY LEVER	1-09040-100-0	02	1	1302-		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1302-	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91180-110-0	01	1	1302-		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-	●
433	GASKET; BUSHING	1-09623-594-0	02	1	1302-		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
505	SPACER; BRKT	1-11349-149-0	02	1	1302-		●
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1302-	●

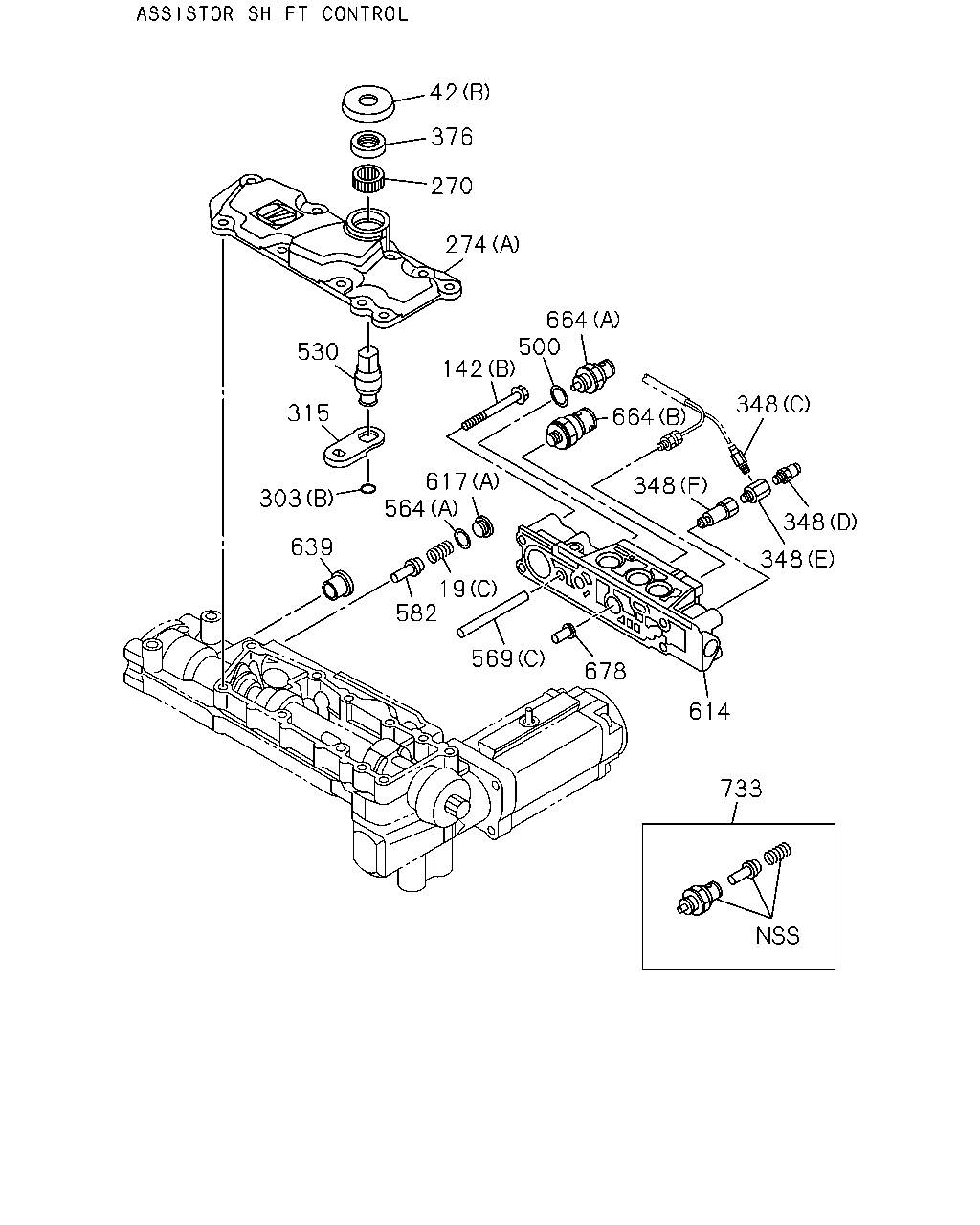

733 614 678 569 19 582 564 617 348 348 348 348 664 664 500 142 274 270 376 42 530 315 303 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

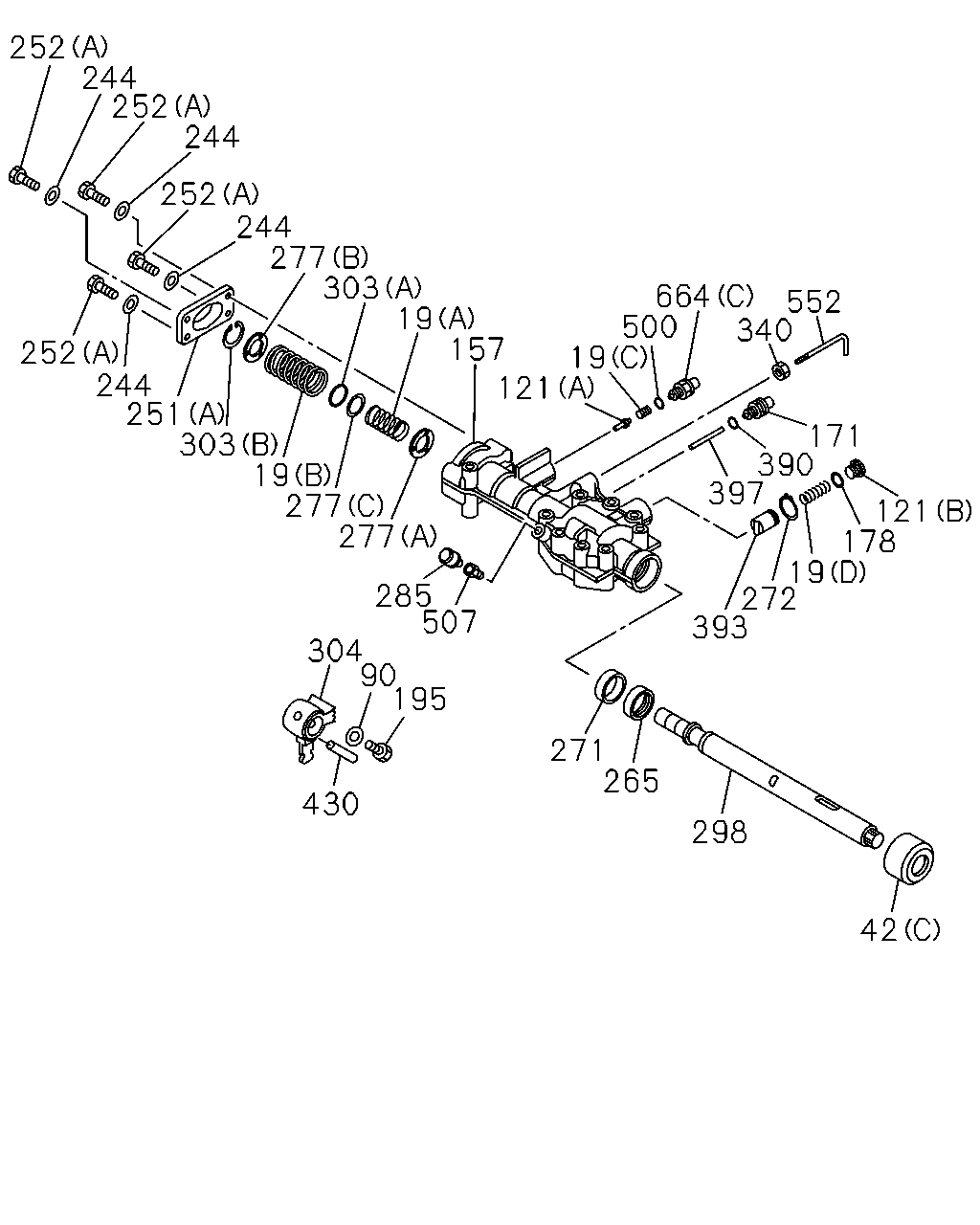

19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1302-1305		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (C)	1-33539-022-0	01	1	1302-1305	●
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1306-		●
19	SPRING; COIL COMP (B)	1-33539-031-0	01	1	1302-		●
19	SPRING; COIL COMP (A)	1-33539-096-0	01	1	1302-		●
19	SPRING; COIL COMP (D)	1-33549-520-0	01	1	1302-		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (G)	1-33539-089-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33539-027-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-030-0	02	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (I)	1-33539-104-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-221-0	01	1	1302-	●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1302-1305	●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1306-	●
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	1302-1311		●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-		●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1302-1305	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-	●

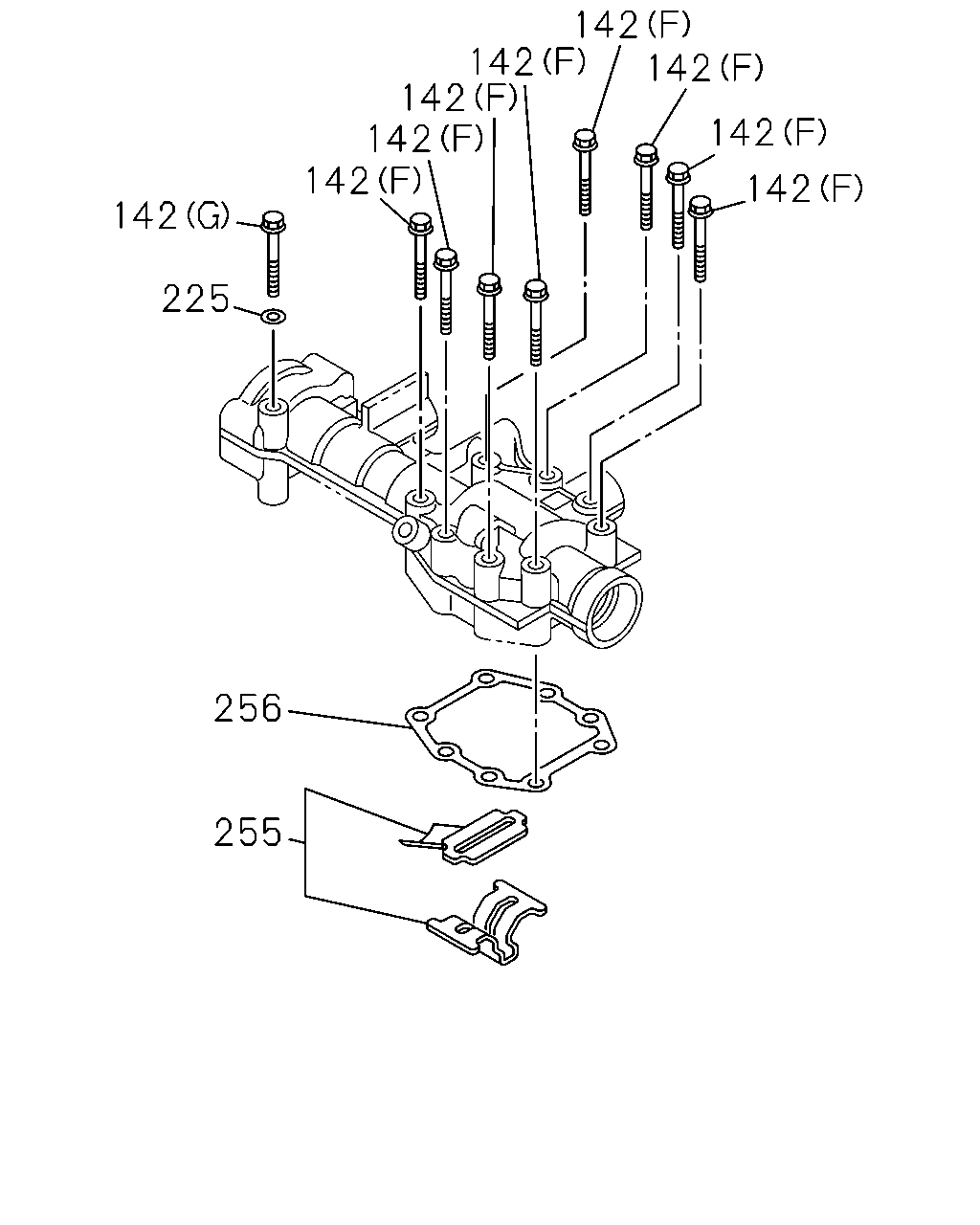

142	BOLT; QUAD BOX (F) M8X80	1-33549-256-0	08	1	1302-1311		●
142	BOLT; QUAD BOX (F) M8X80	1-33549-614-0	08	1	1312-		●
142	BOLT; QUAD BOX (G)	1-33549-290-0	01	1	1302-1311		●
142	BOLT; QUAD BOX (G) M8X100	1-33549-622-0	01	1	1312-		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X100	1-33549-582-0	06	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-	●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-	●
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1302-	●
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1306-	●
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1306-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-	●
303	RING; SNAP,SHAFT (B)	1-44519-224-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-	●
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-	●
315	LEVER; SELECT	8-98071-417-0	01	1	1302-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1302-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-	●
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305	●
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-	●
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1302-	●
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305	●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-	●
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-	●
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-	●
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-	●
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1302-	●
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1302-	●
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	1302-1305	●
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-549-0	01	1	1306-	●
617	PLUG (B)	1-34129-061-0	01	1	1302-1305	●
617	PLUG (B)	1-33539-109-0	01	1	1306-	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-	●
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	1302-1305	●
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-576-0	01	1	1306-	●
664	SWITCH (C)	1-38119-062-0	01	1	1302-		●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1302-1305	●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1306-	●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1302-	●
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1302-	●
733	REPAIR KIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-617-0	01	1	1306-	●

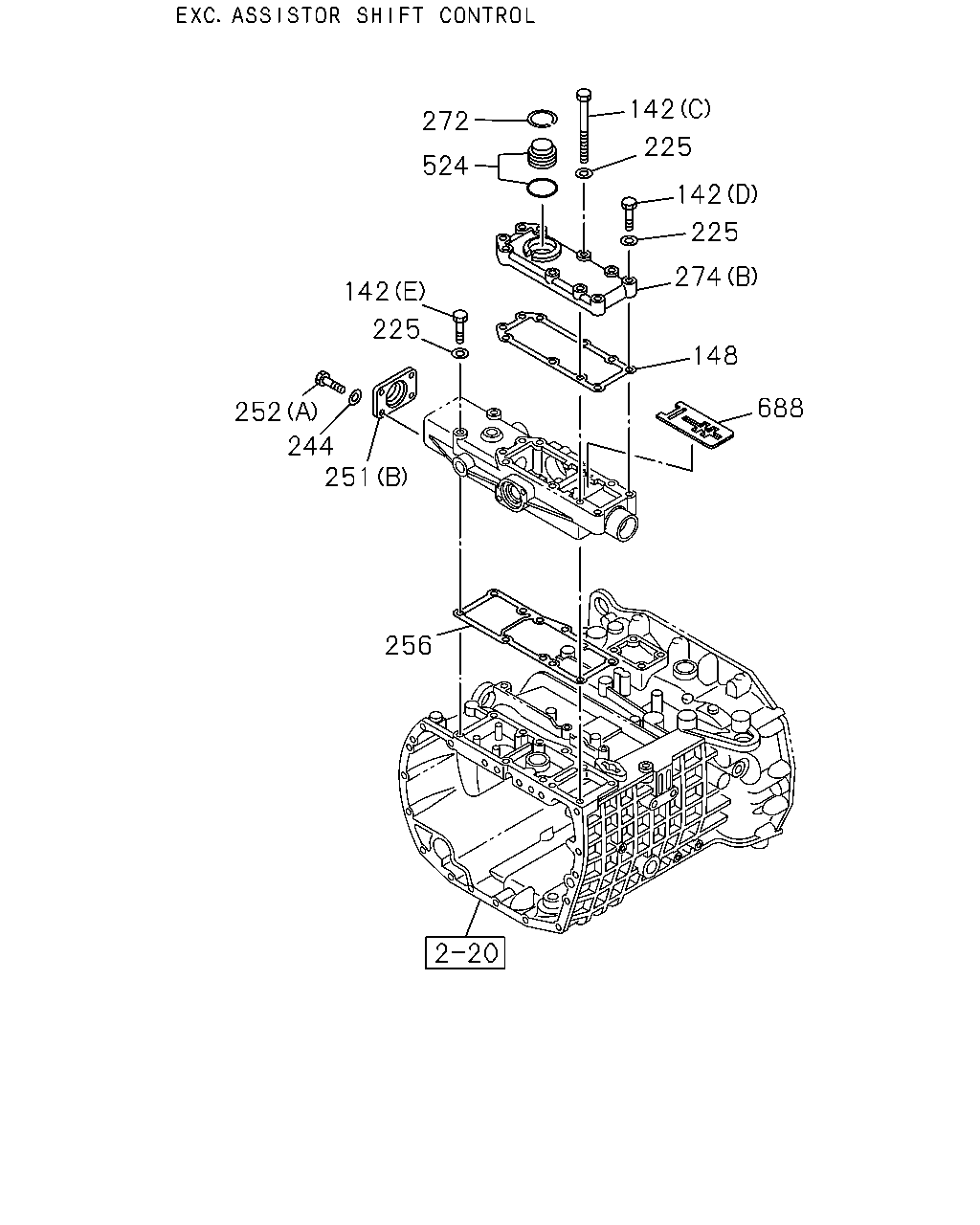

272 142 142 225 524 225 274 146 688 251 244 252 256 142 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX (F) M8X80	1-33549-256-0	08	1	1302-1311		●
142	BOLT; QUAD BOX (F) M8X80	1-33549-614-0	08	1	1312-		●
142	BOLT; QUAD BOX (G)	1-33549-290-0	01	1	1302-1311		●
142	BOLT; QUAD BOX (G) M8X100	1-33549-622-0	01	1	1312-		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X100	1-33549-582-0	06	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-	●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	01	1	1302-1311		●
225	WASHER; LK,QUAD BOX	1-33549-583-0	01	1	1312-		●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305	●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-1311	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1312-	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1306-1311		●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1302-1305		●
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1306-1311		●
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1302-1305	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1306-1311	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1312-	●	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-1311	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1306-1311		●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305	●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-	●
256	GASKET; QUAD BOX TO TRANS CASE	1-33549-504-0	01	1	1302-		●
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-	●
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-	●
272	RING; SNAP,QUAD BOX T=1.85	1-33549-514-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.35	1-33549-515-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.75	1-33549-516-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.45	1-33549-517-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.65	1-33549-518-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.55	1-33549-519-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1302-	●
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1306-	●
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1302-1305	●
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1306-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1302-	●
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1302-	●

19 19 19 277 303 277 19 19 277 234 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1302-1305		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (C)	1-33539-022-0	01	1	1302-1305	●
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1306-		●
19	SPRING; COIL COMP (B)	1-33539-031-0	01	1	1302-		●
19	SPRING; COIL COMP (A)	1-33539-096-0	01	1	1302-		●
19	SPRING; COIL COMP (D)	1-33549-520-0	01	1	1302-		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (G)	1-33539-089-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33539-027-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-030-0	02	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (I)	1-33539-104-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-221-0	01	1	1302-	●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1302-1305	●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1306-	●
234	RING; SNAP	1-44519-224-0	01	1	1302-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	01	1	1312-		●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1302-1305		●
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-042-0	01	1	1302-1305	●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1306-1311		●
277	PLATE; SPRING SEAT (C)	1-33539-108-0	01	1	1312-		●
277	PLATE; SPRING SEAT (B)	1-33539-095-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (B)	1-33539-111-0	01	1	1312-		●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1302-1305	●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-	●
303	RING; SNAP,SHAFT (B)	1-44519-224-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-	●
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●

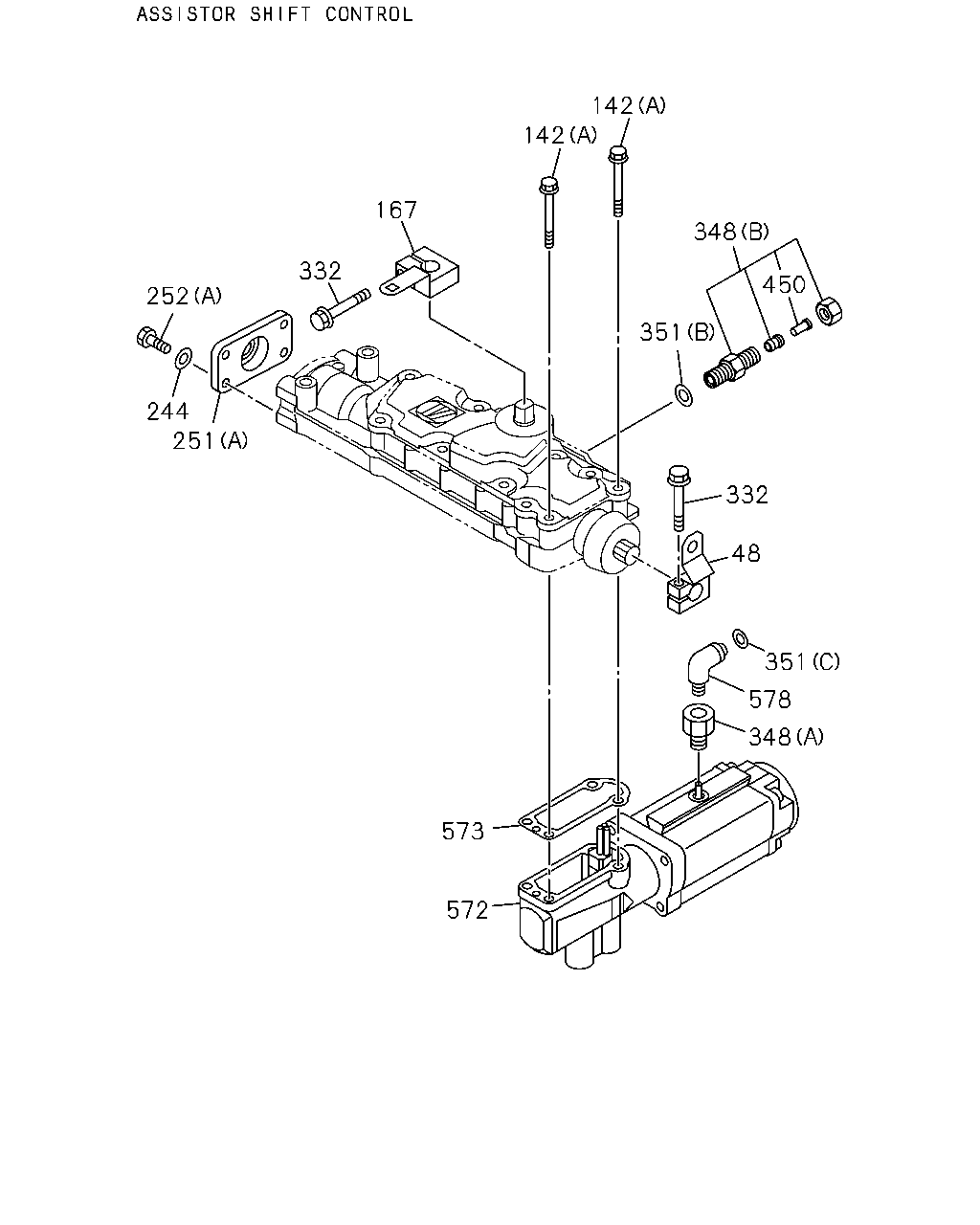

351 578 348 573 572 251 244 252 332 167 142 142 348 351 50 332 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	LEVER; 4TH,SHIFT	8-98081-304-1	01	1	1302-		●
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1302-	●
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1302-	●
142	BOLT; QUAD BOX (F) M8X80	1-33549-256-0	08	1	1302-1311		●
142	BOLT; QUAD BOX (F) M8X80	1-33549-614-0	08	1	1312-		●
142	BOLT; QUAD BOX (G)	1-33549-290-0	01	1	1302-1311		●
142	BOLT; QUAD BOX (G) M8X100	1-33549-622-0	01	1	1312-		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X100	1-33549-582-0	06	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-	●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1302-	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-1311	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1312-	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1306-1311		●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1302-1305		●
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1306-1311		●
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1302-1305	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1306-1311	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1312-	●	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-1311	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1306-1311		●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305	●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-	●
332	BOLT; 4TH,SHIFT LEVER M10X45 W/PL WASHER	8-98038-710-0	01	1	1302-		●
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-	●
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-	●
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305	●
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-	●
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305	●
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312	●
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305	●
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-	●
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1302-	●
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1302-	●
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-	●
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-	●

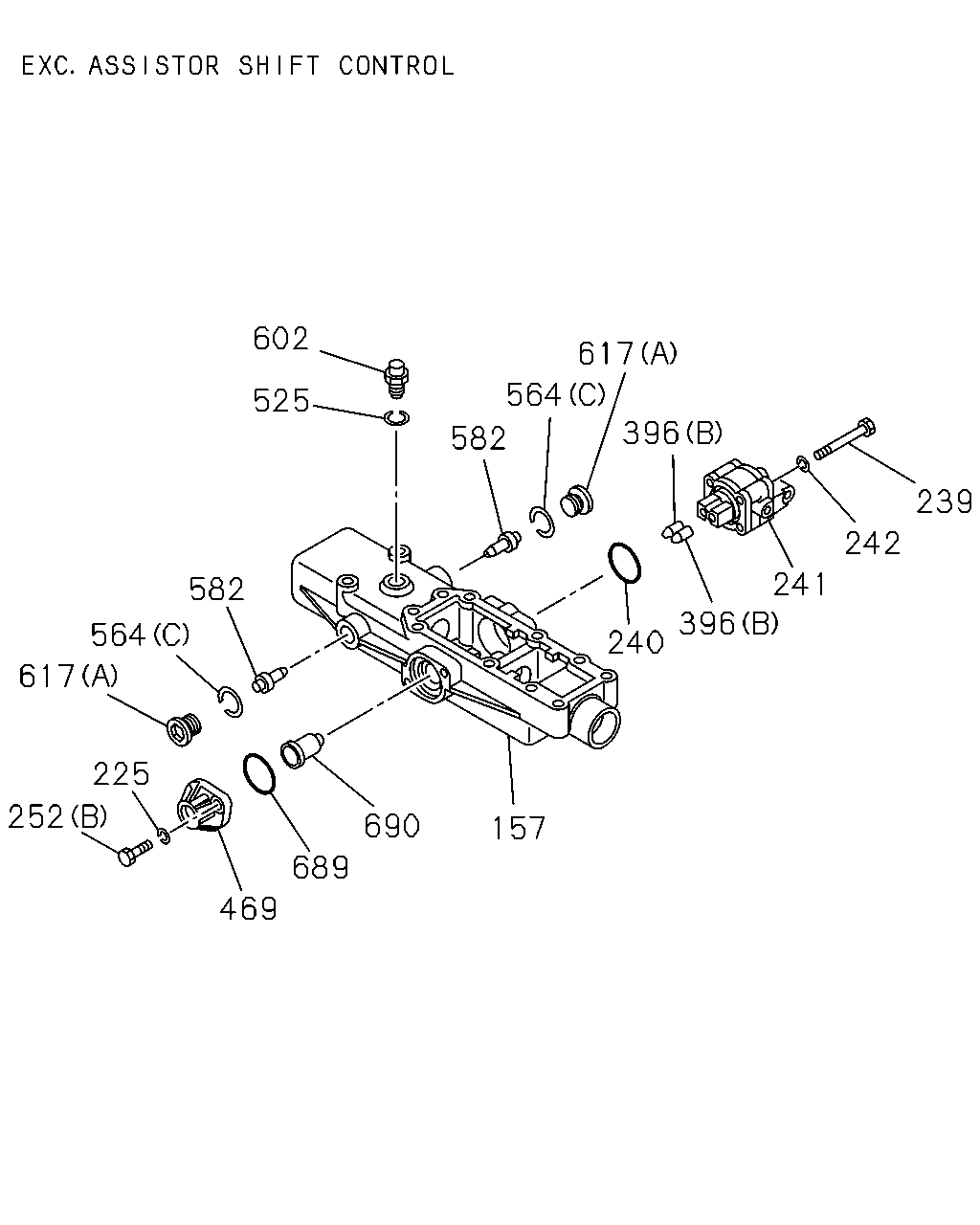

469 690 157 240 396 241 242 239 396 564 617 582 525 602 582 564 617 225 252 689

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
157	BOX; QUAD,TRANS	1-33541-543-0	01	1	1302-1311		●
157	BOX; QUAD,TRANS	1-33541-548-0	01	1	1312-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1302-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1302-	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	01	1	1302-1311		●
225	WASHER; LK,QUAD BOX	1-33549-583-0	01	1	1312-		●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305	●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-	●
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	1302-1305	●
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-585-0	04	1	1306-	●
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1302-	●
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1302-	●
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	1302-1305	●
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	04	1	1306-	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-1311	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1306-1311		●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305	●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305	●
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-	●
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1302-	●
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1302-	●
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305	●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-	●
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-	●
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-	●
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1302-	●
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1302-	●
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1302-1305	●
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-618-0	01	1	1306-	●
617	PLUG (B)	1-34129-061-0	01	1	1302-1305	●
617	PLUG (B)	1-33539-109-0	01	1	1306-	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-	●
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1302-	●
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1302-	●

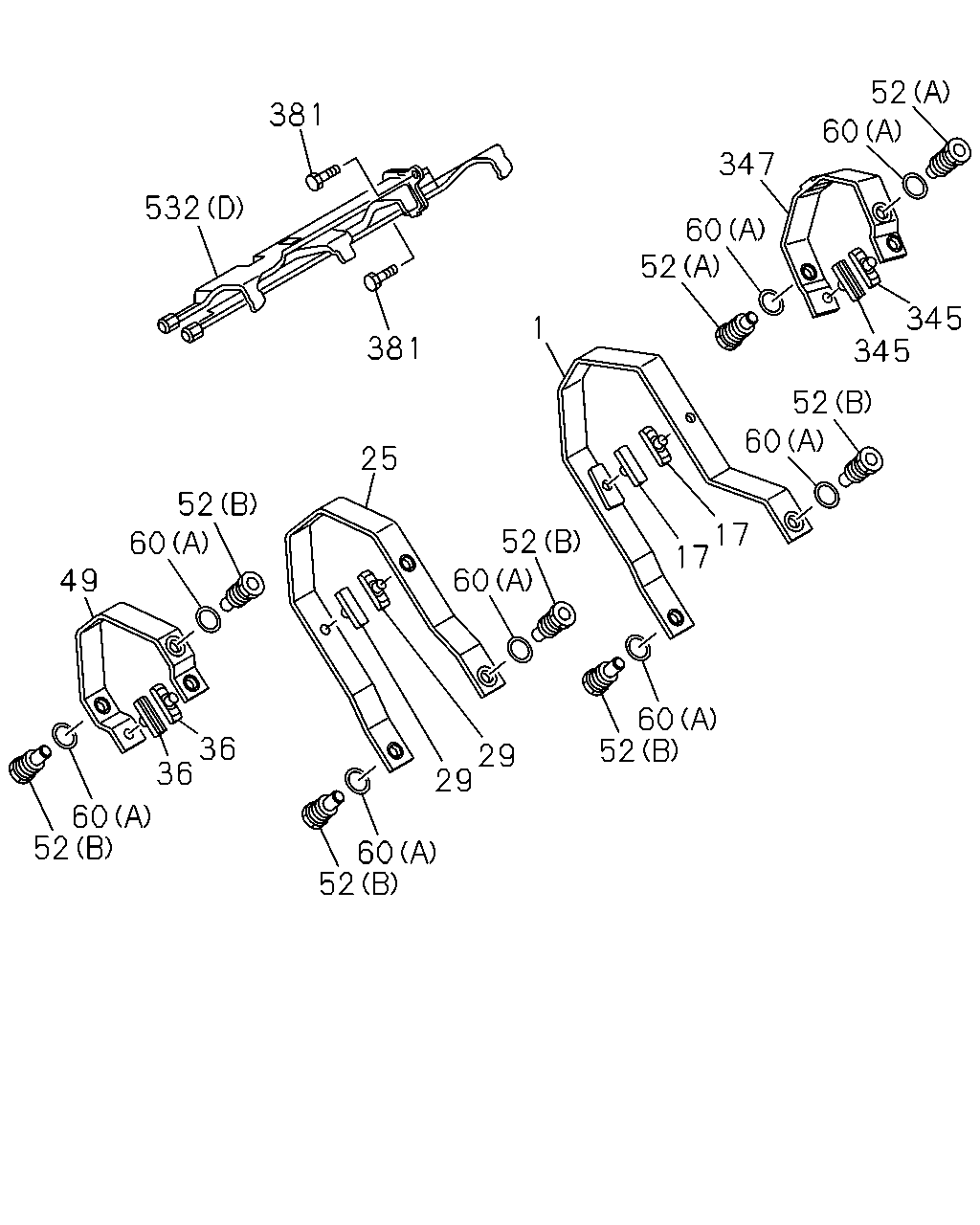

52 52 36 60 49 36 60 29 52 29 60 60 52 60 52 25 17 17 60 52 345 345 52 60 347 60 52 381 532 381 1

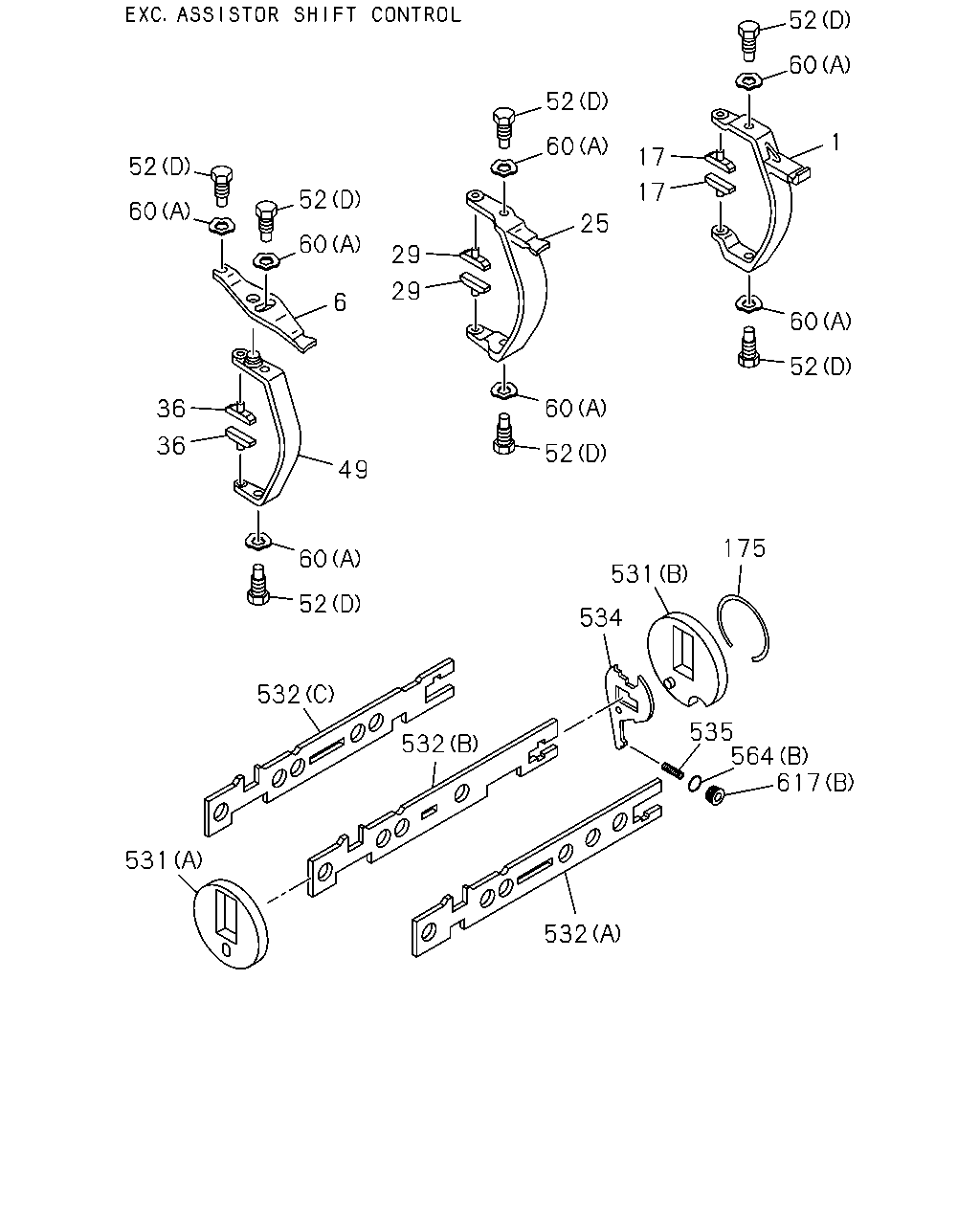

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-647-0	01	1	1302-1311		●
1	ARM; SHIFT,1ST & REV	1-33511-670-0	01	1	1312-		●
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-	●
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1302-1305		●
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1306-		●
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-648-0	01	1	1302-1311		●
25	ARM; SHIFT,2ND & 3RD	1-33511-666-0	01	1	1312-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-	●	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-173-0	02	1	1302-		●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-649-0	01	1	1302-1311		●
49	ARM; SHIFT,4TH & 5TH	1-33511-667-0	01	1	1312-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-	●
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	1302-1311		●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-		●
52	BOLT; SHIFT ARM (B)	1-33519-175-0	06	1	1302-1311		●
52	BOLT; SHIFT ARM (B)	1-33519-200-0	06	1	1312-		●
52	BOLT; SHIFT ARM (C)	1-33519-058-0	02	1	1302-1305	●
52	BOLT; SHIFT ARM (C)	1-33519-196-0	02	1	1306-	●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	1302-1305	●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-	●
60	WASHER; LK (A)	1-33519-085-0	08	1	1302-1311		●
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305	●
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-173-0	02	1	1302-		●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-646-0	01	1	1302-1311		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-668-0	01	1	1312-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-	●
381	BOLT	1-33519-178-0	02	1	1302-1311		●
381	BOLT	1-33519-201-0	02	1	1312-		●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
532	PLATE; SHIFT FORK (D)	1-33519-177-0	01	1	1302-1311		●
532	PLATE; SHIFT FORK (D)	1-33519-193-0	01	1	1312-		●
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-	●
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-	●
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-	●

234 303 277 277 19 157 148 317 570 320 570 569 265 165 571 165 289 90 304 430 90 271 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1302-1305		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (C)	1-33539-022-0	01	1	1302-1305	●
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1306-		●
19	SPRING; COIL COMP (B)	1-33539-031-0	01	1	1302-		●
19	SPRING; COIL COMP (A)	1-33539-096-0	01	1	1302-		●
19	SPRING; COIL COMP (D)	1-33549-520-0	01	1	1302-		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (G)	1-33539-089-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33539-027-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-030-0	02	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (I)	1-33539-104-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-221-0	01	1	1302-	●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1302-1305	●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1306-	●
90	RING; SNAP,SHIFT ROD	1-33549-511-0	01	1	1302-		●
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-	●
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-	●
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1302-	●
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1302-	●
157	BOX; QUAD,TRANS	1-33541-543-0	01	1	1302-1311		●
157	BOX; QUAD,TRANS	1-33541-548-0	01	1	1312-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1302-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1302-	●
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-	●
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-	●
234	RING; SNAP	1-44519-224-0	01	1	1302-	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	1302-1305		●
265	SEAL; OIL,SHIFT .	1-33549-544-0	01	1	1306-		●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-	●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1302-1305	●
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1302-	●
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	1302-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1302-	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1302-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	01	1	1312-		●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1302-1305		●
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-042-0	01	1	1302-1305	●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1306-1311		●
277	PLATE; SPRING SEAT (C)	1-33539-108-0	01	1	1312-		●
277	PLATE; SPRING SEAT (B)	1-33539-095-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (B)	1-33539-111-0	01	1	1312-		●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1302-1305	●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-	●
298	SHAFT; SHIFT LEVER	1-33522-206-0	01	1	1302-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1302-	●
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-	●
303	RING; SNAP,SHAFT (B)	1-44519-224-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-	●
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-	●
304	BLOCK; SHIFT SHAFT	1-33549-546-0	01	1	1302-		●
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1302-	●
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1302-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-		●
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-	●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1302-	●
320	SHAFT; LEVER	8-98071-418-0	01	1	1302-		●
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-	●
430	PIN; SPR,SHIFT ROD	1-33529-130-0	01	1	1302-		●
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1302-	●
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-	●
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-	●
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	1302-1305	●
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33529-117-0	02	1	1306-	●
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1302-	●

48 42 264 265 332 569 298 90 304 430 90 271 165 165 289 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	1302-1311		●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-		●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1302-1305	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-	●
48	LEVER; 4TH,SHIFT	8-98081-304-1	01	1	1302-		●
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1302-	●
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1302-	●
90	RING; SNAP,SHIFT ROD	1-33549-511-0	01	1	1302-		●
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-	●
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-	●
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-	●
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305	●
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-	●
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1302-	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	1302-1305		●
265	SEAL; OIL,SHIFT .	1-33549-544-0	01	1	1306-		●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-	●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1302-1305	●
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1302-	●
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	1302-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1302-	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1302-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-	●
298	SHAFT; SHIFT LEVER	1-33522-206-0	01	1	1302-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1302-	●
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-	●
304	BLOCK; SHIFT SHAFT	1-33549-546-0	01	1	1302-		●
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1302-	●
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1302-	●
332	BOLT; 4TH,SHIFT LEVER M10X45 W/PL WASHER	8-98038-710-0	01	1	1302-		●
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-	●
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-	●
430	PIN; SPR,SHIFT ROD	1-33529-130-0	01	1	1302-		●
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1302-	●
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-	●
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-	●

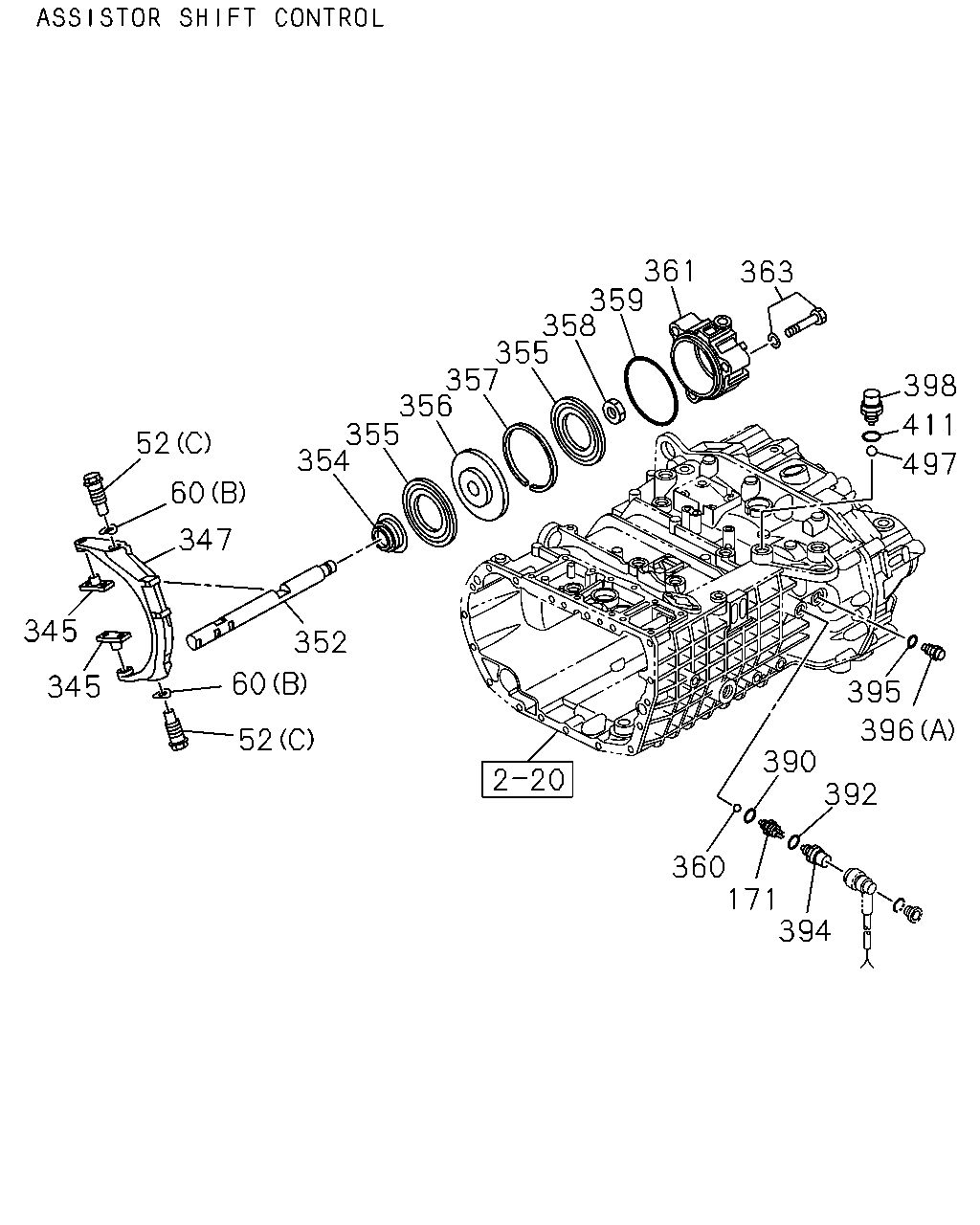

394 360 392 396 395 52 60 345 352 345 347 60 52 354 355 356 357 355 358 359 361 363 497 411 398 393 500 541 172 171 191 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	1302-1311		●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-		●
52	BOLT; SHIFT ARM (B)	1-33519-175-0	06	1	1302-1311		●
52	BOLT; SHIFT ARM (B)	1-33519-200-0	06	1	1312-		●
52	BOLT; SHIFT ARM (C)	1-33519-058-0	02	1	1302-1305	●
52	BOLT; SHIFT ARM (C)	1-33519-196-0	02	1	1306-	●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	1302-1305	●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-	●
60	WASHER; LK (A)	1-33519-085-0	08	1	1302-1311		●
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305	●
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305	●
171	SWITCH; NEUTRAL	1-33549-469-0	01	1	1302-1311		●
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-1311	●
171	SWITCH; NEUTRAL	1-33119-627-0	01	1	1312-		●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1312-	●
172	GASKET; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-	●
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	1302-1305	●
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	02	1	1306-	●
195	BOLT	1-33549-512-0	01	1	1302-		●
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1302-1305	●
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1306-	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-173-0	02	1	1302-		●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-646-0	01	1	1302-1311		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-668-0	01	1	1312-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-	●
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-	●
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-	●
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305	●
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-	●
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-	●
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305	●
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305	●
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-	●
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305	●
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305	●
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-	●
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-	●
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-	●
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-	●
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305	●
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305	●
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305	●
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-	●
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1302-	●
393	PIN; SW	1-33549-513-0	01	1	1302-		●
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-	●
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305	●
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305	●
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-	●
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-	●
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305	●
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305	●
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-	●
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-	●
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-	●
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
497	BALL; SWITCH	1-33119-252-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-	●
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1302-	●

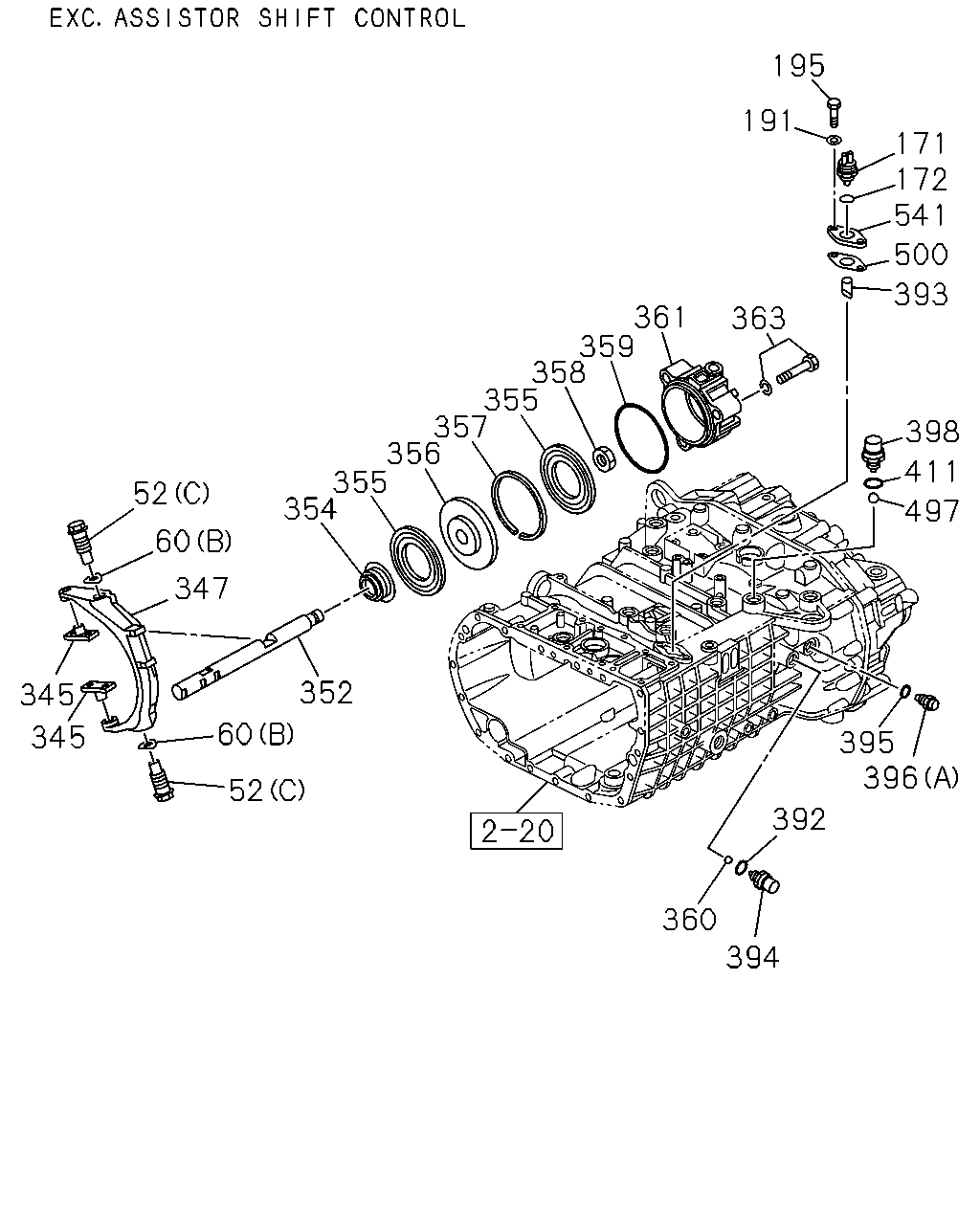

52 345 345 60 52 352 347 60 354 355 356 357 355 358 359 361 363 398 497 411 395 396 392 360 171 394 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	1302-1311		●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-		●
52	BOLT; SHIFT ARM (B)	1-33519-175-0	06	1	1302-1311		●
52	BOLT; SHIFT ARM (B)	1-33519-200-0	06	1	1312-		●
52	BOLT; SHIFT ARM (C)	1-33519-058-0	02	1	1302-1305	●
52	BOLT; SHIFT ARM (C)	1-33519-196-0	02	1	1306-	●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	1302-1305	●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-	●
60	WASHER; LK (A)	1-33519-085-0	08	1	1302-1311		●
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305	●
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305	●
171	SWITCH; NEUTRAL	1-33549-469-0	01	1	1302-1311		●
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-1311	●
171	SWITCH; NEUTRAL	1-33119-627-0	01	1	1312-		●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1312-	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-173-0	02	1	1302-		●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-646-0	01	1	1302-1311		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-668-0	01	1	1312-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-	●
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-	●
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-	●
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305	●
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-	●
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-	●
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305	●
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305	●
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-	●
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305	●
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305	●
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-	●
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-	●
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-	●
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-	●
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305	●
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305	●
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305	●
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-	●
390	GASKET; NEUTRAL SW	1-33119-249-0	01	1	1302-1305		●
390	GASKET; NEUTRAL SW ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1302-1305	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1306-		●
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1302-	●
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305	●
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305	●
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-	●
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-	●
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305	●
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305	●
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-	●
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-	●
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-	●
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
497	BALL; SWITCH	1-33119-252-0	01	1	1302-	●

48 332 292 296 292 295 292 296 323 319 433 317 315 505 317 433 292 505 321 321 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	LEVER; 4TH,SHIFT	8-98081-304-1	01	1	1302-		●
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1302-	●
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1302-	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1302-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1302-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1302-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1302-	●
295	ROD; LINK,RELAY LEVER M8 L=50	9-08400-805-0	01	1	1302-		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1302-	●
296	ROD END	1-09760-108-0	02	1	1302-		●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1302-	●
315	LEVER; SELECT	8-98071-417-0	01	1	1302-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1302-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1302-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-		●
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-	●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1302-	●
319	BRACKET; SELECT LEVER	8-98071-419-0	01	1	1302-		●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1302-	●
320	SHAFT; LEVER	8-98071-418-0	01	1	1302-		●
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-	●
321	BOLT; BRKT,RELAY LEVER	1-09040-100-0	02	1	1302-		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1302-	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91180-110-0	01	1	1302-		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-	●
332	BOLT; 4TH,SHIFT LEVER M10X45 W/PL WASHER	8-98038-710-0	01	1	1302-		●
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-	●
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-	●
433	GASKET; BUSHING	1-09623-594-0	02	1	1302-		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
505	SPACER; BRKT	1-11349-149-0	02	1	1302-		●
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1302-	●

512 443 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	1302-		●
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-	●
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-	●

252 252 244 244 252 277 244 303 19 157 121 19 500 664 552 340 171 390 397 121 178 19 272 393 507 277 277 19 303 251 244 252 285 304 90 195 430 271 265 298 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1302-1305		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (C)	1-33539-022-0	01	1	1302-1305	●
19	SPRING; COIL COMP (C)	1-33539-022-0	01	1	1306-		●
19	SPRING; COIL COMP (B)	1-33539-031-0	01	1	1302-		●
19	SPRING; COIL COMP (A)	1-33539-096-0	01	1	1302-		●
19	SPRING; COIL COMP (D)	1-33549-520-0	01	1	1302-		●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (G)	1-33539-089-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33539-027-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-030-0	02	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (I)	1-33539-104-0	01	1	1302-	●
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-221-0	01	1	1302-	●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1302-1305	●
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-090-0	01	1	1306-	●
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	1302-1311		●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-		●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1302-1305	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-	●
90	RING; SNAP,SHIFT ROD	1-33549-511-0	01	1	1302-		●
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-	●
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-	●
121	PLUG; DETENT SPR (A)	1-33549-487-0	01	1	1302-		●
121	PLUG; DETENT SPR (B)	1-33549-521-0	01	1	1302-1311		●
121	PLUG; DETENT SPR (B)	1-33549-594-0	01	1	1312-		●
157	BOX; QUAD,TRANS	1-33541-543-0	01	1	1302-1311		●
157	BOX; QUAD,TRANS	1-33541-548-0	01	1	1312-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1302-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1302-	●
171	SWITCH; NEUTRAL	1-33549-469-0	01	1	1302-1311		●
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305	●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-1311	●
171	SWITCH; NEUTRAL	1-33119-627-0	01	1	1312-		●
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1312-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33379-007-0	01	1	1302-		●
195	BOLT	1-33549-512-0	01	1	1302-		●
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1302-1305	●
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1306-	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-1311	●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1312-	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1306-1311		●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1302-1305		●
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1302-1305	●
251	COVER; SIDE (B)	1-33549-478-0	01	1	1306-1311		●
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1302-1305	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1306-1311	●
251	COVER; SIDE (A)	1-33549-590-0	01	1	1312-	●	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-1311	●
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305	●	●
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1306-1311		●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305	●
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	1302-1305		●
265	SEAL; OIL,SHIFT .	1-33549-544-0	01	1	1306-		●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-	●
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1302-1305	●
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1302-	●
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	1302-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1302-	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1302-	●
272	RING; SNAP,QUAD BOX T=1.85	1-33549-514-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.35	1-33549-515-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.75	1-33549-516-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.45	1-33549-517-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.65	1-33549-518-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX T=1.55	1-33549-519-0	01	1	1302-		●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1302-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	01	1	1312-		●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1302-1305		●
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-042-0	01	1	1302-1305	●
277	PLATE; SPRING SEAT (C)	1-33539-042-0	01	1	1306-1311		●
277	PLATE; SPRING SEAT (C)	1-33539-108-0	01	1	1312-		●
277	PLATE; SPRING SEAT (B)	1-33539-095-0	01	1	1302-1311		●
277	PLATE; SPRING SEAT (B)	1-33539-111-0	01	1	1312-		●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1302-1305	●
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-	●
285	BREATHER; AIR,QUAD BOX	1-36122-004-0	01	1	1302-1311		●
285	BREATHER; AIR,QUAD BOX	1-36122-006-0	01	1	1312-		●
298	SHAFT; SHIFT LEVER	1-33522-206-0	01	1	1302-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1302-	●
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1302-1305	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-	●
303	RING; SNAP,SHAFT (B)	1-44519-224-0	01	1	1302-		●
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-	●
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-	●
304	BLOCK; SHIFT SHAFT	1-33549-546-0	01	1	1302-		●
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1302-	●
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1302-	●
340	NUT; BRKT M8	1-21719-024-0	01	1	1302-1311		●
340	NUT; BRKT	1-33549-607-0	01	1	1312-		●
390	GASKET; NEUTRAL SW	1-33119-249-0	01	1	1302-1305		●
390	GASKET; NEUTRAL SW ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1302-1305	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1306-		●
393	PIN; SW	1-33549-513-0	01	1	1302-		●
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-	●
397	BUSHING; PLUNGER	1-33549-522-0	01	1	1302-		●
430	PIN; SPR,SHIFT ROD	1-33529-130-0	01	1	1302-		●
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1302-	●
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-	●
507	ADAPTER; BREATHER	1-33549-545-0	01	1	1302-1311		●
507	ADAPTER; BREATHER	1-33549-621-0	01	1	1312-		●
552	BRACKET	1-33549-523-0	01	1	1302-1311		●
552	BRACKET	1-33549-623-0	01	1	1312-		●
664	SWITCH (C)	1-38119-062-0	01	1	1302-		●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1302-1305	●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1306-	●
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1302-	●

512 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	1302-		●
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-	●
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-	●
513	CLIP; BAND L=250	5-09707-030-1	02	1	1302-		●
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-	●
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-	●

142 142 142 142 142 142 142 142 142 225 256 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX (F) M8X80	1-33549-256-0	08	1	1302-1311		●
142	BOLT; QUAD BOX (F) M8X80	1-33549-614-0	08	1	1312-		●
142	BOLT; QUAD BOX (G)	1-33549-290-0	01	1	1302-1311		●
142	BOLT; QUAD BOX (G) M8X100	1-33549-622-0	01	1	1312-		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X100	1-33549-582-0	06	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-	●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	01	1	1302-1311		●
225	WASHER; LK,QUAD BOX	1-33549-583-0	01	1	1312-		●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305	●
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-	●
255	PLATE; DIST,QUAD BOX	1-33549-505-0	01	1	1302-		●
256	GASKET; QUAD BOX TO TRANS CASE	1-33549-504-0	01	1	1302-		●
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-	●
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●

142 677 310 569 42 418 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	1302-1311		●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-		●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305	●
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1302-1305	●
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-589-0	01	1	1306-	●
142	BOLT; QUAD BOX (F) M8X80	1-33549-256-0	08	1	1302-1311		●
142	BOLT; QUAD BOX (F) M8X80	1-33549-614-0	08	1	1312-		●
142	BOLT; QUAD BOX (G)	1-33549-290-0	01	1	1302-1311		●
142	BOLT; QUAD BOX (G) M8X100	1-33549-622-0	01	1	1312-		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X100	1-33549-582-0	06	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X75	1-33549-584-0	02	1	1306-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-	●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-	●
256	GASKET; QUAD BOX TO TRANS CASE	1-33549-504-0	01	1	1302-		●
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-	●
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-	●
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1302-	●
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-	●
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-	●
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-	●
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1302-	●

287 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1302-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	1302-		●
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-	●
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-	●

52 2 60 60 6 29 52 60 25 60 52 49 36 52 36 60 532 531 532 532 534 535 564 617 175 531 52 60 17 17 1 60 52 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-647-0	01	1	1302-1311		●
1	ARM; SHIFT,1ST & REV	1-33511-670-0	01	1	1312-		●
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-	●
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305	●
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305	●
6	LEVER; RELAY	1-33511-658-0	01	1	1306-	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1302-1305		●
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1306-		●
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-648-0	01	1	1302-1311		●
25	ARM; SHIFT,2ND & 3RD	1-33511-666-0	01	1	1312-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-	●	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-173-0	02	1	1302-		●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-649-0	01	1	1302-1311		●
49	ARM; SHIFT,4TH & 5TH	1-33511-667-0	01	1	1312-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-	●
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	1302-1311		●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-		●
52	BOLT; SHIFT ARM (B)	1-33519-175-0	06	1	1302-1311		●
52	BOLT; SHIFT ARM (B)	1-33519-200-0	06	1	1312-		●
52	BOLT; SHIFT ARM (C)	1-33519-058-0	02	1	1302-1305	●
52	BOLT; SHIFT ARM (C)	1-33519-196-0	02	1	1306-	●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	1302-1305	●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-	●
60	WASHER; LK (A)	1-33519-085-0	08	1	1302-1311		●
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305	●
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-	●
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-	●
532	PLATE; SHIFT FORK (D)	1-33519-177-0	01	1	1302-1311		●
532	PLATE; SHIFT FORK (D)	1-33519-193-0	01	1	1312-		●
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-	●
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-	●
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-	●
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-	●
535	SPRING; LEVER	1-33539-049-0	01	1	1302-	●
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305	●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-	●
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-	●
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-	●
617	PLUG (B)	1-34129-061-0	01	1	1302-1305	●
617	PLUG (B)	1-33539-109-0	01	1	1306-	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-	●

532 617 564 535 534 175 531 532 532 531 52 60 60 52 60 1 60 52 17 17 25 60 52 29 29 6 60 52 60 52 49 36 36 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-647-0	01	1	1302-1311		●
1	ARM; SHIFT,1ST & REV	1-33511-670-0	01	1	1312-		●
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305	●
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-	●
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305	●
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305	●
6	LEVER; RELAY	1-33511-658-0	01	1	1306-	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1302-1305		●
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1306-		●
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305	●
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-648-0	01	1	1302-1311		●
25	ARM; SHIFT,2ND & 3RD	1-33511-666-0	01	1	1312-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-	●	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-173-0	02	1	1302-		●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-649-0	01	1	1302-1311		●
49	ARM; SHIFT,4TH & 5TH	1-33511-667-0	01	1	1312-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-	●
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	1302-1311		●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-		●
52	BOLT; SHIFT ARM (B)	1-33519-175-0	06	1	1302-1311		●
52	BOLT; SHIFT ARM (B)	1-33519-200-0	06	1	1312-		●
52	BOLT; SHIFT ARM (C)	1-33519-058-0	02	1	1302-1305	●
52	BOLT; SHIFT ARM (C)	1-33519-196-0	02	1	1306-	●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	1302-1305	●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-	●
60	WASHER; LK (A)	1-33519-085-0	08	1	1302-1311		●
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305	●
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305	●
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-	●
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-	●
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-	●
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-	●
532	PLATE; SHIFT FORK (D)	1-33519-177-0	01	1	1302-1311		●
532	PLATE; SHIFT FORK (D)	1-33519-193-0	01	1	1312-		●
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-	●
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-	●
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-	●
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-	●
535	SPRING; LEVER	1-33539-049-0	01	1	1302-	●
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305	●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-	●
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-	●
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-	●
617	PLUG (B)	1-34129-061-0	01	1	1302-1305	●
617	PLUG (B)	1-33539-109-0	01	1	1306-	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305	●
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305	●
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
