2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#112936) — 100 parça

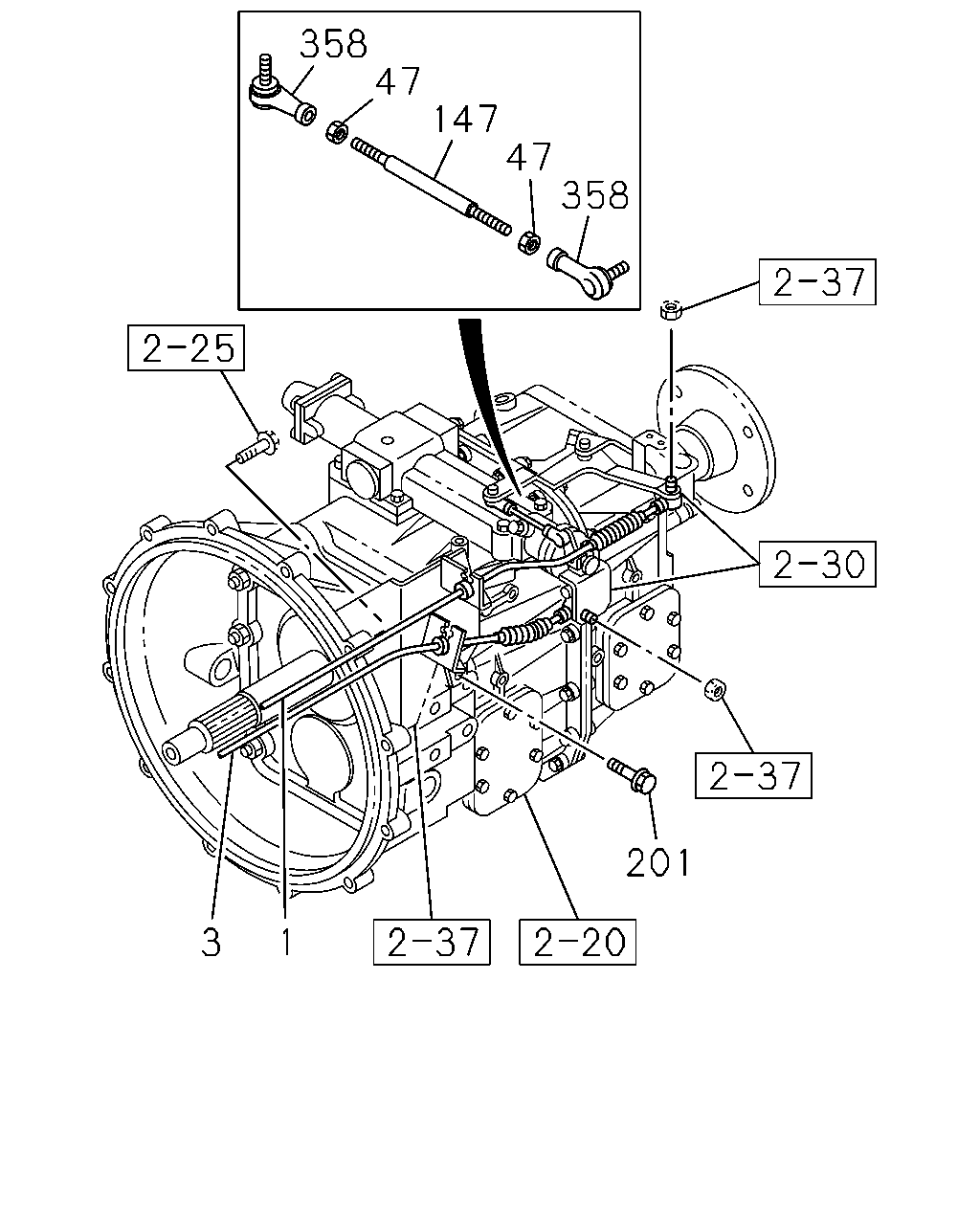

358 47 147 47 358 201 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3450	8-98309-429-0	01	1	1503-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3455	8-98178-343-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3455	8-98150-336-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-473-6	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1302-1502
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1503-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415	8-98309-428-0	01	1	1503-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3630	8-98178-344-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3630	8-98150-337-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495	8-98017-494-5	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1302-1502
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1503-
47	NUT; LK,LINK ROD FULLER ES11109 DD M/T(Y5N) M8	0-91111-508-0	02	1	1302-
147	ROD; LINK FULLER ES11109 DD M/T(Y5N)	0-84000-808-0	01	1	1302-
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1302-
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1302-
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	1302-
201	BOLT; BRKT M12X35 FLANGE	0-28151-235-0	01	1	1302-
358	ROD END; SCREW FULLER ES11109 DD M/T(Y5N) L=45.5	1-09760-118-1	02	1	1302-

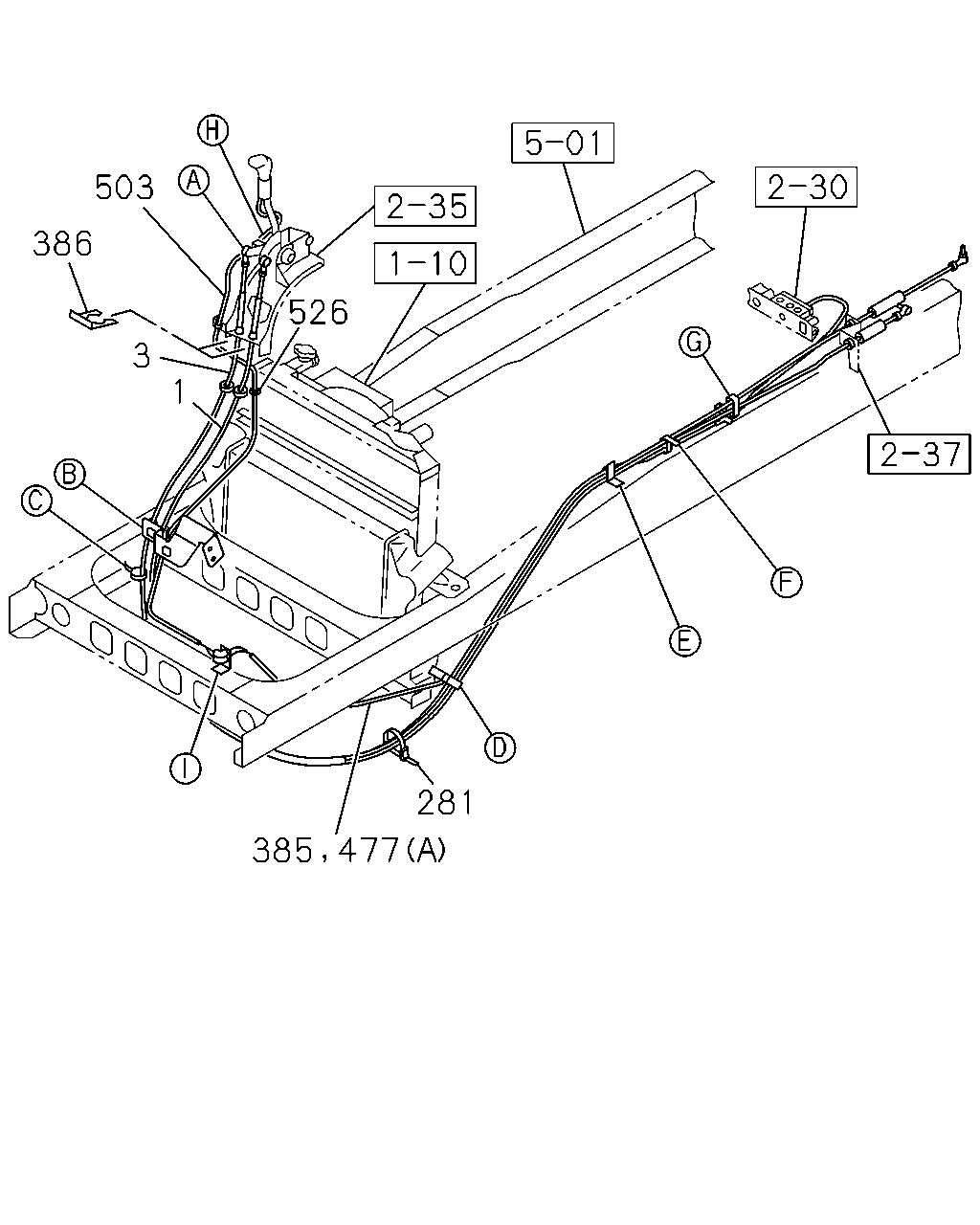

503 386 3 1 526 281 477 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3450	8-98309-429-0	01	1	1503-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3455	8-98178-343-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3455	8-98150-336-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-473-6	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1302-1502
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1503-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415	8-98309-428-0	01	1	1503-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3630	8-98178-344-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3630	8-98150-337-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495	8-98017-494-5	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1302-1502
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1503-
281	CLIP; BAND L=300	1-09707-001-1	01	1	1302-
385	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1302-
385	TUBE; NYLON FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1302-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1302-
503	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1302-
503	TUBE; NYLON FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1302-
503	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-
526	GROMMET ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	5-09333-062-0	01	1	1302-
526	GROMMET FULLER ES11109 DD M/T(Y5N)	5-09333-062-0	01	1	1302-

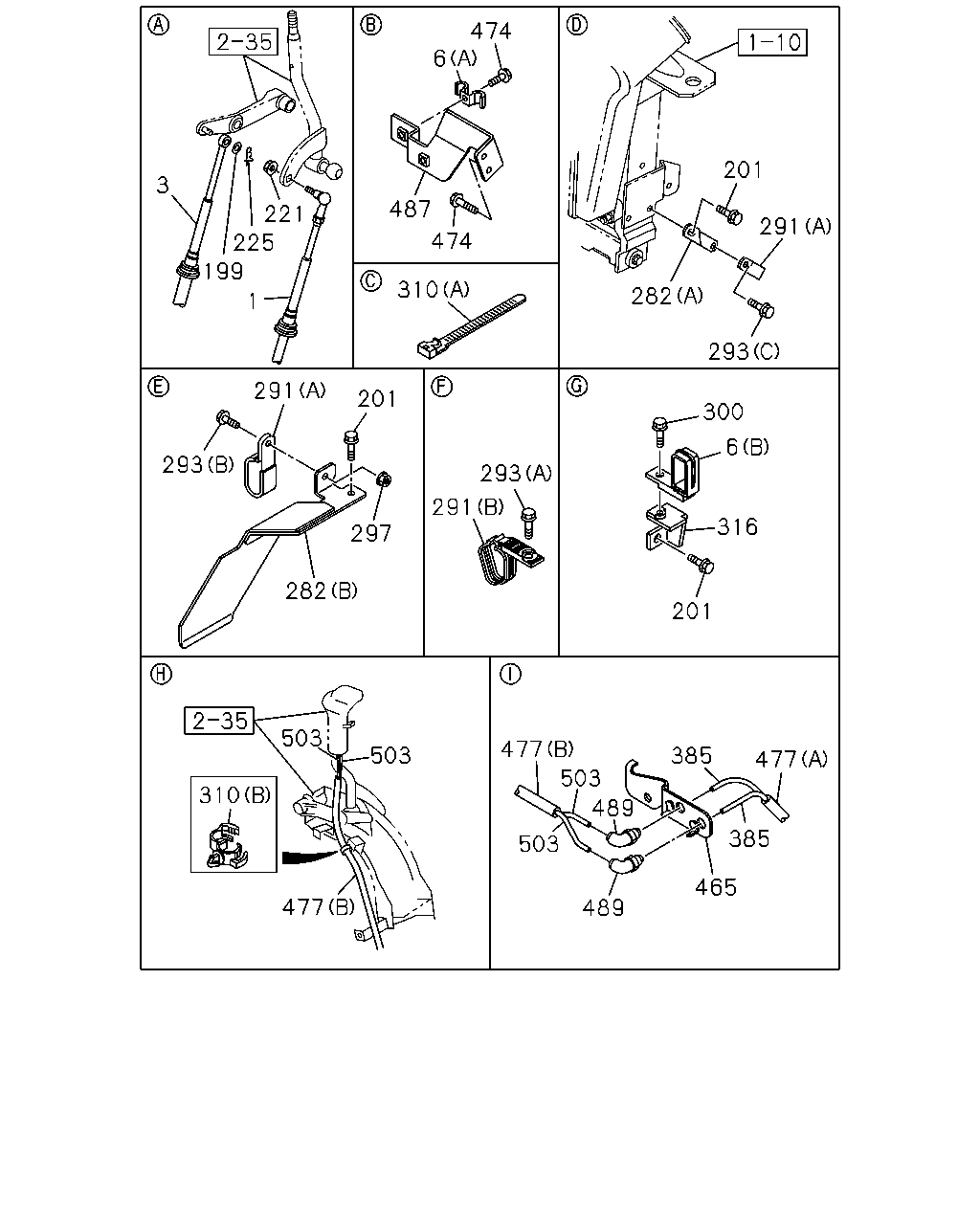

465 477 385 385 477 503 503 489 489 477 503 503 201 316 6 300 293 291 297 282 201 291 293 293 282 201 291 310 474 487 6 474 1 199 225 221 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3450	8-98309-429-0	01	1	1503-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3455	8-98178-343-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3455	8-98150-336-2	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-473-6	01	1	1302-
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1302-1502
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3430	8-98017-476-6	01	1	1503-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415	8-98309-428-0	01	1	1503-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> L=3630	8-98178-344-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5> L=3630	8-98150-337-1	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495	8-98017-494-5	01	1	1302-
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1302-1502
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-497-5	01	1	1503-
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1302-
6	CLIP; CABLE (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1302-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1302-
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1302-
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1302-
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	1302-
201	BOLT; BRKT M12X35 FLANGE	0-28151-235-0	01	1	1302-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1302-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1302-
282	BRACKET; TRANS SIDE (A)	8-98098-265-2	01	1	1302-
282	BRACKET; TRANS SIDE (B)	8-98171-762-0	01	1	1302-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	02	1	1302-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1302-
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
310	CLIP; TUBE FULLER ES11109 DD M/T(Y5N) (A) L=140	5-09707-031-1	01	1	1302-
310	CLIP; TUBE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100	5-09707-036-1	01	1	1302-
310	CLIP; TUBE FULLER ES11109 DD M/T(Y5N) (A) L=100	5-09707-036-1	01	1	1302-
310	CLIP; TUBE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13	8-97069-515-0	01	1	1302-
310	CLIP; TUBE FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13	8-97069-515-0	01	1	1302-
316	BRACKET; CLIP	8-98086-439-0	01	1	1302-
385	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1302-
385	TUBE; NYLON FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1302-
465	BRACKET; CONNECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98208-198-0	01	1	1302-
465	BRACKET; CONNECTOR FULLER ES11109 DD M/T(Y5N)	8-98208-198-0	01	1	1302-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	01	1	1302-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	02	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
477	TUBE; CORRUGATE FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1302-
487	BRACKET; CONT CABLE	8-98137-772-0	01	1	1302-
489	CONNECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98085-747-0	02	1	1302-
489	CONNECTOR FULLER ES11109 DD M/T(Y5N)	8-98085-747-0	02	1	1302-
503	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1302-
503	TUBE; NYLON FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1302-
503	TUBE; NYLON ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-
