◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#112934) — 446 parça

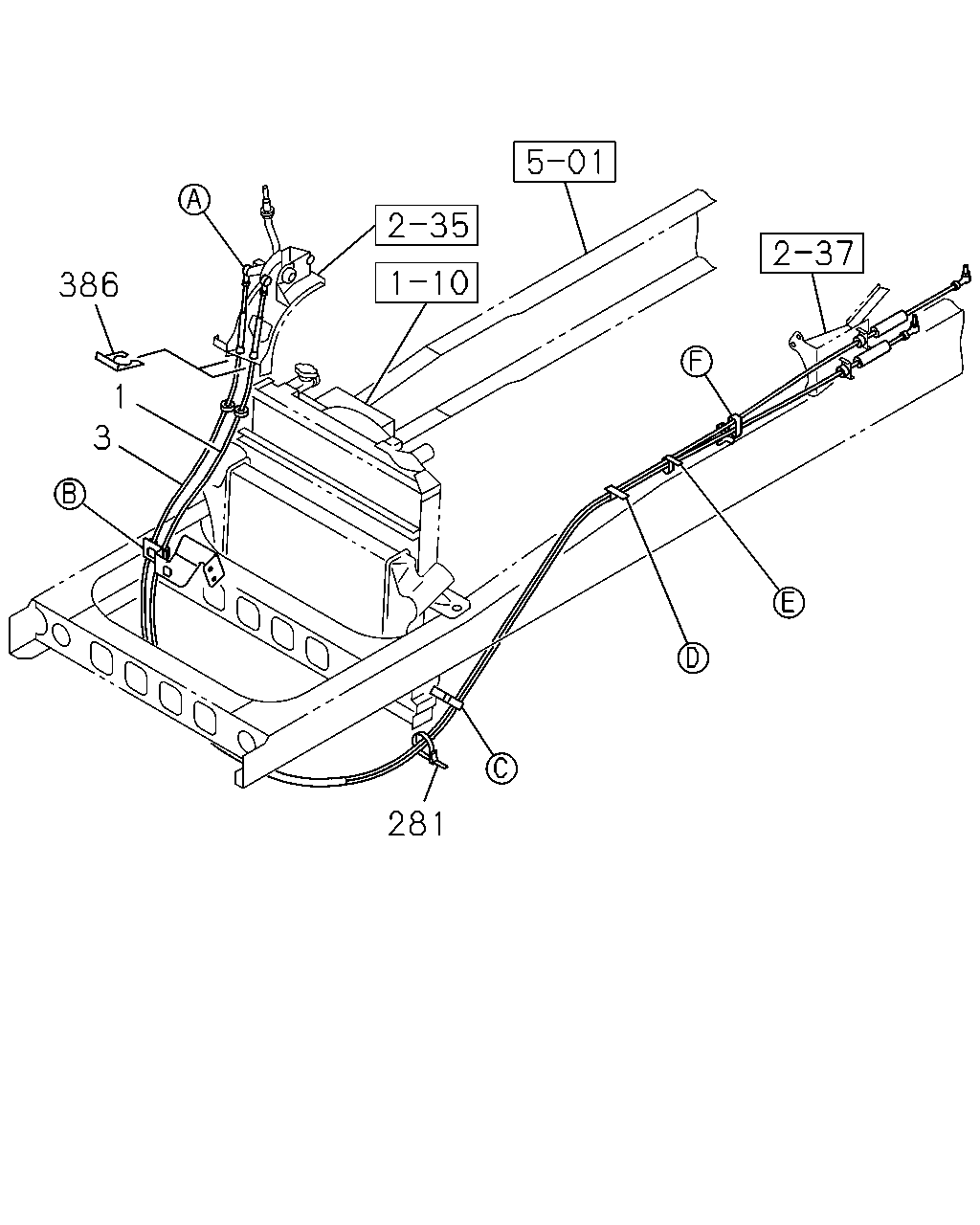

çizim 327549
386 1 3 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-427-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1503-1510 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3520 		8-98248-331-0 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3120 		8-98231-951-0 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3170 		8-98231-950-1 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3420 		8-98047-806-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3360 		8-98017-472-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-471-7 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98047-809-5 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1302-1505 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1302-1305 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3515 		8-98070-452-8 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1302-1502 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1503- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1503-1510 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3585 		8-98248-332-0 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44) L=3235 		8-98231-955-0 01 1 1305- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98047-820-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3565 		8-98017-492-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98047-823-4 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1302-1505 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1302-1305 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3580 		8-98070-455-7 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1302-1502 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1503- ●
281 CLIP; BAND
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=300 		1-09707-001-1 01 1 1302-1505 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 1302-1505 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1302-1505 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 1506- ●
281 CLIP; BAND
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) L=300 		1-09707-001-1 01 1 1506- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1506- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1302- ● ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
FULLER FS8209HD DD M/T(Y3A) 		5-09333-062-0 01 1 1302- ●

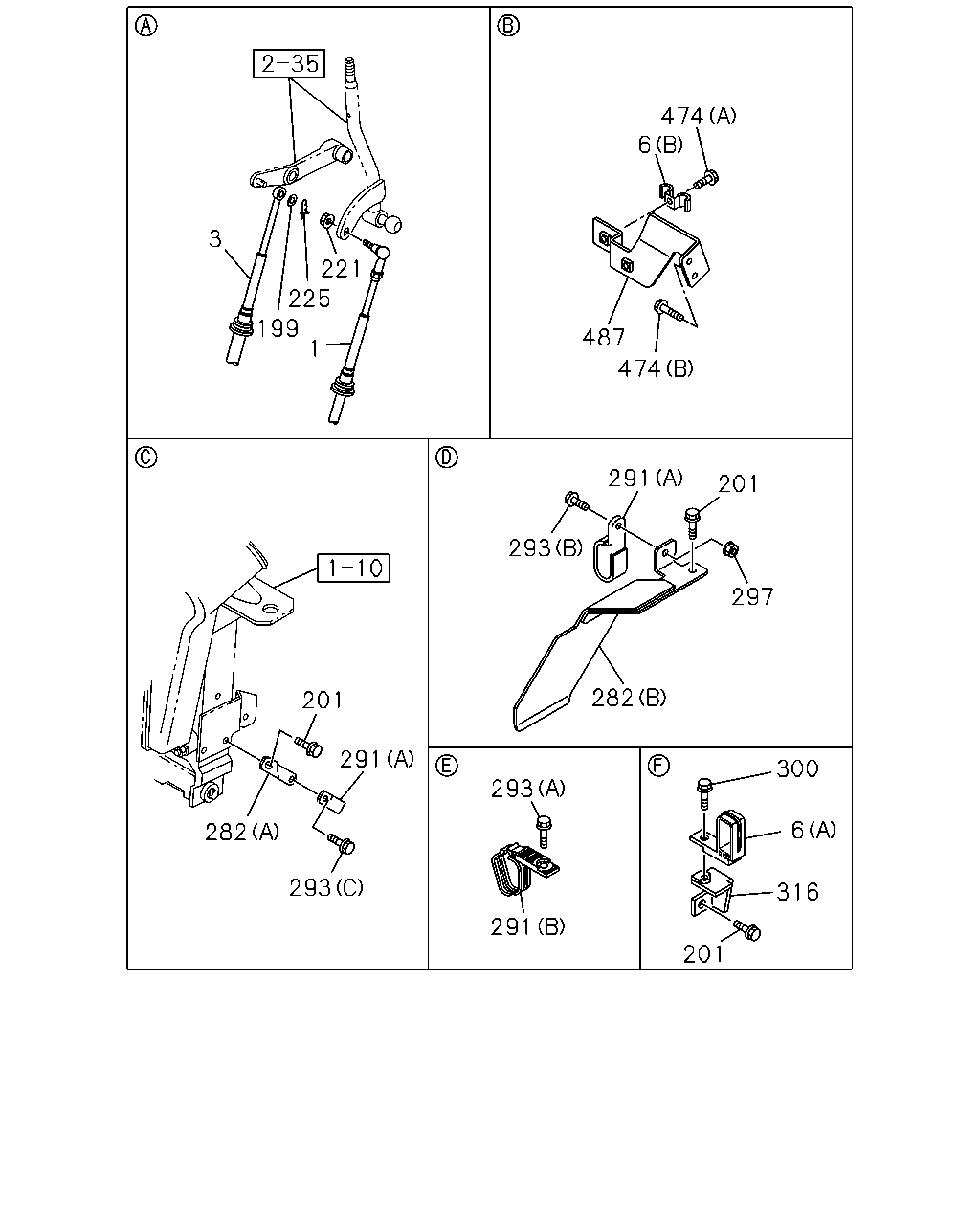

çizim 327551
221 225 199 3 474 487 6 474 291 201 297 293 282 293 300 6 316 201 291 293 282 291 201 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-427-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1503-1510 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3520 		8-98248-331-0 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3120 		8-98231-951-0 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3170 		8-98231-950-1 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3420 		8-98047-806-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3360 		8-98017-472-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-471-7 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98047-809-5 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1302-1505 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1302-1305 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3515 		8-98070-452-8 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1302-1502 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1503- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1503-1510 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3585 		8-98248-332-0 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44) L=3235 		8-98231-955-0 01 1 1305- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98047-820-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3565 		8-98017-492-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98047-823-4 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1302-1505 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1302-1305 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3580 		8-98070-455-7 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1302-1502 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1503- ●
6 CLIP; CABLE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1302- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1302- ● ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1302- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1302- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-98010-418-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-98010-418-0 01 1 1506- ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-98098-265-2 01 1 1302- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1302- ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98171-762-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98171-762-0 01 1 1506- ●
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
297 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
297 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ●
300 BOLT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
316 BRACKET; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1302- ●
316 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1302-1505 ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1302-1505 ●
316 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1506- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1506- ●
474 BOLT; BRKT
(A) M8X25 W/WASHER 		0-51640-825-0 01 1 1302- ● ●
474 BOLT; BRKT
(B) M8X25 W/WASHER 		0-51640-825-0 02 1 1302- ● ●
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98080-013-2 01 1 1305- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) CAB SUSPENSION FULL FLOATING<W16> 		8-98021-924-1 01 1 1302- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98137-772-0 01 1 1302-1505 ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) 		8-98137-772-0 01 1 1302-1505 ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98137-772-0 01 1 1506- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) 		8-98137-772-0 01 1 1506- ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
FULLER FS8209HD DD M/T(Y3A) 		5-09333-062-0 01 1 1302- ●

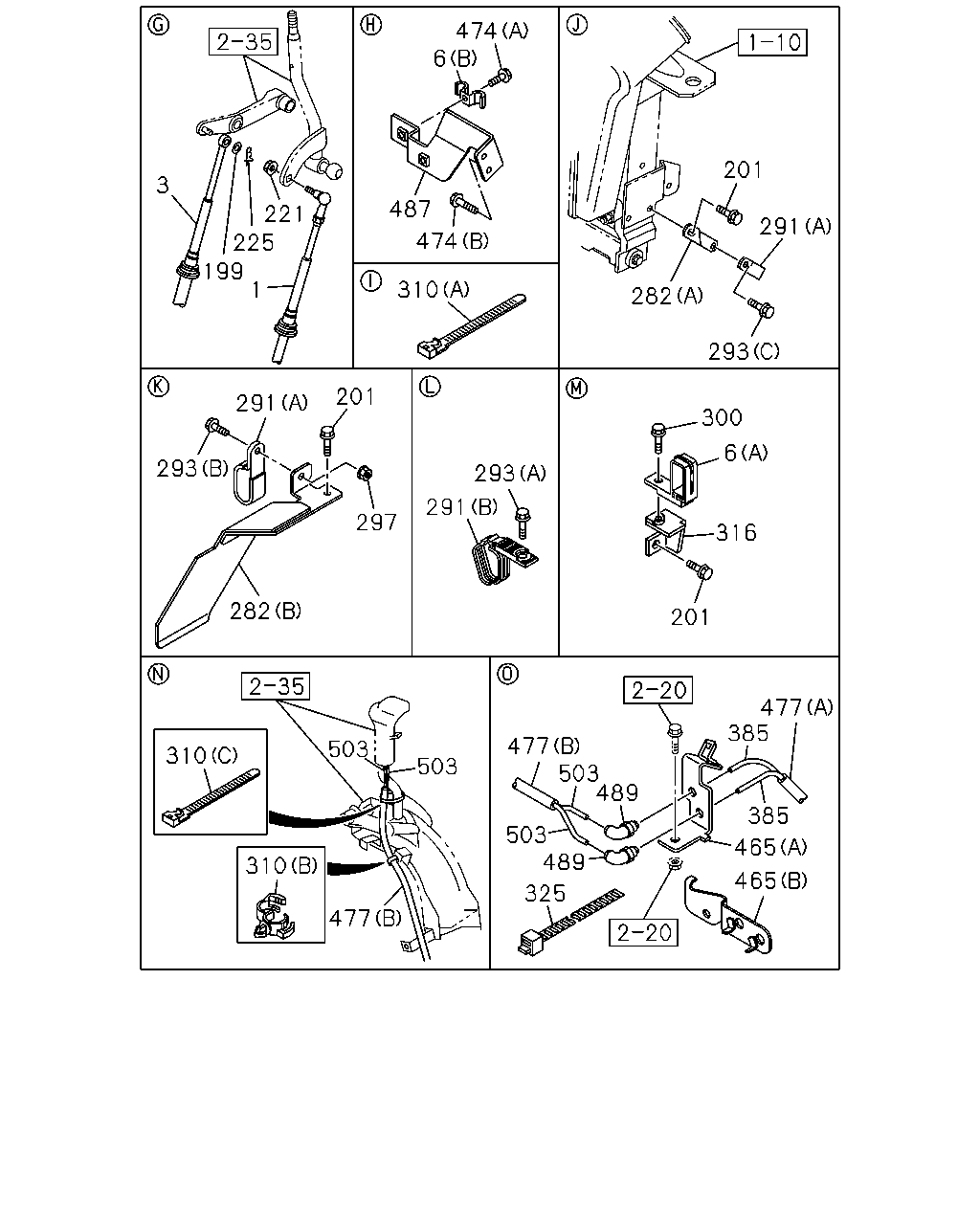

çizim 330610
3 221 225 199 474 6 487 310 201 291 282 293 300 316 6 201 293 291 201 291 293 282 297 310 503 503 310 477 477 503 489 503 489 325 385 385 465 465 477 1 474
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-427-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1503-1510 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3520 		8-98248-331-0 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3120 		8-98231-951-0 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3170 		8-98231-950-1 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3420 		8-98047-806-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3360 		8-98017-472-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-471-7 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98047-809-5 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1302-1505 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1302-1305 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3515 		8-98070-452-8 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1302-1502 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1503- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1503-1510 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3585 		8-98248-332-0 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44) L=3235 		8-98231-955-0 01 1 1305- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98047-820-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3565 		8-98017-492-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98047-823-4 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1302-1505 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1302-1305 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3580 		8-98070-455-7 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1302-1502 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1503- ●
6 CLIP; CABLE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
6 CLIP; CABLE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1302- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1302- ● ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1302- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1302- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-98010-418-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (A) 		8-98010-418-0 01 1 1506- ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-98098-265-2 01 1 1302- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1302- ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98171-762-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1302-1505 ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98171-762-0 01 1 1506- ●
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1505 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
297 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
297 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1506- ●
300 BOLT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
300 BOLT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (C) L=140 		5-09707-031-1 01 1 1302- ●
310 CLIP; TUBE
FULLER FS8209HD DD M/T(Y3A) (C) L=140 		5-09707-031-1 01 1 1302- ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1302- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (A) L=100 		5-09707-036-1 01 1 1302- ●
310 CLIP; TUBE
FULLER FS8209HD DD M/T(Y3A) (A) L=100 		5-09707-036-1 01 1 1302- ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1302- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1302- ●
310 CLIP; TUBE
FULLER FS8209HD DD M/T(Y3A) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1302- ●
316 BRACKET; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1302- ●
316 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1302-1505 ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1302-1505 ●
316 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) 		8-98086-439-0 01 1 1506- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1506- ●
325 CLIP; NYLON TUBE
FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> L=350 		1-09707-183-0 01 1 1302- ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
385 TUBE; NYLON
FULLER FS8209HD DD M/T(Y3A) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98129-543-0 01 1 1302- ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98208-198-0 01 1 1302- ●
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98208-198-0 01 1 1302- ●
465 BRACKET; CONNECTOR
FULLER FS8209HD DD M/T(Y3A) (B) 		8-98208-198-0 01 1 1302- ●
474 BOLT; BRKT
(A) M8X25 W/WASHER 		0-51640-825-0 01 1 1302- ● ●
474 BOLT; BRKT
(B) M8X25 W/WASHER 		0-51640-825-0 02 1 1302- ● ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1302- ●
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98080-013-2 01 1 1305- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) CAB SUSPENSION FULL FLOATING<W16> 		8-98021-924-1 01 1 1302- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98137-772-0 01 1 1302-1505 ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) 		8-98137-772-0 01 1 1302-1505 ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98137-772-0 01 1 1506- ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) 		8-98137-772-0 01 1 1506- ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1302- ●
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98085-747-0 02 1 1302- ●
489 CONNECTOR
FULLER FS8209HD DD M/T(Y3A) 		8-98085-747-0 02 1 1302- ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
FULLER FS8209HD DD M/T(Y3A) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1302- ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
FULLER FS8209HD DD M/T(Y3A) 		5-09333-062-0 01 1 1302- ●

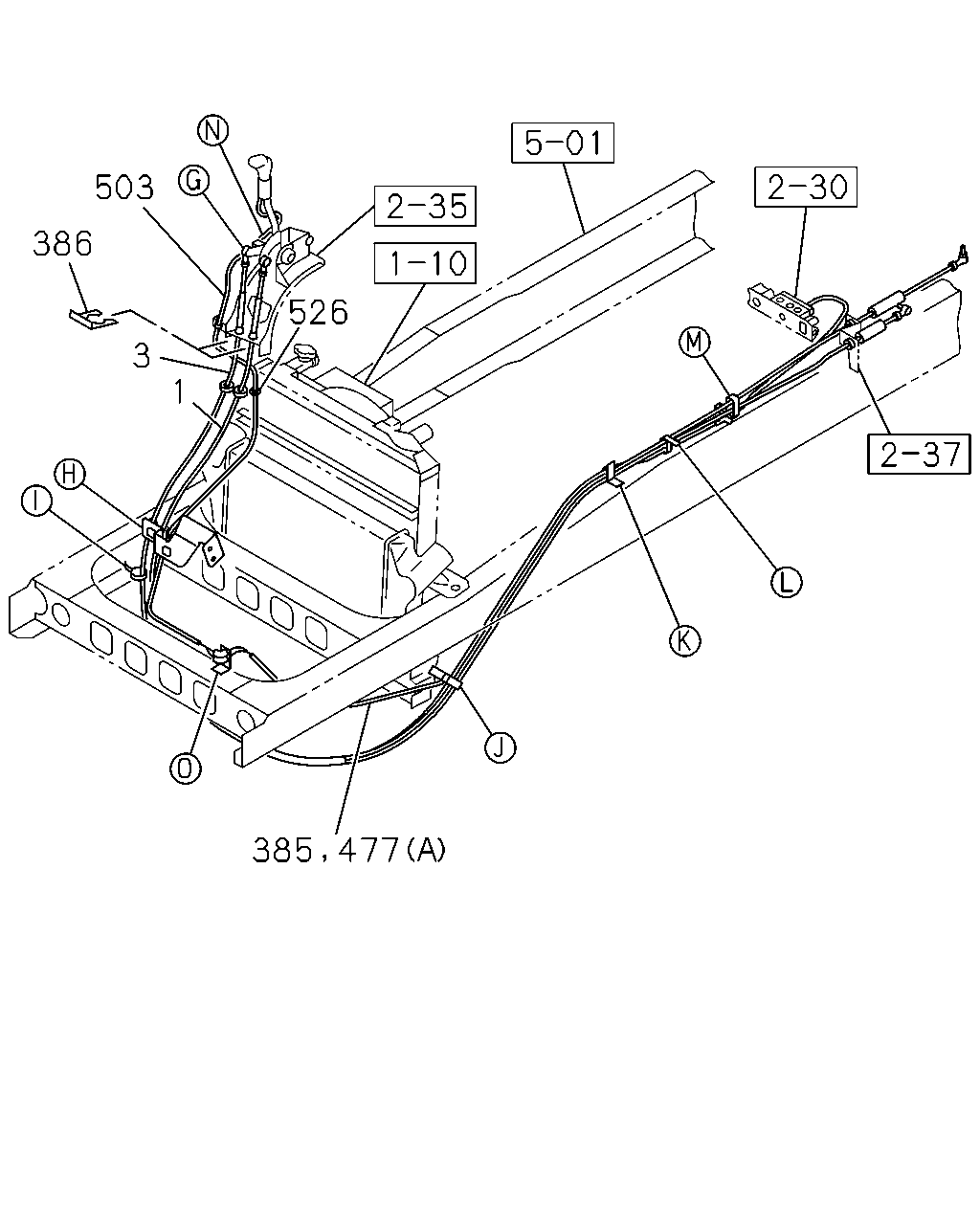

çizim 330618
586 503 386 3 1 385 477
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-427-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1503-1510 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3520 		8-98248-331-0 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3120 		8-98231-951-0 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3170 		8-98231-950-1 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3420 		8-98047-806-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3360 		8-98017-472-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-471-7 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98047-809-5 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1302-1505 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1302-1305 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3515 		8-98070-452-8 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1302-1502 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1503- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1503-1510 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3585 		8-98248-332-0 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44) L=3235 		8-98231-955-0 01 1 1305- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98047-820-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3565 		8-98017-492-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98047-823-4 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1302-1505 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1302-1305 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3580 		8-98070-455-7 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1302-1502 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1503- ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
385 TUBE; NYLON
FULLER FS8209HD DD M/T(Y3A) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1302- ● ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
FULLER FS8209HD DD M/T(Y3A) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1302- ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
FULLER FS8209HD DD M/T(Y3A) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302- ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1302- ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
FULLER FS8209HD DD M/T(Y3A) 		5-09333-062-0 01 1 1302- ●

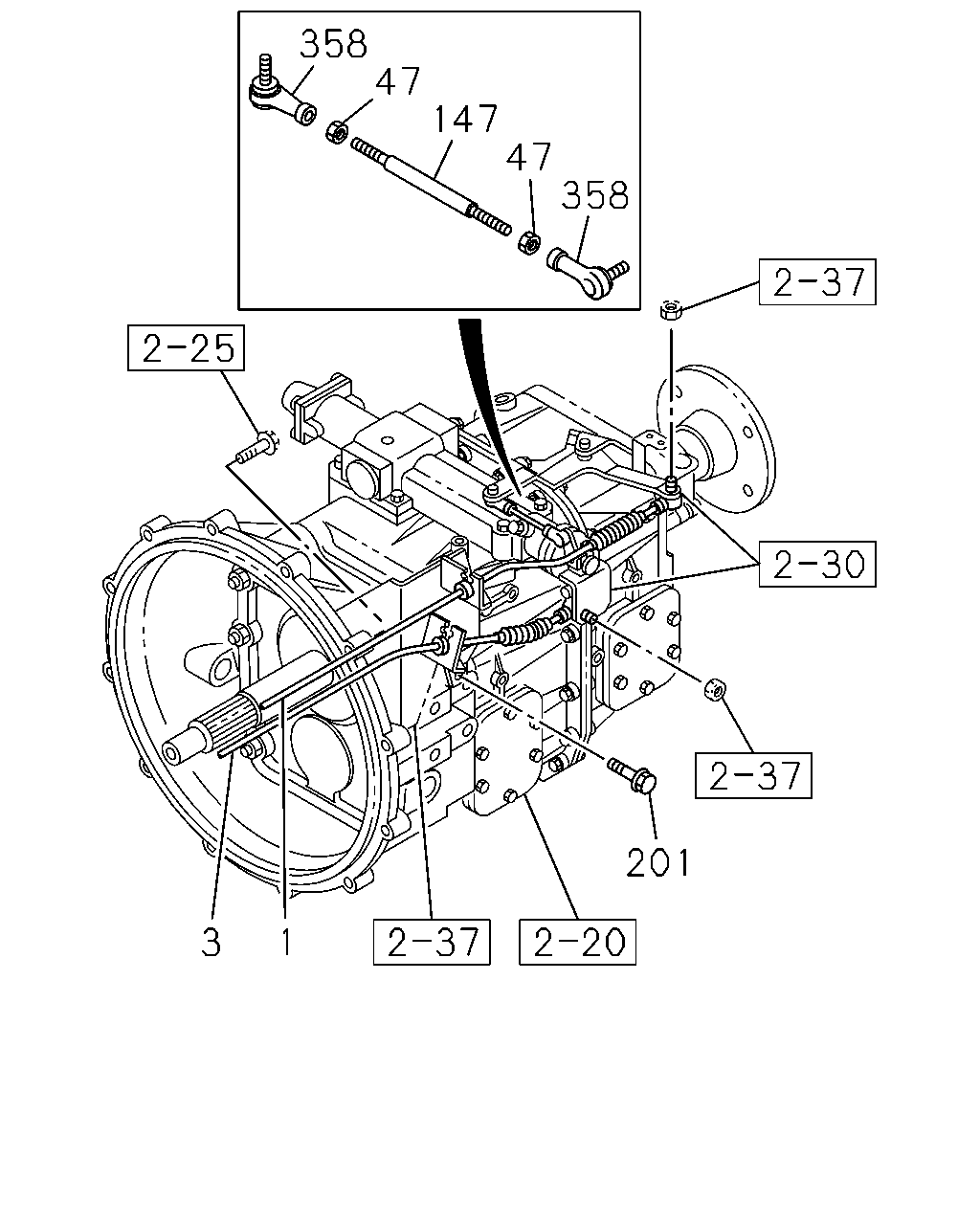

çizim 331043
358 147 47 47 358 3 1 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-427-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1503-1510 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3450 		8-98309-429-0 01 1 1511- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3520 		8-98248-331-0 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3120 		8-98231-951-0 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3170 		8-98231-950-1 01 1 1305- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3420 		8-98047-806-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3360 		8-98017-472-6 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-471-7 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98047-809-5 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1302-1505 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98177-867-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3455 		8-98178-343-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3455 		8-98150-336-2 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1302-1305 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3430 		8-98017-473-6 01 1 1306- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3515 		8-98070-452-8 01 1 1302- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1302-1502 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3430 		8-98017-476-6 01 1 1503- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> FRONT UNDER RUN PROTECTOR<EBE> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> 		8-98330-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1503-1510 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,ASSISTOR SHIFTCONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3415 		8-98309-428-0 01 1 1511- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3585 		8-98248-332-0 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44) L=3235 		8-98231-955-0 01 1 1305- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98047-820-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3565 		8-98017-492-5 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98047-823-4 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1302-1505 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3380 		8-98177-868-1 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) ANTI LOCK BRAKE<JE5> EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) ANTI LOCK BRAKE<JE5> L=3630 		8-98178-344-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. ANTI LOCK BRAKE<JE5> L=3630 		8-98150-337-1 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1302-1305 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. FRONT UNDER RUN PROTECTOR<EBE>,CAB SUSPENSIONFULL FLOATING<W16> L=3495 		8-98017-494-5 01 1 1306- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3580 		8-98070-455-7 01 1 1302- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1302-1502 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ANTI LOCK BRAKE<JE5>,ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3385 		8-98017-497-5 01 1 1503- ●
47 NUT; LK,LINK ROD
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1302- ● ●
147 ROD; LINK
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1302- ● ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 1302- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
358 ROD END; SCREW
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1302- ● ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. CAB SUSPENSION FULL FLOATING<W16> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302- ●
526 GROMMET
FULLER FS8209HD DD M/T(Y3A) 		5-09333-062-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
