◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#11293) — 229 parça

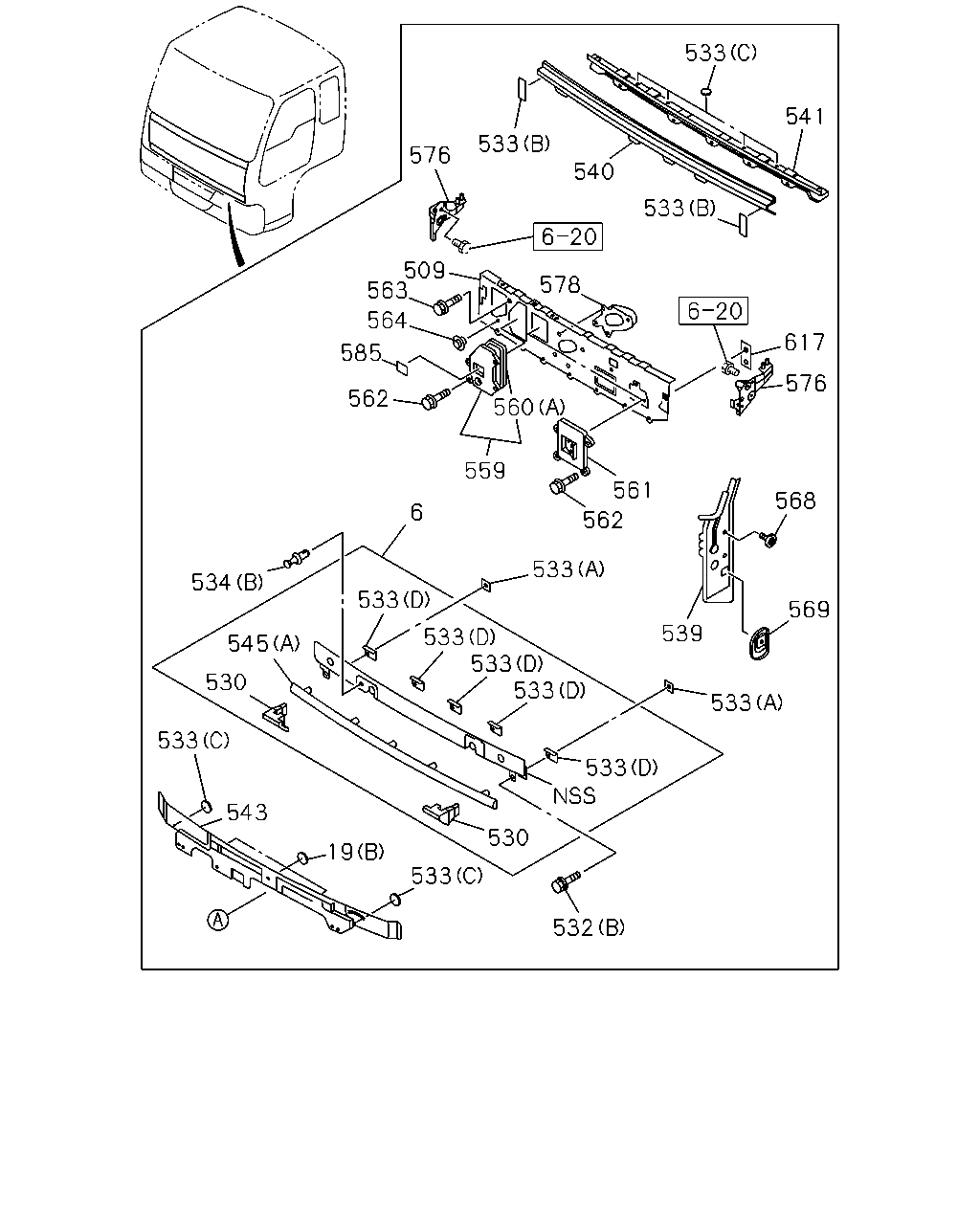

çizim 19009
533 543 19 533 532 530 533 533 533 533 533 534 545 530 6 533 539 533 569 568 576 617 561 562 559 560 562 585 564 563 509 578 533 540 541 533 533 576
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-551-3 01 1 0106-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0106-
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-1 01 1 0106-0604
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 0106-0604
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 0106-0604
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-62270-493-2 01 1 0106-0604
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0106-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0106-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-0411
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0106-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0106-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0106-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0106-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106-
539 CLOSING; PILLAR 1-61480-763-1 01 1 0106-
539 CLOSING; PILLAR 1-61480-762-1 01 1 0106-
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 0106-
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 0106-
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 0106-0505
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 0506-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-0411
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0412-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-0411
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0412-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-0411
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0412-
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0106-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106-0411
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-0411
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-0411
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412-
561 COVER; HEATER CORE 1-71998-993-2 01 1 0106-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 0106-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0106-
568 PATCH; INST REINF 1-61480-675-2 02 1 0106-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0106-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0106-
576 FRAME; INST SIDE 1-62280-201-2 01 1 0106-0604
576 FRAME; INST SIDE 1-62280-200-2 01 1 0106-0604
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0106-0604
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 0106-
617 SEAL; DASH 1-61281-497-0 02 1 0106-0604

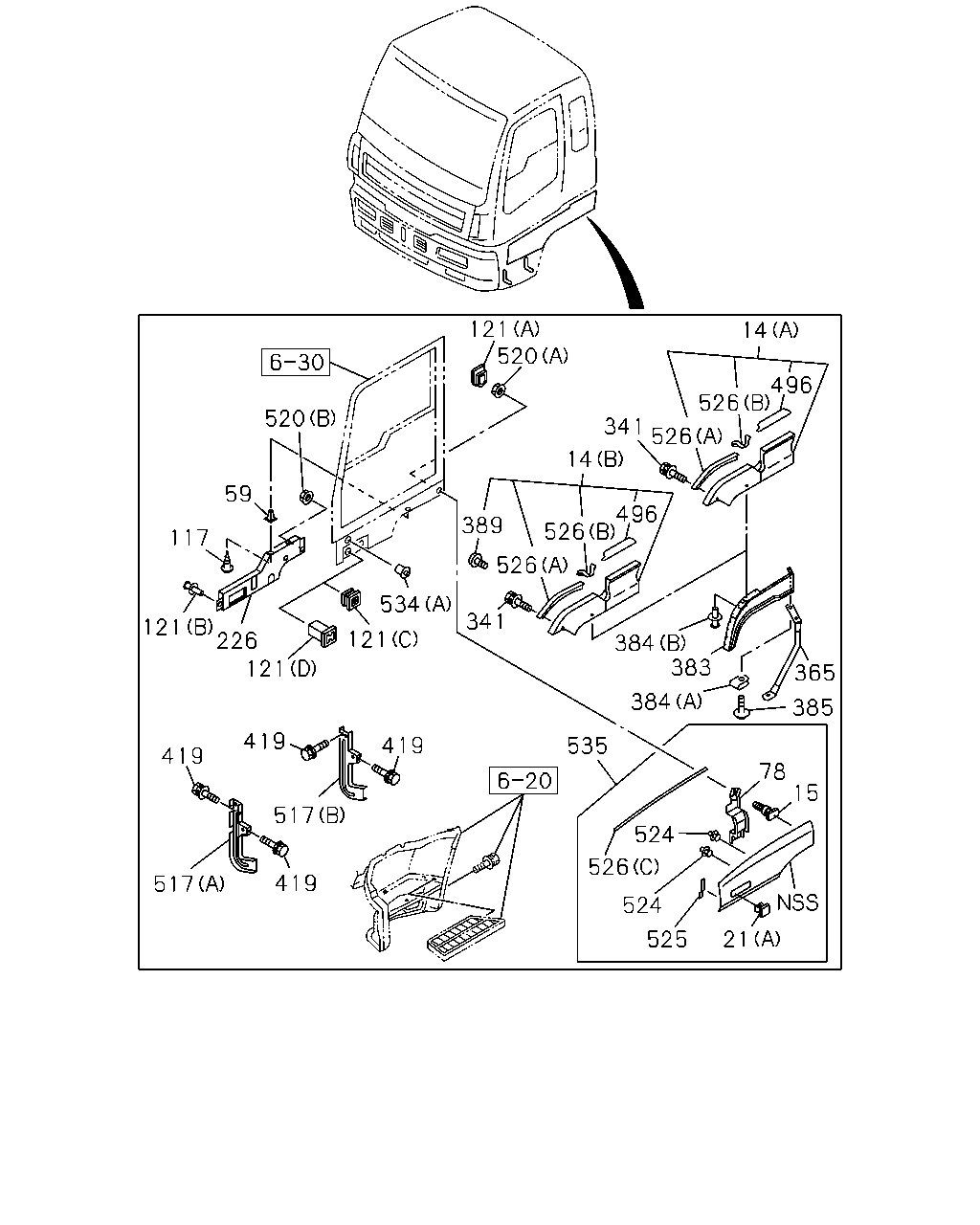

çizim 19011
121 520 341 526 526 14 496 526 526 389 520 59 117 121 226 121 121 534 341 384 383 384 365 385 78 15 524 526 524 525 21 419 517 419 419 517 419 535 14 496
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
(A) WHITE 		1-65472-453-0 01 1 0106-0503
14 FENDER; FRT
(A) WHITE 		1-65472-452-0 01 1 0106-0503
14 FENDER; FRT
(B) 		1-65472-874-6 01 1 0504-
14 FENDER; FRT
(B) 		1-65472-875-6 01 1 0504-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0106-
78 BRACKET; FENDER 1-71267-215-0 01 1 0106-
78 BRACKET; FENDER 1-71267-214-0 01 1 0106-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0106-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0106-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0106-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0106-0304
121 GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0106-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0106-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0106-0203
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 17 1 0204-0503
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 15 1 0504-
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0204-
365 SUPPORT; FENDER 1-71907-418-1 01 1 0106-
365 SUPPORT; FENDER 1-71907-417-1 01 1 0106-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0106-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0106-
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0106-
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0106-
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0106-
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0106-
496 RUBBER; STEP 1-71998-862-2 01 1 0106-
496 RUBBER; STEP 1-71998-861-2 01 1 0106-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0106-
517 SUPPORT; STEP PANEL
(A) 		1-65671-747-4 01 1 0106-0208
517 SUPPORT; STEP PANEL
(A) 		1-65671-778-0 01 1 0209-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0106-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0106-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0106-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0106-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0106-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0106-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 0106-0211
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212-
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0106-0211
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0106-
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0106-0211
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106-
535 FENDER; BLISTER 1-71267-186-2 01 1 0106-0210
535 FENDER; BLISTER 1-71267-294-0 01 1 0211-
535 FENDER; BLISTER 1-71267-185-2 01 1 0106-0210
535 FENDER; BLISTER 1-71267-293-0 01 1 0211-

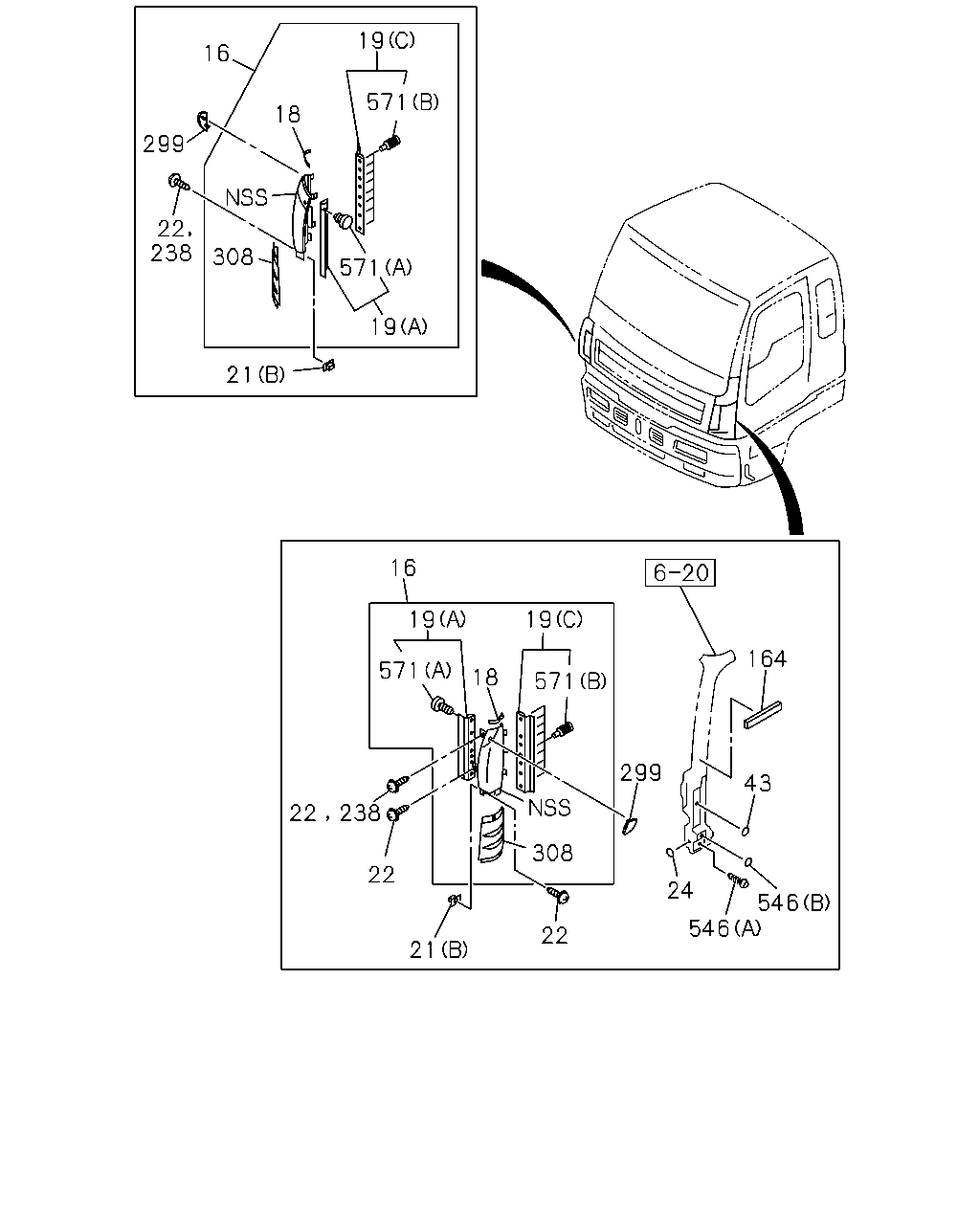

çizim 73117
16 19 571 18 299 22 238 308 19 571 21 16 19 571 18 19 571 22 238 22 21 22 24 308 299 43 546 546 164
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-649-2 01 1 0106-
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-648-2 01 1 0106-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 0106-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 0106-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0106-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0106-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106-
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0106-
22 SCREW; FRT PANEL SIDE
EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0106-
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 0106-
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 0106-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0106-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0106-
238 SCREW
BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0106-
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0106-
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 0106-
299 COVER; FRT PANEL SIDE
SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 0106-
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-569-1 01 1 0106-
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-568-1 01 1 0106-
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 0106-
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 0106-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0106-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0106-
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0106-
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 0106-

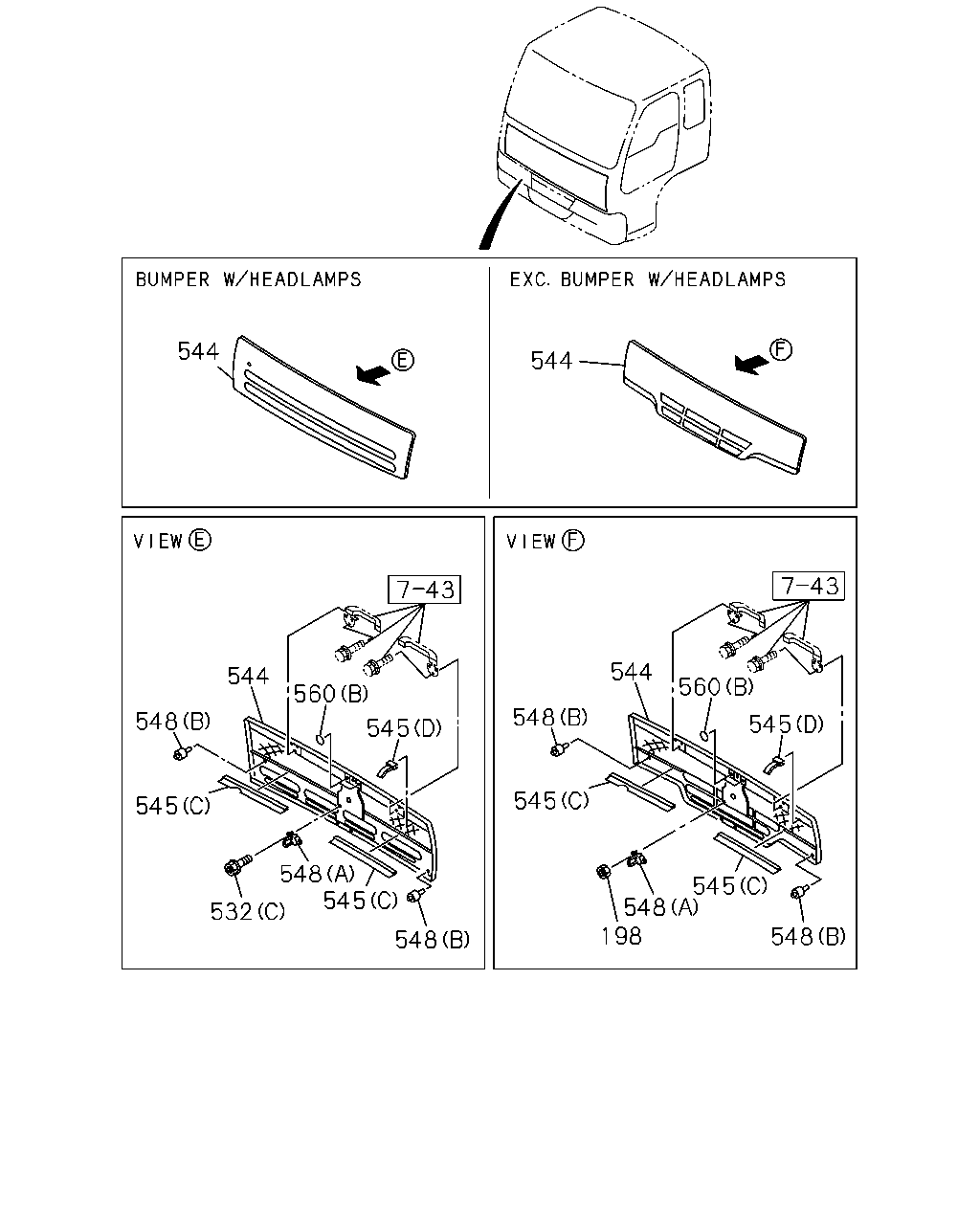

çizim 74446
544 544 544 560 545 548 545 532 548 545 548 198 548 545 548 545 560 544 548 545
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		8-94197-199-0 02 1 0106-0411
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		8-94197-199-0 02 1 0412-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-0411
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 0106-0301
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 0302-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 0302-
544 LID; FRT
CHEV BRAND PACKAGE<PS2> BUMPER W/HEADLAMPS<SLB> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-404-0 01 1 0106-
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-373-0 01 1 0106-
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2>,BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) 		1-71107-293-0 01 1 0106-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-0411
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0412-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-0411
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0412-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-0411
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0412-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0106-0411
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0412-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 0106-0411
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0412-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106-0411
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-0411
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-0411
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412-

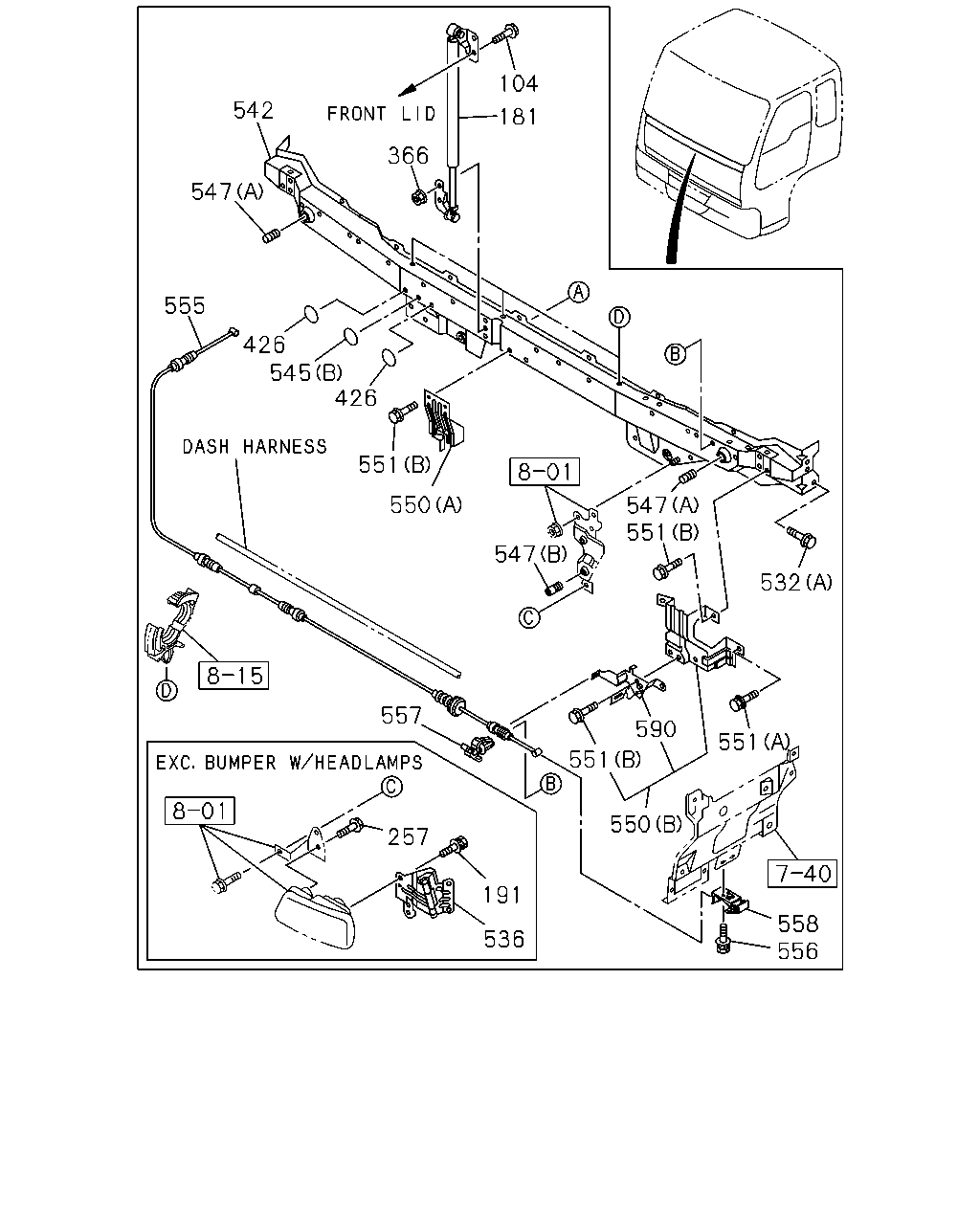

çizim 74909
551 550 590 551 558 556 191 536 257 557 532 551 547 547 550 551 426 545 426 555 547 542 366 181 104
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0106-0411
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0106-0411
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0412-0412
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0501-
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0106-0308
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0106-
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 0106-
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0106-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-0411
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0412-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 0106-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 0106-
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 0106-0505
542 RAIL; FRT MOUNTING 1-61470-722-0 01 1 0506-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-0411
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0412-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-0411
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0412-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-0411
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0412-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0106-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-013-1 01 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-017-1 01 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-016-1 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-006-2 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-015-1 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-014-1 01 1 0106-
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0106-
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0106-
551 BOLT; LOCK
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
555 CABLE; FRT LID
BUMPER W/HEADLAMPS<SLB> L=2612 		1-79347-008-1 01 1 0106-
555 CABLE; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> L=2782 		1-79347-006-2 01 1 0106-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0106-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 04 1 0106-
558 LEVER; FRT LID 8-97865-110-0 01 1 0106-
590 LOCK; FRT LID 1-79318-007-5 01 1 0106-
590 LOCK; FRT LID 1-79318-006-3 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
