◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#112929) — 68 parça

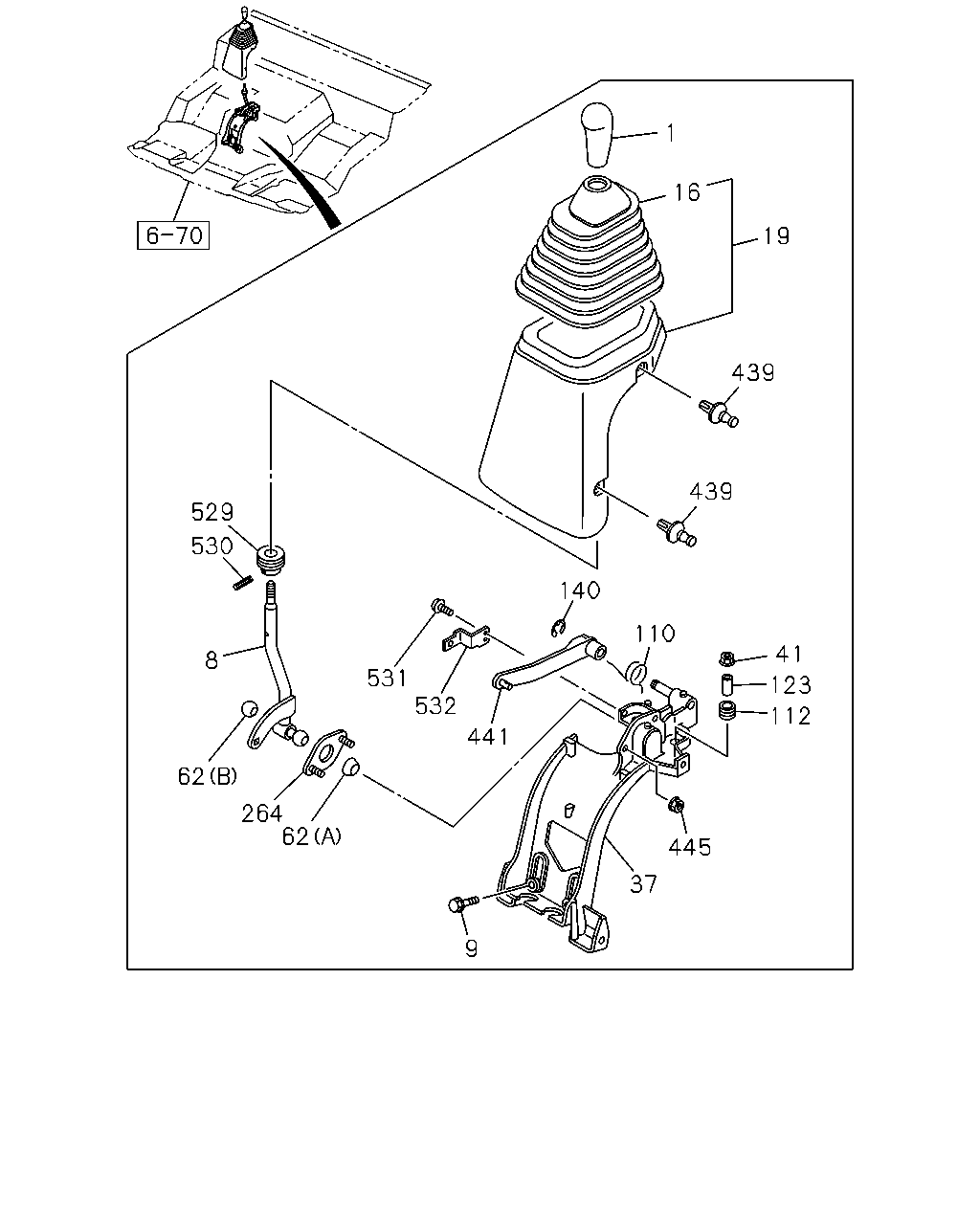

çizim 327382
529 530 8 62 264 62 531 532 441 140 110 9 37 440 41 123 112 439 439 19 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1302-
1 KNOB; CHANGE LEVER
MZZ6W M/T(RSA) 		1-33611-068-1 01 1 1302-
8 LEVER; CHANGE
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1302-
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1302-
8 LEVER; CHANGE
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1302-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1302-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1302-
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-281-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-281-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1302-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1302-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1302-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1302-
112 RUBBER; CUSHION
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-97091-426-0 04 1 1302-
112 RUBBER; CUSHION
MZW6P M/T(RSZ) 		8-97091-426-0 04 1 1302-
112 RUBBER; CUSHION
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-442-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-97091-427-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) 		8-97091-427-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-443-0 04 1 1302-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1302-
264 PLATE; COVER 1-33619-430-0 01 1 1302-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1302-
441 LEVER; SELECT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1302-
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1302-
441 LEVER; SELECT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1302-
529 RING; BOOT 1-33619-504-0 01 1 1302-
530 PIN; SPRING 1-33619-505-0 01 1 1302-
531 SCREW; STAY
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> M5X10 W/PL WASHER 		9-03900-510-0 01 1 1302-
531 SCREW; STAY
MZW6P M/T(RSZ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1302-
532 STAY
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-284-0 01 1 1302-
532 STAY
MZW6P M/T(RSZ) 		8-98071-284-0 01 1 1302-

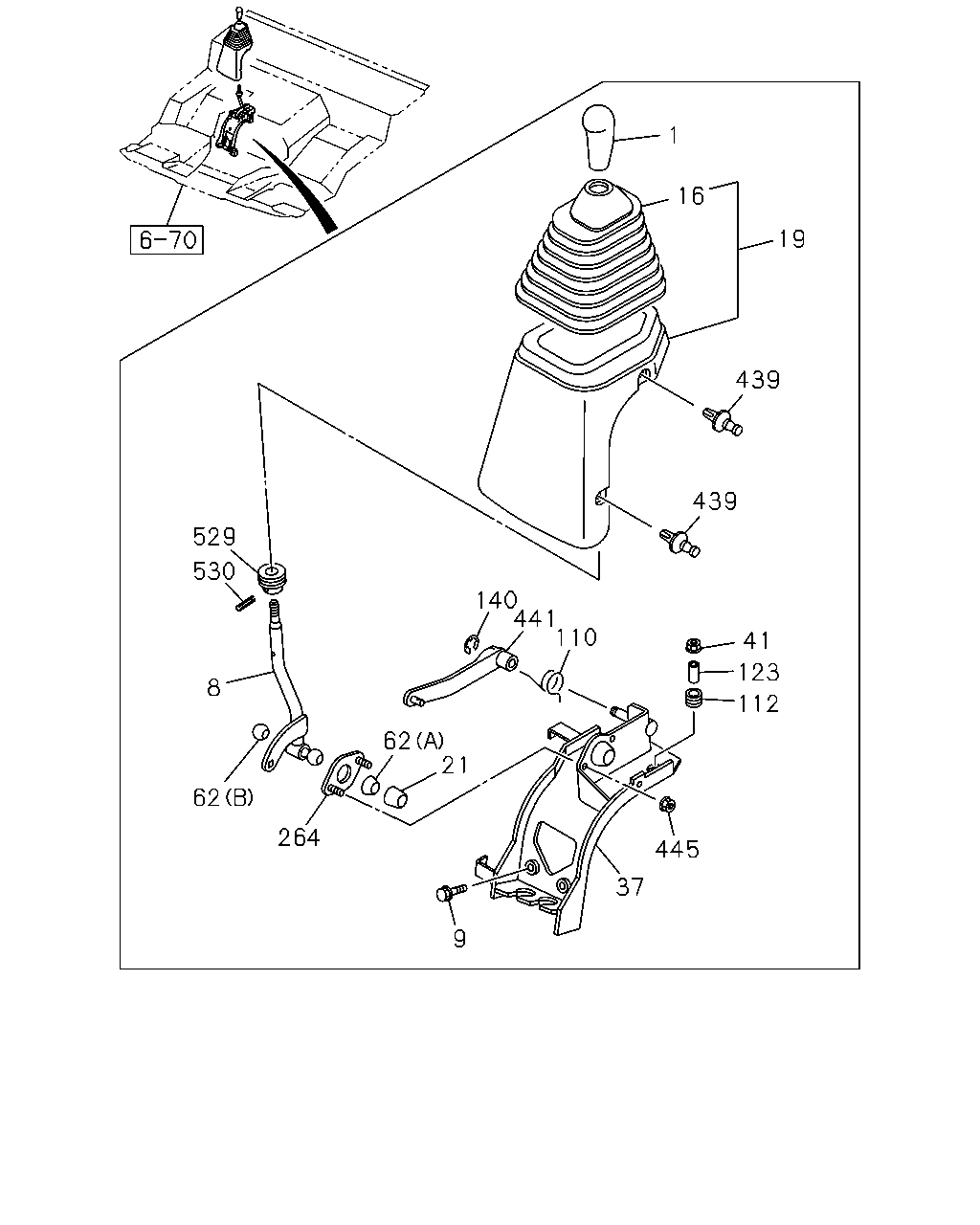

çizim 327477
1 16 19 439 439 41 123 112 445 37 9 21 62 264 62 8 530 529 140 441 110
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1302-
1 KNOB; CHANGE LEVER
MZZ6W M/T(RSA) 		1-33611-068-1 01 1 1302-
8 LEVER; CHANGE
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1302-
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1302-
8 LEVER; CHANGE
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1302-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1302-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1302-
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1302-
21 SEAT; CHANGE LEVER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-429-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-281-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-281-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1302-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1302-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1302-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1302-
112 RUBBER; CUSHION
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-97091-426-0 04 1 1302-
112 RUBBER; CUSHION
MZW6P M/T(RSZ) 		8-97091-426-0 04 1 1302-
112 RUBBER; CUSHION
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-442-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-97091-427-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) 		8-97091-427-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-443-0 04 1 1302-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1302-
264 PLATE; COVER 1-33619-430-0 01 1 1302-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1302-
441 LEVER; SELECT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1302-
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1302-
441 LEVER; SELECT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1302-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1302-
529 RING; BOOT 1-33619-504-0 01 1 1302-
530 PIN; SPRING 1-33619-505-0 01 1 1302-
