0-52 — OIL AND VACUUM PIPING; ENGINE (#112927) — 23 parça

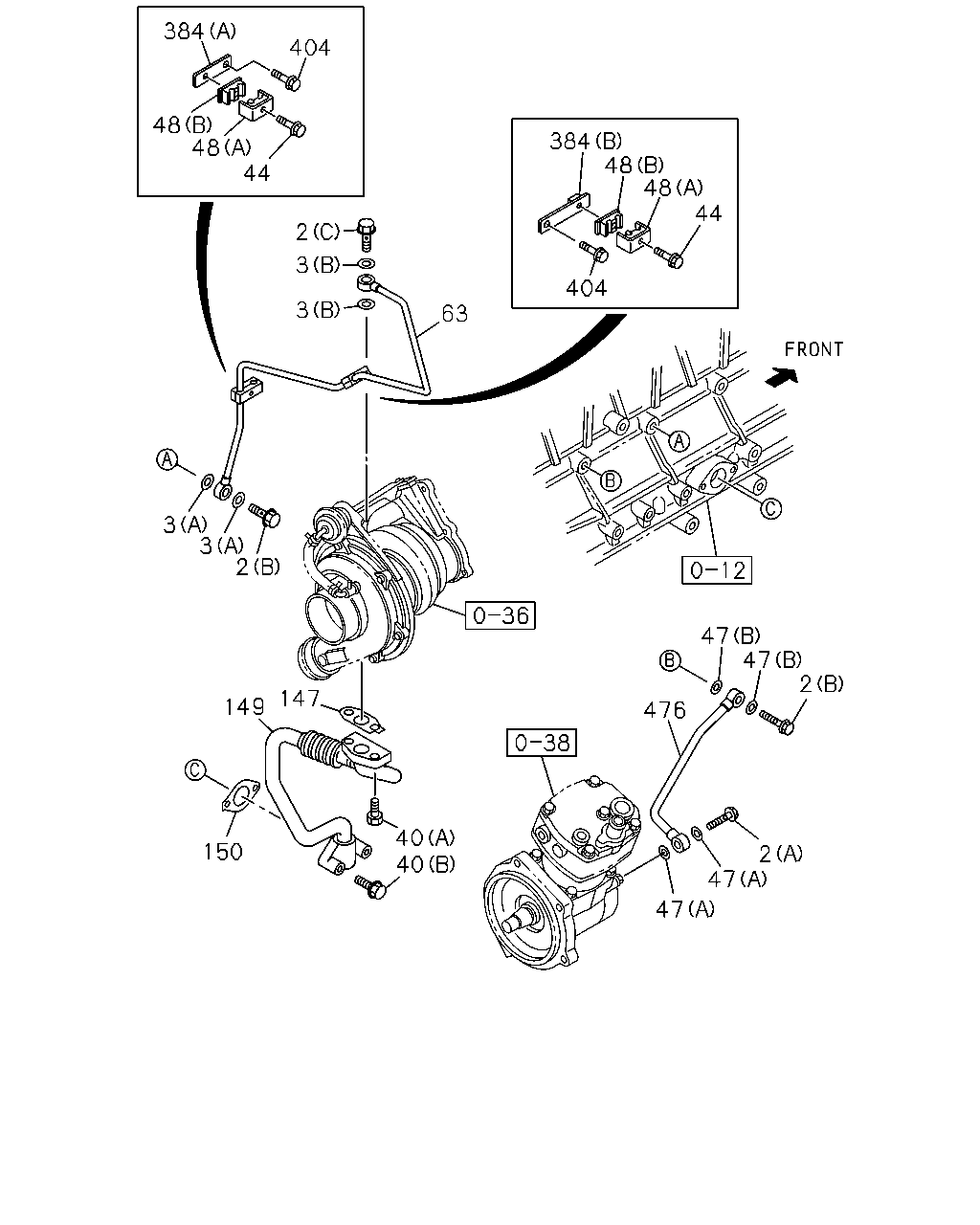

çizim 326668
384 48 48 44 404 47 47 2 476 2 47 47 40 40 150 149 147 2 3 3 3 63 3 2 44 48 48 384 404
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 1302-
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 1302-
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 01 1 1302-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 02 1 1302-1312
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 02 1 1401-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28151-030-0 02 1 1302-
40 BOLT; OIL PIPE
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28050-630-0 02 1 1302-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1302-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
48 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 02 1 1302-
48 CLIP; OIL PIPE
(B) ID=7 & 9 L=25 		1-09701-229-2 02 1 1302-
63 PIPE; OIL,TURBOCHARGER FEED 8-98074-254-0 01 1 1302-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 1302-
149 PIPE; OIL RETURN,TURBOCHARGER 8-98147-092-0 01 1 1302-
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1302-
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13319-020-0 01 1 1302-
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13319-041-0 01 1 1302-
404 BOLT; BRKT
M8X15 		1-09000-114-0 02 1 1302-
476 PIPE; OIL,C/BL TO AIR CMPR 8-97608-935-0 01 1 1302-
