◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11521 - FVZ(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#112920) — 75 parça

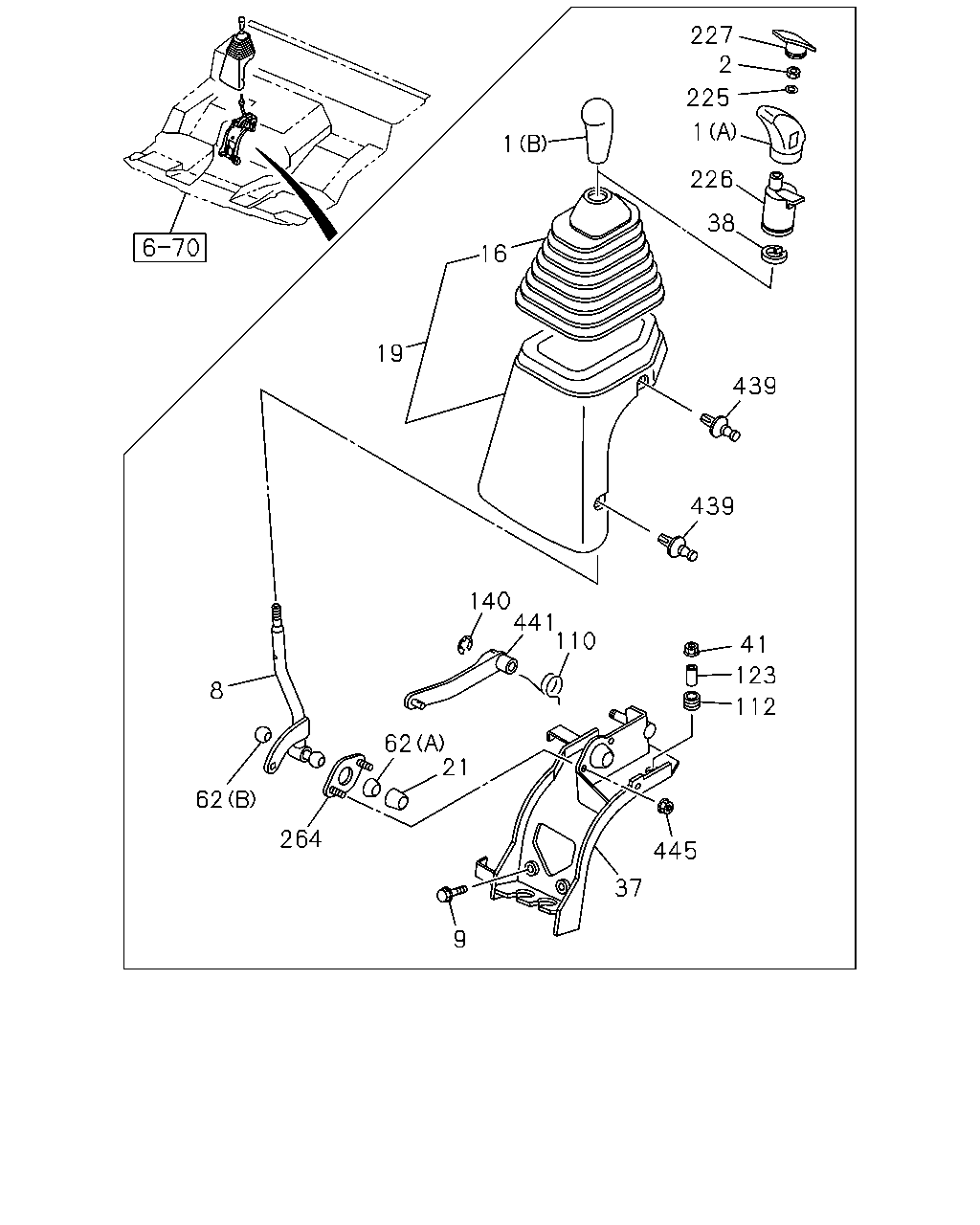

çizim 327295
227 2 225 1 226 38 439 439 41 123 112 445 37 9 21 62 264 62 8 140 441 110 19 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) (C) 		1-33611-106-0 01 1 1302-1401
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) (C) 		8-98224-288-0 01 1 1402-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33611-038-0 01 1 1302-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33611-099-1 01 1 1302-
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) 1/2-13UNC 		1-33619-033-0 01 1 1302-
2 NUT; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 01 1 1302-
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98149-308-0 01 1 1302-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-454-0 01 1 1302-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-459-0 01 1 1302-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1302-
16 BOOT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-97893-962-1 01 1 1302-
16 BOOT; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97893-962-1 01 1 1302-
16 BOOT; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-79998-913-1 01 1 1302-
19 COVER; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) GRAY 		8-97411-671-1 01 1 1302-
19 COVER; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY 		8-97411-671-1 01 1 1302-
19 COVER; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY 		8-97409-847-0 01 1 1302-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98149-307-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-451-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-447-0 01 1 1302-
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-79998-915-1 01 1 1302-
38 HOLDER; BOOT CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98070-460-1 01 1 1302-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1302-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1302-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1302-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1302-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1302-
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1302-
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33710-008-0 01 1 1302-
227 COVER; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98013-168-0 01 1 1302-
264 PLATE; COVER 1-33619-430-0 01 1 1302-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1302-
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1302-
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1302-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1302-

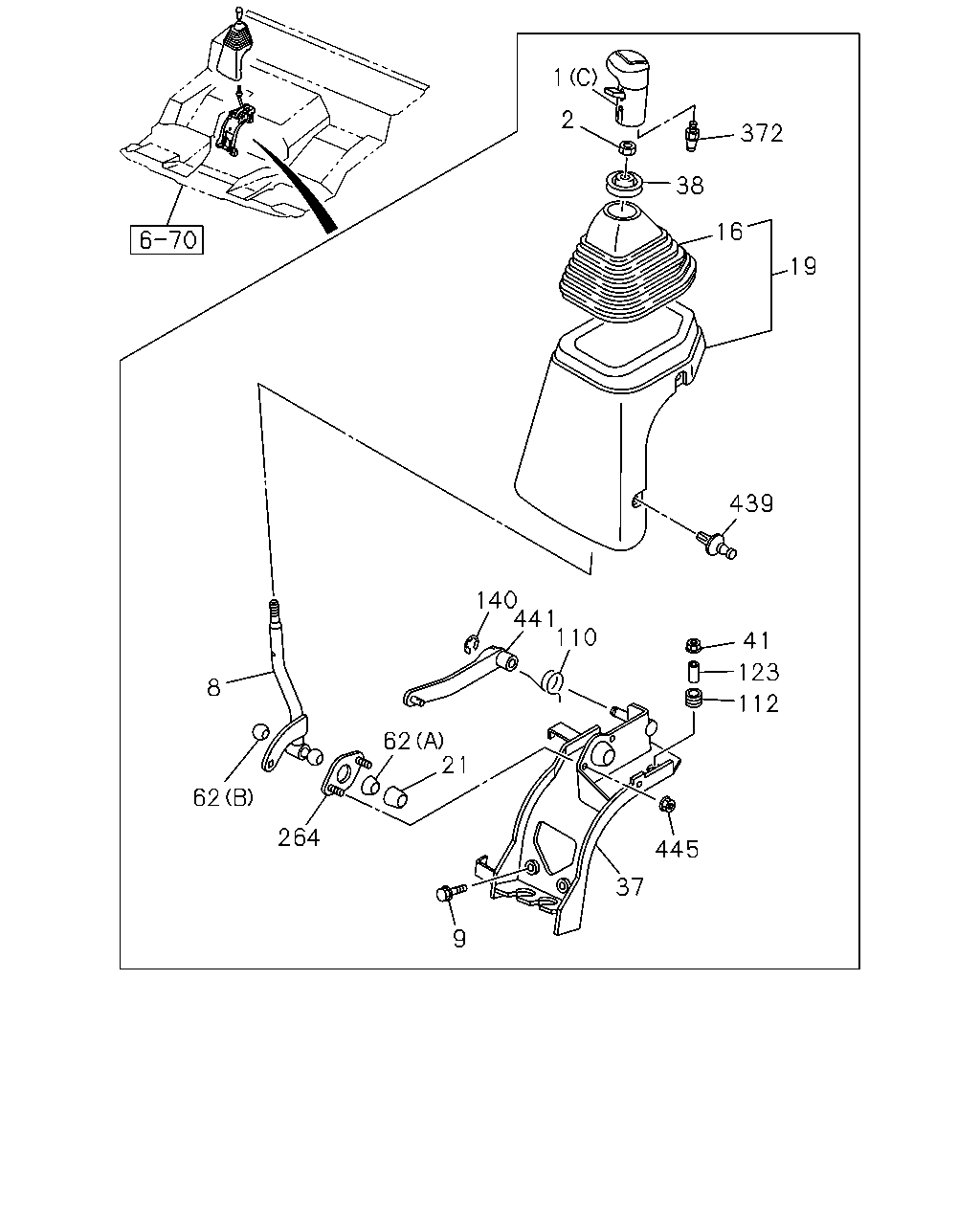

çizim 327441
8 62 264 62 21 9 37 112 445 123 439 41 110 441 140 19 16 372 38 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) (C) 		1-33611-106-0 01 1 1302-1401
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) (C) 		8-98224-288-0 01 1 1402-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33611-038-0 01 1 1302-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33611-099-1 01 1 1302-
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) 1/2-13UNC 		1-33619-033-0 01 1 1302-
2 NUT; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 01 1 1302-
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98149-308-0 01 1 1302-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-454-0 01 1 1302-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-459-0 01 1 1302-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1302-
16 BOOT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-97893-962-1 01 1 1302-
16 BOOT; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97893-962-1 01 1 1302-
16 BOOT; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-79998-913-1 01 1 1302-
19 COVER; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) GRAY 		8-97411-671-1 01 1 1302-
19 COVER; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY 		8-97411-671-1 01 1 1302-
19 COVER; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY 		8-97409-847-0 01 1 1302-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98149-307-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98093-451-0 01 1 1302-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-447-0 01 1 1302-
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-79998-915-1 01 1 1302-
38 HOLDER; BOOT CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98070-460-1 01 1 1302-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1302-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1302-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1302-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1302-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1302-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1302-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1302-
264 PLATE; COVER 1-33619-430-0 01 1 1302-
372 CONNECTOR; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-98114-396-0 02 1 1302-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1302-
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1302-
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1302-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1302-

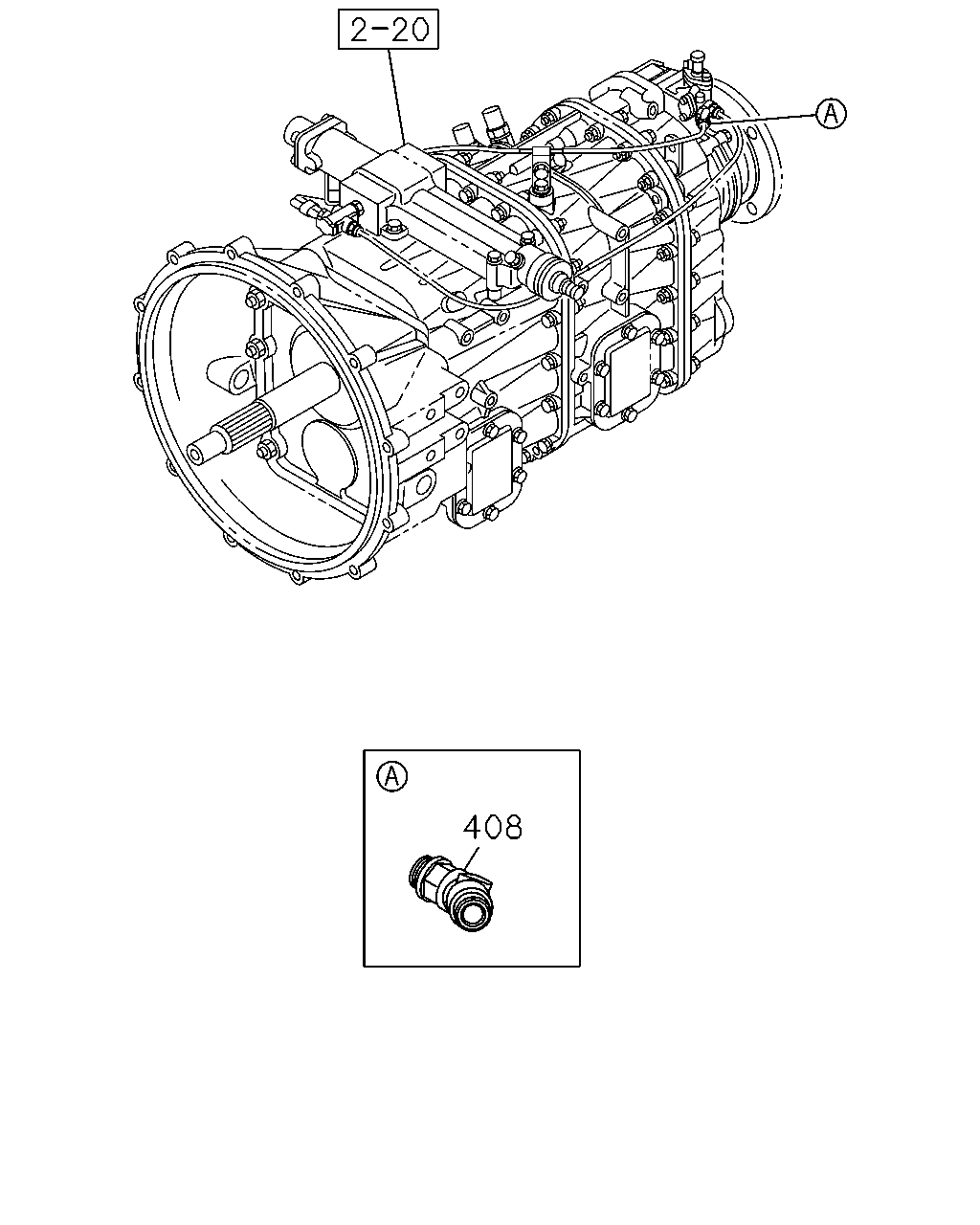

çizim 331112
408
BalonParca AdiParca NoAdetTipApplied Date
408 CONNECTOR; AIR HOSE
FULLER ES11109 DD M/T(Y5N) 		1-33119-473-0 01 1 1302-
