0-42 — FUEL PUMP AND PIPE
(#112916) — 20 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀
[042A] 6HK1 (10 parça)
[042A] 4HK1 (10 parça)
▶
142
126
142
142
142
126
148
148
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
01
1
1302-
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
01
1
1302-
●
●
131
BRACKET; FUEL PIPE CLIP
8-98059-806-0
01
1
1302-
●
142
CLIP; FUEL PIPE
(B) ID=7 & 9 L=25
8-98000-010-2
01
1
1302-
●
142
CLIP; FUEL PIPE
(A) ID=7 & 9 L=25
8-98000-011-2
01
1
1302-
●
142
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
1-09701-180-0
01
1
1302-
●
142
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
8-94393-280-3
01
1
1302-
●
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
1302-
●
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
01
1
1302-
●
148
BOLT; BRKT
(C) M6X12 FLANGE
0-28050-612-0
01
1
1305-
●

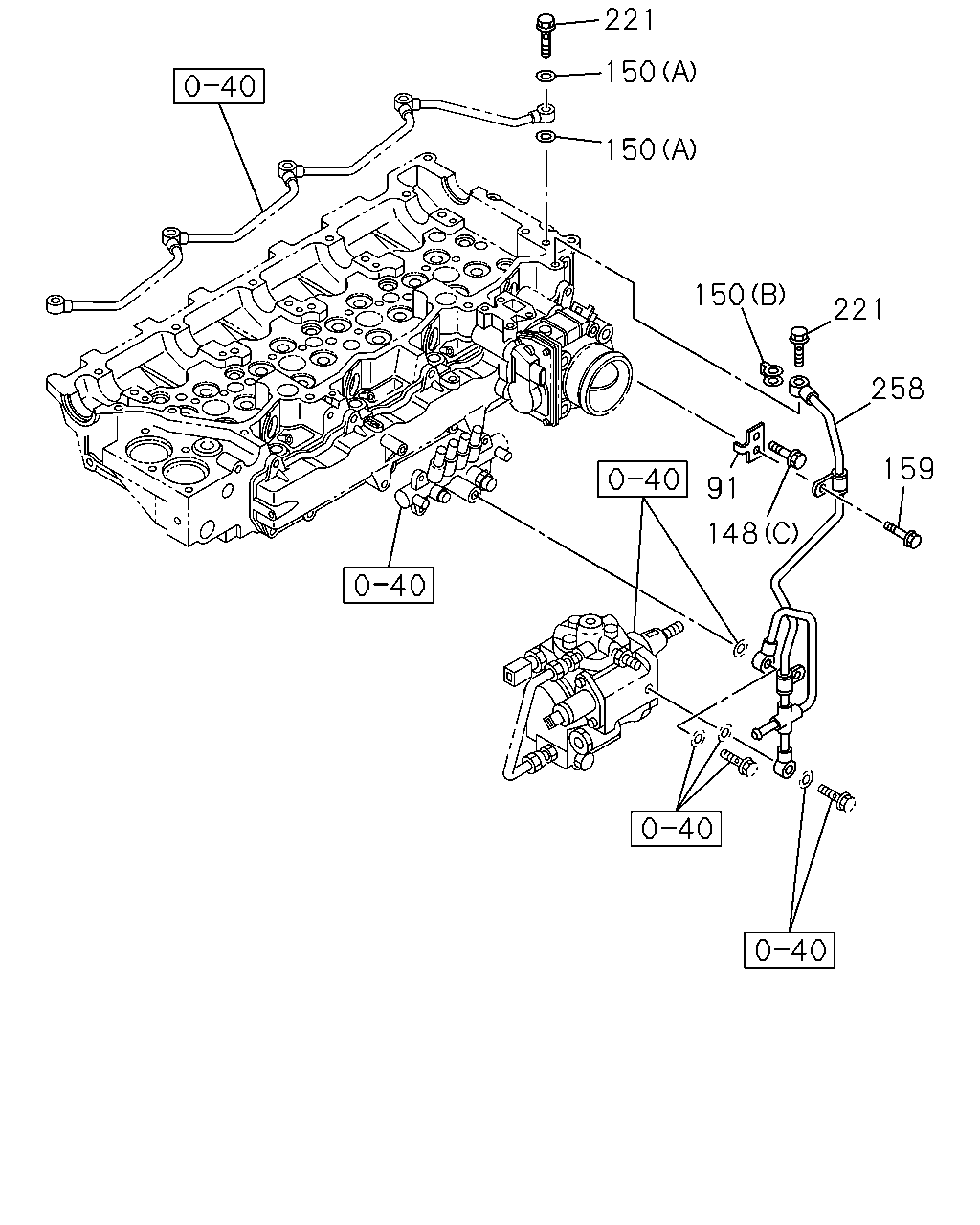

221
150
150
150
221
258
159
148
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
1305-
●
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
1302-
●
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
01
1
1302-
●
148
BOLT; BRKT
(C) M6X12 FLANGE
0-28050-612-0
01
1
1305-
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1305-
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1305-
●
159
BOLT; CLIP
M6X12 FLANGE
0-28050-612-0
01
1
1305-
●
159
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
01
1
1305-
●
221
BOLT; FUEL PIPE
M10X21 FLANGE
8-94396-711-0
02
1
1305-
●
258
PIPE ASM; FUEL,LEAK OFF
8-98055-815-1
01
1
1305-
●
