Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶

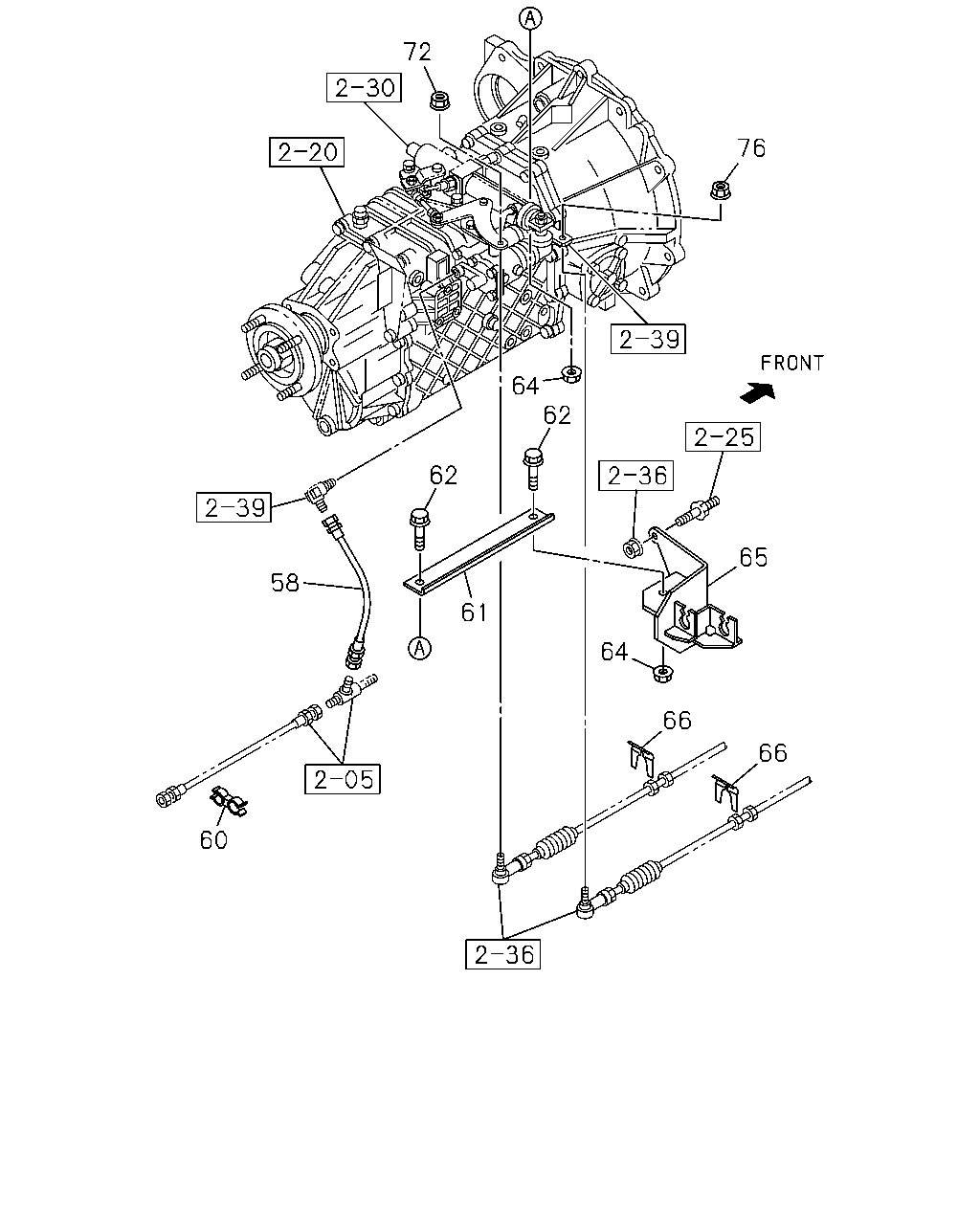

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#112912) — 15 parça
66
66
64
65
76
72
64
62
62
61
58
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
HOSE; FLEX,POWER ASSISTOR
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290
1-09363-875-0
01
1
1302-
58
HOSE; FLEX,POWER ASSISTOR
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> L=330
1-09363-636-0
01
1
1302-
60
CLIP; FLEX HOSE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
61
STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ)
8-98165-370-0
01
1
1302-1309
61
STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ)
8-98251-404-0
01
1
1310-
61
STAY; BRKT,TRANS CONT
MZZ6W M/T(RSA)
1-33657-267-0
01
1
1302-
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
02
1
1302-
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>
8-98010-158-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>
8-98050-563-1
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8>
8-98054-923-0
01
1
1302-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8>
8-98167-239-0
01
1
1302-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1302-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1302-
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
