Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#112911) — 507 parça

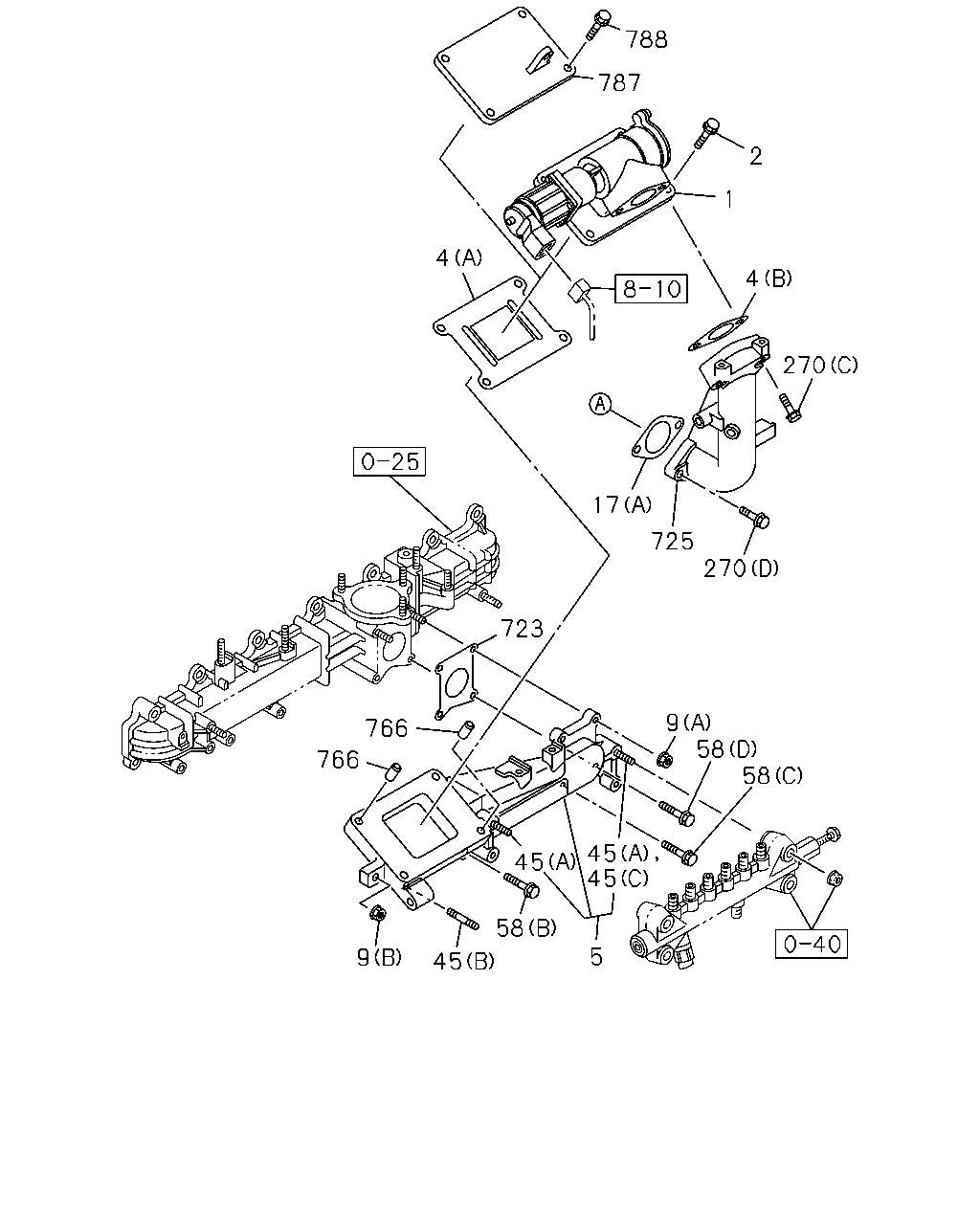

788 787 2 1 4 270 4 17 725 270 723 766 766 9 45 45 45 45 58 9 58 58 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98238-267-1	01	1	1506-	●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1302-1511		●	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1512-		●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-98219-153-0	01	1	1305-1511				●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98219-180-0	01	1	1305-				●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	1302-1505		●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1506-1511	●	●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1512-	●	●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1305-1511				●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1512-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1506-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1506-1511	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1512-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1305-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D)	8-98036-507-0	01	1	1305-				●
5	ADAPTER ASM EURO5 SPECIFICATION<NT5>	8-98239-839-0	01	1	1506-	●	●
5	ADAPTER ASM	8-97606-201-3	01	1	1302-1305		●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-1505		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1506-1511		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1512-		●	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1305-1511				●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1512-				●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1302-1505		●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1302-1505		●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=44.5	8-97601-144-0	02	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97367-918-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97388-919-0	02	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (G) ID=51.5	8-98046-192-1	01	1	1305-				●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1506-	●	●	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1302-1505		●	●
45	STUD; ADAPTER,EGR EURO5 SPECIFICATION<NT5> (C) M10X60 L=75	0-44011-060-0	01	1	1506-	●	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	1302-1505		●	●
45	STUD; ADAPTER,EGR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M10X50 L=65	0-44011-050-0	02	1	1506-1511		●	●
45	STUD; ADAPTER,EGR EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10X50 L=65	0-44011-050-0	02	1	1512-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-1505		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1506-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505		●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-1505		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1506-	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	1302-1511		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-			●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-			●
58	BOLT; PIPE EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-	●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	03	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (F) M8X70 FLANGE	0-28050-870-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (G) M10X50 FLANGE	0-28151-050-0	02	1	1506-			●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (F) M8X45 FLANGE	0-28050-845-0	02	1	1305-1511				●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-1505		●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X25 FLANGE	0-28050-825-0	02	1	1506-1511	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X25 FLANGE	0-28050-825-0	02	1	1512-	●	●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	1302-1505		●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X45 FLANGE	0-28151-045-0	02	1	1506-1511	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X45 FLANGE	0-28151-045-0	02	1	1512-	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1302-1505		●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-		●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-			●
270	BOLT EURO5 SPECIFICATION<NT5> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1302-1505		●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-		●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-			●
270	BOLT EURO5 SPECIFICATION<NT5> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1302-1505		●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1506-	●	●	●
725	DUCT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97604-972-2	01	1	1302-1305		●	●
725	DUCT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98240-120-0	01	1	1306-1505		●	●
725	DUCT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98240-120-0	01	1	1506-1511	●	●	●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98240-120-0	01	1	1512-	●	●	●
766	DOWEL; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD=14 L=10	9-11319-065-3	02	1	1302-1505		●	●
766	DOWEL; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> OD=14 L=10	9-11319-065-3	02	1	1506-1511	●	●	●
766	DOWEL; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> OD=14 L=10	9-11319-065-3	02	1	1512-	●	●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98058-709-0	01	1	1302-1402		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98238-416-0	01	1	1403-		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28751-035-0	04	1	1302-1402		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X25 FLANGE	0-28751-025-0	04	1	1403-		●	●

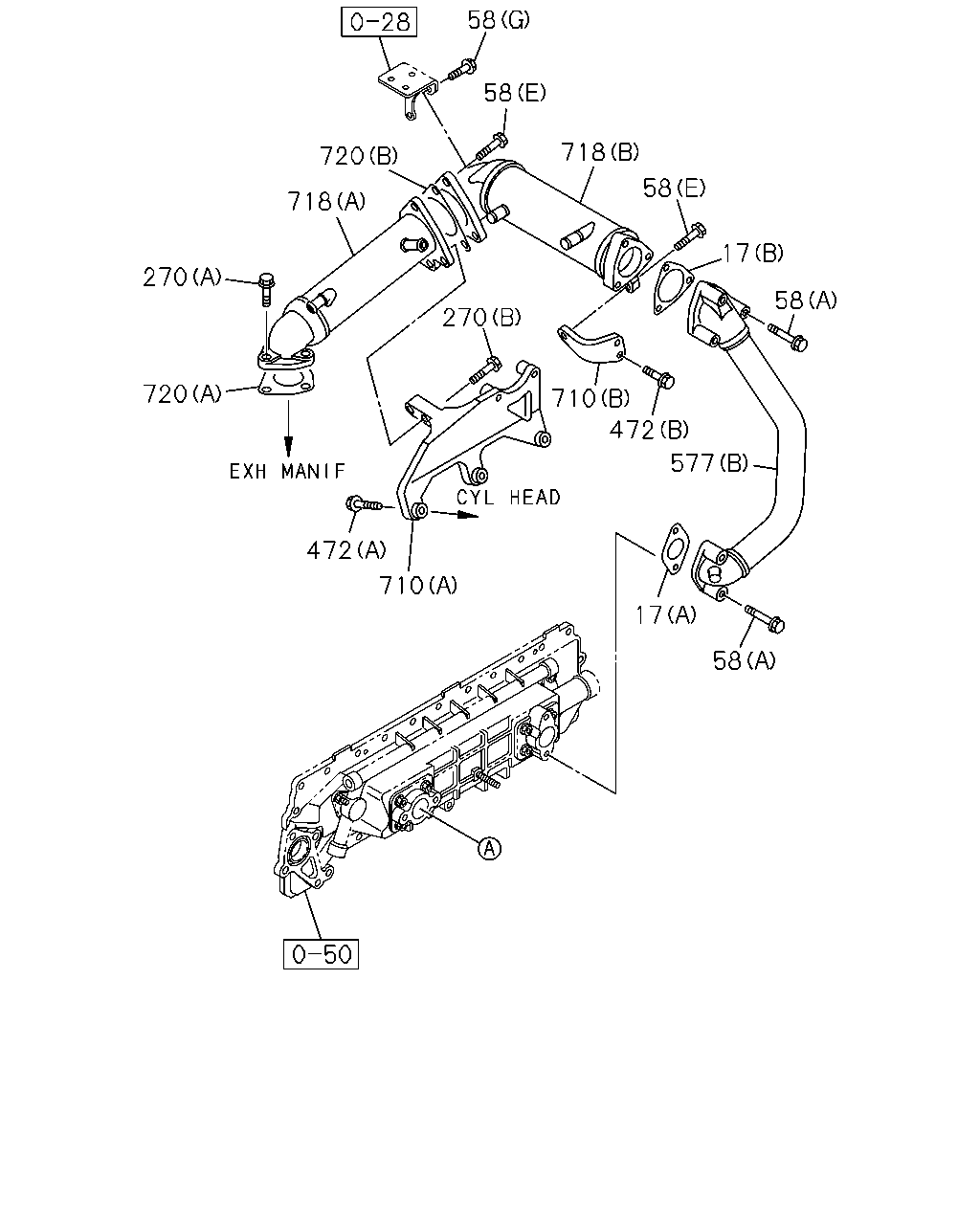

58 718 17 58 577 17 58 472 710 58 58 720 718 270 720 472 710 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=44.5	8-97601-144-0	02	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97367-918-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97388-919-0	02	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (G) ID=51.5	8-98046-192-1	01	1	1305-				●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-1505		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1506-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505		●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-1505		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1506-	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	1302-1511		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-			●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-			●
58	BOLT; PIPE EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-	●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	03	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (F) M8X70 FLANGE	0-28050-870-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (G) M10X50 FLANGE	0-28151-050-0	02	1	1506-			●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (F) M8X45 FLANGE	0-28050-845-0	02	1	1305-1511				●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-1505		●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X25 FLANGE	0-28050-825-0	02	1	1506-1511	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M8X25 FLANGE	0-28050-825-0	02	1	1512-	●	●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	1302-1505		●	●
270	BOLT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X45 FLANGE	0-28151-045-0	02	1	1506-1511	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M10X45 FLANGE	0-28151-045-0	02	1	1512-	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1302-1505		●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-		●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-			●
270	BOLT EURO5 SPECIFICATION<NT5> (B) M8X35 FLANGE	0-28050-835-0	02	1	1506-	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1302-1505		●	●
270	BOLT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-		●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-			●
270	BOLT EURO5 SPECIFICATION<NT5> (A) M8X28 FLANGE	8-98043-528-0	03	1	1506-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28050-830-0	02	1	1302-1505		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X30 FLANGE	0-28050-830-0	02	1	1506-	●	●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X35 FLANGE	0-28060-835-0	03	1	1302-1505		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-		●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-			●
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	1305-				●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1305-				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-97603-452-2	01	1	1302-1511		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-97604-968-1	01	1	1302-1505		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97604-968-1	01	1	1506-	●	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-98055-858-2	01	1	1305-1511				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-98063-655-2	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98030-584-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98030-584-0	01	1	1506-	●	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1506-			●
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (C)	8-98079-255-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (E)	8-98092-887-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (D)	8-98092-888-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (G)	8-98025-253-2	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (H)	8-98025-254-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1305-				●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (A)	8-98030-582-3	01	1	1302-1401		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (A)	8-98250-860-0	01	1	1402-1505		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98250-860-0	01	1	1506-		●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (A)	8-98250-860-0	01	1	1506-			●
718	COOLER; EGR EURO5 SPECIFICATION<NT5> (A)	8-98250-860-0	01	1	1506-	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4> (B)	8-98030-583-1	01	1	1302-1505		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98030-583-1	01	1	1506-	●	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1302-1505		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=80	8-97603-889-0	01	1	1506-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1506-			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=80	8-97603-889-0	01	1	1506-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1302-1505		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=51.5	8-98046-192-1	01	1	1506-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1506-			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (A) ID=51.5	8-98046-192-1	01	1	1506-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98200-753-0	03	1	1305-				●

577 681 634 17 17 58

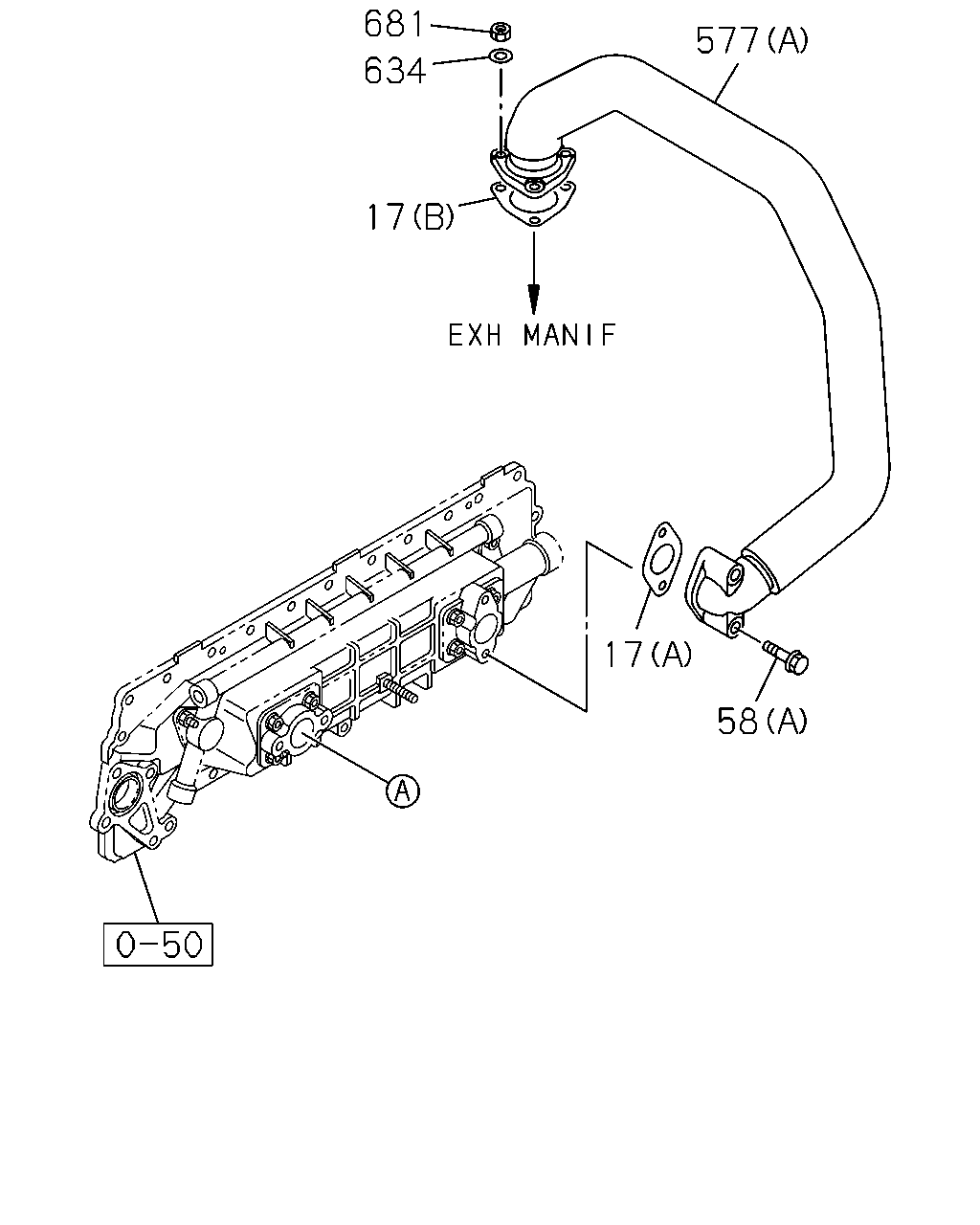

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=44.5	8-97601-144-0	02	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97367-918-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97388-919-0	02	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (G) ID=51.5	8-98046-192-1	01	1	1305-				●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-1505		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1506-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505		●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-1505		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1506-	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	1302-1511		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-			●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-			●
58	BOLT; PIPE EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-	●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	03	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (F) M8X70 FLANGE	0-28050-870-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (G) M10X50 FLANGE	0-28151-050-0	02	1	1506-			●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (F) M8X45 FLANGE	0-28050-845-0	02	1	1305-1511				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-97603-452-2	01	1	1302-1511		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-97604-968-1	01	1	1302-1505		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97604-968-1	01	1	1506-	●	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-98055-858-2	01	1	1305-1511				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-98063-655-2	01	1	1305-1511				●
634	WASHER; PL,EGR PIPE EURO3 SPECIFICATION<NT3> ID=8.4 OD=16	0-91610-508-0	03	1	1302-1511		●	●
681	NUT; EGR PIPE EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	03	1	1302-1511		●	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-208-0	02	1	1305-1511				●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1512-				●

5 12 2 1 4 16 1 58 17 577 709 17 704 271 58 17 17 8 577 681 765 17 709 703 271 8 271 710 710

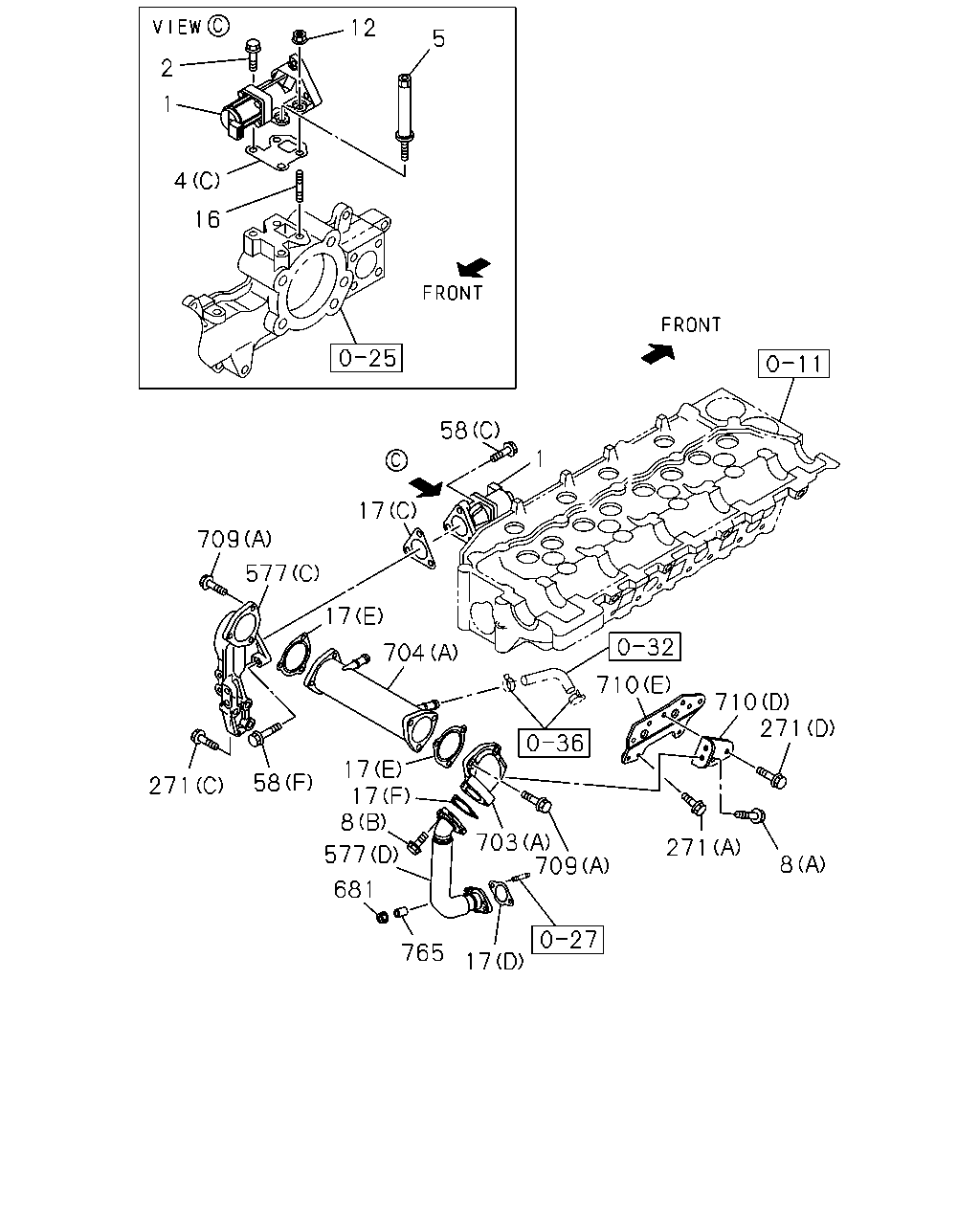

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98238-267-1	01	1	1506-	●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1302-1511		●	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1512-		●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-98219-153-0	01	1	1305-1511				●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98219-180-0	01	1	1305-				●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	1302-1505		●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1506-1511	●	●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1512-	●	●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1305-1511				●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1512-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1506-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1506-1511	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1512-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1305-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D)	8-98036-507-0	01	1	1305-				●
5	ADAPTER ASM EURO5 SPECIFICATION<NT5>	8-98239-839-0	01	1	1506-	●	●
5	ADAPTER ASM	8-97606-201-3	01	1	1302-1305		●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-1505		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1506-1511		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1512-		●	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1305-1511				●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1512-				●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1305-1511				●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-98043-528-0	03	1	1305-1511				●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1305-1511				●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1512-				●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1305-1511				●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1512-				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=44.5	8-97601-144-0	02	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97367-918-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97388-919-0	02	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (G) ID=51.5	8-98046-192-1	01	1	1305-				●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-1505		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1506-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304		●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505		●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1511				●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1302-1505		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1506-	●	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	1302-1511		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	05	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-			●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405		●
58	BOLT; PIPE EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1302-1405			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	04	1	1406-1505			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-			●
58	BOLT; PIPE EURO5 SPECIFICATION<NT5> (E) M10X35 FLANGE	0-28751-035-0	04	1	1506-	●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X60 FLANGE	0-28050-860-0	03	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (A) M8X60 FLANGE	0-28050-860-0	03	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F) M8X70 FLANGE	0-28050-870-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (F) M8X70 FLANGE	0-28050-870-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E) M10X35 FLANGE	0-28751-035-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (E) M10X35 FLANGE	0-28751-035-0	02	1	1506-			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1302-1404			●
58	BOLT; PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (G) M10X50 FLANGE	0-28151-050-0	02	1	1405-1505		●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (G) M10X50 FLANGE	0-28151-050-0	02	1	1506-			●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (F) M8X45 FLANGE	0-28050-845-0	02	1	1305-1511				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1305-				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1305-1511				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-				●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1305-1511				●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1305-1511				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-97603-452-2	01	1	1302-1511		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-97604-968-1	01	1	1302-1505		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97604-968-1	01	1	1506-	●	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-98055-858-2	01	1	1305-1511				●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-98063-655-2	01	1	1305-1511				●
681	NUT; EGR PIPE EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	03	1	1302-1511		●	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-208-0	02	1	1305-1511				●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1512-				●
703	DUCT; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-100-2	01	1	1305-1511				●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (C)	8-98115-663-0	01	1	1305-				●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (B)	8-98115-665-1	01	1	1305-				●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-104-0	01	1	1305-1511				●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (C)	8-98025-248-5	01	1	1305-				●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-718-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28751-035-0	06	1	1305-1511				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (F) M8X45 FLANGE	0-28060-845-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE	0-28660-830-0	07	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98030-584-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98030-584-0	01	1	1506-	●	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1506-			●
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (C)	8-98079-255-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (E)	8-98092-887-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (D)	8-98092-888-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (G)	8-98025-253-2	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (H)	8-98025-254-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1305-				●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-94225-562-0	02	1	1305-1511				●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1512-				●

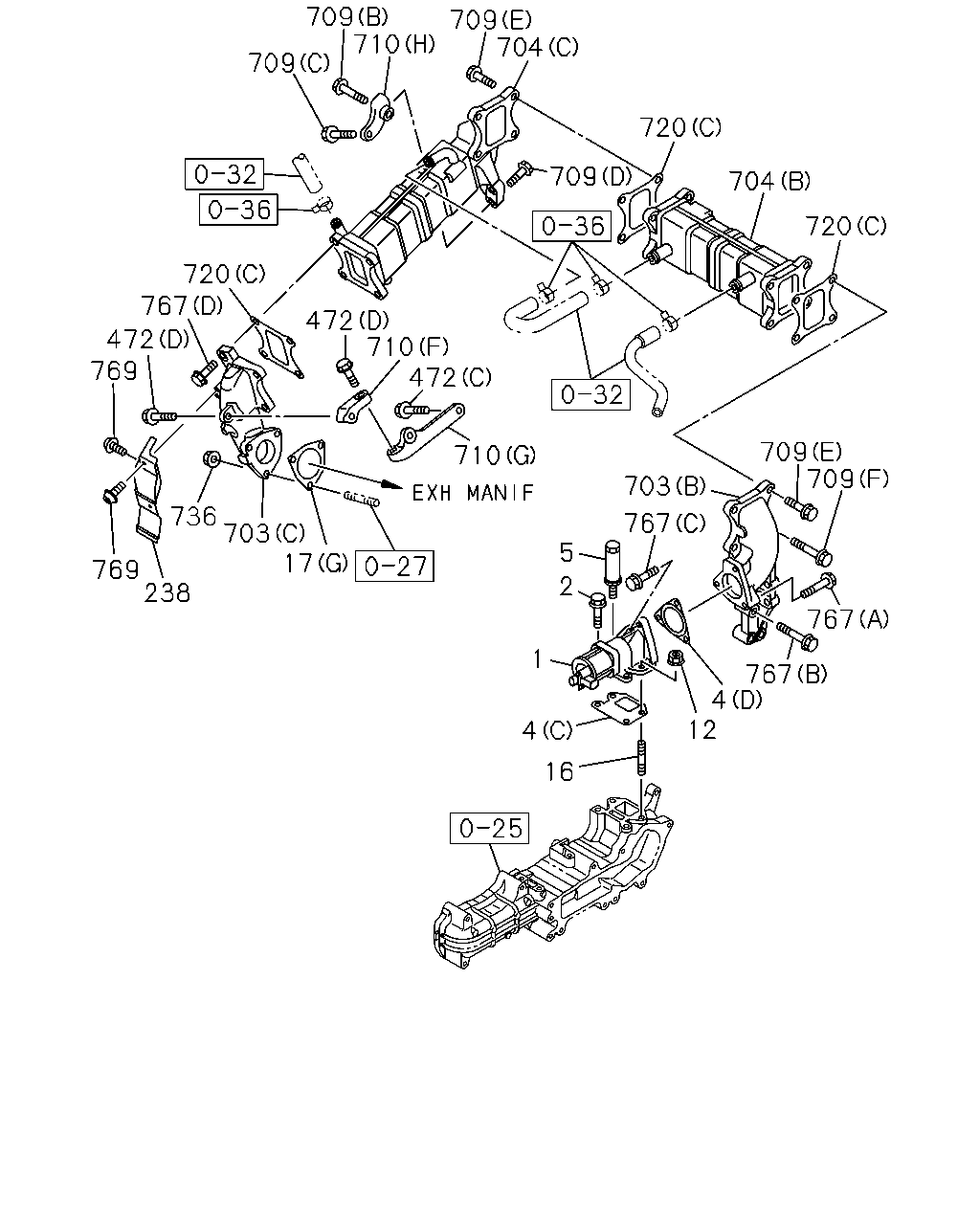

720 709 709 709 710 720 767 472 769 769 736 703 17 472 472 710 710 704 709 704 709 703 767 5 1 2 4 16 12 4 767 767 709 238 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98238-267-1	01	1	1506-	●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1302-1511		●	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	1512-		●	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-98219-153-0	01	1	1305-1511				●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98219-180-0	01	1	1305-				●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	1302-1505		●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1506-1511	●	●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X35 FLANGE	0-28751-035-0	04	1	1512-	●	●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1305-1511				●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	1512-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1506-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1506-1511	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1512-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1305-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D)	8-98036-507-0	01	1	1305-				●
5	ADAPTER ASM EURO5 SPECIFICATION<NT5>	8-98239-839-0	01	1	1506-	●	●
5	ADAPTER ASM	8-97606-201-3	01	1	1302-1305		●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-1505		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1506-1511		●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98240-157-0	01	1	1512-		●	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1305-1511				●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1512-				●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1305-1511				●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1512-				●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1305-1511				●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	1512-				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=55	8-97600-167-0	01	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=55	8-97600-167-0	01	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) ID=44.5	8-97601-144-0	02	1	1302-1505		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1506-1511	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=44.5	8-97601-144-0	02	1	1512-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97367-918-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97388-919-0	02	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1305-1511				●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (G) ID=51.5	8-98046-192-1	01	1	1305-				●
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>	8-98176-249-0	01	1	1305-				●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28050-830-0	02	1	1302-1505		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X30 FLANGE	0-28050-830-0	02	1	1506-	●	●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X35 FLANGE	0-28060-835-0	03	1	1302-1505		●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-		●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-			●
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X35 FLANGE	0-28060-835-0	03	1	1506-	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	1305-				●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1305-				●
703	DUCT; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-100-2	01	1	1305-1511				●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (C)	8-98115-663-0	01	1	1305-				●
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (B)	8-98115-665-1	01	1	1305-				●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3> (A)	8-98061-104-0	01	1	1305-1511				●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (C)	8-98025-248-5	01	1	1305-				●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-718-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28751-035-0	06	1	1305-1511				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (F) M8X45 FLANGE	0-28060-845-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	01	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE	0-28660-830-0	07	1	1305-				●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE	0-28751-040-0	02	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98030-584-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98030-584-0	01	1	1506-	●	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1506-			●
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (C)	8-98079-255-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (E)	8-98092-887-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (D)	8-98092-888-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (G)	8-98025-253-2	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (H)	8-98025-254-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1305-				●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1302-1505		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=80	8-97603-889-0	01	1	1506-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	1506-			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=80	8-97603-889-0	01	1	1506-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1302-1505		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=51.5	8-98046-192-1	01	1	1506-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	1506-			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (A) ID=51.5	8-98046-192-1	01	1	1506-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98200-753-0	03	1	1305-				●
736	NUT; DUCT,EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	1305-				●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	02	1	1305-				●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (B) M12X50 FLANGE	0-28151-250-0	02	1	1305-				●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-				●
767	BOLT; DUCT,EGR EURO4 SPECIFICATION<NT4> (D) M8X28 FLANGE	8-98043-528-0	04	1	1305-				●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER	8-98054-289-0	04	1	1305-				●

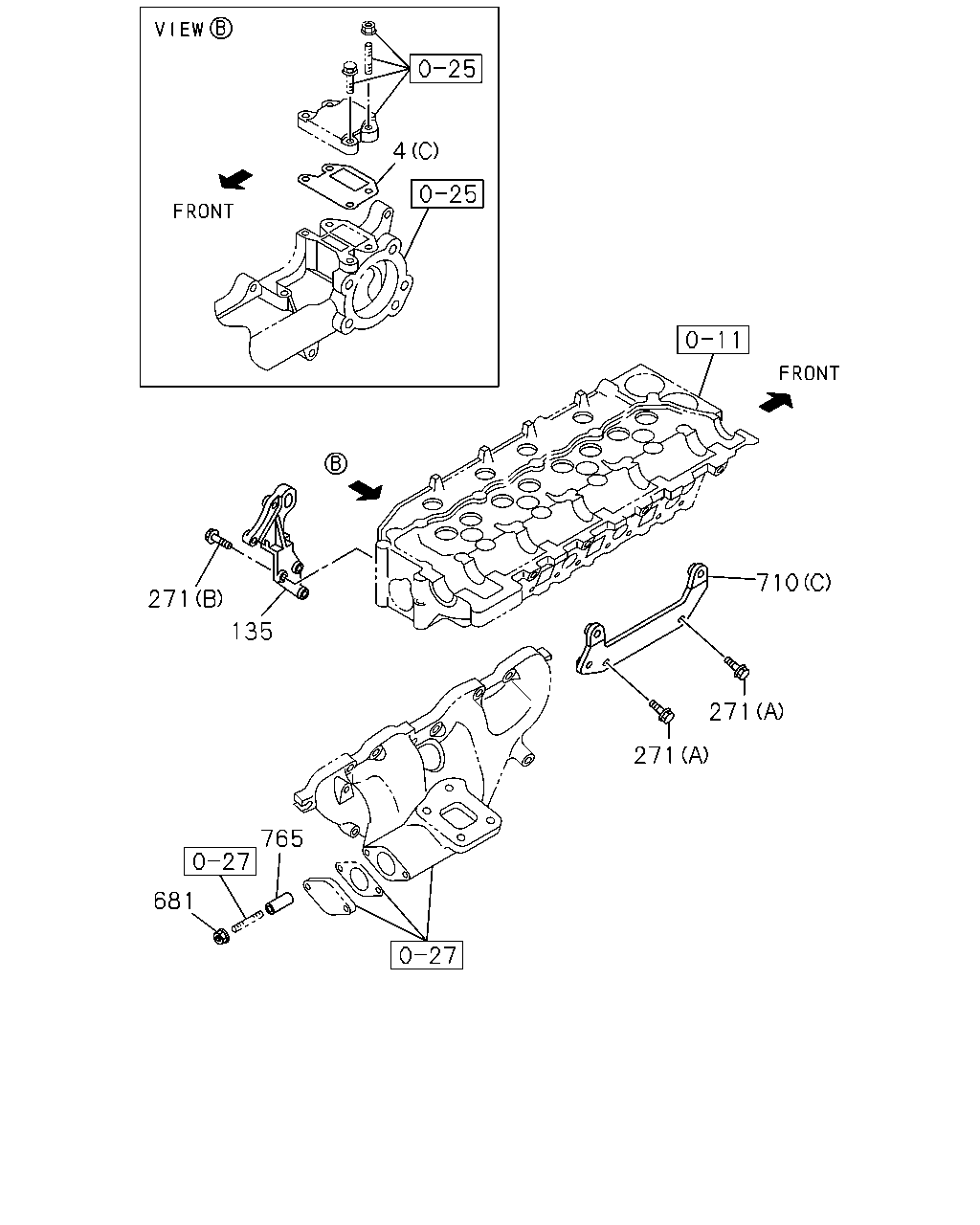

4 710 271 271 765 681 135 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1506-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	1302-1505		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1506-1511	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=47	8-97603-282-0	01	1	1512-	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1305-				●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D)	8-98036-507-0	01	1	1305-				●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1305-				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1305-				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1305-1511				●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-				●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1305-1511				●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1305-1511				●
681	NUT; EGR PIPE EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	03	1	1302-1511		●	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-208-0	02	1	1305-1511				●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1512-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98030-584-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98030-584-0	01	1	1506-	●	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1302-1505		●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98186-437-0	01	1	1506-			●
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (A)	8-98186-437-0	01	1	1506-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (C)	8-98079-255-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (E)	8-98092-887-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (D)	8-98092-888-0	01	1	1305-1511				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (G)	8-98025-253-2	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (H)	8-98025-254-1	01	1	1305-				●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98055-940-1	01	1	1305-				●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-94225-562-0	02	1	1305-1511				●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1512-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
