0-50 — OIL COOLER AND OIL FILTER (#112902) — 94 parça

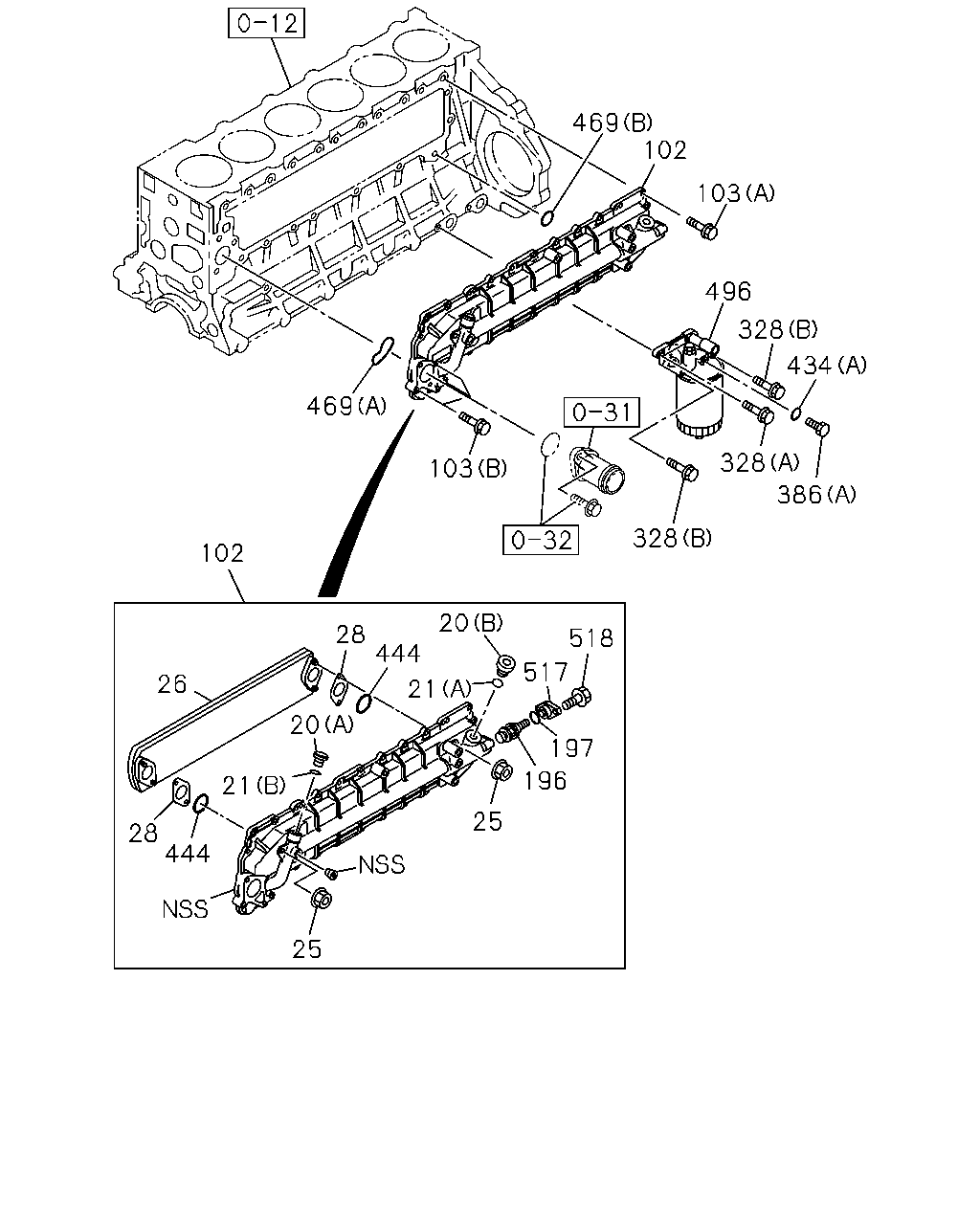

25 25 196 197 517 518 20 21 444 28 20 21 444 28 26 102 469 103 328 386 328 434 328 496 103 102 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1302-	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1302-	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1302-	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1302-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1302-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1305-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1305-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1305-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1302-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1305-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1305-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1302-	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1302-	●

496 386 307 308 265 13 66 434 2 321 321 321 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1305-1509		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1305-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1305-		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1305-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●

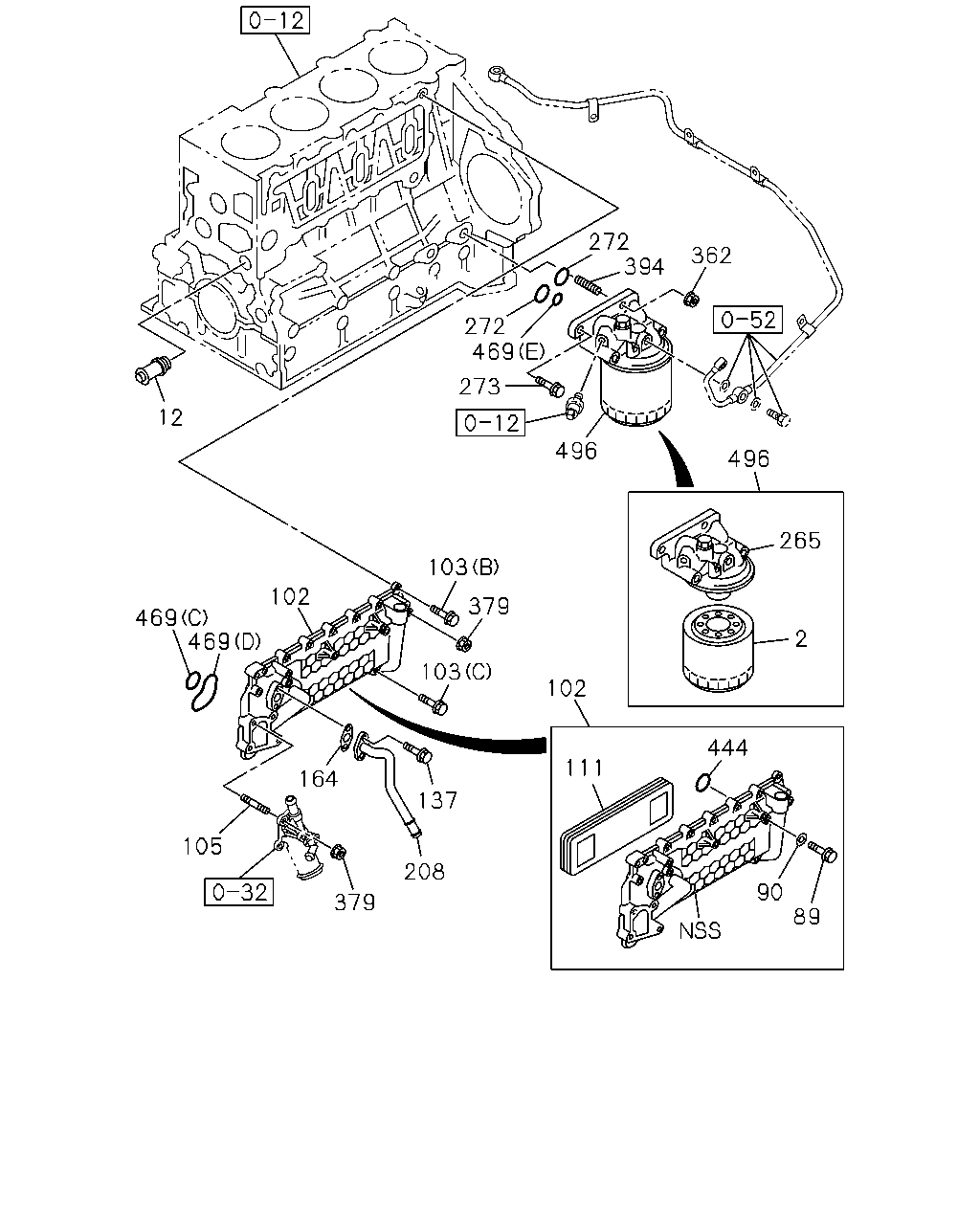

265 2 444 111 90 89 469 469 102 103 379 102 12 105 164 103 137 208 272 273 469 496 496 394 362 272 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1305-1509		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1305-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1305-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1305-		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1305-		●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1305-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1305-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1305-		●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1305-		●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1305-		●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1305-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1305-		●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1305-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1305-		●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1305-		●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1305-		●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1305-		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1305-		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1305-		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1305-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1305-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1305-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
