◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#112898) — 65 parça

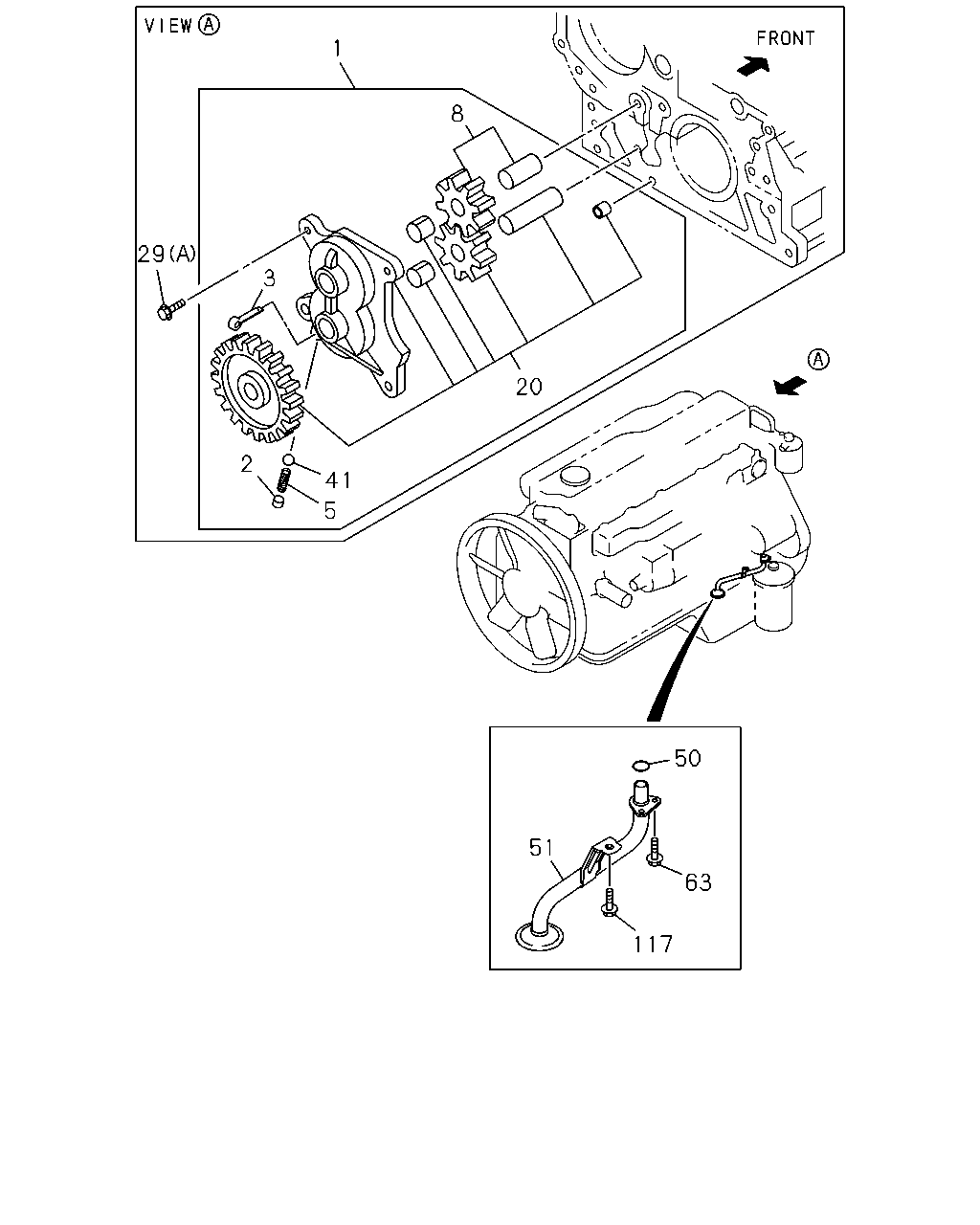

çizim 326660
29 1 8 20 41 2 5 50 63 117 51 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL 8-97641-835-0 01 1 1302-1505 ● ●
1 PUMP ASM; OIL 8-97641-835-0 01 1 1506- ● ● ●
1 PUMP ASM; OIL 8-98017-585-1 01 1 1305- ●
2 SEAT; SPR 5-13165-004-0 01 1 1302-1505 ● ●
2 SEAT; SPR 5-13165-004-0 01 1 1506- ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1302-1304 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1305-1505 ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1506- ● ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1302-1304 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1305-1505 ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1506- ● ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97641-838-0 01 1 1302-1505 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97641-838-0 01 1 1506- ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1302-1505 ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1506- ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1305- ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE 		0-28050-825-0 04 1 1302-1505 ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE 		0-28050-825-0 04 1 1506- ● ● ●
29 BOLT; OIL PUMP
(B) M8X25 FLANGE 		0-28060-825-0 02 1 1305- ●
29 BOLT; OIL PUMP
(C) M8X30 FLANGE 		0-28060-830-0 02 1 1305- ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 1302-1505 ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 1506- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1302-1505 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1506- ● ● ●
51 STRAINER & PIPE ASM; OIL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98204-155-0 01 1 1506- ●
51 STRAINER & PIPE ASM; OIL
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-158-0 01 1 1302-1505 ● ●
51 STRAINER & PIPE ASM; OIL
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-158-0 01 1 1506-1511 ● ●
51 STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> 		8-98204-158-0 01 1 1506-1511 ●
51 STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98204-158-0 01 1 1506-1511 ●
51 STRAINER & PIPE ASM; OIL
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-158-0 01 1 1512- ● ●
51 STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> 		8-98204-158-0 01 1 1512- ●
51 STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98204-158-0 01 1 1512- ●
51 STRAINER & PIPE ASM; OIL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-153-0 01 1 1302-1404 ●
51 STRAINER & PIPE ASM; OIL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-153-0 01 1 1405-1505 ● ●
51 STRAINER & PIPE ASM; OIL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98204-153-0 01 1 1506- ● ●
51 STRAINER & PIPE ASM; OIL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98204-153-0 01 1 1506- ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1302-1505 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1506- ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X14 FLANGE 		0-28080-814-0 02 1 1302-1404 ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X14 FLANGE 		0-28080-814-0 02 1 1405-1505 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X14 FLANGE 		0-28080-814-0 02 1 1506- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 1506- ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 1302-1505 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 1506- ● ● ●

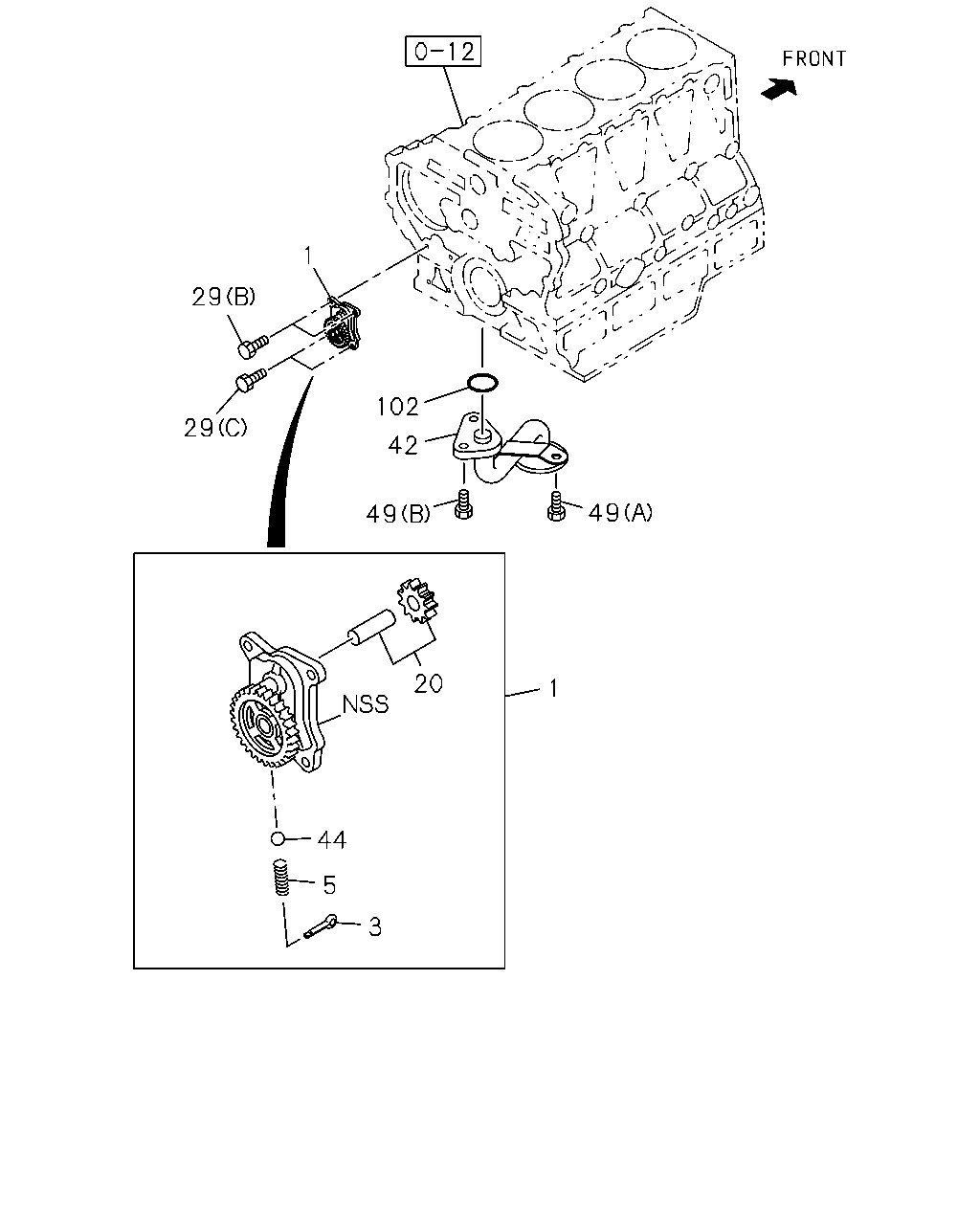

çizim 352703
29 29 102 49 49 44 5 3 20 1 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL 8-97641-835-0 01 1 1302-1505 ● ●
1 PUMP ASM; OIL 8-97641-835-0 01 1 1506- ● ● ●
1 PUMP ASM; OIL 8-98017-585-1 01 1 1305- ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1302-1304 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1305-1505 ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1506- ● ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1302-1304 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1305-1505 ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1506- ● ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1302-1505 ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1506- ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1305- ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE 		0-28050-825-0 04 1 1302-1505 ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE 		0-28050-825-0 04 1 1506- ● ● ●
29 BOLT; OIL PUMP
(B) M8X25 FLANGE 		0-28060-825-0 02 1 1305- ●
29 BOLT; OIL PUMP
(C) M8X30 FLANGE 		0-28060-830-0 02 1 1305- ●
42 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1305- ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 1305- ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE 		0-28060-816-0 02 1 1305- ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1305- ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1305- ●
