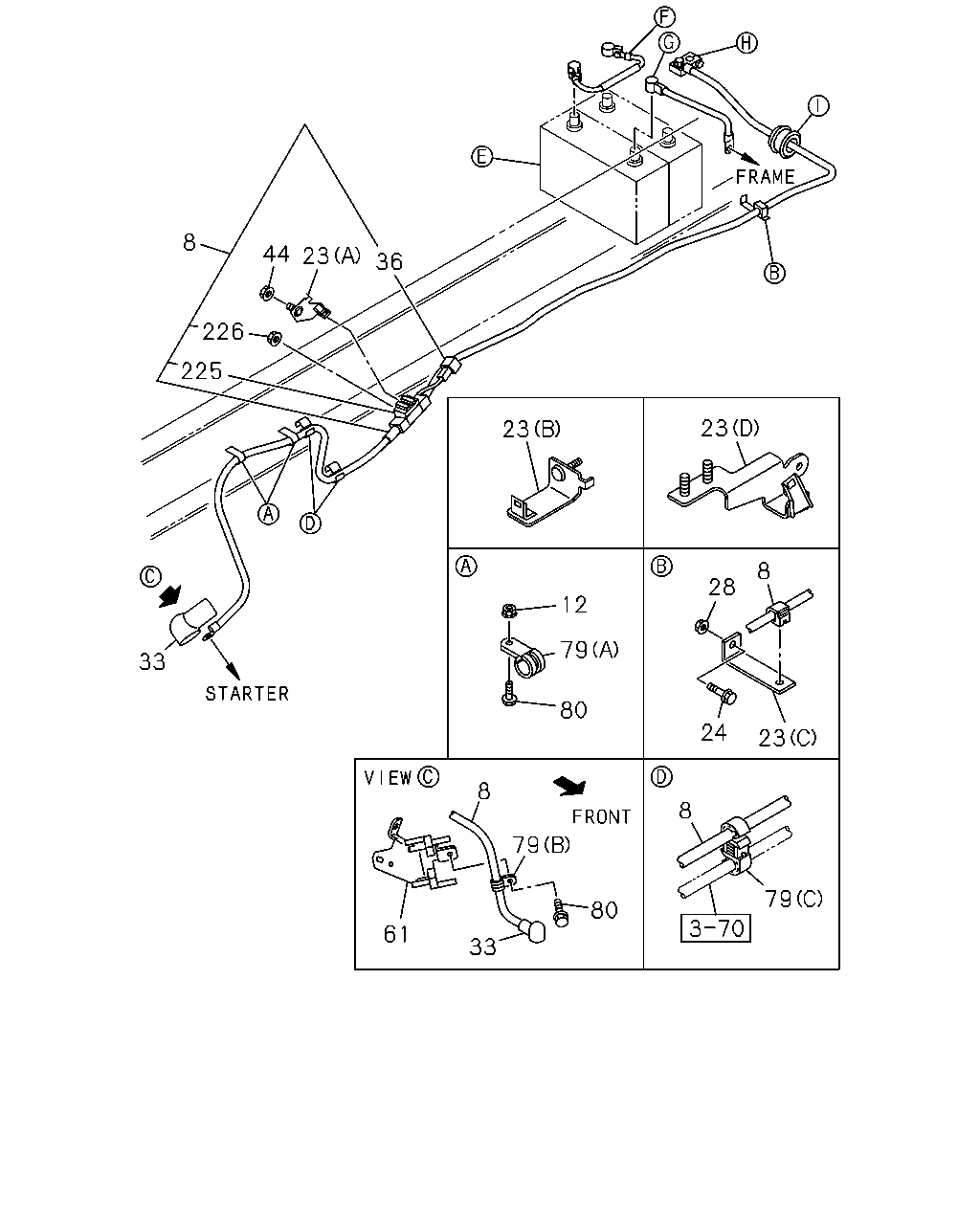

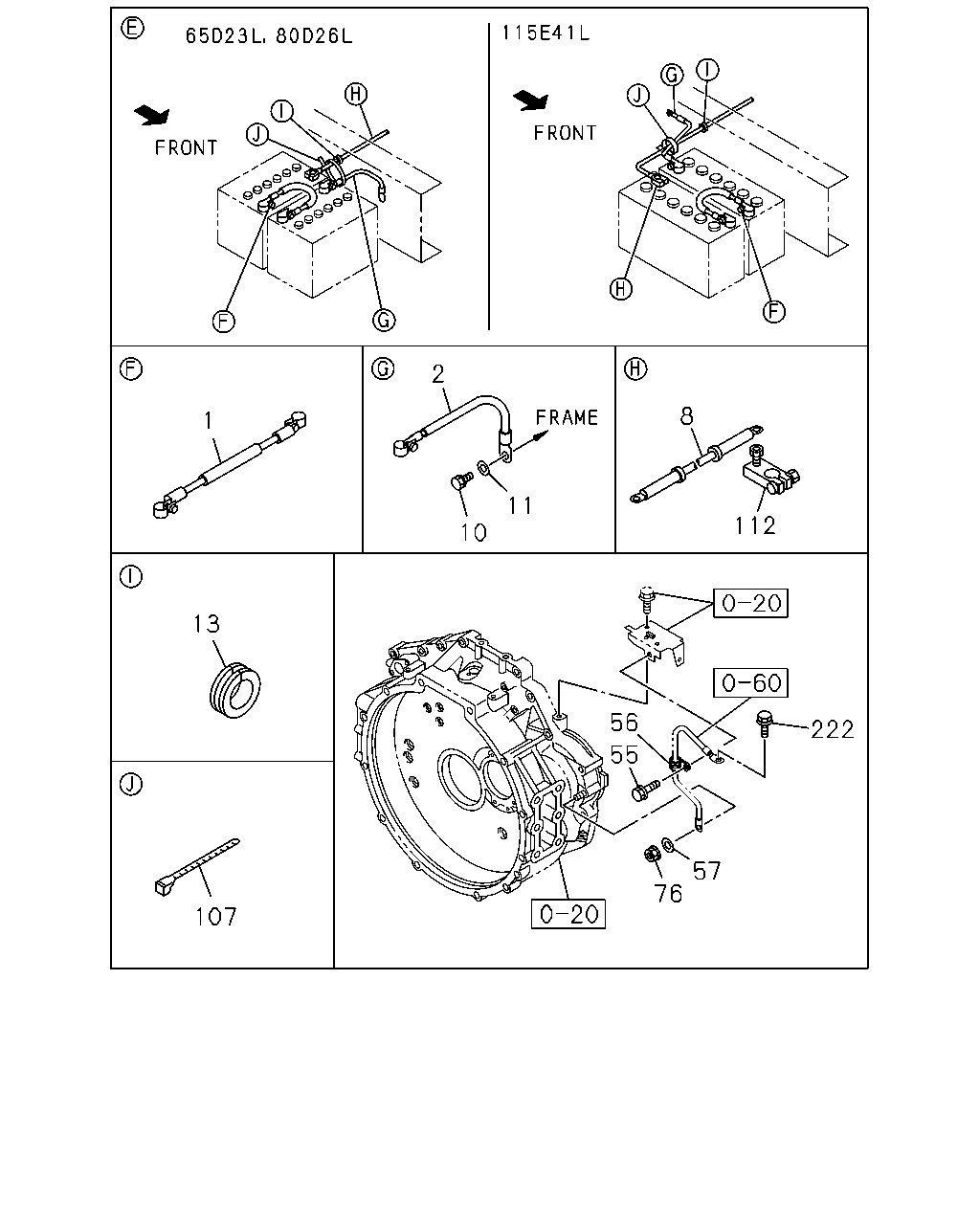

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#112897) — 77 parça

36 23 44 8 226 225 23 23 28 8 23 24 12 79 80 8 79 8 79 80 33 61 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98235-205-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98295-551-0	01	1	1503-
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. USER EXP GOVERNMENT<D6M>	8-98235-204-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. USER EXP GOVERNMENT<D6M>	8-98295-550-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98235-206-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>	8-98235-206-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3>	8-98295-554-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-554-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA>	8-98235-207-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98235-207-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3>	8-98295-555-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA>	8-98295-555-0	01	1	1503-
12	NUT; BATTERY CABLE CLIP DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> M8 FLANGE	0-91180-108-0	02	1	1302-
12	NUT; BATTERY CABLE CLIP REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	01	1	1302-
12	NUT; BATTERY CABLE CLIP USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> M8 FLANGE	0-91180-108-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98092-593-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98195-170-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (C) L=95	1-82699-085-0	03	1	1302-
23	BRACKET; CABLE CLIP TO FRAME REARWARD INNER SINGLE TIRE<YK3> (C) L=95	1-82699-085-0	02	1	1302-
23	BRACKET; CABLE CLIP TO FRAME USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (C) L=95	1-82699-085-0	02	1	1302-
24	BOLT; BRKT TO FRAME DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> M8X30 FLANGE	0-28650-830-0	03	1	1302-
24	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M8X30 FLANGE	0-28650-830-0	02	1	1302-
24	BOLT; BRKT TO FRAME USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> M8X30 FLANGE	0-28650-830-0	02	1	1302-
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1302-
28	NUT; BRKT TO FRAME DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> M8 FLANGE	0-91180-108-0	05	1	1302-
28	NUT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	04	1	1302-
28	NUT; BRKT TO FRAME USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> M8 FLANGE	0-91180-108-0	04	1	1302-
33	CAP; INSULATOR	1-82699-431-0	01	1	1302-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1302-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1302-
79	CLIP; BATTERY CABLE (B) ID=15 L=28	1-09701-216-0	01	1	1302-
79	CLIP; BATTERY CABLE (C) ID=10 & 10	1-09709-277-1	01	1	1302-
79	CLIP; BATTERY CABLE DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) ID=21 L=24	8-98019-191-0	02	1	1302-
79	CLIP; BATTERY CABLE REARWARD INNER SINGLE TIRE<YK3> (A) ID=21 L=24	8-98019-191-0	01	1	1302-
79	CLIP; BATTERY CABLE USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (A) ID=21 L=24	8-98019-191-0	01	1	1302-
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1302-
80	BOLT; BATTERY CABLE CLIP DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	BOLT; BATTERY CABLE CLIP REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	01	1	1302-
80	BOLT; BATTERY CABLE CLIP USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> M8X25 FLANGE	0-28650-825-0	01	1	1302-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1302-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1302-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

2 11 10 8 112 56 222 57 76 55 107 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1302-
2	CABLE; BATTERY BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> L=500	8-98138-256-0	01	1	1302-
2	CABLE; BATTERY USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> L=500	8-98138-256-0	01	1	1302-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> L=230	8-98140-103-0	01	1	1302-
2	CABLE; BATTERY USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=230	8-98140-103-0	01	1	1302-
2	CABLE; BATTERY DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M> L=440	8-97615-309-1	01	1	1302-
2	CABLE; BATTERY DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. USER EXP GOVERNMENT<D6M> L=280	8-98035-647-1	01	1	1302-
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98235-205-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98295-551-0	01	1	1503-
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. USER EXP GOVERNMENT<D6M>	8-98235-204-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. USER EXP GOVERNMENT<D6M>	8-98295-550-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98235-206-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>	8-98235-206-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3>	8-98295-554-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-554-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA>	8-98235-207-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> EXC. USER EXP GOVERNMENT<D6M>	8-98235-207-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3>	8-98295-555-0	01	1	1503-
8	CABLE; BATTERY,STARTER USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA>	8-98295-555-0	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1302-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1302-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1302-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1302-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1302-
107	CLIP; BAND L=140	5-09707-031-1	01	1	1302-1510
107	CLIP; BAND DOUBLE TIRE REARWARD<SR6> L=140	5-09707-031-1	01	1	1511-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1302-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1302-
