0-57 — EMISSION PIPING (#112895) — 65 parça

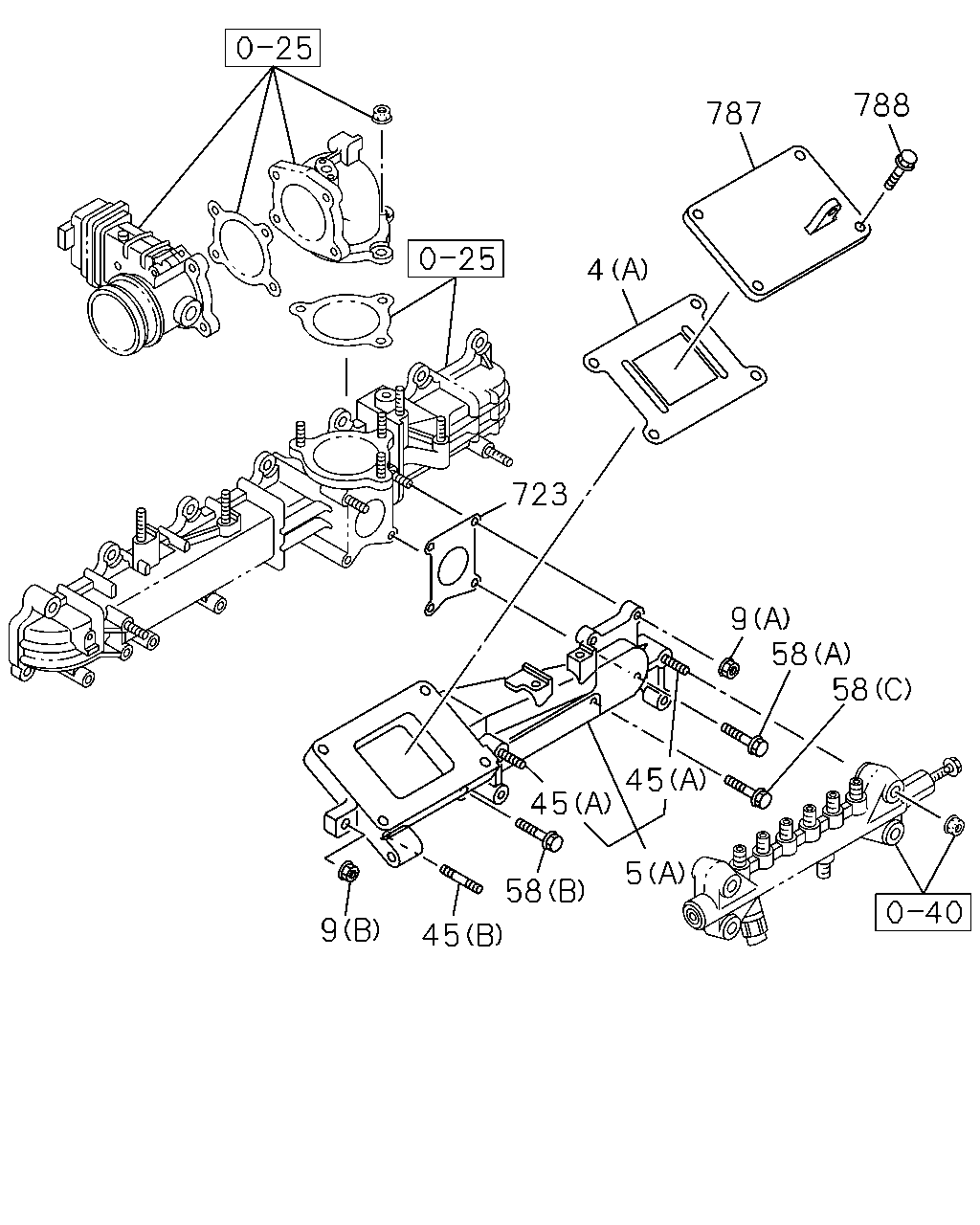

çizim 326713
787 788 4 723 9 58 58 45 45 5 58 45 9
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97306-040-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) 		8-98036-507-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1302- ●
5 ADAPTER ASM
EURO4 SPECIFICATION<NT4> (B) 		8-97377-804-0 01 1 1302- ●
5 ADAPTER ASM
(A) 		8-97606-201-3 01 1 1302-1305 ●
5 ADAPTER ASM
(A) 		8-98240-157-0 01 1 1306- ●
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1302- ●
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ●
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 1302- ●
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 1302- ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1302- ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1302- ●
58 BOLT; PIPE
(A) M8X30 FLANGE 		8-98034-764-0 01 1 1302- ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-97605-995-0 01 1 1302- ●
787 COVER; DUCT,EGR VLV 8-98058-709-0 01 1 1302-1402 ●
787 COVER; DUCT,EGR VLV 8-98238-416-0 01 1 1403- ●
788 BOLT; COVER
M10X35 FLANGE 		0-28751-035-0 04 1 1302-1402 ●
788 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 04 1 1403- ●

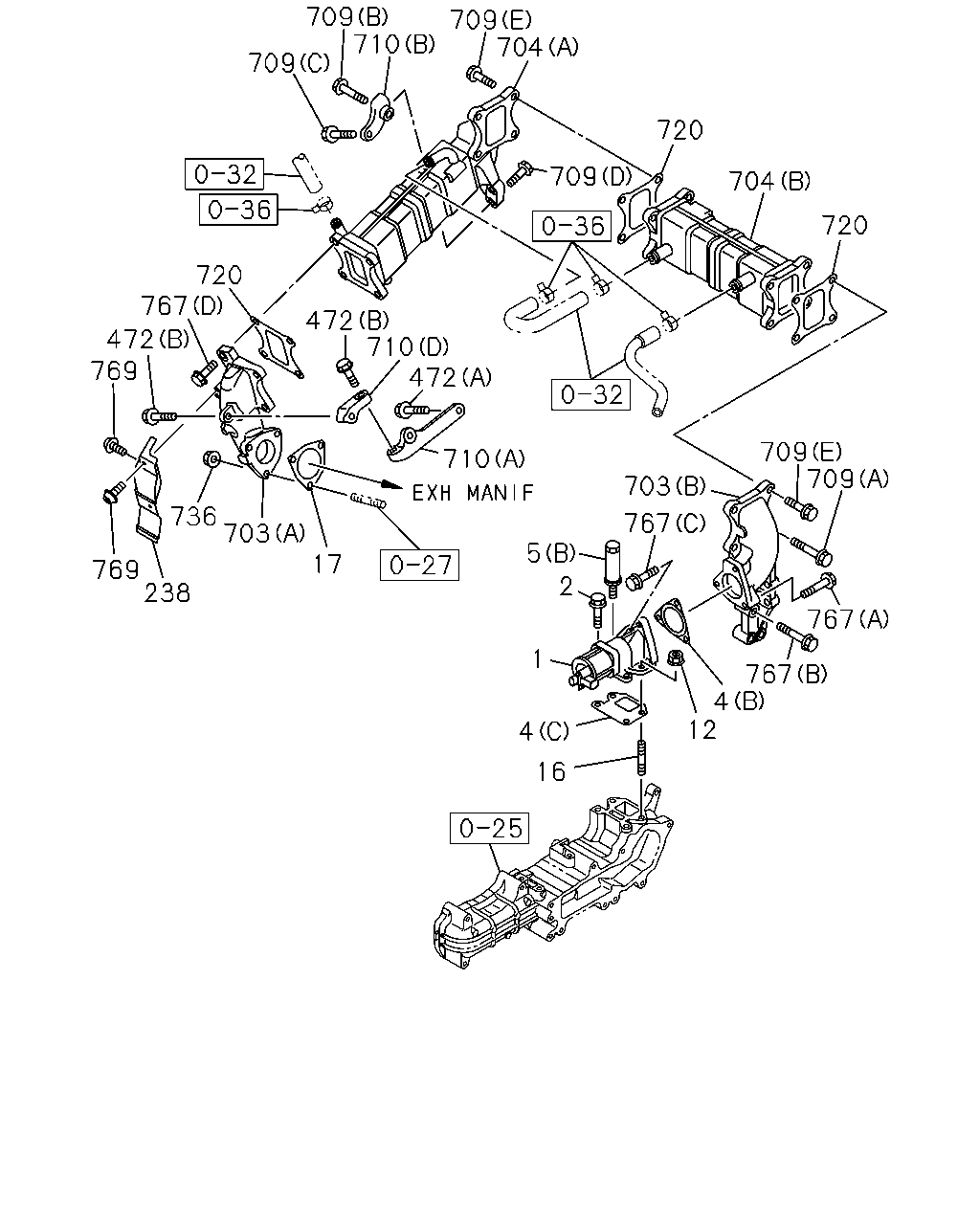

çizim 330638
709 709 704 710 709 720 767 472 769 238 769 736 17 703 710 472 710 2 709 20 720 704 709 767 709 767 703 767 4 12 4 16 2 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
EURO4 SPECIFICATION<NT4> 		8-98219-180-0 01 1 1302- ●
2 BOLT; EGR VLV
EURO4 SPECIFICATION<NT4> M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97306-040-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) 		8-98036-507-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1302- ●
5 ADAPTER ASM
EURO4 SPECIFICATION<NT4> (B) 		8-97377-804-0 01 1 1302- ●
5 ADAPTER ASM
(A) 		8-97606-201-3 01 1 1302-1305 ●
5 ADAPTER ASM
(A) 		8-98240-157-0 01 1 1306- ●
12 NUT; EGR VLV
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1302- ●
16 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> M8X20 L=32 		0-41010-820-0 02 1 1302- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=51.5 		8-98046-192-1 01 1 1302- ●
238 PROTECTOR; HEAT,EGR
EURO4 SPECIFICATION<NT4> 		8-98176-249-0 01 1 1302- ●
472 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28660-825-0 02 1 1302- ●
472 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE 		0-28751-040-0 02 1 1302- ●
703 DUCT; EGR
EURO4 SPECIFICATION<NT4> (A) 		8-98115-663-0 01 1 1302- ●
703 DUCT; EGR
EURO4 SPECIFICATION<NT4> (B) 		8-98115-665-1 01 1 1302- ●
704 COOLER ASM; EGR
EURO4 SPECIFICATION<NT4> (A) 		8-98025-248-5 01 1 1302- ●
704 COOLER ASM; EGR
EURO4 SPECIFICATION<NT4> (B) 		8-98212-718-0 01 1 1302- ●
709 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE 		0-28060-845-0 01 1 1302- ●
709 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE 		0-28151-260-0 01 1 1302- ●
709 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE 		0-28660-825-0 01 1 1302- ●
709 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> (E) M8X30 FLANGE 		0-28660-830-0 07 1 1302- ●
709 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> (D) M10X40 FLANGE 		0-28751-040-0 02 1 1302- ●
710 BRACKET; EGR COOLER
EURO2 SPECIFICATION<NT2> (C) 		8-98079-255-1 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (A) 		8-98025-253-2 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (B) 		8-98025-254-1 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (D) 		8-98055-940-1 01 1 1302- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> 		8-98149-353-0 03 1 1302-1302 ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> 		8-98200-753-0 03 1 1303- ●
736 NUT; DUCT,EGR VLV
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-97061-401-1 03 1 1302- ●
767 BOLT; DUCT,EGR
EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE 		0-28050-845-0 02 1 1302- ●
767 BOLT; DUCT,EGR
EURO4 SPECIFICATION<NT4> (B) M12X50 FLANGE 		0-28151-250-0 02 1 1302- ●
767 BOLT; DUCT,EGR
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 01 1 1302- ●
767 BOLT; DUCT,EGR
EURO4 SPECIFICATION<NT4> (D) M8X28 FLANGE 		8-98043-528-0 04 1 1302- ●
769 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER 		8-98054-289-0 04 1 1302- ●

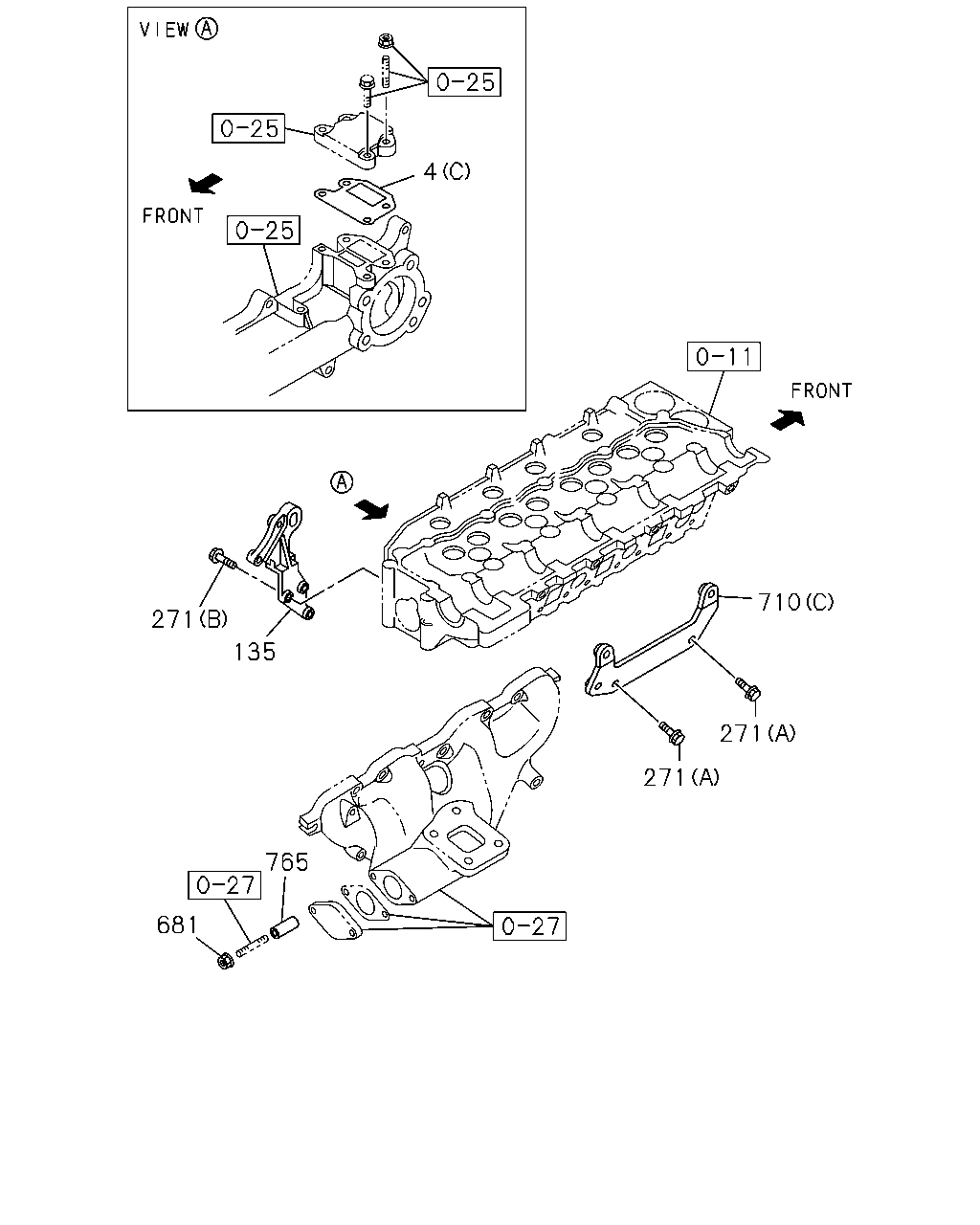

çizim 330647
4 710 271 271 765 681 135 271
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97306-040-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) 		8-98036-507-0 01 1 1302- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1302- ●
135 BRACKET; EGR
EURO2 SPECIFICATION<NT2> 		8-97310-498-2 01 1 1302- ●
271 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
271 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE 		0-28151-230-0 03 1 1302- ●
681 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-208-0 02 1 1302- ●
710 BRACKET; EGR COOLER
EURO2 SPECIFICATION<NT2> (C) 		8-98079-255-1 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (A) 		8-98025-253-2 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (B) 		8-98025-254-1 01 1 1302- ●
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> (D) 		8-98055-940-1 01 1 1302- ●
765 SPACER; EGR PIPE
EURO2 SPECIFICATION<NT2> 		8-94225-562-0 02 1 1302- ●
