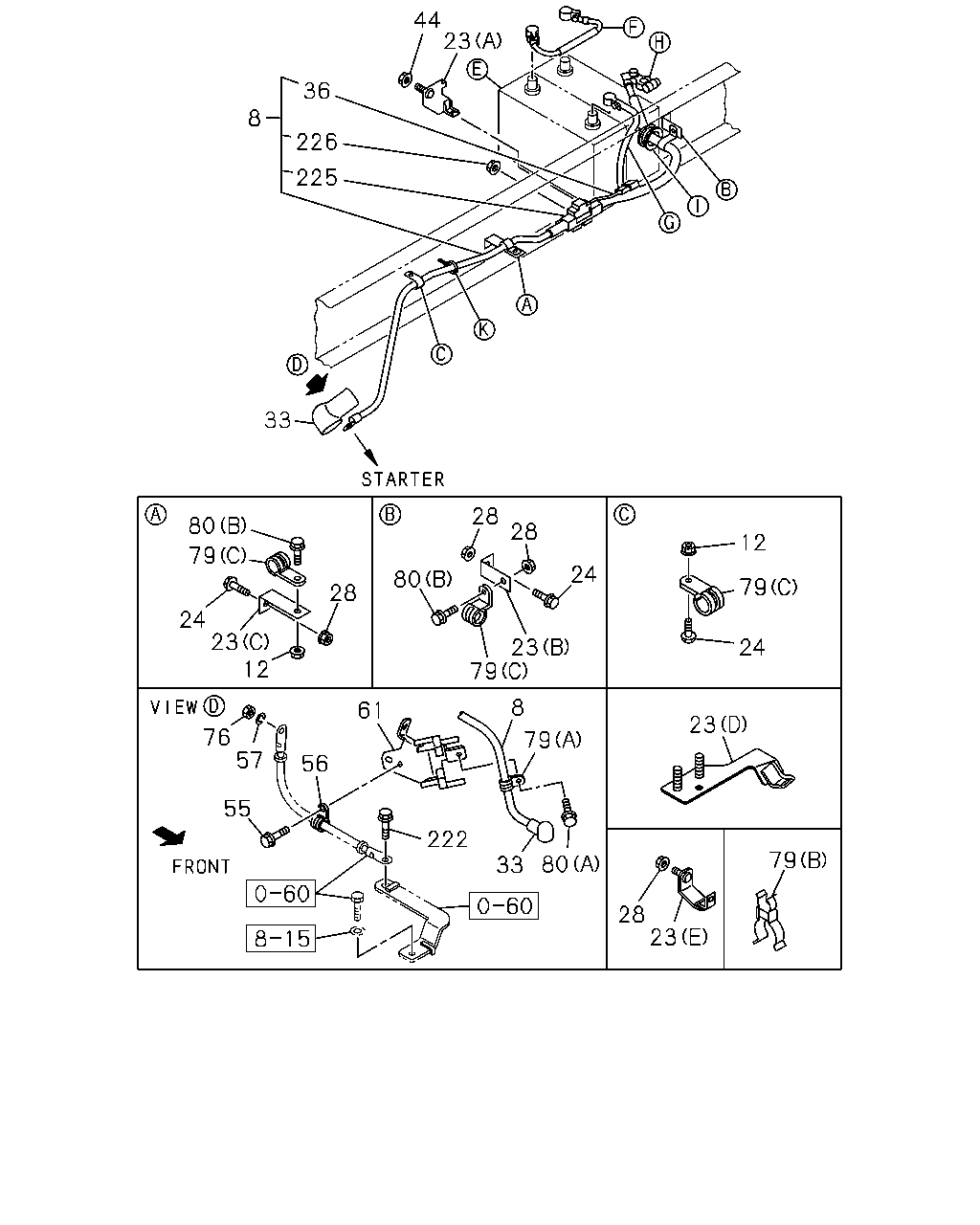

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#112892) — 92 parça

44 23 8 36 226 225 33 28 28 24 12 79 24 23 79 8 79 79 23 23 24 80 79 28 76 57 56 55 61 222 80 33 28 23 12 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98192-227-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-577-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98192-226-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-576-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98192-229-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98295-579-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98192-228-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-578-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-573-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-572-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98295-571-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-570-0	01	1	1503-
12	NUT; BATTERY CABLE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	02	1	1302-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
12	NUT; BATTERY CABLE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (B) L=65	1-47479-064-1	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME FULLER ES11109 DD M/T(Y5N) (C) L=95	1-82699-085-0	02	1	1302-
23	BRACKET; CABLE CLIP TO FRAME FULLER ES11109 DD M/T(Y5N) (E)	8-97612-957-1	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5000MM(50W) (C) L=55	1-47475-304-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6300MM(63W) (C) L=95	1-82699-085-0	01	1	1302-
23	BRACKET; CABLE CLIP TO FRAME ZF9S1110 M/T(Y5E) (C) L=95	1-82699-085-0	03	1	1302-
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	1302-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1302-
24	BOLT; BRKT TO FRAME FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	02	1	1302-
24	BOLT; BRKT TO FRAME ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1302-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1302-
33	CAP; INSULATOR	1-82699-431-0	01	1	1302-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1302-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1302-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1302-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1302-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1302-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1302-
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1302-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1302-
79	CLIP; BATTERY CABLE (D) ID=20 L=50	9-09917-430-0	01	1	1302-
79	CLIP; BATTERY CABLE FULLER ES11109 DD M/T(Y5N) (B) ID=21 L=24	8-98019-191-0	02	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 6300MM(63W) (B) ID=21 L=24	8-98019-191-0	02	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 5000MM(50W) (C) ID=19 L=40	0-95235-876-0	01	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 5000MM(50W) (C) ID=19 L=24 H=21	1-09700-109-1	01	1	1302-
79	CLIP; BATTERY CABLE ZF9S1110 M/T(Y5E) (B) ID=21 L=24	8-98019-191-0	03	1	1302-
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-
80	BOLT; BATTERY CABLE CLIP FULLER ES11109 DD M/T(Y5N) (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
80	BOLT; BATTERY CABLE CLIP ZF9S1110 M/T(Y5E) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1302-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1302-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1302-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

10 11 2 112 8 107 79 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1302-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1302-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1302-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98192-227-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-577-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98192-226-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-576-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98192-229-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98295-579-0	01	1	1503-
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98192-228-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER FULLER ES11109 DD M/T(Y5N) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-578-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-573-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-572-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA>	8-98295-571-0	01	1	1503-
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1302-1502
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-570-0	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1302-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1302-
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1302-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1302-
79	CLIP; BATTERY CABLE (D) ID=20 L=50	9-09917-430-0	01	1	1302-
79	CLIP; BATTERY CABLE FULLER ES11109 DD M/T(Y5N) (B) ID=21 L=24	8-98019-191-0	02	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 6300MM(63W) (B) ID=21 L=24	8-98019-191-0	02	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 5000MM(50W) (C) ID=19 L=40	0-95235-876-0	01	1	1302-
79	CLIP; BATTERY CABLE WHEEL BASE 5000MM(50W) (C) ID=19 L=24 H=21	1-09700-109-1	01	1	1302-
79	CLIP; BATTERY CABLE ZF9S1110 M/T(Y5E) (B) ID=21 L=24	8-98019-191-0	03	1	1302-
107	CLIP; BAND L=140	5-09707-031-1	01	1	1302-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1302-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-
