Isuzu WW
▶
TRUCKS
▶
FVM
▶
11516 - FVM(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶

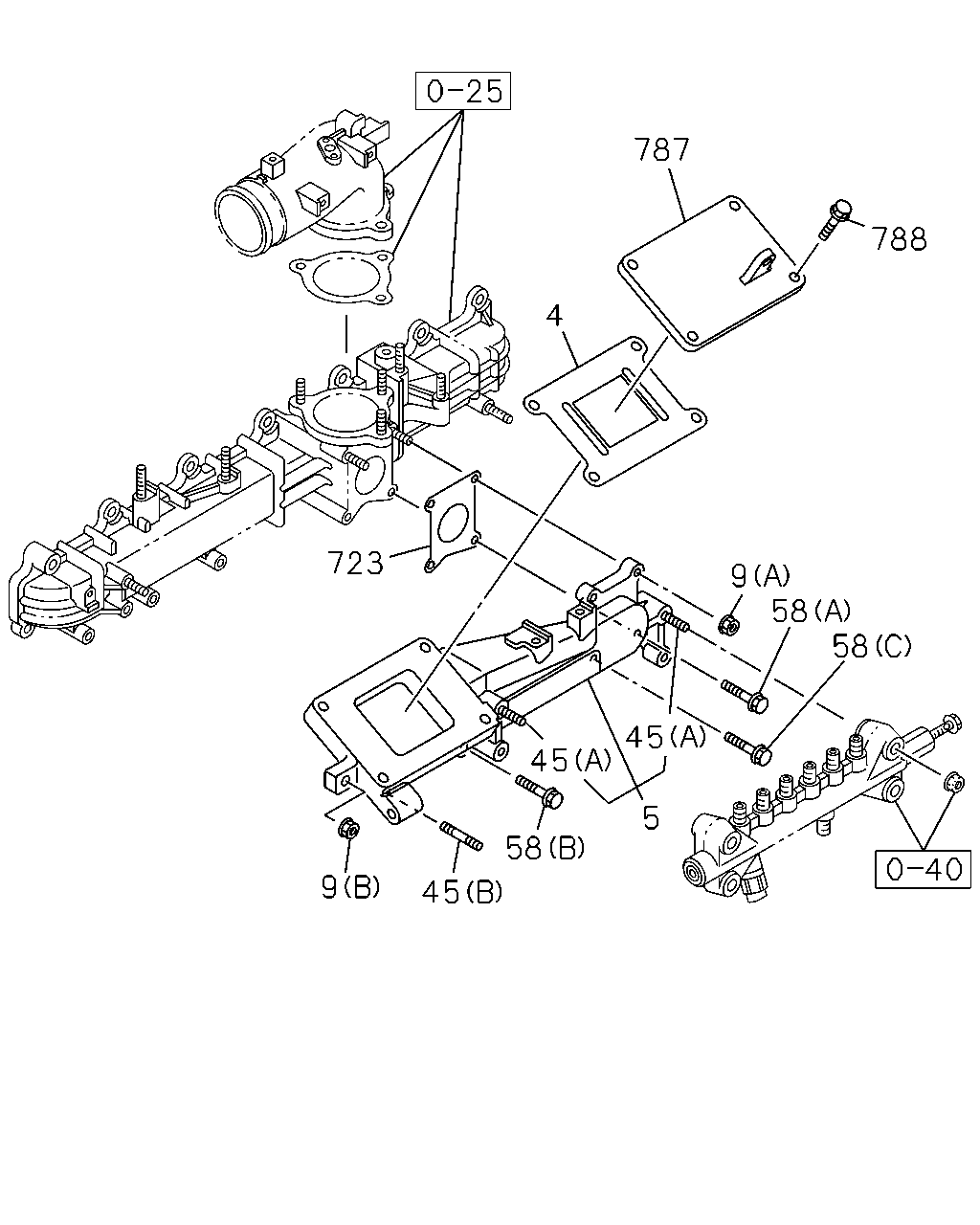

0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#112890) — 15 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
787
788
4
723
9
58
45
45
5
58
45
9
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97608-423-0
01
1
1302-
●
●
5
ADAPTER ASM
8-97606-201-3
01
1
1302-1305
●
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
●
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
1302-
●
●
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
1302-
●
●
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
1302-
●
●
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
1302-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
1302-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
1302-
●
●
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
1302-
●
●
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52
8-97605-995-0
01
1
1302-
●
●
787
COVER; DUCT,EGR VLV
8-98058-709-0
01
1
1302-1402
●
●
787
COVER; DUCT,EGR VLV
8-98238-416-0
01
1
1403-
●
●
788
BOLT; COVER
M10X35 FLANGE
0-28751-035-0
04
1
1302-1402
●
●
788
BOLT; COVER
M10X25 FLANGE
0-28751-025-0
04
1
1403-
●
●
