0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#112888) — 77 parça

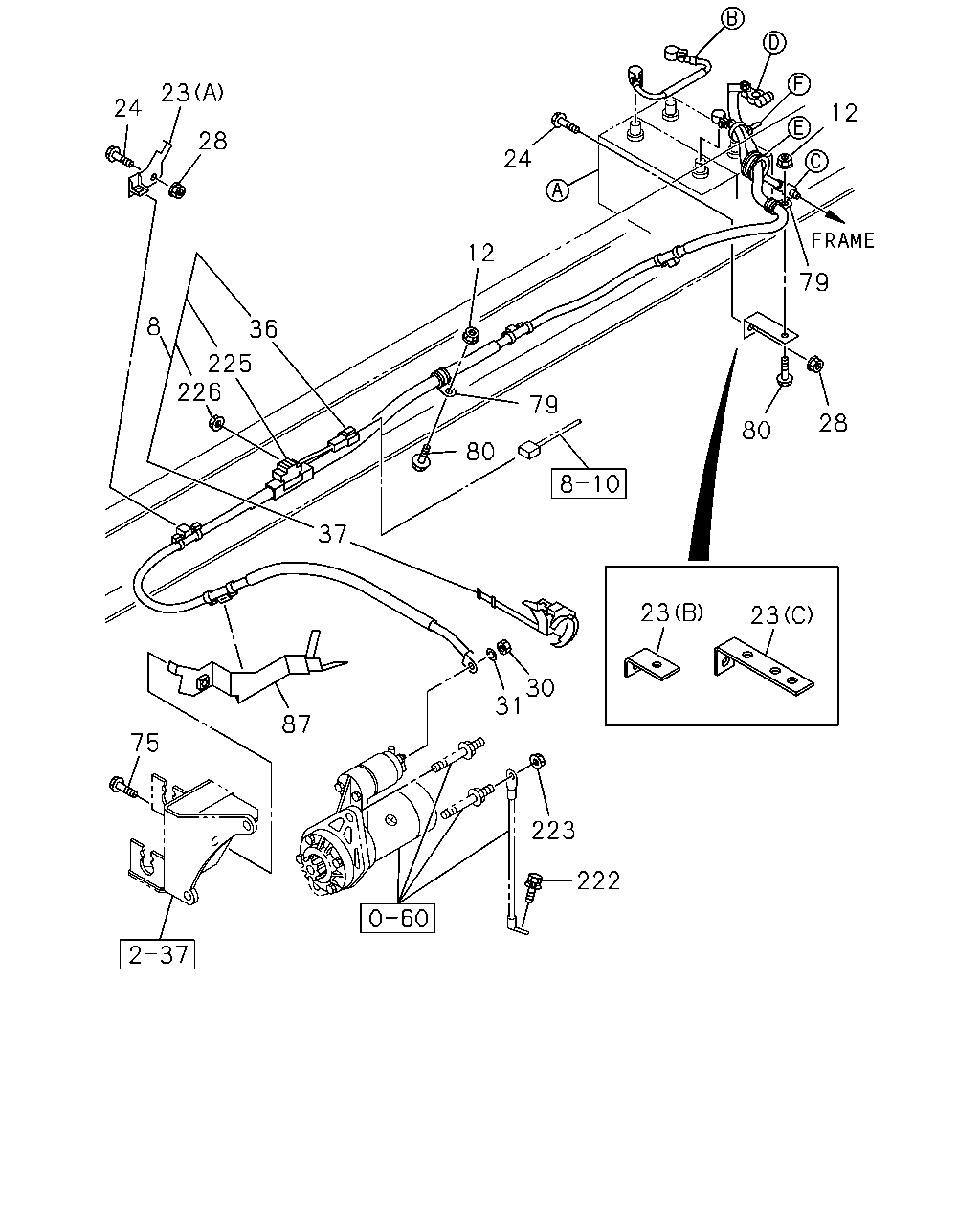

çizim 326768
24 12 79 28 80 79 12 23 24 28 80 23 23 30 31 223 222 75 87 37 8 36 225 226
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3280 		8-98128-432-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-416-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3355 		8-98128-435-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-418-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98122-340-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-413-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3075 		8-98128-434-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-417-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3150 		8-98137-363-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-424-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3225 		8-98137-364-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-425-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2935 		8-98137-361-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-422-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3010 		8-98137-362-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-423-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 		1-82698-360-0 01 1 1302- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1302- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1302- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1302- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1302- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1302- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1302- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1302- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1302- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1302- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1302-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1302- ● ●
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
79 CLIP; BATTERY CABLE
ID=21 L=24 		8-98019-191-0 03 1 1302- ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1302- ●
87 BRACKET; HARNESS
ASSISTOR SHIFT CONTROL<WX8> 		8-98053-927-1 01 1 1302- ● ●
87 BRACKET; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98126-428-0 01 1 1302- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1302- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1302-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1302-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
çizim 326779
1 10 11 2 107 13 112 8 8 28 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1302- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1302- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1302- ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=500 		8-98138-256-0 01 1 1302- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=230 		8-98140-103-0 01 1 1302- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3280 		8-98128-432-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-416-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3355 		8-98128-435-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-418-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98122-340-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-413-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3075 		8-98128-434-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-417-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=3150 		8-98137-363-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-424-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3225 		8-98137-364-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-425-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2935 		8-98137-361-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-422-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3010 		8-98137-362-1 01 1 1302-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-423-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1302- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 		1-82698-360-0 01 1 1302- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1302- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1302- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1302- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1302- ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1302- ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1302-1510 ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1511- ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1302-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●
