Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#112887) — 236 parça

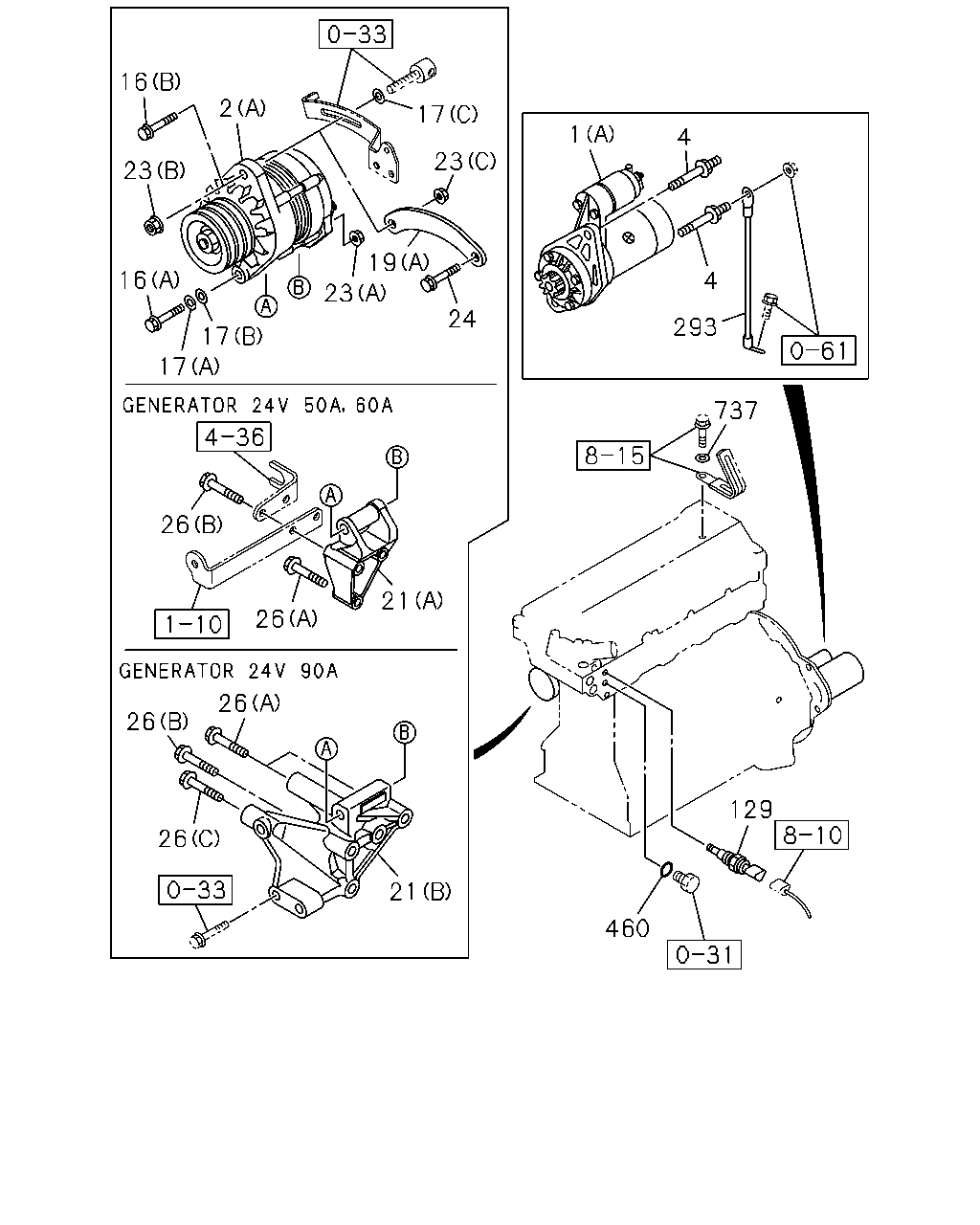

17 23 19 24 23 17 17 16 23 16 2 11 4 4 293 737 129 460 21 26 26 26 21 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-456-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-459-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98330-085-0	01	1	1509-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-455-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98013-463-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98330-087-0	01	1	1509-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (B) 24V 60A NIKKO	8-98013-462-5	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (B) 24V 50A NIKKO	8-98013-461-5	01	1	1302-
4	BOLT; STARTER 4HK1-TCS ENG(RJS) M10X15,M14X82 L=110	8-98029-095-0	02	1	1302-
11	BOLT; RELAY STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1302-
16	BOLT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1302-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1302-
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X10 FLANGE	0-28050-610-0	01	1	1302-
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=14.2	0-91510-814-0	01	1	1302-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5	0-91610-712-0	01	1	1302-
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1302-
19	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A)	8-98032-273-0	01	1	1302-
19	BRACKET; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C)	8-98082-617-0	01	1	1302-
19	BRACKET; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1302-
21	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1302-
21	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1302-
23	NUT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1302-
23	NUT; GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1302-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1302-
24	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X70 FLANGE	0-28151-070-0	02	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) M10X60 FLANGE	0-28151-060-0	02	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (E) M10X25 FLANGE	0-28151-025-0	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (E) M10X135	8-94397-139-1	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M10X40 FLANGE	0-28151-040-0	02	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1302-
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) MITSUBISHI	8-98023-883-0	01	1	1302-1503
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1302-
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=430	8-97621-357-0	01	1	1302-
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=420	8-98131-856-0	01	1	1302-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2	1-09630-086-0	01	1	1302-
737	WASHER; PL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> ID=6.4 OD=18	0-91610-706-0	02	1	1401-
737	WASHER; PL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1302-
737	WASHER; PL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-1312
737	WASHER; PL 4HK1-TCS ENG(RJS) ID=9 OD=18 T=5	9-14149-173-0	01	1	1401-

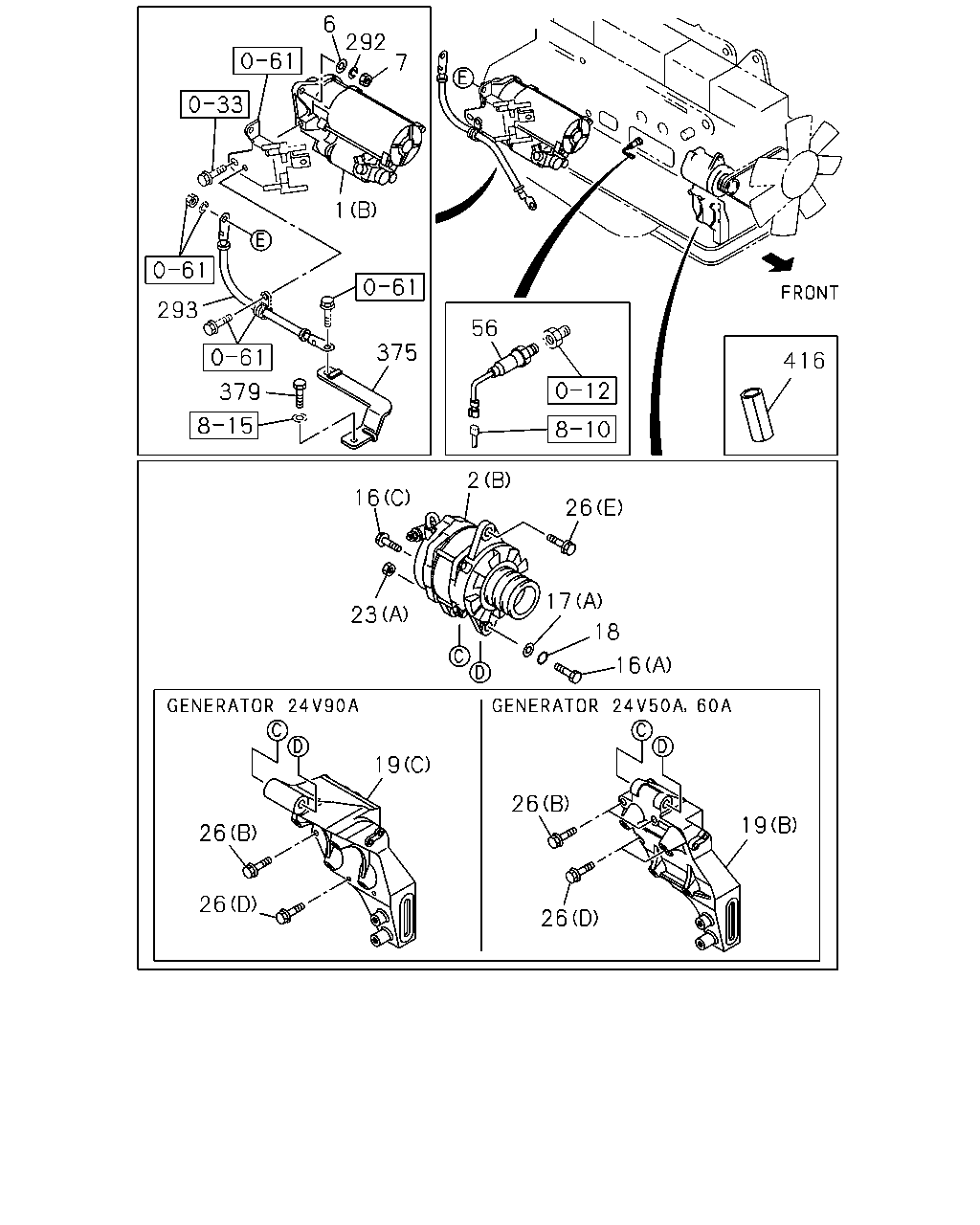

6 292 7 1 293 375 379 56 416 2 26 16 23 17 18 16 19 26 26 26 26 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1302-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1302-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-456-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-459-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98330-085-0	01	1	1509-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-455-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98013-463-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98330-087-0	01	1	1509-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (B) 24V 60A NIKKO	8-98013-462-5	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (B) 24V 50A NIKKO	8-98013-461-5	01	1	1302-
6	WASHER; PL,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1302-
7	NUT; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M14	0-91110-514-0	02	1	1302-
16	BOLT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1302-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1302-
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X10 FLANGE	0-28050-610-0	01	1	1302-
16	BOLT; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=14.2	0-91510-814-0	01	1	1302-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5	0-91610-712-0	01	1	1302-
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1302-
18	WASHER; LK,GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1302-
19	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A)	8-98032-273-0	01	1	1302-
19	BRACKET; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C)	8-98082-617-0	01	1	1302-
19	BRACKET; GEN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1302-
23	NUT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1302-
23	NUT; GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1302-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X70 FLANGE	0-28151-070-0	02	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) M10X60 FLANGE	0-28151-060-0	02	1	1302-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (E) M10X25 FLANGE	0-28151-025-0	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (E) M10X135	8-94397-139-1	01	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M10X40 FLANGE	0-28151-040-0	02	1	1302-
26	BOLT; GEN BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1302-
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1302-
292	WASHER; LK,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1302-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1302-
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=430	8-97621-357-0	01	1	1302-
293	CABLE; STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=420	8-98131-856-0	01	1	1302-
375	BRACKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>	8-98131-726-0	01	1	1302-
379	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1302-
416	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	1302-

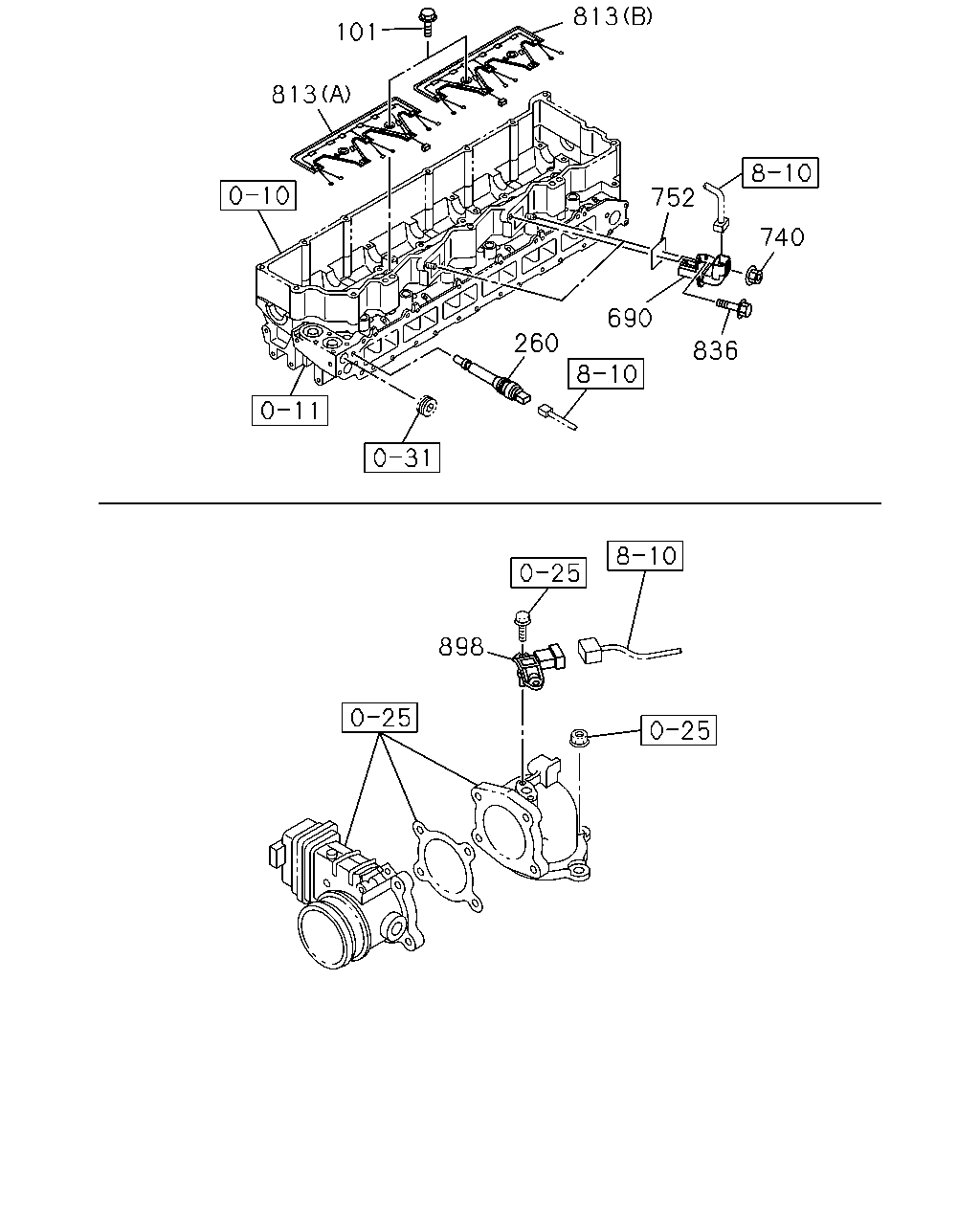

101 813 813 752 740 836 690 260 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1302-
260	SENSOR; WATER TEMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MITSUBISHI	8-98023-883-0	01	1	1302-1503
260	SENSOR; WATER TEMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1504-
690	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1302-
740	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1302-
813	HARNESS; INJECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) FRONT	8-98204-717-0	01	1	1302-
813	HARNESS; INJECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) REAR	8-98204-718-0	01	1	1302-
836	BOLT; CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1302-
898	SENSOR; BOOST 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1302-

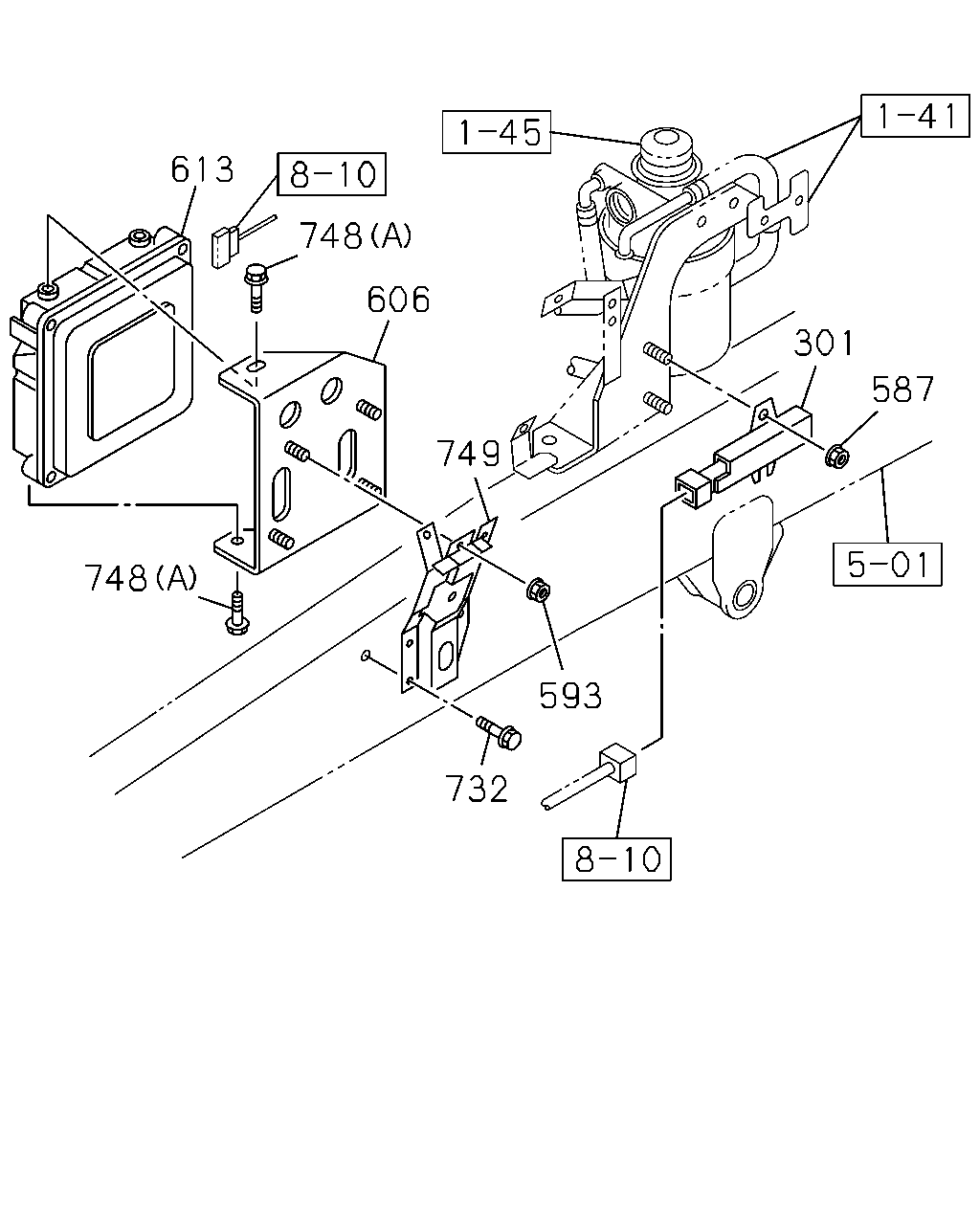

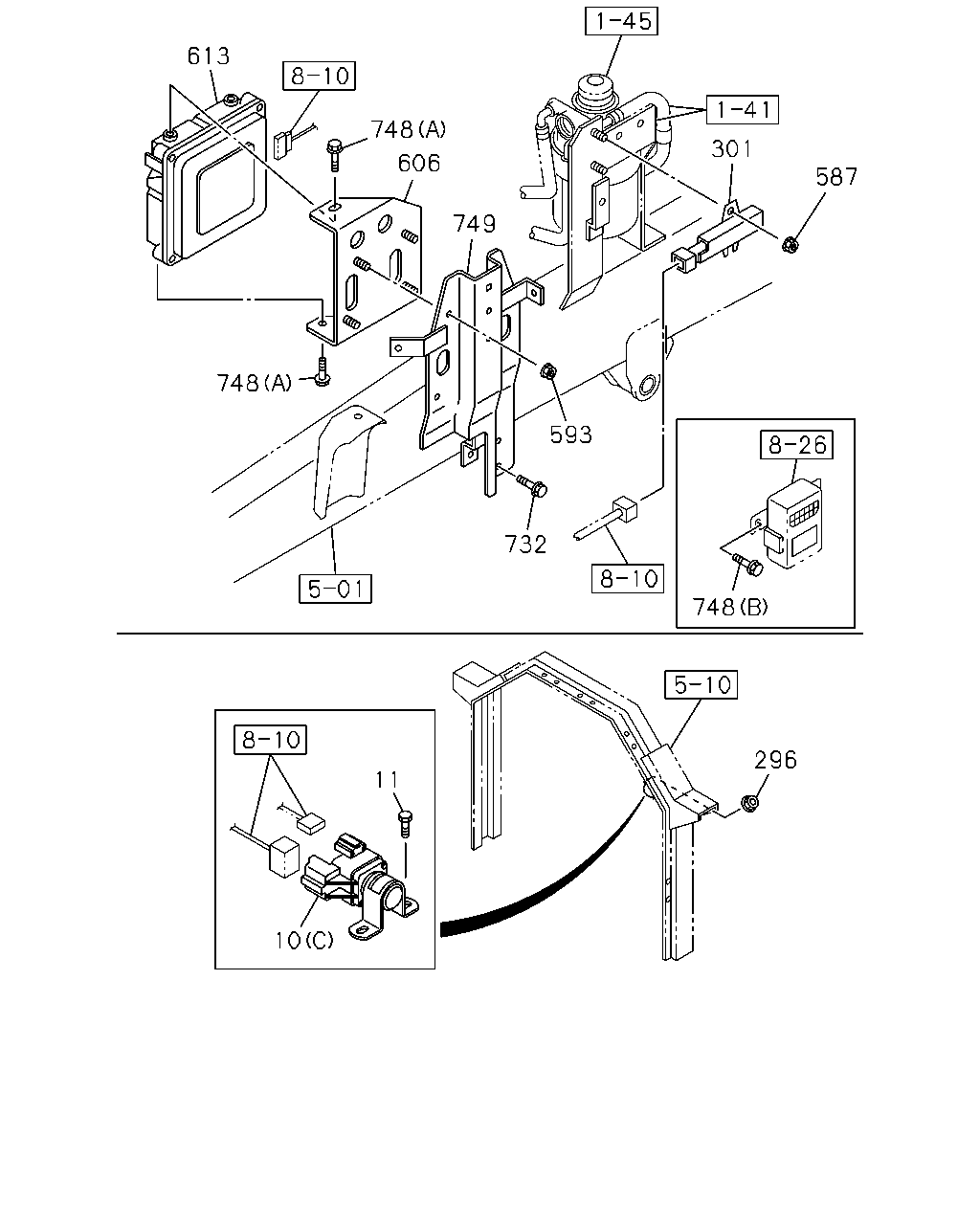

613 748 301 587 593 749 748 732 748 296 10 11 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

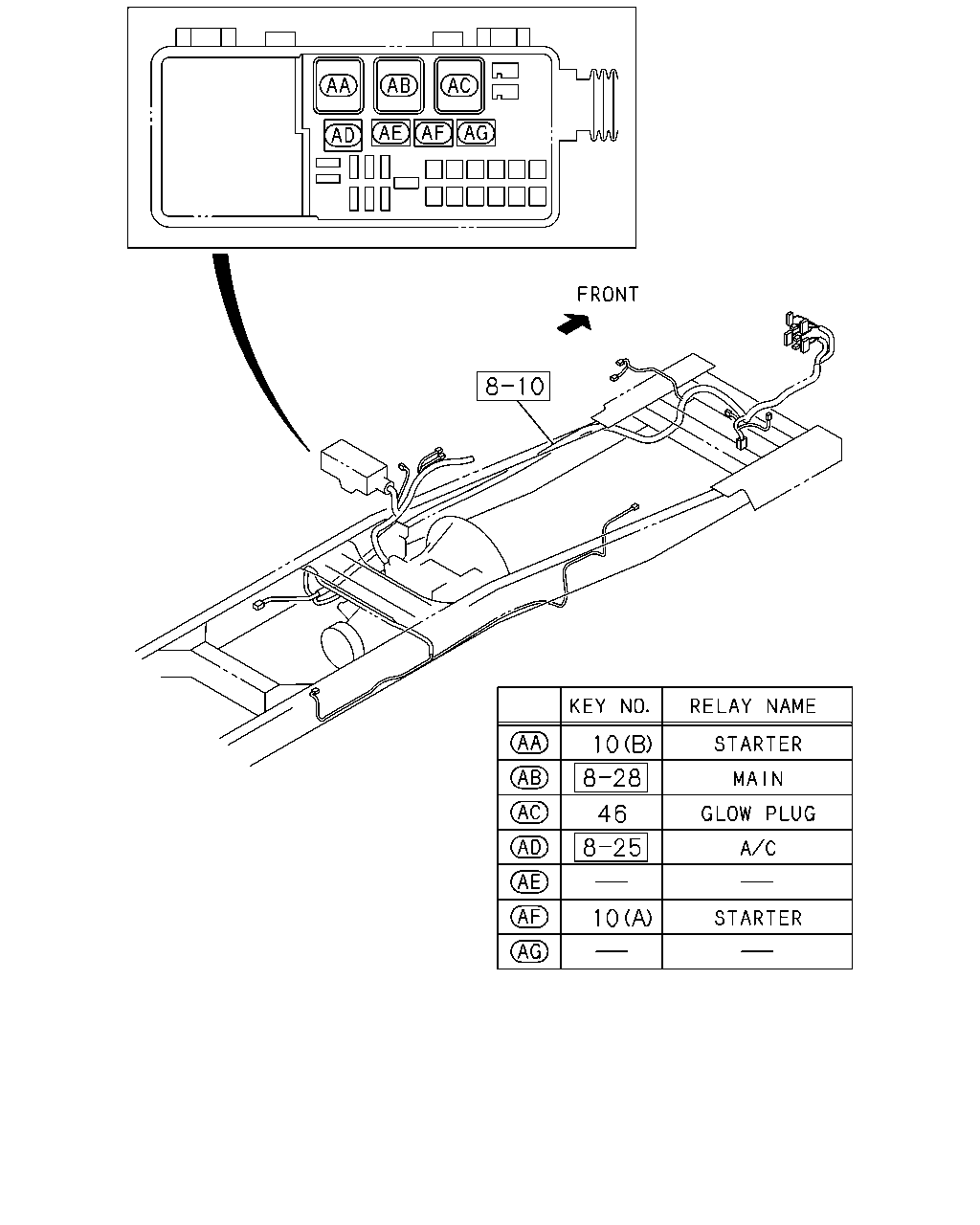

10	RELAY; STARTER 4HK1-TCS ENG(RJS) (B) 24V 50A	8-97264-947-0	01	1	1302-
10	RELAY; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1302-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1302-
11	BOLT; RELAY STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1302-
296	NUT; RELAY,STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
301	RESISTOR; DROPPING EURO4 SPECIFICATION<NT4>	8-97357-613-0	01	1	1302-
587	NUT; RESISTOR & RELAY EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	02	1	1302-
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1302-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1302-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-631-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98285-820-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98289-391-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98289-390-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98273-235-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SINGAPORE EQUIPMENT(2G0)	8-98175-682-0	01	1	1507-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. GLOW SYSTEM DELETE<7RK>	8-98175-682-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-200-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-201-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-210-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-211-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU)	8-98257-211-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-213-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-213-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-214-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-206-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU)	8-98257-206-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-207-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-207-0	01	1	1508-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98213-012-1	01	1	1302-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98218-522-1	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98218-522-1	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98218-523-1	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98218-523-1	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98213-014-1	01	1	1302-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-172-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-172-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98216-174-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-173-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-676-0	01	1	1302-1302
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-680-0	01	1	1303-1506
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SINGAPORE EQUIPMENT(2G0)	8-98175-680-0	01	1	1507-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),GLOW SYSTEM DELETE<7RK>	8-98175-680-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98175-675-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98175-675-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-636-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-636-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-176-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-176-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98216-179-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-177-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-630-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98175-630-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98175-629-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98175-629-0	01	1	1512-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1302-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	8-98206-457-0	01	1	1302-
749	STAY; CONT UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1302-

613 606 748 748 749 593 732 587 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
301	RESISTOR; DROPPING EURO4 SPECIFICATION<NT4>	8-97357-613-0	01	1	1302-
587	NUT; RESISTOR & RELAY EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	02	1	1302-
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1302-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1302-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-631-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98285-820-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98289-391-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98289-390-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98273-235-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SINGAPORE EQUIPMENT(2G0)	8-98175-682-0	01	1	1507-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 90KM(NMJ) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. GLOW SYSTEM DELETE<7RK>	8-98175-682-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-200-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-201-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-210-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-211-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU)	8-98257-211-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-213-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-213-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-214-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW)	8-98257-206-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU)	8-98257-206-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-207-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-207-0	01	1	1508-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98213-012-1	01	1	1302-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98218-522-1	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98218-522-1	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98218-523-1	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98218-523-1	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98213-014-1	01	1	1302-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-172-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-172-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98216-174-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-173-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-676-0	01	1	1302-1302
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-680-0	01	1	1303-1506
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SINGAPORE EQUIPMENT(2G0)	8-98175-680-0	01	1	1507-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),GLOW SYSTEM DELETE<7RK>	8-98175-680-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98175-675-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98175-675-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-636-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98175-636-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-176-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-176-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98216-179-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98216-177-0	01	1	1302-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1312-1507
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU), INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98175-630-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98175-630-0	01	1	1512-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98175-629-0	01	1	1302-1511
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98175-629-0	01	1	1512-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1302-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	8-98206-457-0	01	1	1302-
749	STAY; CONT UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1302-

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (B) 24V 50A	8-97264-947-0	01	1	1302-
10	RELAY; STARTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 24V NIKKO	8-98005-631-1	01	1	1302-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1302-
46	RELAY; GLOW PLUG EXC. SINGAPORE EQUIPMENT(2G0) 24V 50A	8-97173-947-0	01	1	1302-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-

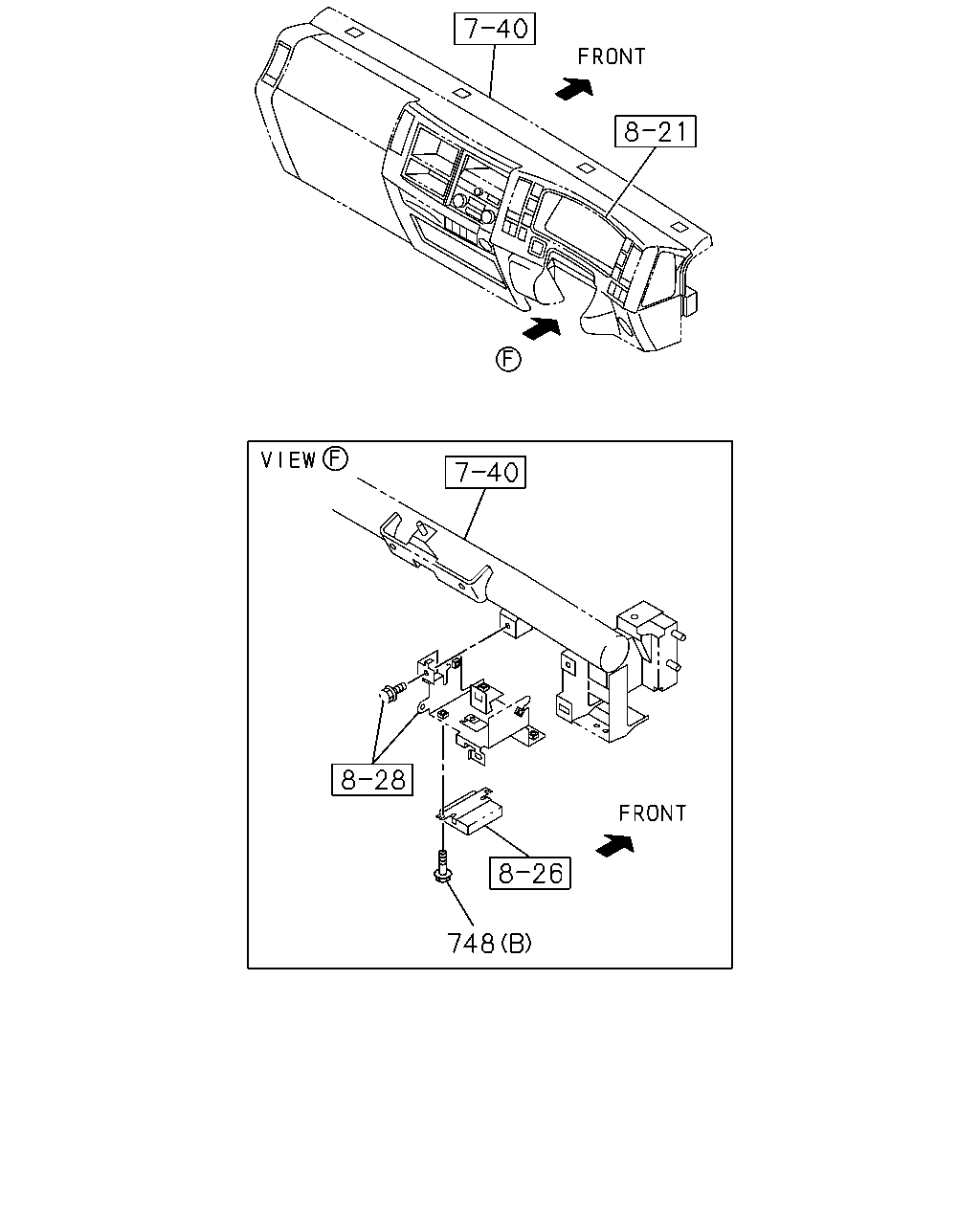

748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-
	748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
