0-60 — ENGINE ELECTRICAL CONTROL PARTS (#112883) — 70 parça

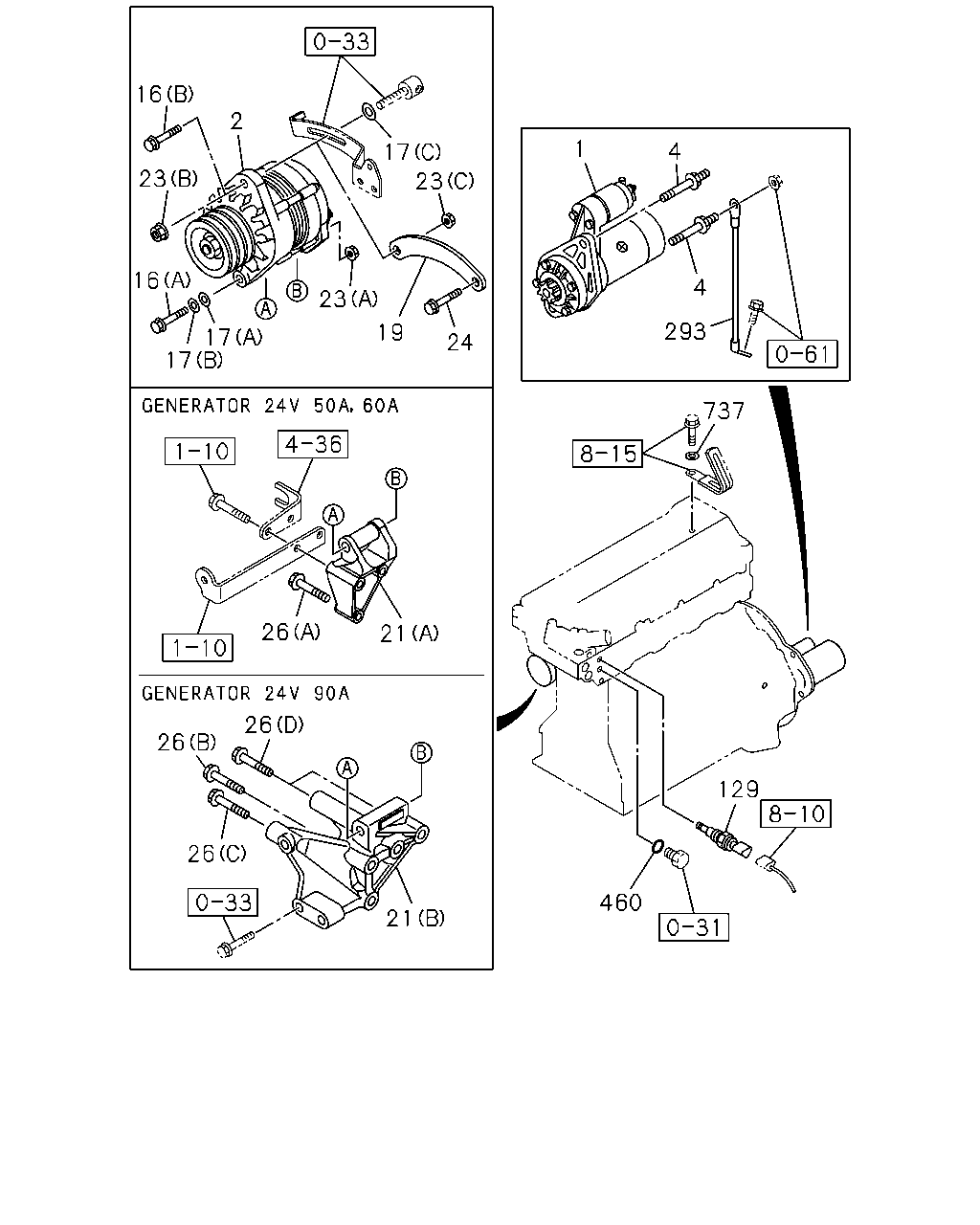

16 16 23 2 23 17 17 19 24 23 17 1 4 4 293 26 21 26 26 26 21 460 129 737

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1302-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1302-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1302-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1302-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1302-
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1302-
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1302-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1302-
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1302-
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	1302-
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1302-
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1302-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1302-
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1302-
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1302-
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (D) M10X60 FLANGE	0-28151-060-0	02	1	1302-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1302-
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1302-1503
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	1302-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1302-
737	WASHER; PL EURO2 SPECIFICATION<NT2> ID=6.4 OD=18	0-91610-706-0	02	1	1401-
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	01	1	1302-
737	WASHER; PL EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-1312
737	WASHER; PL ID=9 OD=18 T=5	9-14149-173-0	01	1	1401-

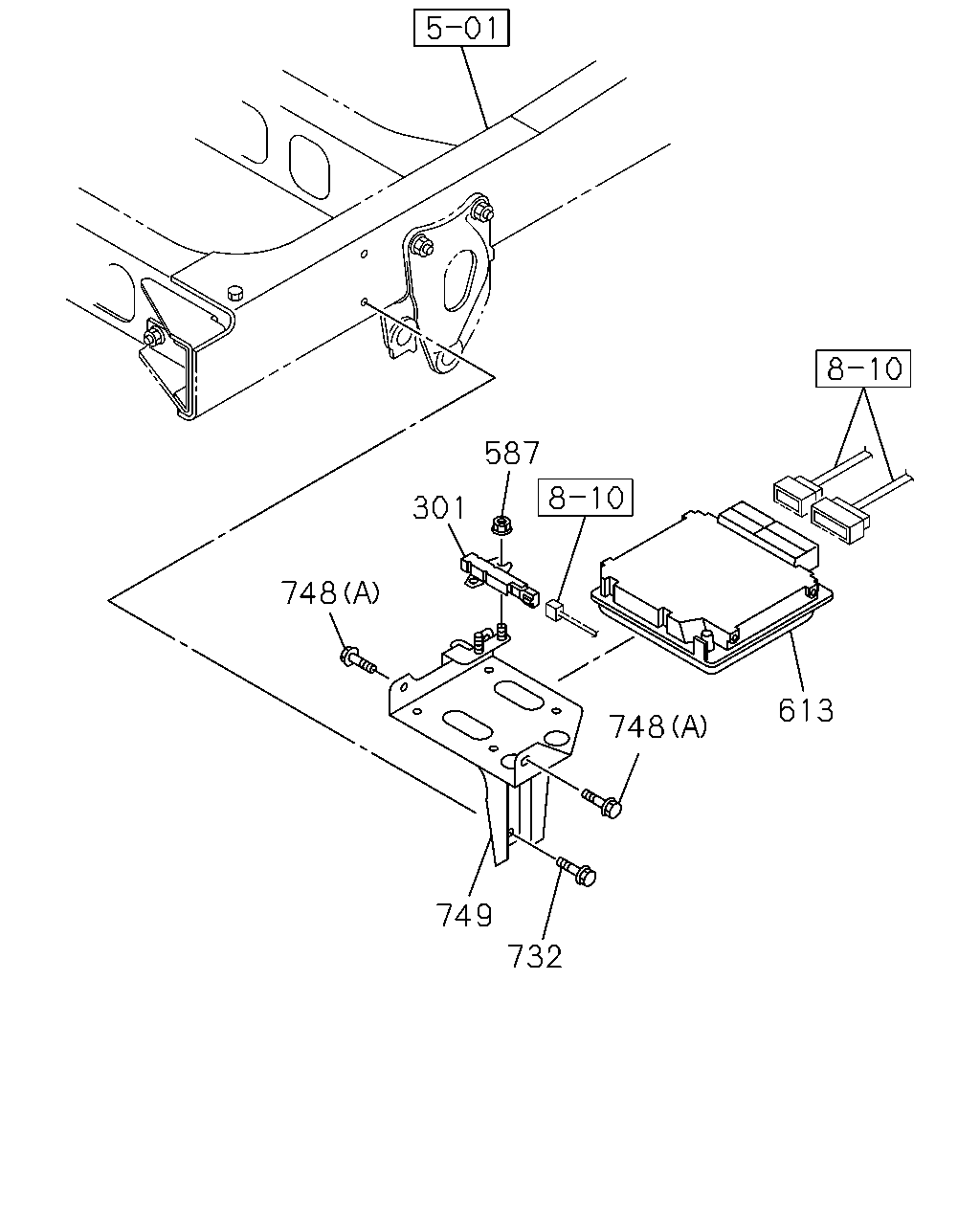

587 301 613 748 748 749 732

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
301	RESISTOR; DROPPING EURO4 SPECIFICATION<NT4>	8-97357-613-0	01	1	1302-
587	NUT; RESISTOR & RELAY EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	02	1	1302-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 80KM(EDW)	8-98257-202-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98257-203-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-204-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 80KM(EDW)	8-98257-198-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98257-199-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98172-459-0	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98172-459-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98172-460-0	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98172-460-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98181-827-0	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98181-827-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98181-826-0	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98181-826-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98181-828-0	01	1	1302-1511
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98181-828-0	01	1	1512-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),SINGAPORE EQUIPMENT(2G0)	8-98081-130-4	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 80KM(EDW),GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98081-129-4	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 80KM(EDW),INJ PUMP Q SET SPECIAL+5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98103-530-4	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98103-530-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0)	8-98172-457-0	01	1	1302-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(2G0),GLOW SYSTEM DELETE<7RK>	8-98172-457-0	01	1	1312-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1302-1505
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1506-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-1505
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-
749	STAY; CONT UNIT	1-53194-594-1	01	1	1302-1505
749	STAY; CONT UNIT	1-53194-594-1	01	1	1506-

748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1302-1505
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1302-

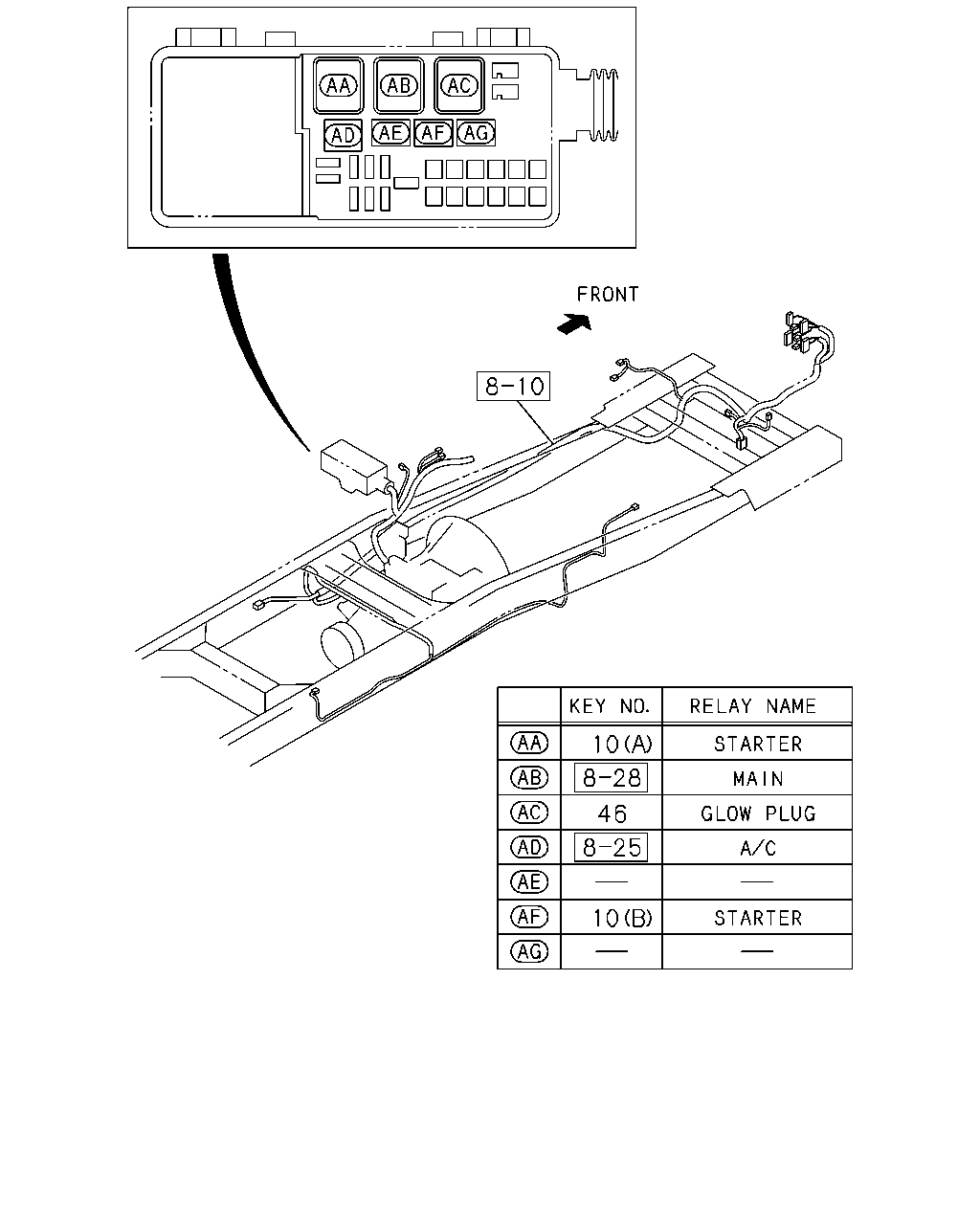

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER (A) 24V 50A	8-97264-947-0	01	1	1302-
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1302-
46	RELAY; GLOW PLUG EXC. SINGAPORE EQUIPMENT(2G0) 24V 50A	8-97173-947-0	01	1	1302-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-
