◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#112882) — 191 parça

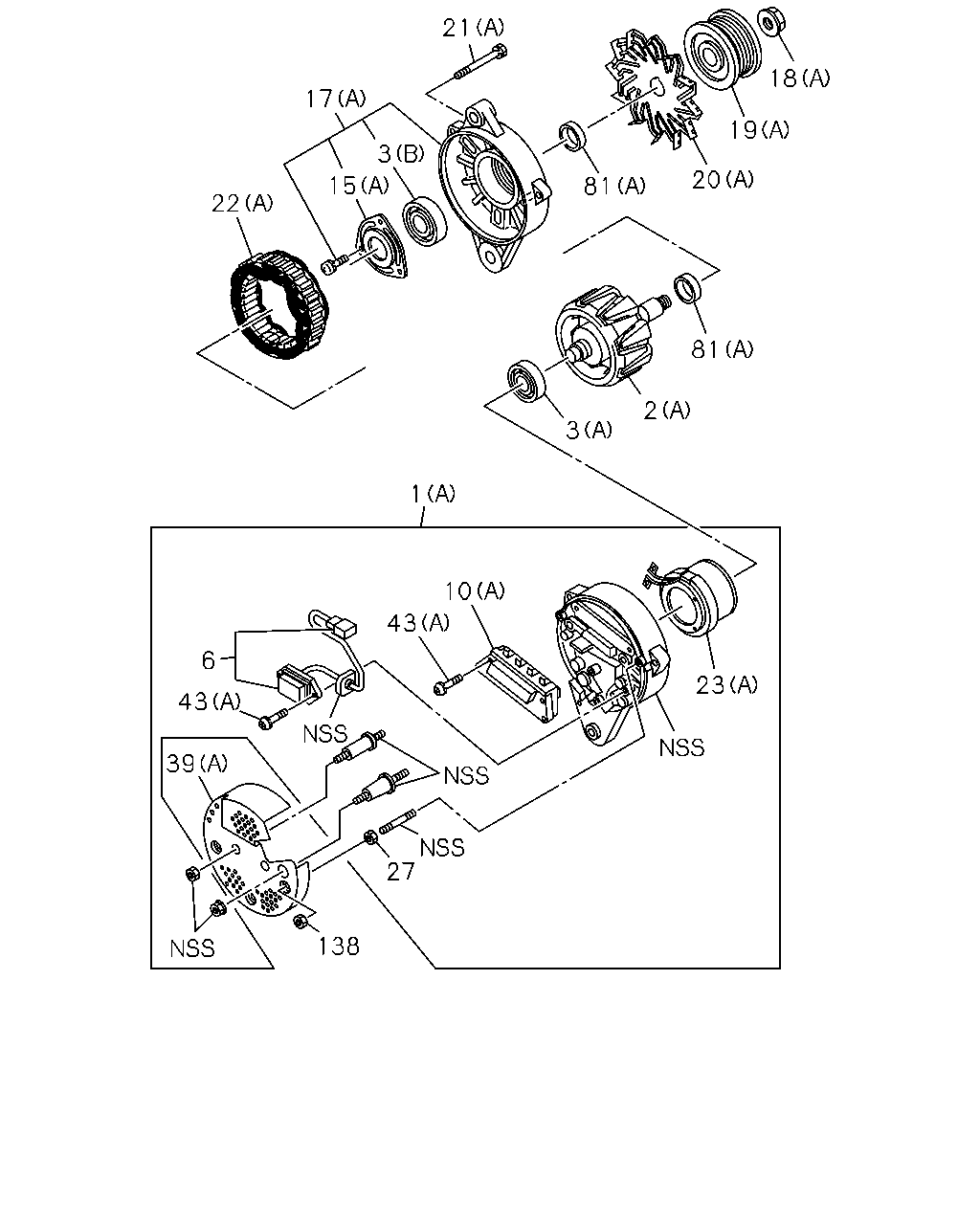

çizim 326814
21 17 22 15 3 81 20 19 18 81 2 3 1 6 43 39 138 27 43 10 23
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-684-1 01 1 -1406
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-684-1 01 1 1406-
1 COVER ASM; RR,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-009-0 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-009-0 01 1 -1406
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-009-0 01 1 1406-
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-638-0 01 1 -1406
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-638-0 01 1 1406-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-000-1 01 1 1406-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-000-1 01 1 -1406
2 ROTOR; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-000-1 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: D = 8-98330-085-0 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-459-3 		1-81229-631-0 01 1 1406-
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-459-3 		1-81229-631-0 01 1 -1406
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-723-0 01 1 1406-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-723-0 01 1 -1406
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-758-0 01 1 -1406
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-758-0 01 1 1406-
3 BEARING; ROTOR,GEN
(D) ASM PART: D = 8-98330-085-0 		8-98048-001-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-459-3 		8-98048-001-0 01 1 -1406
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-459-3 		8-98048-001-0 01 1 1406-
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: D = 8-98330-085-0 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-688-0 01 1 -1406
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-688-0 01 1 1406-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-686-0 01 1 1406-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-686-0 01 1 -1406
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-011-0 01 1 -1406
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-011-0 01 1 1406-
10 RECTIFIER; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-011-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-760-1 01 1 1406-
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-760-1 01 1 -1406
15 RETAINER; ROTOR,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-004-0 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-004-0 01 1 -1406
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-004-0 01 1 1406-
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-872-0 01 1 -1406
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-872-0 01 1 1406-
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-003-0 01 1 -1406
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-003-0 01 1 1406-
17 COVER ASM; FRT,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-643-0 01 1 1406-
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-643-0 01 1 -1406
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-459-3 		9-82216-098-0 01 1 -1406
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-459-3 		9-82216-098-0 01 1 1406-
18 NUT; PULLEY,GEN
(B) ASM PART: D = 8-98330-085-0 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98048-005-0 01 1 1406-
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98048-005-0 01 1 -1406
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-006-0 01 1 1406-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-006-0 01 1 -1406
19 PULLEY; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-006-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-459-3 		1-81223-003-1 01 1 -1406
20 FAN; GEN
(B) ASM PART: D = 8-98330-085-0 		1-81223-003-1 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-459-3 		1-81223-003-1 01 1 1406-
20 FAN; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-874-0 01 1 -1406
20 FAN; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-874-0 01 1 1406-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-382-0 03 1 1406-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-382-0 03 1 -1406
21 BOLT; THROUGH,GEN
(B) ASM PART: D = 8-98330-085-0 		1-81229-661-0 04 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-661-0 04 1 -1406
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-661-0 04 1 1406-
22 STATOR; GEN
(A) ASM PART: A = 8-98013-455-4 		8-98040-639-0 01 1 -1406
22 STATOR; GEN
(A) ASM PART: A = 8-98013-455-4 		8-98040-639-0 01 1 1406-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-456-4 		8-98040-640-0 01 1 -1406
22 STATOR; GEN
(A) ASM PART: B = 8-98013-456-4 		8-98040-640-0 01 1 1406-
22 STATOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-002-0 01 1 1406-
22 STATOR; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-002-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-002-0 01 1 -1406
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-645-0 01 1 -1406
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-645-0 01 1 1406-
23 COIL; ROTOR GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-008-1 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-008-1 01 1 -1406
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-008-1 01 1 1406-
27 NUT; RECTIFIER,GEN
ASM PART: D = 8-98330-085-0 		8-98040-687-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-687-0 01 1 -1406
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-687-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-012-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-012-0 01 1 -1406
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98181-103-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98181-103-0 01 1 -1406
39 COVER; END,RR COVER,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98330-489-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-476-0 03 1 -1406
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-476-0 03 1 1406-
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-459-3 		8-98048-058-0 04 1 1406-
43 SCREW; RR END COVER
(B) ASM PART: D = 8-98330-085-0 		8-98048-058-0 04 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-459-3 		8-98048-058-0 04 1 -1406
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-627-0 01 1 1406-
81 SPACER; ROTOR,GEN
(B) ASM PART: D = 8-98330-085-0 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-627-0 01 1 -1406
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-870-0 02 1 -1406
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-870-0 02 1 1406-
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-690-0 03 1 1406-
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-690-0 03 1 -1406
138 NUT; COVER,GENERATOR
ASM PART: D = 8-98330-085-0 		8-98040-690-0 03 1 -

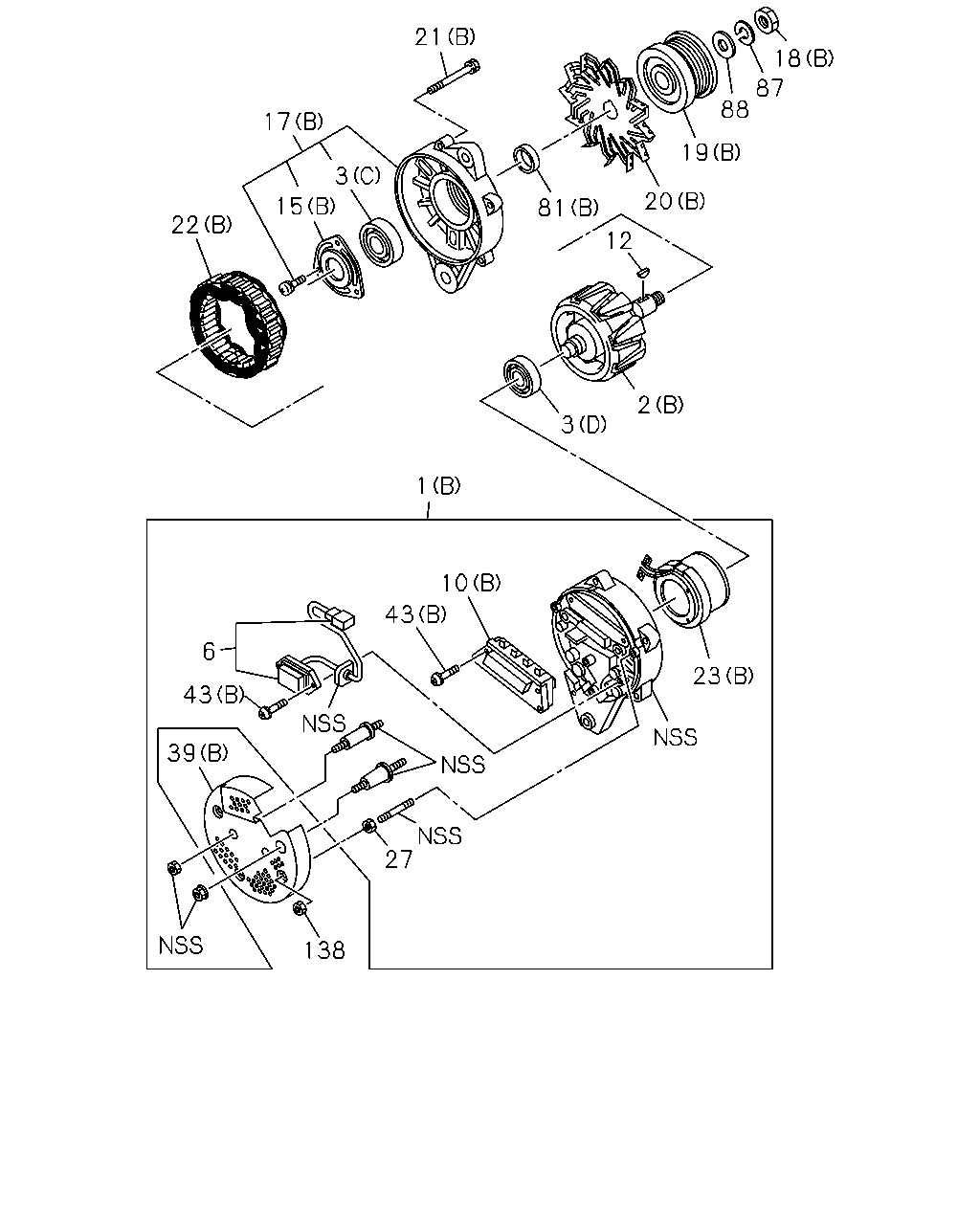

çizim 326833
18 87 88 19 20 81 12 2 3 21 17 3 15 22 1 10 43 23 27 6 43 39 138
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-684-1 01 1 -1406
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-684-1 01 1 1406-
1 COVER ASM; RR,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-009-0 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-009-0 01 1 -1406
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-009-0 01 1 1406-
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-638-0 01 1 -1406
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-638-0 01 1 1406-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-000-1 01 1 1406-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-000-1 01 1 -1406
2 ROTOR; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-000-1 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: D = 8-98330-085-0 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-459-3 		1-81229-631-0 01 1 1406-
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-459-3 		1-81229-631-0 01 1 -1406
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-723-0 01 1 1406-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-723-0 01 1 -1406
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-758-0 01 1 -1406
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-758-0 01 1 1406-
3 BEARING; ROTOR,GEN
(D) ASM PART: D = 8-98330-085-0 		8-98048-001-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-459-3 		8-98048-001-0 01 1 -1406
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-459-3 		8-98048-001-0 01 1 1406-
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: D = 8-98330-085-0 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-688-0 01 1 -1406
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-688-0 01 1 1406-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-686-0 01 1 1406-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-686-0 01 1 -1406
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-011-0 01 1 -1406
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-011-0 01 1 1406-
10 RECTIFIER; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-011-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: C = 8-98013-459-3 		9-82215-867-0 01 1 1406-
12 KEY; ROTOR,GEN
ASM PART: D = 8-98330-085-0 		9-82215-867-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: C = 8-98013-459-3 		9-82215-867-0 01 1 -1406
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-760-1 01 1 1406-
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-760-1 01 1 -1406
15 RETAINER; ROTOR,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-004-0 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-004-0 01 1 -1406
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-004-0 01 1 1406-
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-872-0 01 1 -1406
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-872-0 01 1 1406-
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-003-0 01 1 -1406
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-003-0 01 1 1406-
17 COVER ASM; FRT,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-643-0 01 1 1406-
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-643-0 01 1 -1406
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-459-3 		9-82216-098-0 01 1 -1406
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-459-3 		9-82216-098-0 01 1 1406-
18 NUT; PULLEY,GEN
(B) ASM PART: D = 8-98330-085-0 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98048-005-0 01 1 1406-
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98048-005-0 01 1 -1406
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-006-0 01 1 1406-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-006-0 01 1 -1406
19 PULLEY; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-006-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-459-3 		1-81223-003-1 01 1 -1406
20 FAN; GEN
(B) ASM PART: D = 8-98330-085-0 		1-81223-003-1 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-459-3 		1-81223-003-1 01 1 1406-
20 FAN; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-874-0 01 1 -1406
20 FAN; GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-874-0 01 1 1406-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-382-0 03 1 1406-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-382-0 03 1 -1406
21 BOLT; THROUGH,GEN
(B) ASM PART: D = 8-98330-085-0 		1-81229-661-0 04 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-661-0 04 1 -1406
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-661-0 04 1 1406-
22 STATOR; GEN
(A) ASM PART: A = 8-98013-455-4 		8-98040-639-0 01 1 -1406
22 STATOR; GEN
(A) ASM PART: A = 8-98013-455-4 		8-98040-639-0 01 1 1406-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-456-4 		8-98040-640-0 01 1 -1406
22 STATOR; GEN
(A) ASM PART: B = 8-98013-456-4 		8-98040-640-0 01 1 1406-
22 STATOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-002-0 01 1 1406-
22 STATOR; GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-002-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-002-0 01 1 -1406
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-645-0 01 1 -1406
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98040-645-0 01 1 1406-
23 COIL; ROTOR GEN
(B) ASM PART: D = 8-98330-085-0 		8-98048-008-1 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-008-1 01 1 -1406
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-008-1 01 1 1406-
27 NUT; RECTIFIER,GEN
ASM PART: D = 8-98330-085-0 		8-98040-687-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-687-0 01 1 -1406
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-687-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-012-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-459-3 		8-98048-012-0 01 1 -1406
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98181-103-0 01 1 1406-
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-98181-103-0 01 1 -1406
39 COVER; END,RR COVER,GEN
(B) ASM PART: D = 8-98330-085-0 		8-98330-489-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-476-0 03 1 -1406
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		1-81229-476-0 03 1 1406-
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-459-3 		8-98048-058-0 04 1 1406-
43 SCREW; RR END COVER
(B) ASM PART: D = 8-98330-085-0 		8-98048-058-0 04 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-459-3 		8-98048-058-0 04 1 -1406
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-627-0 01 1 1406-
81 SPACER; ROTOR,GEN
(B) ASM PART: D = 8-98330-085-0 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-459-3 		1-81229-627-0 01 1 -1406
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-870-0 02 1 -1406
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-4, B = 8-98013-456-4 		8-97382-870-0 02 1 1406-
87 WASHER; PULLEY,GEN
ASM PART: D = 8-98330-085-0 		1-81229-672-0 01 1 -
87 WASHER; PULLEY,GEN
ASM PART: C = 8-98013-459-3 		1-81229-672-0 01 1 -1406
87 WASHER; PULLEY,GEN
ASM PART: C = 8-98013-459-3 		1-81229-672-0 01 1 1406-
88 WASHER; PL,PULLEY GEN
ASM PART: C = 8-98013-459-3 		1-81229-673-0 01 1 -1406
88 WASHER; PL,PULLEY GEN
ASM PART: D = 8-98330-085-0 		1-81229-673-0 01 1 -
88 WASHER; PL,PULLEY GEN
ASM PART: C = 8-98013-459-3 		1-81229-673-0 01 1 1406-
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-690-0 03 1 1406-
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-455-4, B = 8-98013-456-4, C = 8-98013-459-3 		8-98040-690-0 03 1 -1406
138 NUT; COVER,GENERATOR
ASM PART: D = 8-98330-085-0 		8-98040-690-0 03 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
