Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#112880) — 59 parça
◀

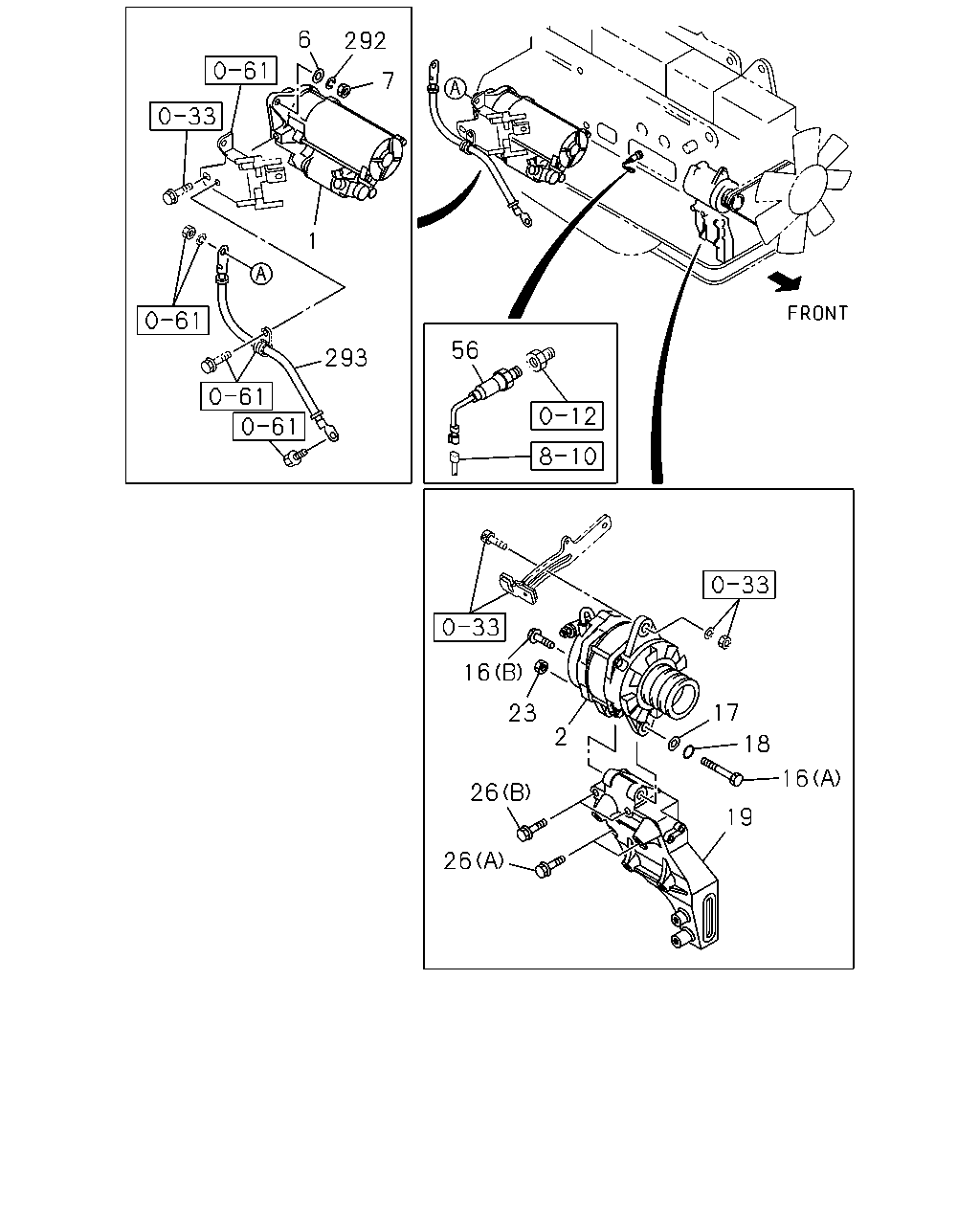

[060A] STARTER AND GENERATOR (18 parça)

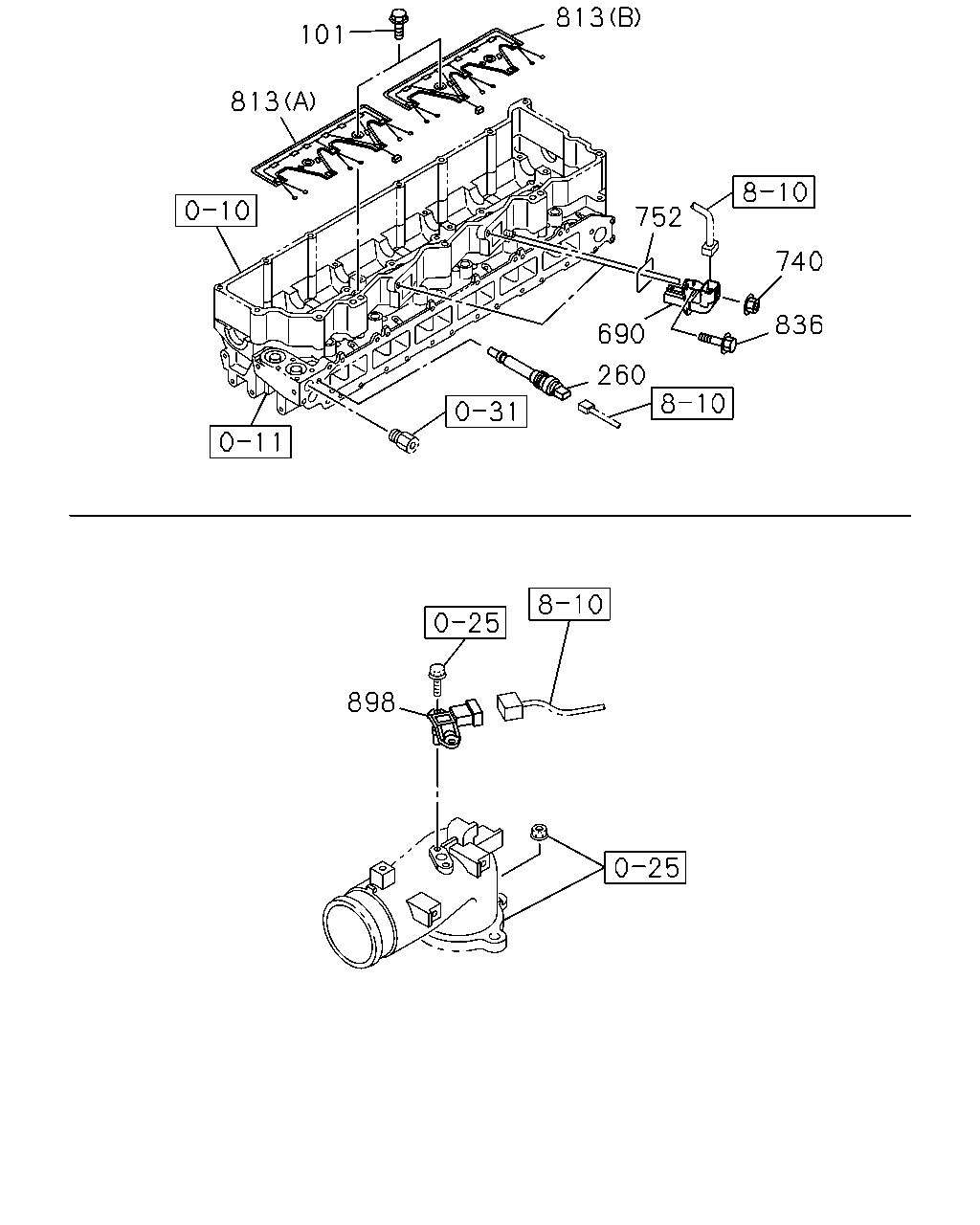

[060A] ENG SIDE (10 parça)

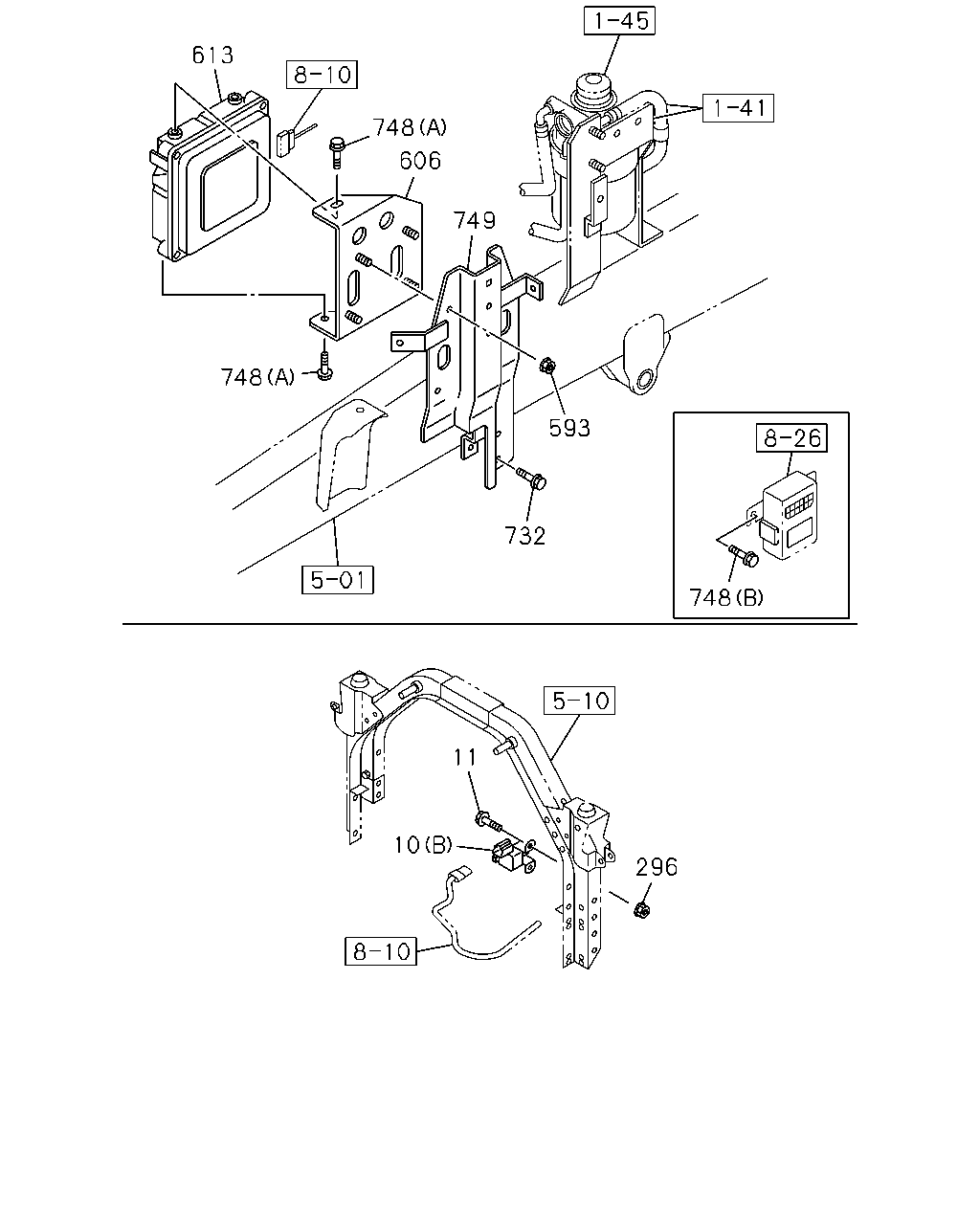

[060A] ENG CONTROL UNIT AND OTHER PARTS (22 parça)

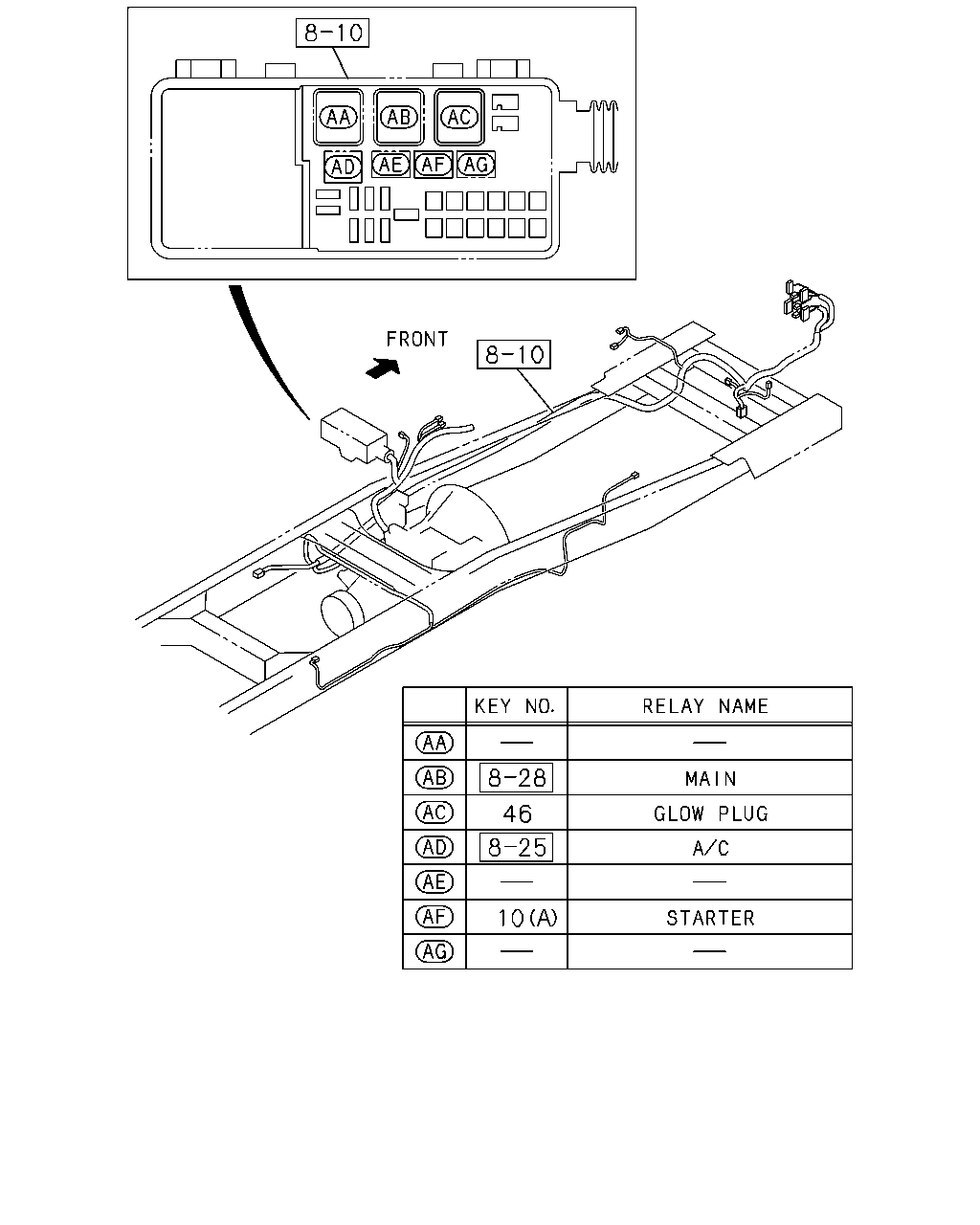

[060A] FRAME SIDE (6 parça)

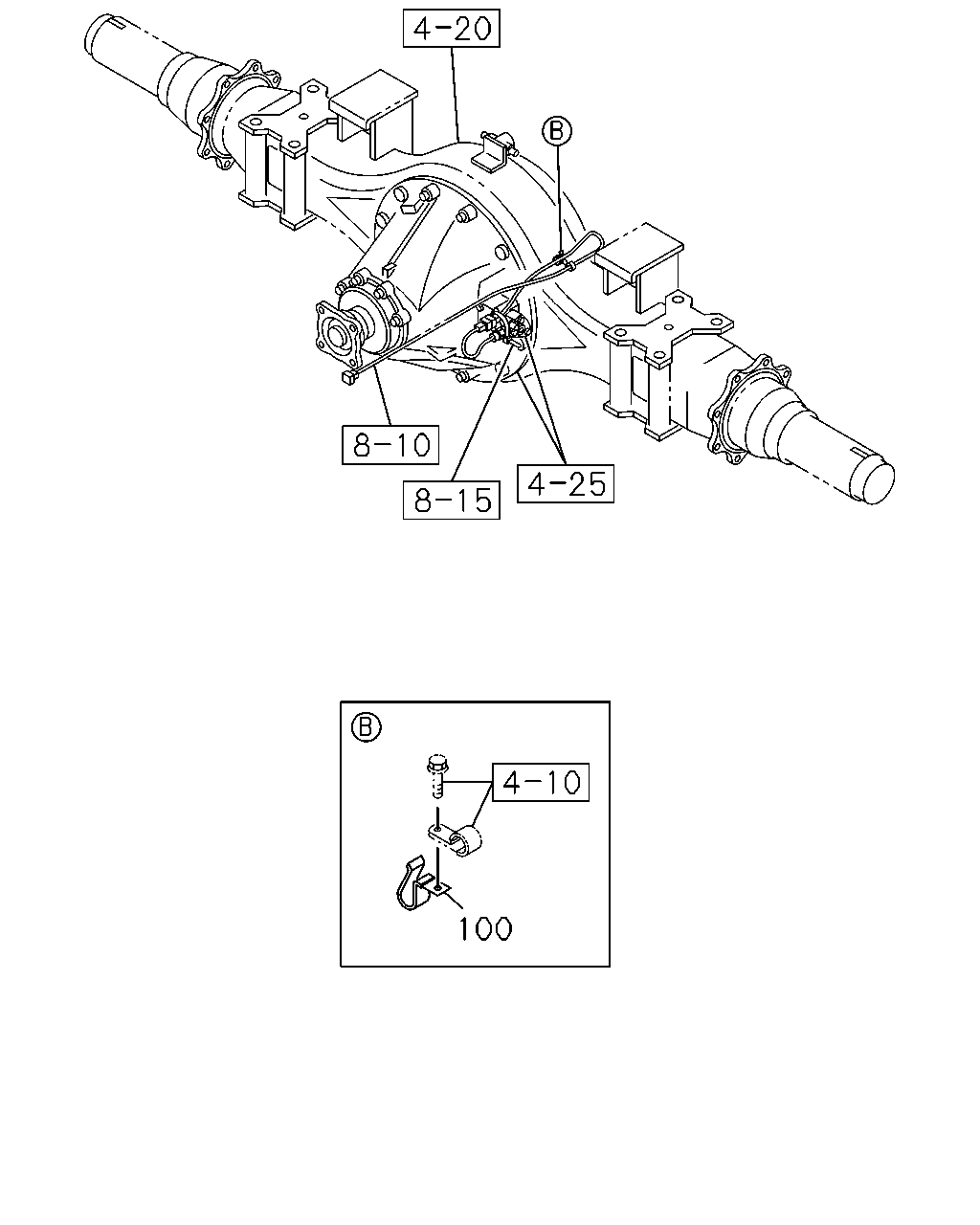

[060A] HARNESS CLIP (3 parça)
▶
1
7
292
6
293
56
16
23
2
26
26
17
18
16
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98141-206-3
01
1
1302-1409
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98261-669-0
01
1
1410-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-461-5
01
1
1302-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-462-5
01
1
1302-
6
WASHER; PL,STARTER
ID=15
0-91610-514-0
01
1
1302-
7
NUT; STARTER
M14
0-91110-514-0
02
1
1302-
16
BOLT; GEN
(A) M14X135
1-09000-133-1
01
1
1302-
16
BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
02
1
1302-
16
BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
01
1
1302-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1302-
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
1302-
19
BRACKET; GEN
8-98082-615-1
01
1
1302-
23
NUT; GEN
M14
0-91110-514-0
01
1
1302-
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28151-040-0
02
1
1302-
26
BOLT; GEN BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
1302-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
1302-
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
01
1
1302-
293
CABLE; STARTER EARTH
8-98131-713-0
01
1
1302-
101
813
813
690
752
740
836
260
898
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; HARNESS
M8X40 FLANGE
0-28650-840-0
04
1
1302-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
1302-1503
260
SENSOR; WATER TEMP
NISHIDA
8-98260-257-0
01
1
1504-
690
CONNECTOR
8-94390-858-1
02
1
1302-
740
NUT
M8 FLANGE
0-91180-108-0
02
1
1302-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1302-
813
HARNESS; INJECTOR
(A) FRONT
8-98204-717-0
01
1
1302-
813
HARNESS; INJECTOR
(B) REAR
8-98204-718-0
01
1
1302-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1302-
898
SENSOR; BOOST
8-98009-418-0
01
1
1302-
613
748
606
593
732
748
749
10
296
748
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1302-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1302-
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
1302-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
1302-
593
NUT; BRKT
M6 FLANGE
0-91180-106-0
04
1
1302-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
1302-
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK>
8-98257-216-0
01
1
1312-
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98257-207-0
01
1
1312-
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> GLOW SYSTEM DELETE<7RK>
8-98257-215-0
01
1
1312-
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) A/T<X9D> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98257-217-0
01
1
1312-
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98216-181-0
01
1
1302-1311
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> EXC. GLOW SYSTEM DELETE<7RK>
8-98216-181-0
01
1
1312-
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98216-182-0
01
1
1302-1311
613
CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) A/T<X9D> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>
8-98216-182-0
01
1
1312-
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98181-060-1
01
1
1302-1311
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. GLOW SYSTEM DELETE<7RK>
8-98181-060-1
01
1
1312-
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98216-177-0
01
1
1302-1311
613
CONTROL UNIT; ENG
MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>
8-98216-177-0
01
1
1312-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
1302-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1302-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1302-
749
STAY; CONT UNIT
1-53194-595-3
01
1
1302-
46
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1302-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1302-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1302-1311
46
RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A
8-97173-947-0
01
1
1312-
46
RELAY; GLOW PLUG
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC
8-97173-035-1
01
1
1302-1405
46
RELAY; GLOW PLUG
LAMPS EXP PACKAGE<WL5> EXC. GLOW SYSTEM DELETE<7RK> 24V 10A PANASONIC
8-97173-035-1
01
1
1406-
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
DIFF LOCK<C3N> ID=10 L=25
8-94208-375-0
01
1
1302-1405
100
CLIP; HARNESS
FINAL GEAR 43/7 14.5"(W1G) DIFF LOCK<C3N> ID=10 L=25
8-94208-375-0
01
1
1406-
100
CLIP; HARNESS
FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. CONVERTING INTO 6X6<BCC> ID=10 L=25
8-94208-375-0
01
1
1406-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
