◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#112876) — 76 parça

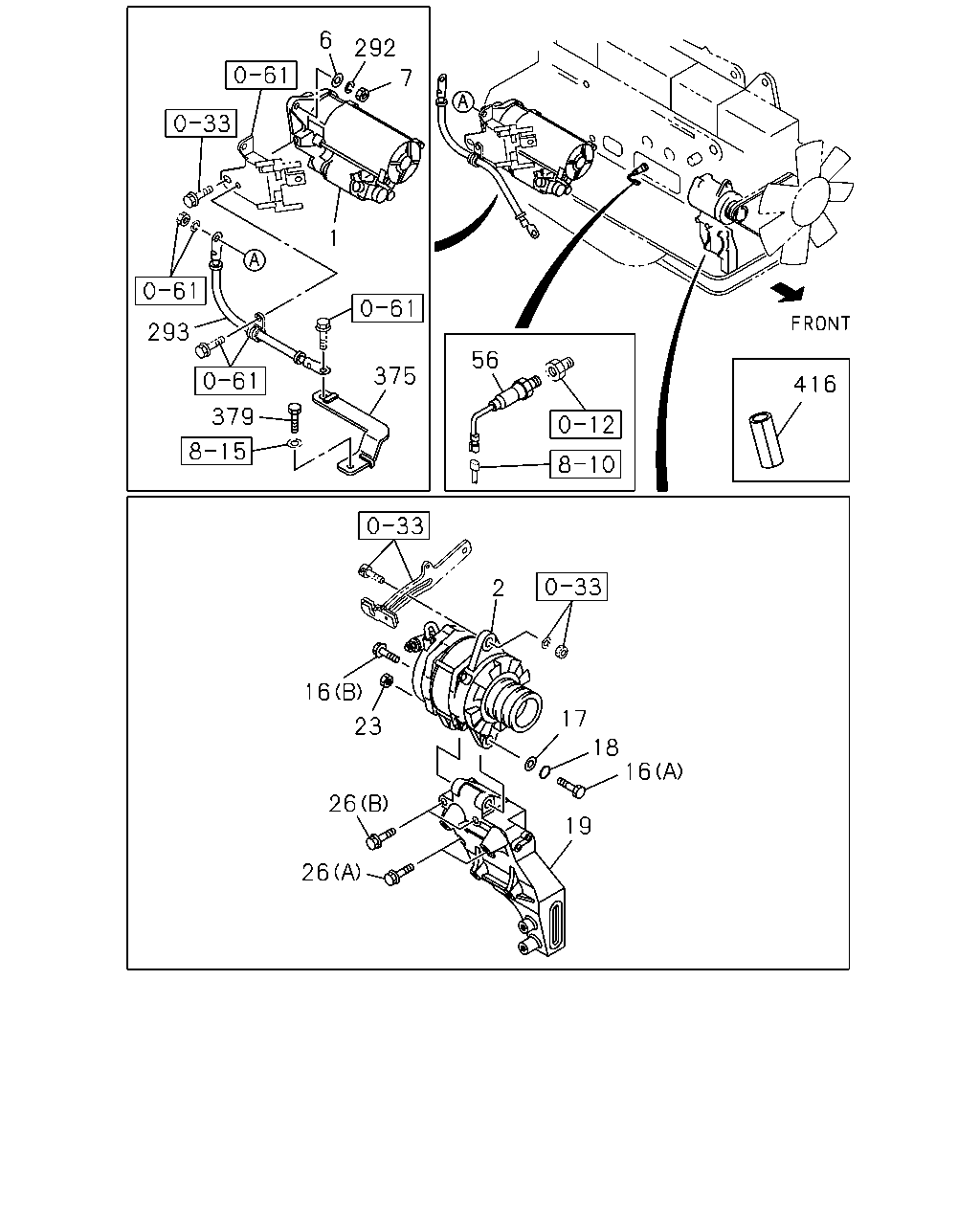

çizim 326718
6 292 293 379 375 56 416 16 2 17 18 26 23 26 19 16 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1302-1409
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1302-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1302-
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1302-
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1302-
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1302-
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1302-
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1302-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1302-
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1302-
19 BRACKET; GEN 8-98082-615-1 01 1 1302-
23 NUT; GEN
M14 		0-91110-514-0 01 1 1302-
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1302-
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1302-
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1302-
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1302-
293 CABLE; STARTER EARTH
EURO4 SPECIFICATION<NT4> L=430 		8-97621-357-0 01 1 1602-
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1302-1601
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> L=420 		8-98131-856-0 01 1 1602-
375 BRACKET 8-98131-726-0 01 1 1302-1601
375 BRACKET
EURO2 SPECIFICATION<NT2> 		8-98131-726-0 01 1 1602-
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1302-1601
379 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1602-
416 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1602-

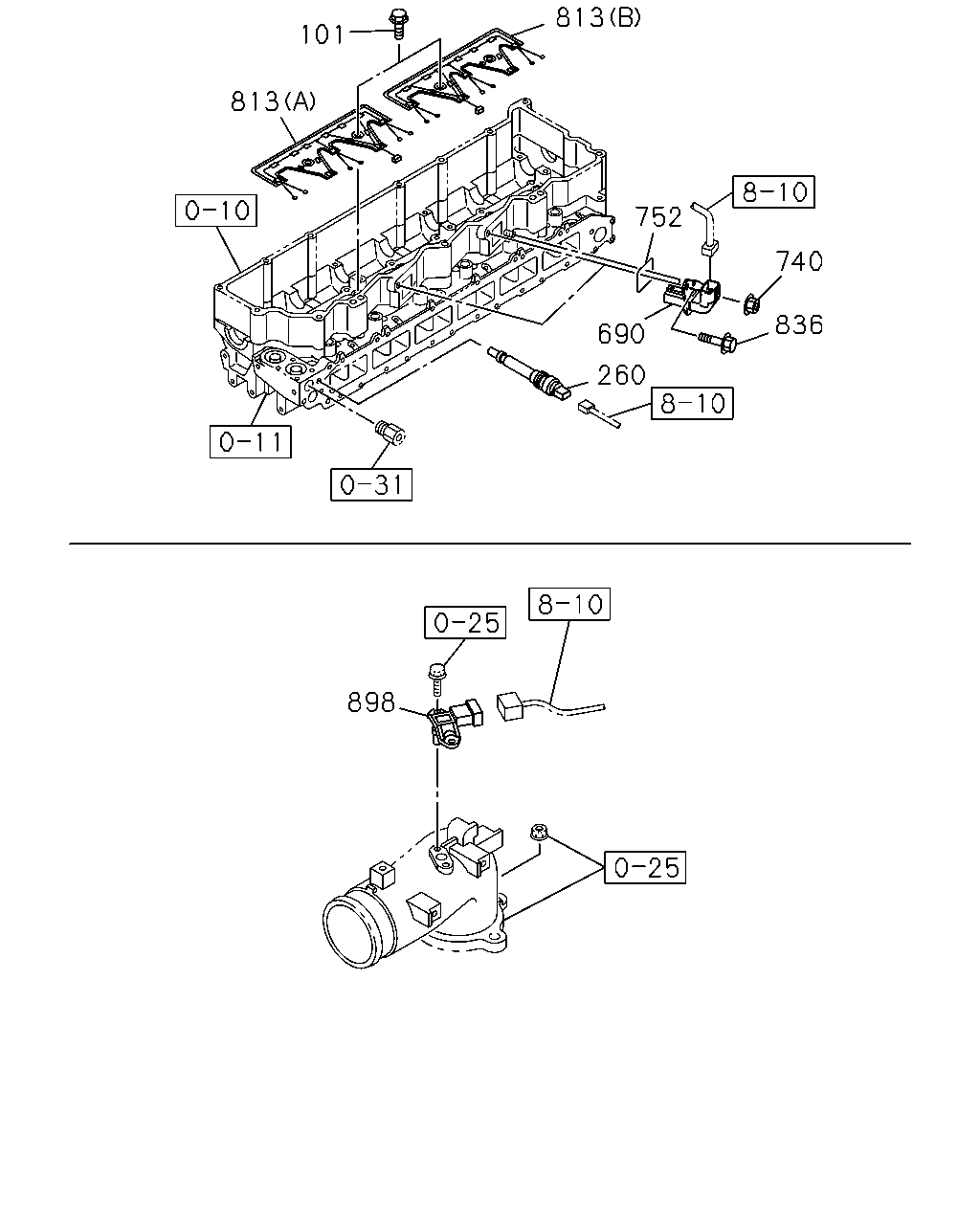

çizim 326736
101 813 813 752 740 836 690 260 898
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1302-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1302-1503
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504-
690 CONNECTOR 8-94390-858-1 02 1 1302-
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1302-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1302-
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1302-
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1302-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1302-
898 SENSOR; BOOST 8-98009-418-0 01 1 1302-

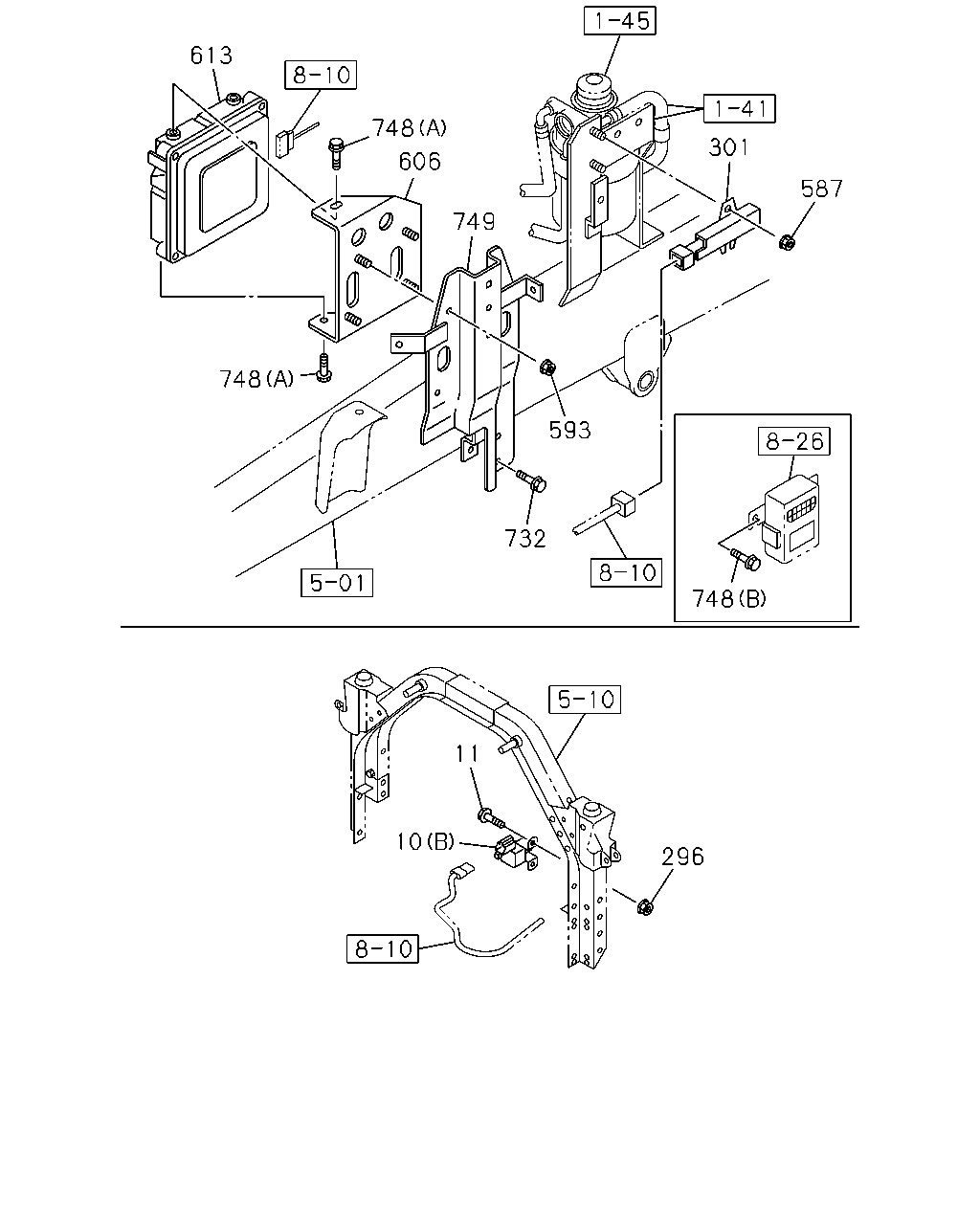

çizim 326742
613 606 749 301 587 748 732 593 748 748 296 11 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1302-
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1302-
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1302-
301 RESISTOR; DROPPING
EURO4 SPECIFICATION<NT4> 		8-97357-613-0 01 1 1602-
587 NUT; RESISTOR & RELAY
EURO4 SPECIFICATION<NT4> M6 FLANGE 		0-91180-106-0 02 1 1602-
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1302-
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1302-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. GLOW SYSTEM DELETE<7RK> 		8-98175-680-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98175-675-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) CATALYSIS CONTROL<6MZ> EXC. GLOW SYSTEM DELETE<7RK> 		8-98175-630-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98175-631-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98175-629-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> 		8-98257-211-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> 		8-98257-211-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-213-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-213-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> 		8-98257-206-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> 		8-98257-206-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-207-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-207-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98216-179-0 01 1 1302-1311
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK> 		8-98216-179-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK> 		8-98216-179-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98216-177-0 01 1 1302-1311
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98216-177-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98216-177-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98216-174-0 01 1 1302-1311
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK> 		8-98216-174-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK> 		8-98216-174-0 01 1 1602-
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98216-173-0 01 1 1302-1311
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98216-173-0 01 1 1312-1601
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98216-173-0 01 1 1602-
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1302-
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1302-
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 1302-
749 STAY; CONT UNIT 1-53194-595-3 01 1 1302-

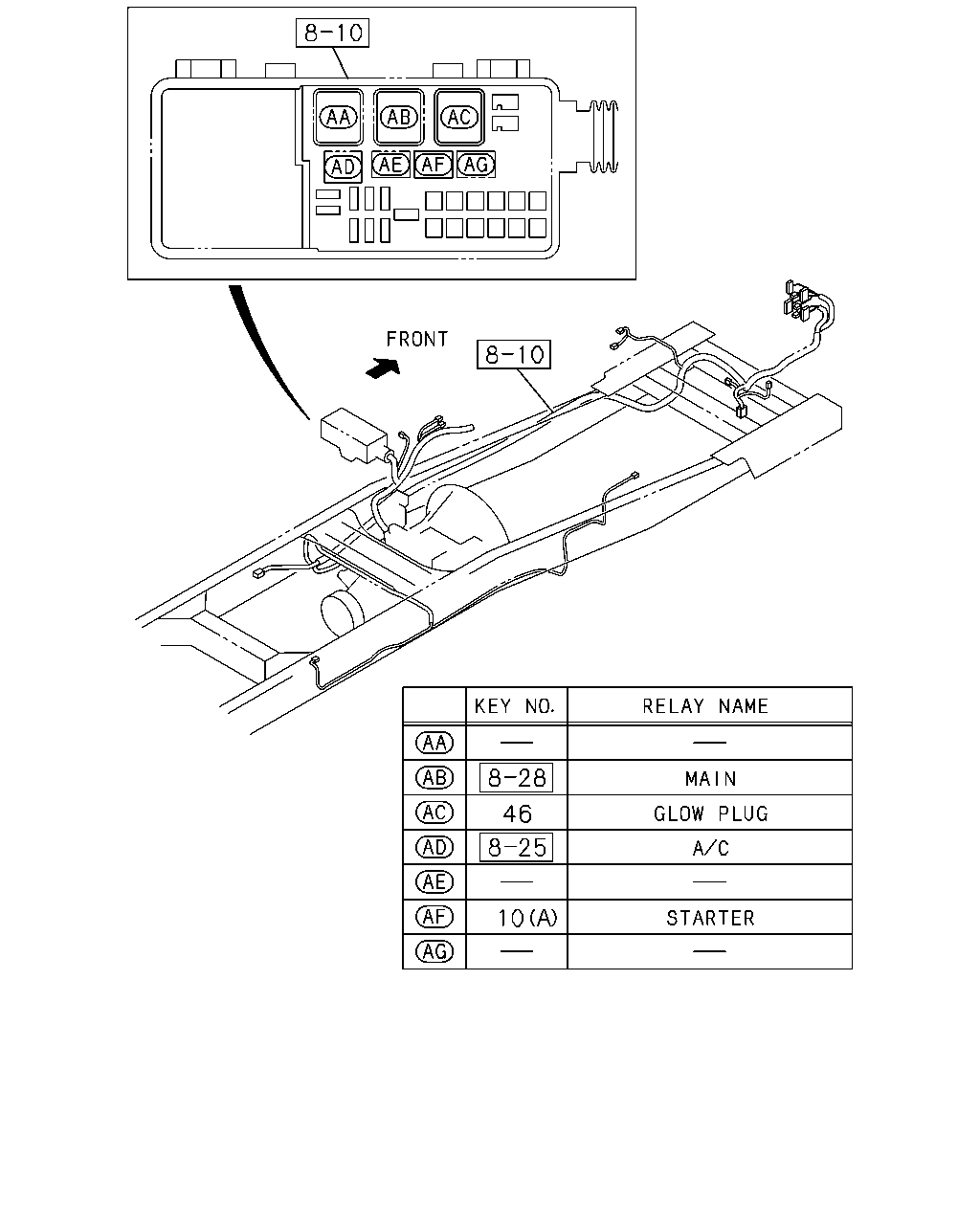

çizim 330690
46 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1302-
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1302-
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1302-1311
46 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1312-
