1-10 — RADIATOR (#112871) — 178 parça

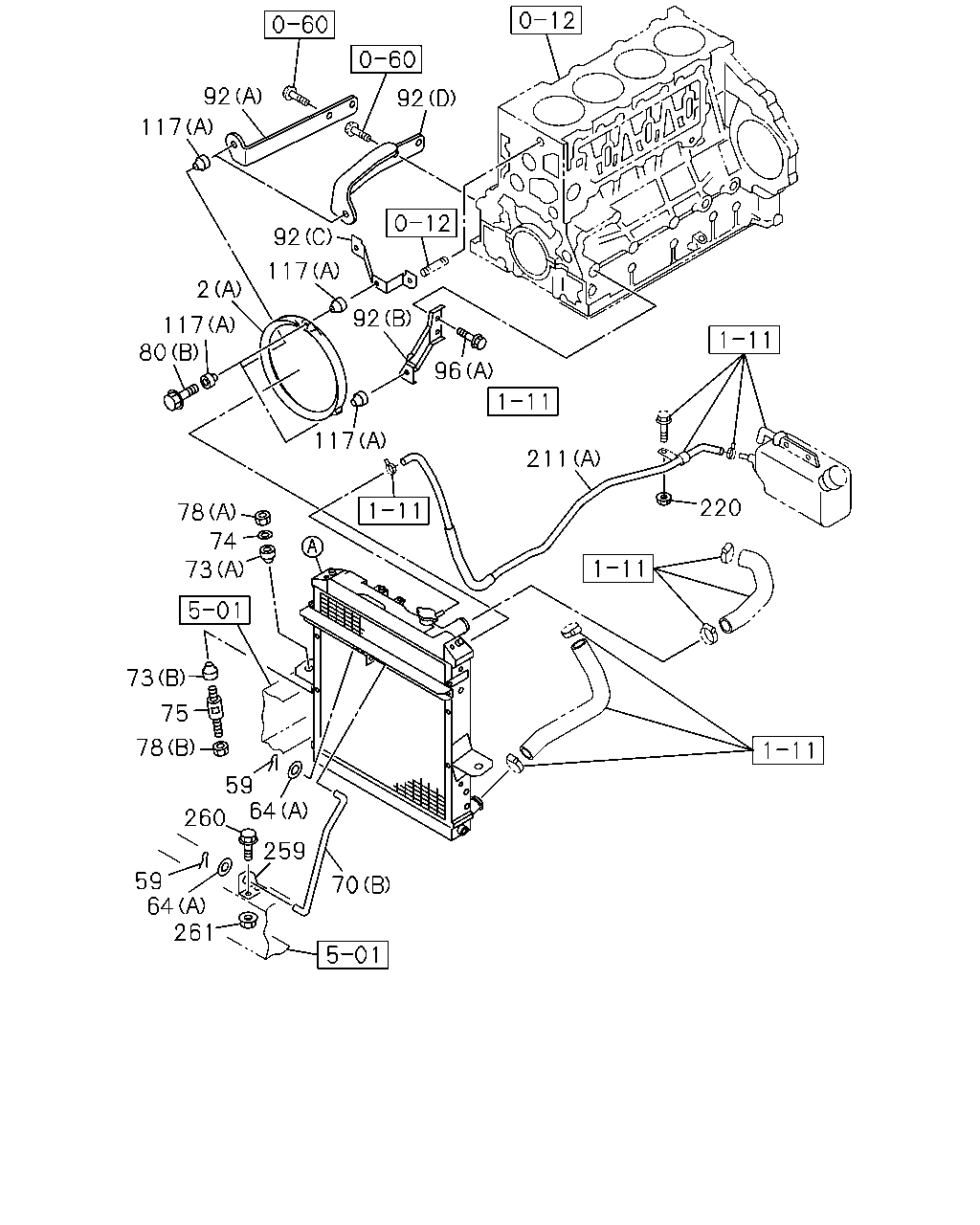

çizim 326871
92 92 92 92 2 117 117 117 117 96 80 211 220 78 78 737 73 74 75 59 64 260 259 59 64 261 70
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(A) 		8-97350-995-0 01 1 1302- ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1302- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1302- ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1302- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1302- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-897-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-896-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-899-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-898-0 01 1 1302- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1302- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1302- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1302- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 1302- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97350-997-0 01 1 1302- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (A) M10X25 FLANGE 		0-28751-025-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1302- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1302- ●
211 HOSE; RAD TO PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-423-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-885-2 01 1 1302- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) L=560 		8-98119-375-0 01 1 1302- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
259 BRACKET; RAD STAY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98063-603-0 01 1 1302- ●
259 BRACKET; RAD STAY
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98208-883-0 01 1 1302- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1302- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302- ●

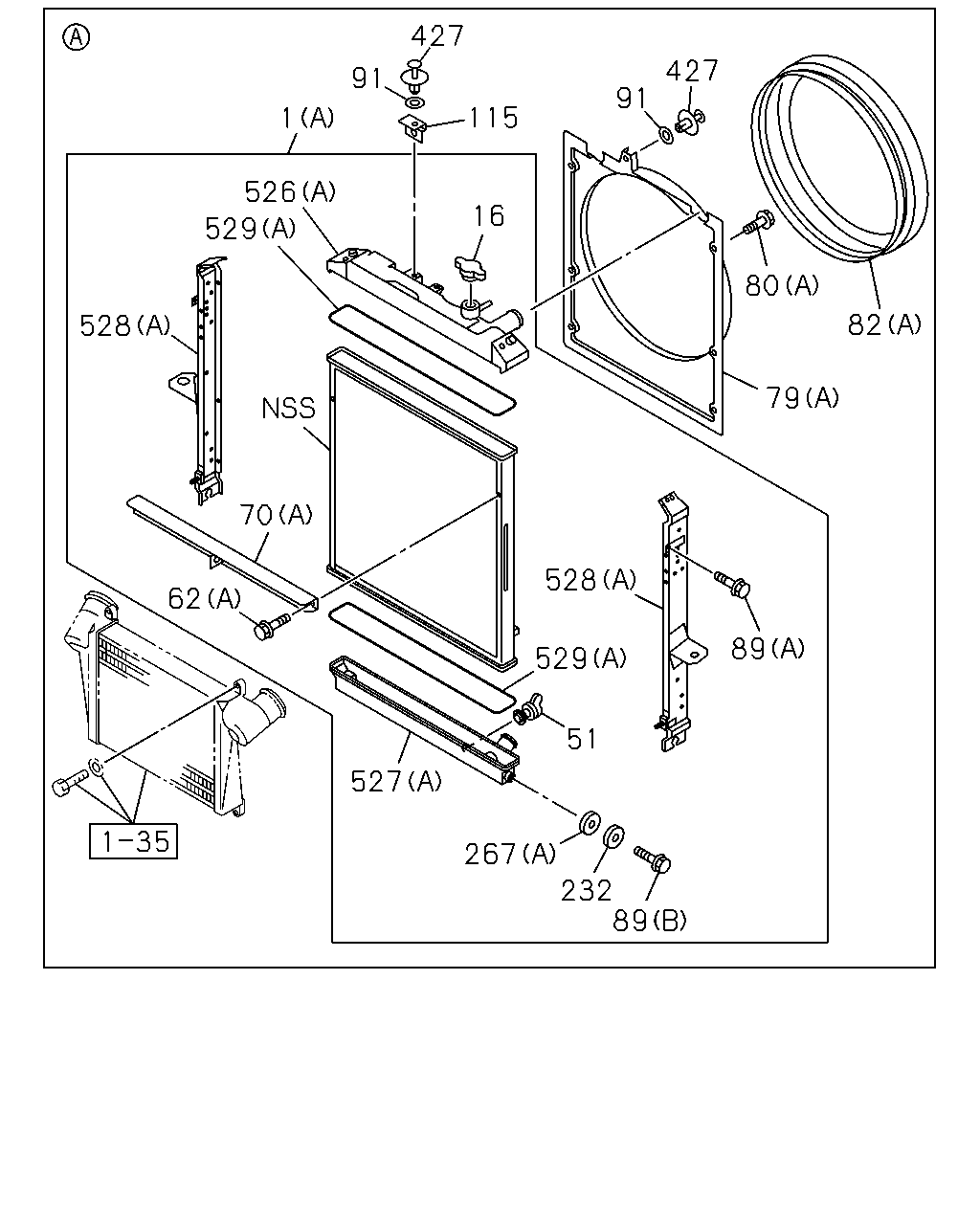

çizim 326881
427 91 80 79 82 528 89 529 51 527 267 232 89 62 70 529 526 1 91 427 115 528 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-370-0 01 1 1302- ●
1 RADIATOR ASM
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-849-0 01 1 1302- ●
1 RADIATOR ASM
(B) 		8-98139-308-0 01 1 1302- ●
16 CAP; RAD 8-98096-226-0 01 1 1302- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1302- ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1302- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1302- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-897-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-896-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-899-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-898-0 01 1 1302- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1302- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1302- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1302- ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1302-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1302- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ●
91 WASHER; PL 1-21469-111-0 02 1 1302- ●
115 BRACKET; FAN GUIDE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98204-117-0 01 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1302- ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1302- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1302- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1505 ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98107-793-0 01 1 1302- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98032-433-1 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98010-290-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98010-291-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-850-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-851-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1302- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98032-435-0 02 1 1302- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1302- ●
çizim 326902
82 80 83 79 82 80 79 528 526 1 16 427 529 267 232 89 528 529 235 89 267 527 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-370-0 01 1 1302- ●
1 RADIATOR ASM
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-849-0 01 1 1302- ●
1 RADIATOR ASM
(B) 		8-98139-308-0 01 1 1302- ●
16 CAP; RAD 8-98096-226-0 01 1 1302- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1302- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1302- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1302-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1302- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1302- ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1302-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1302- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1302- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1302- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1302- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1302- ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1302- ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1302- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1302- ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1302- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1302-1505 ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98107-793-0 01 1 1302- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98004-202-2 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98032-433-1 01 1 1302- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98004-203-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98010-290-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98010-291-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-850-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-851-0 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1302- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1302- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98032-435-0 02 1 1302- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1302- ●

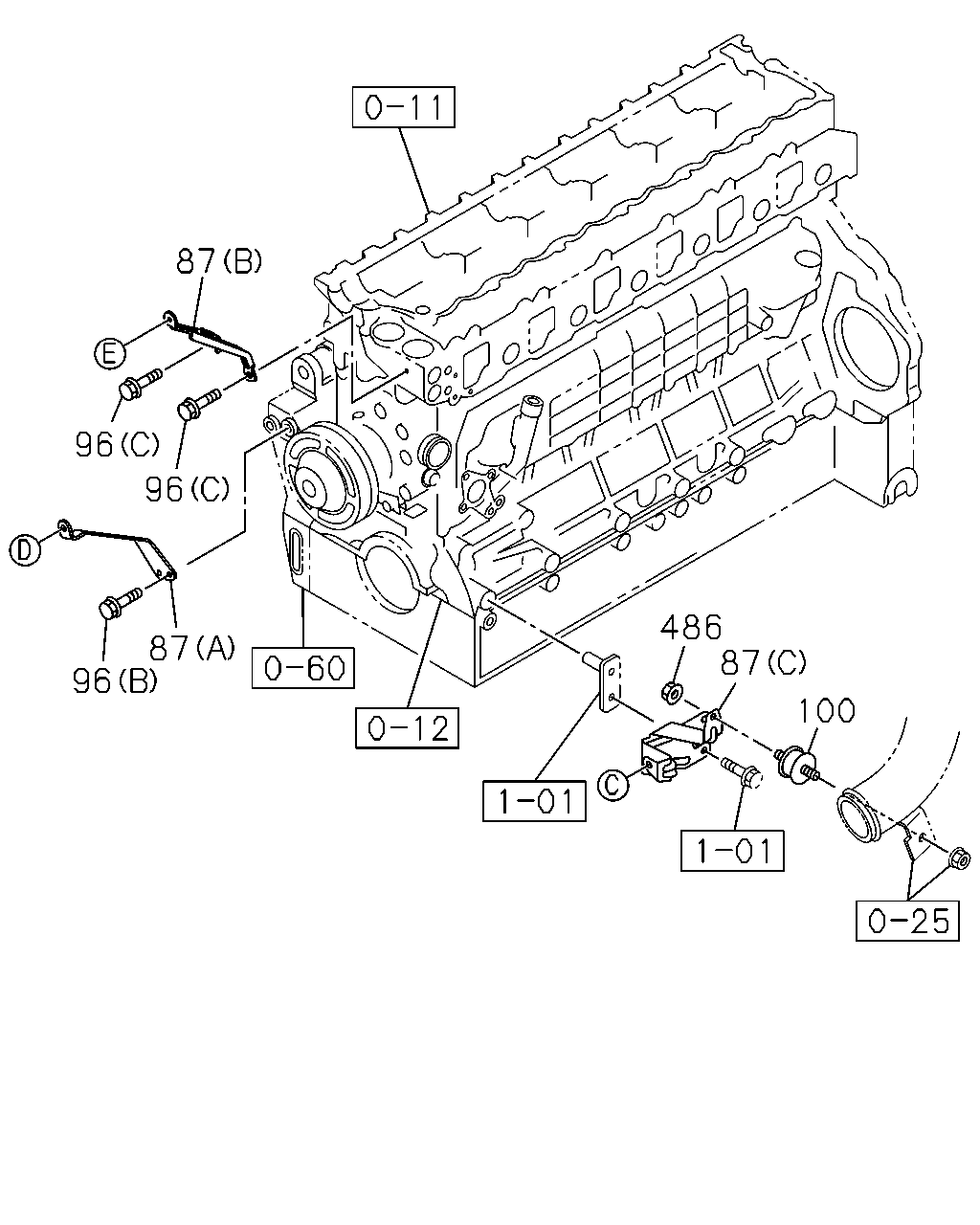

çizim 330767
96 87 96 96 87 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1302- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1302- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1302- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (A) M10X25 FLANGE 		0-28751-025-0 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1302- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1302- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1302- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1302- ●

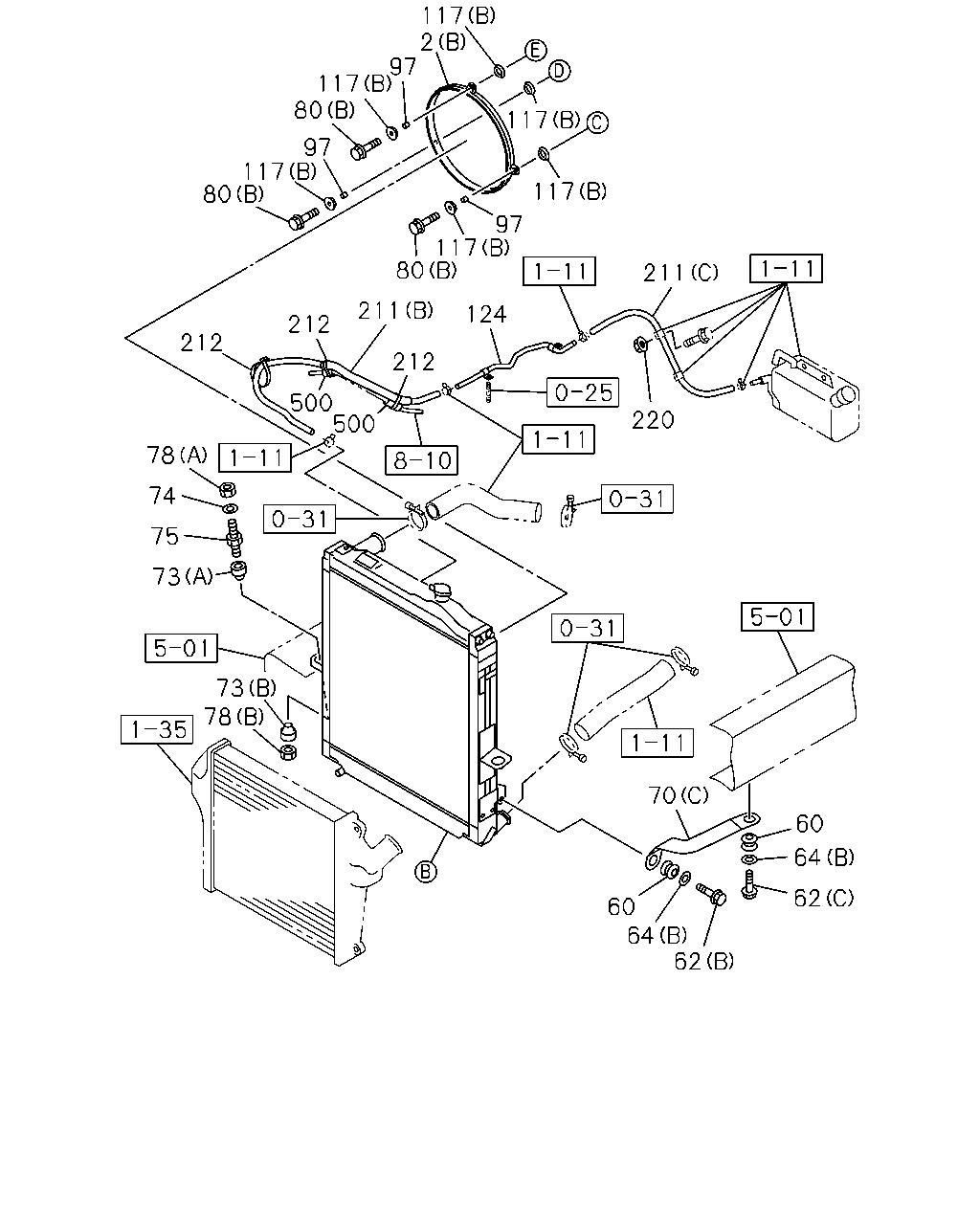

çizim 331068
117 97 117 80 117 80 117 117 97 117 80 211 212 212 500 212 124 211 220 500 78 75 74 73 73 78 70 60 64 62 60 64 62 97 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(A) 		8-97350-995-0 01 1 1302- ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1302- ●
60 GROMMET 1-09332-117-0 04 1 1302- ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1302- ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1302- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1302- ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1302- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1302- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1302- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-897-0 01 1 1302- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-896-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-899-0 01 1 1302- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98078-898-0 01 1 1302- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1302- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1302- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1302- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1302- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1302- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1302- ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1302-1505 ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1302- ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1302- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1302- ●
211 HOSE; RAD TO PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-423-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-885-2 01 1 1302- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1302- ●
211 HOSE; RAD TO PIPE
(C) L=560 		8-98119-375-0 01 1 1302- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=250 		5-09707-030-1 02 1 1302- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> L=140 		5-09707-031-1 01 1 1302- ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=250 		5-09707-030-1 01 1 1302- ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> L=140 		5-09707-031-1 02 1 1302- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
