1-31 — AIR DUCT (#112861) — 43 parça

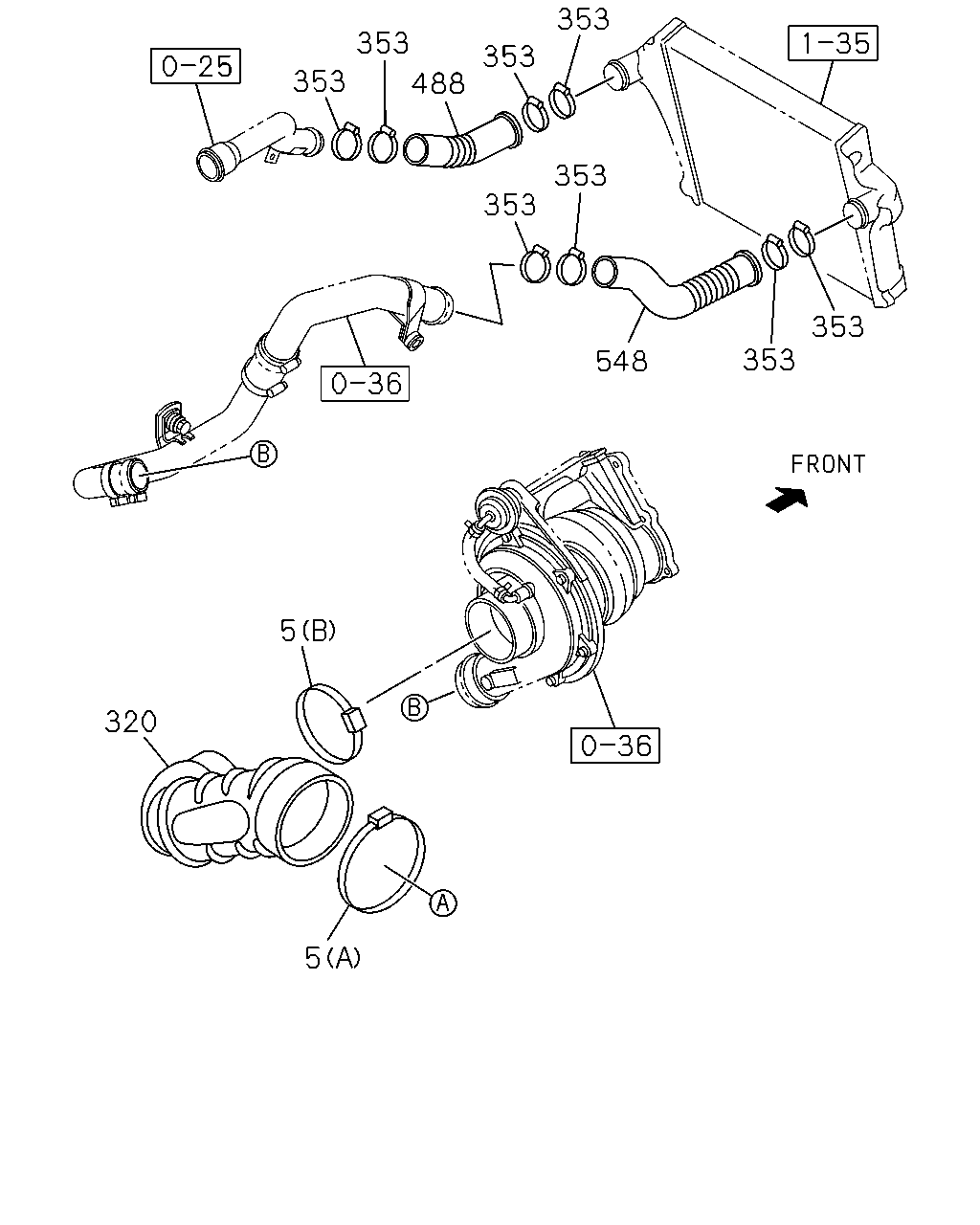

çizim 326932
353 353 353 353 488 353 353 548 353 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1302-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1302-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1302-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1302-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302-
320 HOSE; CONN,ACL 8-98072-934-0 01 1 1302-
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1302-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1302-
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1302-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98181-973-1 01 1 1302-

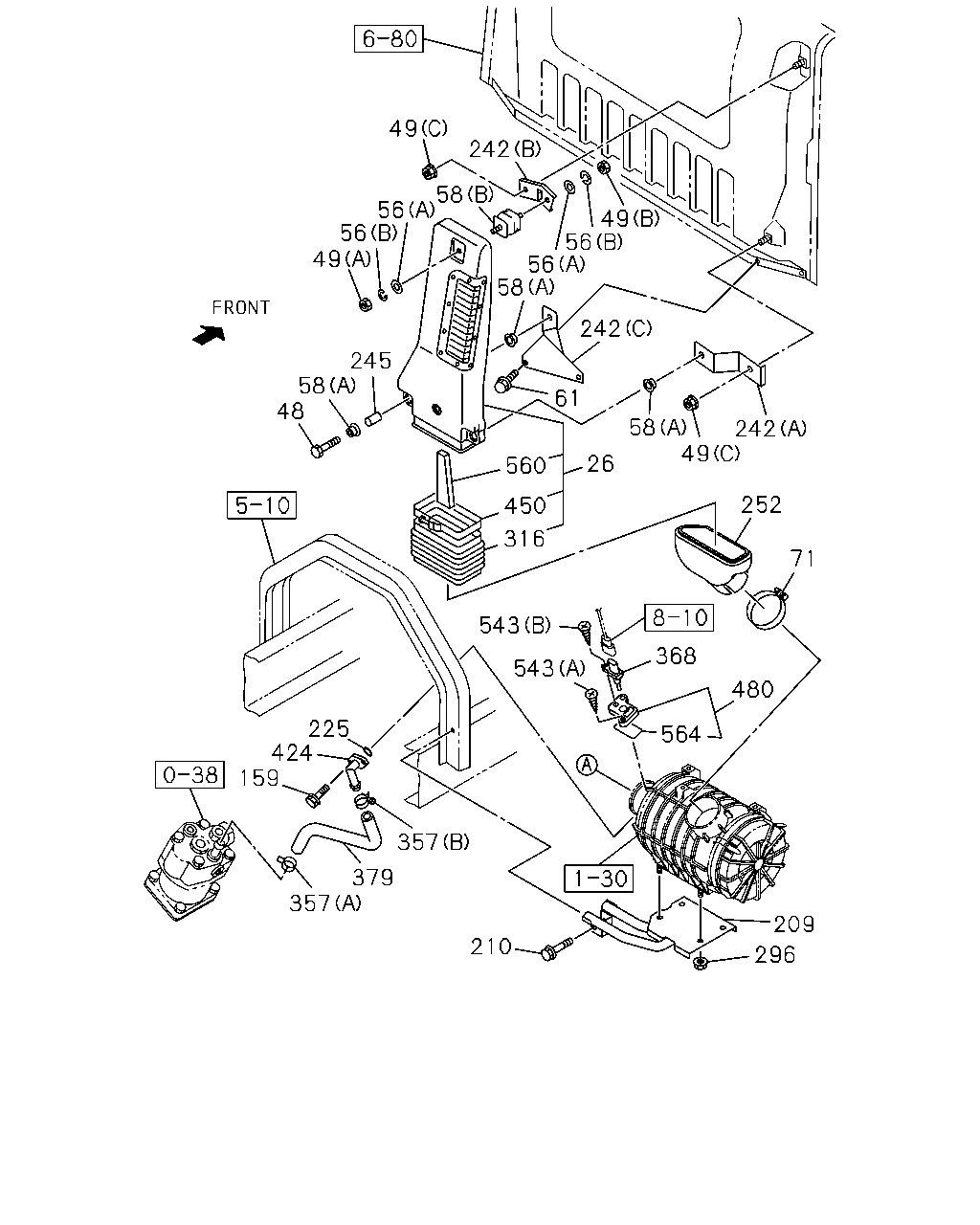

çizim 330640
49 242 58 56 56 49 245 58 48 61 58 56 56 49 242 58 242 49 252 71 26 560 450 316 543 543 368 480 564 357 379 357 59 225 424 210 209 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1302-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302-
209 BRACKET; ACL 8-98099-677-0 01 1 1302-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 1302-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302-
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1302-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302-
252 DUCT; AIR INT 8-98019-843-0 01 1 1302-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1302-
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1302-
368 SENSOR; TEMP 8-98065-377-0 01 1 1302-
379 HOSE; RUBBER 8-98063-172-0 01 1 1302-
424 PIPE; AIR,INL 8-98081-834-0 01 1 1302-
450 CLAMP; HOSE 9-09915-504-1 01 1 1302-
480 ADAPTER 8-98086-417-0 01 1 1302-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302-
564 GASKET; ADAPTER 8-98071-416-0 01 1 1302-
