◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#11286) — 189 parça

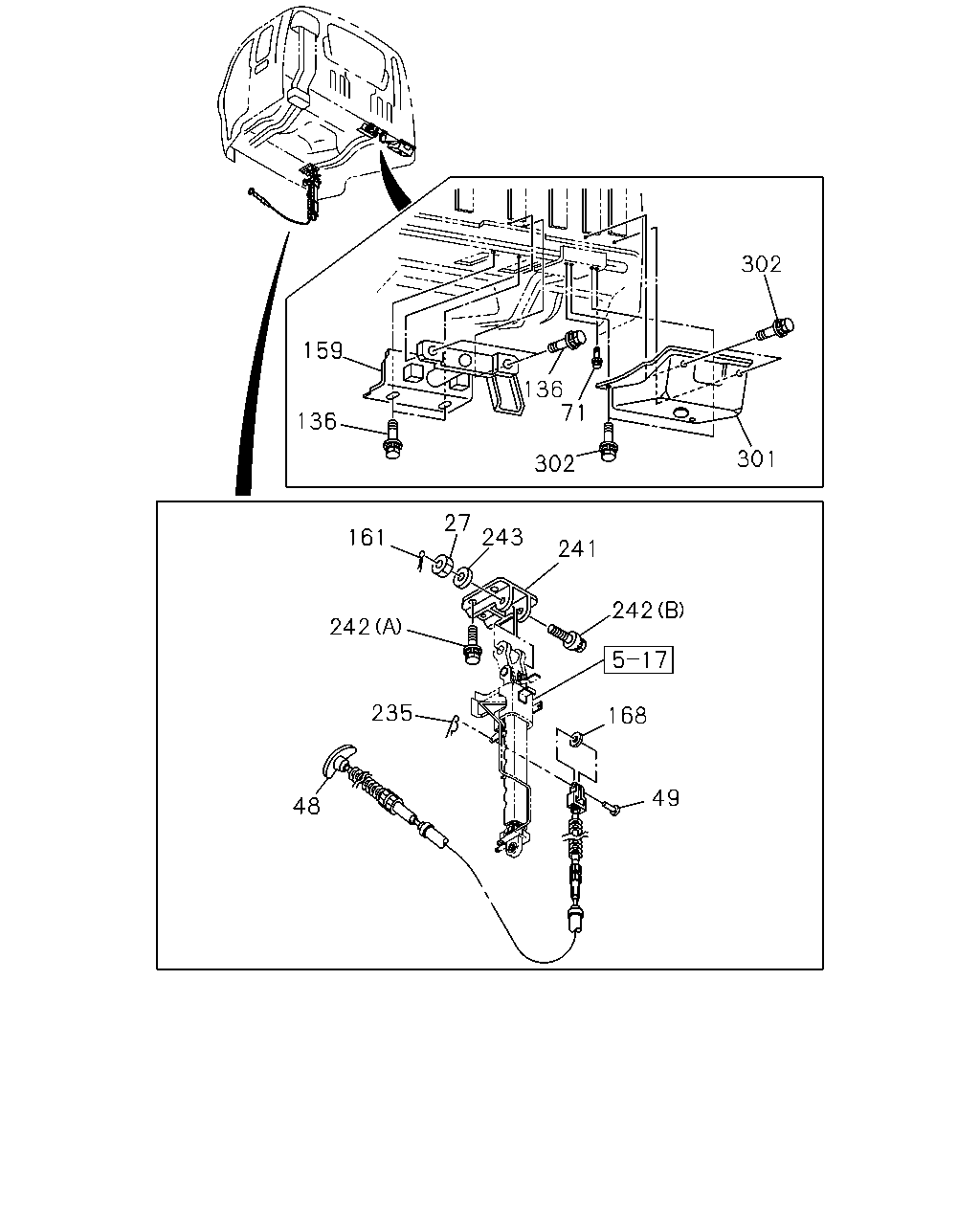

çizim 19799
49 168 242 241 243 27 161 242 235 48 136 159 302 71 136 301 302
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0106-0604
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0605-
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 0106-
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 0106-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0106-0606
49 PIN; JAW FIX
OD=6 L=17 		0-82253-617-0 01 1 0607-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 0106-0204
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0205-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0106-
159 PIN 1-79717-627-1 01 1 0106-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0106-0606
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0607-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0106-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0106-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-1 01 1 0106-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 0106-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0106-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0106-0603
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0604-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0106-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 0106-0204
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0205-

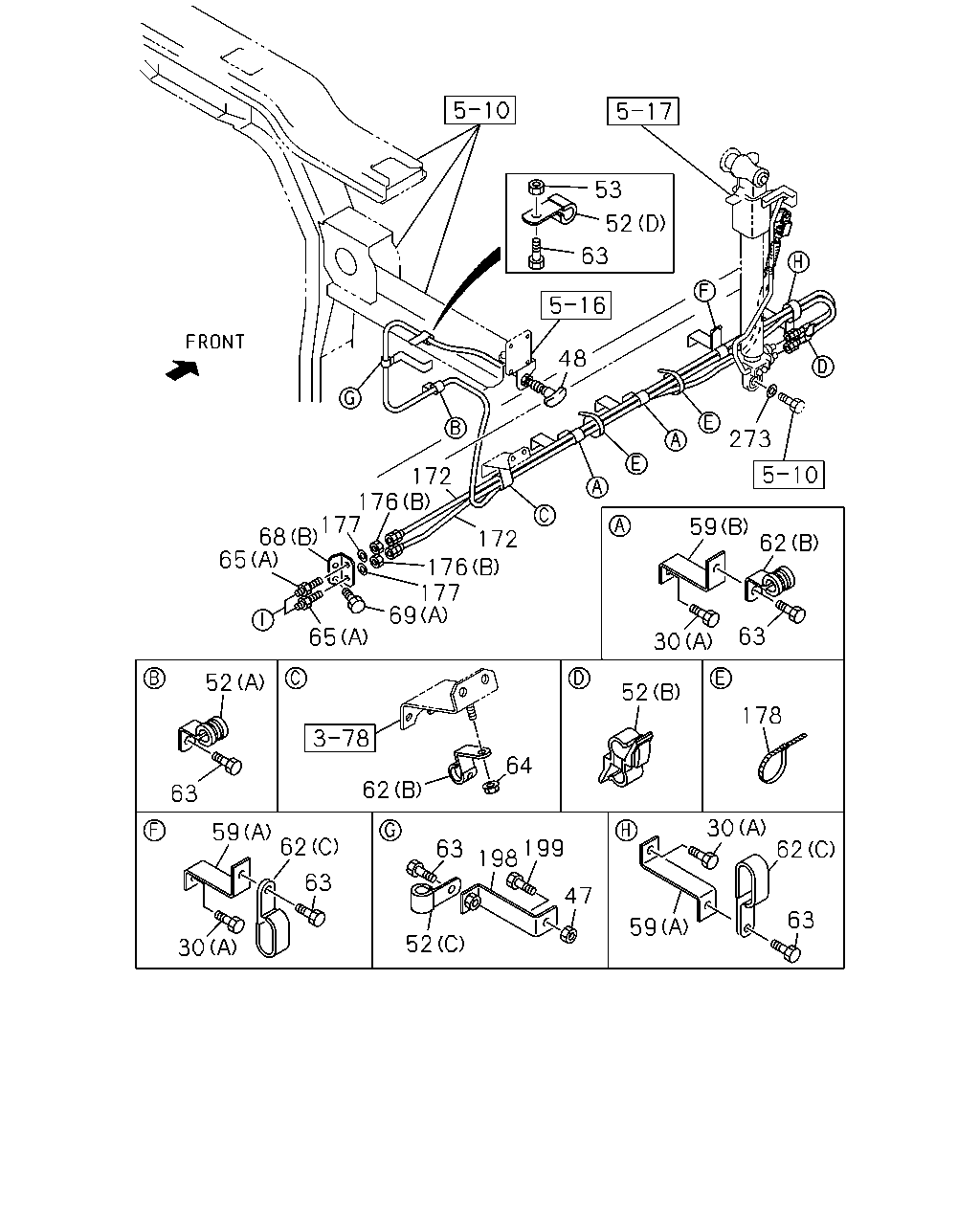

çizim 19866
63 59 62 30 63 198 199 47 52 30 63 62 59 52 63 62 64 52 178 63 30 59 62 273 172 176 177 69 65 65 68 177 176 172 48 63 52 53
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28681-020-0 02 1 0106-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
47 NUT; BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0410
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 0106-
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 0106-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0106-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0106-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0106-0606
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0106-0606
52 CLIP; CONT CABLE
(D) ID=7 L=50 		0-95234-685-0 01 1 0607-
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
59 BRACKET; CLIP
(A) 		1-47476-200-0 02 1 0106-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0106-
59 BRACKET; CLIP
(B) L=90 		1-82699-856-0 02 1 0106-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (D) 		1-53458-915-0 02 1 0106-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0106-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0106-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0106-
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0106-
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) 		5-09709-031-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0106-0410
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 07 1 0411-0512
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 07 1 0601-
64 NUT; CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
64 NUT; CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91180-108-0 01 1 0603-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0106-0607
65 UNION; OIL PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0106-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0106-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		0-92138-606-0 01 1 0608-
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0106-
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0106-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0106-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0106-0512
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0106-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0106-0602
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0106-
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0106-
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0106-0603
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
178 CLIP; FLEX HOSE
L=140 		5-09707-031-1 02 1 0106-0106
178 CLIP; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) L=140 		5-09707-031-1 01 1 0106-
178 CLIP; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=140 		5-09707-031-1 02 1 0106-
198 BRACKET; CABLE
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 0106-0410
199 BOLT; BRKT
EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0410
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0106-0605
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0606-

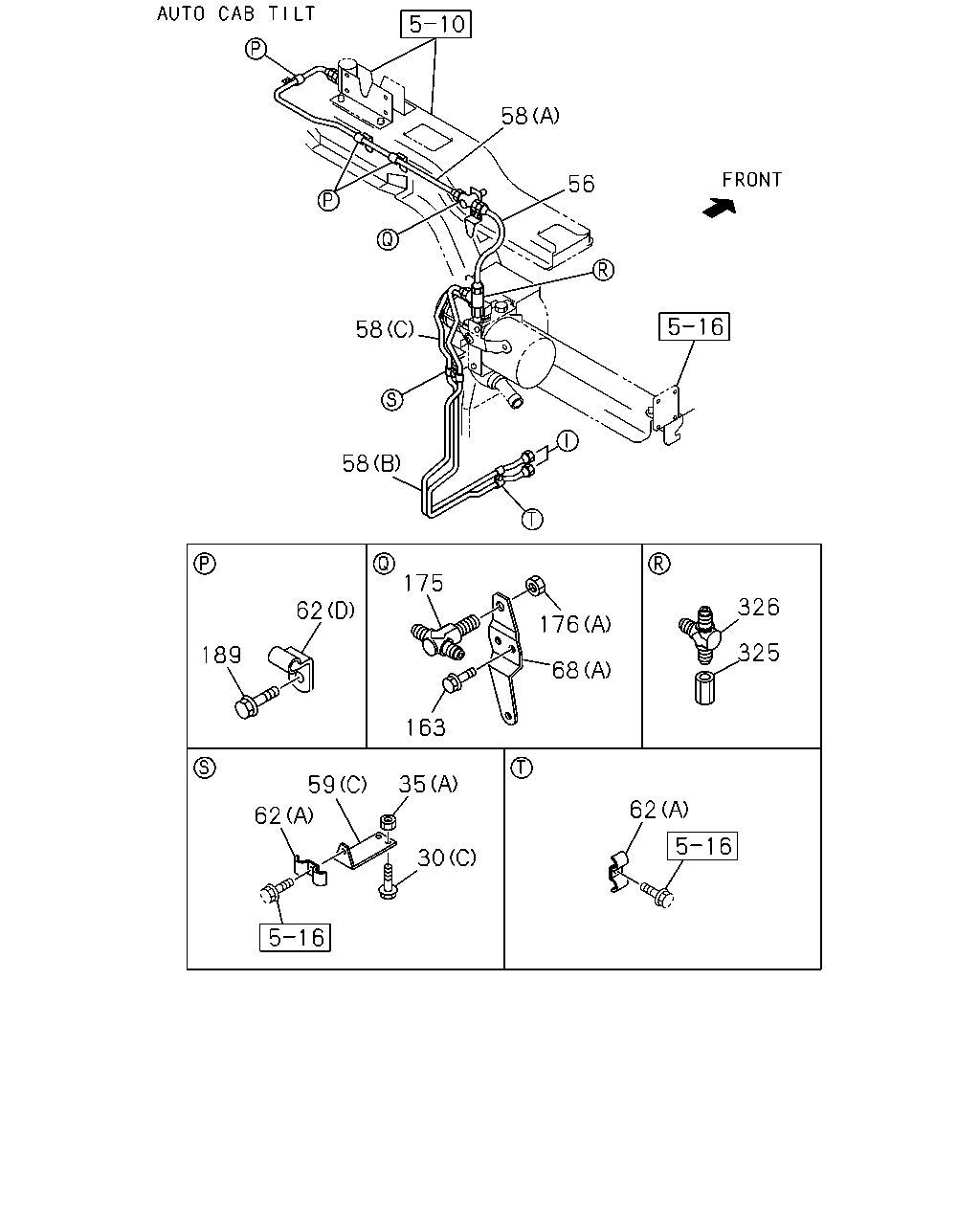

çizim 20334
62 30 35 59 62 189 62 175 163 176 68 326 325 58 58 56 58
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28681-020-0 02 1 0106-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603-
56 HOSE; FLEX,OIL PIPE
L=400 		1-09365-060-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1054 		1-49164-150-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (C) L=1006 		1-49165-034-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (D) 		1-49165-815-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (E) 		1-49165-816-0 01 1 0106-
59 BRACKET; CLIP
(A) 		1-47476-200-0 02 1 0106-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0106-
59 BRACKET; CLIP
(B) L=90 		1-82699-856-0 02 1 0106-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (D) 		1-53458-915-0 02 1 0106-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0106-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0106-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0106-
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0106-
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) 		5-09709-031-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0106-
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0106-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0106-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0106-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0106-0602
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0106-
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0106-
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 0106-0512
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
325 ADAPTER; PUMP
AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0106-
326 UNION; PUMP
AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0106-

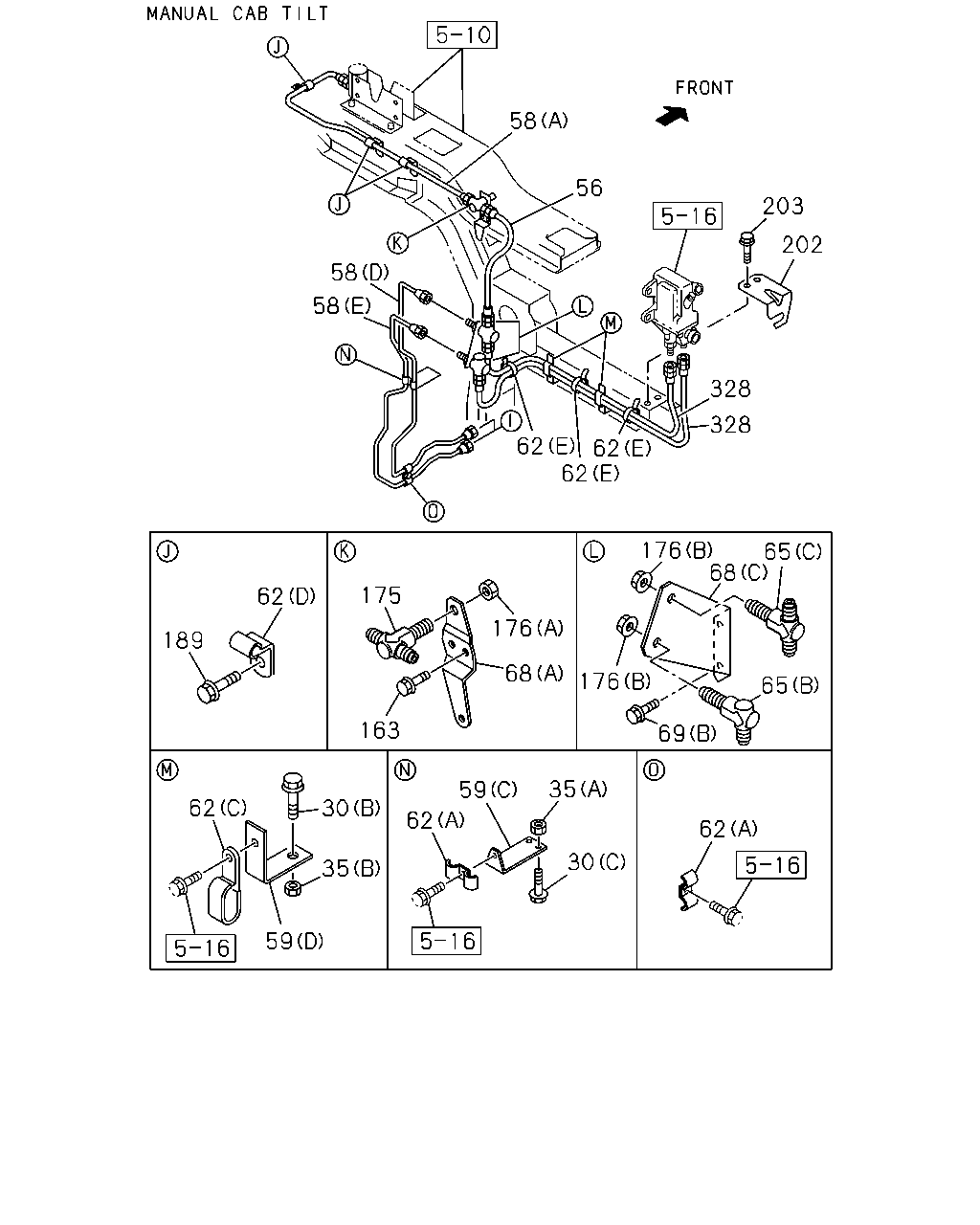

çizim 74685
58 56 203 202 328 328 62 62 62 58 58 62 189 175 163 68 176 176 176 68 65 65 69 62 30 35 59 62 30 35 59 62
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28681-020-0 02 1 0106-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (B) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603-
56 HOSE; FLEX,OIL PIPE
L=400 		1-09365-060-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1054 		1-49164-150-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (C) L=1006 		1-49165-034-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (D) 		1-49165-815-0 01 1 0106-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (E) 		1-49165-816-0 01 1 0106-
59 BRACKET; CLIP
(A) 		1-47476-200-0 02 1 0106-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0106-
59 BRACKET; CLIP
(B) L=90 		1-82699-856-0 02 1 0106-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (D) 		1-53458-915-0 02 1 0106-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0106-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0106-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0106-
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0106-
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) 		5-09709-031-0 03 1 0106-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0106-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0106-0607
65 UNION; OIL PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0106-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0106-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		0-92138-606-0 01 1 0608-
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0106-
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0106-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0106-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0106-0512
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0106-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0106-0602
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0106-
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0106-
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 0106-0512
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
202 BRACKET; CABLE END
MANUAL CAB TILT<SHK> 		1-53458-911-0 01 1 0106-
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
328 HOSE; OIL
MANUAL CAB TILT<SHK> 		1-09365-112-0 02 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
