Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112856) — 385 parça

14 22 305 48 206 225 217 305 530 538 225 16 16 305 102 48 208 14 14 178 178 503 185 14

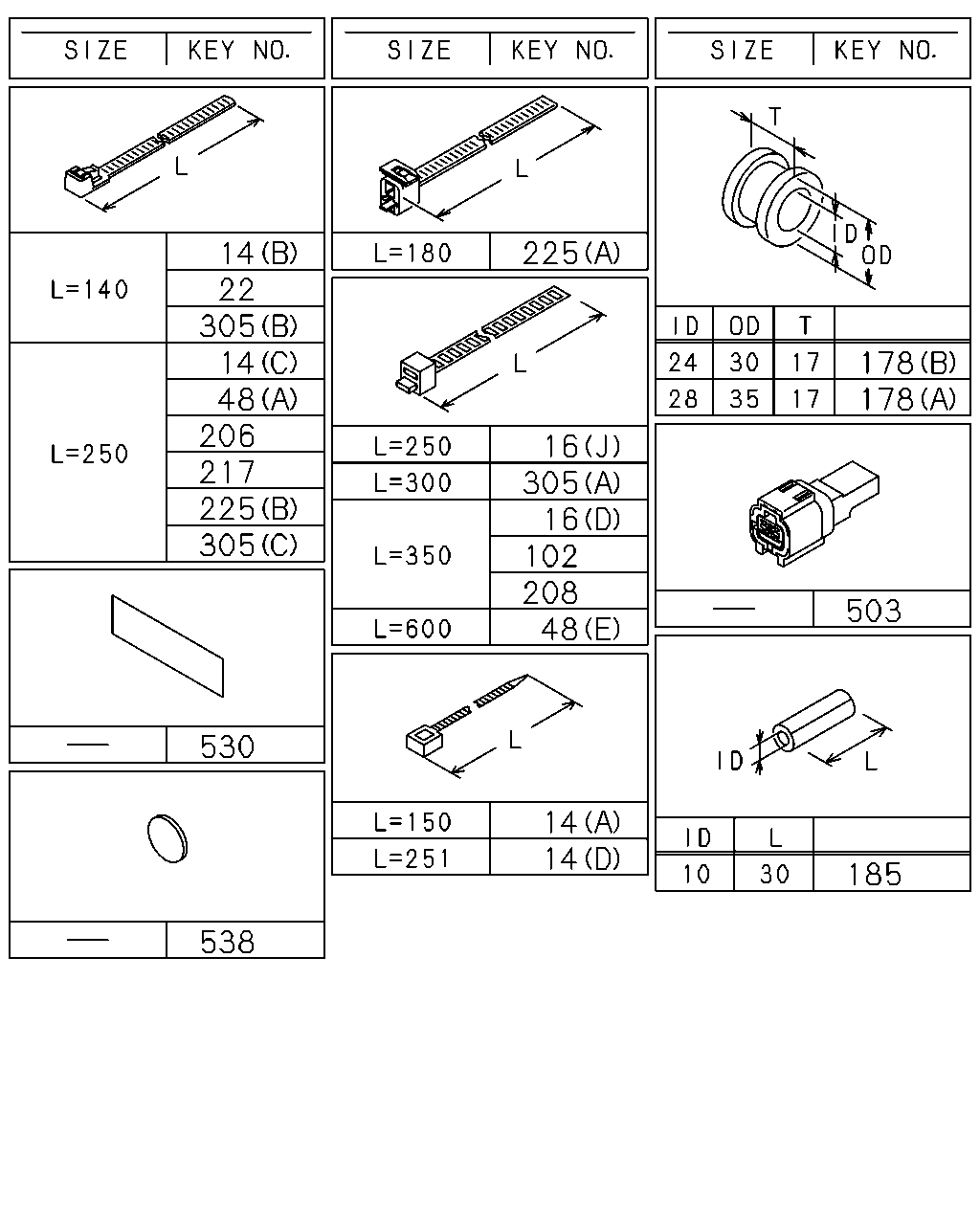

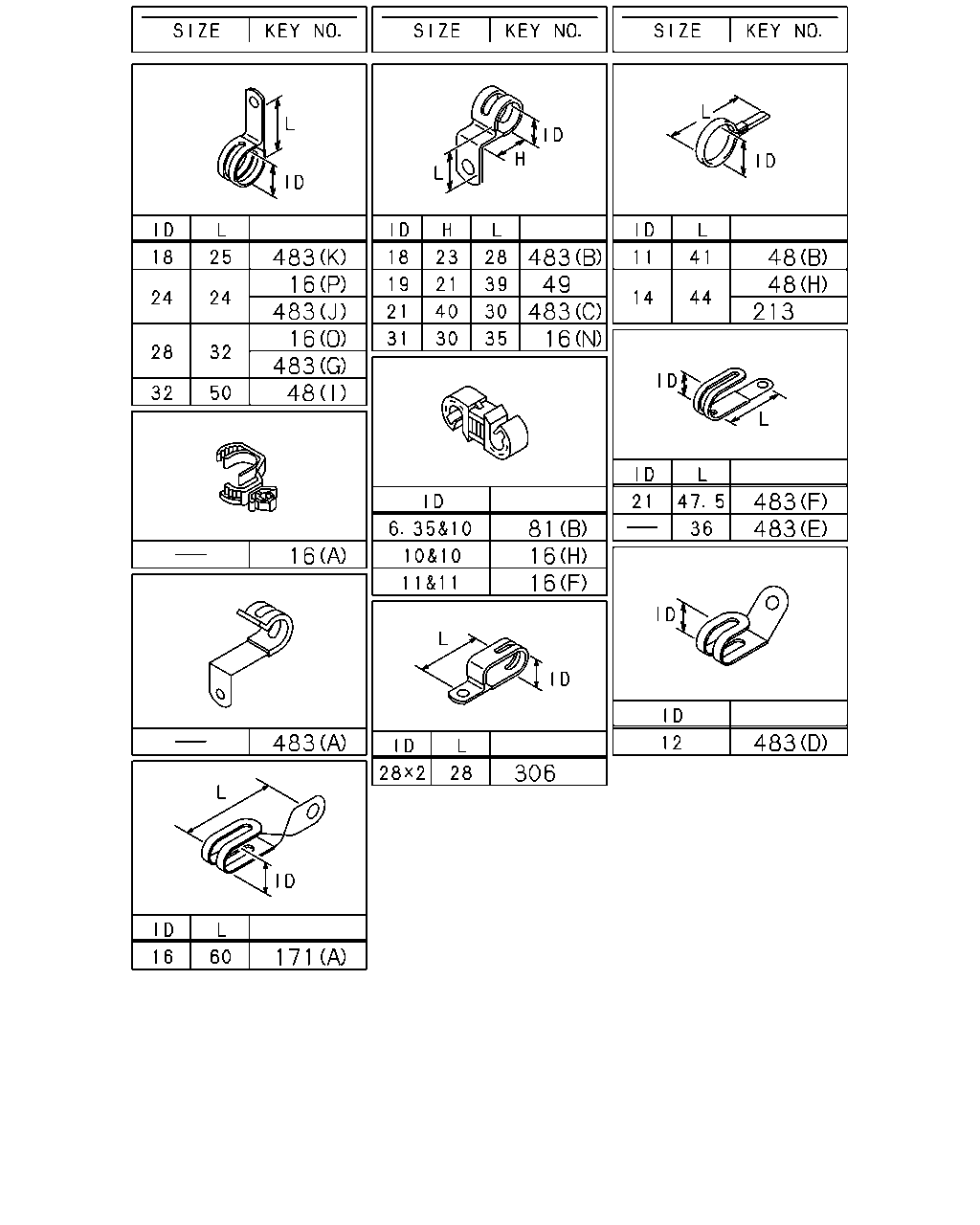

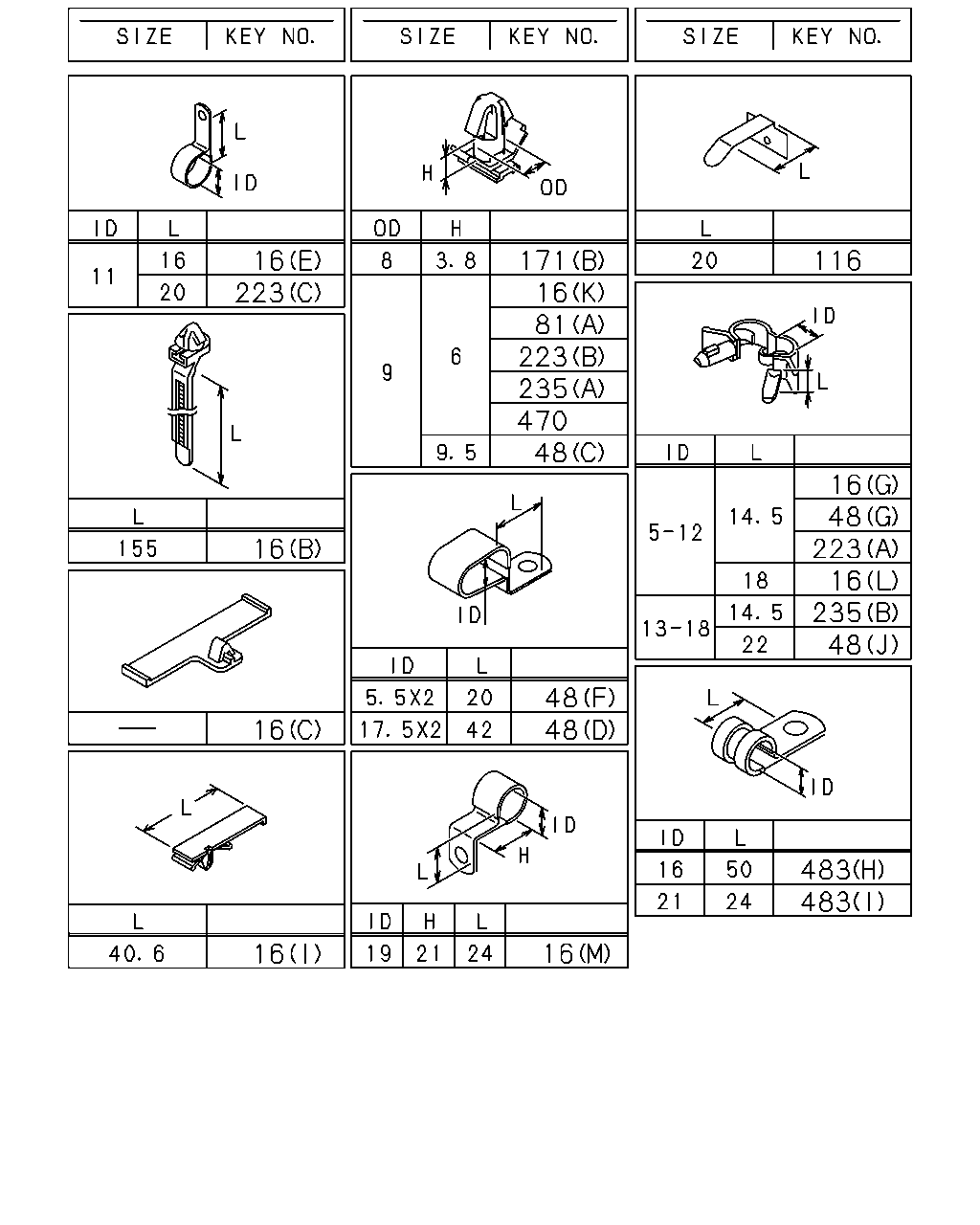

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS EURO5 SPECIFICATION<NT5> (B) L=140	5-09707-031-1	03	1	1506-
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (A) L=150	8-97355-273-0	03	1	1302-1407
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (A) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1302-1511
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) L=140	5-09707-031-1	02	1	1302-1511
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1512-
14	CLIP; BAND,HARNESS GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) L=140	5-09707-031-1	02	1	1512-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1302-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=150	8-97355-273-0	01	1	1302-1505
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO5 SPECIFICATION<NT5> (A) L=150	8-97355-273-0	01	1	1506-1511
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) L=150	8-97355-273-0	01	1	1512-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (C) L=250	5-09707-030-1	01	1	1302-1505
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (C) L=250	5-09707-030-1	01	1	1506-1511
14	CLIP; BAND,HARNESS EURO5 SPECIFICATION<NT5> (C) L=250	5-09707-030-1	01	1	1512-
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	01	1	1302-1311
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
16	CLIP; HARNESS EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	02	1	1302-1511
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (O) ID=28 L=32	1-09701-107-1	02	1	1302-1505
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (O) ID=28 L=32	1-09701-107-1	02	1	1506-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1302-1505
16	CLIP; HARNESS EXC. EURO5 SPECIFICATION<NT5> (D) L=350	1-09707-183-0	02	1	1506-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1302-1408
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-1505
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1506-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	02	1	1302-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (H) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (H) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1302-1511
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1512-
102	CLIP; BAND L=350	1-09707-183-0	02	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	1302-
178	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
185	SLEEVE; RUBBER EURO5 SPECIFICATION<NT5> ID=10 OD=14 L=30	9-09956-682-0	01	1	1506-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1302-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1302-
225	CLIP; AIR TANK HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (C) L=250	5-09707-030-1	01	1	1302-1505
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) L=250	5-09707-030-1	01	1	1506-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

139 127 47 524 219 294 515 294 525 524 184 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ANTI LOCK BRAKE(JE5) ID=14.2	0-91510-814-0	02	1	1302-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1302-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT MZW6P M/T(RSZ) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1302-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-

150 150 139 150 38 150 139 139 150 93 38 150 38 313 139 313 139 38 139 313 139 150 38 386 377

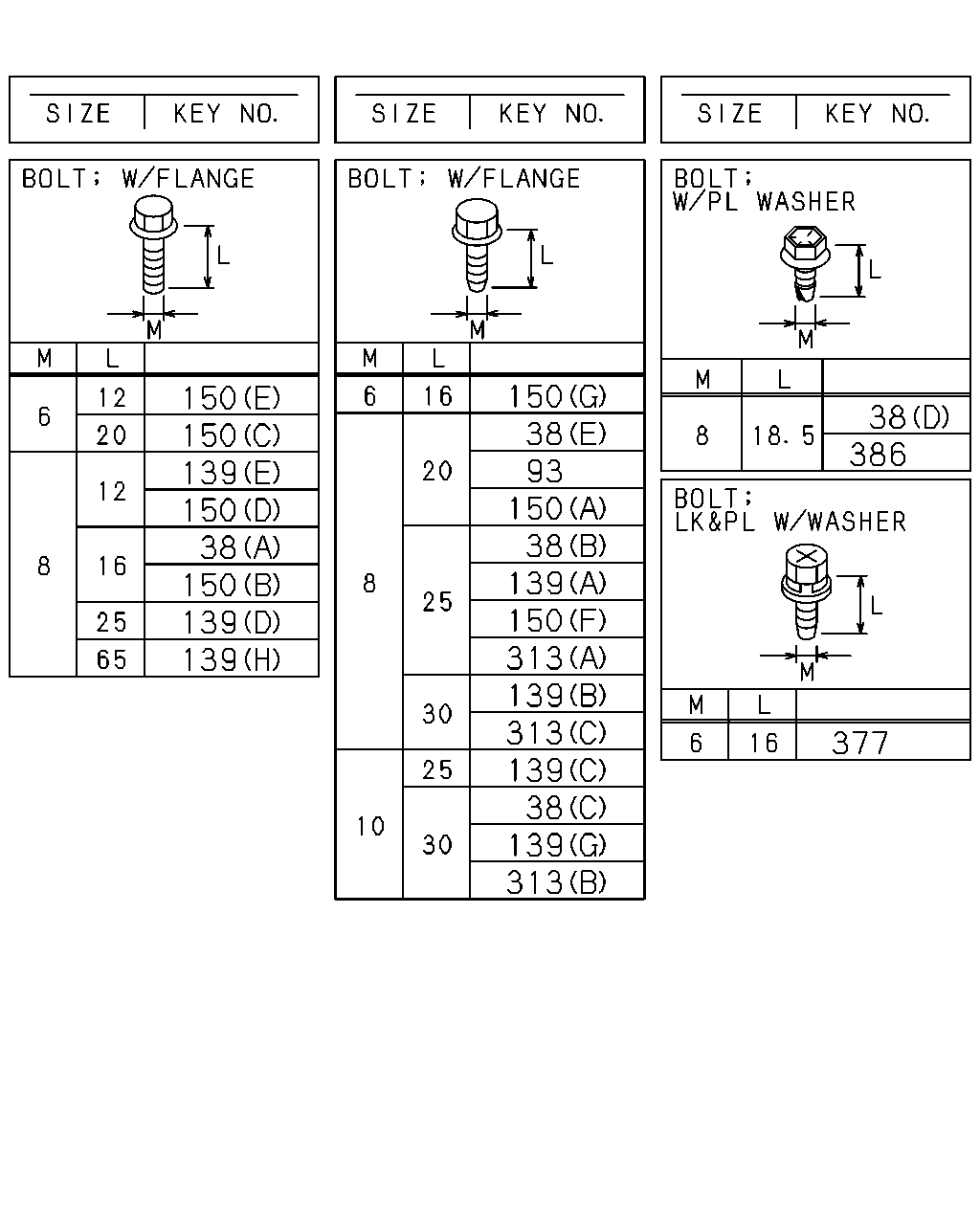

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	BOLT; CLIP,HARNESS (C) M10X30 FLANGE	0-28651-030-0	01	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X16 FLANGE	0-28050-816-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (E) M8X20 FLANGE	0-28650-820-0	01	1	1302-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP EURO5 SPECIFICATION<NT5> (C) M6X20 FLANGE	0-28050-620-0	02	1	1506-
150	BOLT; CLIP EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-
150	BOLT; CLIP (D) M8X12 FLANGE	0-28050-812-0	01	1	1302-1311
150	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) M8X12 FLANGE	0-28050-812-0	01	1	1312-1511
150	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) M8X12 FLANGE	0-28050-812-0	01	1	1512-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1302-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (E) M6X12 FLANGE	0-28050-612-0	01	1	1302-1312
150	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	02	1	1401-1511
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	02	1	1512-
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (G) M6X16 FLANGE	0-28650-616-0	01	1	1302-1312
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-

16 22 171 81 223 470 235 48 16 116 16 223 48 16 48 235 48 48 16 16 16 16 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	02	1	1302-1511
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (O) ID=28 L=32	1-09701-107-1	02	1	1302-1505
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (O) ID=28 L=32	1-09701-107-1	02	1	1506-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1302-1505
16	CLIP; HARNESS EXC. EURO5 SPECIFICATION<NT5> (D) L=350	1-09707-183-0	02	1	1506-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1302-1408
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-1505
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1506-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	02	1	1302-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (H) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (H) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1302-1511
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1512-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1302-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1302-
223	CLIP; AIR TANK HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) ID=11 L=20	0-95235-035-0	01	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) OD=9 H=6	1-09709-178-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-
483	CLIP; ENG HARNESS EURO5 SPECIFICATION<NT5> (I) ID=21 L=24	1-09701-201-0	01	1	1506-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-1311
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1312-1511
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1512-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (I) ID=21 L=24	8-98019-191-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (G) ID=28 L=32	1-09701-107-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (G) ID=28 L=32	1-09701-107-1	01	1	1506-1511
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1512-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (J) ID=24 L=24	1-09701-001-1	01	1	1302-1511
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	1-09987-281-0	01	1	1302-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	1-09987-281-0	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	1-09987-281-0	01	1	1512-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (E) L=36	8-94224-891-1	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=36	8-94224-891-1	01	1	1512-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=18 L=25	8-94121-004-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (K) ID=18 L=25	8-94121-004-1	01	1	1506-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5	8-94178-108-0	01	1	1302-1312
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5	8-94178-108-0	01	1	1401-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (F) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=21 L=47.5	8-94178-108-0	01	1	1512-

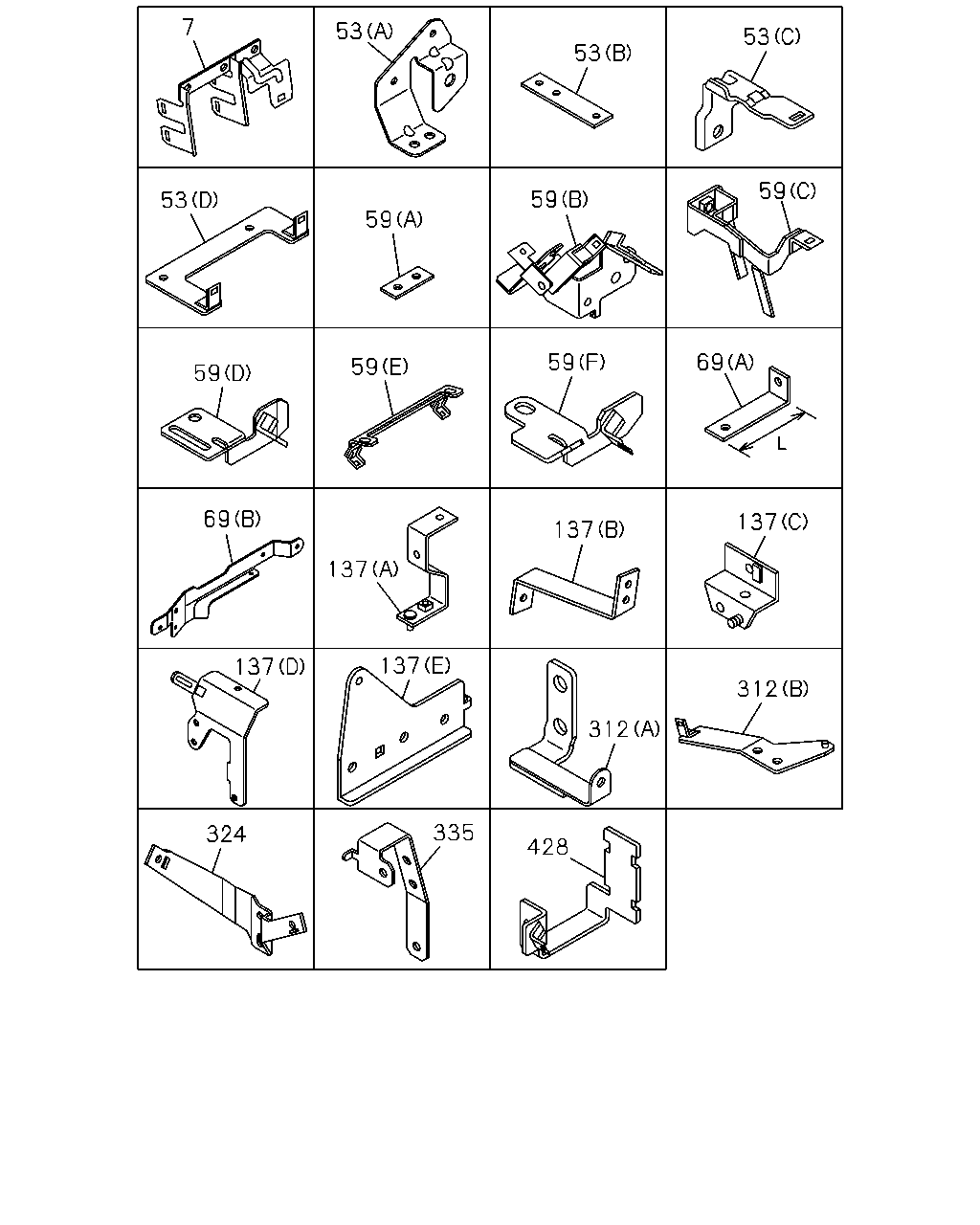

7 53 53 53 59 59 59 53 59 59 59 69 137 137 137 69 137 312 312 137 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1302-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS (D)	8-98125-300-1	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	1302-1401
59	BRACKET; FRAME HARNESS (B)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	1302-
69	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	1302-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1302-
137	BRACKET; HARNESS CLAMP (E)	8-97624-016-0	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-98170-409-0	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (A)	8-98065-904-0	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-98058-354-1	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (D)	8-97618-098-2	01	1	1302-
312	BRACKET; CLIP HARNESS (B)	8-98224-098-0	01	1	1302-
312	BRACKET; CLIP HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98094-804-0	01	1	1302-1505
312	BRACKET; CLIP HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-98094-804-0	01	1	1506-1511
312	BRACKET; CLIP HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98094-804-0	01	1	1512-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-654-2	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-653-2	01	1	1302-
335	BRACKET; CONNECTOR WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-97619-097-1	01	1	1302-
428	BRACKET	8-98116-461-0	01	1	1302-

483 16 483 16 483 48 483 49 483 16 48 213 48 483 81 483 16 16 16 483 306 483 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO3 SPECIFICATION<NT3> (P) ID=24 L=24	1-09701-001-1	02	1	1302-1511
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (O) ID=28 L=32	1-09701-107-1	02	1	1302-1505
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (O) ID=28 L=32	1-09701-107-1	02	1	1506-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1302-1505
16	CLIP; HARNESS EXC. EURO5 SPECIFICATION<NT5> (D) L=350	1-09707-183-0	02	1	1506-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (F) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1302-1408
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1409-1511
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-1505
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1506-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) ID=5-12 L=18	1-09709-287-0	02	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1412-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (H) ID=14 L=44	9-09917-427-0	02	1	1512-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1302-1408
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=14 L=44	9-09917-427-0	01	1	1409-1411
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1412-1505
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1506-1511
48	CLIP; FRAME HARNESS PHILIPPINE EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) EURO5 SPECIFICATION<NT5> (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> EXC. ALGERIA EQUIPMENT(WN1) (H) ID=14 L=44	9-09917-427-0	01	1	1512-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (H) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (H) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1302-1511
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1512-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	1302-
483	CLIP; ENG HARNESS EURO5 SPECIFICATION<NT5> (I) ID=21 L=24	1-09701-201-0	01	1	1506-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-1311
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1312-1511
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1512-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (I) ID=21 L=24	8-98019-191-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (G) ID=28 L=32	1-09701-107-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (G) ID=28 L=32	1-09701-107-1	01	1	1506-1511
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1512-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (J) ID=24 L=24	1-09701-001-1	01	1	1302-1511
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	1-09987-281-0	01	1	1302-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	1-09987-281-0	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	1-09987-281-0	01	1	1512-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=36	8-94224-891-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (E) L=36	8-94224-891-1	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=36	8-94224-891-1	01	1	1512-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=18 L=25	8-94121-004-1	01	1	1302-1505
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (K) ID=18 L=25	8-94121-004-1	01	1	1506-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5	8-94178-108-0	01	1	1302-1312
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5	8-94178-108-0	01	1	1401-1505
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (F) ID=21 L=47.5	8-94178-108-0	01	1	1506-1511
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=21 L=47.5	8-94178-108-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
