◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#112855) — 197 parça

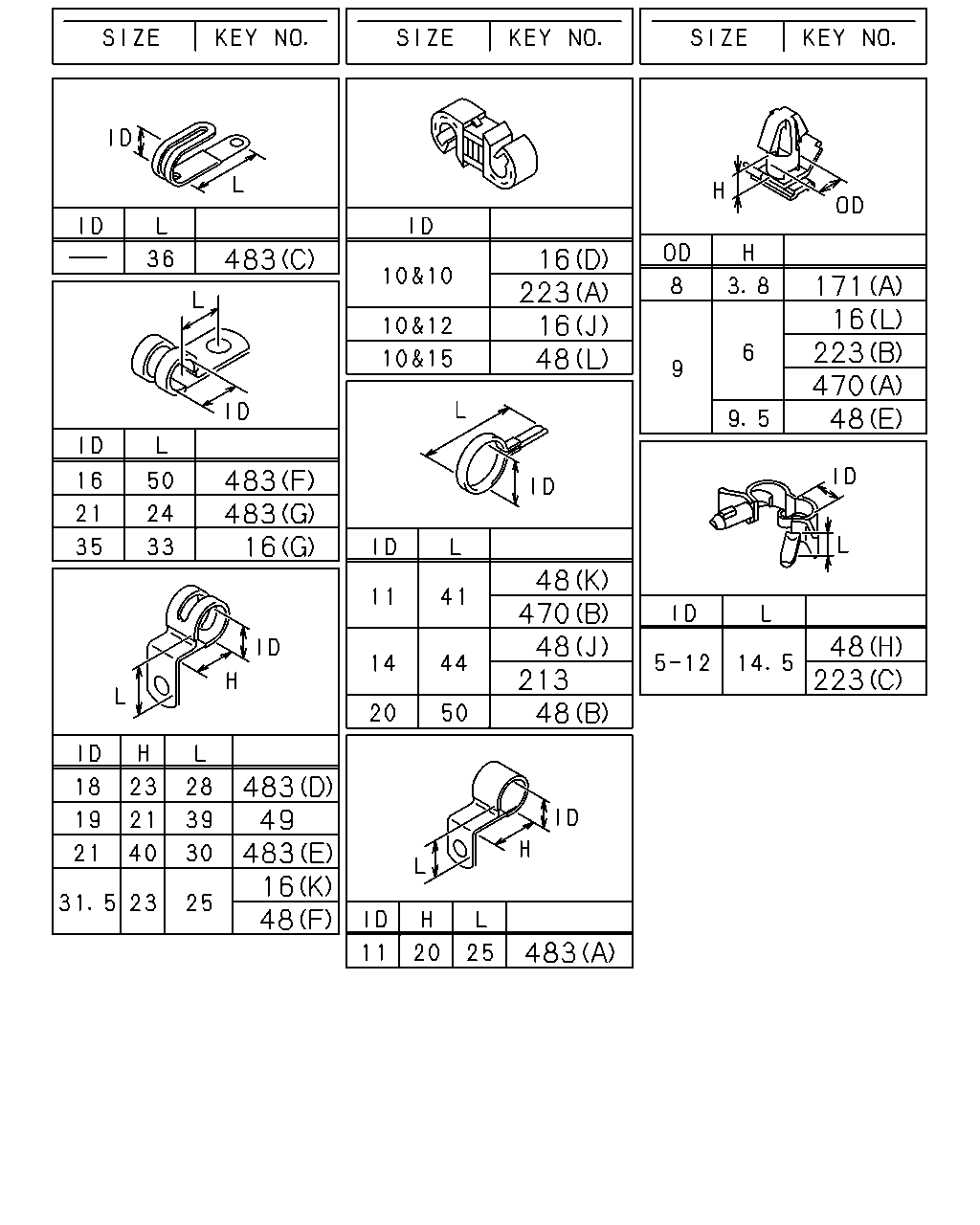

çizim 329929
483 483 483 16 16 223 16 48 171 16 223 470 48 48 223 48 48 470 213 48 483 483 49 483 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 1302- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1302- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1302- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		1-09707-126-0 02 1 1302- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
16 CLIP; HARNESS
(J) ID=10 & 12 		1-09709-278-1 01 1 1302- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1302- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (E) ID=11 L=20 		0-95235-035-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1302- ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(C) L=600 		1-09707-107-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(L) ID=10 & 15 		1-09709-279-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 06 1 1302- ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 1302- ● ●
48 CLIP; FRAME HARNESS
(K) ID=11 L=41 		1-09700-403-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
EXC. PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 09 1 1302- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1302- ● ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1302- ● ●
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1302- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1302- ●
213 CLIP; END CROSS HARNESS
EXC. PINTLE HOOK<PP7> ID=14 L=44 		9-09917-427-0 03 1 1302- ●
213 CLIP; END CROSS HARNESS
PINTLE HOOK<PP7> ID=14 L=44 		9-09917-427-0 02 1 1302- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 01 1 1302- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1302-1312 ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1302- ● ●
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1302- ● ●

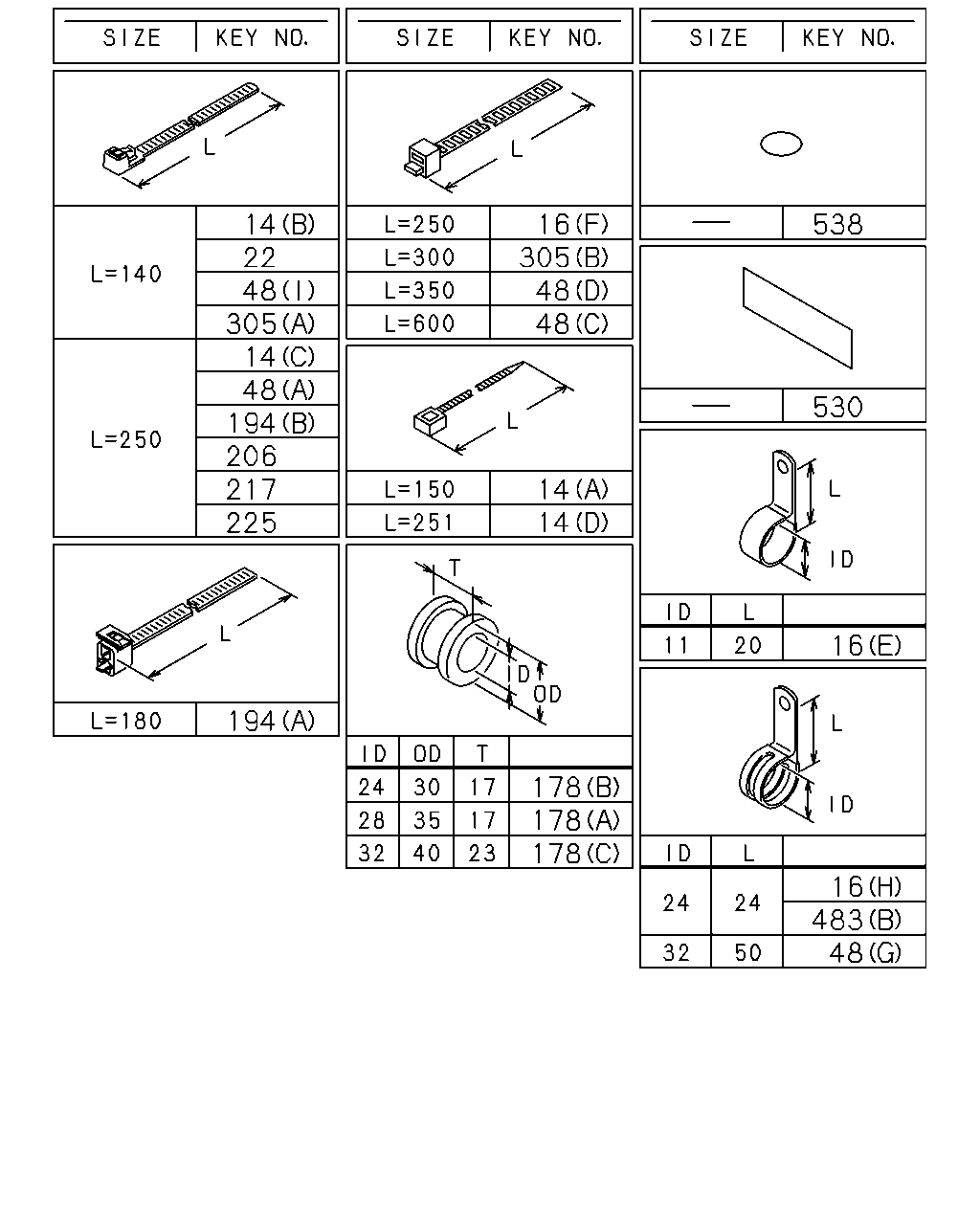

çizim 330044
14 22 48 305 14 48 194 206 217 225 178 178 178 14 14 48 48 305 16 538 530 16 16 483 48 194
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> (B) L=140 		5-09707-031-1 01 1 1312- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1302- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1302- ● ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1302- ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1302- ● ●
14 CLIP; BAND,HARNESS
DIFF LOCK<C3N> (C) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 1302- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1302- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1302- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		1-09707-126-0 02 1 1302- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
16 CLIP; HARNESS
(J) ID=10 & 12 		1-09709-278-1 01 1 1302- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1302- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (E) ID=11 L=20 		0-95235-035-0 01 1 1302- ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1302- ● ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1302- ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(C) L=600 		1-09707-107-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(L) ID=10 & 15 		1-09709-279-1 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ● ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 06 1 1302- ● ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 1302- ● ●
48 CLIP; FRAME HARNESS
(K) ID=11 L=41 		1-09700-403-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (J) ID=14 L=44 		9-09917-427-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
EXC. PINTLE HOOK<PP7> (B) ID=20 L=50 		9-09917-430-0 09 1 1302- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1302- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302- ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1302- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 1302- ● ●
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1302- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 1302- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1302- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1302- ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1302- ● ●
305 CLIP; ENG HARNESS
(B) L=300 		1-09707-001-1 01 1 1302- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 1302-1409 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1410- ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1302-1312 ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1302- ● ●
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1302- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1302-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1302- ● ●

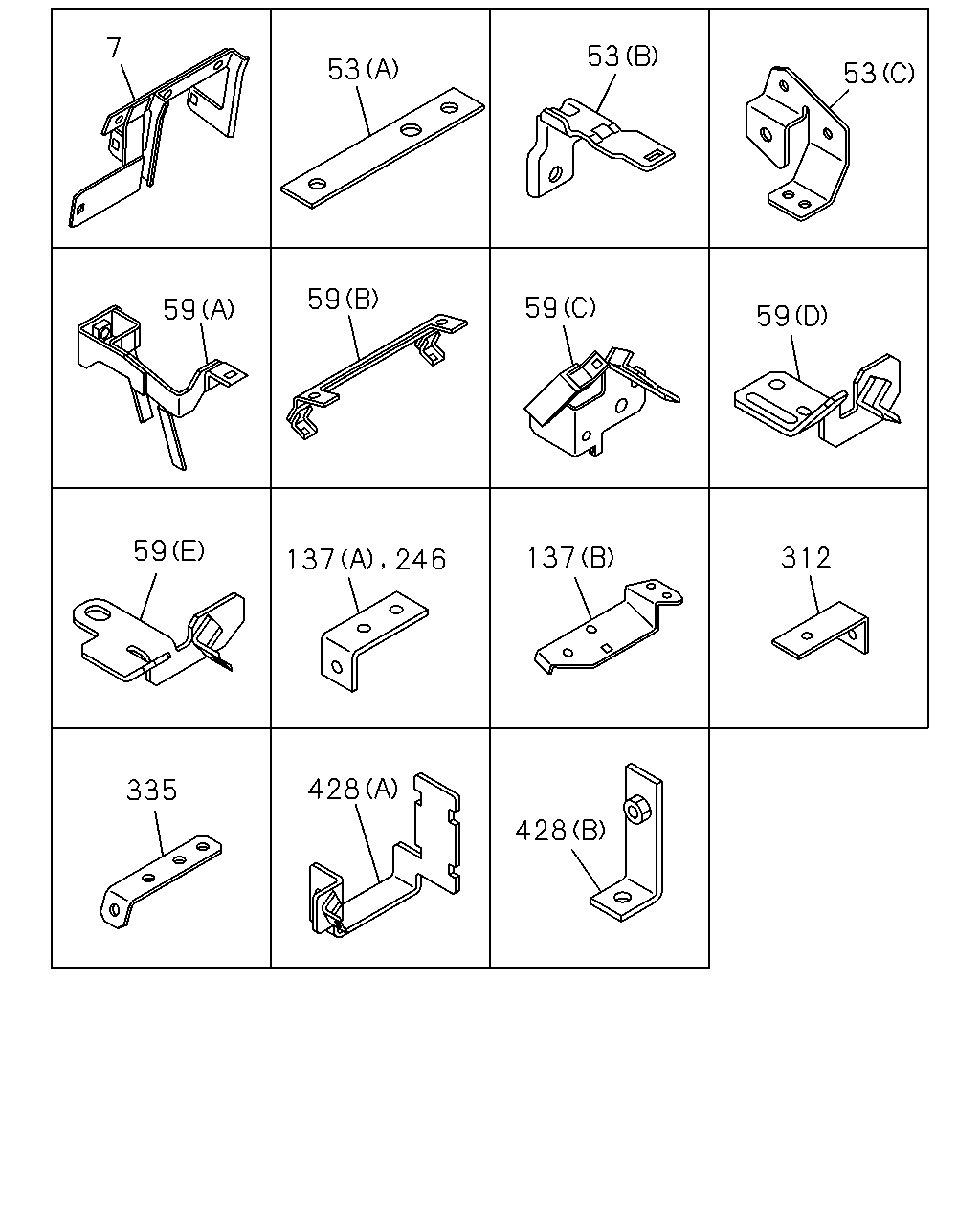

çizim 330052
7 53 53 53 59 59 59 59 59 137 246 137 312 428 428 335
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1302- ● ●
53 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1302- ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1302- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1302- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1302- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1302- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98047-276-1 01 1 1302- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1302-1502 ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503- ● ●
137 BRACKET; HARNESS CLAMP
(A) L=62 		1-21464-170-2 01 1 1302- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97616-565-1 01 1 1302- ● ●
246 BRACKET; CLIP,SPD SENSOR
L=62 		1-21464-170-2 01 1 1302- ● ●
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 1302- ● ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1302- ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 1302- ● ●
428 BRACKET
(A) 		8-98116-461-0 01 1 1302- ● ●
çizim 330152
150 150 139 150 139 139 127 47 150 139 38 150 139 38 150 139 313 313 139 313 139 377 524 294 219 525 524 294 184 38 386
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1302- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1302- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1302- ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1405 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 03 1 1406- ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 02 1 1302-1405 ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1302- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1302- ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE 		1-09044-072-1 01 1 1302- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
150 BOLT; CLIP
(F) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28050-612-0 02 1 1302-1312 ● ●
150 BOLT; CLIP
(B) M6X12 FLANGE 		0-28050-612-0 03 1 1401- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1302- ● ●
150 BOLT; CLIP
(D) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
150 BOLT; CLIP
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
219 NUT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 01 1 1302- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1302- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1302- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1302- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1302- ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 1302- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
çizim 332456
16 483 116 16 171 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 1302- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 1302- ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1302- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		1-09707-126-0 02 1 1302- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1302- ● ●
16 CLIP; HARNESS
(J) ID=10 & 12 		1-09709-278-1 01 1 1302- ● ●
16 CLIP; HARNESS
(I) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 05 1 1302- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (E) ID=11 L=20 		0-95235-035-0 01 1 1302- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302- ● ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1302- ● ●
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1302- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1302-1312 ● ●
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1302- ● ●
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
