Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112854) — 220 parça

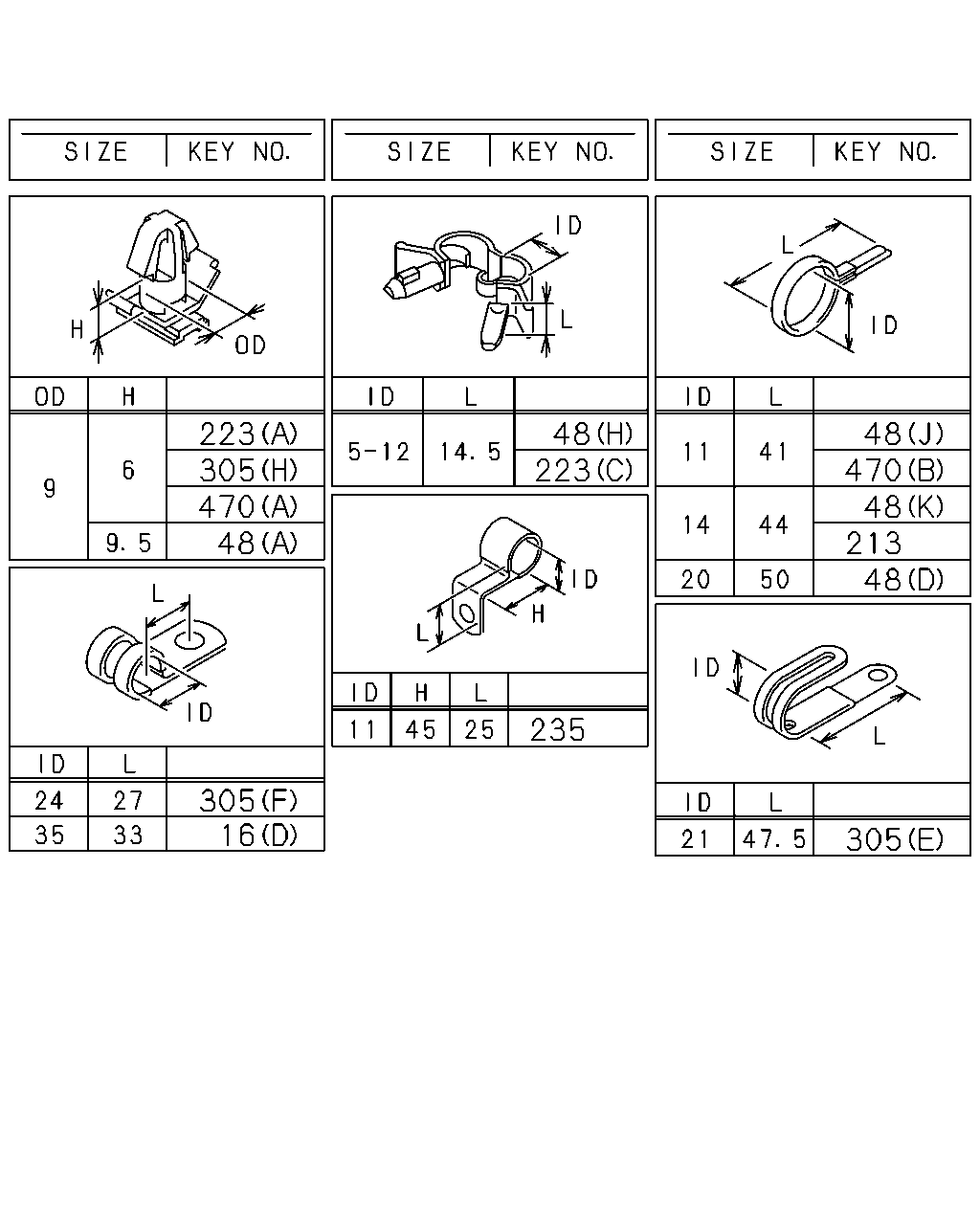

223 305 470 48 305 16 48 223 235 48 470 48 213 48 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	05	1	1302-
16	CLIP; HARNESS (G) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) ID=11 L=20	0-95235-035-0	01	1	1302-
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (A) ID=11 L=20	0-95235-035-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1511-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32	0-95235-866-0	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (K) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=14 L=44	9-09917-427-0	13	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> ID=11 H=45 L=25	1-09700-866-0	01	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP PINTLE HOOK<PP7> (B) ID=11 L=41	1-09700-403-0	01	1	1302-

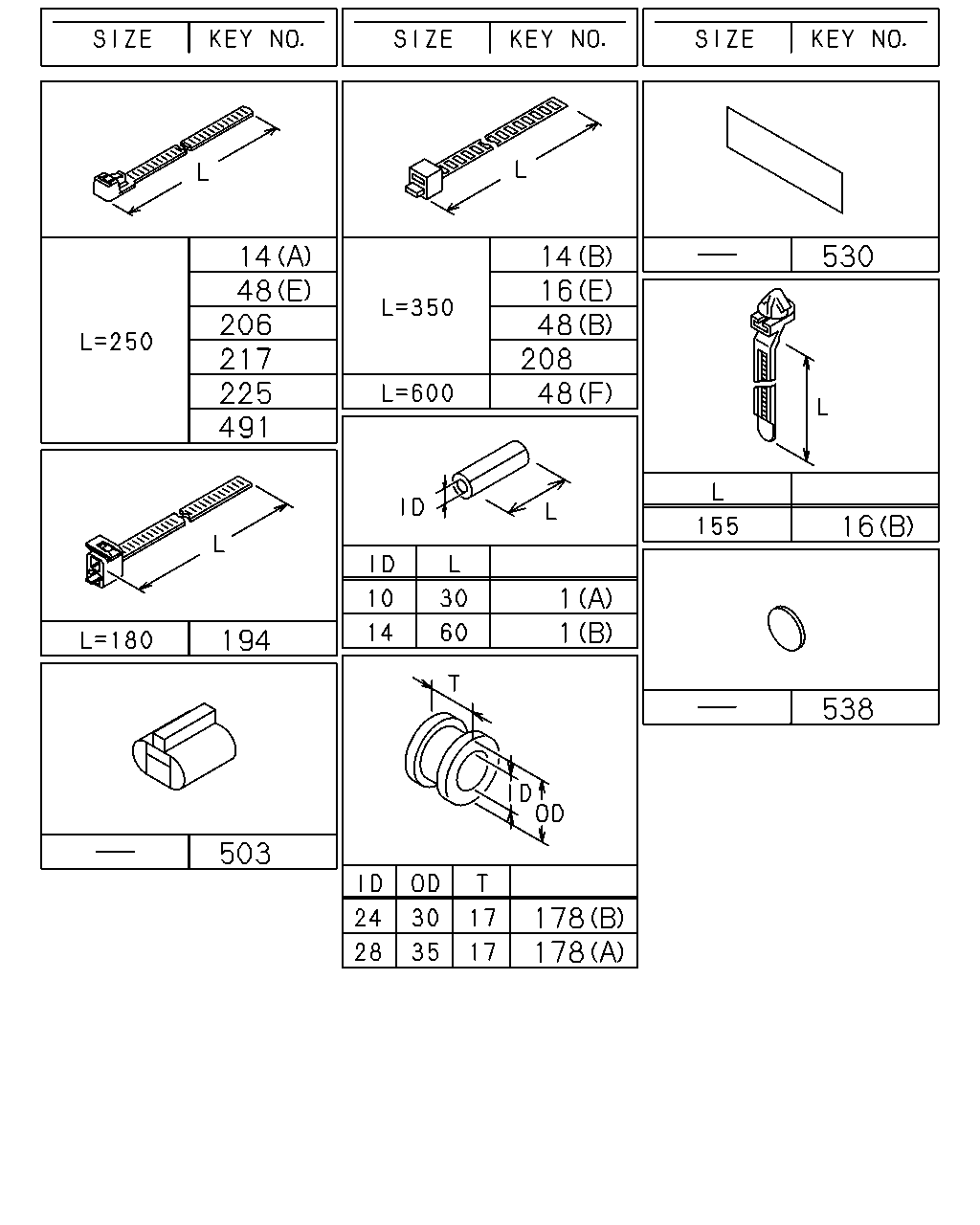

503 194 491 225 217 206 48 14 178 178 1 1 48 208 48 16 14 530 16 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (A) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS DIFF LOCK<C3N> (A) L=250	5-09707-030-1	01	1	1302-1405
14	CLIP; BAND,HARNESS FINAL GEAR 43/7 14.5"(W1G) DIFF LOCK<C3N> (A) L=250	5-09707-030-1	01	1	1406-
14	CLIP; BAND,HARNESS FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. CONVERTING INTO 6X6<BCC> (A) L=250	5-09707-030-1	01	1	1406-
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (A) L=250	8-98216-430-0	09	1	1302-
14	CLIP; BAND,HARNESS MZW6P M/T(RSZ) (A) L=250	8-98216-430-0	08	1	1302-
16	CLIP; HARNESS (F) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	05	1	1302-
16	CLIP; HARNESS (G) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) ID=11 L=20	0-95235-035-0	01	1	1302-
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (A) ID=11 L=20	0-95235-035-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1511-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32	0-95235-866-0	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (K) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=14 L=44	9-09917-427-0	13	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
194	CLIP; BAND DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> L=180	1-09707-162-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1302-
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	04	1	1302-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
530	SEAL; HARNESS LCT2000 A/T ALLISON(Y4F) 180X40	1-72498-019-1	01	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

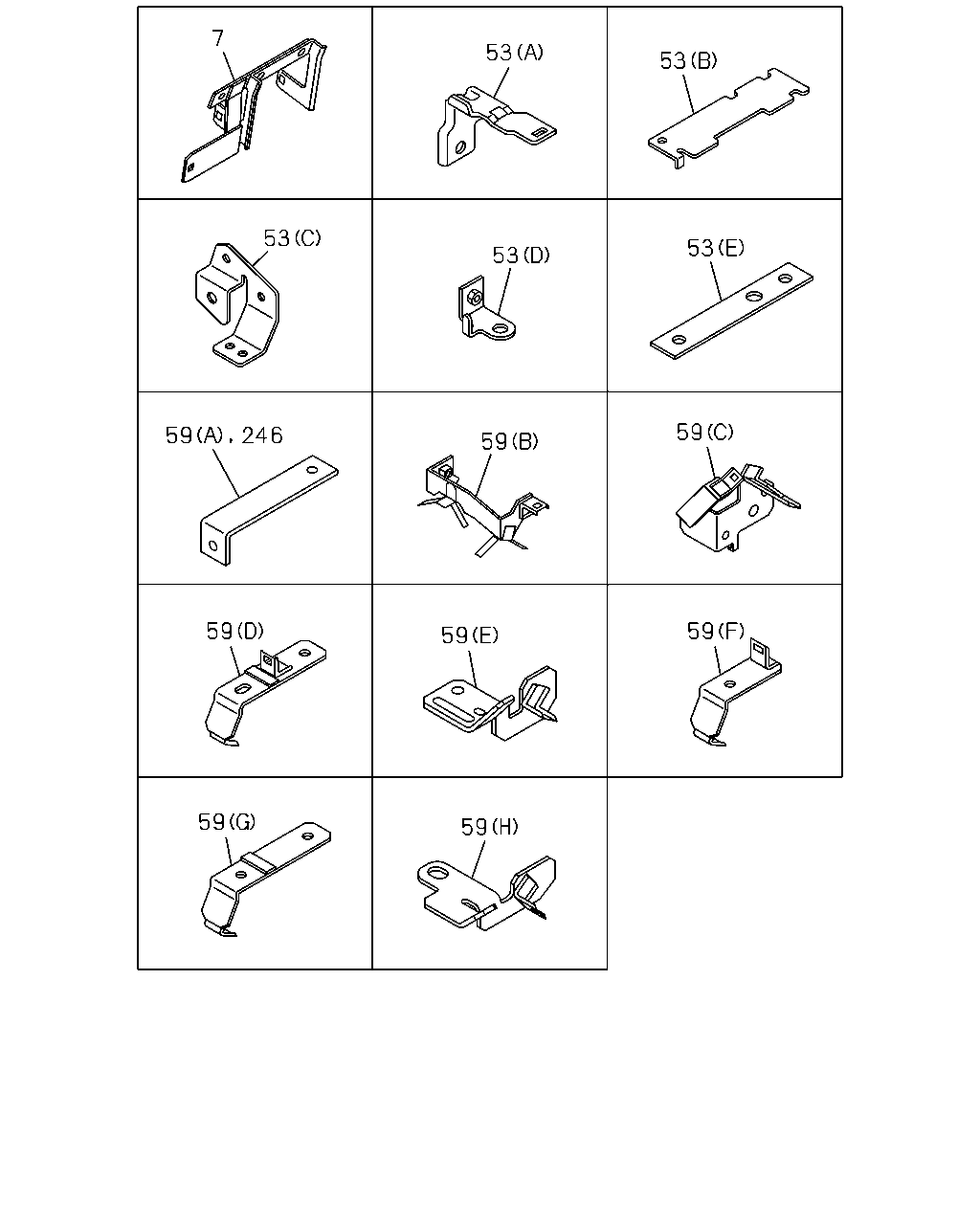

59 59 59 59 59 59 59 246 59 53 53 53 53 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98127-093-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1302-
53	BRACKET; HARNESS LCT2000 A/T ALLISON(Y4F) (D)	1-82698-296-0	02	1	1302-
53	BRACKET; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (E) L=170	1-47479-380-0	01	1	1302-
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1302-
59	BRACKET; FRAME HARNESS (F)	8-98118-500-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-98152-282-0	01	1	1302-
59	BRACKET; FRAME HARNESS (E)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (H)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (G)	8-98152-281-0	01	1	1302-
246	BRACKET; CLIP,SPD SENSOR L=95	1-82699-085-0	01	1	1302-

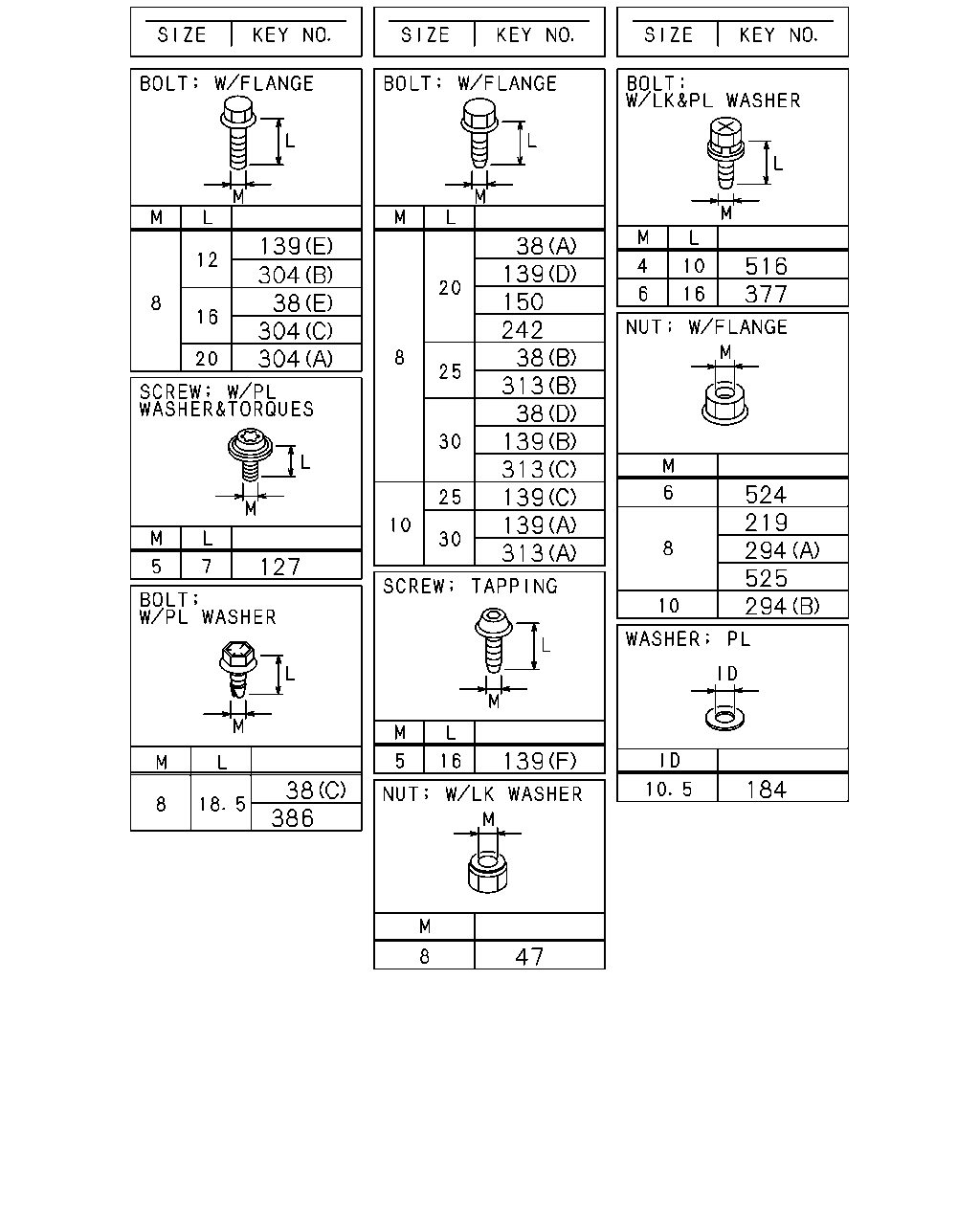

139 304 38 304 304 127 38 386 139 47 184 294 525 294 219 524 516 377 313 139 139 313 139 38 313 38 242 150 139 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE	0-28050-816-0	02	1	1302-
38	BOLT; CLIP,HARNESS LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1406-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1406-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1405
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
219	NUT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	01	1	1302-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	1302-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	04	1	1302-
313	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-

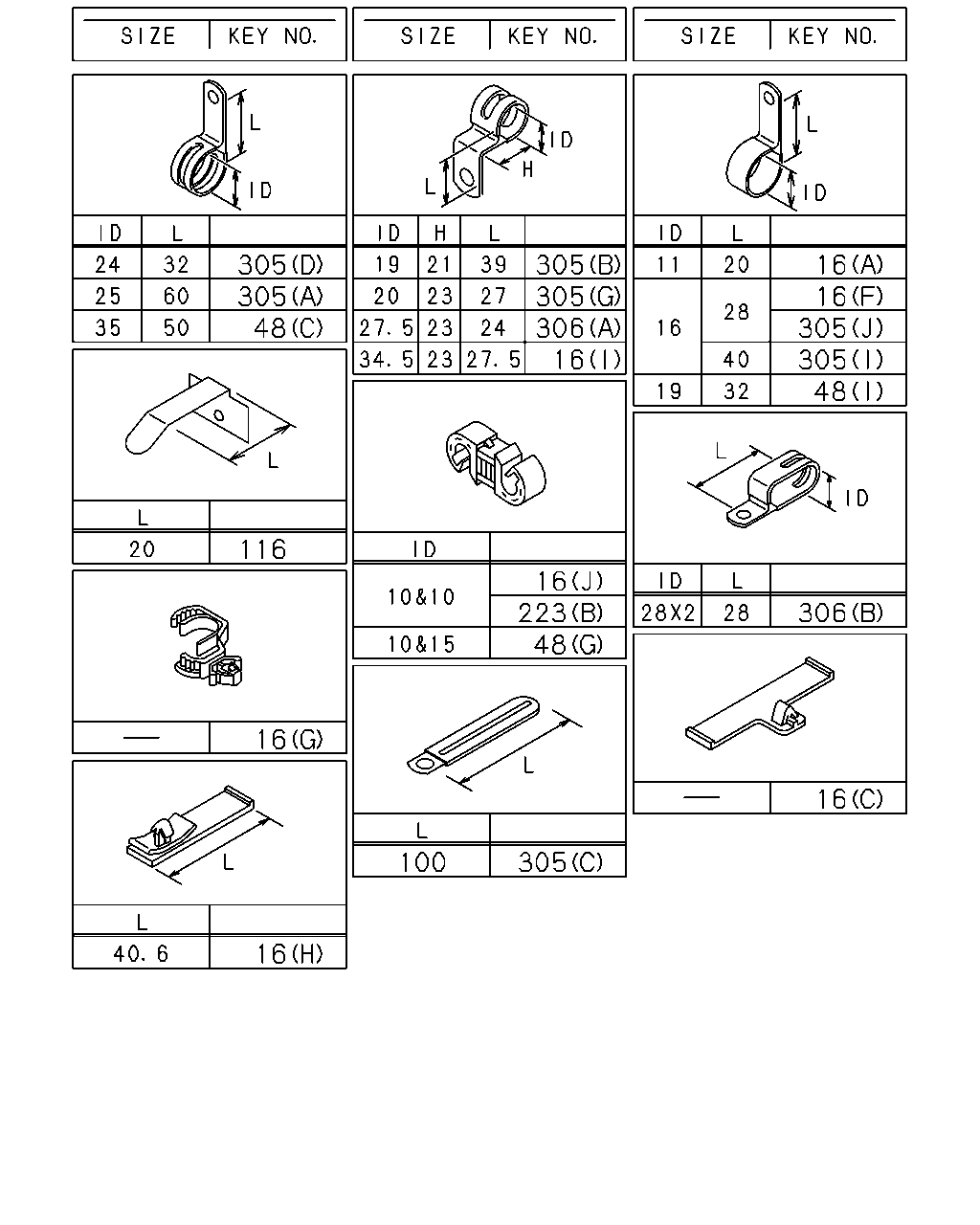

305 305 16 305 16 305 306 305 16 48 48 305 116 16 48 223 306 16 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	05	1	1302-
16	CLIP; HARNESS (G) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) ID=11 L=20	0-95235-035-0	01	1	1302-
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (A) ID=11 L=20	0-95235-035-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1510
48	CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	01	1	1511-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32	0-95235-866-0	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (K) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (D) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=14 L=44	9-09917-427-0	13	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-

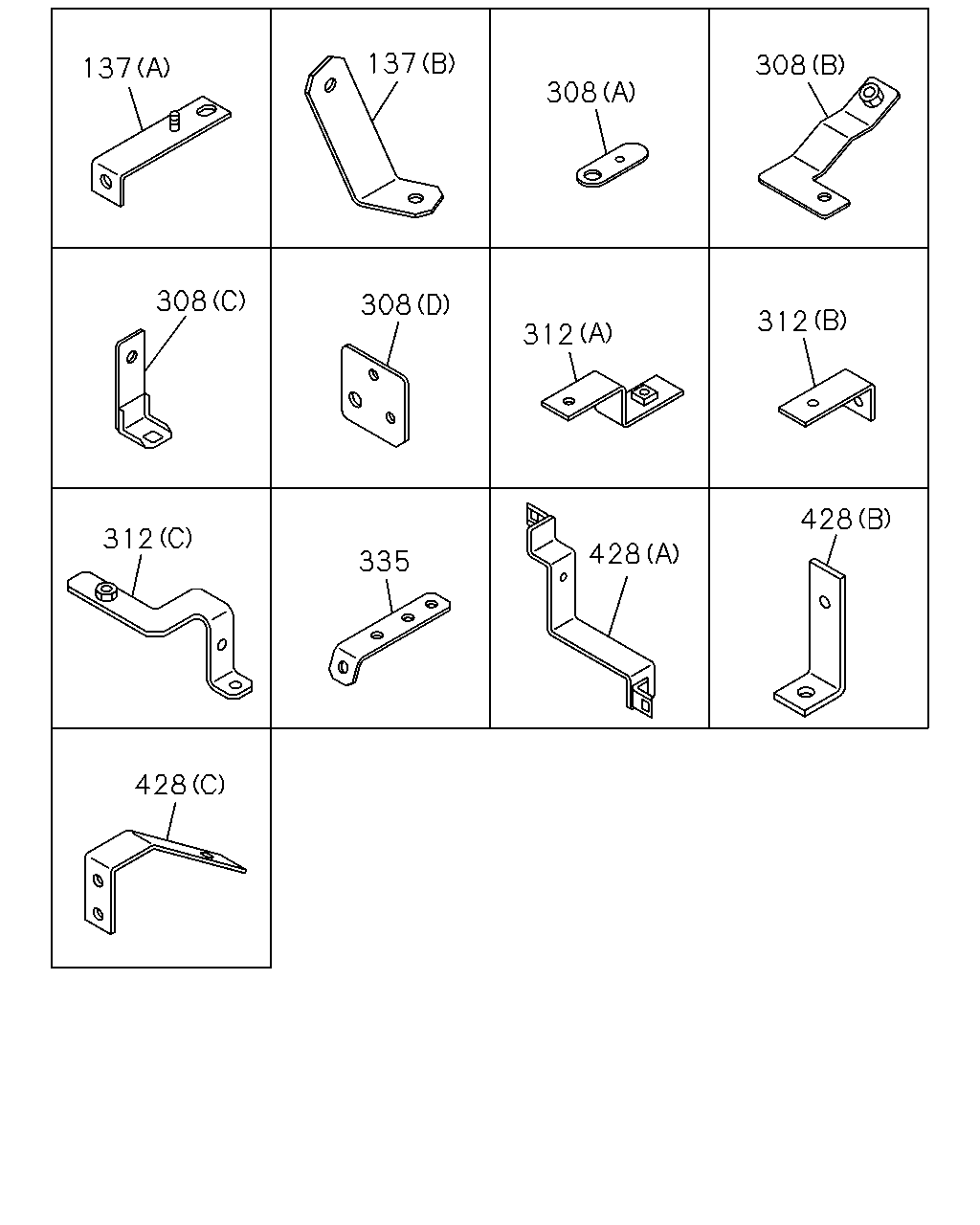

137 137 308 308 312 312 308 308 312 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1302-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1302-
312	BRACKET; CLIP HARNESS A/T<X9D> (C)	8-98157-586-0	01	1	1302-
312	BRACKET; CLIP HARNESS EXC. A/T<X9D> (B) L=55	1-47475-304-0	01	1	1302-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1302-
428	BRACKET (B)	1-47475-519-0	01	1	1302-
428	BRACKET (C)	8-98049-870-2	01	1	1302-
428	BRACKET (A)	8-98090-953-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
