8-15 — FIXING PARTS; WIRING HARNESS (#112853) — 180 parça

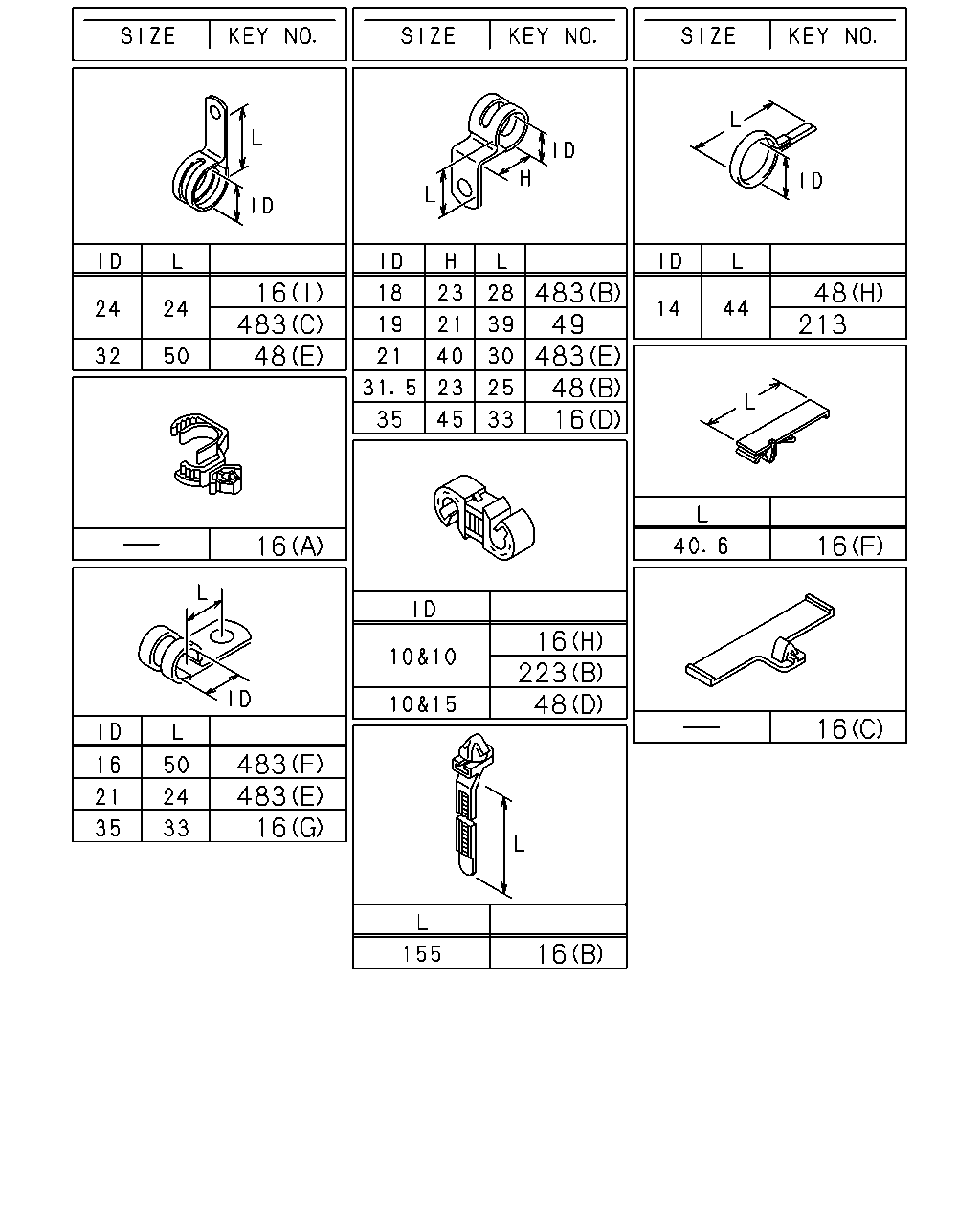

16 483 48 49 483 213 48 483 16 48 16 16 16 16 223 48 16 483 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	1302-
16	CLIP; HARNESS (I) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	06	1	1302-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1302-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS (C) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS (F) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-1312
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS (A) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS (E) ID=21 L=24	8-98019-191-0	01	1	1302-

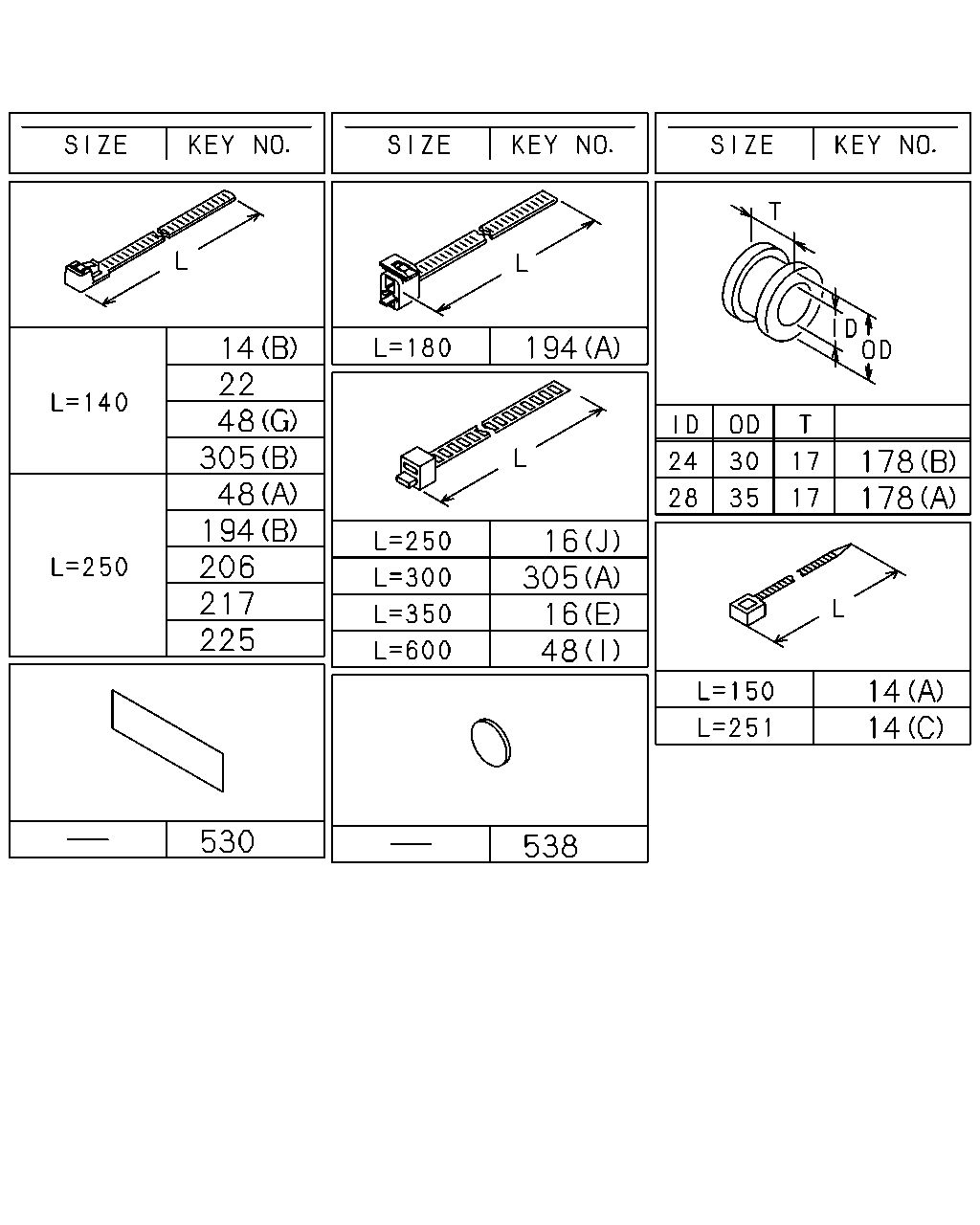

530 538 225 217 206 194 48 305 48 22 14 194 16 305 16 48 14 14 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	1302-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1302-
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	1302-
16	CLIP; HARNESS (I) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	06	1	1302-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
194	CLIP; BAND (A) L=180	1-09707-162-1	01	1	1302-
194	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1302-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	1302-1409
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

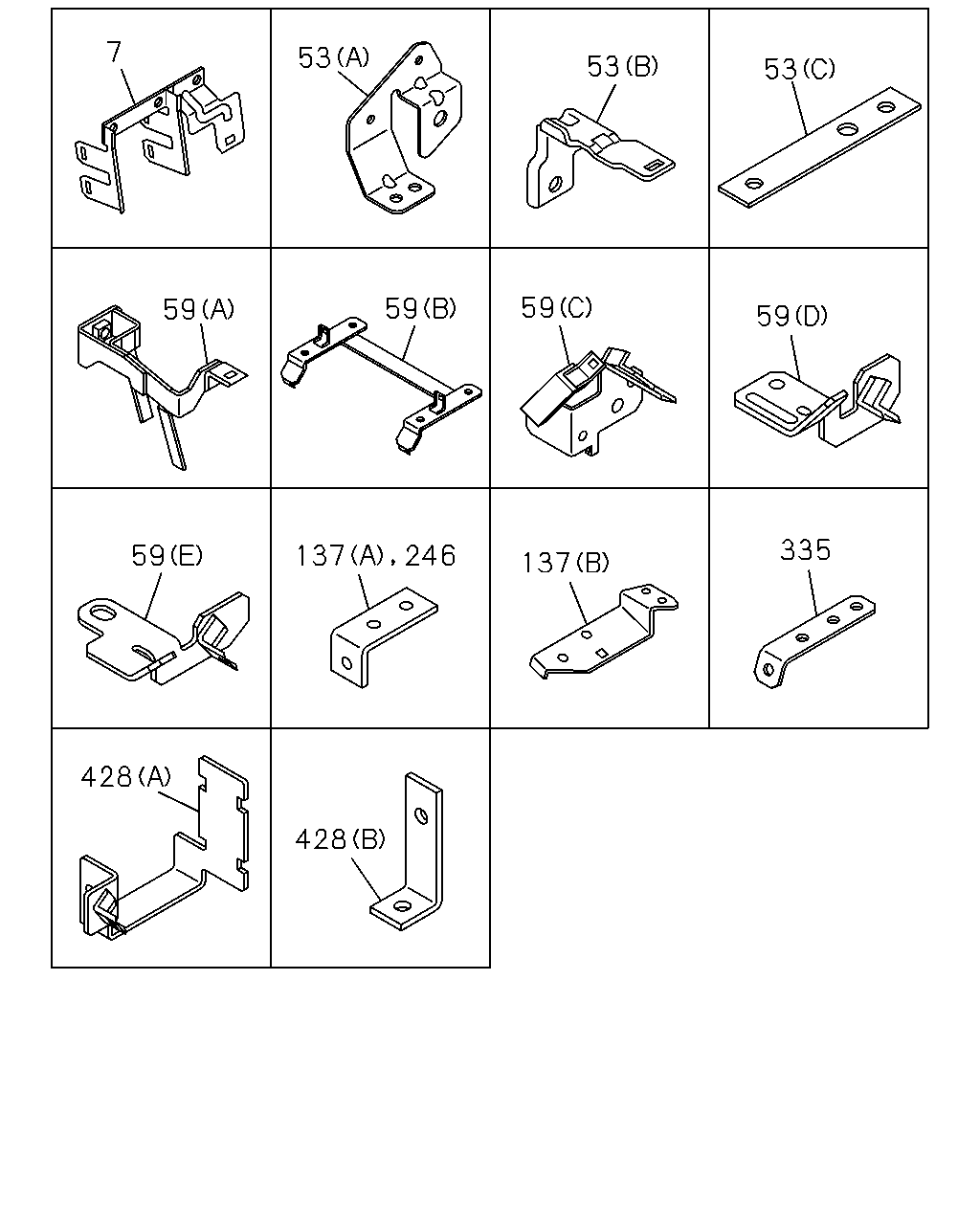

335 59 53 53 59 137 137 246 428 428 59 59 7 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (C) L=170	1-47479-380-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-98047-276-1	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
137	BRACKET; HARNESS CLAMP (A) L=62	1-21464-170-2	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-97616-565-1	01	1	1302-
246	BRACKET; CLIP,SPD SENSOR L=62	1-21464-170-2	01	1	1302-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1302-
428	BRACKET (B)	1-47475-519-0	01	1	1302-
428	BRACKET (A)	8-98116-461-0	01	1	1302-

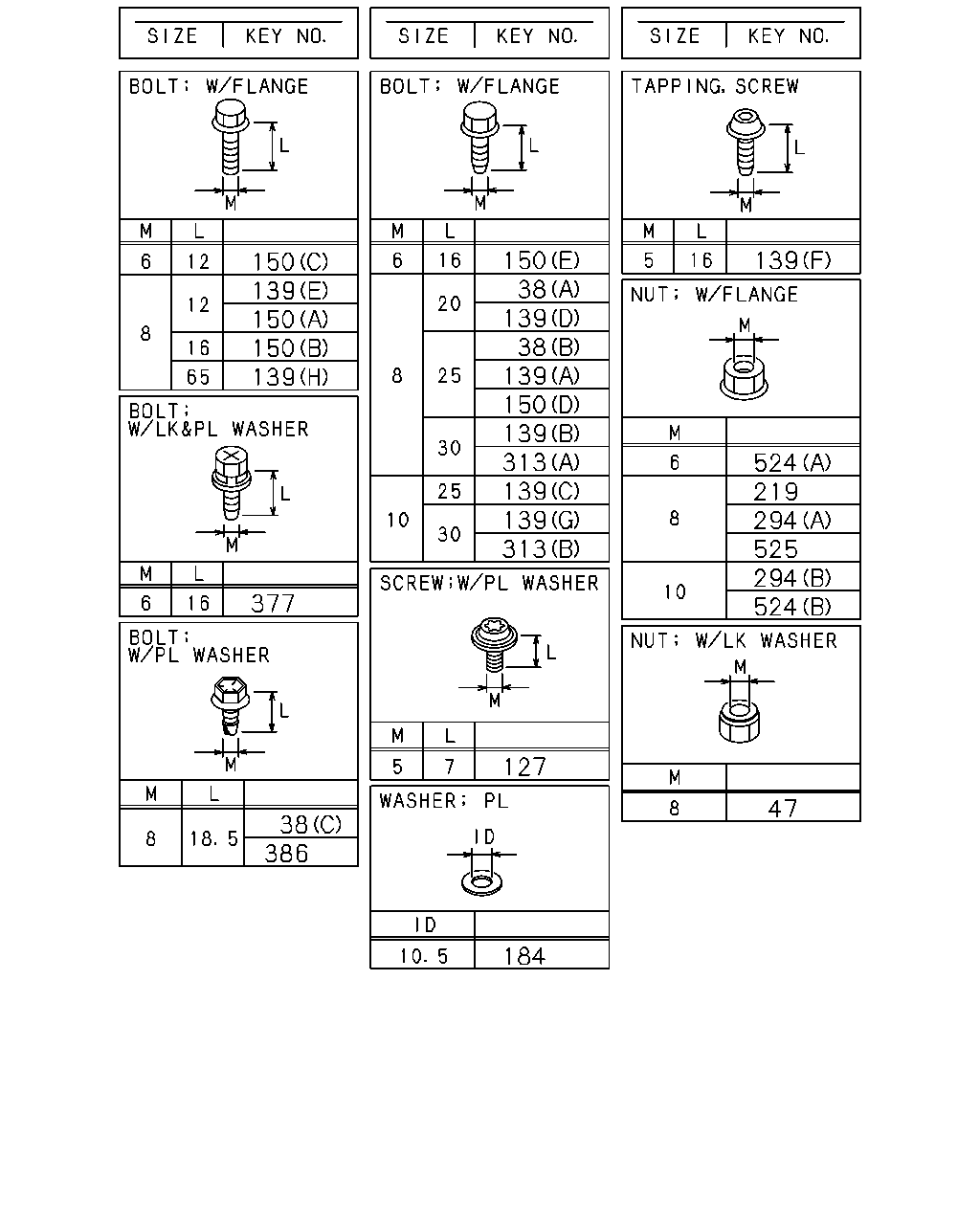

150 139 150 150 139 377 38 386 184 127 313 139 139 313 139 150 139 38 139 38 150 139 524 219 294 525 294 524 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1406-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1405
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP (E) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (C) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP (C) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1302-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-

171 116 16 223 48 223 470 483 48 171 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	1302-
16	CLIP; HARNESS (I) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (E) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	06	1	1302-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS (C) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS (F) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-1312
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS (A) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS (E) ID=21 L=24	8-98019-191-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
