◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#112852) — 161 parça

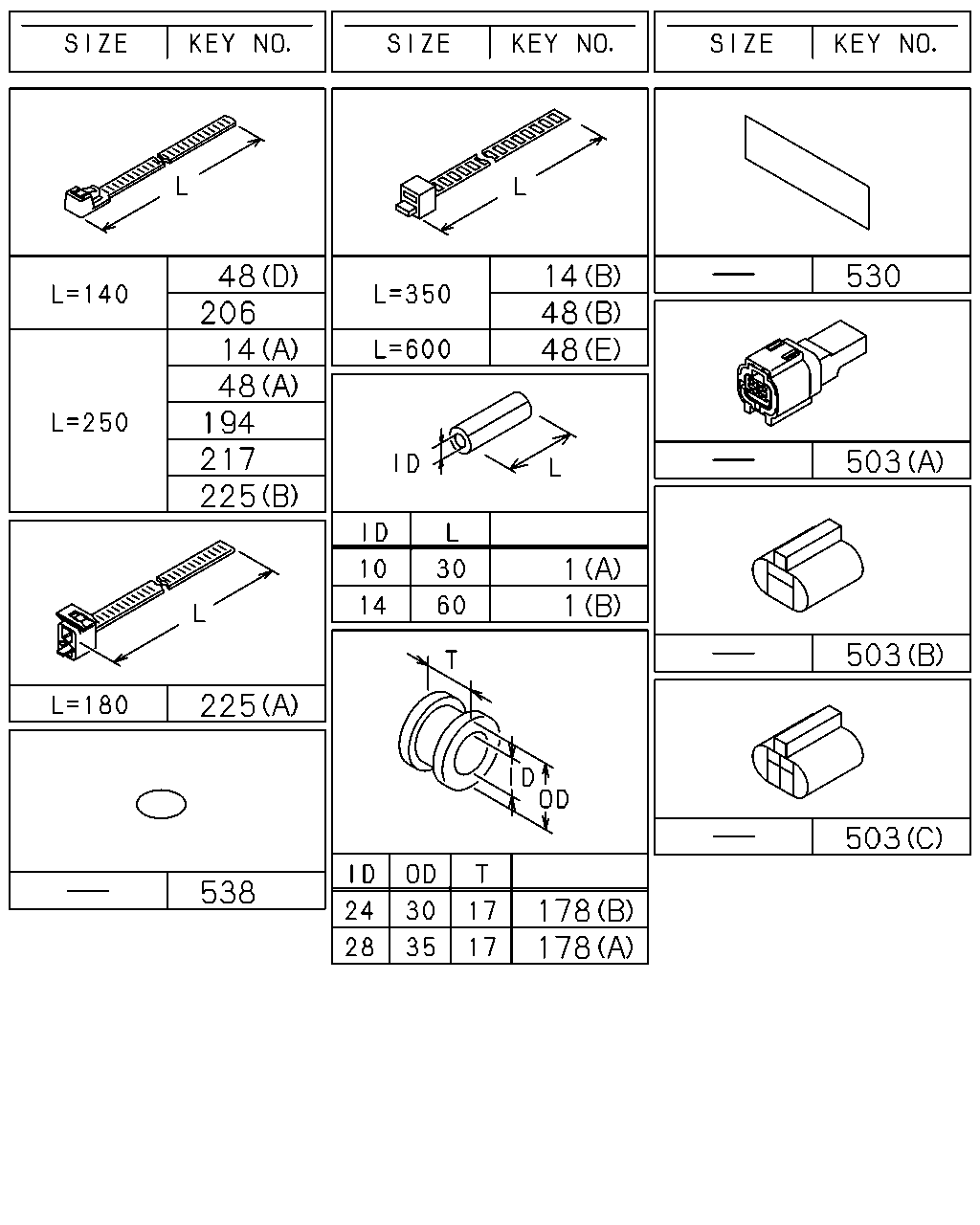

çizim 329890
538 225 225 217 194 48 14 206 48 14 48 48 1 1 178 178 503 503 503 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1302-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1302-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 08 1 1302-
14 CLIP; BAND,HARNESS
EXC. GLOW SYSTEM DELETE<7RK> (A) L=250 		8-98216-430-0 01 1 1312-
48 CLIP; FRAME HARNESS
(H) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(D) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (J) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1302-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1302-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 1302-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1302-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1302-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1302-
225 CLIP; AIR TANK HARNESS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250 		5-09707-030-1 01 1 1302-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1302-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1302-
503 CONNECTOR
EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 1302-
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 1302-
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1302-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1302-

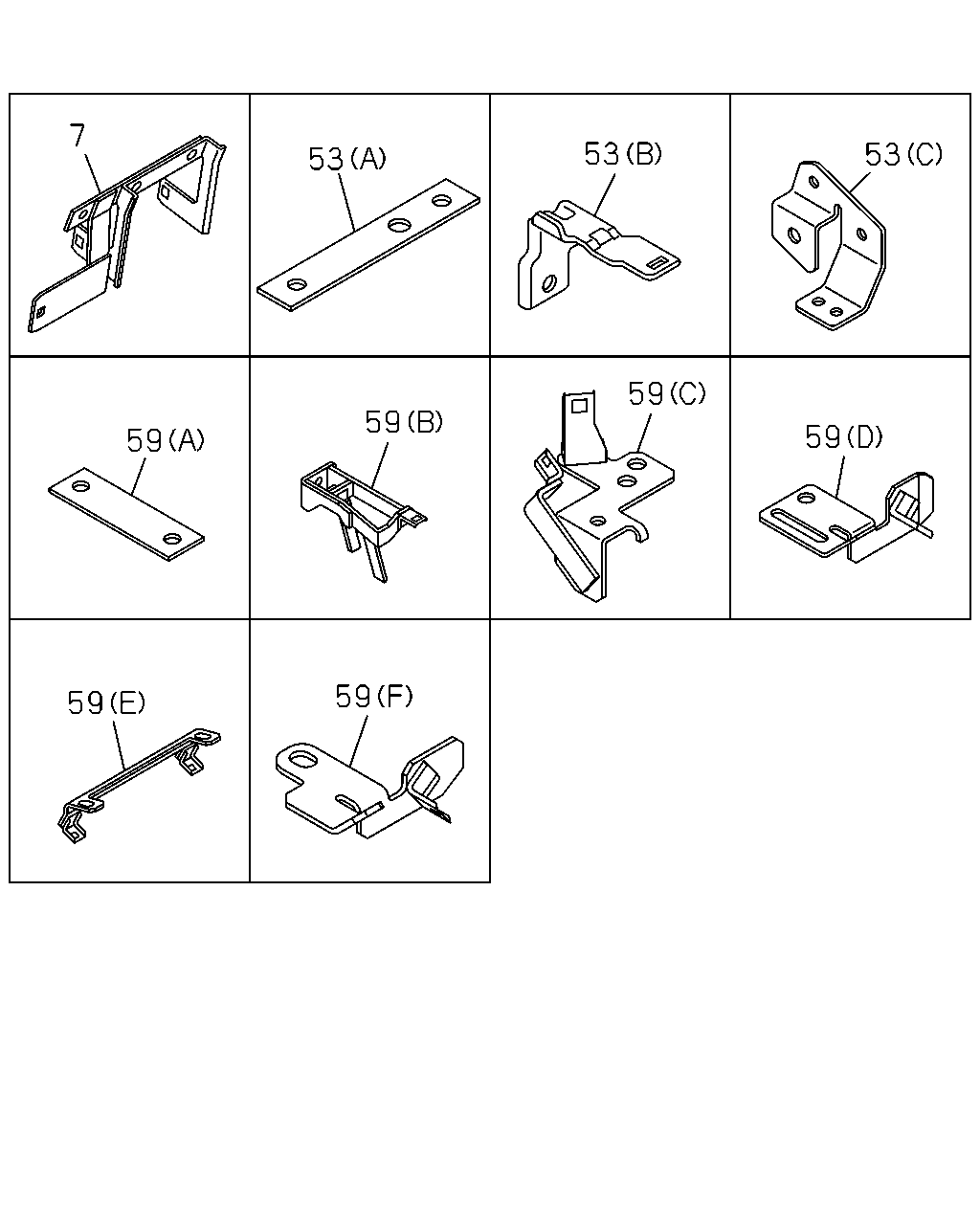

çizim 330014
7 53 53 53 59 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1302-
53 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1302-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1302-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1302-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1302-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
çizim 330078
139 304 304 139 127 47 38 150 139 38 313 150 139 313 38 139 139 524 294 525 294 516 377 38 386 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1302-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1302-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1302-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
150 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
150 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1302-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1302-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
313 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
313 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1302-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1302-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1302-1311
516 BOLT; HARNESS
EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1312-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-

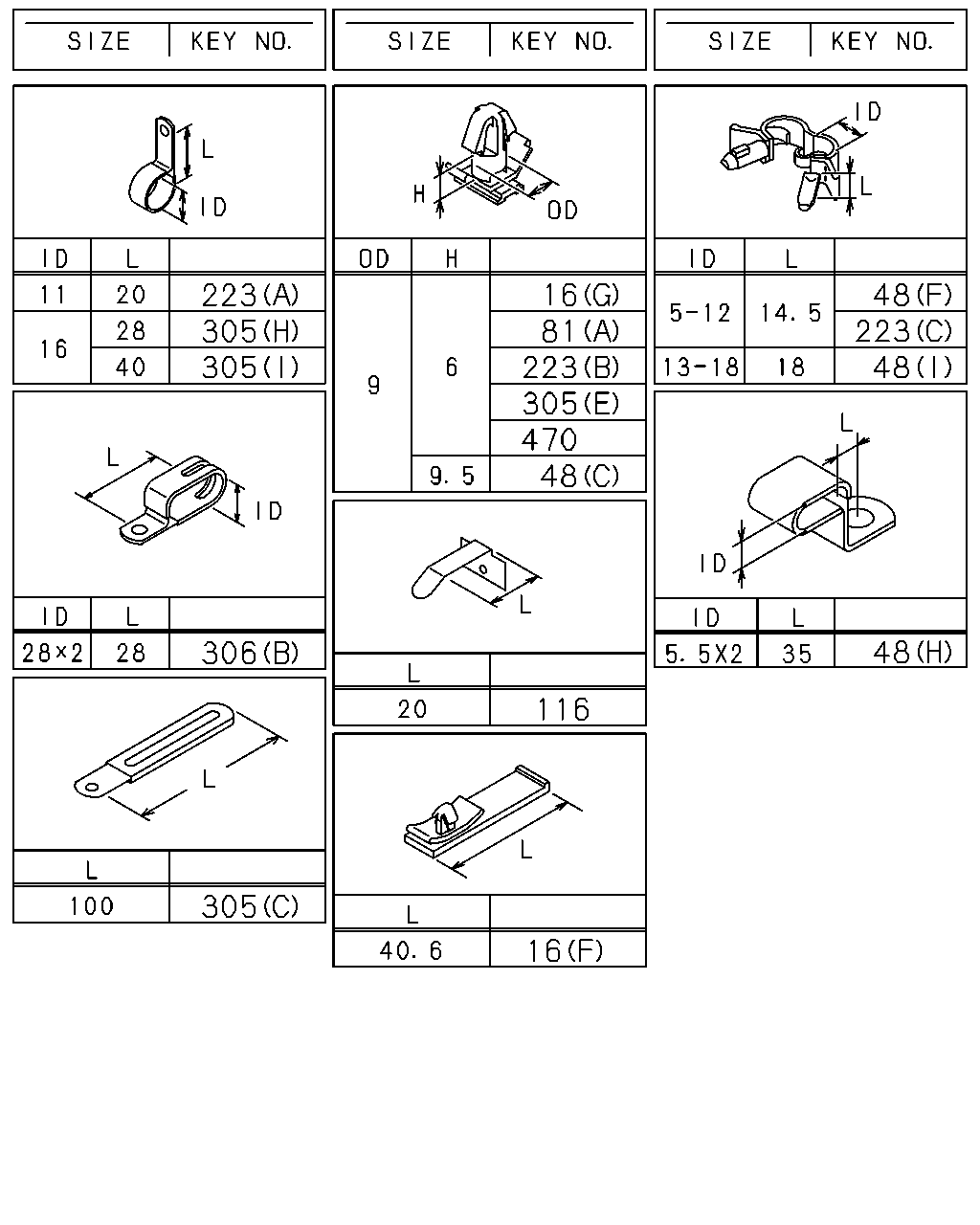

çizim 330279
48 223 16 48 223 305 305 81 223 470 305 48 48 116 16 305 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302-
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1302-
48 CLIP; FRAME HARNESS
(H) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(D) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (J) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1302-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1302-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1302-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1302-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 04 1 1302-
223 CLIP; AIR TANK HARNESS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=20 		0-95235-035-0 01 1 1302-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1302-

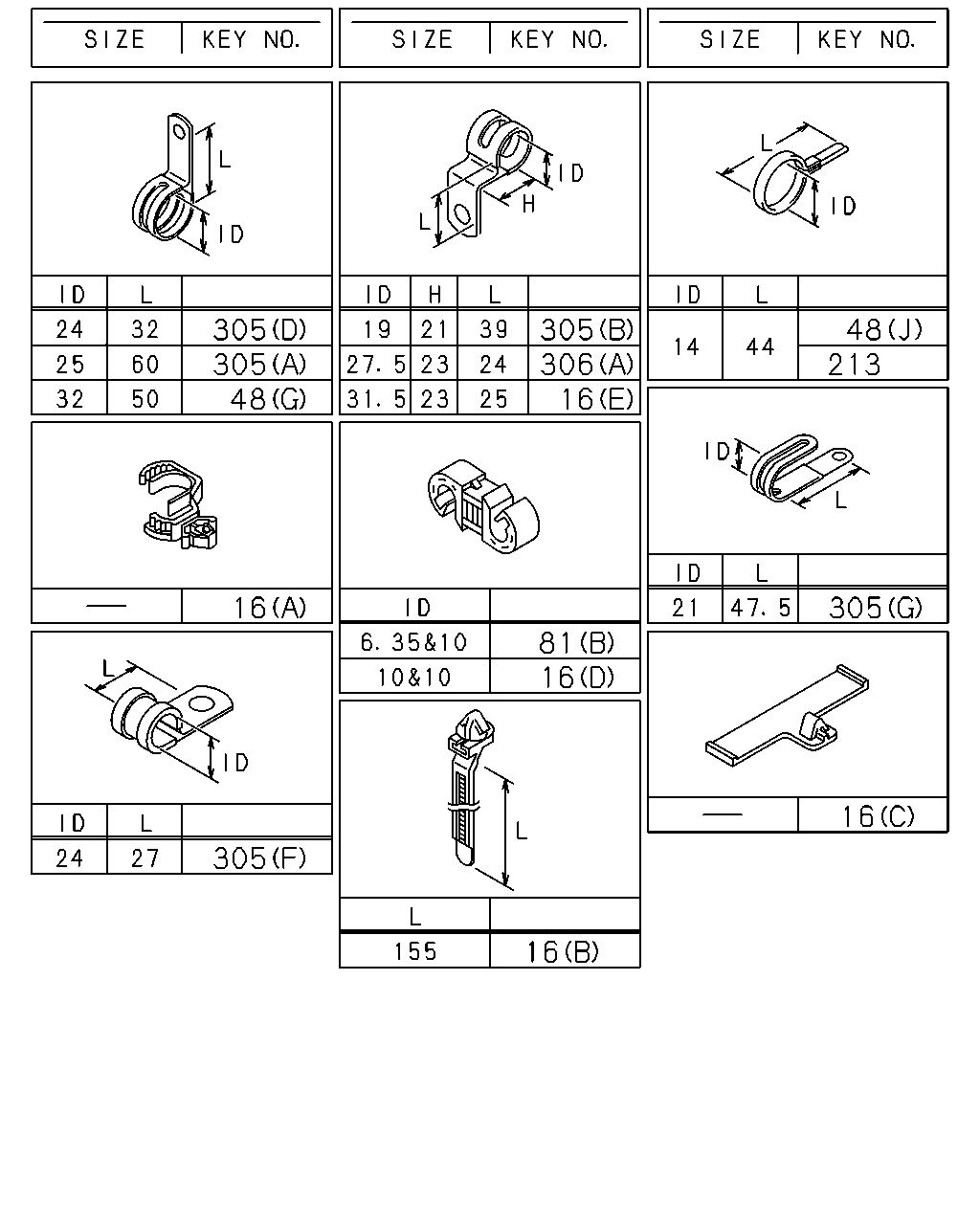

çizim 330374
305 305 305 48 306 48 16 213 305 81 16 16 16 305 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1302-
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1302-
48 CLIP; FRAME HARNESS
(H) ID=5.5X2 L=35 		1-09700-974-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1302-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1302-
48 CLIP; FRAME HARNESS
(D) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 09 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (J) ID=14 L=44 		9-09917-427-0 13 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1302-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1302-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1302-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1302-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-

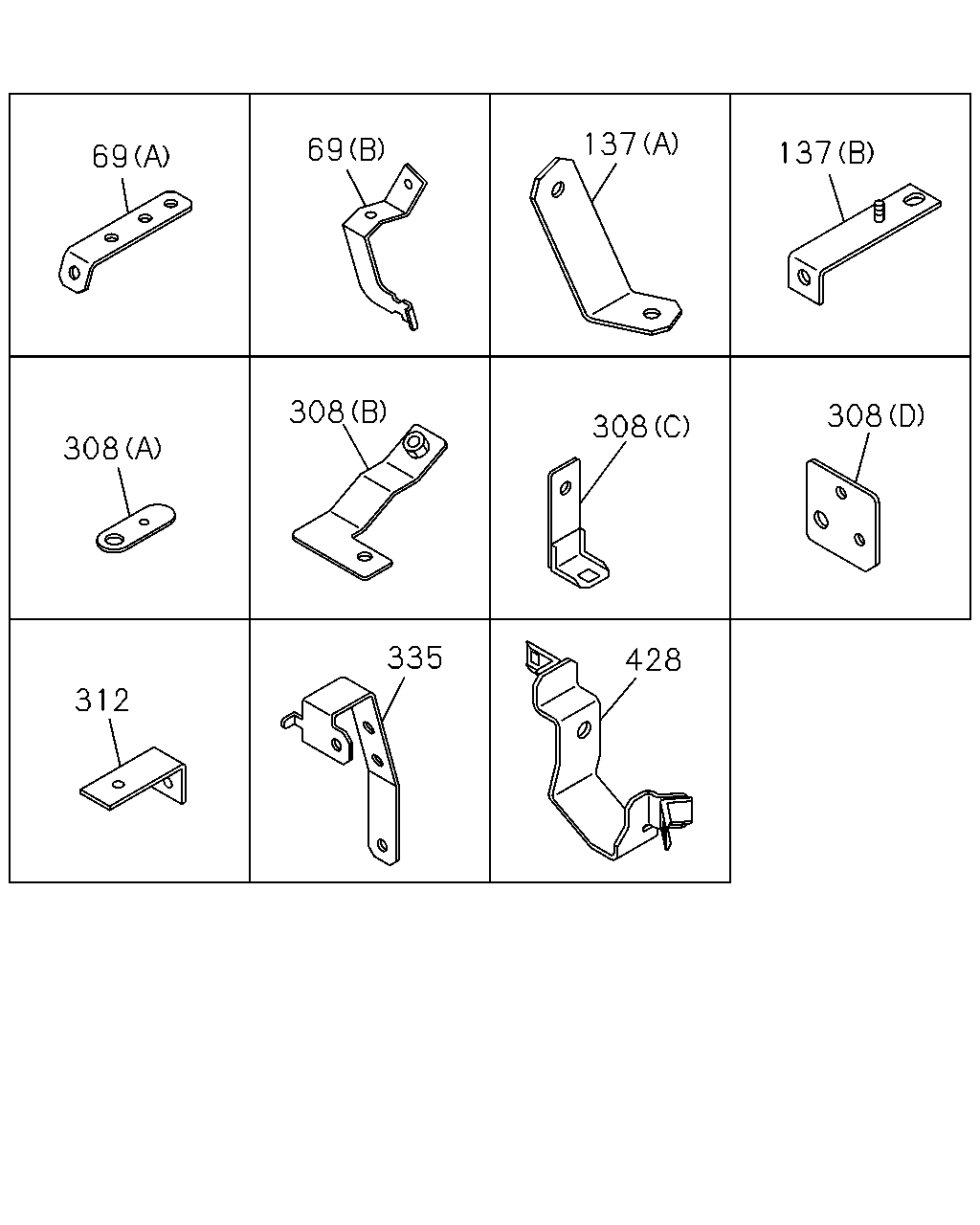

çizim 468060
69 69 137 137 308 308 308 308 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
69 BRACKET; CLIP
(A) 		1-82698-167-0 01 1 1302-
69 BRACKET; CLIP
(B) 		8-97616-357-3 01 1 1302-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1302-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98032-178-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1302-
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 1302-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1302-
428 BRACKET 8-98090-952-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
