Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112851) — 496 parça

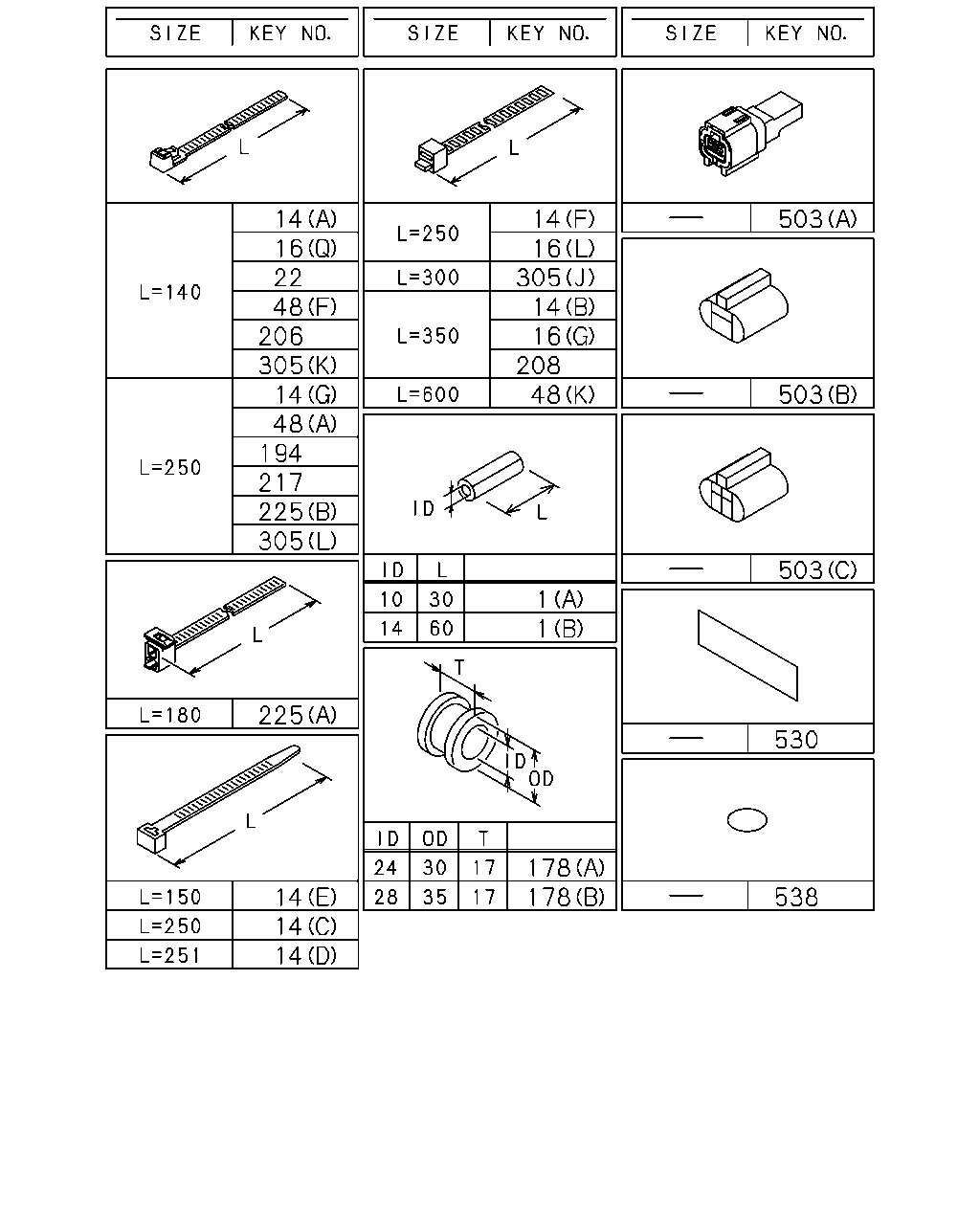

14 16 22 48 206 305 14 48 194 217 225 305 225 14 14 14 14 16 305 14 16 208 48 1 1 178 178 503 503 503 530 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=250	5-09707-030-1	02	1	1309-1404
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (G) L=250	5-09707-030-1	02	1	1405-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=250	1-09707-126-0	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=150	8-97355-273-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) L=140	5-09707-031-1	01	1	1302-1311
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) L=140	5-09707-031-1	01	1	1312-1404
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) GLOW SYSTEM DELETE<7RK> (A) L=140	5-09707-031-1	01	1	1312-1404
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (A) L=140	5-09707-031-1	01	1	1405-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) L=140	5-09707-031-1	01	1	1405-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=150	8-97355-273-0	02	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	8-98216-430-0	08	1	1302-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (T) ID=32 L=50	1-09701-055-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	04	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1302-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	15	1	1406-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. MOROCCO EQUIPMENT(CGA) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1302-1411
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	02	1	1412-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	10	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	14	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	15	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	12	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (H) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (L) ID=14 L=44	9-09917-427-0	16	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1511
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1511
178	GROMMET; HARNESS EURO4 SPECIFICATION<NT4> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1511
178	GROMMET; HARNESS RUSSIA EQUIPMENT(B12) (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-1511
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-
178	GROMMET; HARNESS RUSSIA EQUIPMENT(B12) (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-
178	GROMMET; HARNESS RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) EURO4 SPECIFICATION<NT4> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-
178	GROMMET; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS EXC. RUSSIA EQUIPMENT(B12) (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	03	1	1302-
208	CLIP; HARNESS,MAG VLV 4HK1-TCS ENG(RJS) L=350	1-09707-183-0	01	1	1302-
208	CLIP; HARNESS,MAG VLV 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS RUSSIA EQUIPMENT(B12) EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1302-1405
217	CLIP; RR BODY HARNESS RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1406-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-09707-162-1	01	1	1302-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=250	5-09707-030-1	01	1	1302-
225	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=250	5-09707-030-1	01	1	1302-
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	02	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	1302-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1302-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

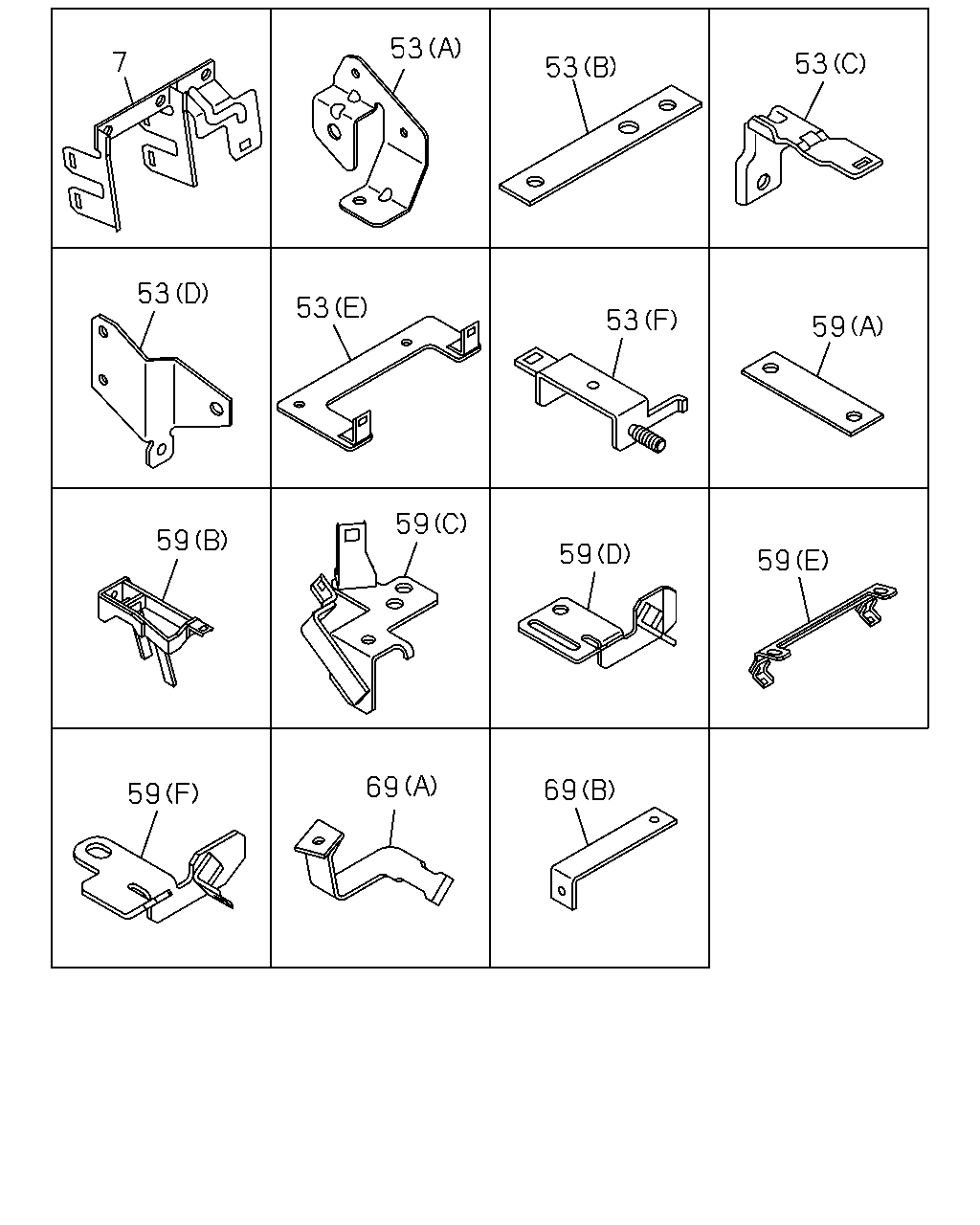

7 53 53 53 59 53 59 59 59 53 53 59 59 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1302-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (E)	8-98125-300-1	01	1	1302-1511
53	BRACKET; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E)	8-98125-300-1	01	1	1512-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98047-891-0	01	1	1302-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98047-890-0	01	1	1302-
53	BRACKET; HARNESS RUSSIA EQUIPMENT(B12) (F)	8-98018-251-1	01	1	1302-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98099-963-0	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=85	8-98044-743-0	01	1	1302-
69	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B) L=95	1-82699-085-0	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=95	1-82699-085-0	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97616-357-3	01	1	1302-

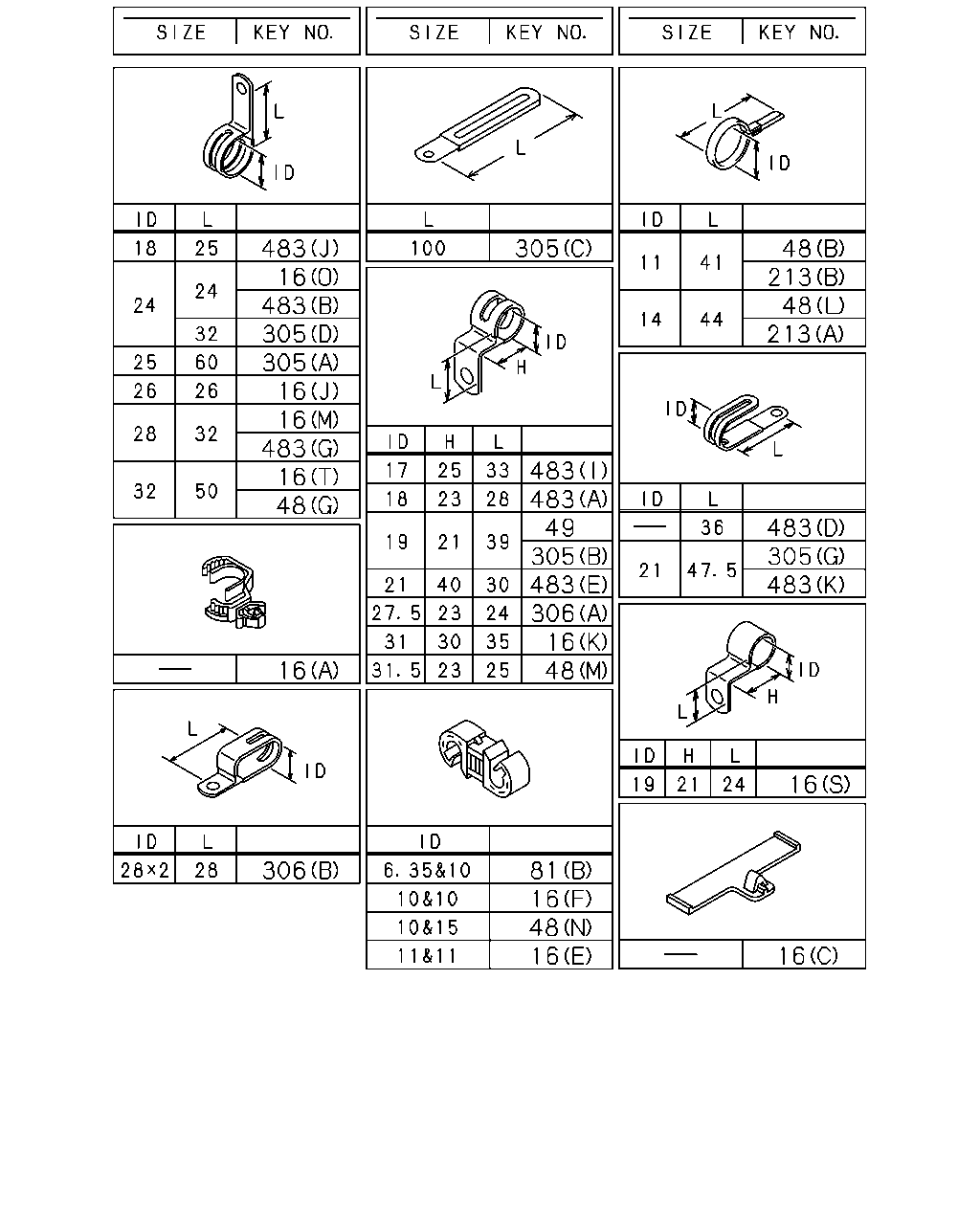

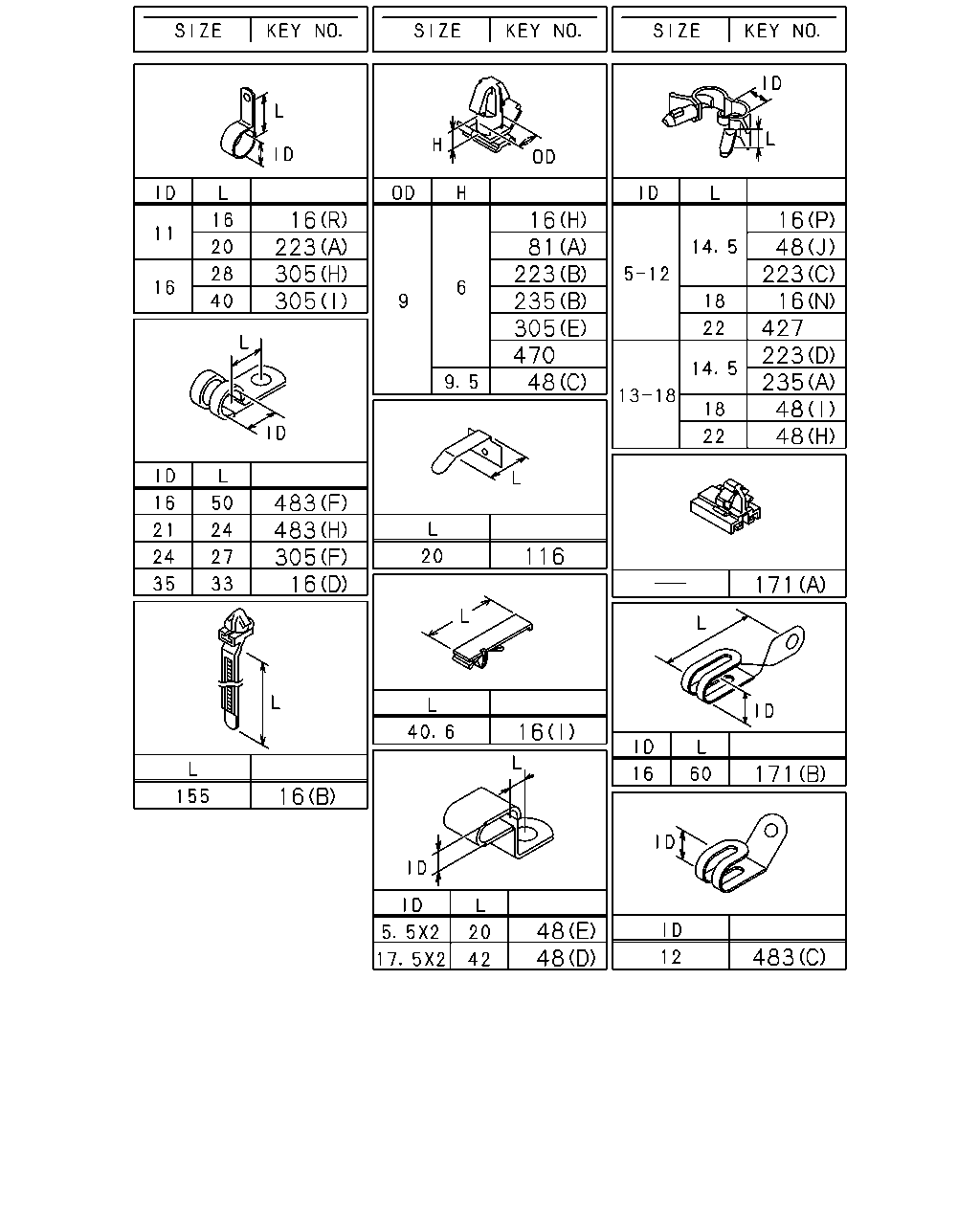

16 16 16 223 81 48 223 305 235 223 427 16 223 305 305 470 235 48 48 48 483 305 16 483 116 171 171 16 16 48 48 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (T) ID=32 L=50	1-09701-055-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	04	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	15	1	1406-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. MOROCCO EQUIPMENT(CGA) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1302-1411
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	02	1	1412-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	10	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	14	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	15	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	12	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (H) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (L) ID=14 L=44	9-09917-427-0	16	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	1302-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1302-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) ID=11 L=20	0-95235-035-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	02	1	1302-
223	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (B) OD=9 H=6	1-09709-178-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
427	CLIP; HARNESS,FULL ELEC RUSSIA EQUIPMENT(B12) ID=5-12 L=22	1-09709-288-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP EXC. RUSSIA EQUIPMENT(B12) OD=9 H=6	1-09709-178-0	01	1	1302-1405
470	CLIP; HARNESS,LICENSE LAMP EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) OD=9 H=6	1-09709-178-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C) ID=12	8-97329-630-0	01	1	1309-1404
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (C) ID=12	8-97329-630-0	01	1	1405-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=24	8-98019-191-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=28 L=32	1-09701-107-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H) ID=21 L=24	1-09701-201-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I)	1-09987-281-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=18 L=25	8-94121-004-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) ID=21 L=47.5	8-94178-108-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) L=36	8-94224-891-1	01	1	1302-

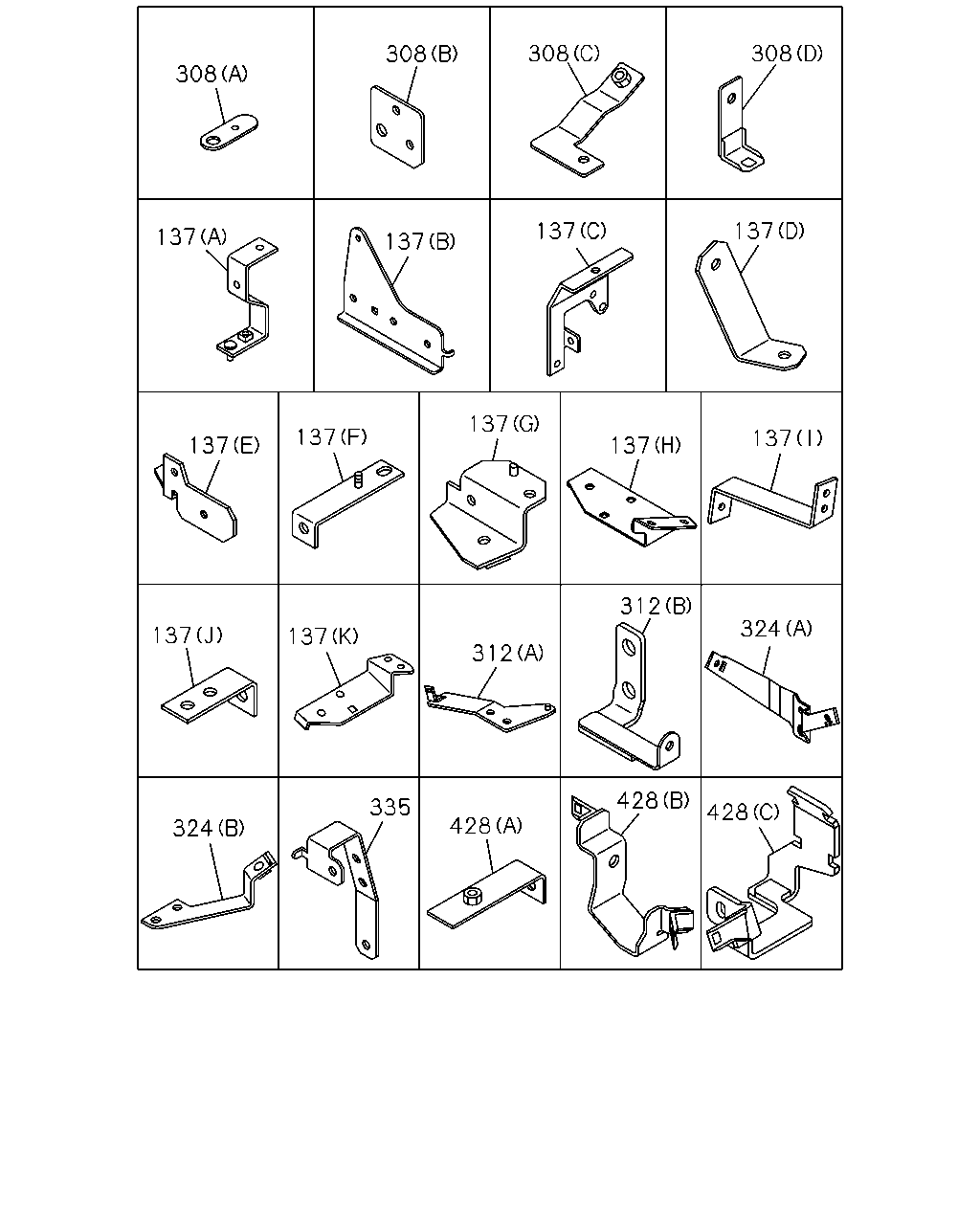

308 308 308 308 137 137 137 137 137 137 137 137 137 137 137 312 312 324 324 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-97618-098-2	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (A)	8-98065-904-0	01	1	1302-
137	BRACKET; HARNESS CLAMP RUSSIA EQUIPMENT(B12) (B)	8-97624-016-0	01	1	1302-1405
137	BRACKET; HARNESS CLAMP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B)	8-97624-016-0	01	1	1406-
137	BRACKET; HARNESS CLAMP RUSSIA EQUIPMENT(B12) (I)	8-98170-409-0	01	1	1302-1405
137	BRACKET; HARNESS CLAMP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (I)	8-98170-409-0	01	1	1406-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (G)	8-98058-354-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (H)	8-97616-565-1	01	1	1302-1405
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (H)	8-97616-565-1	01	1	1406-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) L=62	1-21464-170-2	01	1	1302-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K)	8-98193-417-0	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (D)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (F)	8-97624-013-0	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (E)	8-98059-231-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98075-824-0	01	1	1302-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B)	8-98094-804-0	01	1	1406-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (A)	8-98224-098-0	01	1	1302-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	8-98094-804-0	01	1	1302-1308
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-648-1	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-654-2	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-653-2	01	1	1302-
324	BRACKET; CLIP 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98148-821-0	01	1	1302-
324	BRACKET; CLIP 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-649-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47475-519-0	01	1	1302-
428	BRACKET 4HK1-TCS ENG(RJS) (C)	8-98151-455-3	01	1	1302-
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98090-952-0	01	1	1302-

483 16 483 305 305 16 16 483 16 48 305 483 483 49 305 483 306 16 48 483 48 213 48 213 305 483 16 16 81 16 48 16 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11X2 L=16	1-09700-734-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (N) ID=5-12 L=18	1-09709-287-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) L=140	5-09707-031-1	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (P) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (T) ID=32 L=50	1-09701-055-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=11 L=16	0-95235-025-0	04	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	13	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	15	1	1406-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-1405
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. MOROCCO EQUIPMENT(CGA) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1406-
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1302-1411
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ALGERIA EQUIPMENT(WN1) (L) ID=14 L=44	9-09917-427-0	02	1	1412-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	08	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	10	1	1406-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	14	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	15	1	1302-1405
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) MOROCCO EQUIPMENT(CGA) (L) ID=14 L=44	9-09917-427-0	13	1	1406-1412
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) (L) ID=14 L=44	9-09917-427-0	12	1	1501-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (H) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (L) ID=14 L=44	9-09917-427-0	16	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
213	CLIP; END CROSS HARNESS RUSSIA EQUIPMENT(B12) (B) ID=11 L=41	1-09700-403-0	02	1	1302-1405
213	CLIP; END CROSS HARNESS RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) ID=11 L=41	1-09700-403-0	02	1	1406-
213	CLIP; END CROSS HARNESS RUSSIA EQUIPMENT(B12) (A) ID=14 L=44	9-09917-427-0	07	1	1302-1405
213	CLIP; END CROSS HARNESS RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) ID=14 L=44	9-09917-427-0	07	1	1406-
213	CLIP; END CROSS HARNESS EXC. RUSSIA EQUIPMENT(B12) (A) ID=14 L=44	9-09917-427-0	03	1	1302-1405
213	CLIP; END CROSS HARNESS EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) ID=14 L=44	9-09917-427-0	03	1	1406-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (L) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) L=140	5-09707-031-1	01	1	1302-1409
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV RUSSIA EQUIPMENT(B12) (B) ID=28X2 L=28	1-09701-302-0	01	1	1302-1405
306	CLIP; HARNESS,ELEC GOV RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) ID=28X2 L=28	1-09701-302-0	01	1	1406-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C) ID=12	8-97329-630-0	01	1	1309-1404
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (C) ID=12	8-97329-630-0	01	1	1405-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=24	8-98019-191-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=28 L=32	1-09701-107-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (H) ID=21 L=24	1-09701-201-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I)	1-09987-281-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=18 L=25	8-94121-004-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (K) ID=21 L=47.5	8-94178-108-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) L=36	8-94224-891-1	01	1	1302-

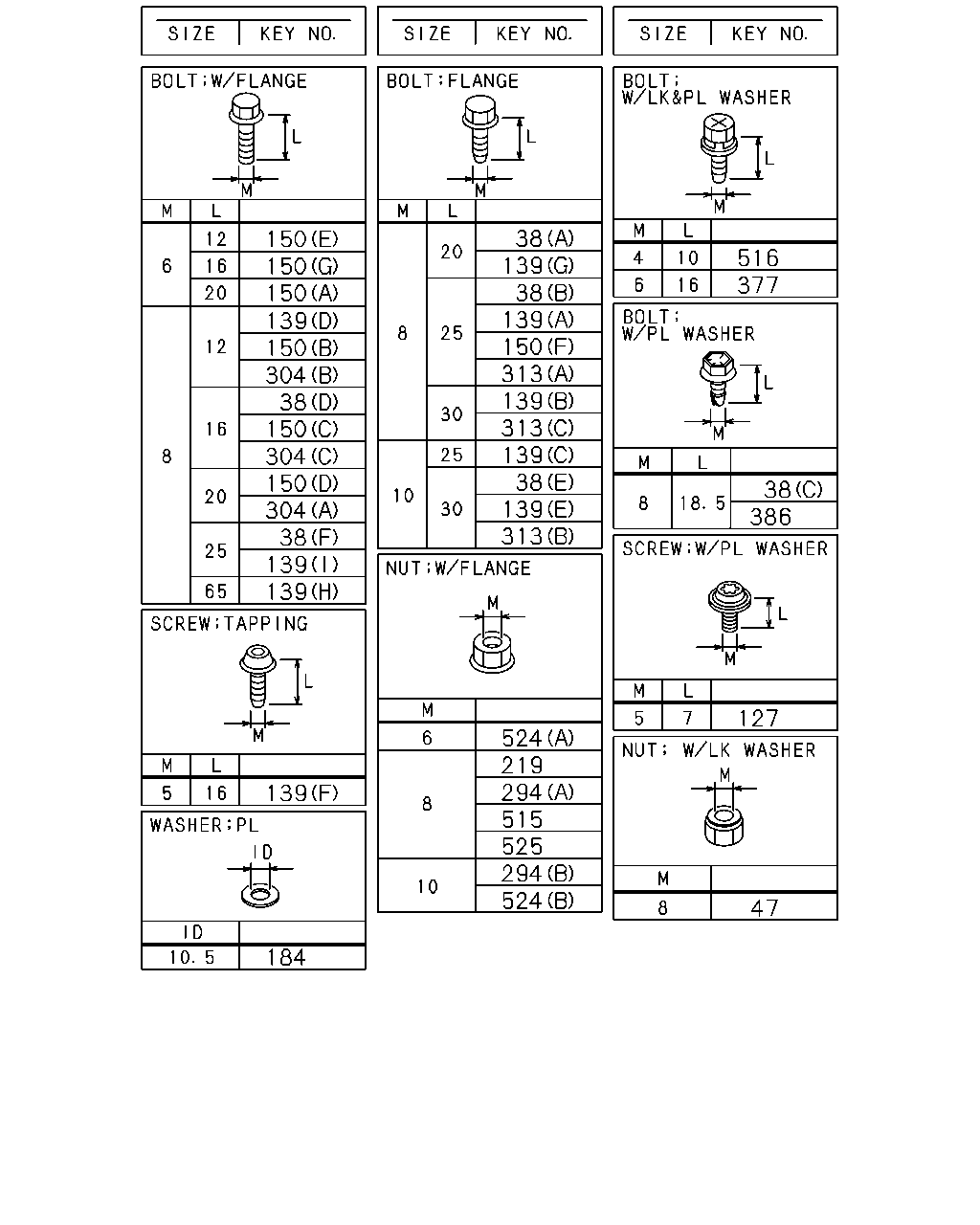

150 150 150 139 304 150 38 304 304 38 139 139 150 139 184 38 38 139 139 150 139 313 313 139 139 38 313 524 219 294 515 525 294 524 516 377 38 386 127 47 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (D) M8X16 FLANGE	0-28050-816-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10X30 FLANGE	0-28651-030-0	01	1	1302-
38	BOLT; CLIP,HARNESS RUSSIA EQUIPMENT(B12) (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X25 FLANGE	0-28650-825-0	01	1	1406-
38	BOLT; CLIP,HARNESS RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X25 FLANGE	0-28650-825-0	01	1	1406-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1406-
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M8X25 FLANGE	0-28050-825-0	02	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (D) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28651-030-0	02	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (I) M8X25 FLANGE	0-28050-825-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
139	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1406-
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1406-
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1406-
139	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M8X25 FLANGE	0-28650-825-0	01	1	1406-
139	BOLT; BRKT RUSSIA EQUIPMENT(B12) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X30 FLANGE	0-28650-830-0	01	1	1406-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M8X20 FLANGE	0-28650-820-0	01	1	1302-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (G) M8X20 FLANGE	0-28650-820-0	01	1	1302-1405
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M8X20 FLANGE	0-28650-820-0	01	1	1406-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (G) M8X20 FLANGE	0-28650-820-0	01	1	1406-
150	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
150	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X20 FLANGE	0-28650-820-0	02	1	1302-1405
150	BOLT; CLIP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (D) M8X20 FLANGE	0-28650-820-0	02	1	1406-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) M6X20 FLANGE	0-28050-620-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) M6X16 FLANGE	0-28650-616-0	01	1	1302-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-1405
294	NUT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-1405
294	NUT 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-1405
294	NUT RUSSIA EQUIPMENT(B12) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1405
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1406-
294	NUT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1406-
294	NUT 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1406-
294	NUT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE	0-91180-108-0	02	1	1406-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	1302-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1405
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1405
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1405
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1405
294	NUT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1405
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1406-
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1406-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1406-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1406-
294	NUT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE	0-91180-108-0	01	1	1406-
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
294	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	05	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X16 FLANGE	0-28050-816-0	04	1	1302-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
515	NUT; BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1302-
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1302-
525	NUT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1302-1405
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-1405
525	NUT; CLIP RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1302-1405
525	NUT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1406-
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1406-
525	NUT; CLIP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8 FLANGE	0-91180-108-0	02	1	1406-
525	NUT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
