8-10 — WIRING HARNESS AND FUSE (#112850) — 169 parça
çizim 329773
339 6 6 595 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98212-254-0 01 1 1302-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98227-392-1 01 1 1302-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1302-1304
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1305-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1302-

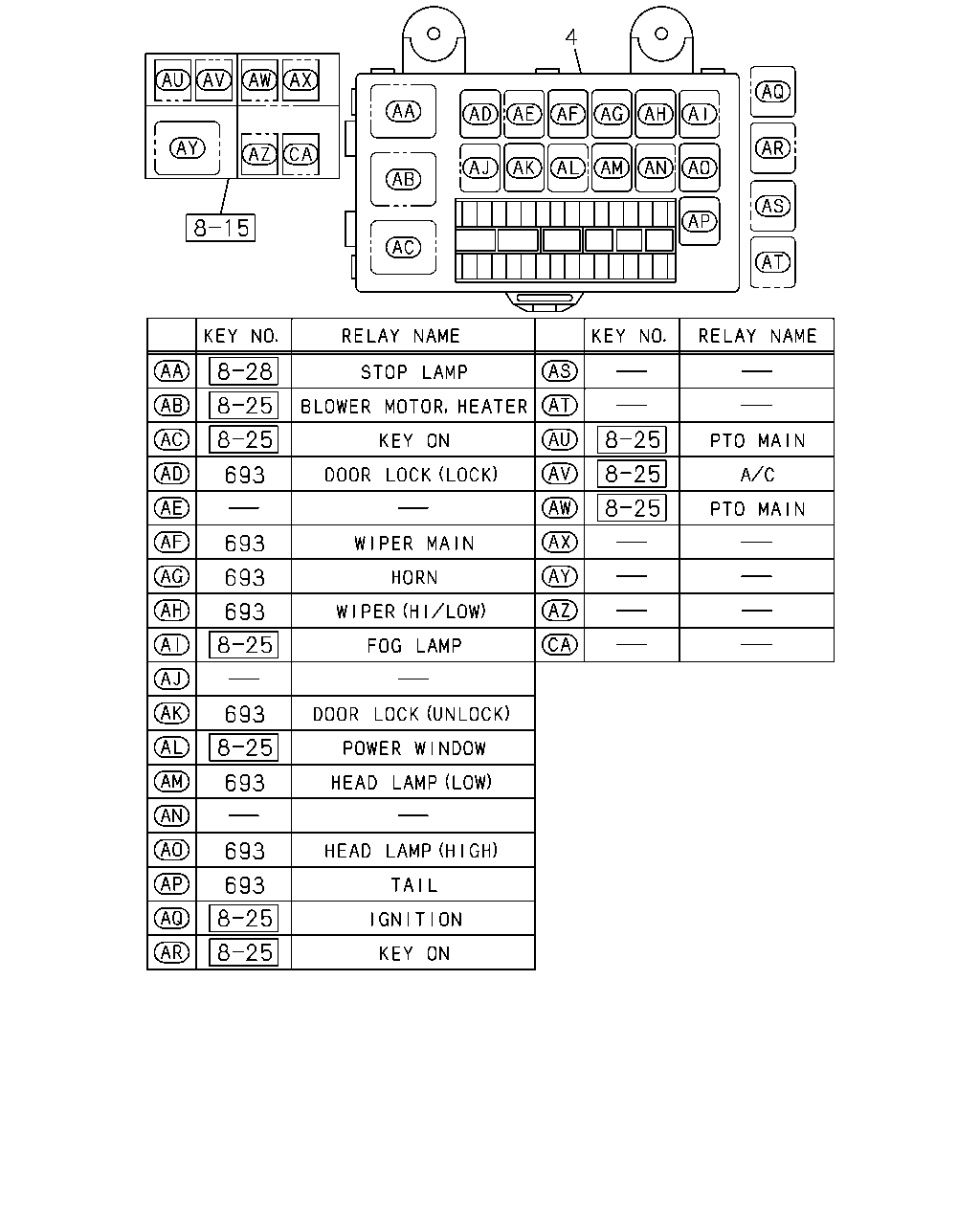

çizim 329785
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1302-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-

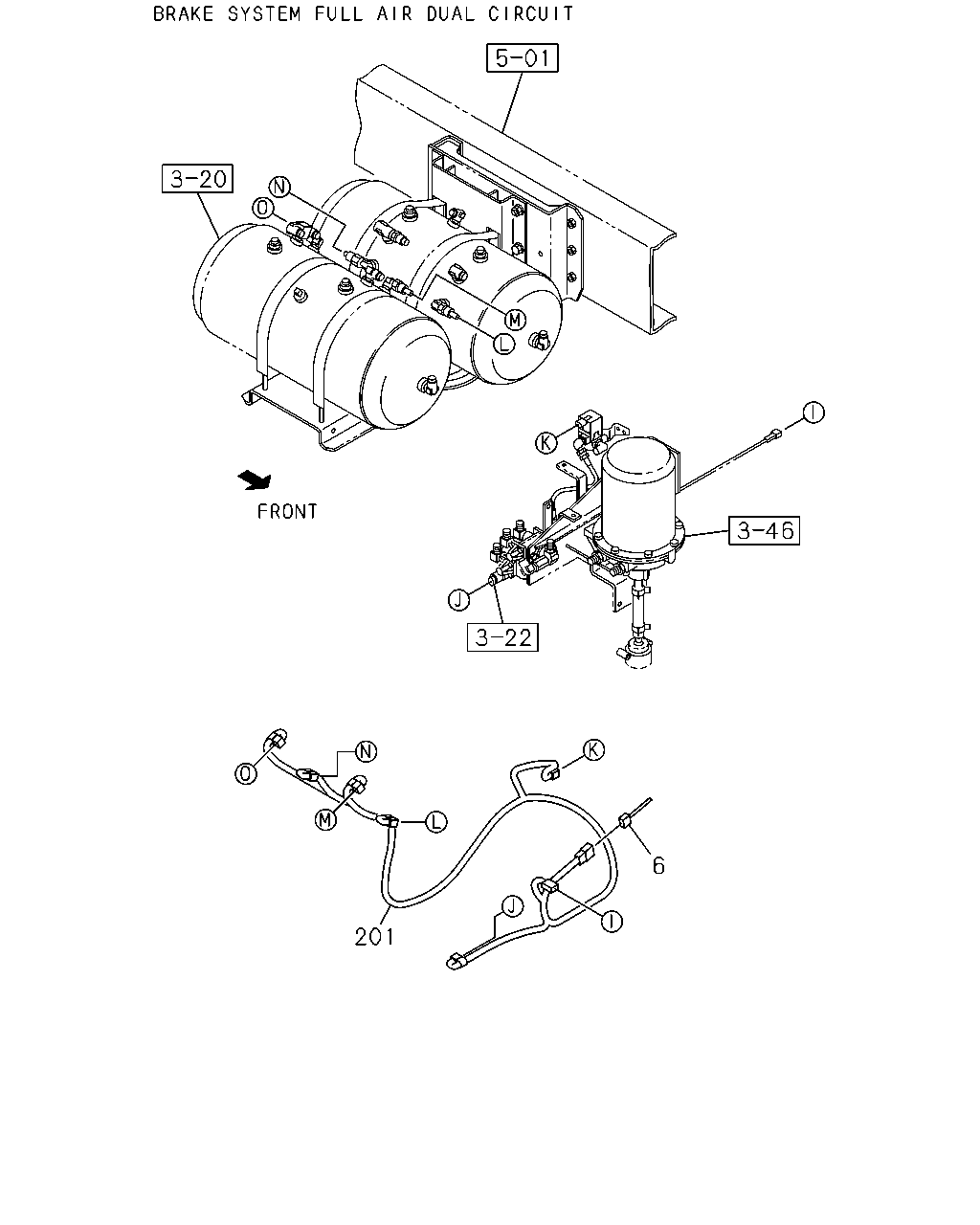

çizim 329799
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98178-658-2 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1302-
çizim 329816
2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98212-254-0 01 1 1302-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1302-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1302-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1302-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1302-

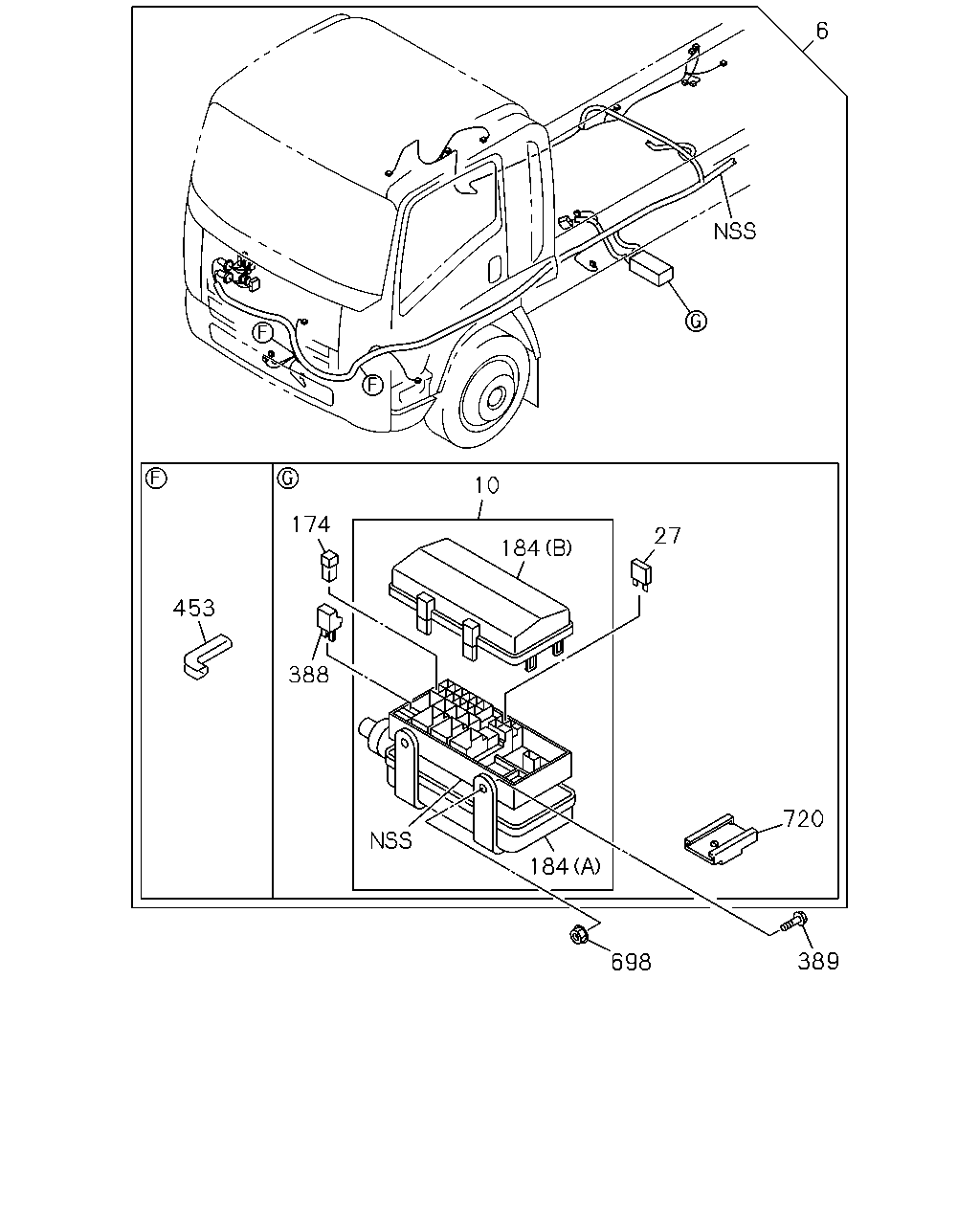

çizim 329828
10 184 27 720 389 698 184 388 174 453 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
10 BOX; FUSE,HARNESS
6HK1-TCN ENG(82L) 		8-98030-762-0 01 1 1302-1304
10 BOX; FUSE,HARNESS
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98030-762-0 01 1 1305-
10 BOX; FUSE,HARNESS
6HK1-TCN ENG(82L) 		8-98030-762-0 01 1 1305-
27 FUSE UNIT
6HK1-TCN ENG(82L) 10A RED 		8-98054-257-0 01 1 1302-1304
27 FUSE UNIT
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10A RED 		8-98054-257-0 01 1 1305-
27 FUSE UNIT
6HK1-TCN ENG(82L) 10A RED 		8-98054-257-0 01 1 1305-
27 FUSE UNIT
6HK1-TCN ENG(82L) 15A BLUE 		8-98054-258-0 02 1 1302-1304
27 FUSE UNIT
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 15A BLUE 		8-98054-258-0 02 1 1305-
27 FUSE UNIT
6HK1-TCN ENG(82L) 15A BLUE 		8-98054-258-0 02 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 60A YELLOW 		8-97219-407-0 01 1 1302-1304
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 60A YELLOW 		8-97219-407-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 60A YELLOW 		8-97219-407-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-1304
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 30A PINK 		8-98079-191-0 01 1 1302-1304
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 30A PINK 		8-98079-191-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 30A PINK 		8-98079-191-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 40A GREEN 		8-98079-192-0 01 1 1302-1304
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 40A GREEN 		8-98079-192-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 40A GREEN 		8-98079-192-0 01 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 50A RED 		8-98079-193-0 03 1 1302-1304
174 FUSE; SLOW BLOW
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 50A RED 		8-98079-193-0 03 1 1305-
174 FUSE; SLOW BLOW
6HK1-TCN ENG(82L) 50A RED 		8-98079-193-0 03 1 1305-
184 COVER; RELAY & FUSE BOX
6HK1-TCN ENG(82L) (A) 		8-98030-766-0 01 1 1302-1304
184 COVER; RELAY & FUSE BOX
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98030-766-0 01 1 1305-
184 COVER; RELAY & FUSE BOX
6HK1-TCN ENG(82L) (A) 		8-98030-766-0 01 1 1305-
184 COVER; RELAY & FUSE BOX
6HK1-TCN ENG(82L) (B) 		8-98030-767-1 01 1 1302-1304
184 COVER; RELAY & FUSE BOX
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98030-767-1 01 1 1305-
184 COVER; RELAY & FUSE BOX
6HK1-TCN ENG(82L) (B) 		8-98030-767-1 01 1 1305-
388 DIODE; RELAY BOX
6HK1-TCN ENG(82L) BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-1304
388 DIODE; RELAY BOX
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BLACK 2P-1.5A 		8-94422-639-1 01 1 1305-
388 DIODE; RELAY BOX
6HK1-TCN ENG(82L) BLACK 2P-1.5A 		8-94422-639-1 01 1 1305-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
453 PROTECTOR; HARNESS
6HK1-TCN ENG(82L) 		1-82699-709-0 01 1 1302-1304
453 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82699-709-0 01 1 1305-
453 PROTECTOR; HARNESS
6HK1-TCN ENG(82L) 		1-82699-709-0 01 1 1305-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-
720 ATTACHMENT; CONNECTOR
6HK1-TCN ENG(82L) 		1-82699-688-0 03 1 1302-1304
720 ATTACHMENT; CONNECTOR
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82699-688-0 03 1 1305-
720 ATTACHMENT; CONNECTOR
6HK1-TCN ENG(82L) 		1-82699-688-0 03 1 1305-

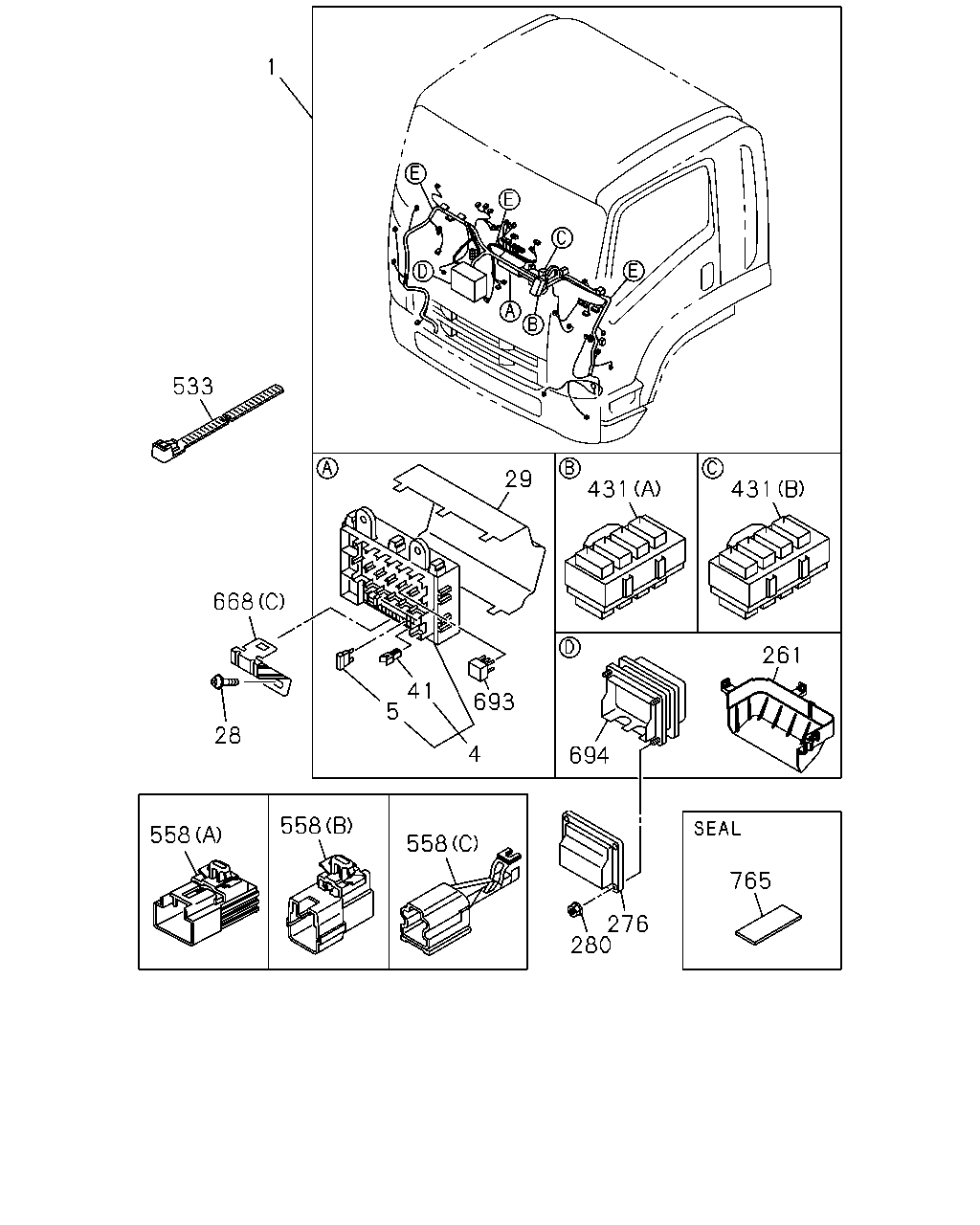

çizim 329836
765 276 280 558 558 558 261 694 693 4 41 5 28 668 533 1 29 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98212-254-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1302-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1302-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1302-
41 PULLER; FUSE 8-98054-260-0 01 1 1302-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1302-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1302-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1302-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 1302-
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1305-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98009-245-0 01 1 1305-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98011-484-0 01 1 1305-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1305-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98061-805-2 01 1 1305-1312
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98205-089-0 01 1 1401-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1302-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

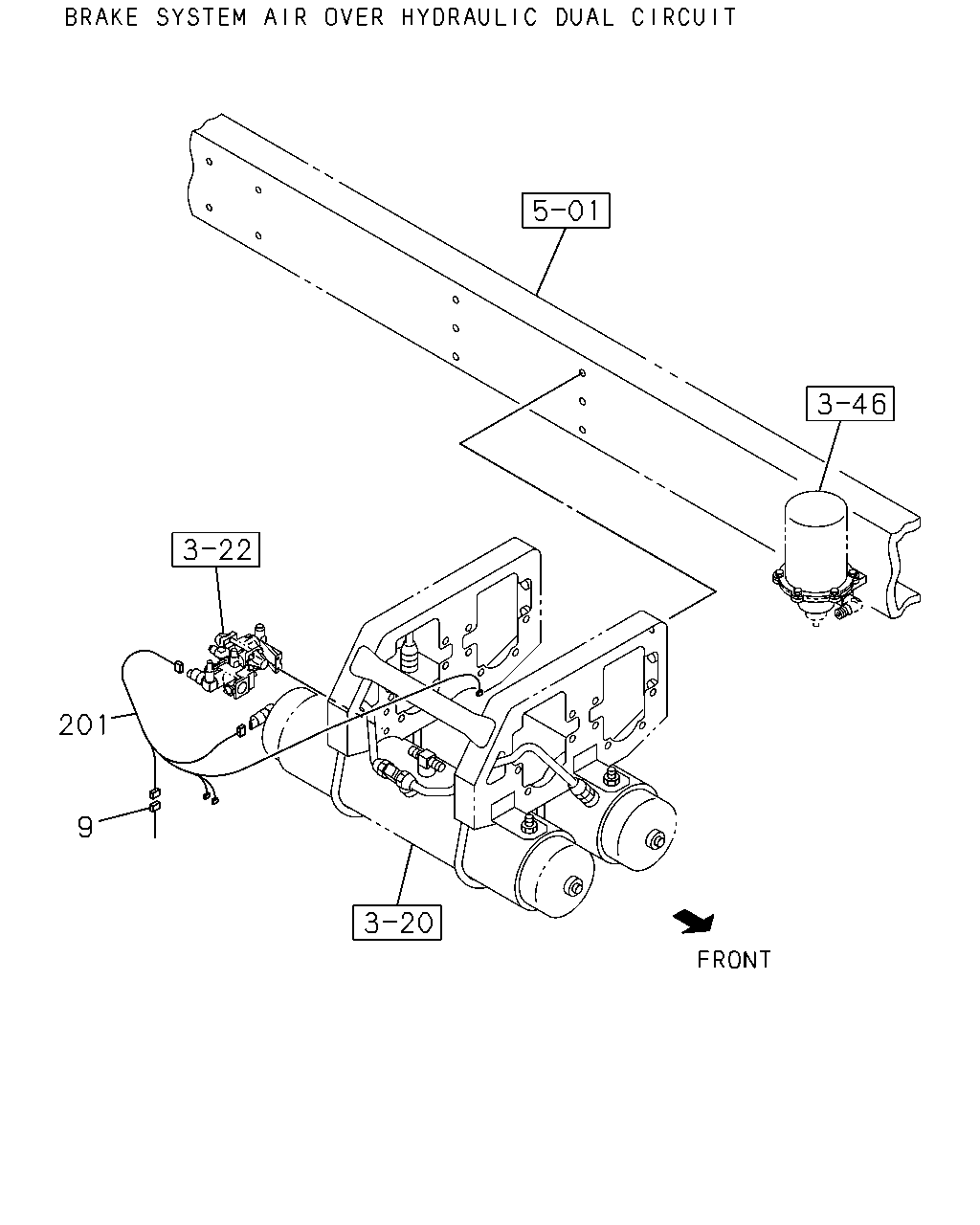

çizim 329848
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-629-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-630-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98186-381-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-631-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-632-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-657-0 01 1 1302-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98178-658-2 01 1 1302-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1302-

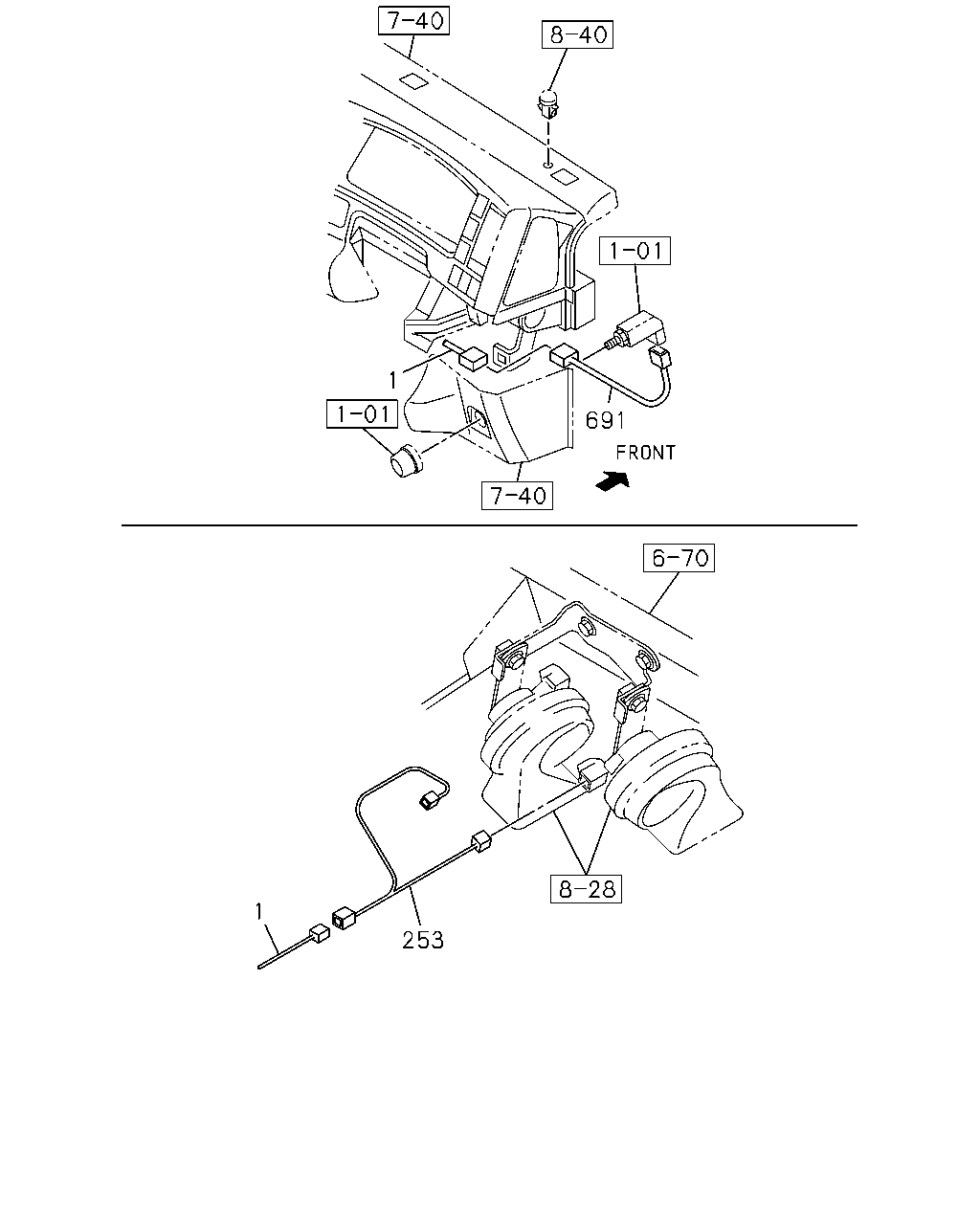

çizim 329856
1 691 253 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98212-254-0 01 1 1302-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1302-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1302-

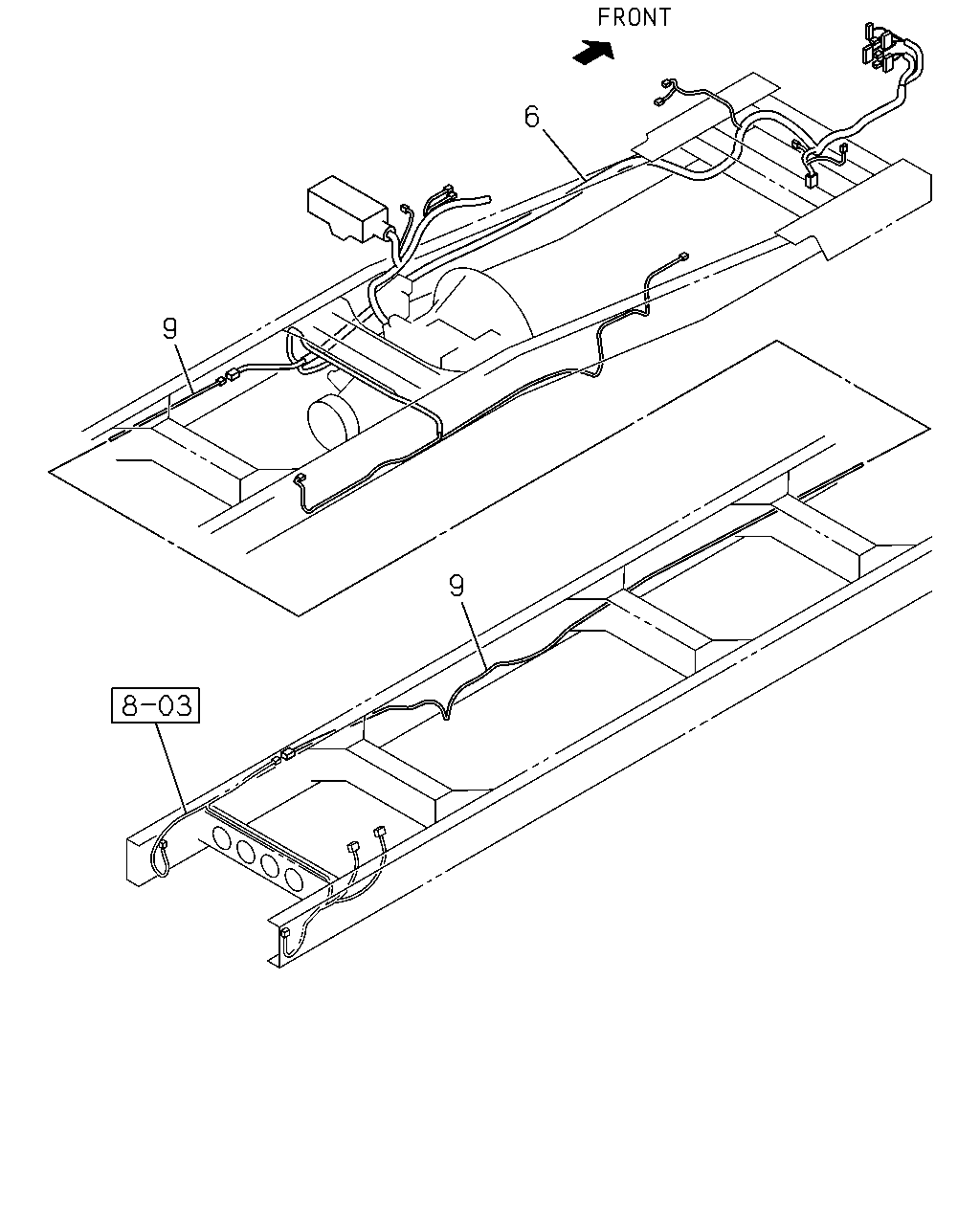

çizim 329862
9 9 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-629-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-630-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98186-381-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-631-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-632-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-657-0 01 1 1302-

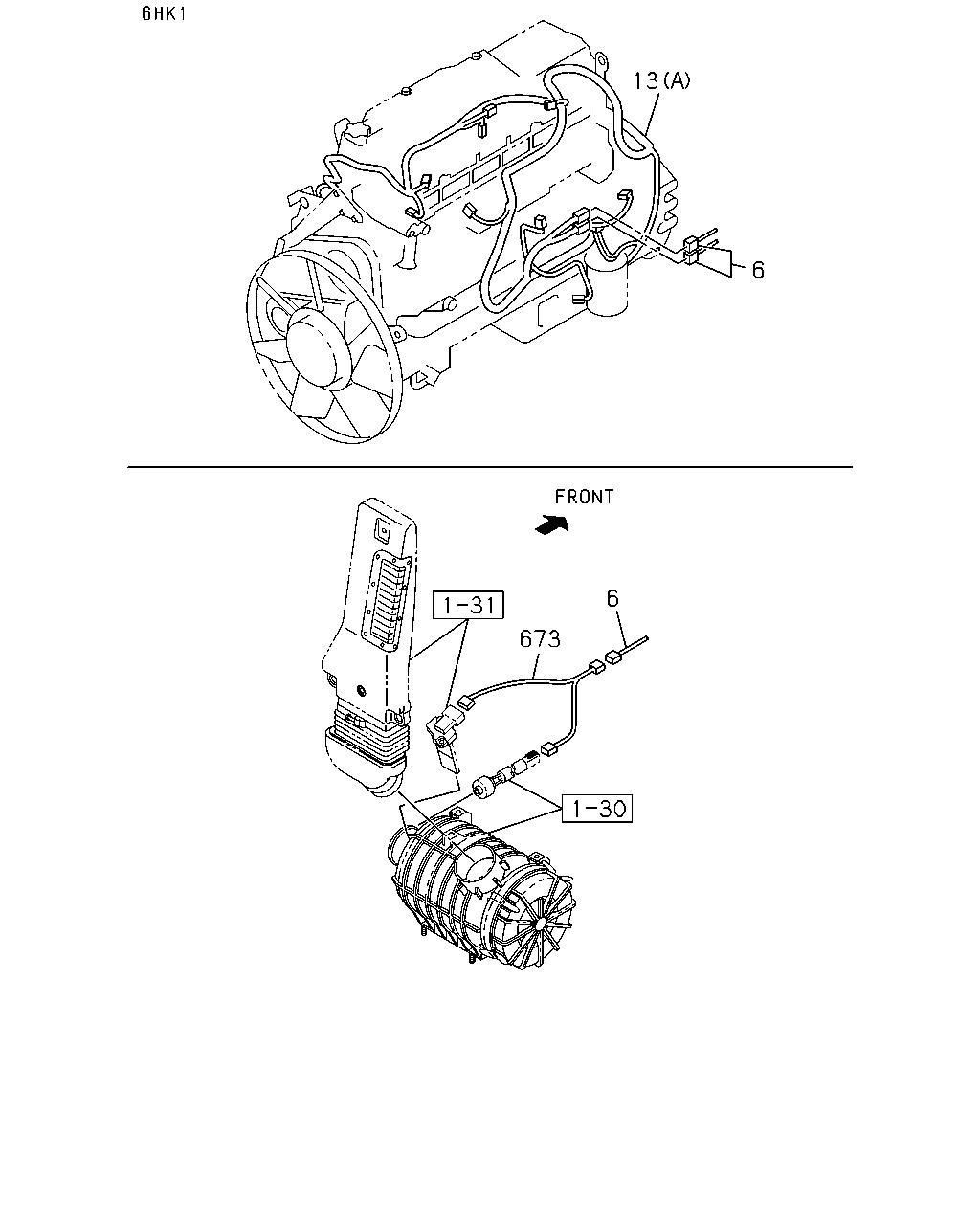

çizim 330185
13 6 6 673
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1305-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98217-444-2 01 1 1305-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98255-599-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98274-079-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A) 		8-98075-774-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A) 		8-98075-775-5 01 1 1302-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1302-

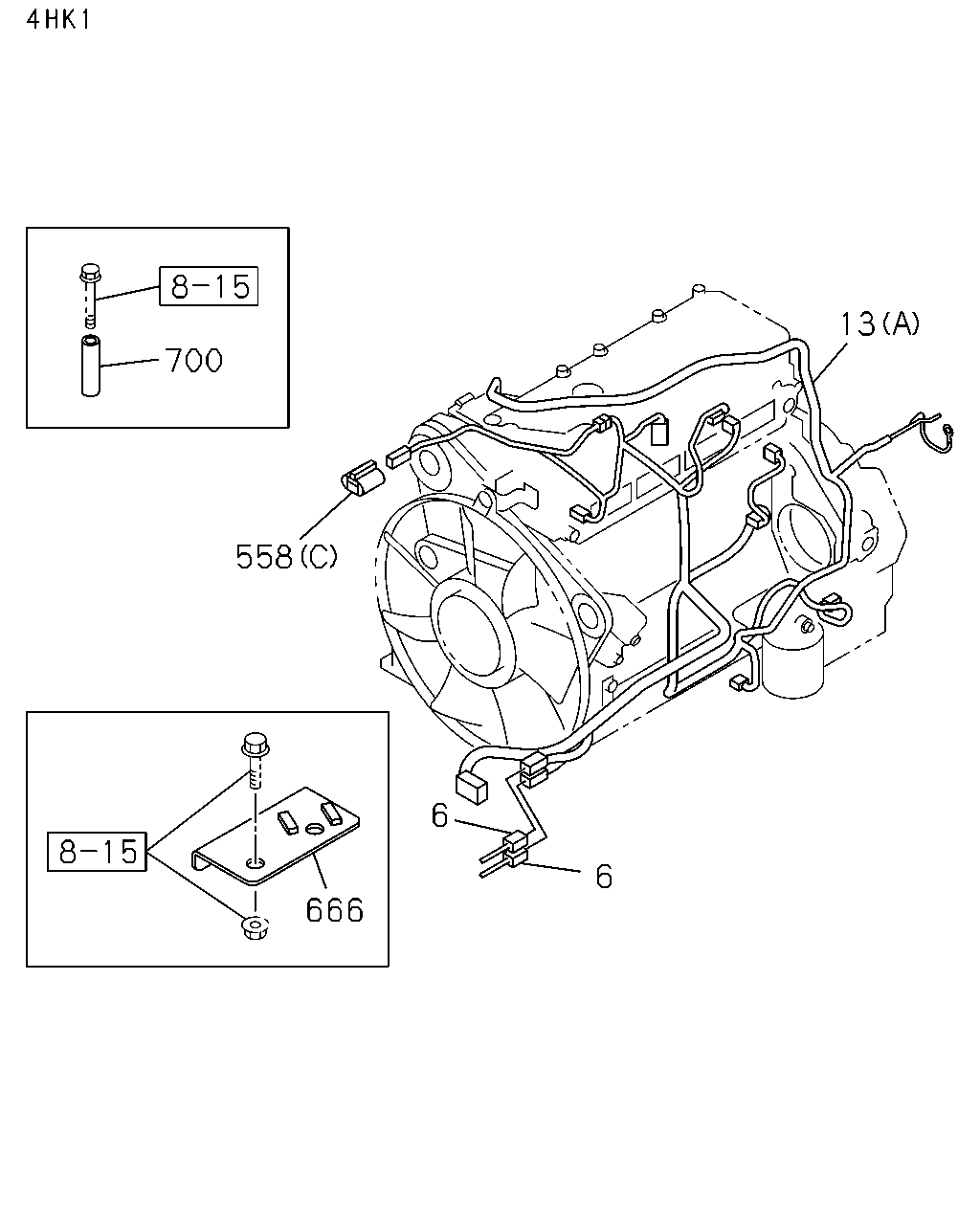

çizim 330237
700 558 666 6 6 13
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1305-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98217-444-2 01 1 1305-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98255-599-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98274-079-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A) 		8-98075-774-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A) 		8-98075-775-5 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1305-
666 BRACKET; CLIP
4HK1-TCS ENG(RJS) 		8-98234-808-0 01 1 1305-
700 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1305-

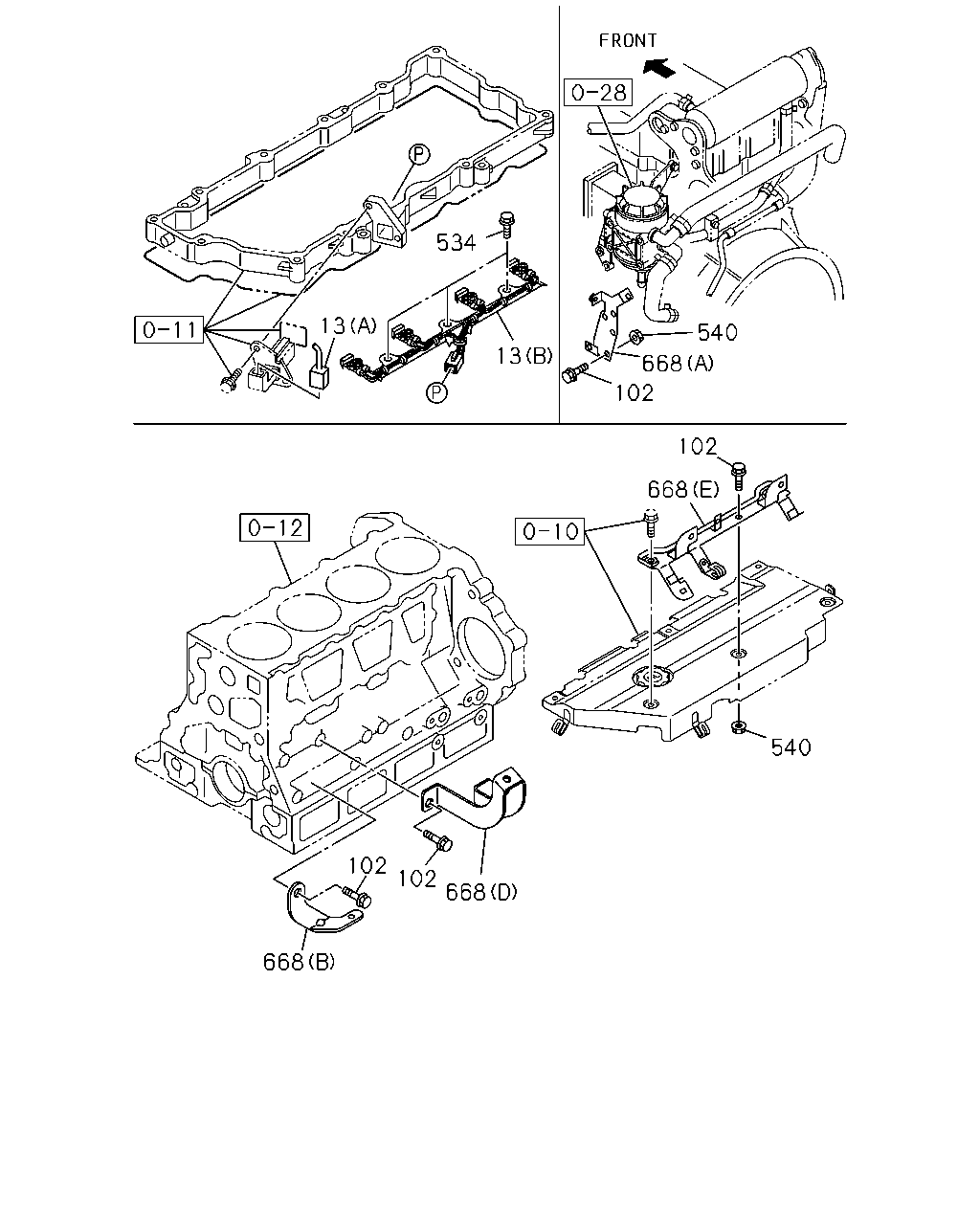

çizim 330276
534 13 13 102 668 540 102 102 668 668 540 668 102
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1305-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98217-444-2 01 1 1305-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98255-599-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98274-079-0 01 1 1406-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A) 		8-98075-774-5 01 1 1302-
13 HARNESS; ENG
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A) 		8-98075-775-5 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 03 1 1305-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1305-
534 BOLT
4HK1-TCS ENG(RJS) M10X55 FLANGE 		8-97365-449-0 03 1 1305-
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) M6 FLANGE 		0-91180-106-0 02 1 1305-1312
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1302-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98009-245-0 01 1 1305-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98011-484-0 01 1 1305-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1305-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98061-805-2 01 1 1305-1312
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98205-089-0 01 1 1401-

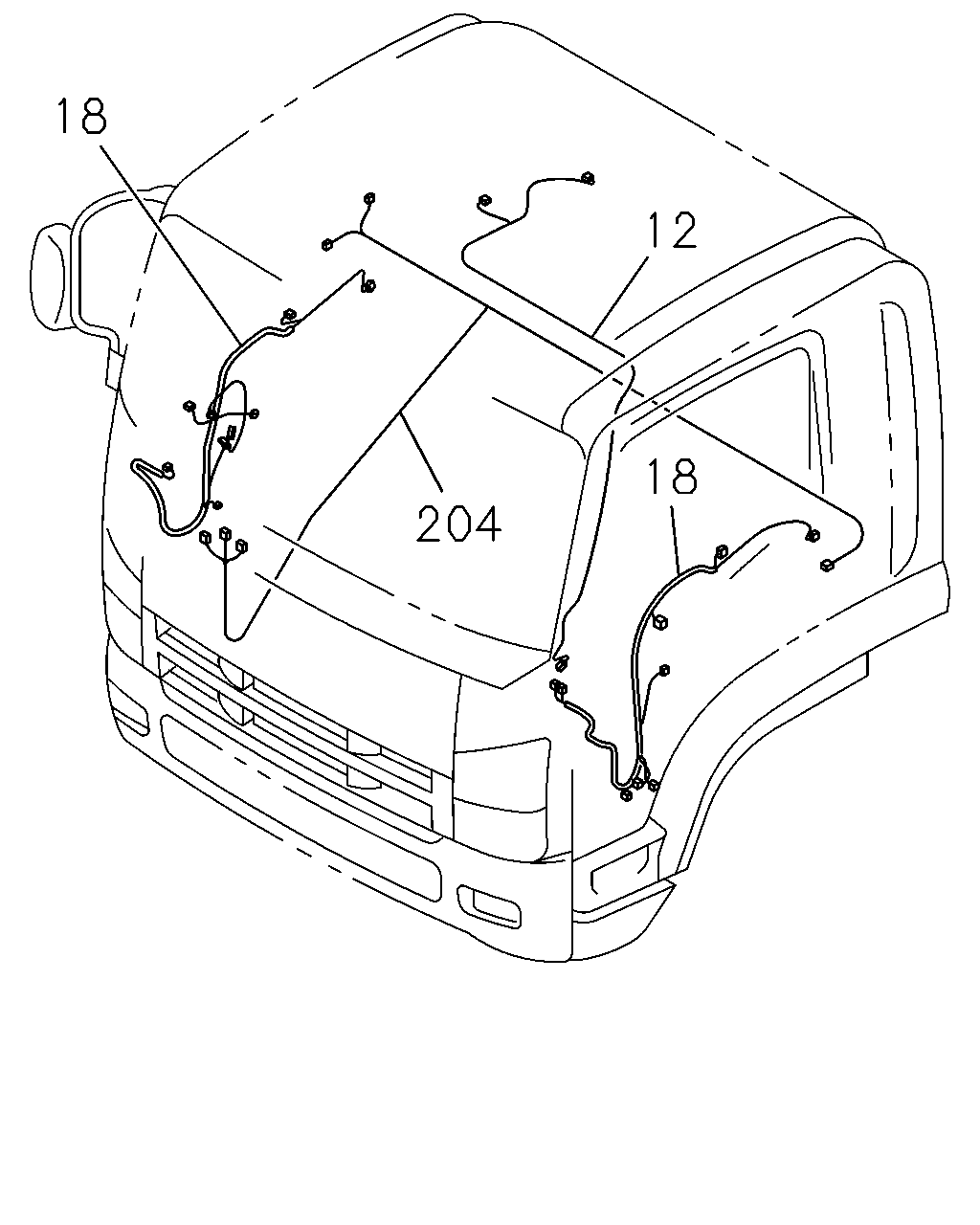

çizim 332417
18 12 204 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1302-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-440-1 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-439-1 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1302-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1302-

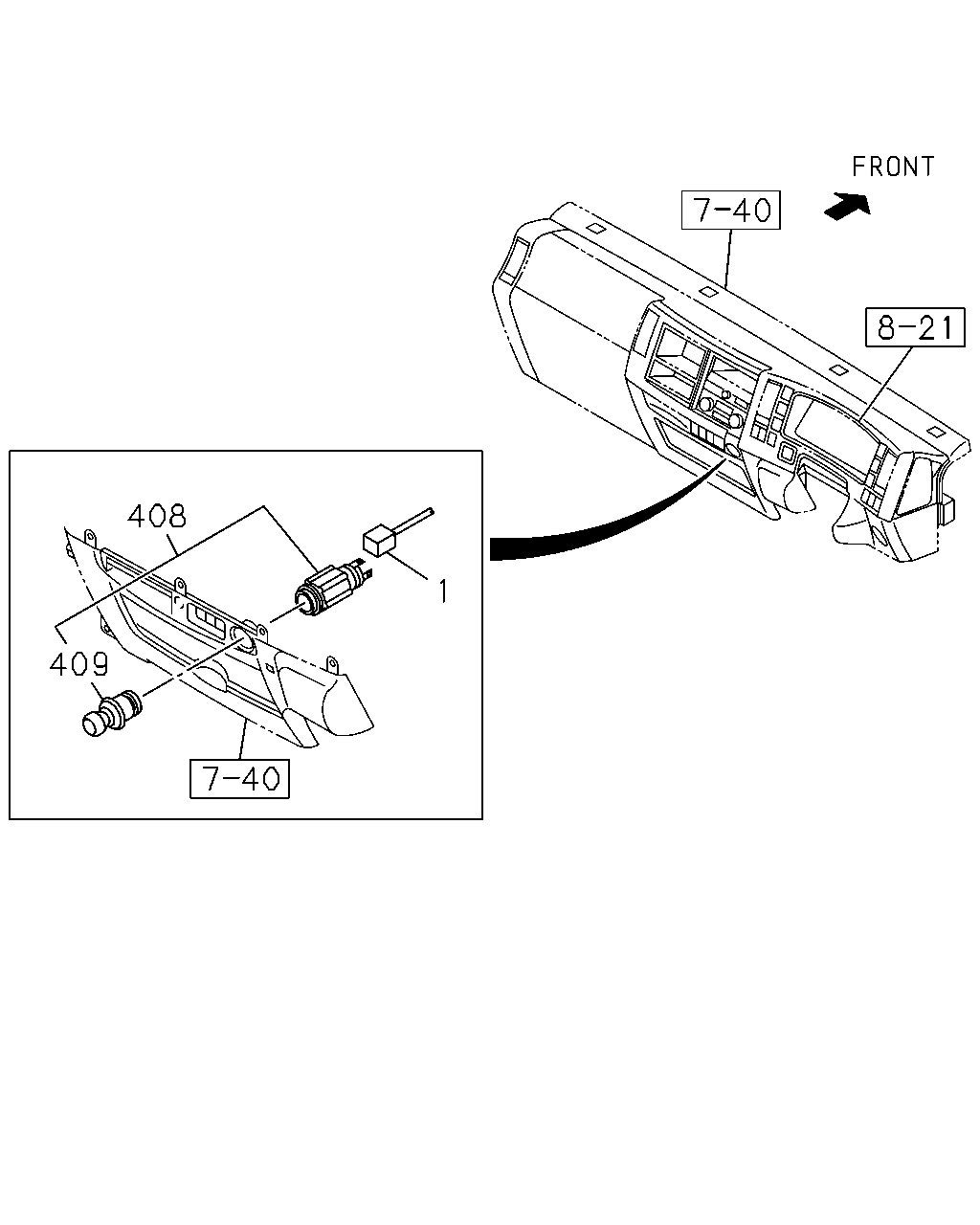

çizim 351599
408 409 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98212-254-0 01 1 1302-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1302-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1302-

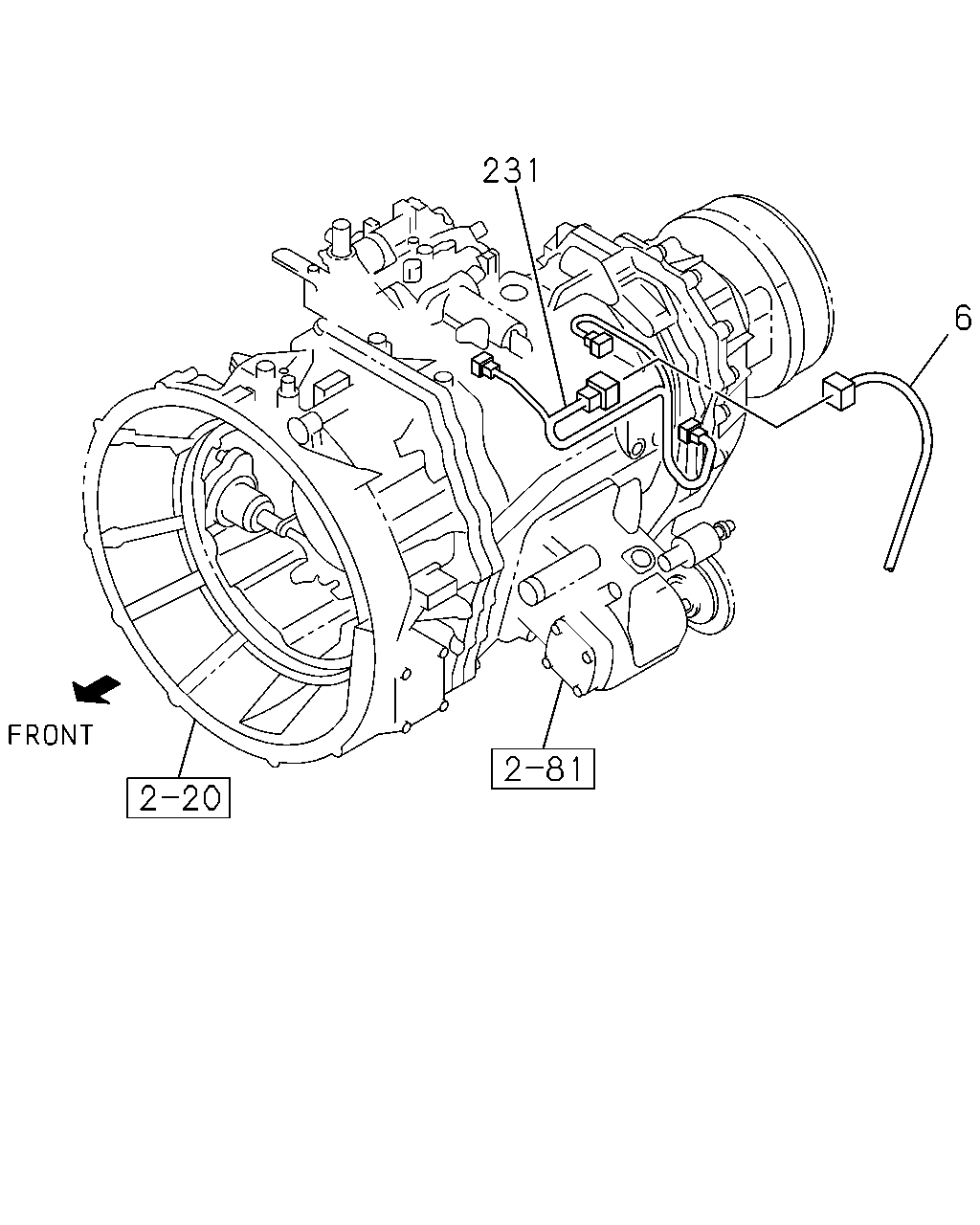

çizim 352608
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98209-434-4 01 1 1305-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-549-1 01 1 1302-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98212-550-0 01 1 1302-
231 HARNESS; TRANS
4HK1-TCS ENG(RJS) 		8-97618-933-2 01 1 1305-
231 HARNESS; TRANS
6HK1-TCN ENG(82L) 		8-97618-932-2 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
