◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11520 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#112848) — 124 parça

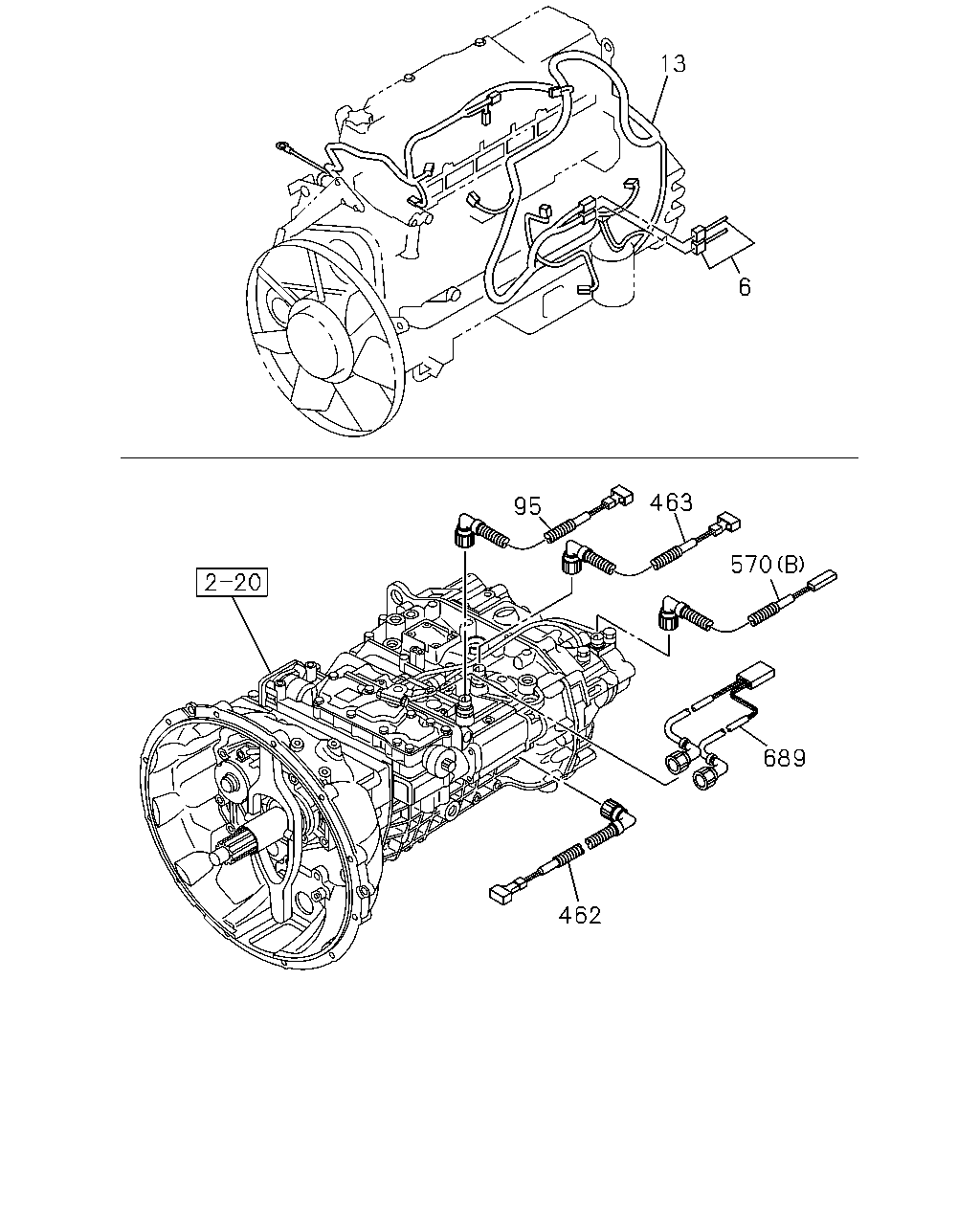

çizim 329780
13 6 95 463 570 689 462
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1302-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1302-
95 HARNESS; NEUTRAL SW
ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-854-0 01 1 1302-
95 HARNESS; NEUTRAL SW
EXC. ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-855-0 01 1 1302-
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1302-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1302-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1302-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1302-
689 HARNESS; PRESSURE & ECU SWITCH
ASSISTOR SHIFT CONTROL<WX8> 		8-98148-603-0 01 1 1302-

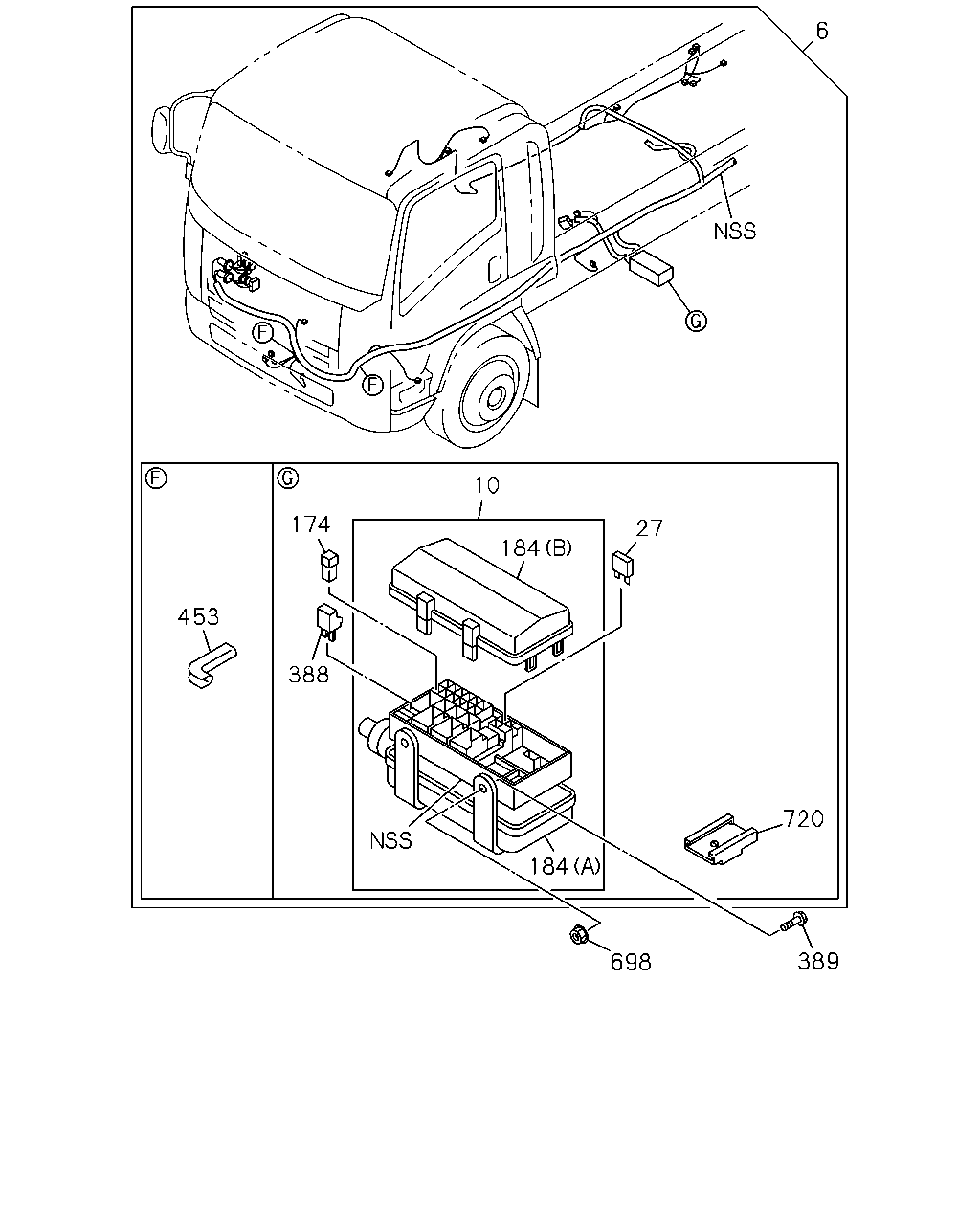

çizim 329788
6 10 27 184 174 453 184 698 389 720 388
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
10 BOX; FUSE,HARNESS
WHEEL BASE 6300MM(63W) 		8-98030-762-0 01 1 1302-
10 BOX; FUSE,HARNESS
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98030-762-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 6300MM(63W) 10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 6300MM(63W) 15A BLUE 		8-98054-258-0 02 1 1302-
27 FUSE UNIT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 15A BLUE 		8-98054-258-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 6300MM(63W) 60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 6300MM(63W) 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 6300MM(63W) 30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 6300MM(63W) 40A GREEN 		8-98079-192-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 40A GREEN 		8-98079-192-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 6300MM(63W) 50A RED 		8-98079-193-0 03 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 50A RED 		8-98079-193-0 03 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 6300MM(63W) (A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 6300MM(63W) (B) 		8-98030-767-1 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (B) 		8-98030-767-1 01 1 1302-
388 DIODE; RELAY BOX
WHEEL BASE 6300MM(63W) BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-
388 DIODE; RELAY BOX
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
453 PROTECTOR; HARNESS
WHEEL BASE 6300MM(63W) 		1-82699-709-0 01 1 1302-
453 PROTECTOR; HARNESS
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		1-82699-709-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-
720 ATTACHMENT; CONNECTOR
WHEEL BASE 6300MM(63W) 		1-82699-688-0 03 1 1302-
720 ATTACHMENT; CONNECTOR
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		1-82699-688-0 03 1 1302-

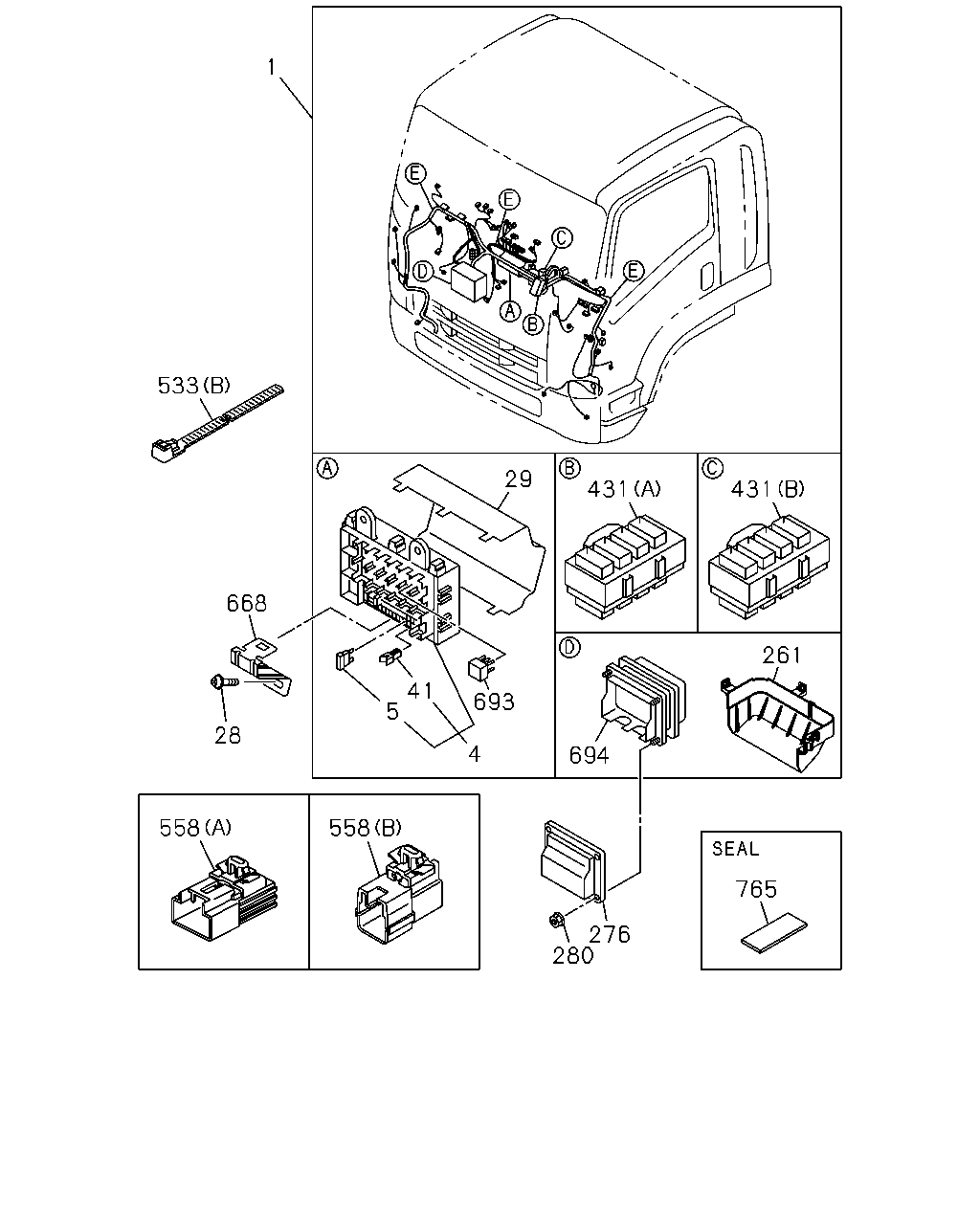

çizim 329808
1 533 668 28 558 558 5 41 693 29 431 431 261 765 694 280 276 4
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 25A WHITE 		8-98062-982-0 AR 1 1302-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> 		8-98056-968-0 01 1 1302-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> 		8-98054-260-0 01 1 1302-
261 COVER; CONNECTOR BOX
HALOGEN HEADLAMPS<TT5> 		8-98065-986-1 01 1 1302-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1302-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 1302-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (B) L=100 		5-09707-036-1 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> 		8-98057-771-0 01 1 1302-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

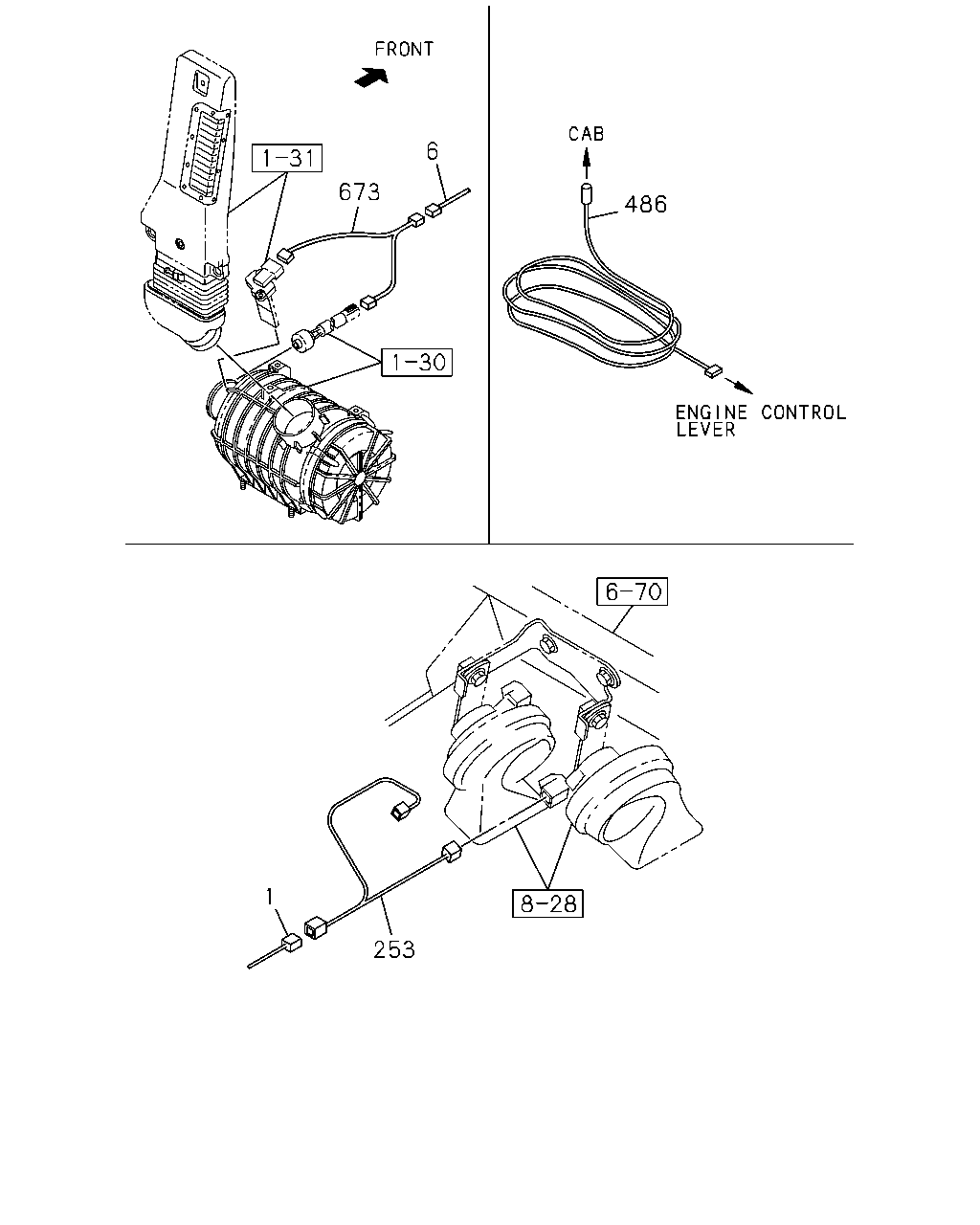

çizim 329855
486 6 673 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1302-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1302-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1302-

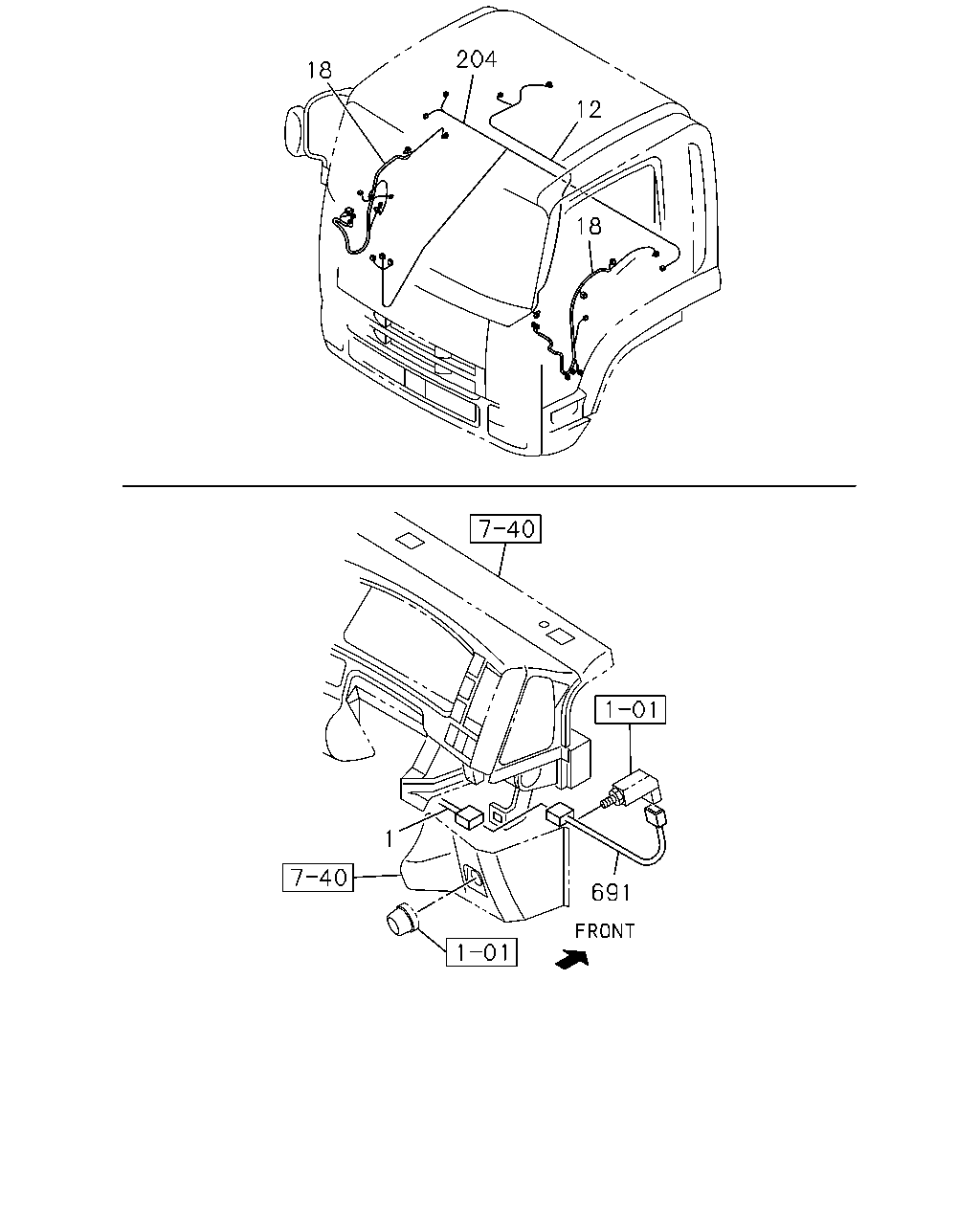

çizim 329866
18 204 18 691 1 12
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1302-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-440-1 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-439-1 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1302-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1302-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1302-

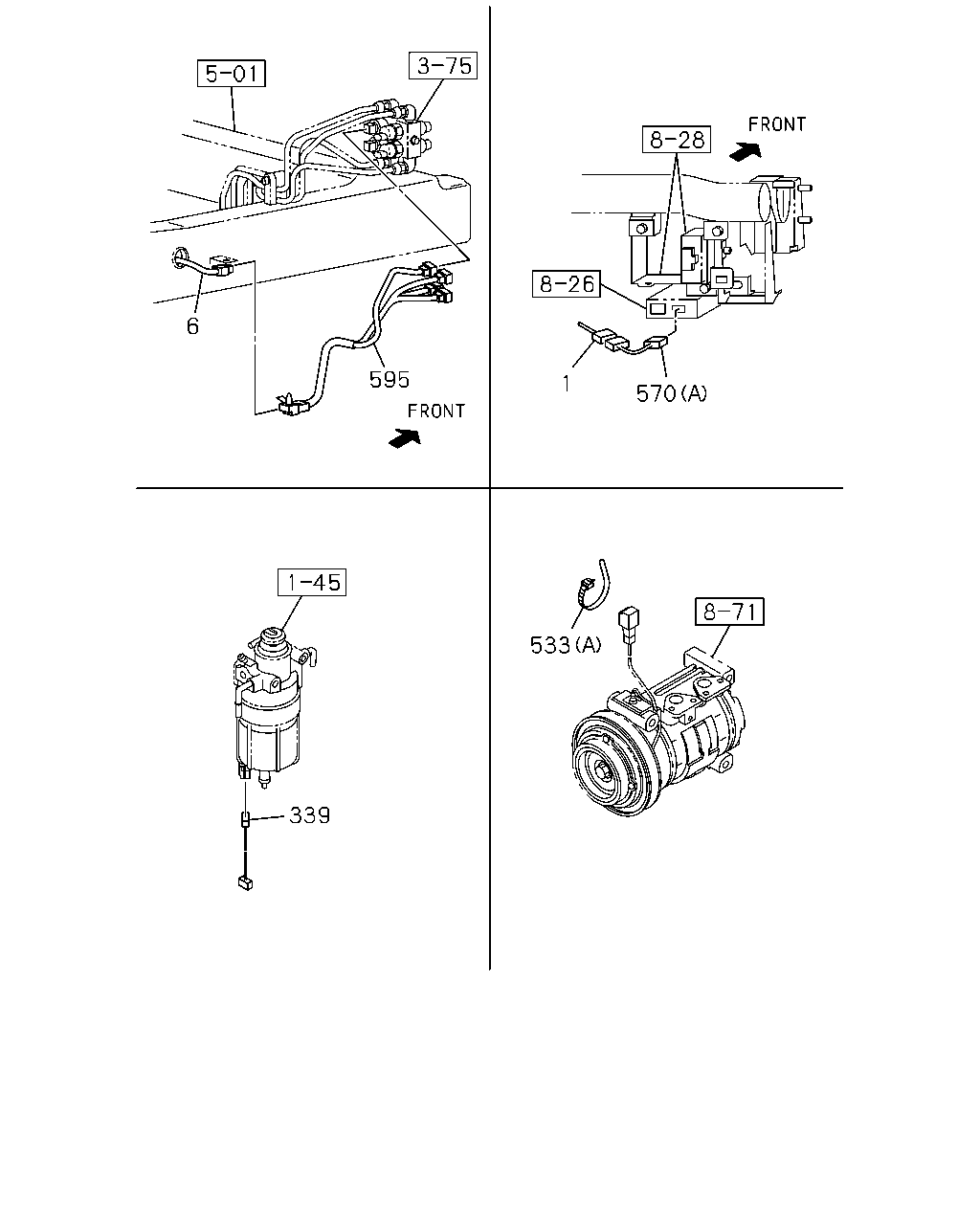

çizim 329882
595 6 570 1 339 533
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
339 HARNESS; EXT,FUEL
WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> 		8-98227-392-1 01 1 1302-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (B) L=100 		5-09707-036-1 01 1 1302-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1302-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1302-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1302-

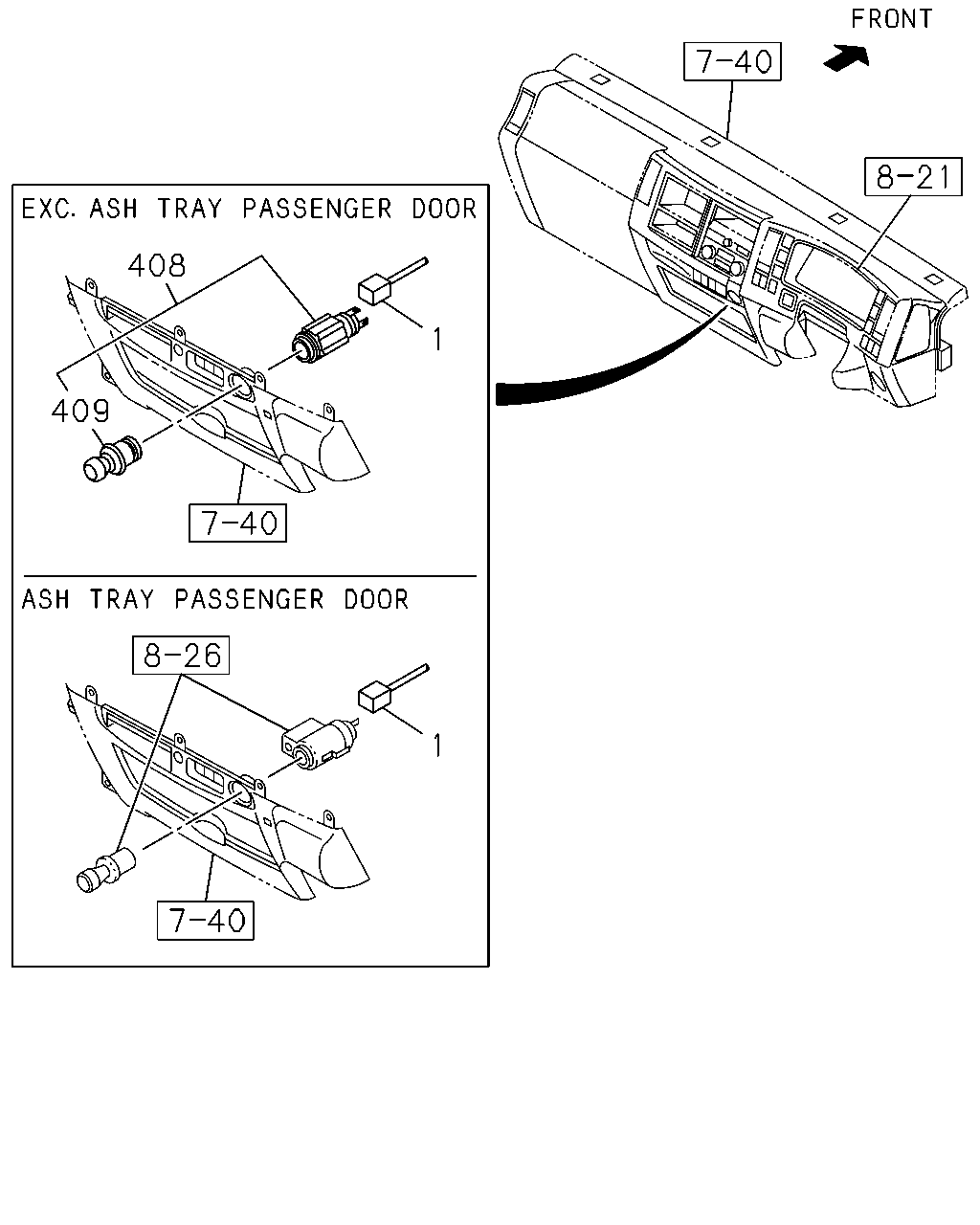

çizim 330106
408 409 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1302-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1302-

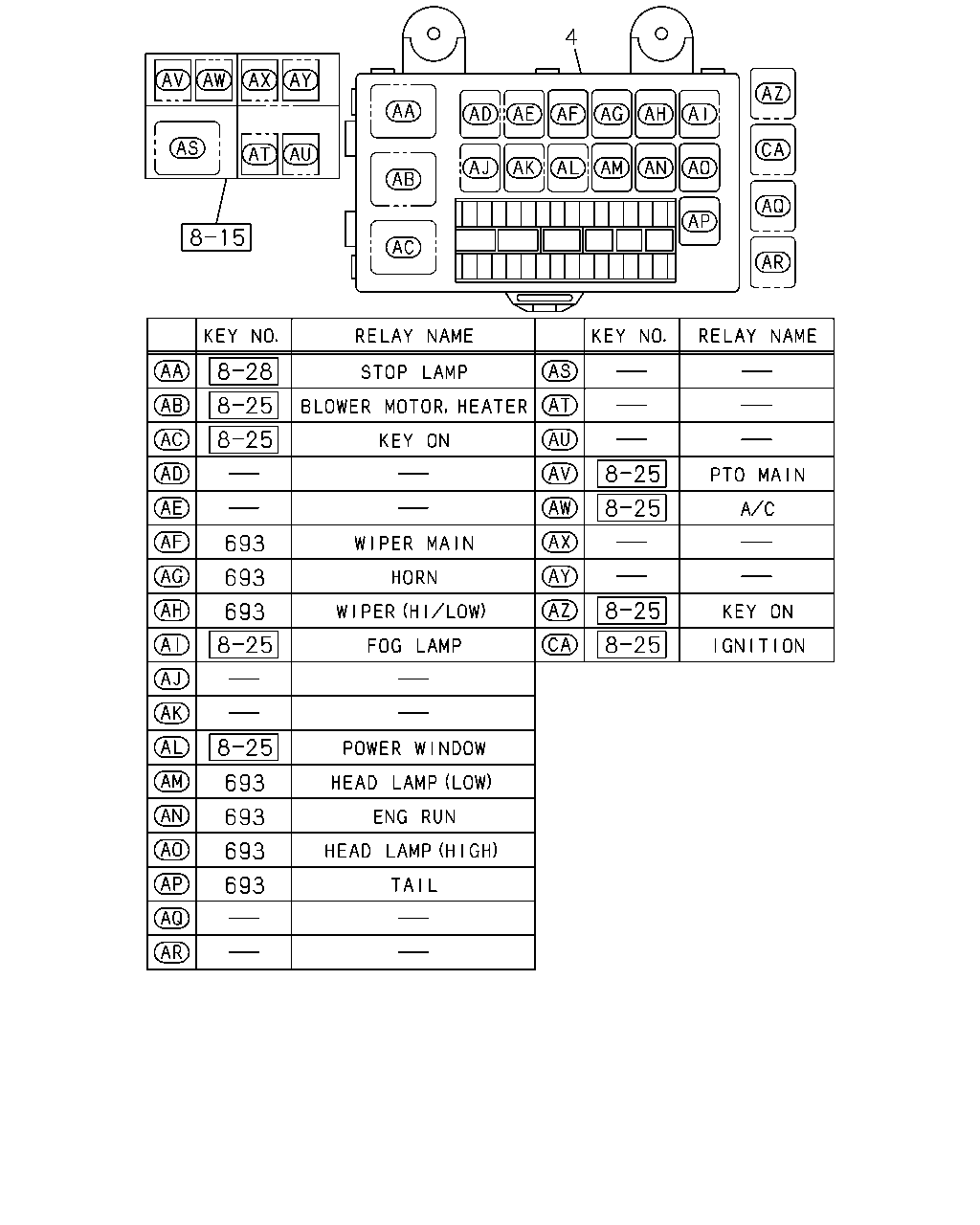

çizim 330205
693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
çizim 332375
2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-255-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-254-0 01 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (A) BLACK 10P 		1-82699-703-0 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1302-

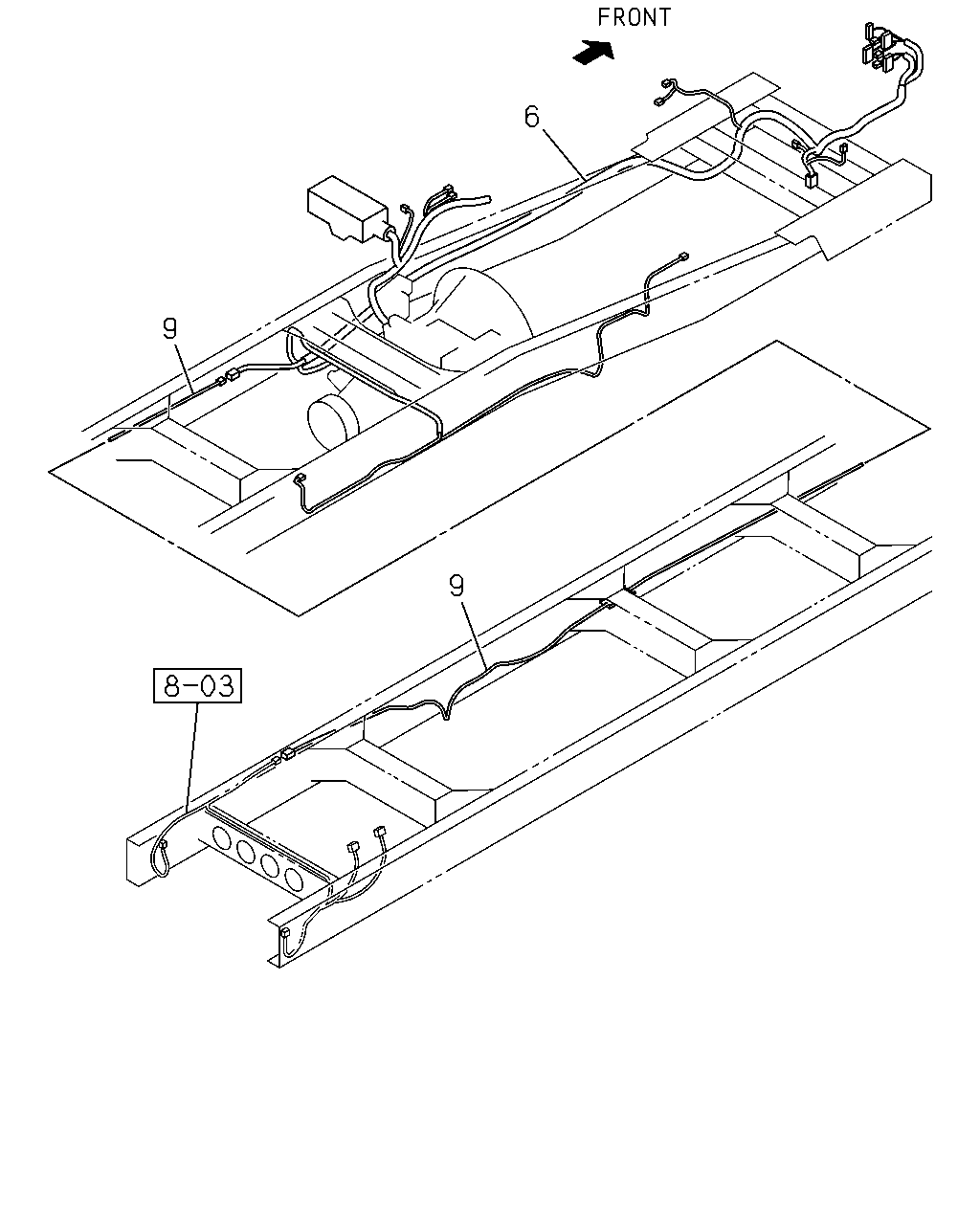

çizim 332407
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-622-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) 		8-98168-625-0 01 1 1302-
çizim 332422
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-556-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-554-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) ASSISTOR SHIFT CONTROL<WX8> 		8-98212-555-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-553-0 01 1 1302-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1302-1511
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1512-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1512-
