Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#112844) — 296 parça

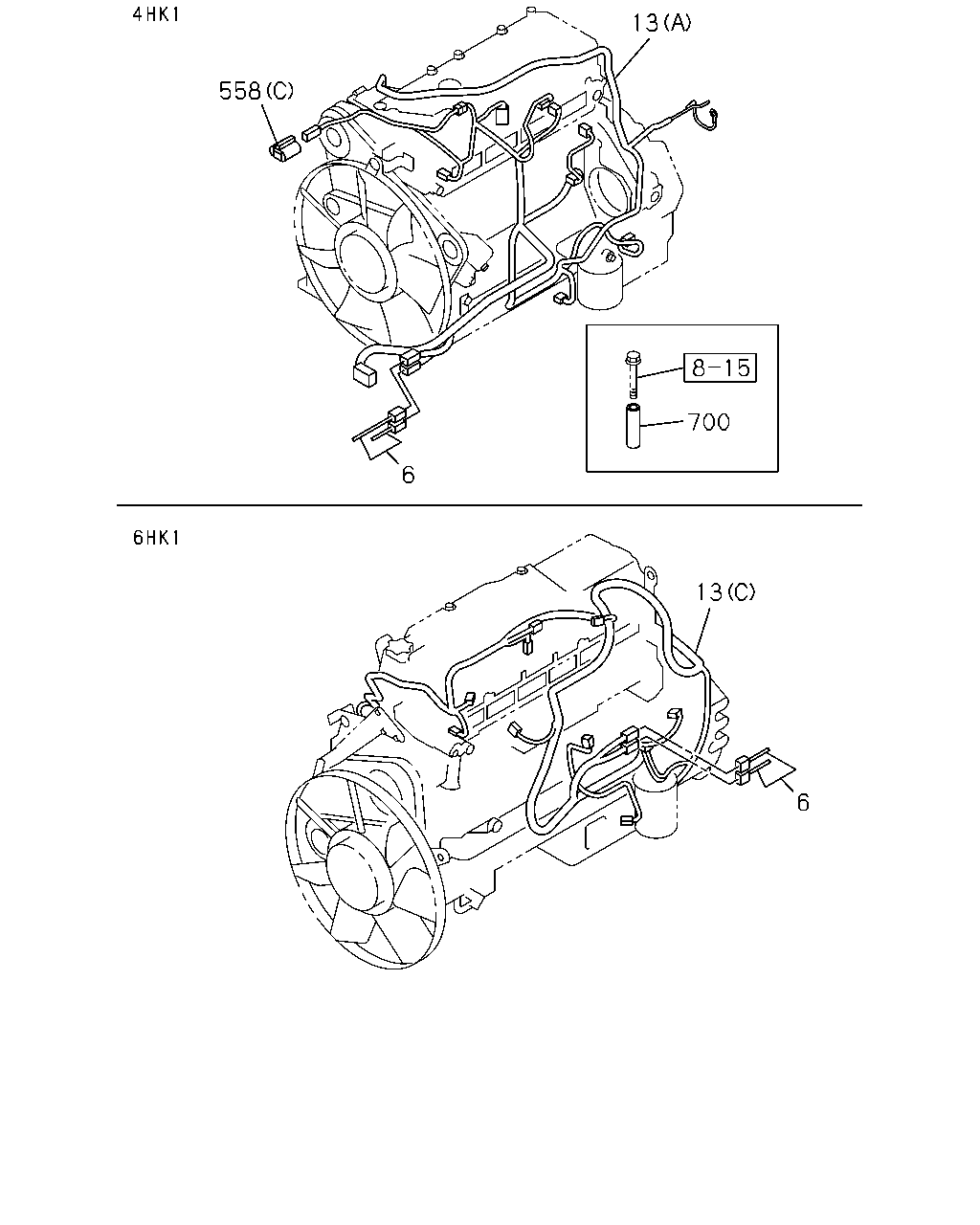

558 13 6 700 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98171-998-3	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98255-581-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98274-028-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98209-311-2	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98255-597-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98274-077-0	01	1	1406-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (C)	8-98075-770-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C)	8-98177-206-0	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (C)	8-98075-771-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (C)	8-98177-207-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
700	TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1302-

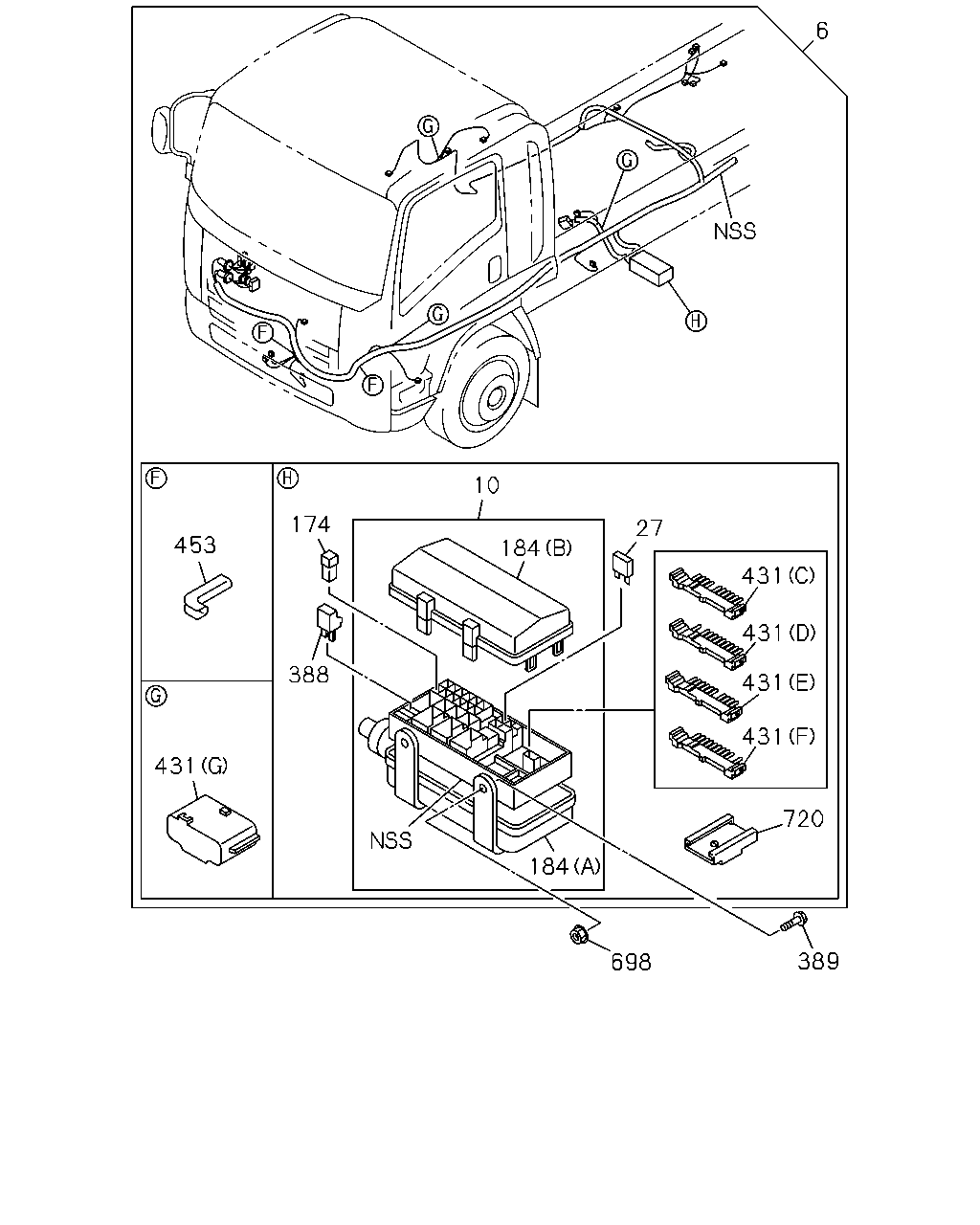

6 10 453 431 388 174 184 27 431 431 431 431 720 389 698 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
10	BOX; FUSE,HARNESS 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98030-762-0	01	1	1302-
10	BOX; FUSE,HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2>	8-98030-762-0	01	1	1302-
27	FUSE UNIT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 10A RED	8-98054-257-0	01	1	1302-
27	FUSE UNIT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> 10A RED	8-98054-257-0	01	1	1302-
27	FUSE UNIT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	02	1	1302-
27	FUSE UNIT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> 15A BLUE	8-98054-258-0	02	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	02	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	02	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 60A YELLOW 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	1302-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 50A RED	8-98079-193-0	03	1	1302-
174	FUSE; SLOW BLOW WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> 50A RED	8-98079-193-0	03	1	1302-
184	COVER; RELAY & FUSE BOX 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98030-766-0	01	1	1302-
184	COVER; RELAY & FUSE BOX WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (A)	8-98030-766-0	01	1	1302-
184	COVER; RELAY & FUSE BOX 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98030-767-0	01	1	1302-
184	COVER; RELAY & FUSE BOX WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (B)	8-98030-767-0	01	1	1302-
388	DIODE; RELAY BOX 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BLACK 2P-1.5A	8-94422-639-1	01	1	1302-
388	DIODE; RELAY BOX WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> BLACK 2P-1.5A	8-94422-639-1	01	1	1302-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 10P GREEN	1-82698-579-0	02	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 10P BLUE	1-82699-598-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 10P GREEN	1-82699-599-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 10P BROWN	1-82699-601-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 6P BLACK	8-97616-194-0	02	1	1302-
453	PROTECTOR; HARNESS 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82699-709-0	02	1	1302-
453	PROTECTOR; HARNESS WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2>	1-82699-709-0	02	1	1302-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1302-
720	ATTACHMENT; CONNECTOR 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82699-688-0	03	1	1302-
720	ATTACHMENT; CONNECTOR WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2>	1-82699-688-0	03	1	1302-

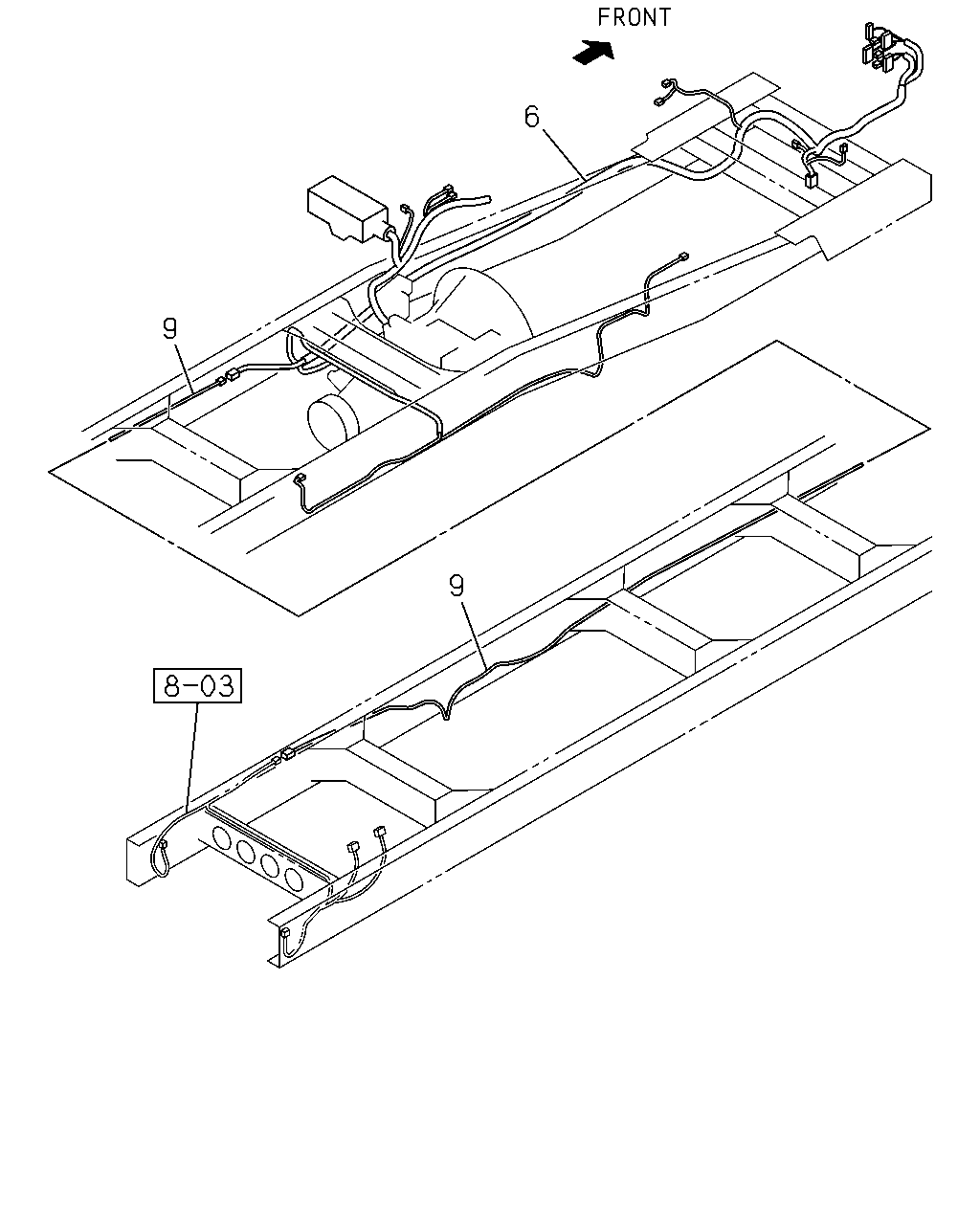

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
9	HARNESS; FRAME,RR 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-580-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-580-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-584-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-719-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-582-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-720-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98212-040-0	01	1	1302-
9	HARNESS; FRAME,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-718-0	01	1	1302-

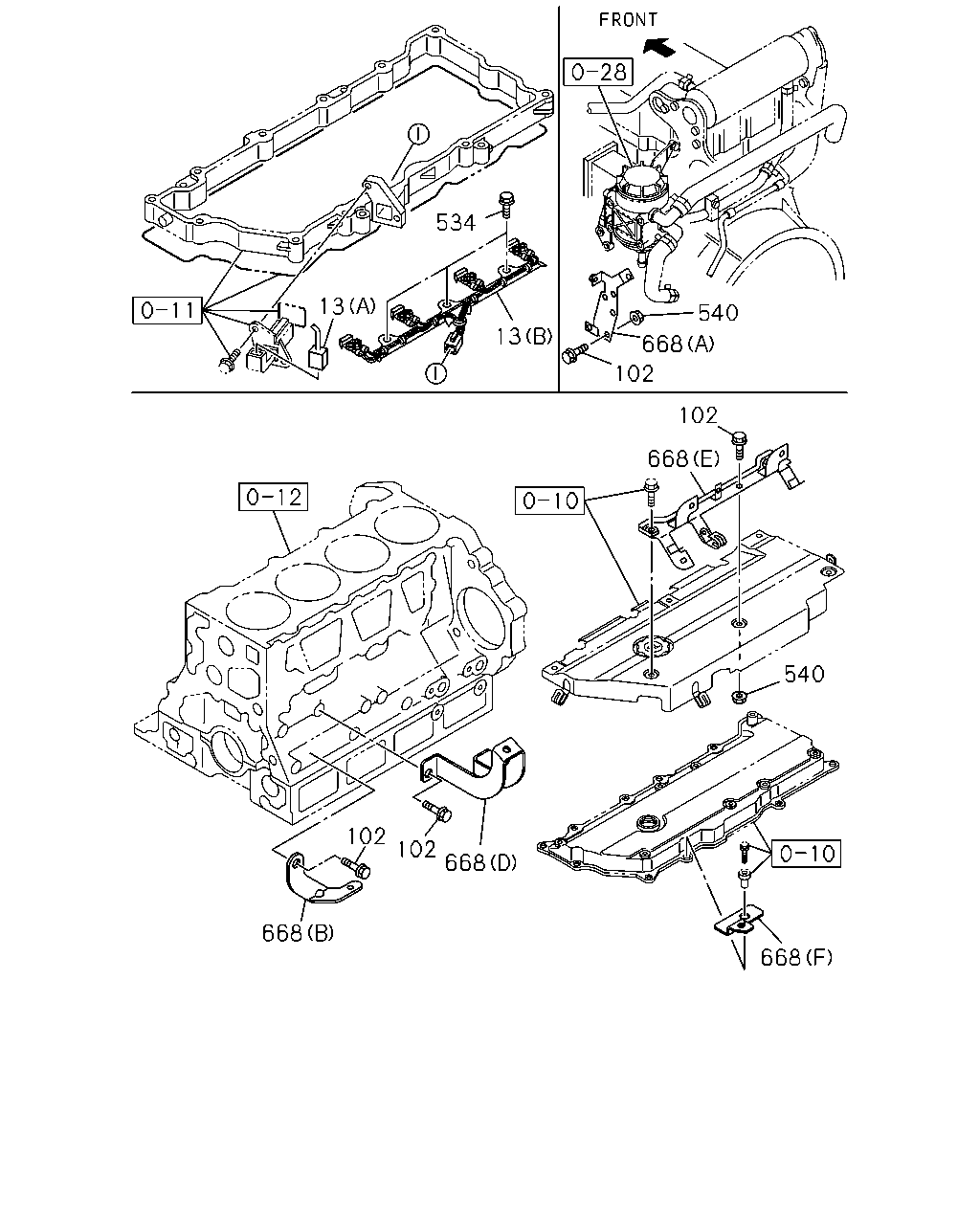

668 540 668 102 102 668 668 13 534 13 668 102 540 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1302-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98171-998-3	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98255-581-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98274-028-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98209-311-2	01	1	1302-1312
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98255-597-0	01	1	1401-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98274-077-0	01	1	1406-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (C)	8-98075-770-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C)	8-98177-206-0	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (C)	8-98075-771-5	01	1	1302-
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (C)	8-98177-207-0	01	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	03	1	1302-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1302-
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	03	1	1302-
540	NUT; BRKT FIX 4HK1-TCS ENG(RJS) M6 FLANGE	0-91180-106-0	02	1	1302-1312
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98011-484-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98205-089-0	01	1	1401-

1 2 431 431 431 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98212-160-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-157-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-159-0	01	1	1302-
2	DIODE; CABLE HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) BLACK 10P	1-82699-703-0	AR	1	1302-
2	DIODE; CABLE HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) BLACK 10P	1-82699-703-0	AR	1	1302-
2	DIODE; CABLE HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1302-
2	DIODE; CABLE HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 10P GREEN	1-82698-579-0	02	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 10P BLUE	1-82699-598-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 10P GREEN	1-82699-599-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 10P BROWN	1-82699-601-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 6P BLACK	8-97616-194-0	02	1	1302-

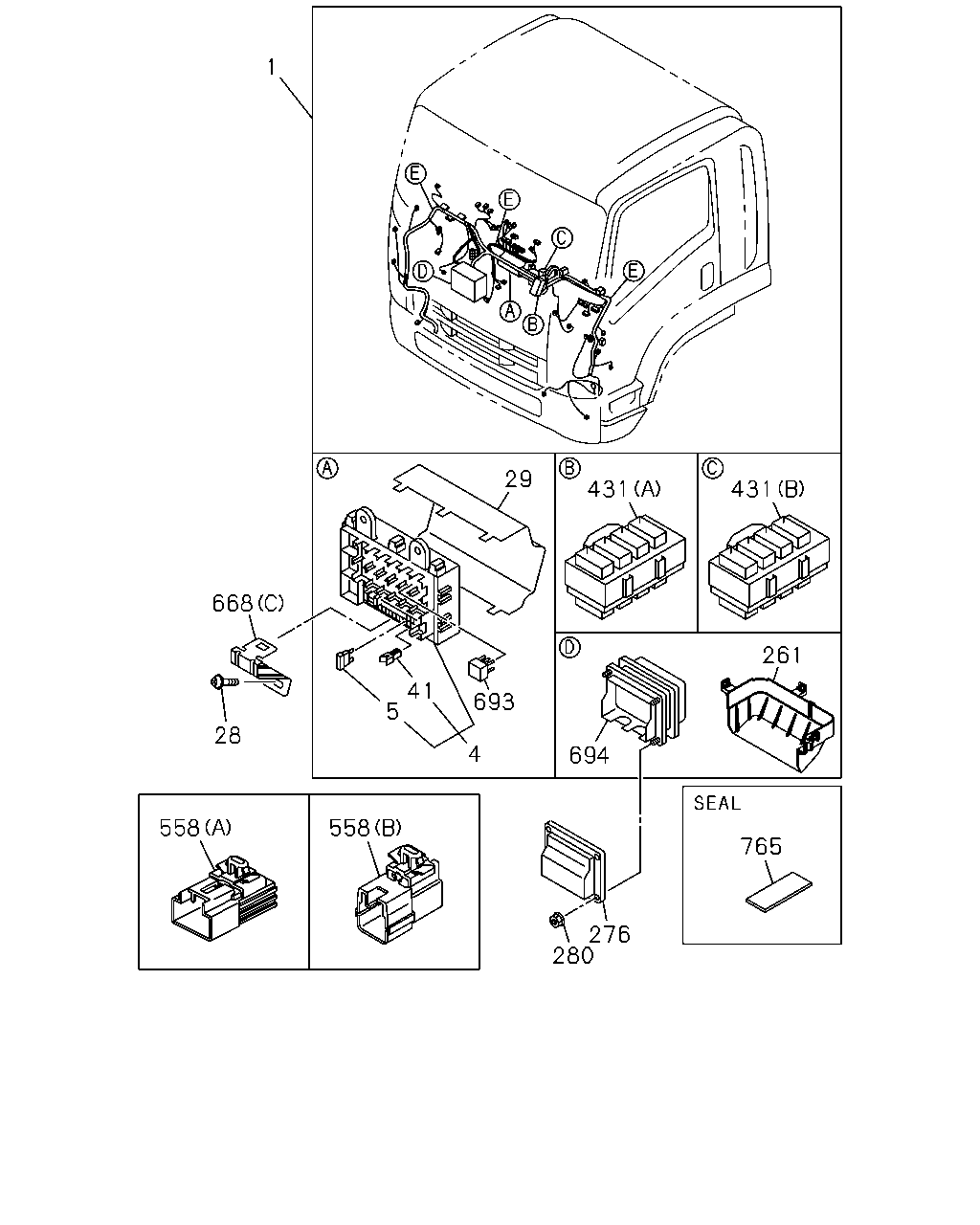

668 29 693 41 4 5 431 694 431 261 765 276 280 558 558 28 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98212-160-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-157-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-159-0	01	1	1302-
4	BOX ASM; FUSE,HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98065-666-0	01	1	1302-
4	BOX ASM; FUSE,HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98065-666-0	01	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 10A RED	8-98054-257-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 10A RED	8-98054-257-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 15A BLUE	8-98054-258-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 15A BLUE	8-98054-258-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 20A YELLOW	8-98054-259-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 20A YELLOW	8-98054-259-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 25A WHITE	8-98062-982-0	AR	1	1302-
5	FUSE; FACIA HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 25A WHITE	8-98062-982-0	AR	1	1302-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1302-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE	0-28650-616-0	01	1	1302-
29	COVER; FUSE BOX HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98056-968-0	01	1	1302-
29	COVER; FUSE BOX HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98056-968-0	01	1	1302-
41	PULLER; FUSE HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98054-260-0	01	1	1302-
41	PULLER; FUSE HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98054-260-0	01	1	1302-
261	COVER; CONNECTOR BOX HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98065-986-1	01	1	1302-
261	COVER; CONNECTOR BOX HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98065-986-1	01	1	1302-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1302-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE	8-98056-375-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 10P GREEN	1-82698-579-0	02	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 10P BLUE	1-82699-598-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 10P GREEN	1-82699-599-0	04	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 10P BROWN	1-82699-601-0	01	1	1302-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) 6P BLACK	8-97616-194-0	02	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1302-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98009-245-0	01	1	1302-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98011-484-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1302-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98061-805-2	01	1	1302-1312
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98205-089-0	01	1	1401-
693	RELAY; FUSE BOX HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
693	RELAY; FUSE BOX HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
694	BOX ASM; CONNECTOR HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98057-771-0	01	1	1302-
694	BOX ASM; CONNECTOR HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98057-771-0	01	1	1302-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

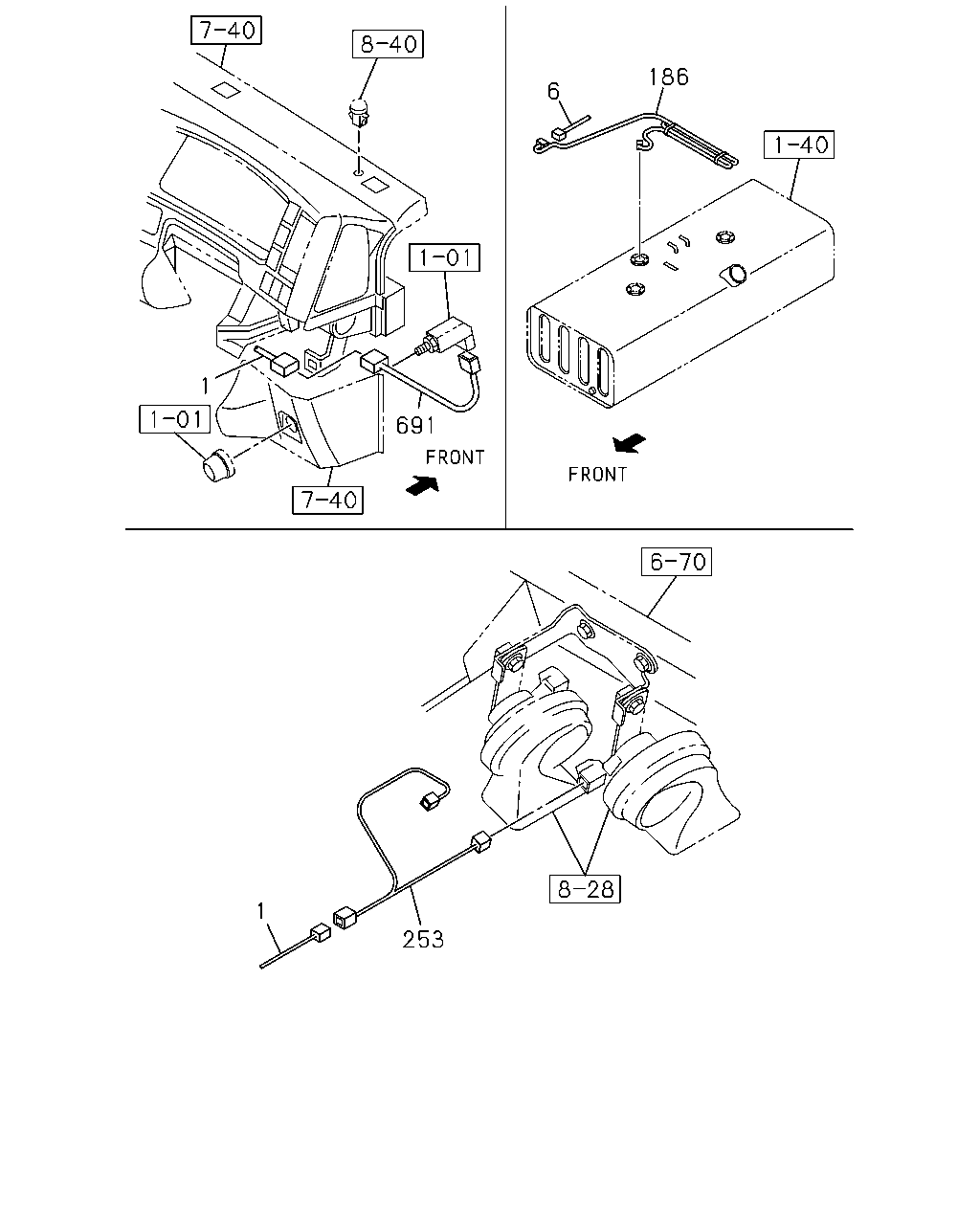

1 691 6 186 253 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98212-160-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-157-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-159-0	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
186	HARNESS; FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-079-0	01	1	1302-
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1302-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1302-

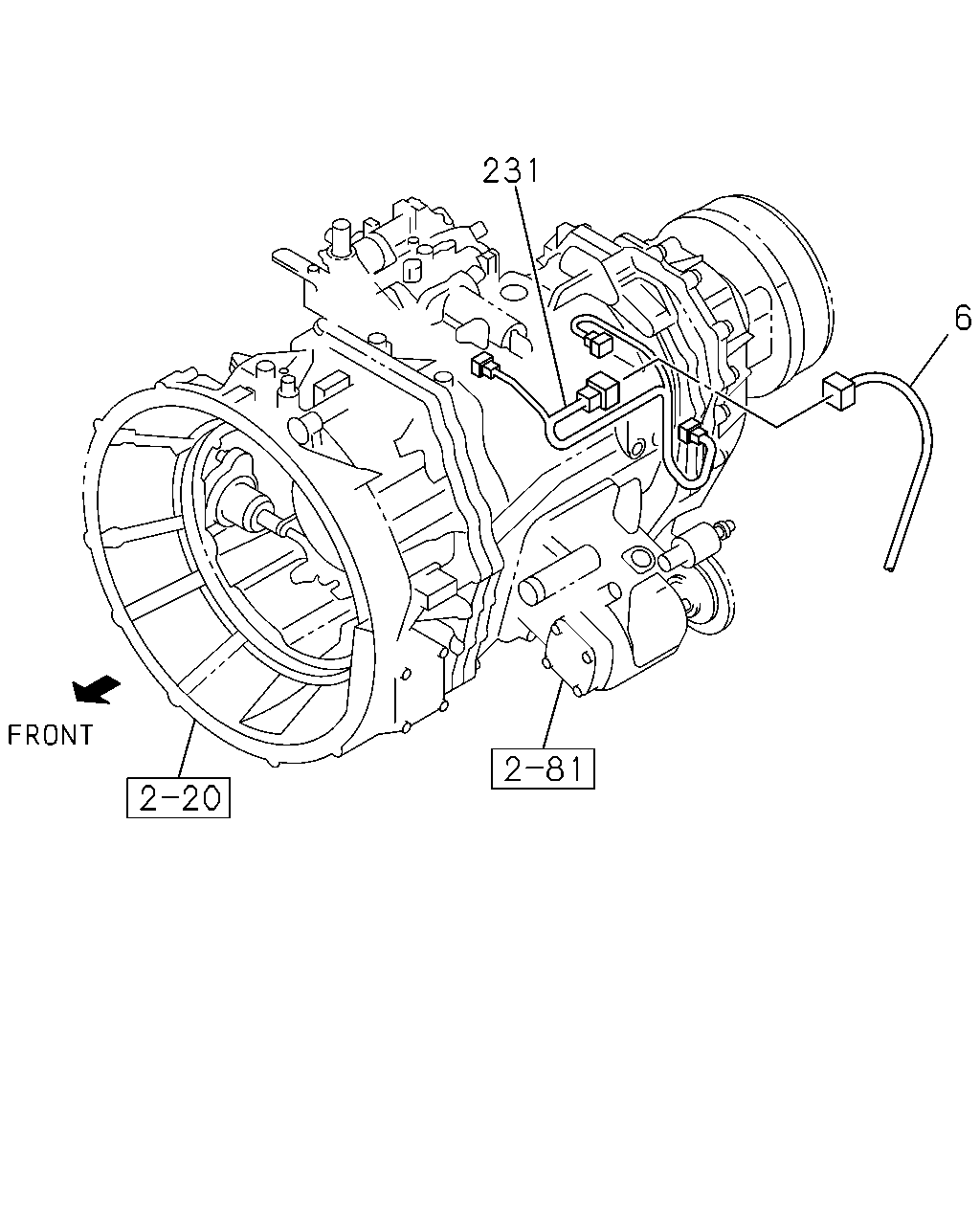

6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
231	HARNESS; TRANS 4HK1-TCS ENG(RJS)	8-97618-933-2	01	1	1302-
231	HARNESS; TRANS 6HK1-TCN ENG(82L)	8-97618-932-2	01	1	1302-

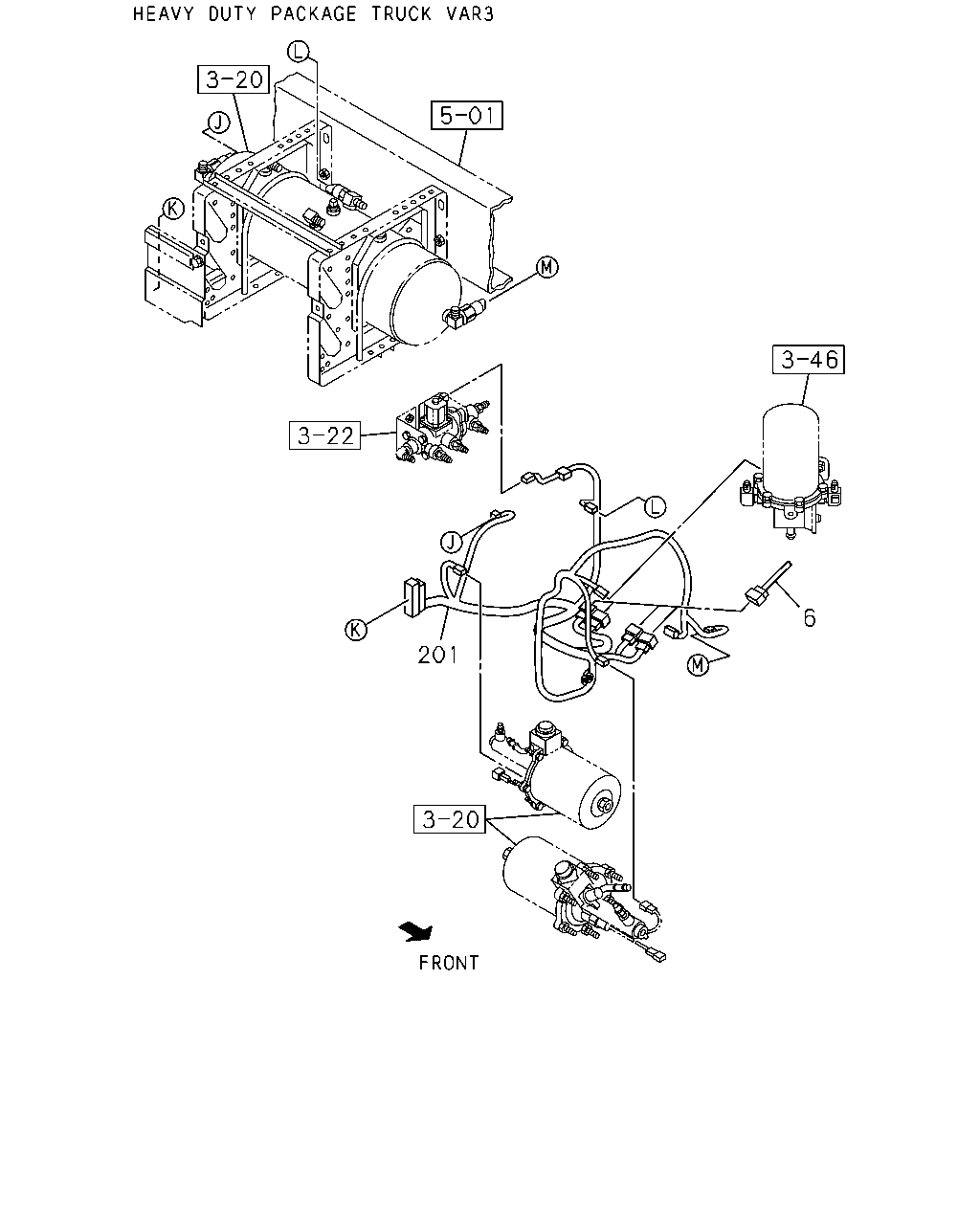

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP>	8-98212-308-1	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-312-0	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	8-98212-309-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	8-98156-706-1	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-314-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-311-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP>	8-98212-310-1	01	1	1302-

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98065-666-0	01	1	1302-
4	BOX ASM; FUSE,HARNESS HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98065-666-0	01	1	1302-
693	RELAY; FUSE BOX HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
693	RELAY; FUSE BOX HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-

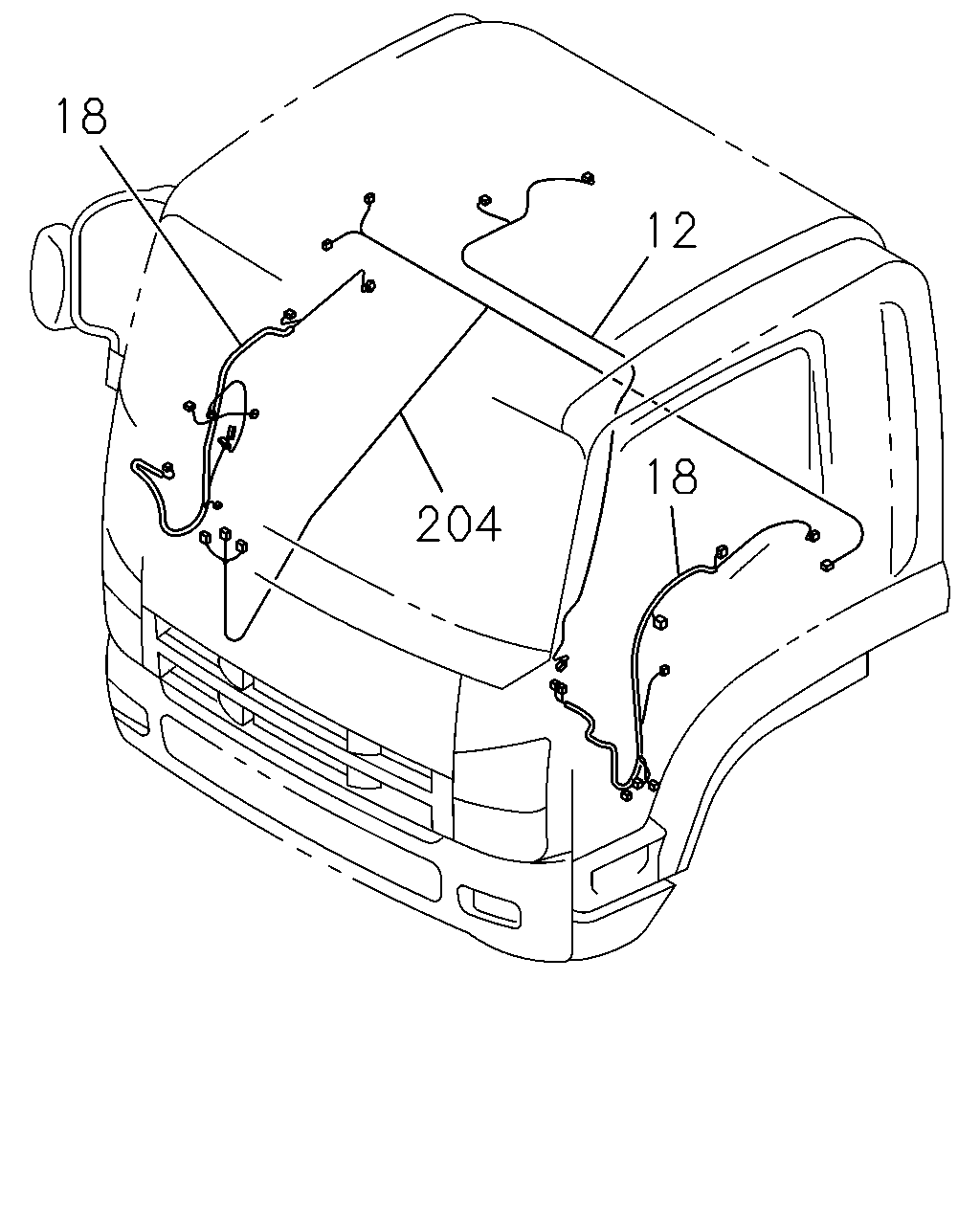

18 12 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-930-2	01	1	1302-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-948-2	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98108-440-1	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98108-439-1	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98076-305-3	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98076-304-3	01	1	1302-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98084-194-0	01	1	1302-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1302-

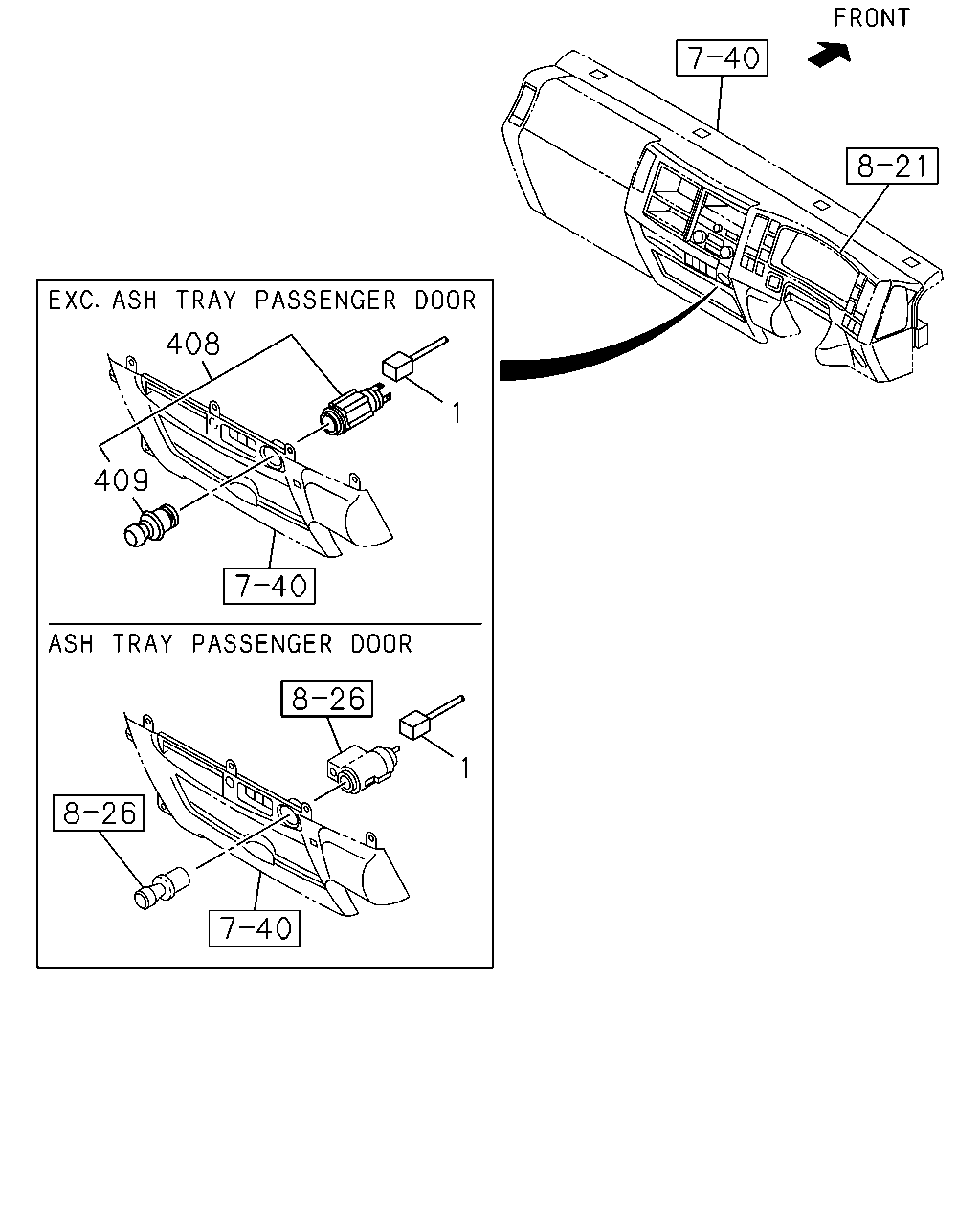

408 1 409 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98212-160-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-157-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-159-0	01	1	1302-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1302-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1302-

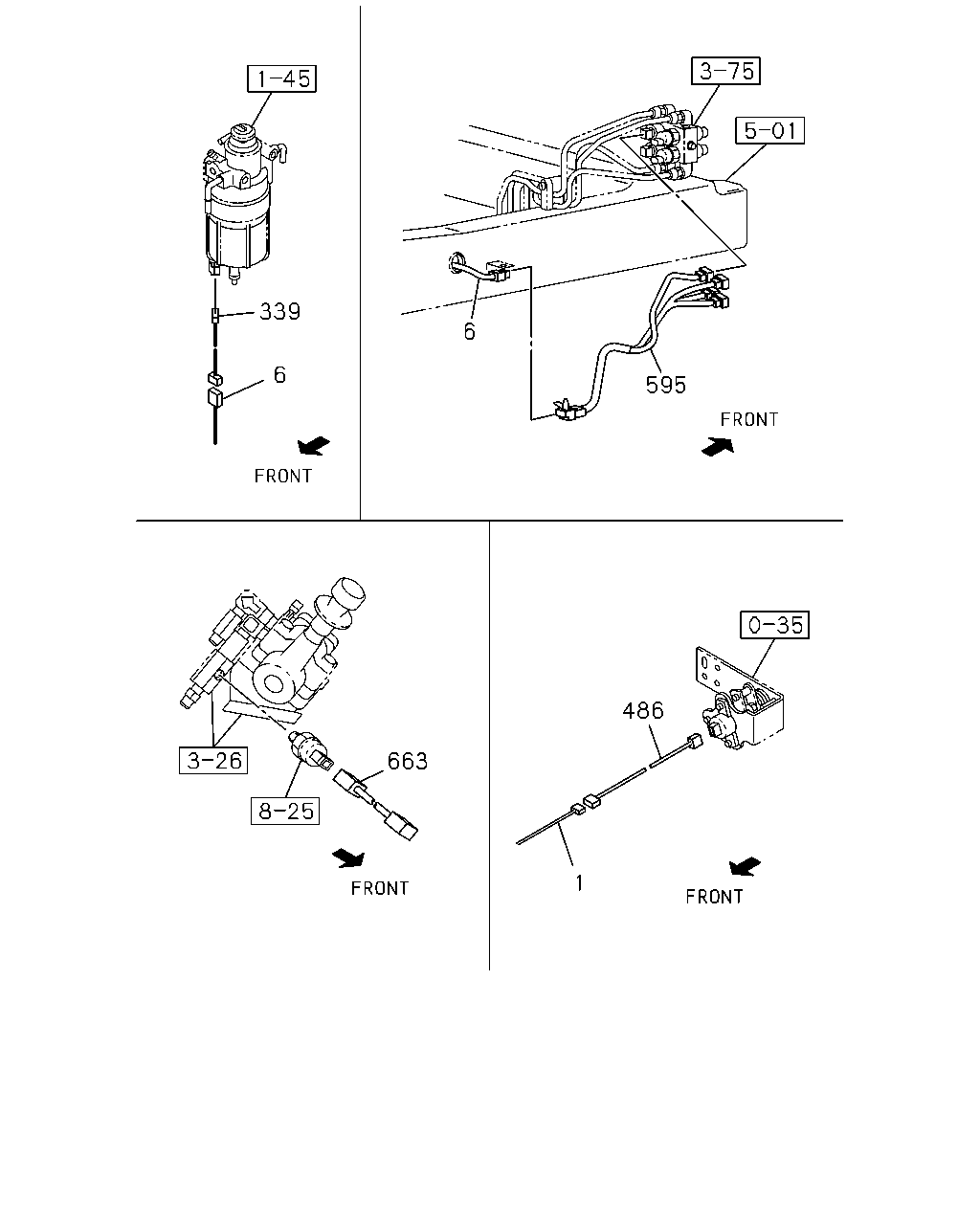

486 1 663 595 6 6 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF>	8-98212-160-0	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF>	8-98212-158-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98212-157-0	01	1	1302-
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3)	8-98212-159-0	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-338-1	01	1	1302-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-714-2	01	1	1302-1404
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98246-170-0	01	1	1405-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-337-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-701-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-702-1	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-700-0	01	1	1302-
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98177-533-0	01	1	1302-
339	HARNESS; EXT,FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98119-943-0	01	1	1302-
339	HARNESS; EXT,FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-411-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-413-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-756-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98213-860-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-412-0	01	1	1302-
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98213-861-0	01	1	1302-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1311-
595	HARNESS; WARNING,BRK	8-97621-003-3	01	1	1302-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1302-

533 533 533 533 639 640

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
533	CLIP EXC. INTERMITTENT WIPER<C13> (B) L=100	5-09707-036-1	01	1	1302-
533	CLIP 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	02	1	1302-
533	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=11 L=16	0-95235-025-0	05	1	1302-
533	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=18	1-09709-287-0	02	1	1302-1404
533	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=18	1-09709-287-0	01	1	1405-
533	CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1302-
639	BOLT; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	05	1	1302-
640	NUT; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	05	1	1302-

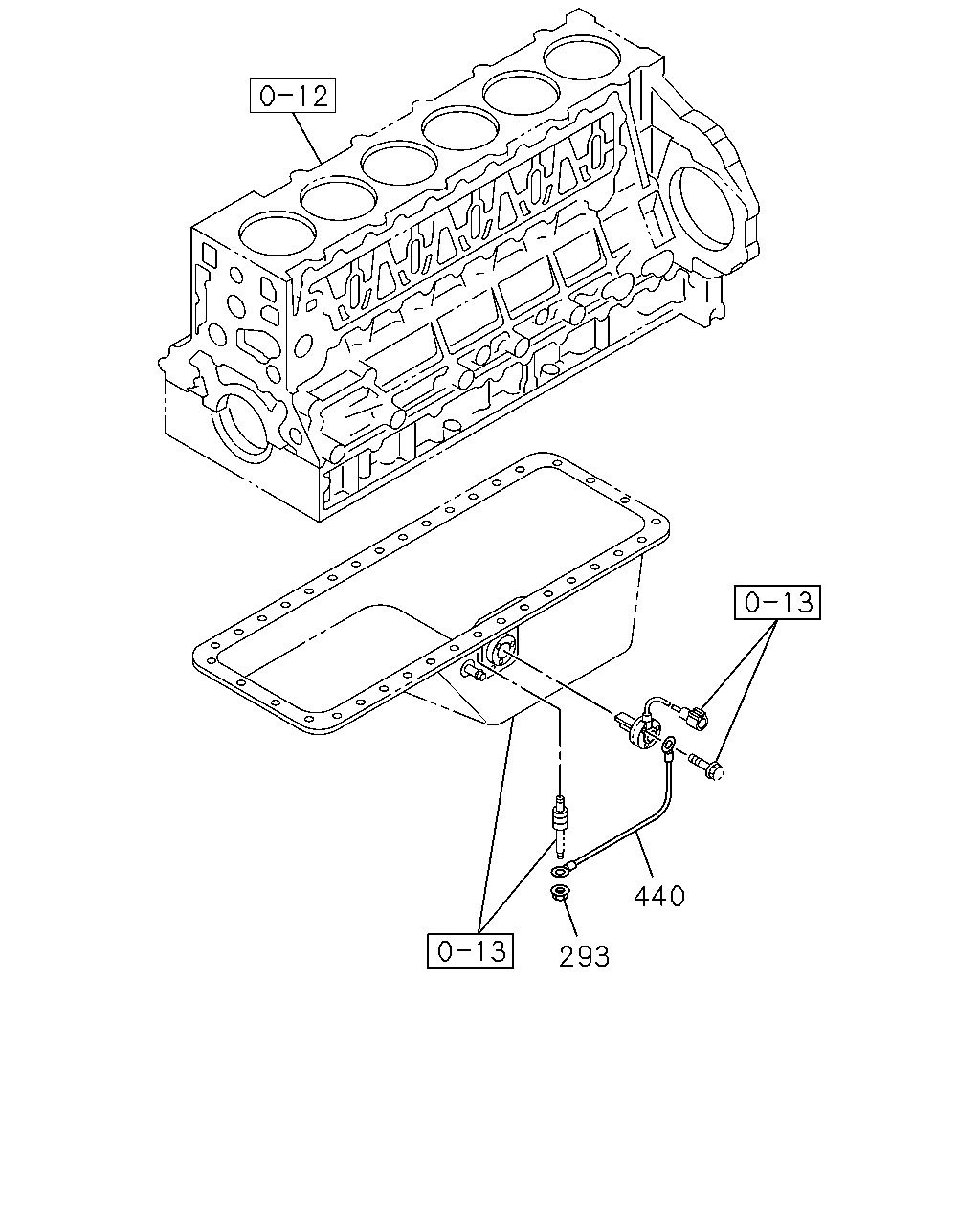

440 293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	293	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-
	440	CABLE; EARTH 6HK1-TCN ENG(82L)	8-97606-639-0	01	1	1302-

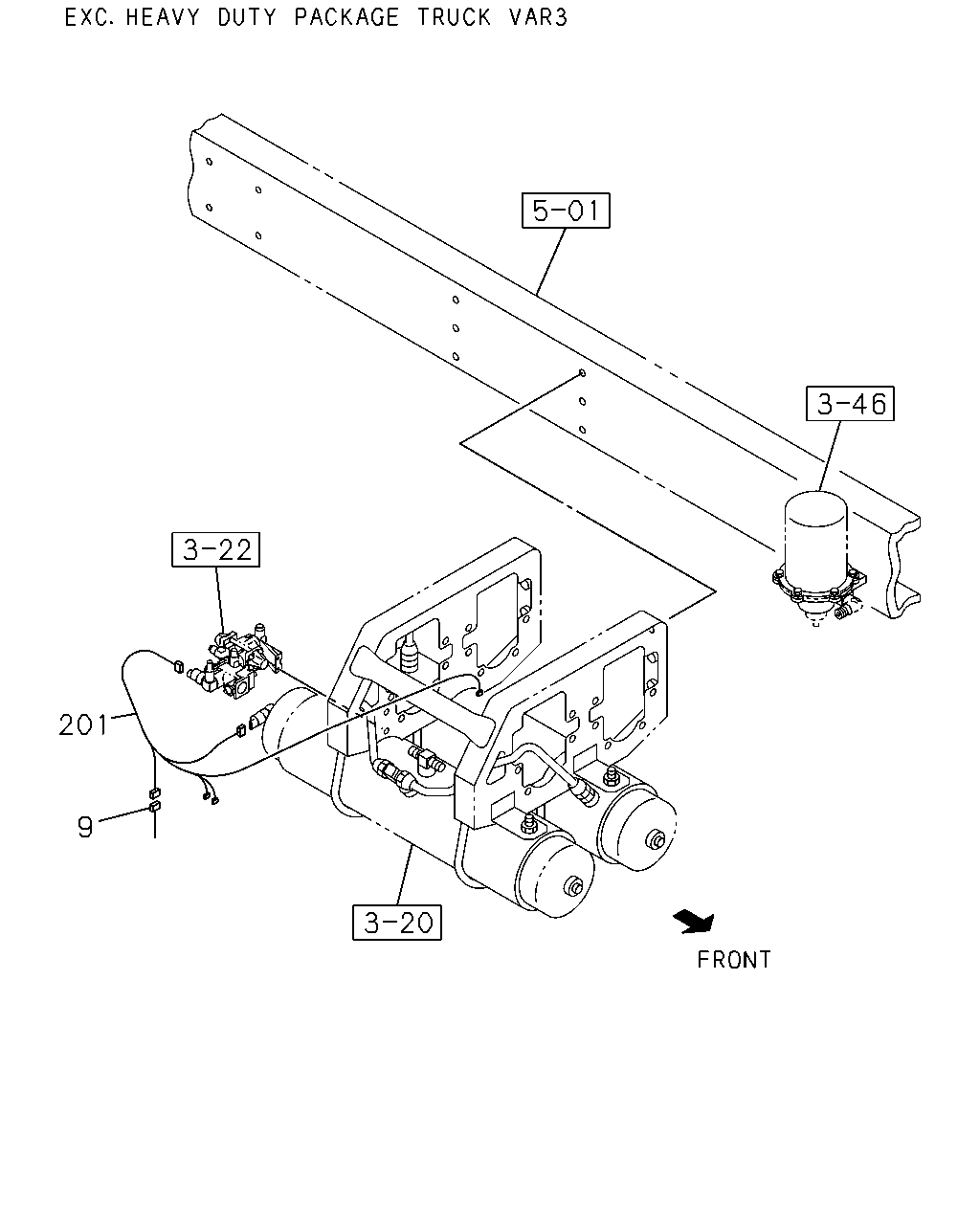

201 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-580-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-580-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-584-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-719-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-582-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-720-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98212-040-0	01	1	1302-
9	HARNESS; FRAME,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98211-718-0	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP>	8-98212-308-1	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-312-0	01	1	1302-
201	HARNESS; AIR TANK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	8-98212-309-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	8-98156-706-1	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98212-314-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-311-0	01	1	1302-
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP>	8-98212-310-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
