◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#112843) — 226 parça

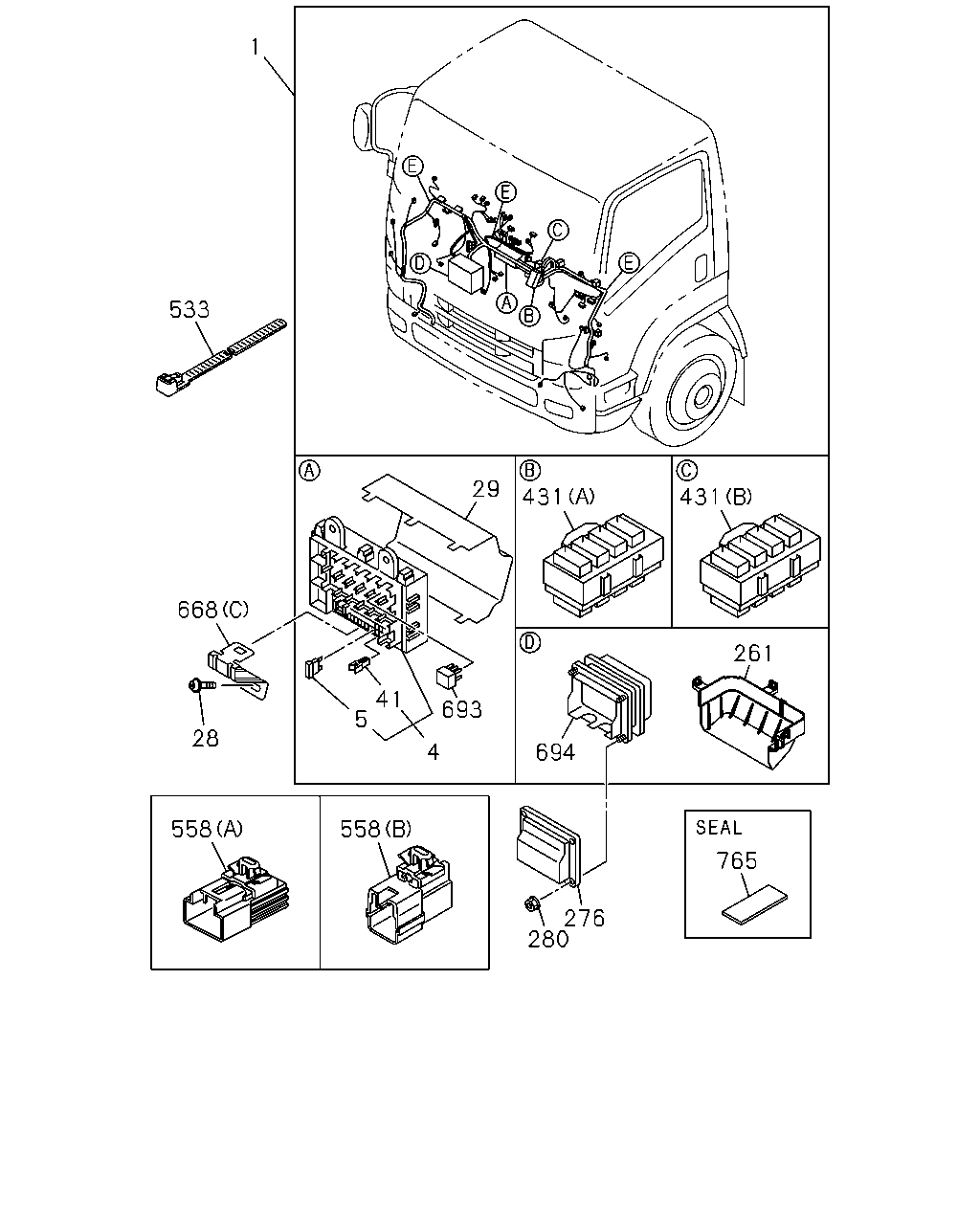

çizim 329803
1 533 668 28 558 558 276 280 765 261 431 431 694 693 4 41 5 29
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98065-666-0 01 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 25A WHITE 		8-98062-982-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 25A WHITE 		8-98062-982-0 AR 1 1302-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1302-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 1302-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98056-968-0 01 1 1302-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98056-968-0 01 1 1302-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98054-260-0 01 1 1302-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98054-260-0 01 1 1302-
261 COVER; CONNECTOR BOX
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98065-986-1 01 1 1302-
261 COVER; CONNECTOR BOX
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98065-986-1 01 1 1302-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1302-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1302-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1302-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1302-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1302-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1302-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (E) 6P BLACK 		8-97616-194-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 1302-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
668 BRACKET; HARNESS
(D) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
(D) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1302-
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (B) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (F) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (G) 		8-98097-674-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (H) 		8-98205-089-0 01 1 1302-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98057-771-0 01 1 1302-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98057-771-0 01 1 1302-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-
çizim 329810
1 431 2 431 431 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) BLACK 10P 		1-82699-703-0 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) BLACK 10P 		1-82699-703-0 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1302-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1302-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1302-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1302-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1302-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (E) 6P BLACK 		8-97616-194-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-

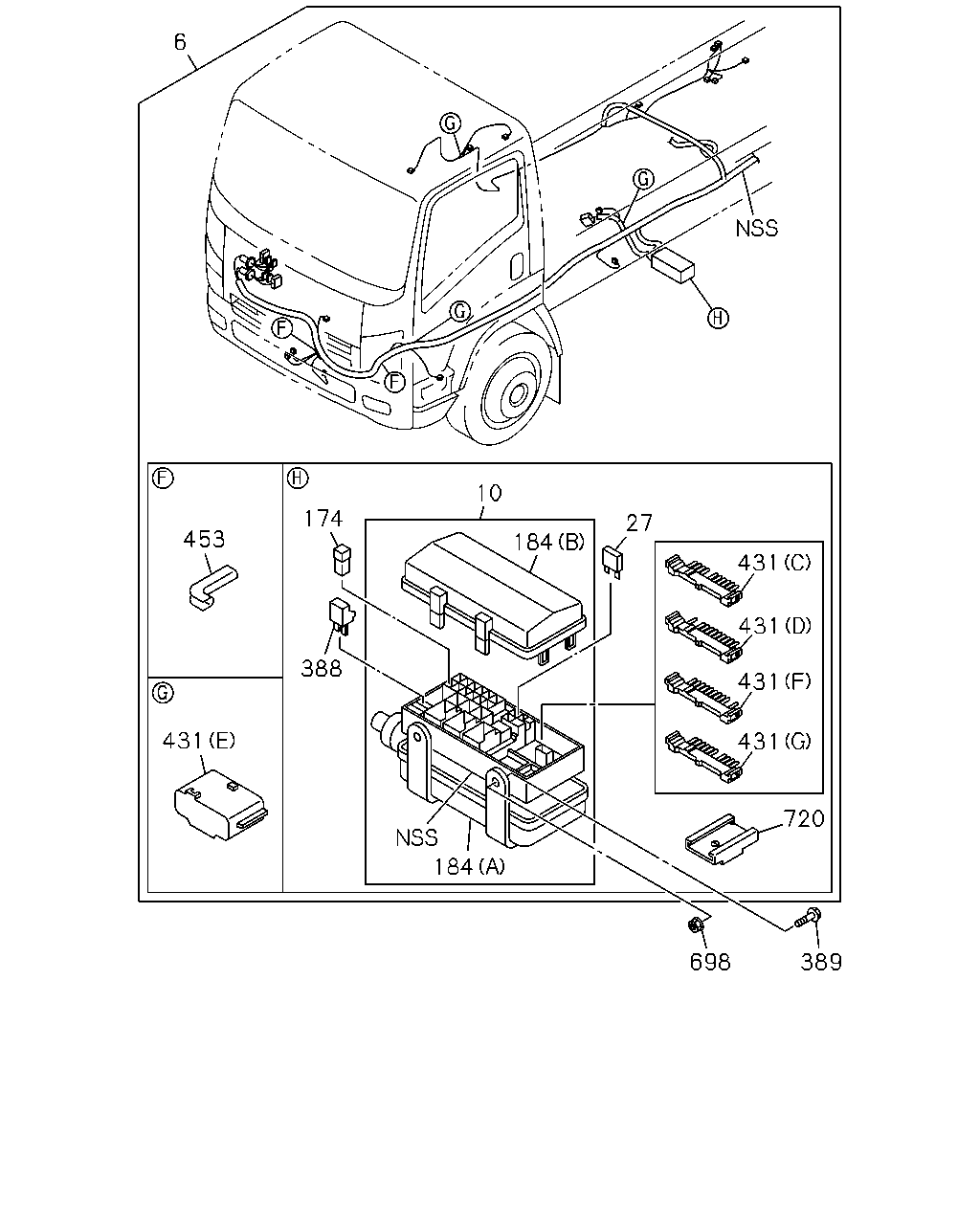

çizim 329821
6 453 431 184 388 174 10 27 184 431 431 431 431 720 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1302-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1302-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1302-
174 FUSE; SLOW BLOW
EURO2 SPECIFICATION<NT2> 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
EURO2 SPECIFICATION<NT2> 40A GREEN 		8-98079-192-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 60A YELLOW 60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 40A GREEN 		8-98079-192-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1302-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1302-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1302-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1302-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1302-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (E) 6P BLACK 		8-97616-194-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> (B) WHITE 		8-98056-375-0 01 1 1302-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1302-

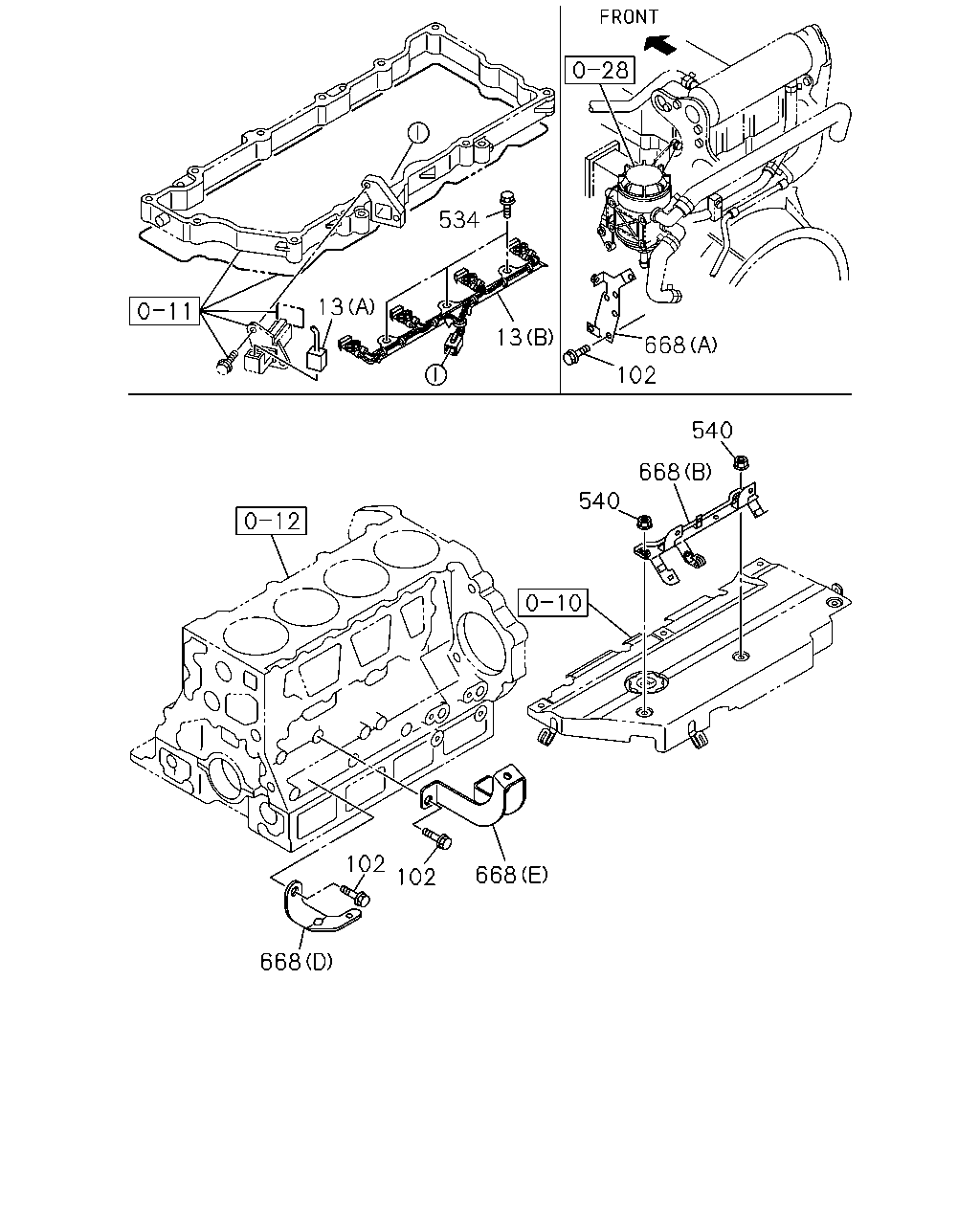

çizim 329843
534 13 13 540 668 540 668 102 102 668 668 102
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1302-
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98172-000-4 01 1 1302-1312
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98255-583-0 01 1 1401-1405
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98274-030-0 01 1 1406-
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98219-226-0 01 1 1302-1405
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98274-054-0 01 1 1406-
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION<NT4> M6X12 FLANGE 		0-28050-612-0 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 01 1 1302-
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 1302-
540 NUT; BRKT FIX
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1302-1312
668 BRACKET; HARNESS
(D) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
(D) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1302-
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (B) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (F) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (G) 		8-98097-674-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (H) 		8-98205-089-0 01 1 1302-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-

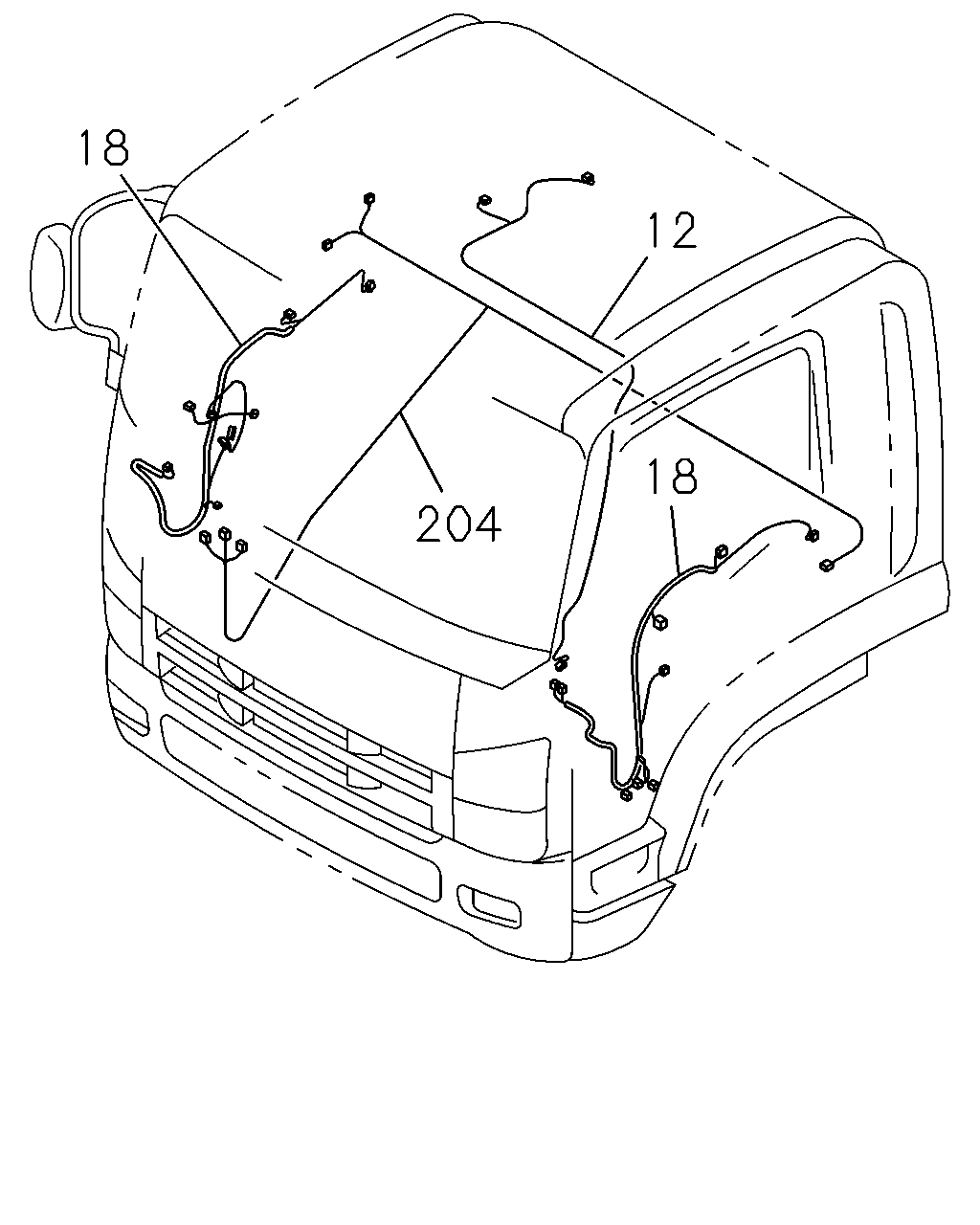

çizim 329851
18 12 18 204
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-930-2 01 1 1302-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-948-2 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-440-1 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98108-439-1 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1302-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98084-194-0 01 1 1302-
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3) 		8-98084-188-0 01 1 1302-

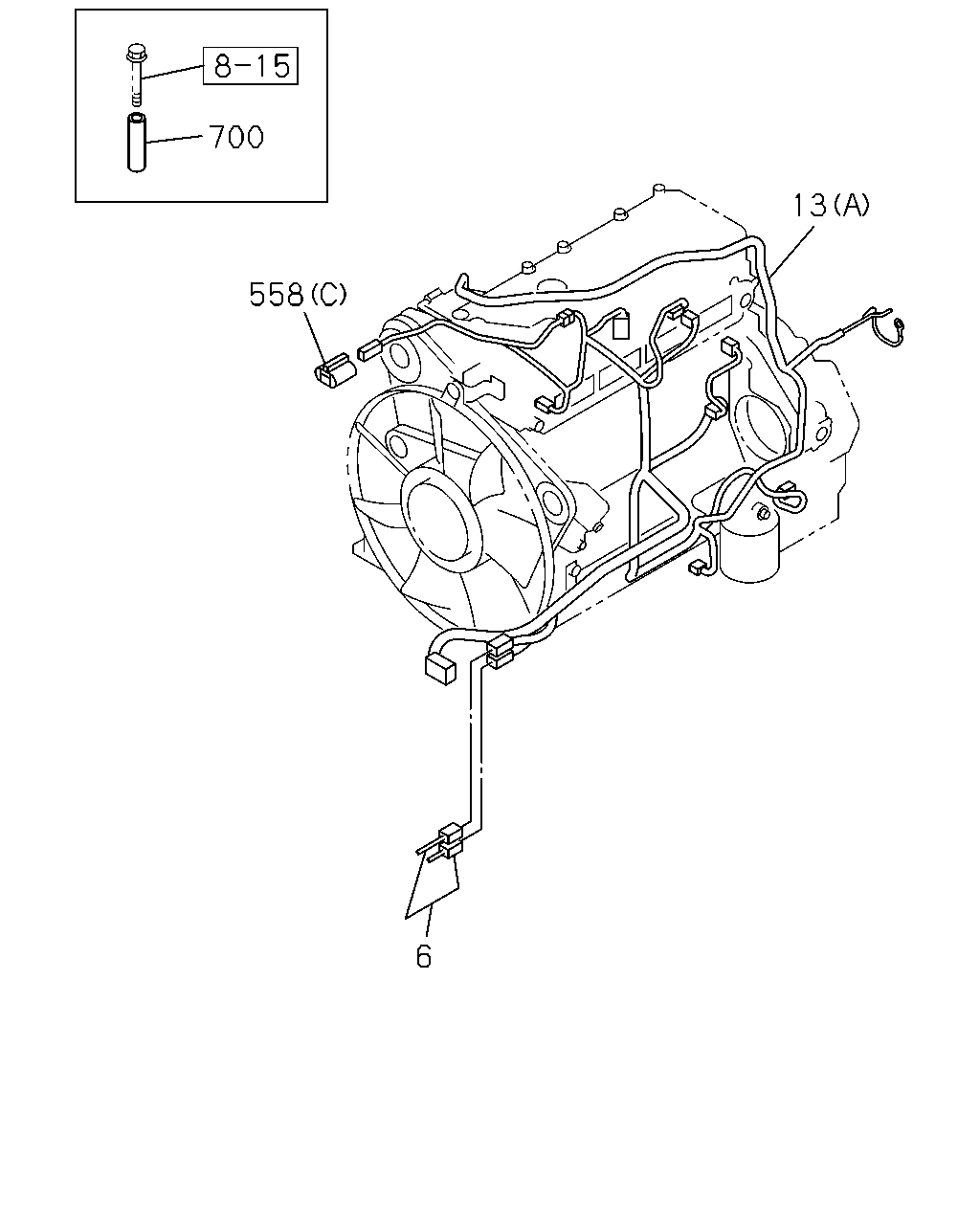

çizim 329869
700 13 6 558
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1302-
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98172-000-4 01 1 1302-1312
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98255-583-0 01 1 1401-1405
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98274-030-0 01 1 1406-
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98219-226-0 01 1 1302-1405
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98274-054-0 01 1 1406-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1302-

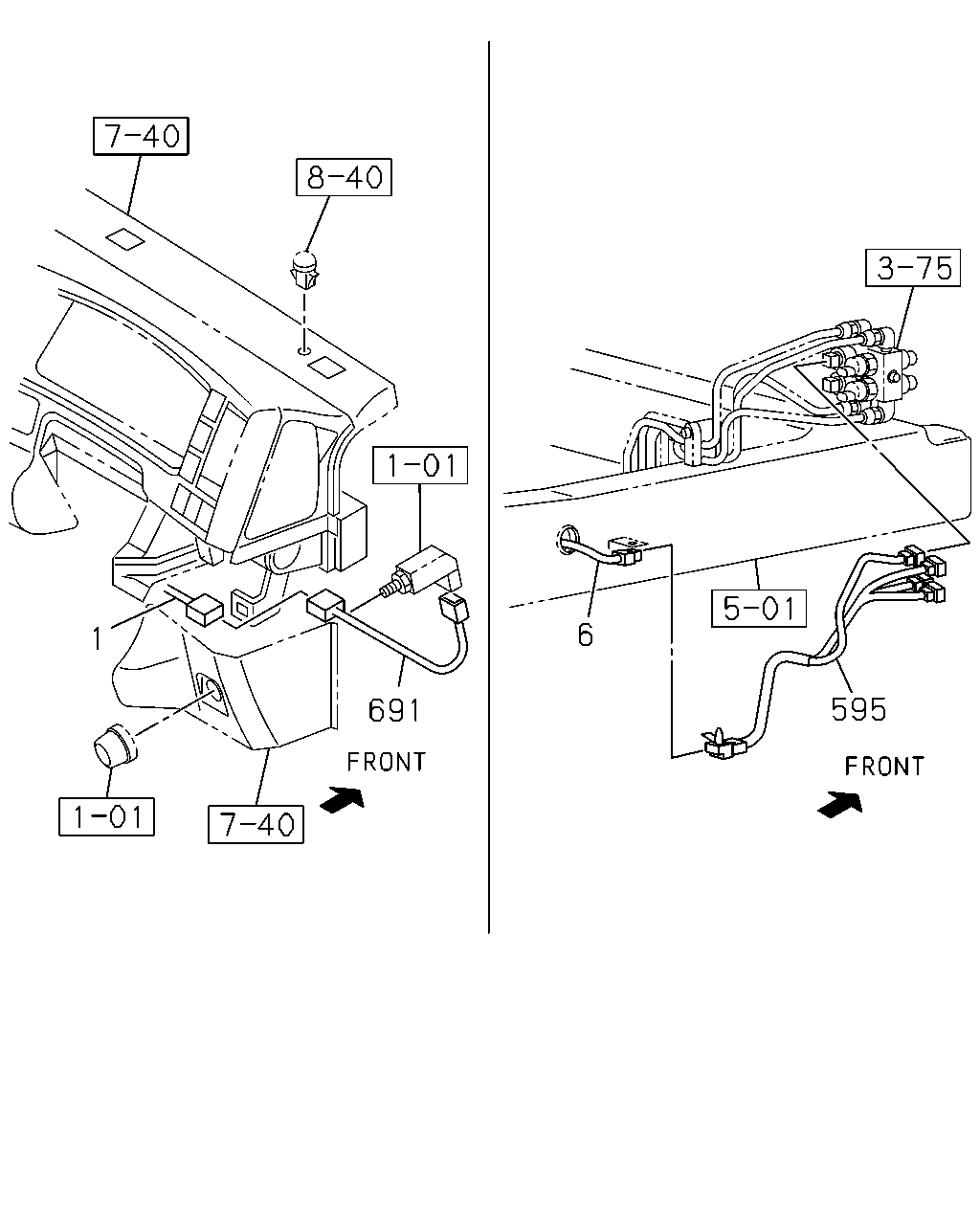

çizim 329873
1 691 6 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1302-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1302-
çizim 330236
1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-

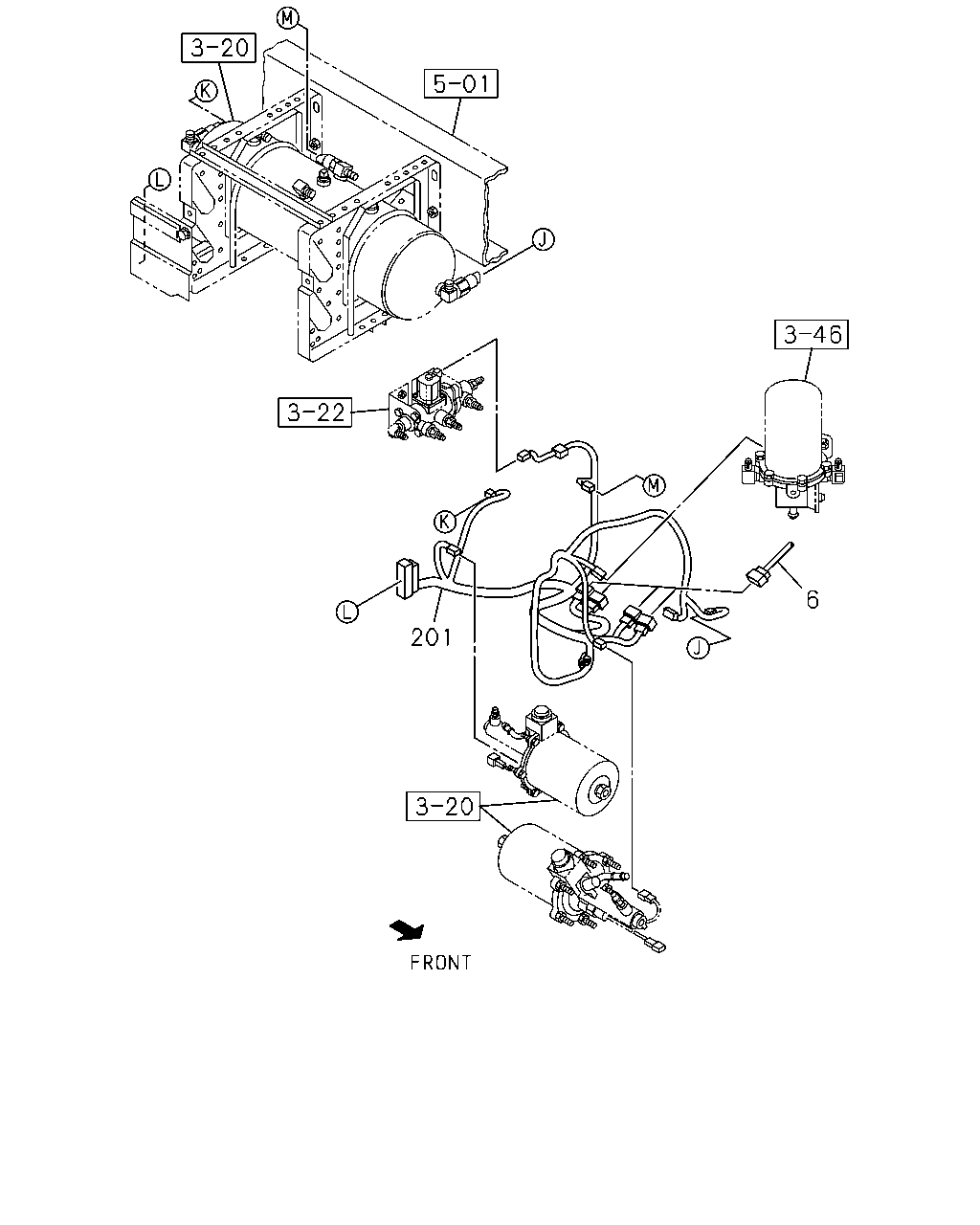

çizim 330274
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> 		8-98156-712-1 01 1 1302-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98156-706-1 01 1 1302-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		8-98212-309-0 01 1 1302-
201 HARNESS; AIR TANK
TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98212-312-0 01 1 1302-

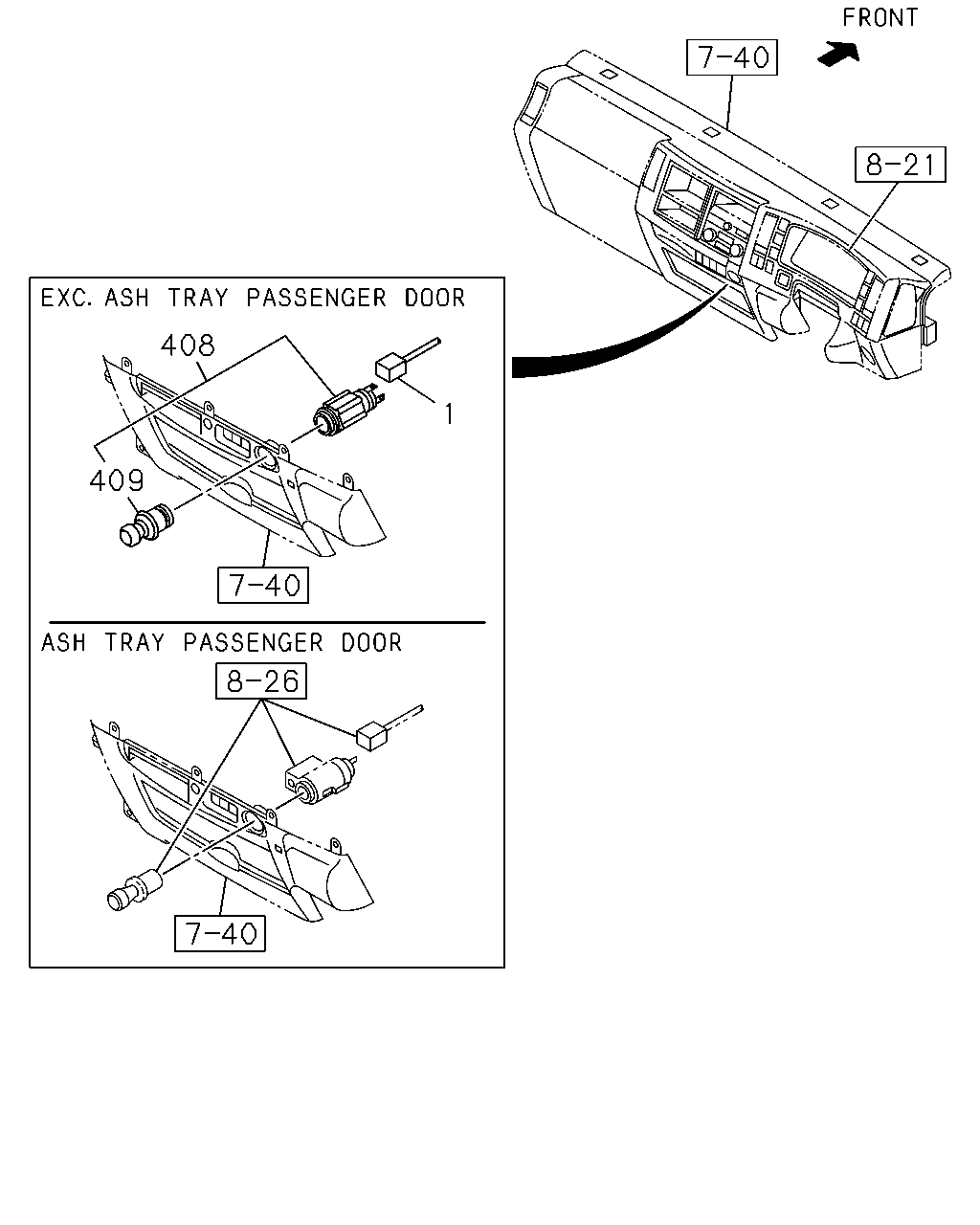

çizim 330293
1 408 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1302-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1302-

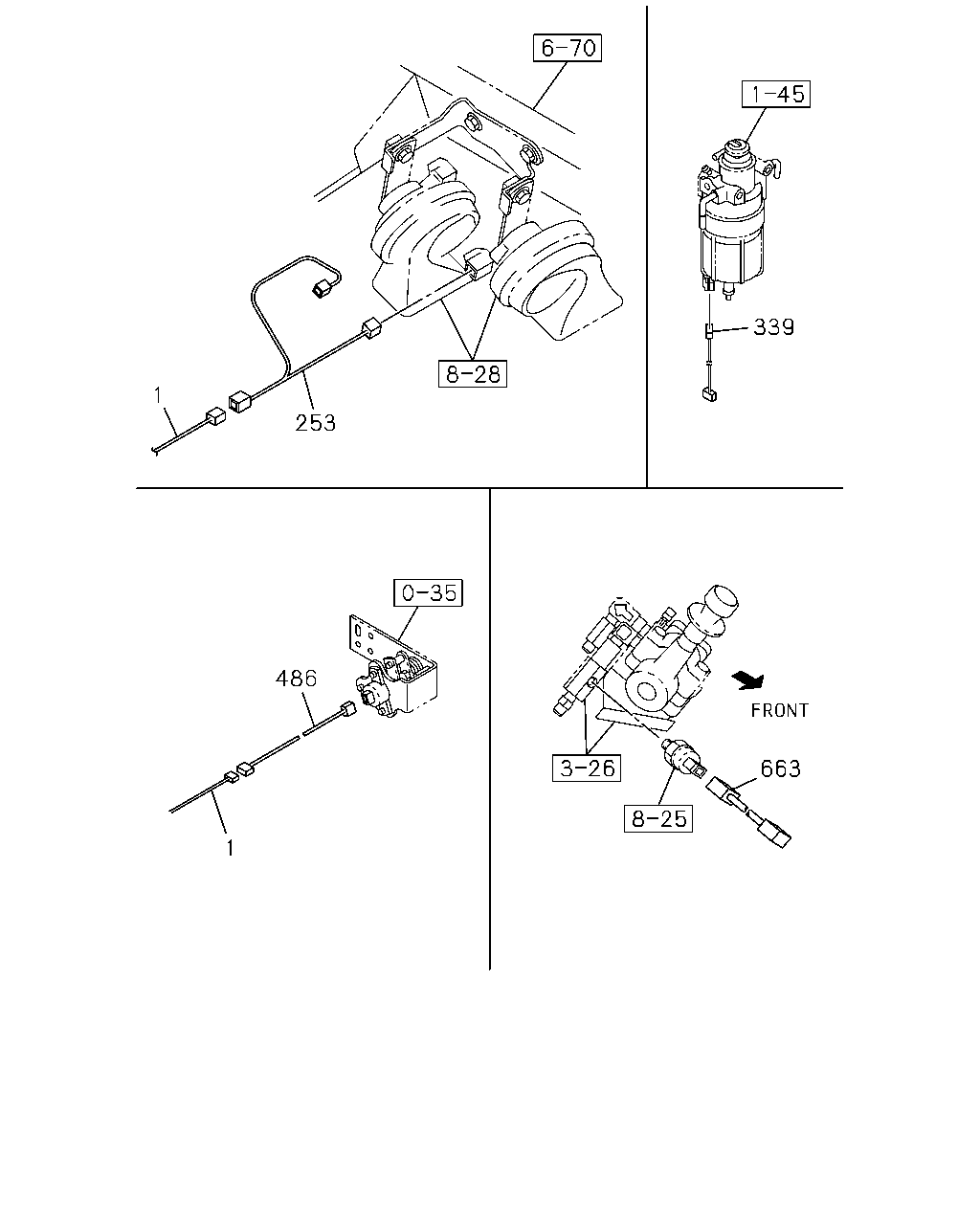

çizim 332376
1 253 339 486 1 663
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98212-160-0 01 1 1302-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,REMOTE CONTDOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98212-158-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98212-157-0 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER(AJ3) 		8-98212-159-0 01 1 1302-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1302-
339 HARNESS; EXT,FUEL
WHEEL BASE 4300MM(43W) 		8-98119-943-0 01 1 1302-
339 HARNESS; EXT,FUEL
WHEEL BASE 4600MM(46W) 		8-98214-591-0 01 1 1302-
339 HARNESS; EXT,FUEL
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98212-411-0 01 1 1302-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1302-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1302-

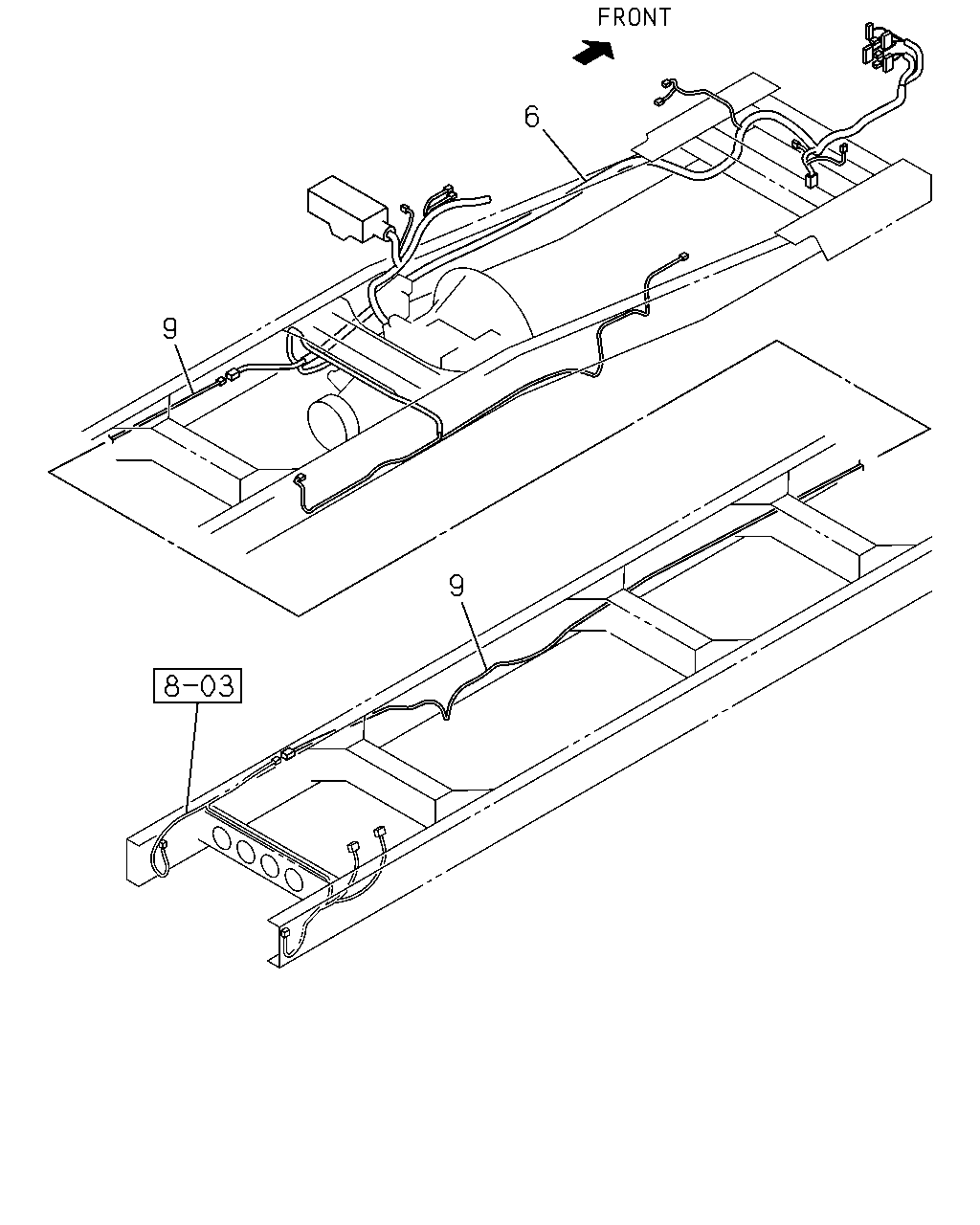

çizim 332395
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98168-570-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98168-573-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-575-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-577-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98168-578-0 01 1 1302-

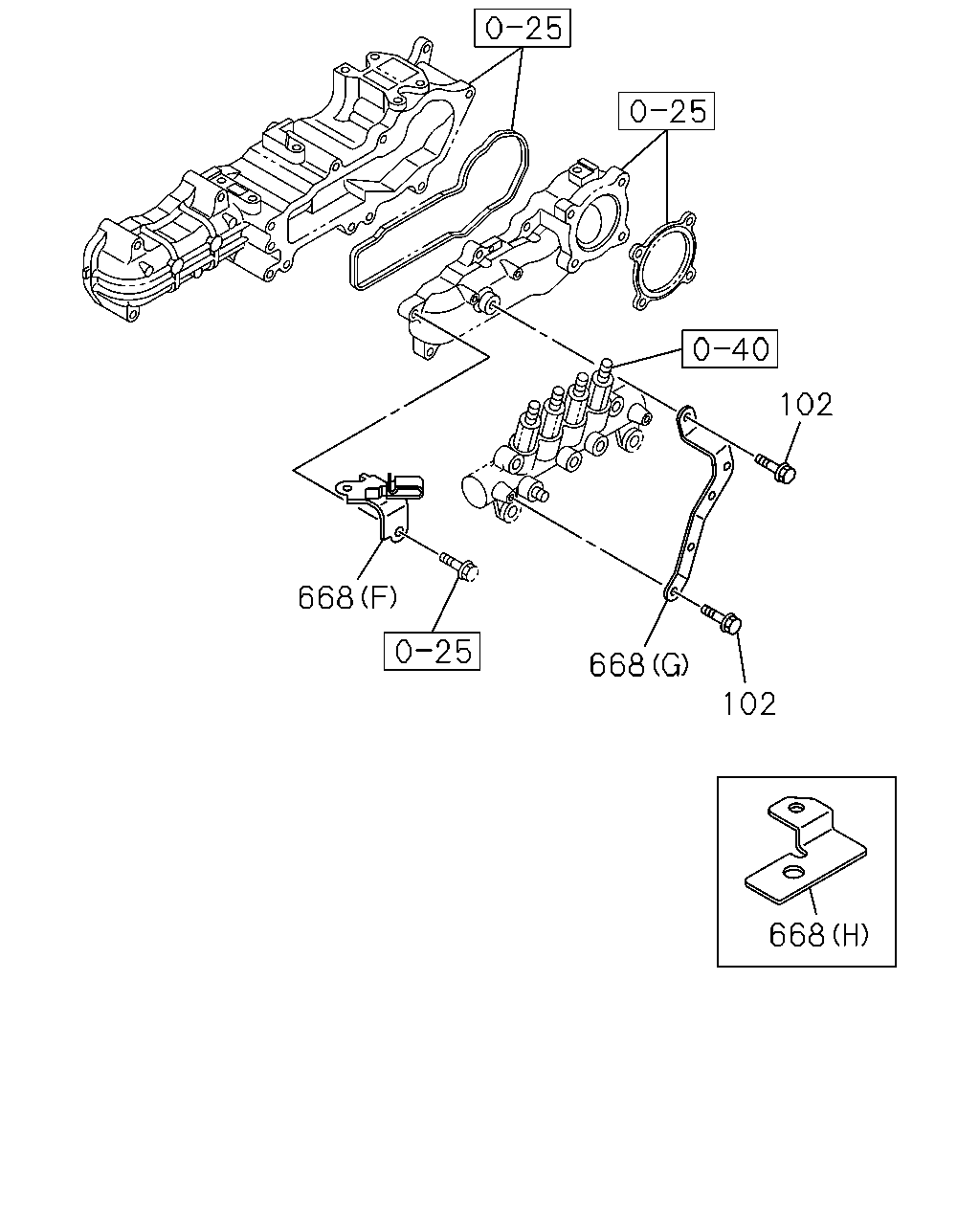

çizim 332421
102 102 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION<NT4> M6X12 FLANGE 		0-28050-612-0 01 1 1302-
102 BOLT; BRKT,HARNESS CONNECTOR
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 01 1 1302-
668 BRACKET; HARNESS
(D) 		8-98009-245-0 01 1 1302-1408
668 BRACKET; HARNESS
(D) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98011-484-0 01 1 1302-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1302-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1302-
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (B) 		8-98061-805-2 01 1 1302-1312
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (F) 		8-98061-780-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (G) 		8-98097-674-0 01 1 1302-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (H) 		8-98205-089-0 01 1 1302-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-

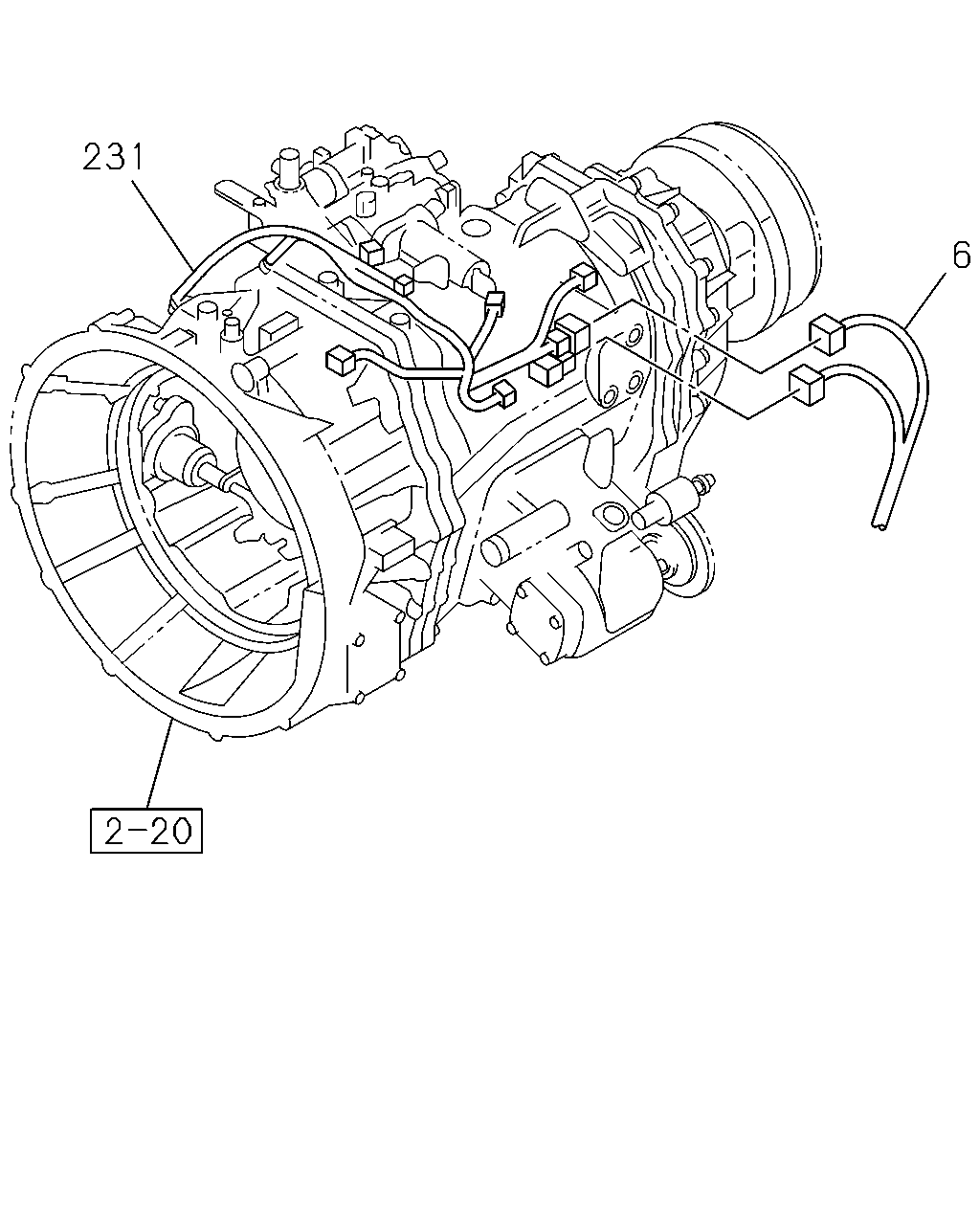

çizim 332440
6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98214-297-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98214-296-1 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> 		8-98214-291-1 01 1 1302-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-97618-933-2 01 1 1302-
231 HARNESS; TRANS
MZZ6W M/T(RSA) 		8-98170-740-0 01 1 1302-

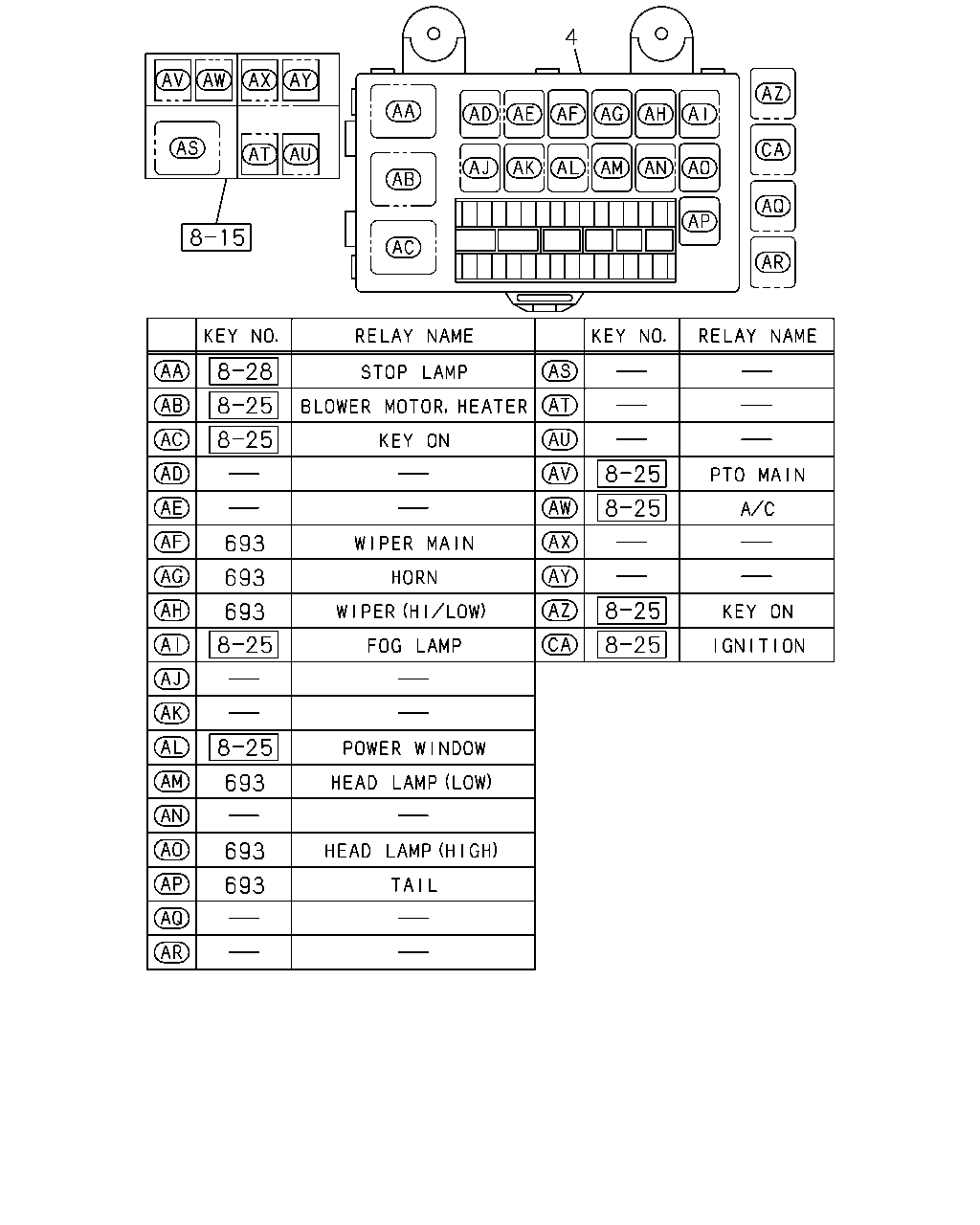

çizim 344302
693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 		8-98065-666-0 01 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),REMOTE CONT DOOR LOCK<6NF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
