Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#112841) — 208 parça

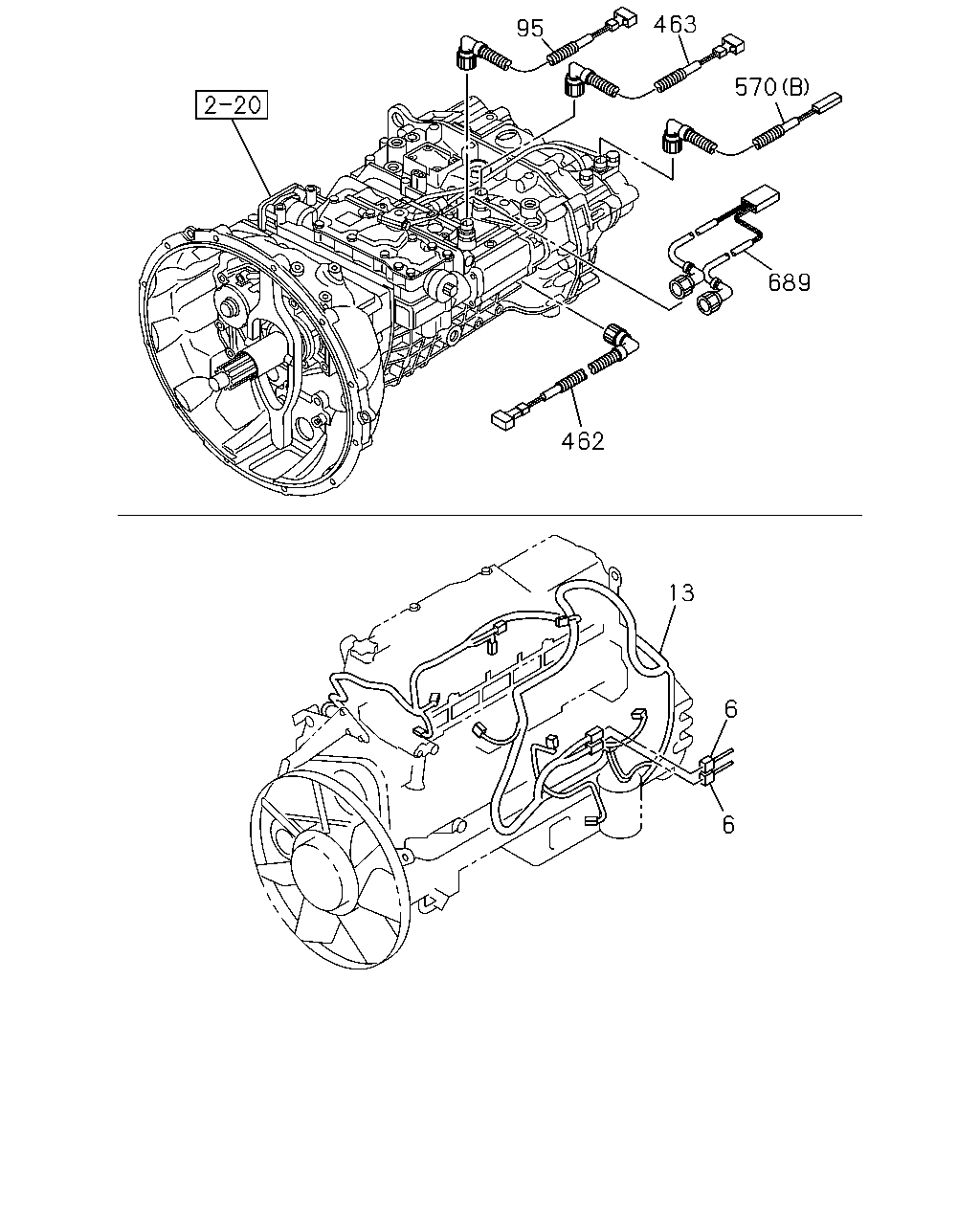

95 463 570 689 462 13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-734-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-732-0	01	1	1602-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D)	8-98212-569-0	01	1	1302-1601
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-569-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1602-
13	HARNESS; ENG GENERATOR 24V60A(KG2) EURO4 SPECIFICATION<NT4>	8-98177-209-1	01	1	1602-
13	HARNESS; ENG GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4>	8-98177-208-1	01	1	1602-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98075-774-5	01	1	1302-1601
13	HARNESS; ENG GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2>	8-98075-774-5	01	1	1602-
13	HARNESS; ENG GENERATOR 24V60A(KG2)	8-98075-775-5	01	1	1302-1601
13	HARNESS; ENG GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2>	8-98075-775-5	01	1	1602-
95	HARNESS; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-855-0	01	1	1302-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-854-0	01	1	1302-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1302-
463	HARNESS; SW,BACK UP BLACK	8-98145-856-0	01	1	1302-
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1302-
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1302-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98148-603-0	01	1	1302-

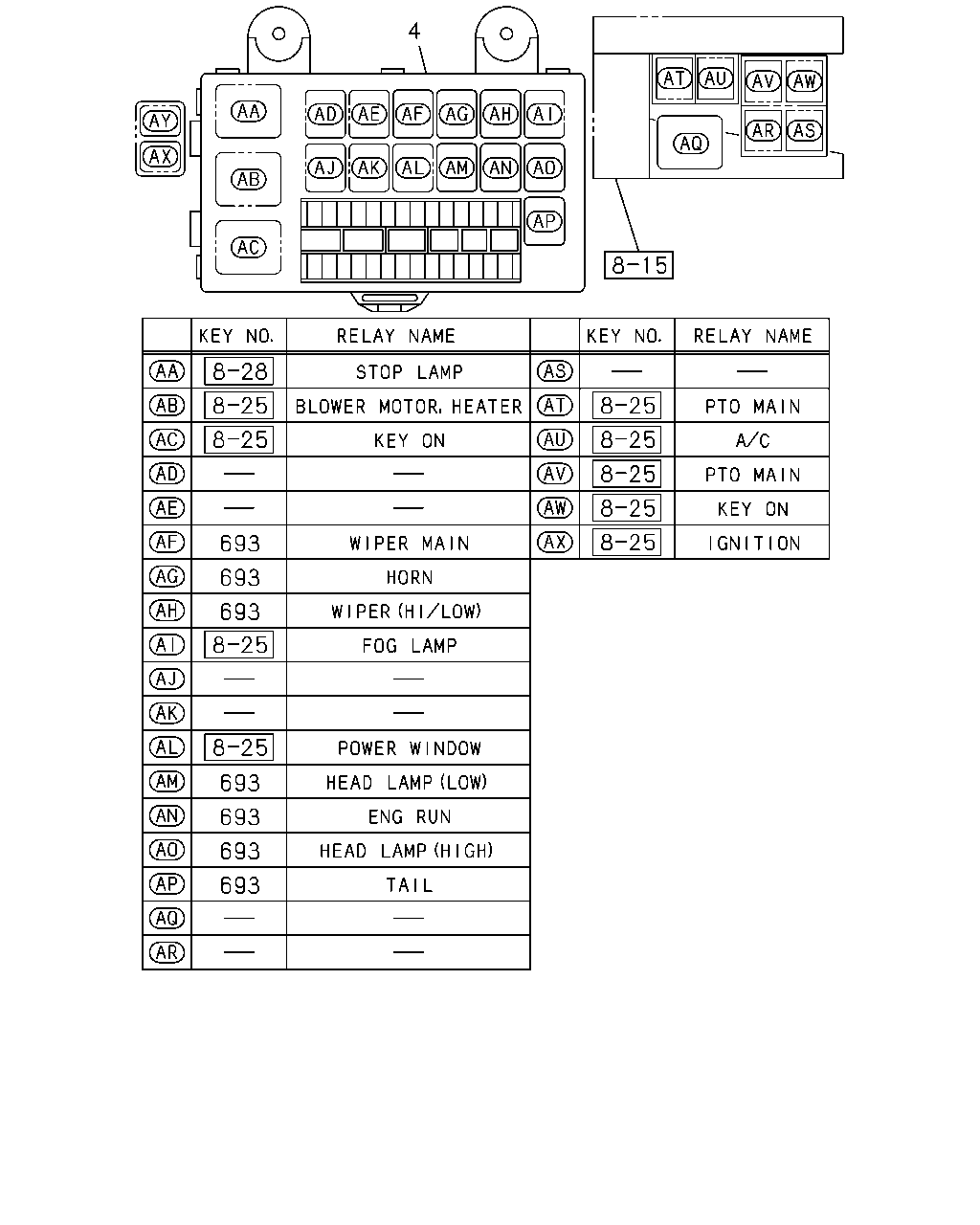

4 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-

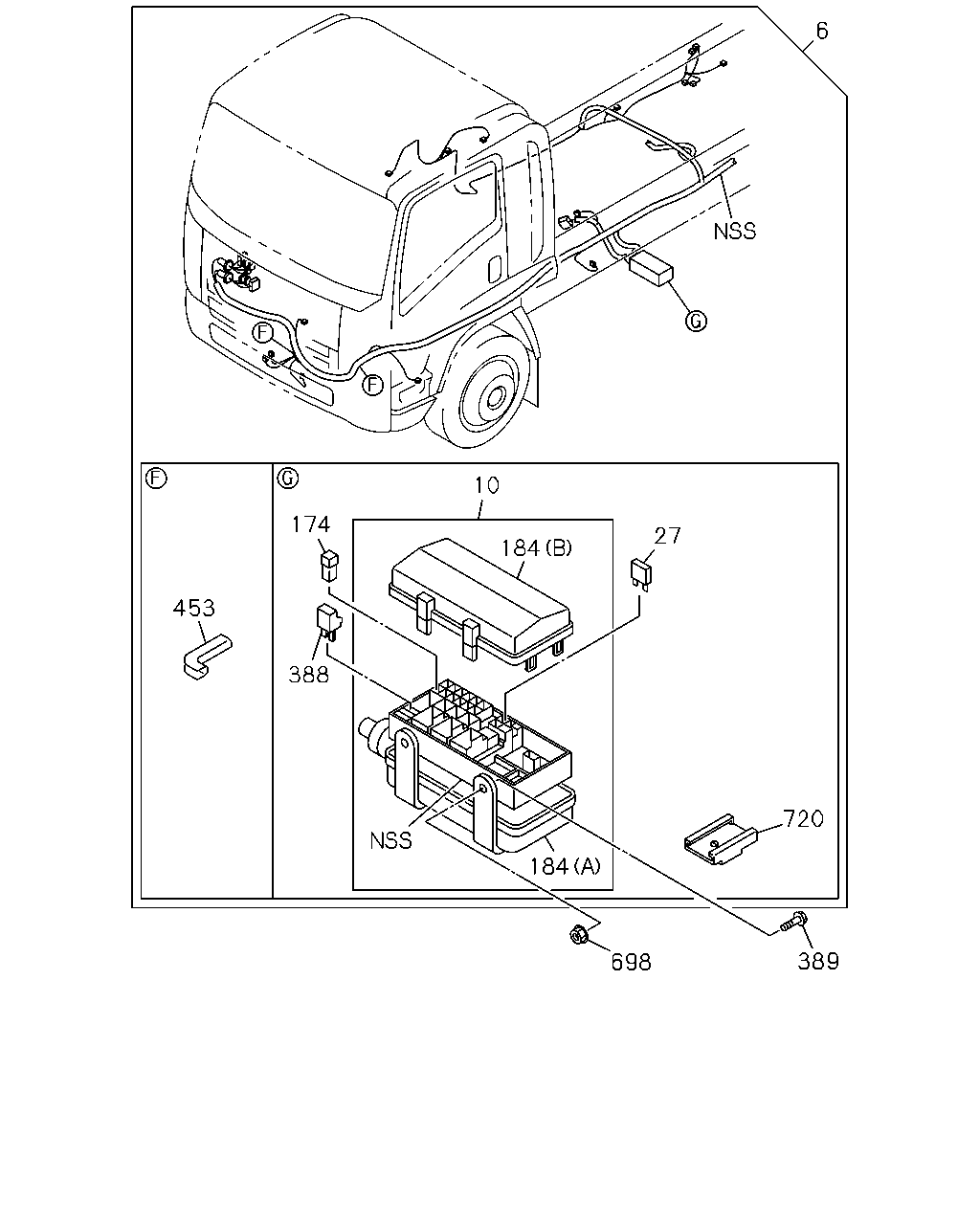

6 27 184 10 174 453 388 184 720 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-734-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-732-0	01	1	1602-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D)	8-98212-569-0	01	1	1302-1601
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-569-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1602-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1302-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1302-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1302-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1302-
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1302-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1302-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1302-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1302-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1302-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1302-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1302-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1302-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1302-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1302-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1302-

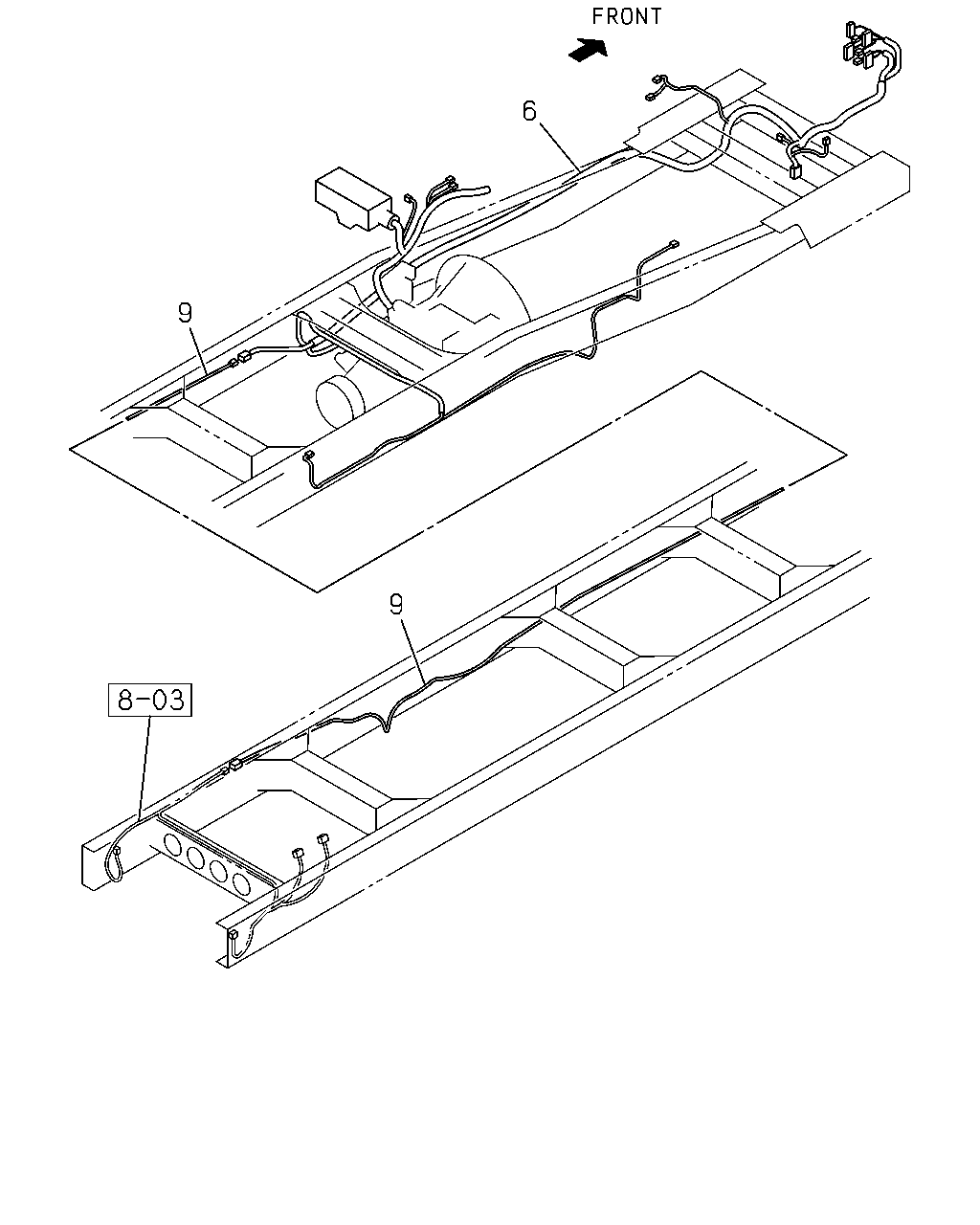

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-734-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-732-0	01	1	1602-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D)	8-98212-569-0	01	1	1302-1601
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-569-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1602-
9	HARNESS; FRAME,RR WHEEL BASE 6300MM(63W)	8-98168-625-0	01	1	1302-
9	HARNESS; FRAME,RR WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX)	8-98168-713-0	01	1	1302-

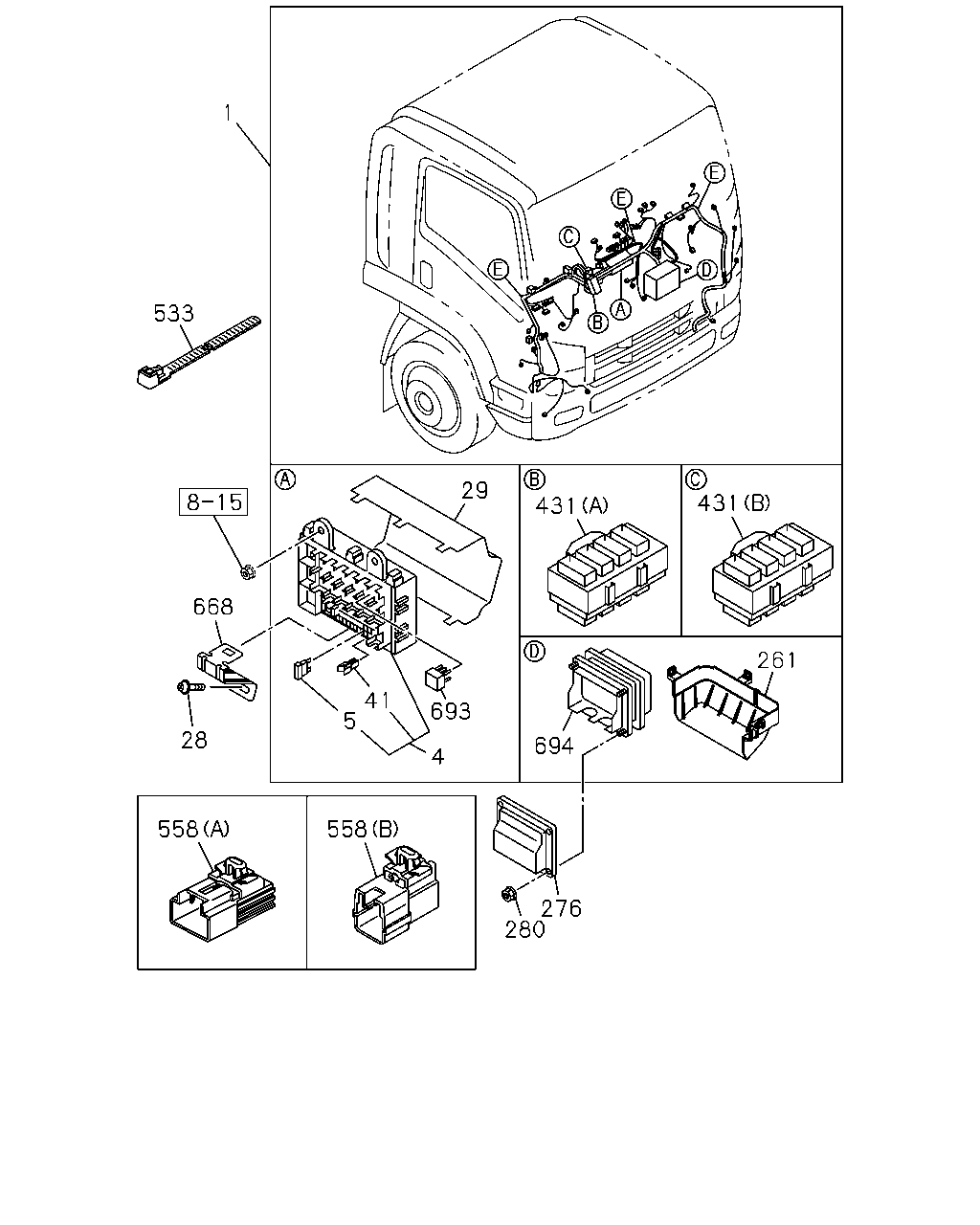

1 533 668 28 558 558 276 280 694 261 431 431 29 693 4 41 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S .A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-386-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8>	8-98212-377-1	01	1	1302-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1302-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1302-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1302-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1302-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1302-
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1302-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1302-
41	PULLER; FUSE	8-98054-260-0	01	1	1302-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1302-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1302-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1302-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1302-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1302-
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1302-
533	CLIP EXC. INTERMITTENT WIPER<C13> L=100	5-09707-036-1	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1302-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1302-
668	BRACKET; HARNESS	8-98095-653-2	01	1	1302-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1302-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1302-

12 204 18 18 14 339 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98071-442-0	01	1	1302-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98085-335-1	01	1	1302-
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1307-
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	1302-1306
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98069-166-1	02	1	1307-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98178-803-0	01	1	1302-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98178-804-0	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98178-801-0	01	1	1302-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98178-802-0	01	1	1302-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98085-307-1	01	1	1302-
339	HARNESS; EXT,FUEL	8-98227-392-1	01	1	1302-

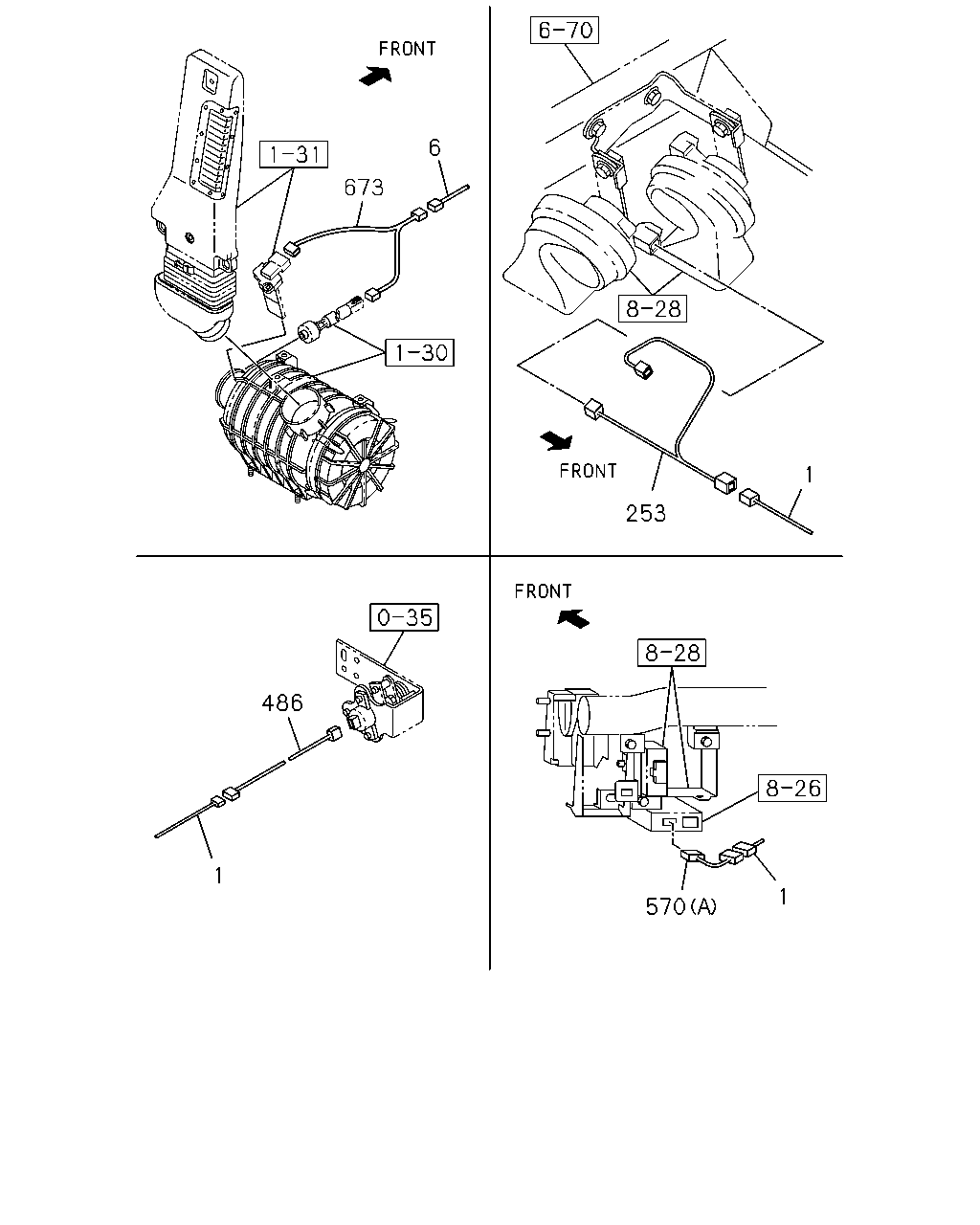

6 673 486 1 570 1 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S .A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-386-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8>	8-98212-377-1	01	1	1302-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-734-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-732-0	01	1	1602-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D)	8-98212-569-0	01	1	1302-1601
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-569-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1602-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1302-
253	HARNESS; EXT,HORN EXC. DUAL HEAVY DUTY HORN<6KK>	8-98159-227-2	01	1	1302-
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	1302-
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1302-
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1302-
673	HARNESS; EXT,SENSOR EURO4 SPECIFICATION<NT4>	8-98098-510-0	01	1	1602-
673	HARNESS; EXT,SENSOR	8-98069-172-0	01	1	1302-1601
673	HARNESS; EXT,SENSOR EURO2 SPECIFICATION<NT2>	8-98069-172-0	01	1	1602-

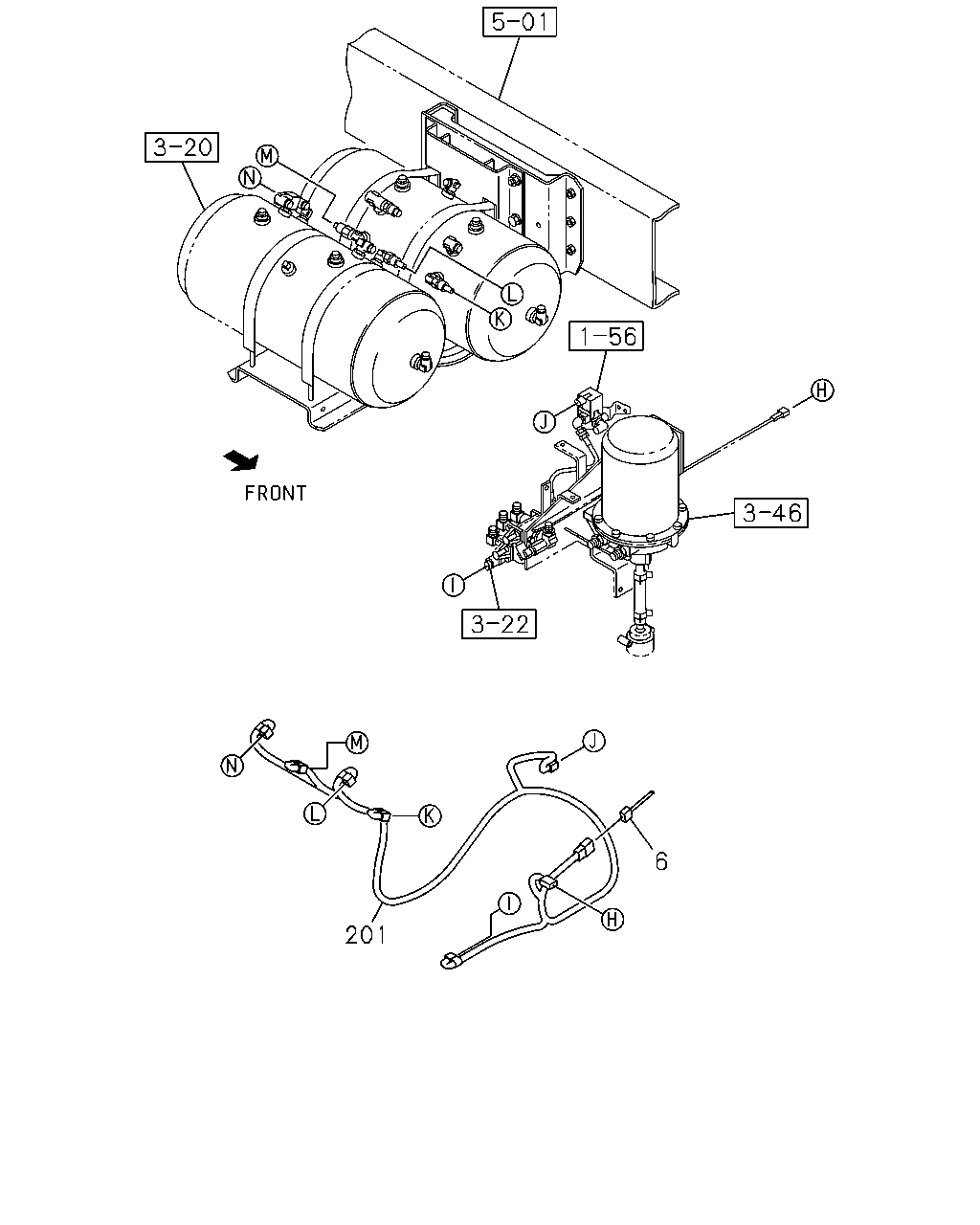

2 2 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S .A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-386-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8>	8-98212-377-1	01	1	1302-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1302-
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	1302-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1302-
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	1302-

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-734-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TURBO - CONVENTIONAL<Q5T>	8-98335-732-0	01	1	1602-
6	HARNESS; FRAME ZF6S1000 M/T(Y5D)	8-98212-569-0	01	1	1302-1601
6	HARNESS; FRAME ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T>	8-98212-569-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> ASSISTOR SHIFT CONTROL<WX8>	8-98212-574-0	01	1	1602-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1302-1601
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-572-0	01	1	1602-
201	HARNESS; AIR TANK	8-98184-703-0	01	1	1302-1511
201	HARNESS; AIR TANK	8-98184-703-0	01	1	1512-
201	HARNESS; AIR TANK	8-98184-703-0	01	1	1512-

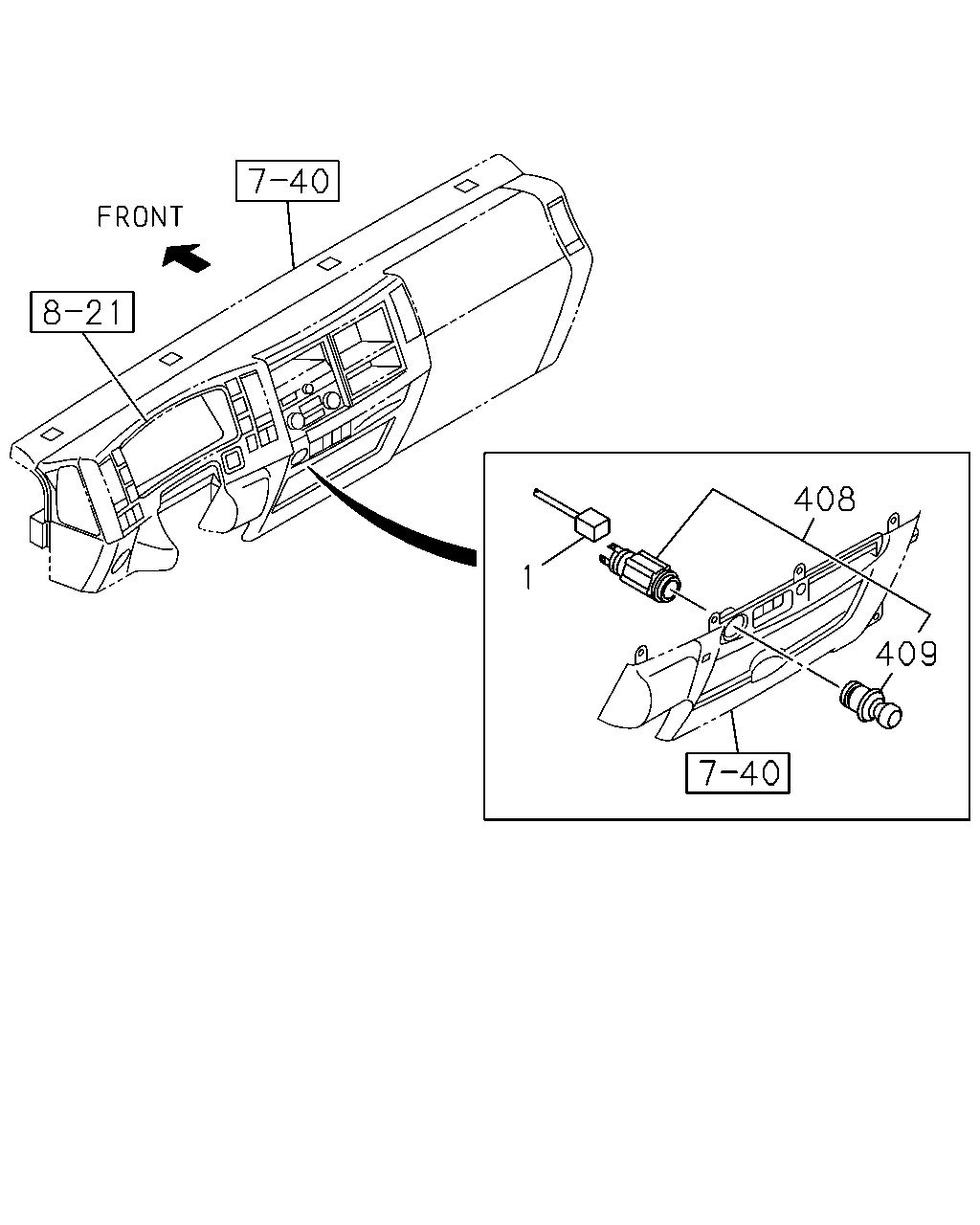

408 409 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-384-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-375-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,ASSISTO R SHIFT CONTROL<WX8>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-385-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB H.S.A SYSTEM<6EP> BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF6S1000 M/T(Y5D) BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,ASSISTOR SHIFT CONTROL<WX8>,H.S .A SYSTEM<6EP>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-376-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BUMPER W/HEADLAMPS<SLB>	8-98212-386-1	01	1	1302-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) BUMPER W/HEADLAMPS<SLB> ASSISTOR SHIFT CONTROL<WX8>	8-98212-377-1	01	1	1302-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1302-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
