8-05 — INTERIOR LAMP (#112830) — 13 parça

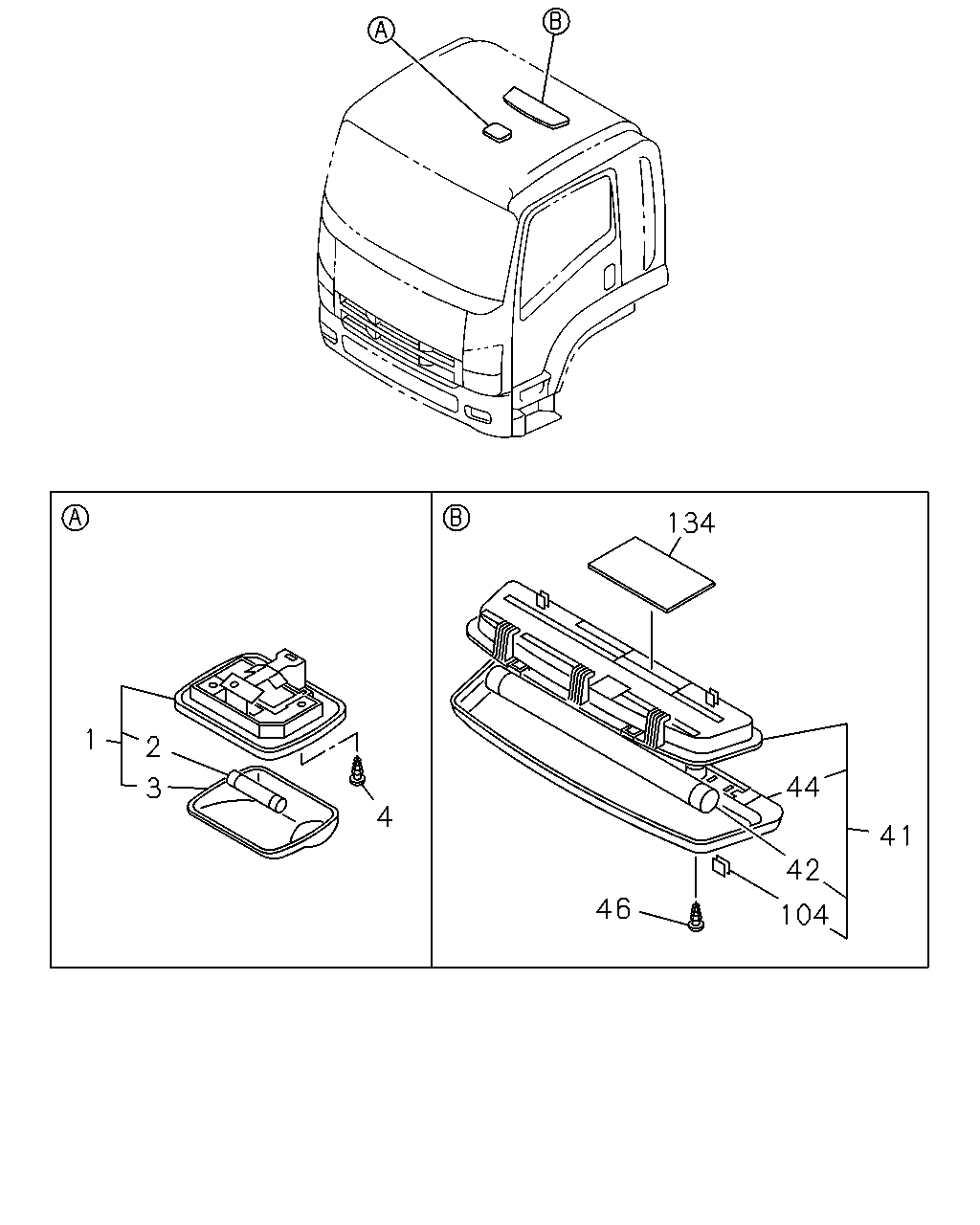

1 2 3 4 46 44 42 104 41 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM	8-98013-421-3	01	1	1302-	●	●
2	BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	1302-	●	●
3	LENS; ROOM LAMP	8-98047-272-0	01	1	1302-	●	●
4	SCREW; ROOM LAMP M5X14 W/WASHER	8-98075-766-0	02	1	1302-	●	●
41	LAMP ASM; FLUORESCENT FLUORESCENT LAMP<6UC>	8-97387-587-1	01	1	1302-	●	●
42	LAMP; FLUORESCENT FLUORESCENT LAMP<6UC> FL20SD	8-98056-311-0	01	1	1302-	●	●
44	LENS; FLUORESCENT LAMP FLUORESCENT LAMP<6UC>	8-98056-315-0	01	1	1302-	●	●
46	SCREW; FLUORESCENT LAMP FLUORESCENT LAMP<6UC> M6X12 FLANGE	0-28060-612-0	02	1	1302-	●	●
104	CLIP; LAMP FLUORESCENT LAMP<6UC>	8-98056-322-0	02	1	1302-	●	●
134	SEAL; FLUORESCENT LAMP FLUORESCENT LAMP<6UC>	8-98076-275-0	01	1	1302-	●	●

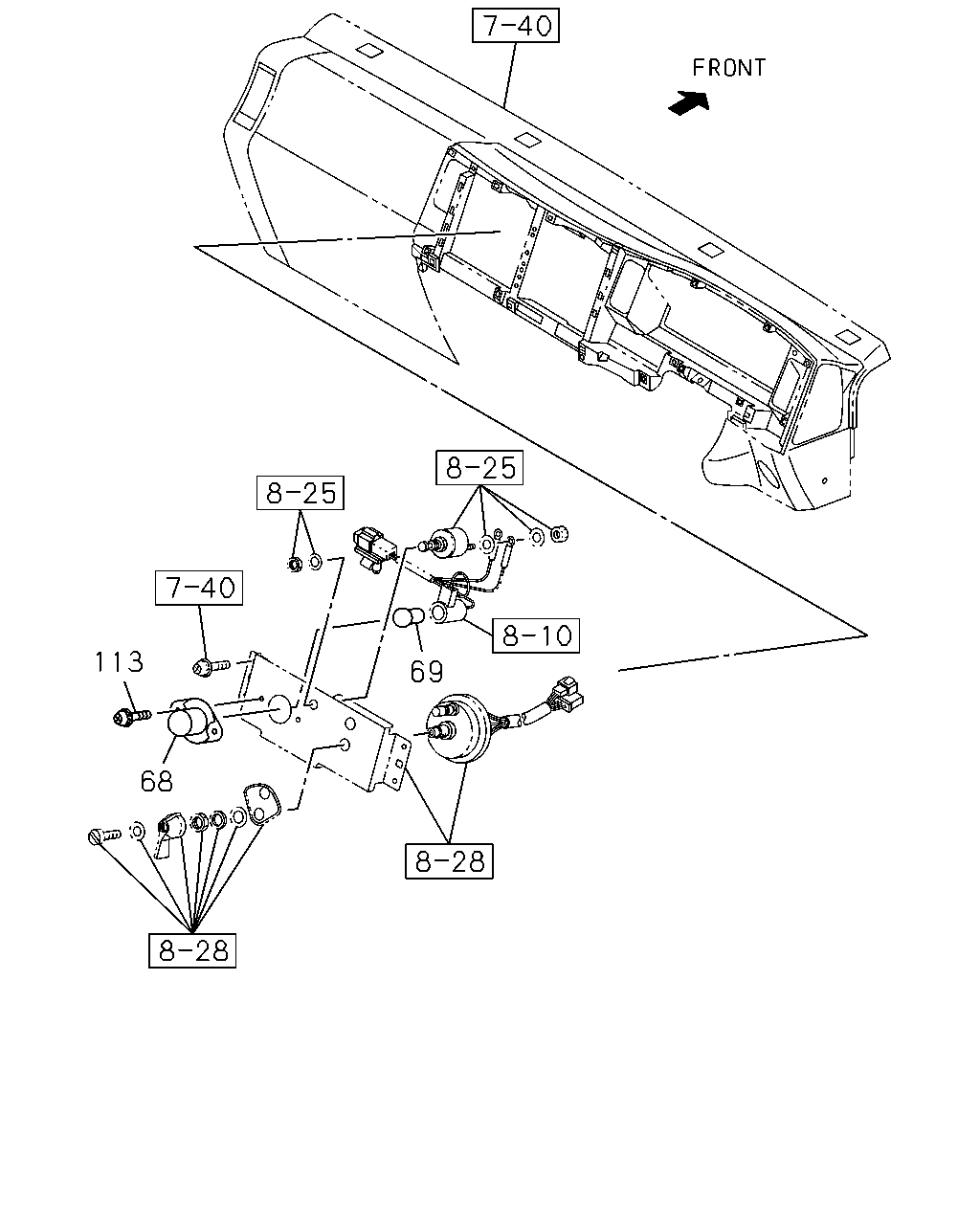

113 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
68	BRACKET; MAP LAMP USER EXP GOVERNMENT<D6M>	1-82147-002-0	01	1	1302-	●
69	BULB; MAP LAMP USER EXP GOVERNMENT<D6M> 24V 6W	9-82691-306-0	01	1	1302-	●
113	SCREW; LAMP USER EXP GOVERNMENT<D6M> M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	1302-	●
