Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#112813) — 130 parça
Tümü
A - FCS5MS
B - FGS5MS
◀

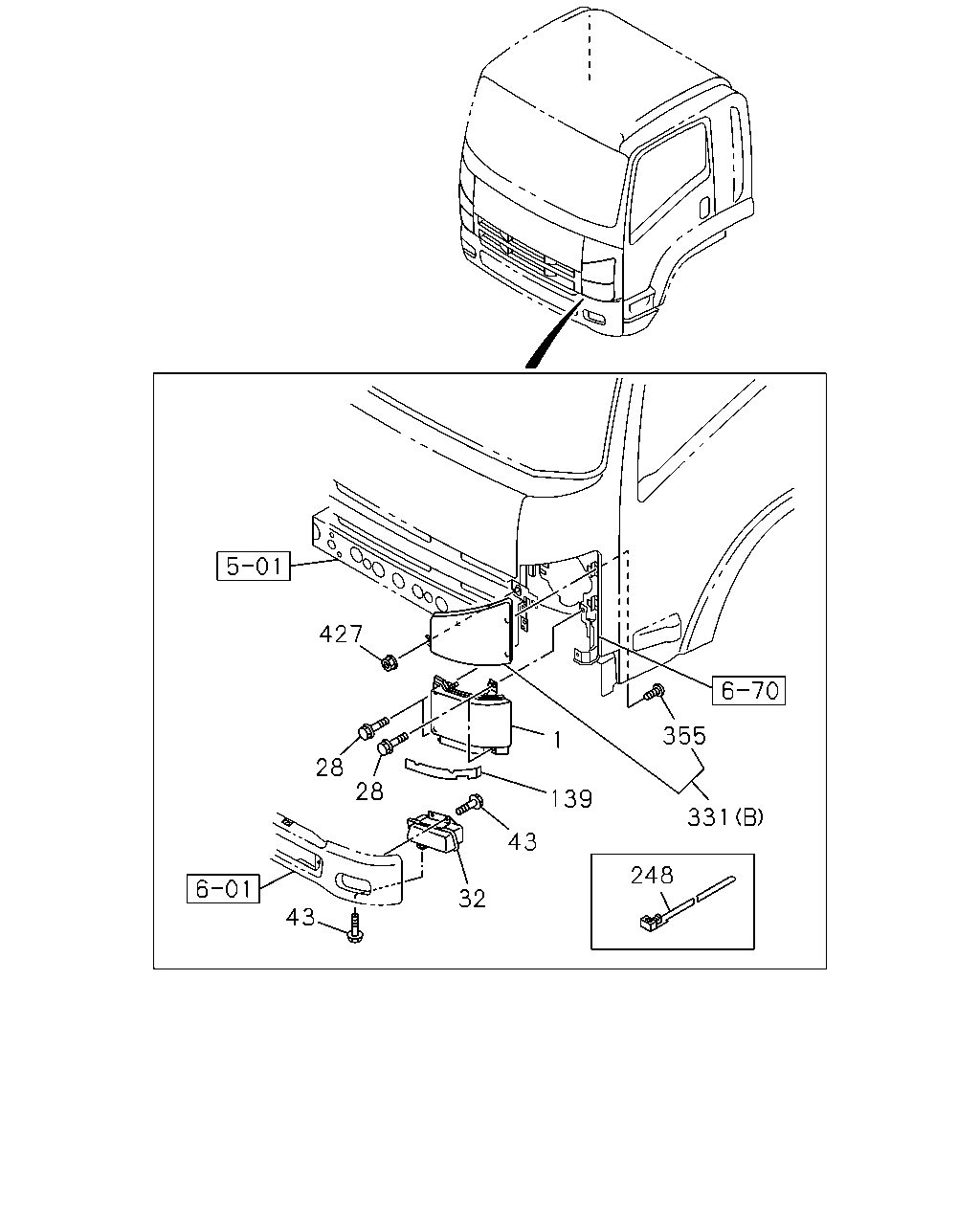

[801A] FIXING WIDE CAB;FRONT LAMP (26 parça)
[801A] COMPONENT;FOG LAMP AND TURN SIGNAL LAMP (25 parça)

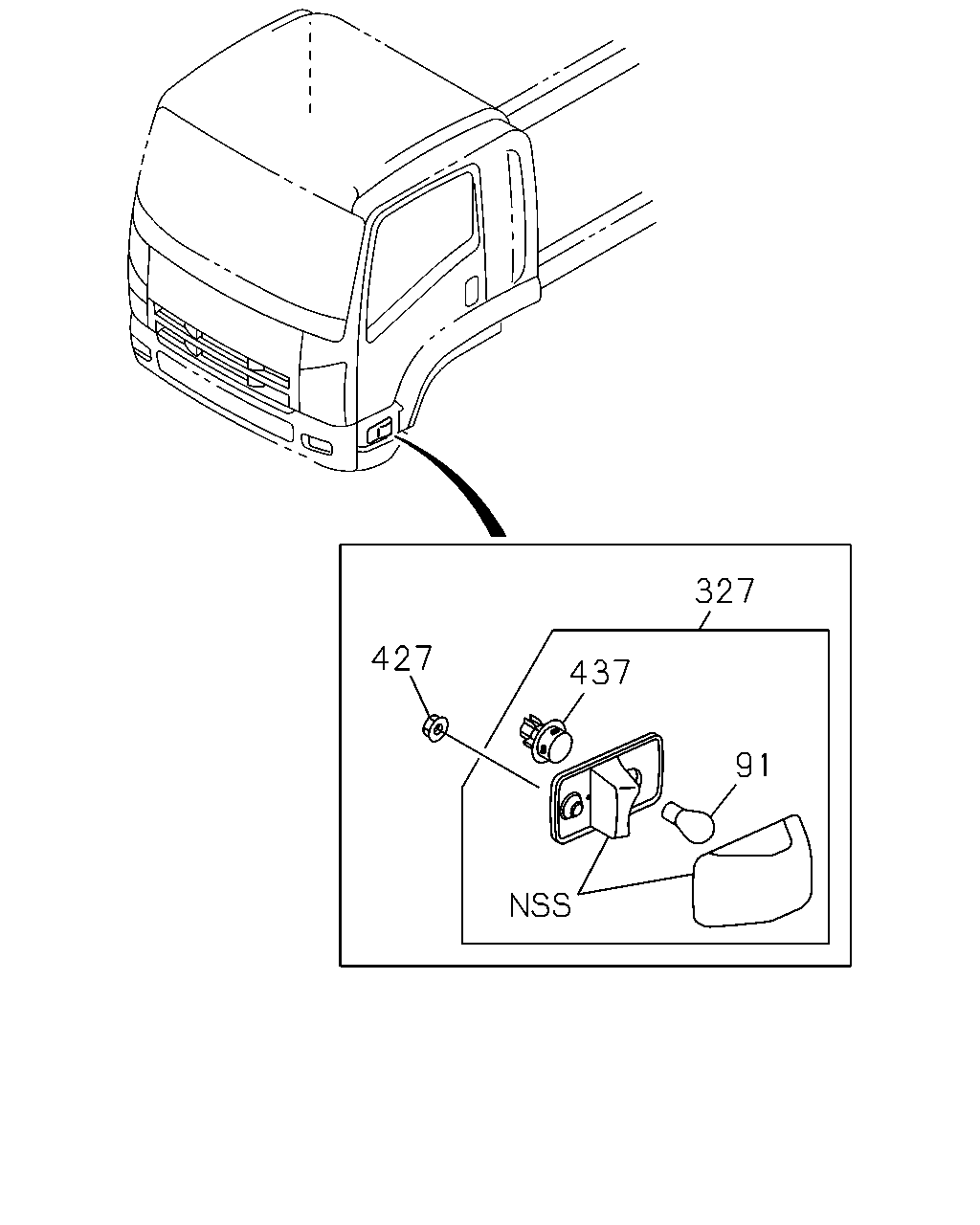

[801A] SIDE TURN SIGNAL LAMP (6 parça)

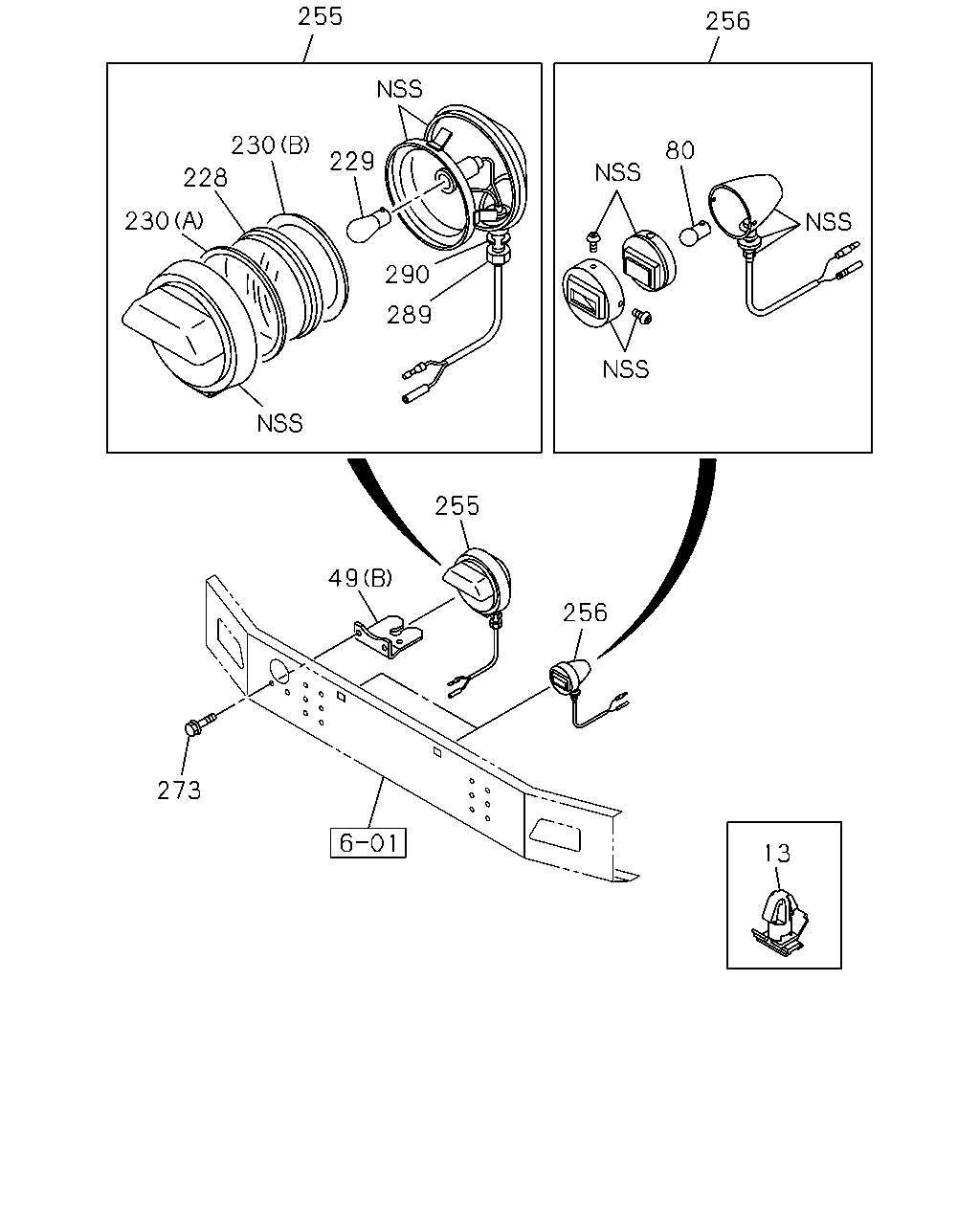

[801A] DRIVING LAMP,MARKER LAMP (14 parça)

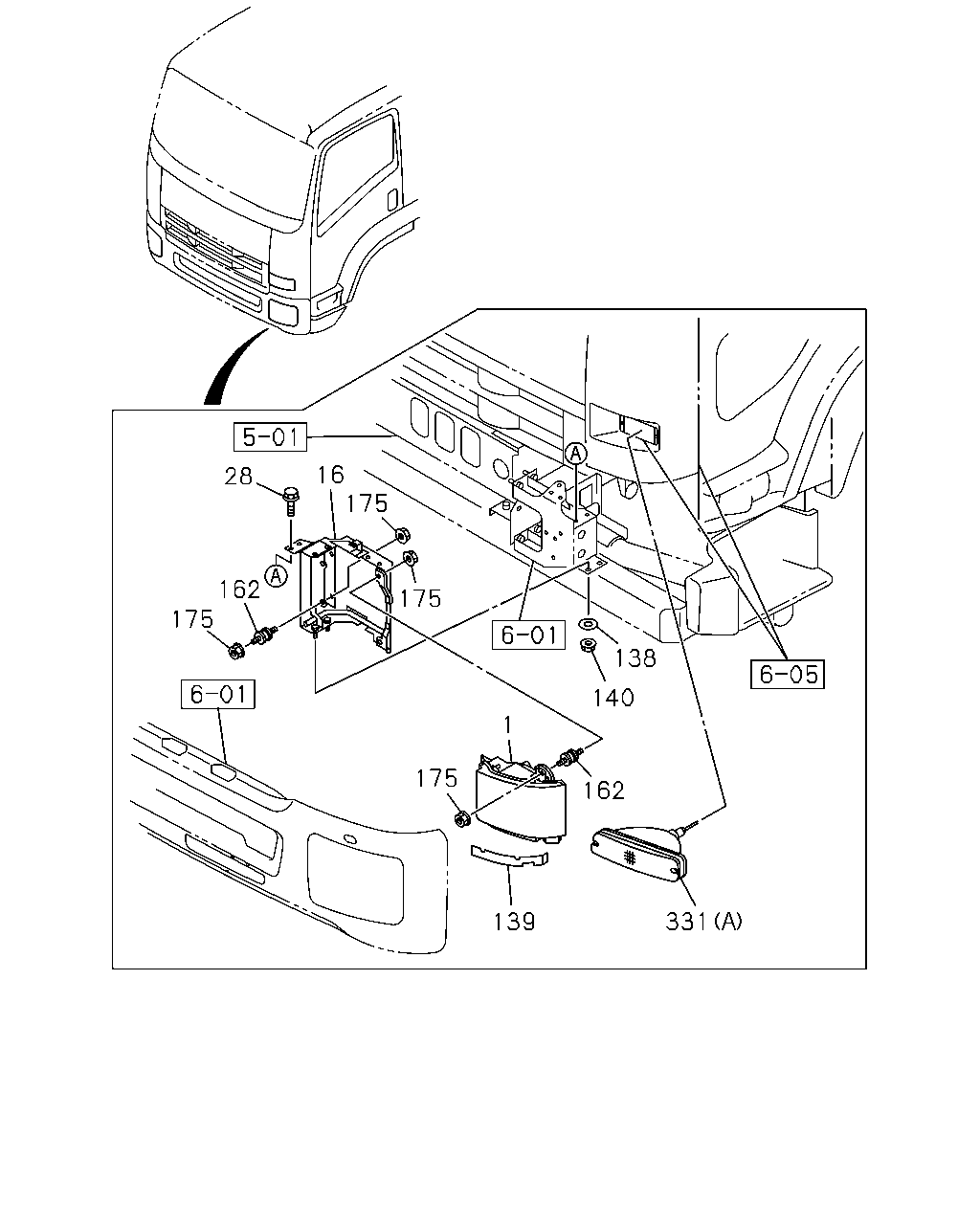

[801A] FIXING STD CAB;FRONT LAMP (25 parça)
[801A] REFLECTOR (6 parça)
[801A] COMPONENT;HEADLAMP (28 parça)
▶
427
28
28
32
43
139
1
355
331
248
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-621-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-313-0
01
1
1306-
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-620-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-312-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-619-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-311-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-618-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-310-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
●
28
BOLT; HEADLAMP
M10X25 FLANGE
0-28651-025-0
04
1
1302-
●
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1302-
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
●
43
BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1302-
●
139
COVER; HEADLAMP
8-98054-342-0
02
1
1302-
●
●
248
CLIP; HARNESS
EXC. FOG LAMP<T96> L=140
5-09707-031-1
02
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-896-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-895-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-459-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-458-0
01
1
1302-
●
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1302-
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1302-
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1302-
●
32
44
47
49
15
36
448
331
124
129
127
125
331
431
357
399
355
432
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
BULB; FOG LAMP
FOG LAMP<T96> 24V 70W
1-82194-106-0
02
1
1302-
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
●
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-016-0
01
1
1302-
●
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-015-0
01
1
1302-
●
44
NUT; FOG LAMP
FOG LAMP<T96> M6
8-98217-430-0
02
1
1302-
●
47
WASHER; PL,FOG LAMP
FOG LAMP<T96>
8-98217-429-0
02
1
1302-
●
49
BRACKET; LAMP
(B)
8-98164-818-0
01
1
1302-
●
49
BRACKET; LAMP
FOG LAMP<T96> (A)
8-98051-435-0
01
1
1302-
●
49
BRACKET; LAMP
FOG LAMP<T96> (A)
8-98051-436-0
01
1
1302-
●
124
BULB; FRT TURN SIGNAL
24V 21W
8-98051-496-0
02
1
1302-
●
125
GASKET; FRT TURN SIGNAL
8-94334-881-0
02
1
1302-
●
127
LENS; FRT TURN SIGNAL
8-94117-030-0
01
1
1302-
●
127
LENS; FRT TURN SIGNAL
8-94112-723-0
01
1
1302-
●
129
SCREW; FRT TURN SIGNAL
0-91190-435-0
04
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-896-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-895-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-459-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-458-0
01
1
1302-
●
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1302-
●
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1302-
●
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1302-
●
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1302-
●
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1302-
●
448
CAP ASM; LAMP
FOG LAMP<T96>
8-97378-874-0
02
1
1302-
●
327
437
427
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1302-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1302-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1302-
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1302-
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1302-
●
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1302-
●
●
255
229
230
228
230
290
289
256
80
255
49
256
273
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
CLIP; HEADLAMP
LAMPS EXP PACKAGE<WL5> OD=9 H=6
1-09709-178-0
03
1
1302-
●
49
BRACKET; LAMP
(B)
8-98164-818-0
01
1
1302-
●
49
BRACKET; LAMP
FOG LAMP<T96> (A)
8-98051-435-0
01
1
1302-
●
49
BRACKET; LAMP
FOG LAMP<T96> (A)
8-98051-436-0
01
1
1302-
●
80
BULB; MARKER LAMP
LAMPS EXP PACKAGE<WL5> 24V 6W
9-82691-306-0
02
1
1302-
●
228
LENS; DRIVING LAMP
LAMPS EXP PACKAGE<WL5>
9-82611-231-0
01
1
1302-
●
229
BULB; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> 24V 25W
9-82691-347-0
01
1
1302-
●
230
GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (A)
9-82611-752-0
01
1
1302-
●
230
GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (B)
9-82611-753-0
01
1
1302-
●
255
LAMP; DRIVING
LAMPS EXP PACKAGE<WL5>
1-82210-239-1
01
1
1302-
●
256
LAMP; MARKER
LAMPS EXP PACKAGE<WL5>
1-82210-240-1
02
1
1302-
●
273
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1302-
●
289
NUT; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> M12
9-99110-412-0
01
1
1302-
●
290
WASHER; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> ID=12.2
9-09150-612-0
01
1
1302-
●
28
162
175
16
175
175
175
140
162
138
139
331
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-621-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-313-0
01
1
1306-
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-620-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-312-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-619-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-311-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-618-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-310-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
●
16
BRACKET; HEADLAMP
8-97623-911-1
01
1
1302-
●
16
BRACKET; HEADLAMP
8-97623-910-1
01
1
1302-
●
28
BOLT; HEADLAMP
M10X25 FLANGE
0-28651-025-0
04
1
1302-
●
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1302-
●
138
WASHER; LK BRKT HD LAMP
ID=10.5 OD=26
0-91614-710-0
04
1
1302-
●
139
COVER; HEADLAMP
8-98054-342-0
02
1
1302-
●
●
140
NUT
M10 FLANGE
0-91180-210-0
08
1
1302-
●
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1302-
●
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-896-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(A)
8-98079-895-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-459-0
01
1
1302-
●
331
LAMP; TURN SIGNAL
(B)
8-98155-458-0
01
1
1302-
●
250
161
121
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
121
REFLECTOR; REFLEX
1-82290-066-0
02
1
1302-
●
●
123
NUT; REFLECTOR
M6 FLANGE
0-91180-106-0
02
1
1302-
●
●
161
NUT; BRKT
M8 CAP NUT FLANGE
8-97372-242-0
04
1
1302-1312
●
●
161
NUT; BRKT
M8 CAP NUT FLANGE
8-98261-347-0
04
1
1401-
●
●
250
BRACKET ASM
8-98070-243-1
01
1
1302-
●
●
250
BRACKET ASM
8-98070-242-1
01
1
1302-
●
●
1
4
338
339
408
420
20
5
23
457
382
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-621-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-313-0
01
1
1306-
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-620-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-312-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-619-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-311-0
01
1
1306-
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-618-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-310-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
●
1
LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1305
●
1
LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-567-0
01
1
1302-
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-566-0
01
1
1302-
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-565-0
01
1
1302-
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-564-0
01
1
1302-
●
4
HEADLAMP UNIT
8-98226-183-0
01
1
1302-
●
4
HEADLAMP UNIT
8-98226-182-0
01
1
1302-
●
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1302-
●
●
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1302-
●
●
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1302-
●
●
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1302-
●
●
338
LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98010-256-0
02
1
1302-
●
339
GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
1-86830-158-0
02
1
1302-
●
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1302-
●
●
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1302-
●
●
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1302-
●
●
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
