8-01 — LAMP; FRONT AND FRONT SIDE (#112811) — 131 parça

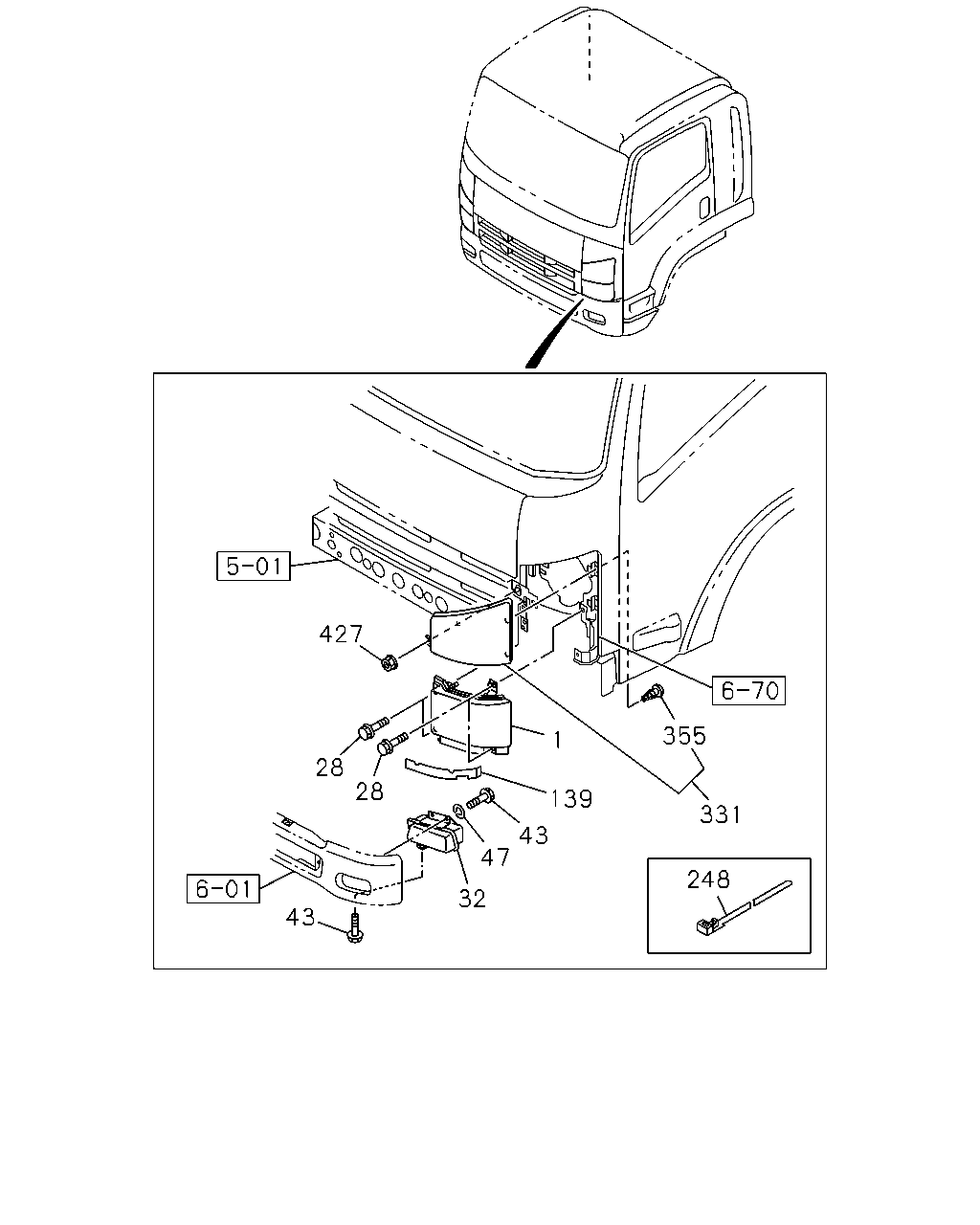

427 28 28 43 32 47 43 139 1 355 331 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98225-634-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-319-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98225-635-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-320-0	01	1	1306-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1302-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-058-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-059-1	01	1	1302-
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1302-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98217-429-0	02	1	1302-
139	COVER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-98054-342-0	02	1	1302-
248	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,FOG LAMP<T96> L=140	5-09707-031-1	02	1	1302-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-458-0	01	1	1302-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-459-0	01	1	1302-
355	SCREW; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-428-0	04	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	1302-

5 5 382 457 23 20 420 408 339 338 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98225-634-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-319-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98225-635-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-320-0	01	1	1306-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98226-180-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98226-181-0	01	1	1302-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-182-0	01	1	1302-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-183-0	01	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (B) 24V 5W	1-82194-042-0	02	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W	1-82194-063-0	02	1	1302-
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-871-0	06	1	1302-
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97232-491-0	02	1	1302-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1302-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1302-
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98225-685-0	02	1	1302-
408	CAP; BREATHER,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-874-0	02	1	1302-
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98218-601-0	02	1	1302-
457	GRIP; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98241-354-0	02	1	1306-

331 357 399 355 432 431 32 36 44 15 47 49 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 24V 70W	1-82194-106-0	02	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-058-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-059-1	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	1-82118-015-0	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	1-82118-016-0	01	1	1302-
44	NUT; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6	8-98217-430-0	02	1	1302-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98217-429-0	02	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-435-0	01	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-436-0	01	1	1302-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-458-0	01	1	1302-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-459-0	01	1	1302-
355	SCREW; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-428-0	04	1	1302-
357	BULB; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB> 24V 21W AMBER	8-97323-806-0	02	1	1302-
399	SOCKET; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-387-0	02	1	1302-
431	CAP; TURN SIGNAL,LAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1302-
432	FASTENER; TURN SIGNAL,LAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-431-0	04	1	1302-
448	CAP ASM; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1302-

60 305 438 438 304 67 68 439 75 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98047-052-2	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-630-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98047-053-2	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98146-230-1	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98146-231-1	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
67	GASKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-98238-656-0	02	1	1303-
68	BULB; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) 24V 21W	8-98051-495-0	02	1	1302-
68	BULB; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	1302-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	04	1	1302-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1302-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A)	8-98074-439-0	02	1	1302-
304	PLUG; SOCKET,FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-98051-390-0	02	1	1302-
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98074-440-0	02	1	1302-1302
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98240-559-0	02	1	1303-
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98051-392-0	02	1	1302-1302
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1303-
438	CAP; BREATHER,FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	04	1	1302-1302
438	CAP; BREATHER,FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1303-
439	SPRING SET; COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98075-644-0	02	1	1302-

327 427 437 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	1302-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1302-

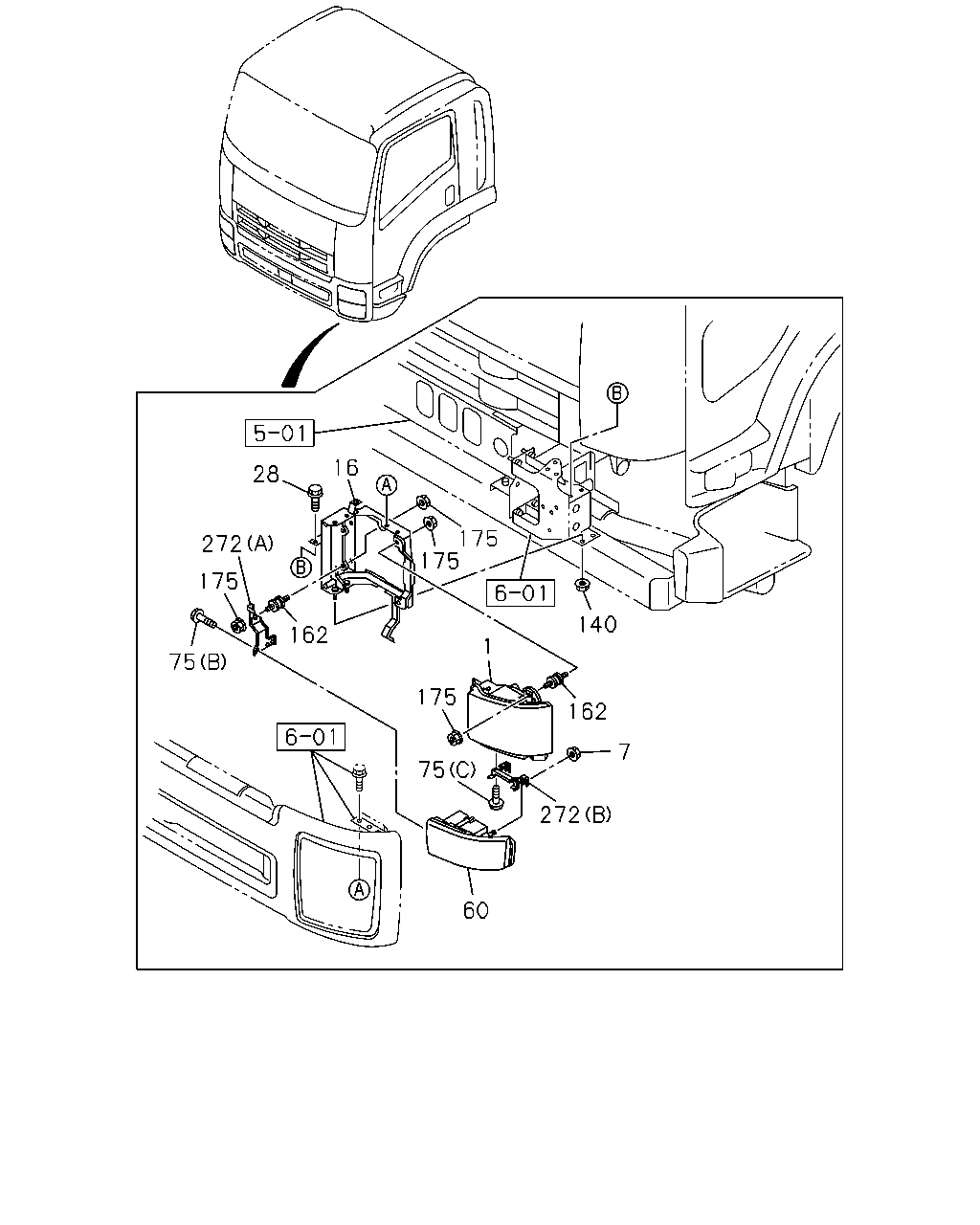

16 175 175 140 162 7 272 60 75 175 162 75 175 28 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	NUT; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	04	1	1302-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98013-015-2	01	1	1302-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98013-016-2	01	1	1302-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1302-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1302-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98047-052-2	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-630-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98047-053-2	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98146-230-1	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98146-231-1	01	1	1302-1302
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	04	1	1302-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1302-
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A)	8-98074-439-0	02	1	1302-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	04	1	1302-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	1302-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	1302-
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (A)	8-98051-934-0	01	1	1302-
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (A)	8-98051-935-0	01	1	1302-
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B)	8-98051-937-0	01	1	1302-
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B)	8-98051-938-0	01	1	1302-
