8-01 — LAMP; FRONT AND FRONT SIDE (#112808) — 144 parça

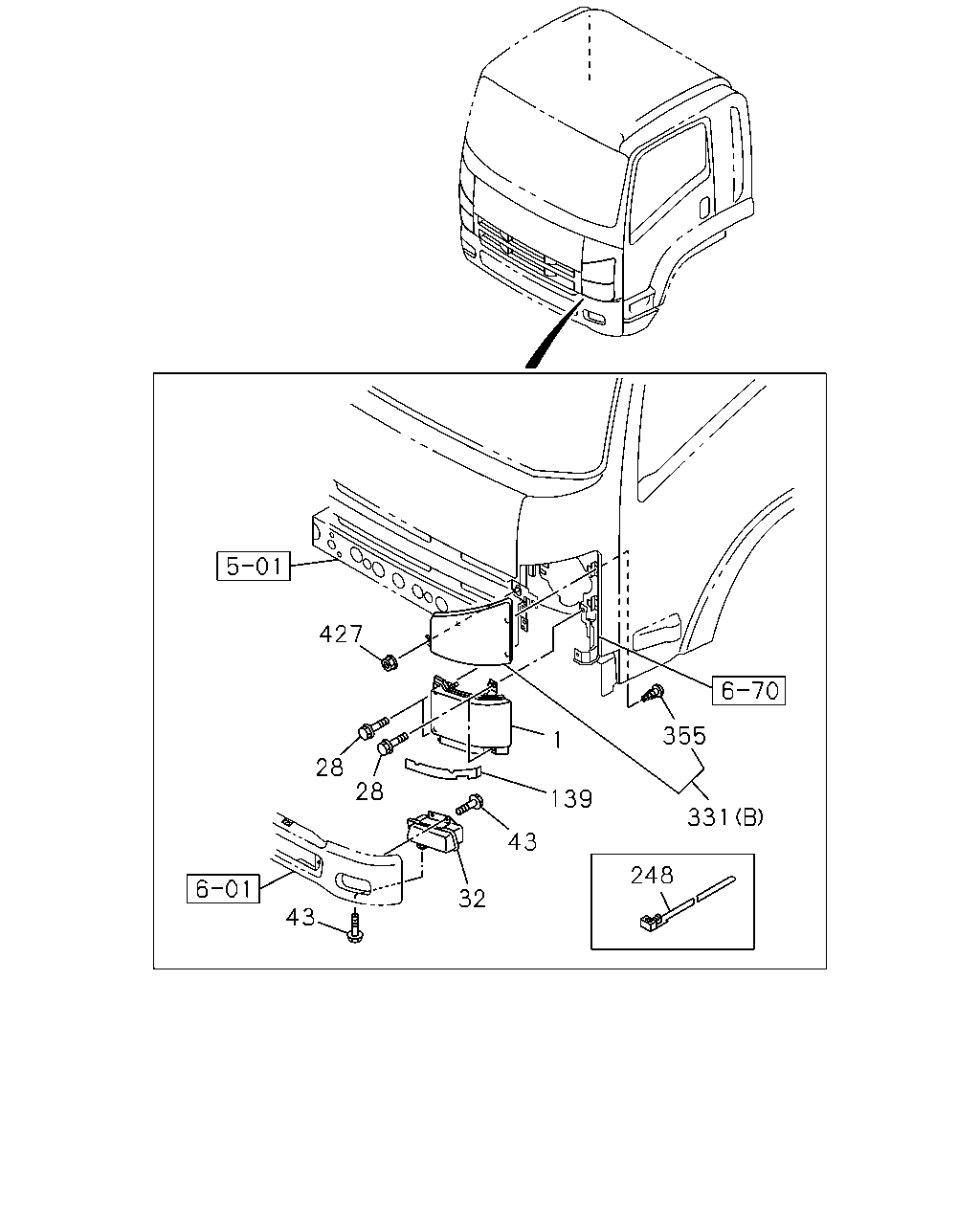

çizim 329281
427 28 28 43 32 43 1 331 355 139 248
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-319-0 01 1 1306-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1302-
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-058-1 01 1 1302-
43 BOLT; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1302-
139 COVER; HEADLAMP 8-98054-342-0 02 1 1302-
248 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1302-
355 SCREW; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-428-0 04 1 1302-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1302-
427 NUT; TURN SIGNAL LAMP
REINFORCEMENT BUMPER<VG7> M6 FLANGE 		0-91180-106-0 02 1 1302-
çizim 329324
1 4 338 339 408 20 420 23 457 382 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-319-0 01 1 1306-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1302-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1302-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-567-0 01 1 1302-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-566-0 01 1 1302-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-183-0 01 1 1302-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-182-0 01 1 1302-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98226-181-0 01 1 1302-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98226-180-0 01 1 1302-
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 24V 5W 		1-82194-042-0 02 1 1302-
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 1302-
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 1302-
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97232-491-0 02 1 1302-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1302-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1302-
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1302-
408 CAP; BREATHER,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-874-0 02 1 1302-
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98218-601-0 02 1 1302-
457 GRIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98241-354-0 02 1 1306-
çizim 329536
32 15 44 47 49 36 448 331 124 129 127 125 331 431 357 399 355 432
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 24V 70W 		1-82194-106-0 02 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-058-1 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		1-82118-016-0 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		1-82118-015-0 01 1 1302-
44 NUT; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6 		8-98217-430-0 02 1 1302-
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98217-429-0 02 1 1302-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-435-0 01 1 1302-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-436-0 01 1 1302-
49 BRACKET; LAMP
REINFORCEMENT BUMPER<VG7> (B) 		8-98164-818-0 01 1 1302-
124 BULB; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 24V 21W 		8-98051-496-0 02 1 1302-
125 GASKET; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94334-881-0 02 1 1302-
127 LENS; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94117-030-0 01 1 1302-
127 LENS; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94112-723-0 01 1 1302-
129 SCREW; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		0-91190-435-0 04 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1302-
355 SCREW; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-428-0 04 1 1302-
357 BULB; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 24V 21W AMBER 		8-97323-806-0 02 1 1302-
399 SOCKET; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-387-0 02 1 1302-
431 CAP; TURN SIGNAL,LAMP
REINFORCEMENT BUMPER<VG7> 		8-97378-874-0 02 1 1302-
432 FASTENER; TURN SIGNAL,LAMP
REINFORCEMENT BUMPER<VG7> 		8-98051-431-0 04 1 1302-
448 CAP ASM; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-97378-874-0 02 1 1302-

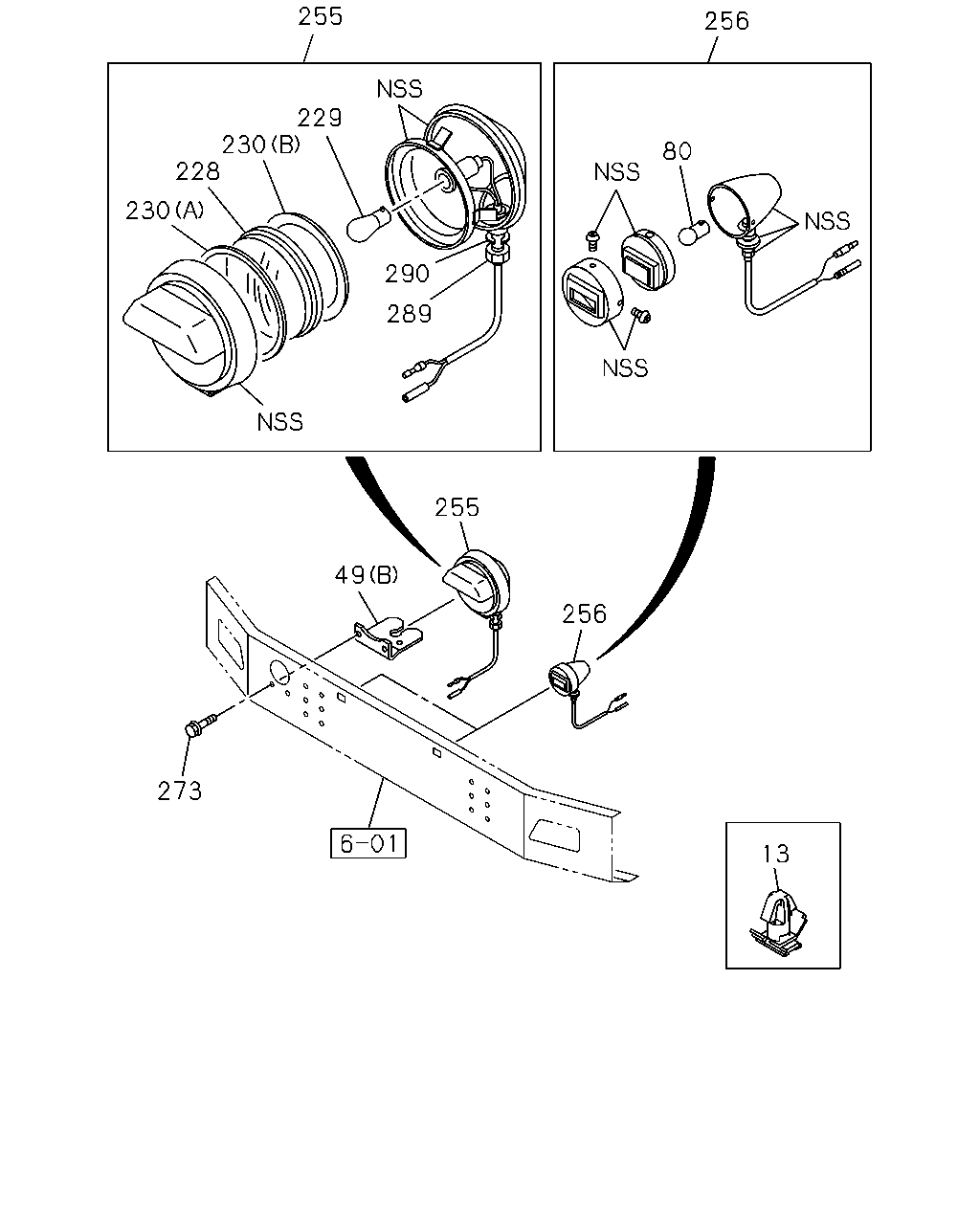

çizim 329728
255 229 230 228 230 290 289 256 80 255 49 273 256 13
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; HEADLAMP
LAMPS EXP PACKAGE<WL5> OD=9 H=6 		1-09709-178-0 03 1 1302-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-435-0 01 1 1302-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-436-0 01 1 1302-
49 BRACKET; LAMP
REINFORCEMENT BUMPER<VG7> (B) 		8-98164-818-0 01 1 1302-
80 BULB; MARKER LAMP
LAMPS EXP PACKAGE<WL5> 24V 6W 		9-82691-306-0 02 1 1302-
228 LENS; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> 		9-82611-231-0 01 1 1302-
229 BULB; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> 24V 25W 		9-82691-347-0 01 1 1302-
230 GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (A) 		9-82611-752-0 01 1 1302-
230 GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (B) 		9-82611-753-0 01 1 1302-
255 LAMP; DRIVING
LAMPS EXP PACKAGE<WL5> 		1-82210-239-1 01 1 1302-
256 LAMP; MARKER
LAMPS EXP PACKAGE<WL5> 		1-82210-240-1 02 1 1302-
273 BOLT; BRKT
REINFORCEMENT BUMPER<VG7> M10X30 FLANGE 		0-28651-030-0 02 1 1302-
289 NUT; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> M12 		9-99110-412-0 01 1 1302-
290 WASHER; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> ID=12.2 		9-09150-612-0 01 1 1302-

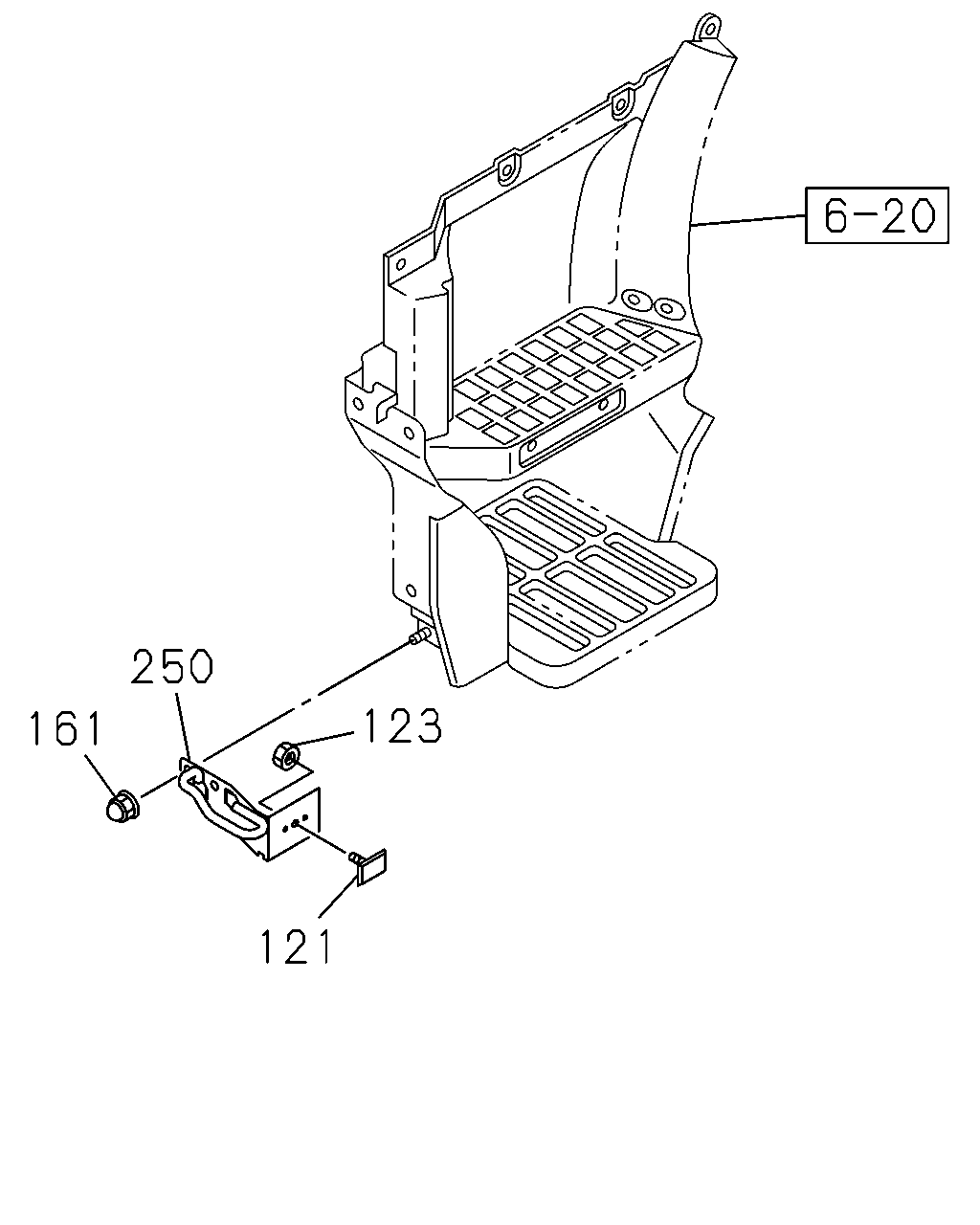

çizim 329730
250 161 121 123
BalonParca AdiParca NoAdetTipApplied Date
121 REFLECTOR; REFLEX 1-82290-066-0 02 1 1302-
123 NUT; REFLECTOR
M6 FLANGE 		0-91180-106-0 02 1 1302-
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 04 1 1302-1312
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 04 1 1401-
250 BRACKET ASM 8-98070-243-1 01 1 1302-
250 BRACKET ASM 8-98070-242-1 01 1 1302-

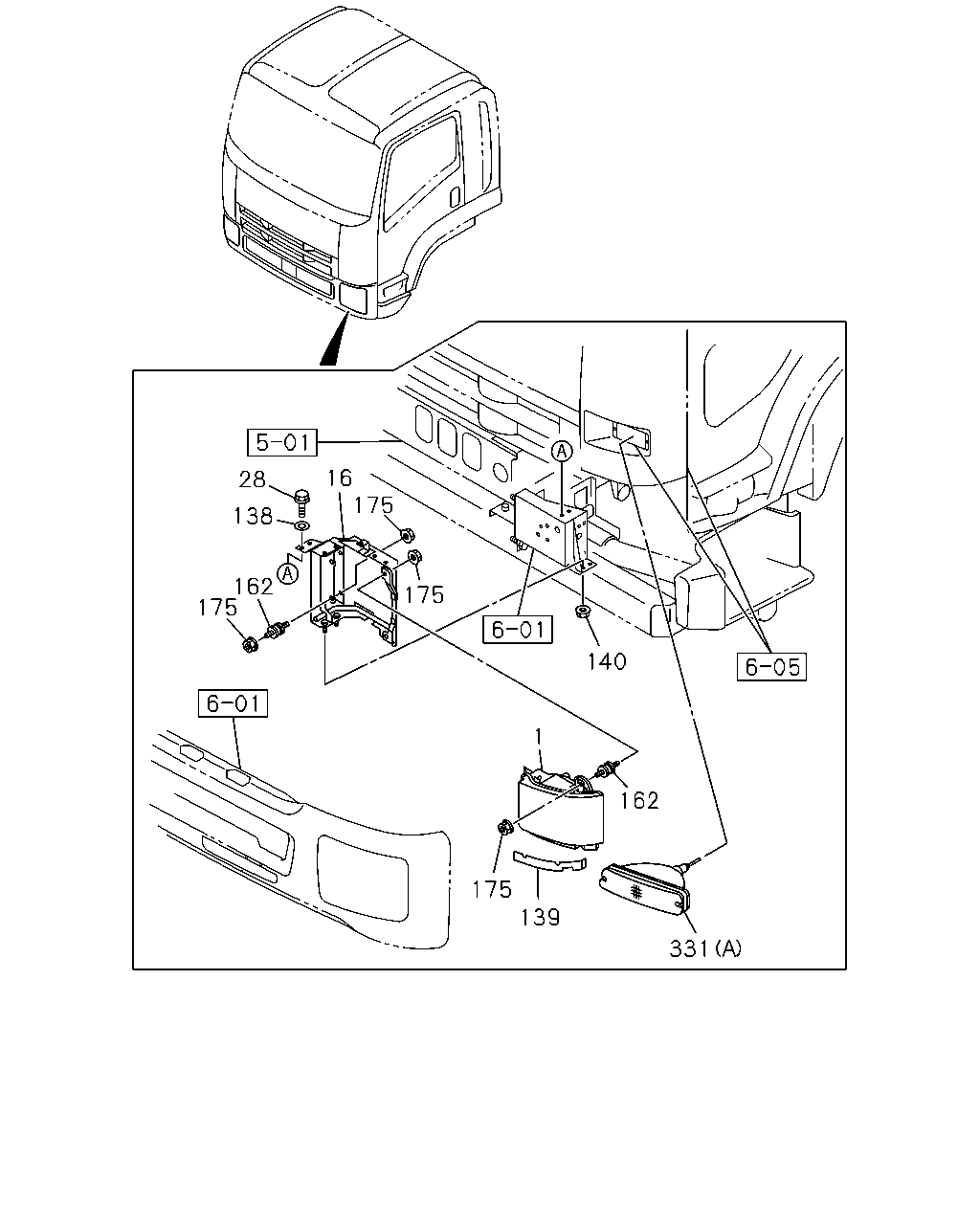

çizim 329896
28 138 162 175 175 175 16 140 175 1 162 331 139
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1302-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-319-0 01 1 1306-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98086-432-1 01 1 1302-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98086-431-1 01 1 1302-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1302-
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1302-
138 WASHER; LK BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=26 		0-91614-710-0 04 1 1302-
139 COVER; HEADLAMP 8-98054-342-0 02 1 1302-
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 08 1 1302-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 1302-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1302-
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1302-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1302-
çizim 332361
327 437 427 91
BalonParca AdiParca NoAdetTipApplied Date
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1302-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1302-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1302-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1302-
427 NUT; TURN SIGNAL LAMP
REINFORCEMENT BUMPER<VG7> M6 FLANGE 		0-91180-106-0 02 1 1302-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
