◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#112806) — 245 parça

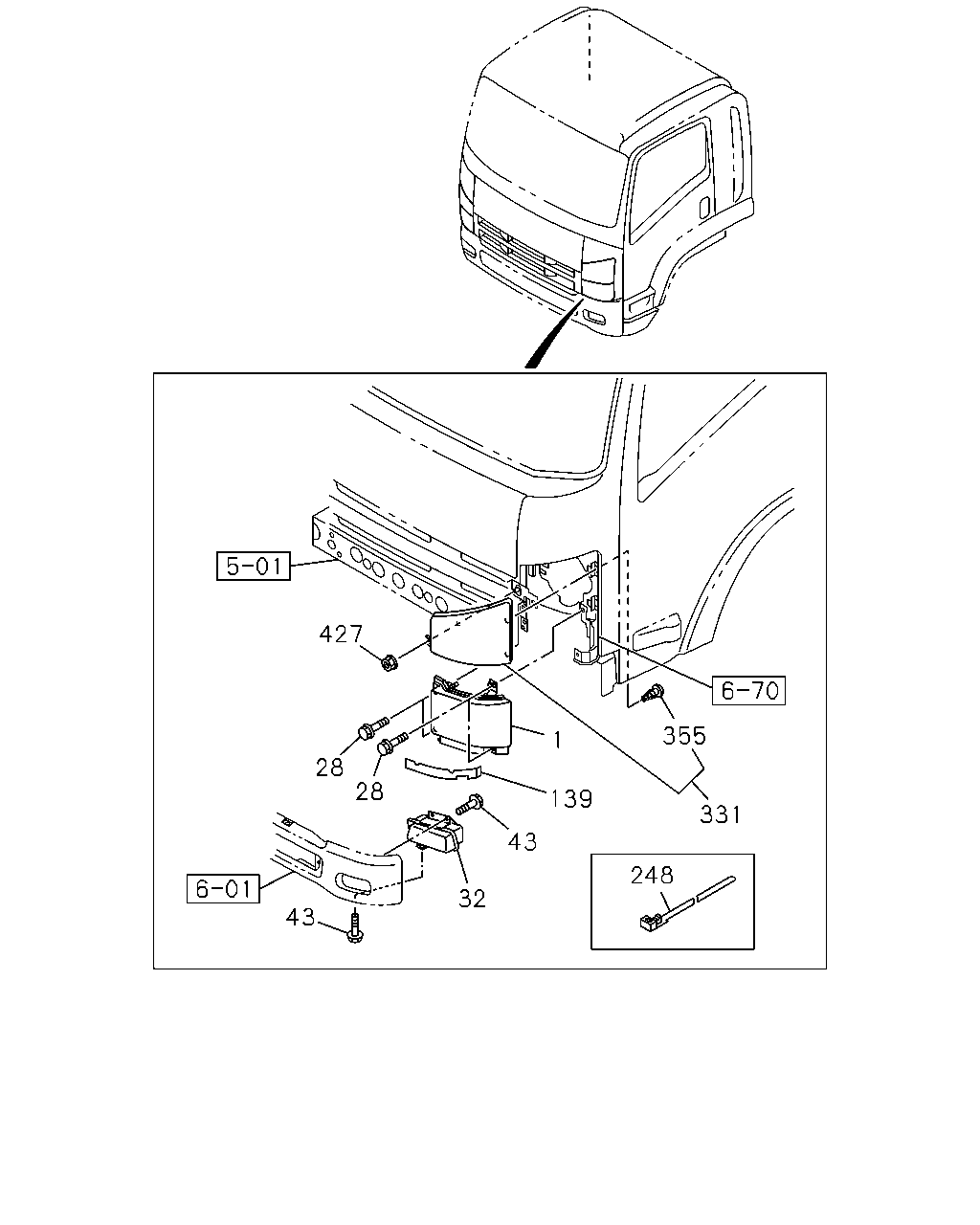

çizim 329321
427 28 28 32 43 43 139 1 355 331 248
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98232-059-1 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98232-058-1 01 1 1302- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1302- ● ●
139 COVER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98054-342-0 02 1 1302- ● ●
248 CLIP; HARNESS
EXC. BUMPER W/HEADLAMPS<SLB>,FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> L=140 		5-09707-031-1 02 1 1302- ●
248 CLIP; HARNESS
EXC. BUMPER W/HEADLAMPS<SLB>,FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1302- ●
331 LAMP; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98155-459-0 01 1 1302- ● ●
331 LAMP; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98155-458-0 01 1 1302- ● ●
355 SCREW; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-428-0 04 1 1302- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
427 NUT; TURN SIGNAL LAMP
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●

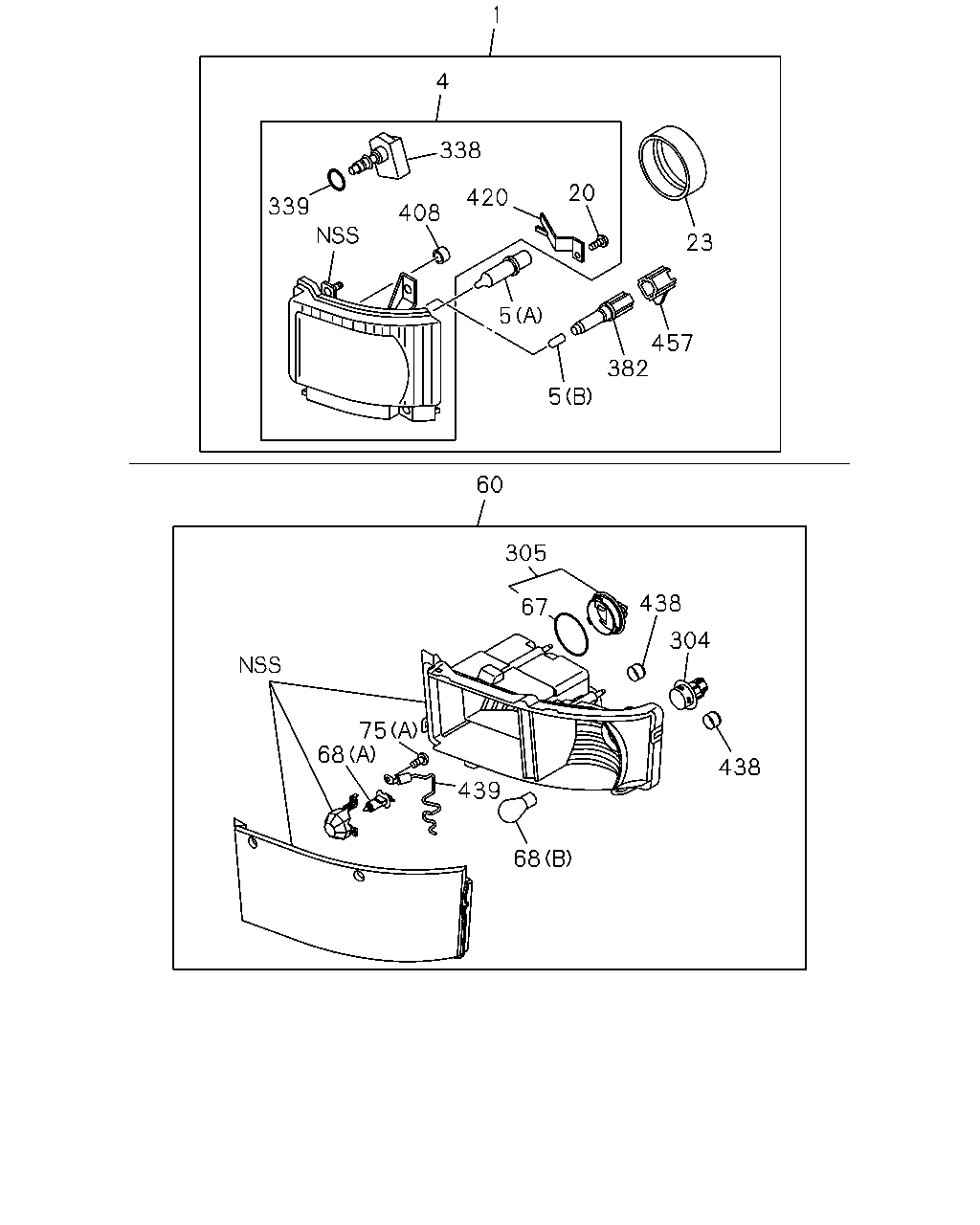

çizim 329388
1 4 338 420 408 339 20 5 5 382 457 23 60 305 67 438 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-569-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-569-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-568-0 01 1 1302- ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-568-0 01 1 1302- ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1302- ●
4 HEADLAMP UNIT
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1302- ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1302- ●
4 HEADLAMP UNIT
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1302- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98226-185-0 01 1 1302- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98226-185-0 01 1 1302- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98226-184-0 01 1 1302- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98226-184-0 01 1 1302- ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 24V 5W 		1-82194-042-0 02 1 1302- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1302- ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 1302- ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1302- ●
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 1302- ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1302- ●
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97232-491-0 02 1 1302- ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1302- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98159-979-2 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98238-626-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98159-978-2 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98238-625-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98146-231-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98238-633-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98146-230-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98238-632-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98047-053-2 01 1 1302-1302 ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98238-631-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98047-052-2 01 1 1302-1302 ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98238-630-0 01 1 1303- ● ●
67 GASKET; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> 		8-98238-656-0 02 1 1303- ● ●
68 BULB; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A) 24V 70W 		1-82194-106-0 02 1 1302- ●
68 BULB; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 1302- ●
68 BULB; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) 24V 21W 		8-98051-495-0 02 1 1302- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A) 		8-98074-439-0 02 1 1302- ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1302- ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 1302- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1302- ● ●
304 PLUG; SOCKET,FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> 		8-98051-390-0 02 1 1302- ● ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98074-440-0 02 1 1302-1302 ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98074-440-0 02 1 1302-1302 ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98240-559-0 02 1 1303- ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98240-559-0 02 1 1303- ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-392-0 02 1 1302-1302 ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98051-392-0 02 1 1302-1302 ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98240-560-0 02 1 1303- ●
305 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1303- ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98010-256-0 02 1 1302- ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1302- ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-86830-158-0 02 1 1302- ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1302- ●
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1302- ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1302- ●
408 CAP; BREATHER,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-874-0 02 1 1302- ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1302- ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98218-601-0 02 1 1302- ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ●
438 CAP; BREATHER,FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> 		8-97378-874-0 04 1 1302-1302 ● ●
438 CAP; BREATHER,FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> 		8-97378-874-0 02 1 1303- ● ●
439 SPRING SET; COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98075-644-0 02 1 1302- ●
439 SPRING SET; COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98075-644-0 02 1 1302- ●
457 GRIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98241-354-0 02 1 1306- ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ●

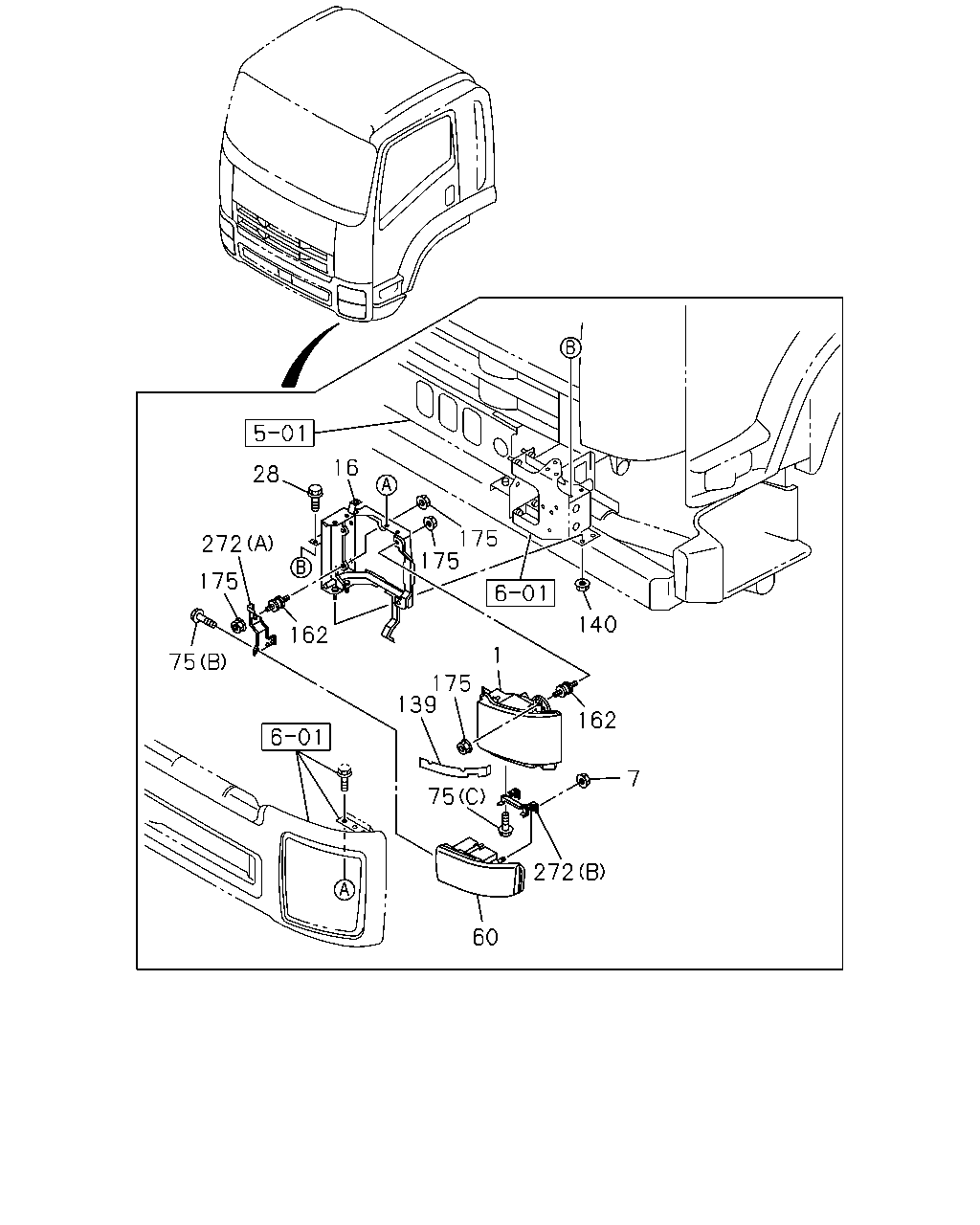

çizim 329533
28 16 272 175 75 162 139 175 175 140 1 175 162 7 272 75 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98241-323-0 01 1 1306- ●
7 NUT; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98013-015-2 01 1 1302- ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98013-016-2 01 1 1302- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1302- ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98159-979-2 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98238-626-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98159-978-2 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP FRONT VAR2<X99> 		8-98238-625-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98146-231-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98238-633-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98146-230-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 1302-1302 ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98238-632-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303- ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98047-053-2 01 1 1302-1302 ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98238-631-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98047-052-2 01 1 1302-1302 ● ●
60 LAMP ASM; FRT COMB
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		8-98238-630-0 01 1 1303- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A) 		8-98074-439-0 02 1 1302- ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1302- ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 1302- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1302- ● ●
139 COVER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98054-342-0 02 1 1302- ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 04 1 1302- ● ●
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 1302- ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 1302- ● ●
272 BRACKET; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		8-98051-935-0 01 1 1302- ● ●
272 BRACKET; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		8-98051-938-0 01 1 1302- ● ●
272 BRACKET; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		8-98051-934-0 01 1 1302- ● ●
272 BRACKET; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		8-98051-937-0 01 1 1302- ● ●
çizim 329565
331 431 432 355 399 357 32 44 47 49 15 448 36
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 24V 70W 		1-82194-106-0 02 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98232-059-1 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98232-058-1 01 1 1302- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		1-82118-016-0 01 1 1302- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		1-82118-015-0 01 1 1302- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6 		8-98217-430-0 02 1 1302- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98217-429-0 02 1 1302- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-435-0 01 1 1302- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-436-0 01 1 1302- ● ●
331 LAMP; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98155-459-0 01 1 1302- ● ●
331 LAMP; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98155-458-0 01 1 1302- ● ●
355 SCREW; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-428-0 04 1 1302- ● ●
357 BULB; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 24V 21W AMBER 		8-97323-806-0 02 1 1302- ● ●
399 SOCKET; TURN SIGNAL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-387-0 02 1 1302- ● ●
431 CAP; TURN SIGNAL,LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		8-97378-874-0 02 1 1302- ● ●
432 FASTENER; TURN SIGNAL,LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98051-431-0 04 1 1302- ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 		8-97378-874-0 02 1 1302- ● ●
çizim 329648
427 437 327 91 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 1302- ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 1302- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 1302- ●
86 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> M6 FLANGE 		0-91180-106-0 04 1 1302- ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1302- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-467-3 01 1 1302- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-466-3 01 1 1302- ●
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 1302- ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1302- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1302- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
427 NUT; TURN SIGNAL LAMP
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
