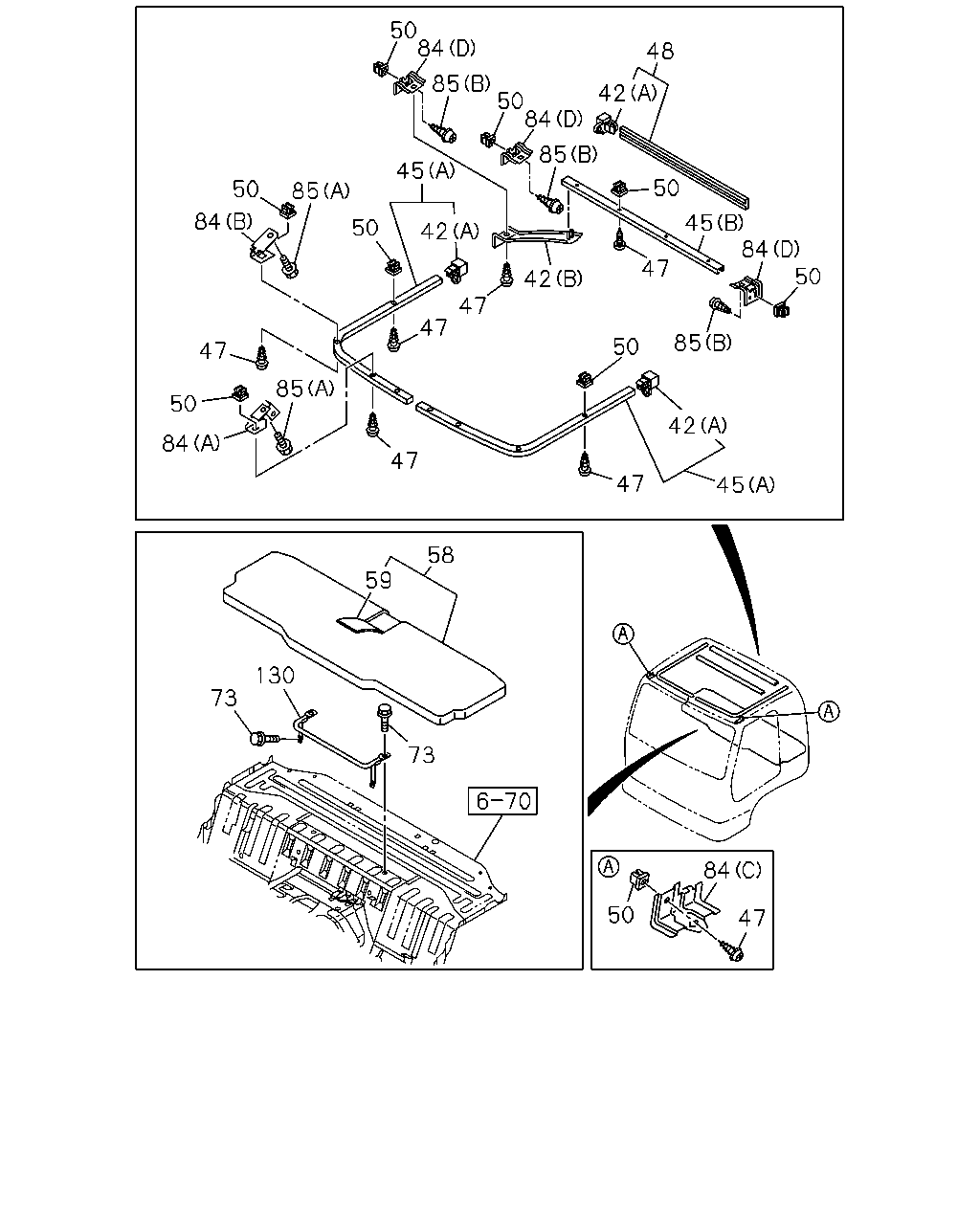

7-70 — SEPARATER AND BED (#112804) — 35 parça

47 84 50 73 130 73 59 58 45 47 42 85 50 84 45 47 50 50 48 42 85 84 50 85 84 50 42 47 42 45 47 47 85 84 50 47 50 85 50 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1302-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1302-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1302-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1302-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1302-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1302-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1302-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1302-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1302-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	1302-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1302-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1302-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1302-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1302-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1302-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1302-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1302-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1302-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1302-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1302-
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1302-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1302-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1302-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1302-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	1302-1405
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1302-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1302-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1302-
