7-70 — SEPARATER AND BED (#112801) — 27 parça

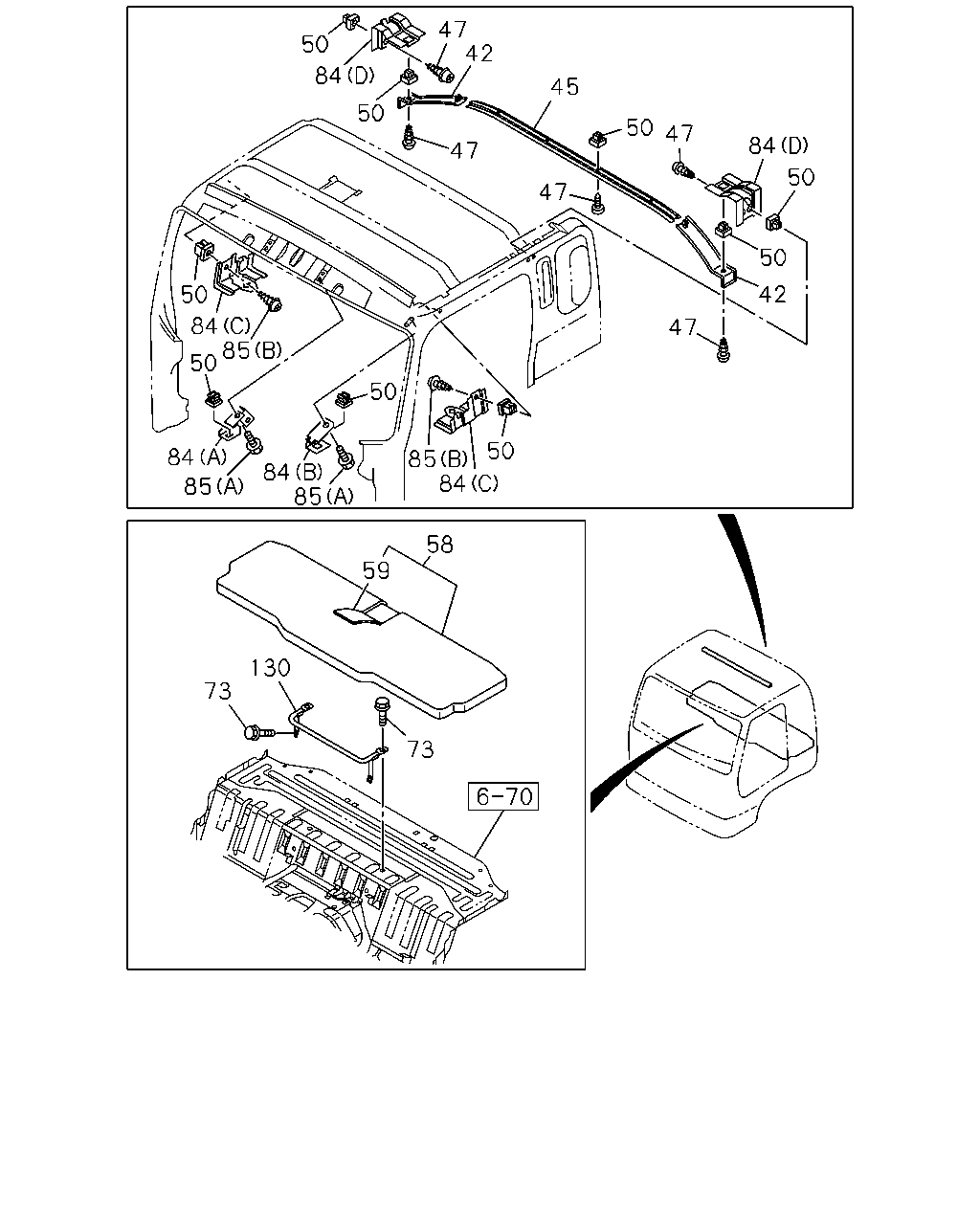

çizim 329644
50 47 42 45 50 47 84 50 50 42 47 47 47 50 84 50 84 50 85 84 84 85 85 50 85 84 50 73 130 59 58 73
BalonParca AdiParca NoAdetTipApplied Date A B
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-972-2 01 1 1302- ● ●
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-499-2 01 1 1302- ● ●
45 RAIL; CURTAIN,FRT
DARK GRAY 		8-97407-485-0 01 1 1302- ●
45 RAIL; CURTAIN,FRT
DARK GRAY 		8-97407-486-0 01 1 1302- ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 1302- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-1405 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-1405 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 12 1 1406-1406 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 1406- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY 		8-97407-382-2 01 1 1302- ●
58 BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97409-772-1 01 1 1302- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY 		8-97407-384-2 01 1 1302- ●
58 BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97409-894-1 01 1 1302- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY 		8-97412-045-1 01 1 1302- ●
59 COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97414-106-0 01 1 1302- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY 		8-97412-043-1 01 1 1302- ●
59 COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97414-135-0 01 1 1302- ●
73 BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE 		0-28450-820-0 04 1 1302- ● ●
84 BRACKET; CURTAIN RAIL
(C) 		8-98028-326-1 02 1 1302-1405 ● ●
84 BRACKET; CURTAIN RAIL
(D) 		8-98042-152-0 04 1 1302- ● ●
84 BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-98049-290-1 01 1 1302- ● ●
84 BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98074-740-0 01 1 1302- ● ●
85 SCREW; BRKT
(B) M5X20 		5-09981-059-0 06 1 1302-1405 ● ●
85 SCREW; BRKT
(B) M5X20 		5-09981-059-0 04 1 1406- ● ●
85 SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE 		8-97108-669-0 01 1 1302- ● ●
85 SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE 		8-97108-669-0 01 1 1302- ● ●
130 PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40> 		8-98014-968-0 01 1 1302- ● ●
