8-01 — LAMP; FRONT AND FRONT SIDE (#112789) — 91 parça

331 431 357 399 355 432 32 49 47 44 15 448 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W	1-82194-106-0	02	1	1302-
32	LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-071-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-070-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	1-82118-016-0	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	1-82118-015-0	01	1	1302-
44	NUT; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6	8-98217-430-0	02	1	1302-
47	WASHER; PL,FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98217-429-0	02	1	1302-
49	BRACKET; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98051-435-0	01	1	1302-
49	BRACKET; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98051-436-0	01	1	1302-
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1302-
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1302-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1302-
357	BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	1302-
399	SOCKET; TURN SIGNAL	8-98051-387-0	02	1	1302-
431	CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	1302-
432	FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	1302-
448	CAP ASM; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97378-874-0	02	1	1302-

1 4 338 339 408 420 20 23 5 457 382 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-324-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-323-0	01	1	1306-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-189-0	01	1	1302-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-188-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98226-185-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98226-184-0	01	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (B) 24V 5W	1-82194-042-0	02	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W	1-82194-063-0	02	1	1302-
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-871-0	06	1	1302-
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97232-491-0	02	1	1302-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98010-256-0	02	1	1302-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-86830-158-0	02	1	1302-
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98225-685-0	02	1	1302-
408	CAP; BREATHER,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-874-0	02	1	1302-
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98218-601-0	02	1	1302-
457	GRIP; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98241-354-0	02	1	1306-

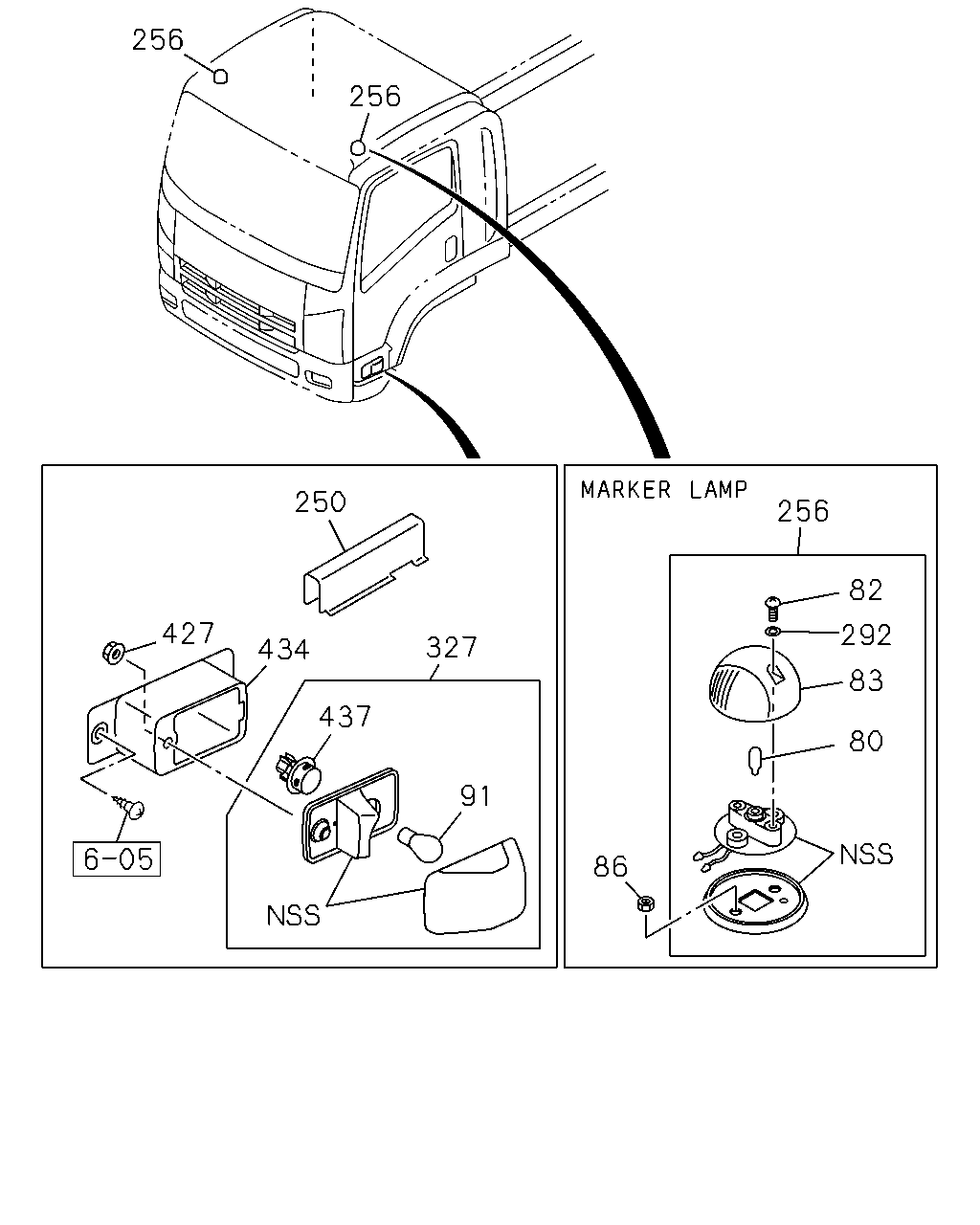

256 256 250 427 434 327 437 91 256 82 292 83 80 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> 24V 5W	8-94135-397-0	02	1	1302-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	1302-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	8-98057-958-0	02	1	1302-
86	NUT; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> M6 FLANGE	0-91180-106-0	04	1	1302-
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1302-
250	BRACKET ASM RUSSIA EQUIPMENT(B12) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-165-0	01	1	1302-1405
250	BRACKET ASM RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-165-0	01	1	1406-
250	BRACKET ASM RUSSIA EQUIPMENT(B12) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-164-0	01	1	1302-1405
250	BRACKET ASM RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-164-0	01	1	1406-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-467-3	01	1	1302-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-466-3	01	1	1302-
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-355-0	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-355-0	01	1	1406-
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-354-0	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-354-0	01	1	1406-
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-727-1	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> EXC. RUSSIA EQUIPMENT(B12)	8-98063-727-1	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-727-1	01	1	1406-
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)	8-98063-727-1	01	1	1406-
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-726-1	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> EXC. RUSSIA EQUIPMENT(B12)	8-98063-726-1	01	1	1302-1405
434	BASE; LAMP,SIDE TURN SIGNAL RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-726-1	01	1	1406-
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)	8-98063-726-1	01	1	1406-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1302-

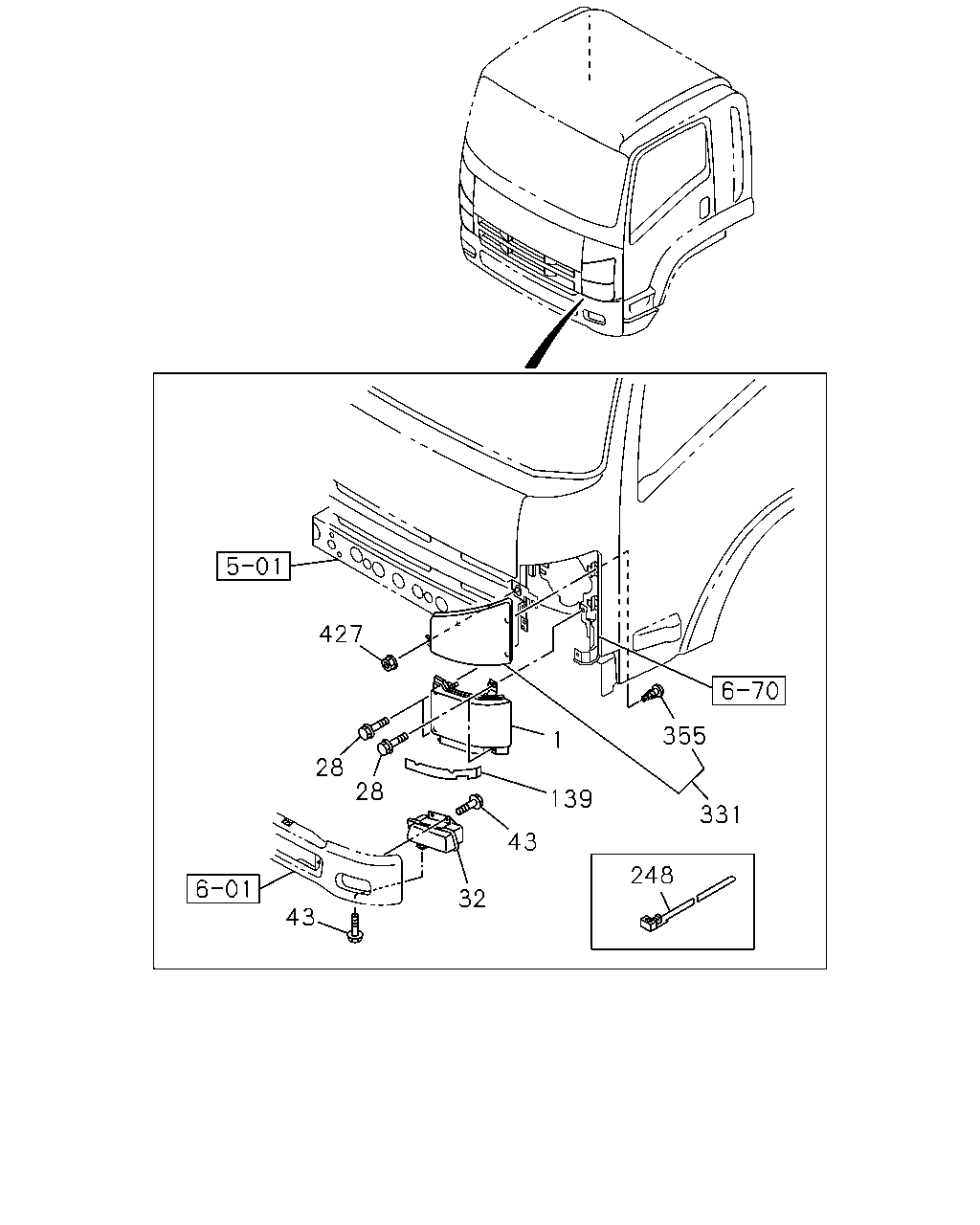

427 28 1 28 139 43 248 331 355 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-324-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-323-0	01	1	1306-
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1302-
32	LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-071-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-070-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1302-
43	BOLT; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1302-
139	COVER; HEADLAMP	8-98054-342-0	02	1	1302-
248	CLIP; HARNESS EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> L=140	5-09707-031-1	02	1	1302-
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1302-
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1302-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
