◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#112784) — 34 parça
çizim 329417
163 170 160 2 3 4 169
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1302- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97409-769-1 01 1 1302- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1302- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1302- ● ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1302- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ●

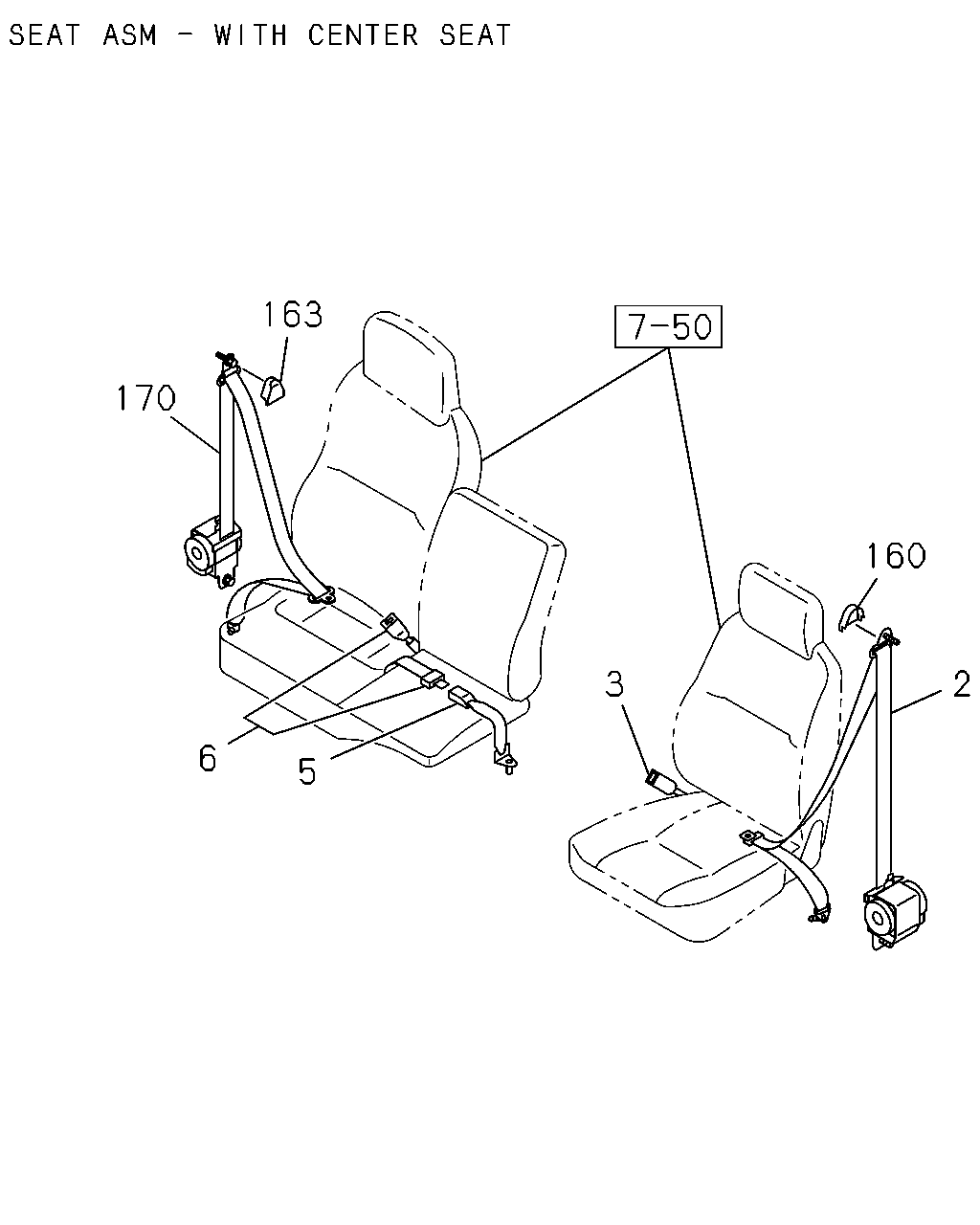

çizim 329530
2 160 3 5 6 170 163
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1302-1407 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1302- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1302- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1302- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1302- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1302- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1302-1407 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
