Isuzu WW
▶
TRUCKS
▶
FTR
▶
11512 - FTR(LHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

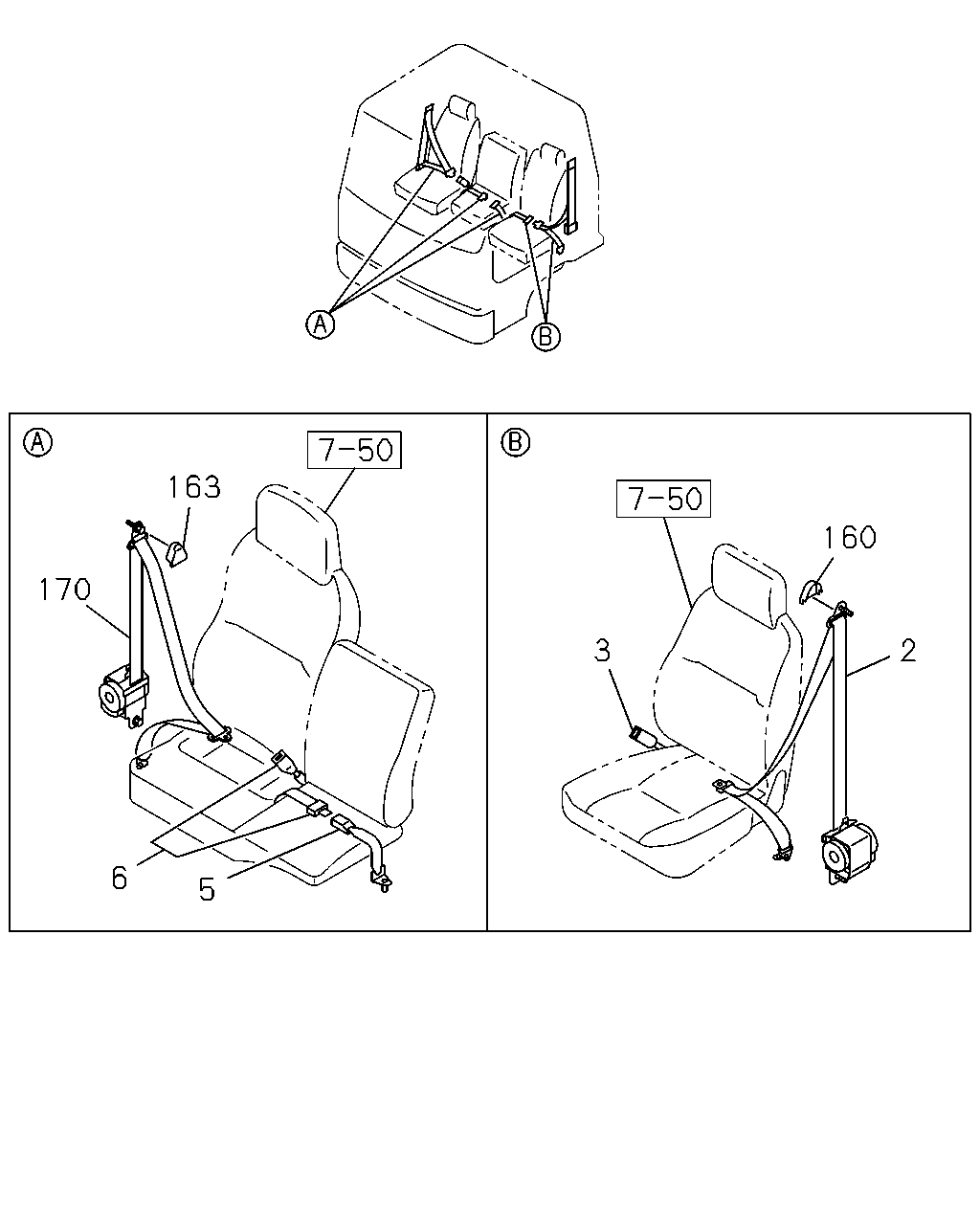

7-60 — SEAT BELT
(#112782) — 18 parça
◀
[760A] CENTER SEAT DELETE (9 parça)
[760A] SEAT ASM-WITH CENTER SEAT (9 parça)
▶
169
2
160
3
4
170
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1302-1407
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97428-435-0
01
1
1408-
3
BELT; SEAT,BUCKLE SIDE
GRAY
8-97411-565-3
01
1
1302-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY
8-97409-769-1
01
1
1302-
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1302-
163
COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1302-
169
SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK
1-76798-019-0
01
1
1302-
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1302-1407
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97428-435-0
01
1
1408-
163
170
6
5
3
160
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1302-1407
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97428-435-0
01
1
1408-
3
BELT; SEAT,BUCKLE SIDE
GRAY
8-97411-565-3
01
1
1302-
5
BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97407-377-1
01
1
1302-
6
BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97423-660-1
01
1
1302-
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1302-
163
COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1302-
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1302-1407
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97428-435-0
01
1
1408-
