◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11509 - FSR-R EU2/4EXC.SPACE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#112778) — 222 parça

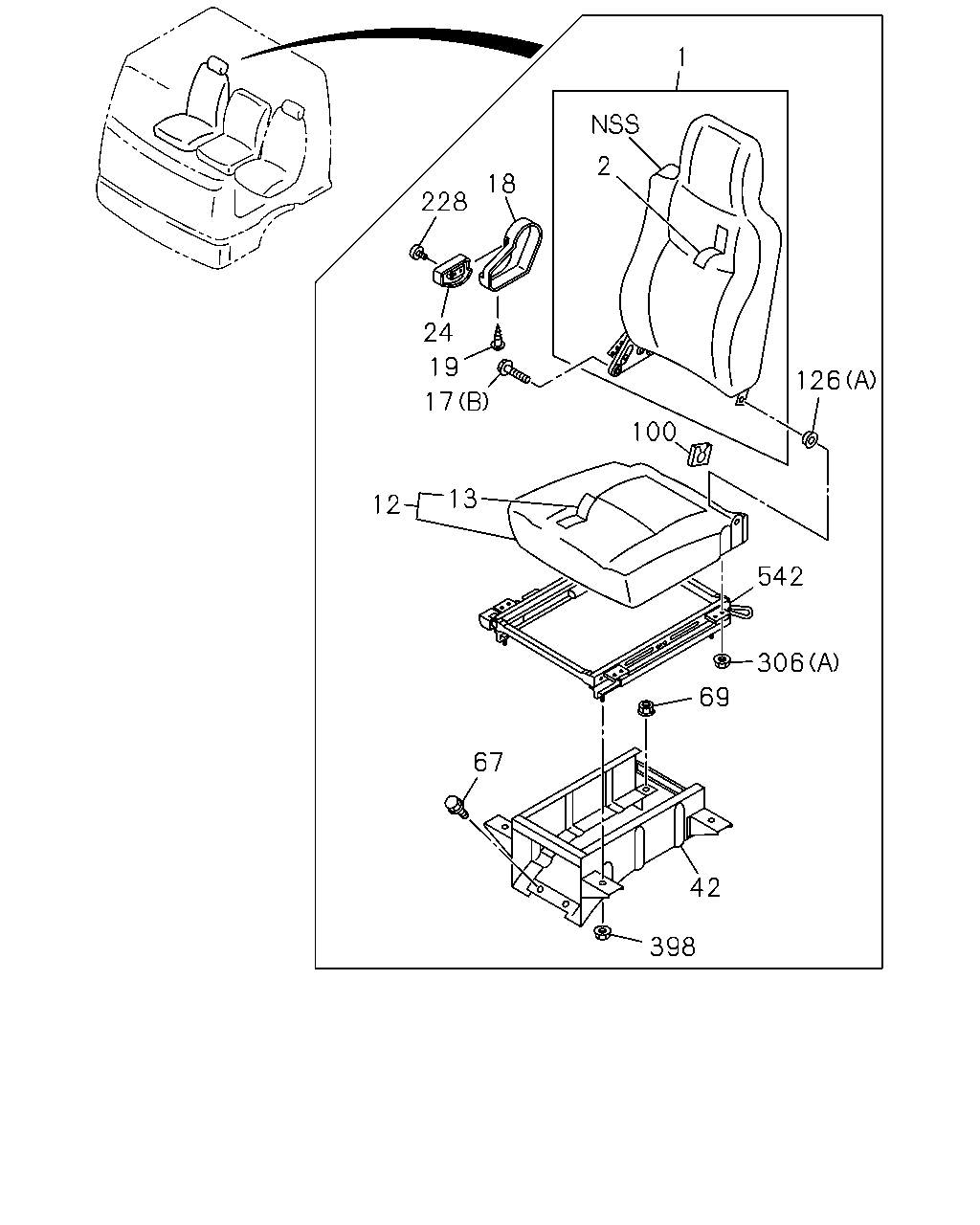

çizim 329342
1 2 126 100 542 306 69 42 398 67 13 12 17 19 24 228 18
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1302-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1302-
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1302-
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1302-
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1302-
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1302-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1302-
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1302-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1302-
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1302-
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1302-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1302-

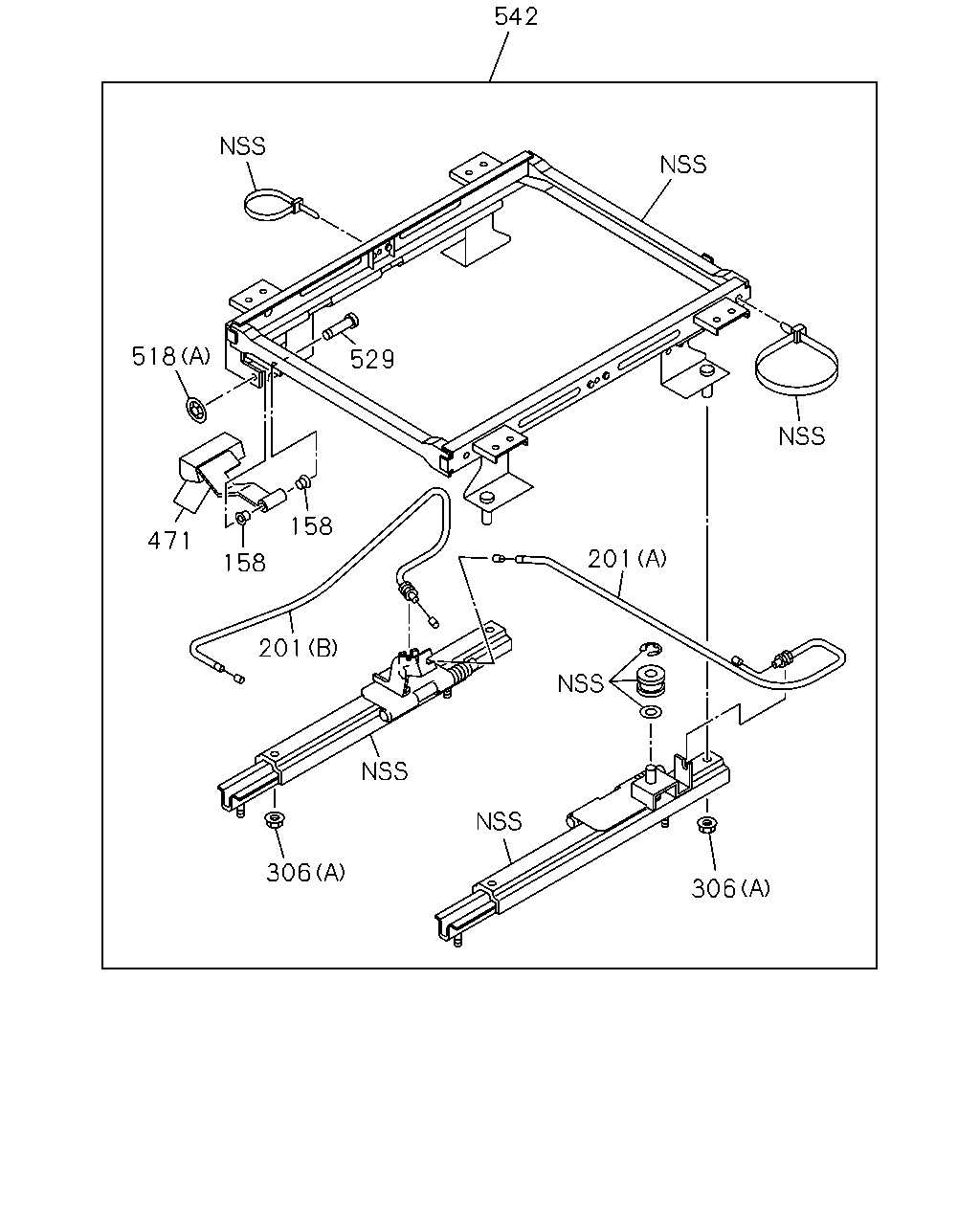

542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

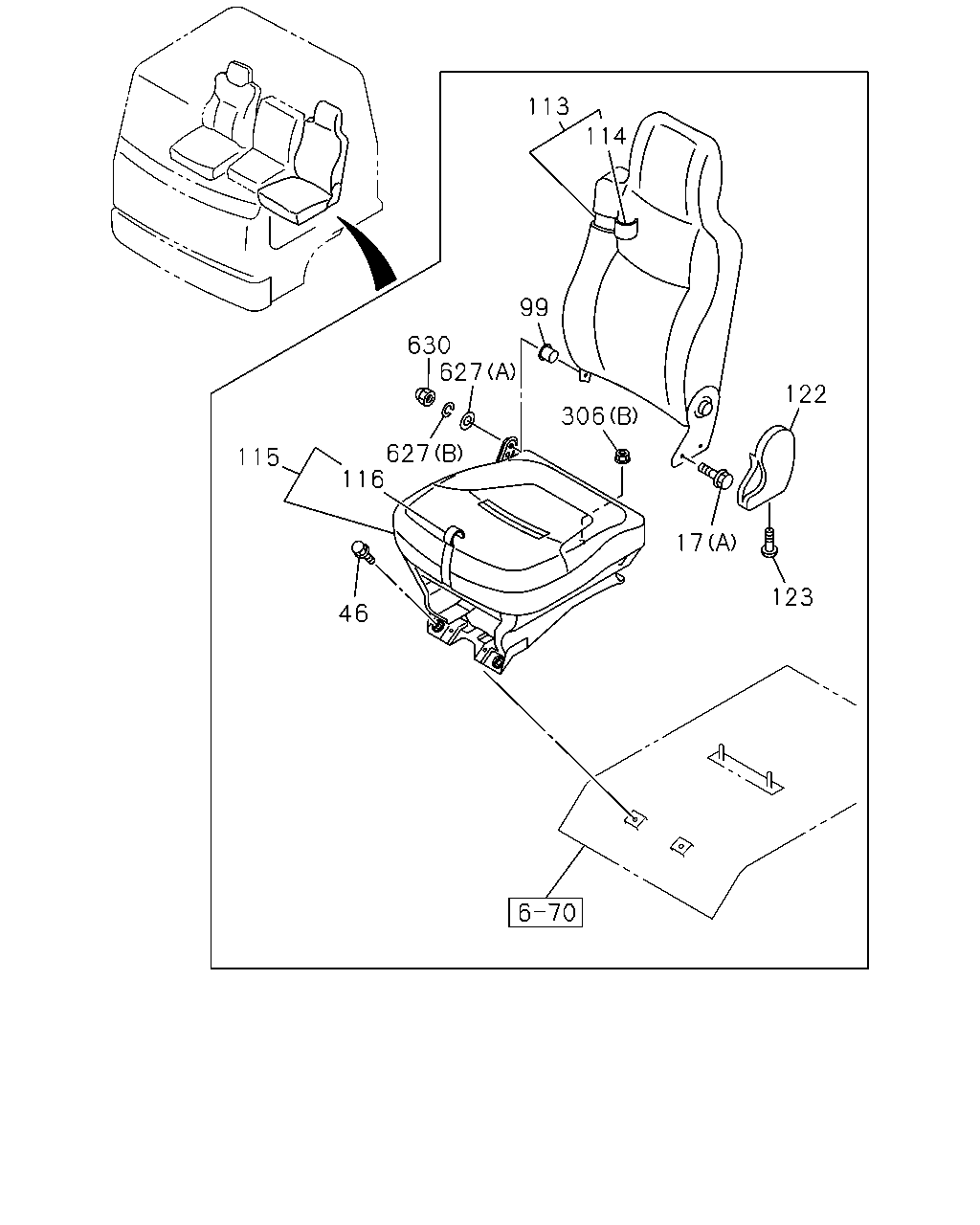

çizim 329345
17 46 99 113 114 115 116 122 123 306 627 627 630
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1302-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
99 BUSHING; SEAT BACK
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98112-751-0 01 1 1302-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1302-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1302-
122 COVER; ADJ,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 1302-
123 SCREW; COVER,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98070-026-0 01 1 1302-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 1302-
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 1302-
630 NUT; CAP
VINYL SEAT<A83>,SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 1302-

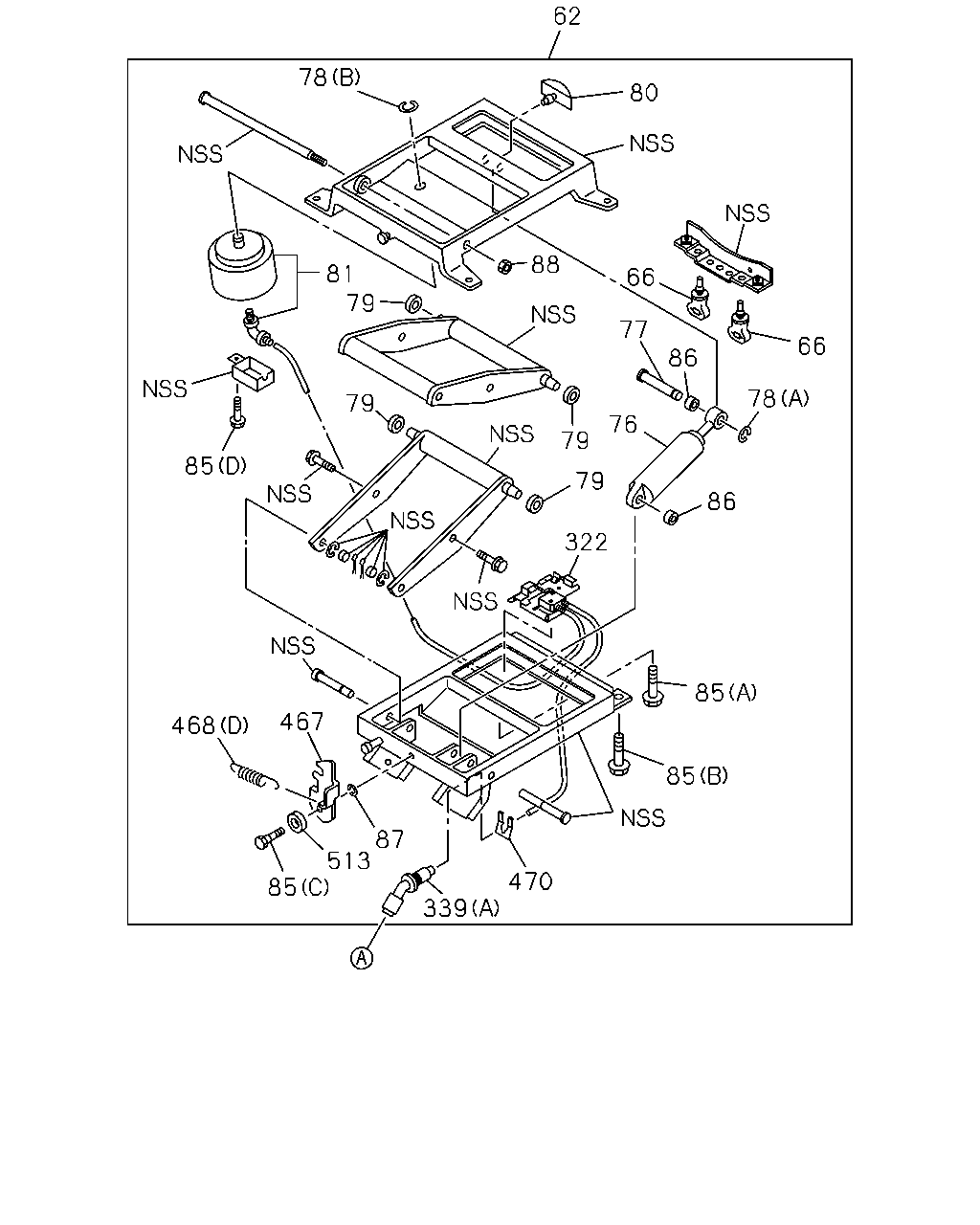

çizim 329413
78 62 80 88 66 66 78 86 77 76 79 86 79 322 85 85 470 339 87 513 85 467 468 79 85 79 81
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1302-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1302-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1302-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1302-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1302-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 1302-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1302-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-151-2 01 1 1302-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1302-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1302-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1302-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1302-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1302-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1302-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1302-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1302-

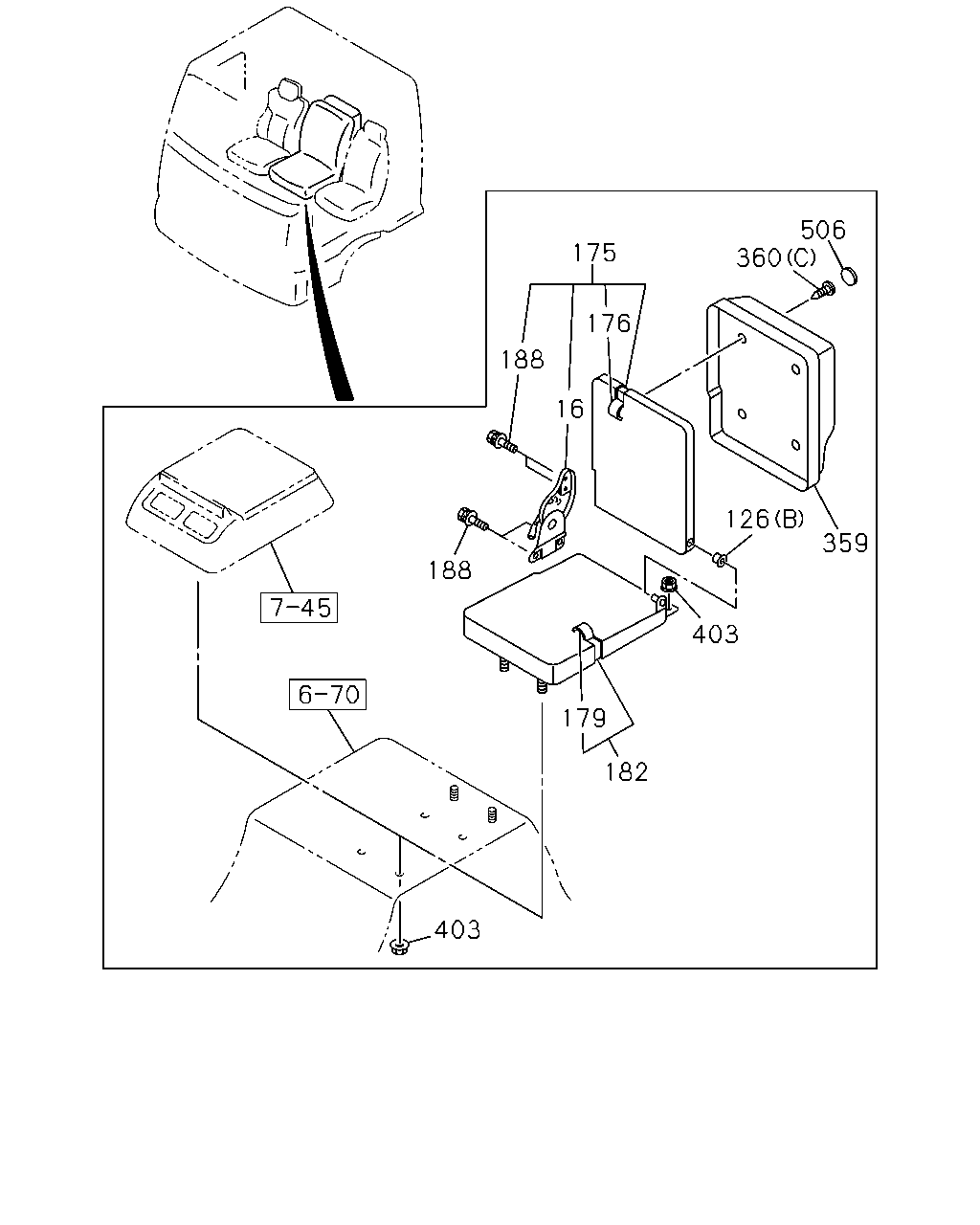

çizim 329490
403 182 179 188 403 126 359 16 188 176 175 360 506
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1302-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1302-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1302-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1302-
188 BOLT; BACK TO CUSHION
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1302-

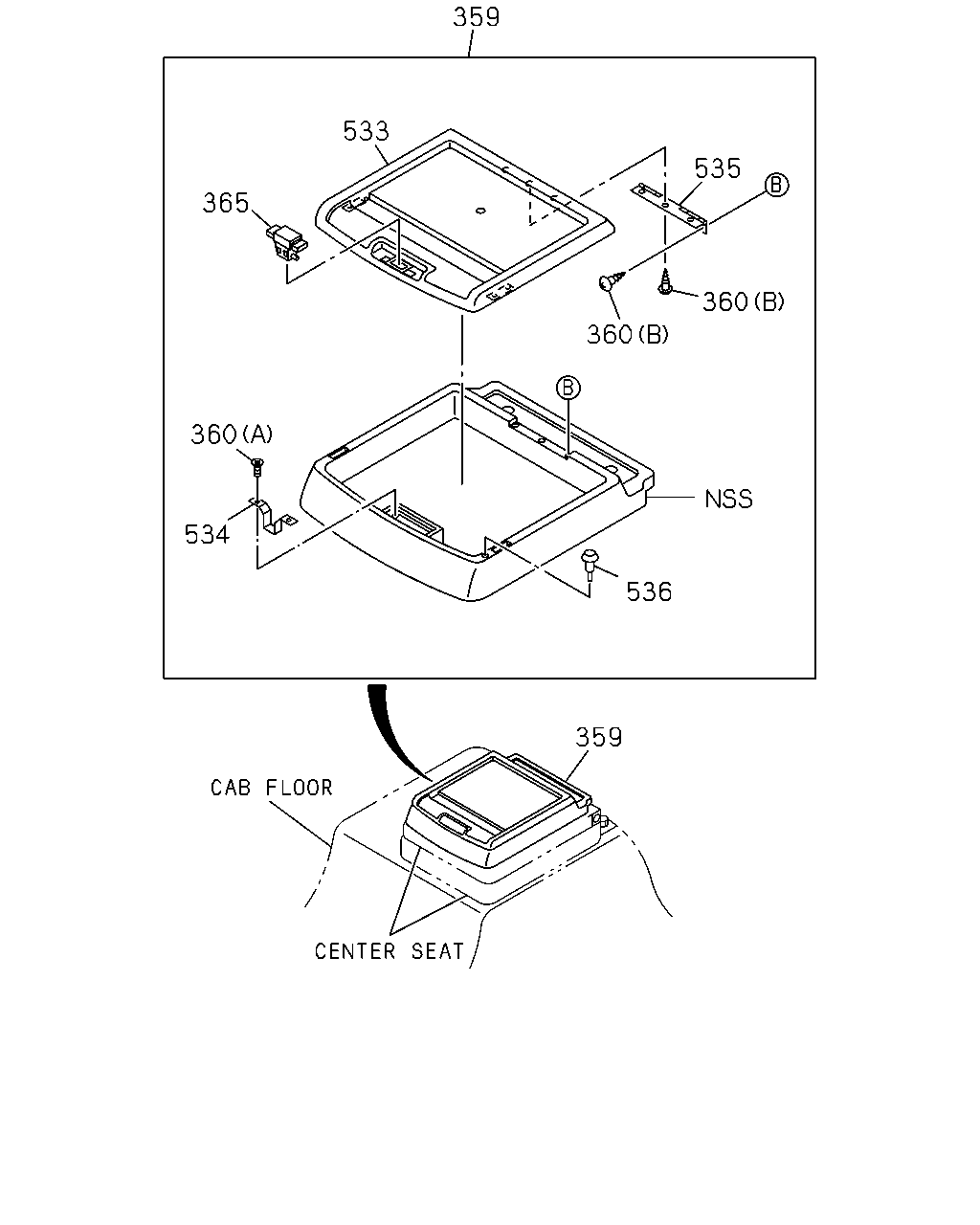

359 BOX; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1302-
506 CAP; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1302-

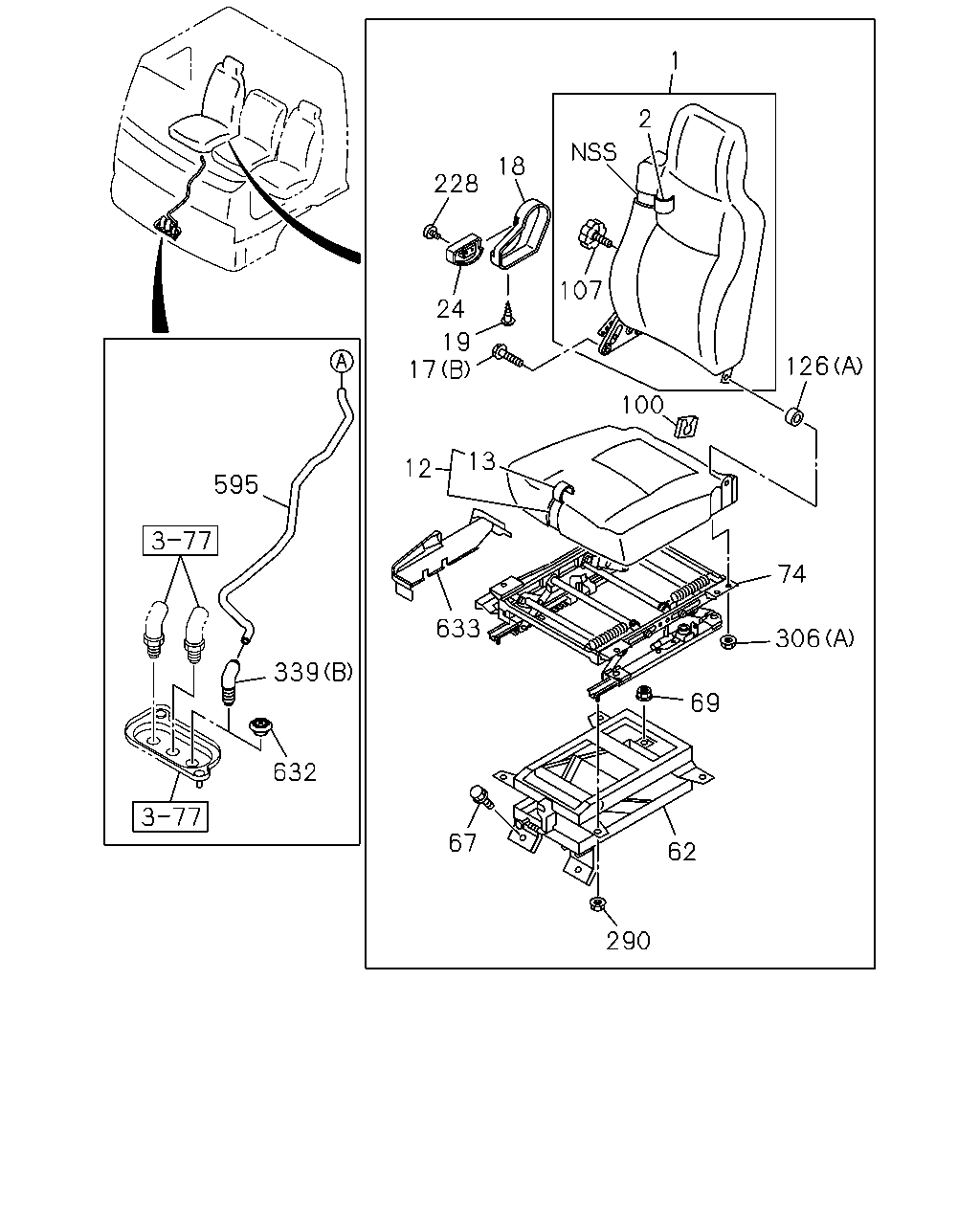

çizim 329557
595 339 632 290 67 62 69 633 306 74 12 13 100 126 17 19 107 24 228 18 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1302-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1302-
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1302-
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1302-
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1302-
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1302-
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1302-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1302-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1302-
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1302-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1302-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1302-
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1302-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1302-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1302-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1302-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 1302-
çizim 329684
359 534 536 360 360 360 365 533 359 535
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
365 LOCK ASM; SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1302-
533 LID; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1302-
534 STRIKER; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1302-
535 HINGE; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1302-
536 RUBBER; CUSHION
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1302-
çizim 329749
542 518 529 471 158 158 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1302-
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1302-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1302-
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1302-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1302-
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1302-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1302-
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1302-
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1302-
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1302-
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

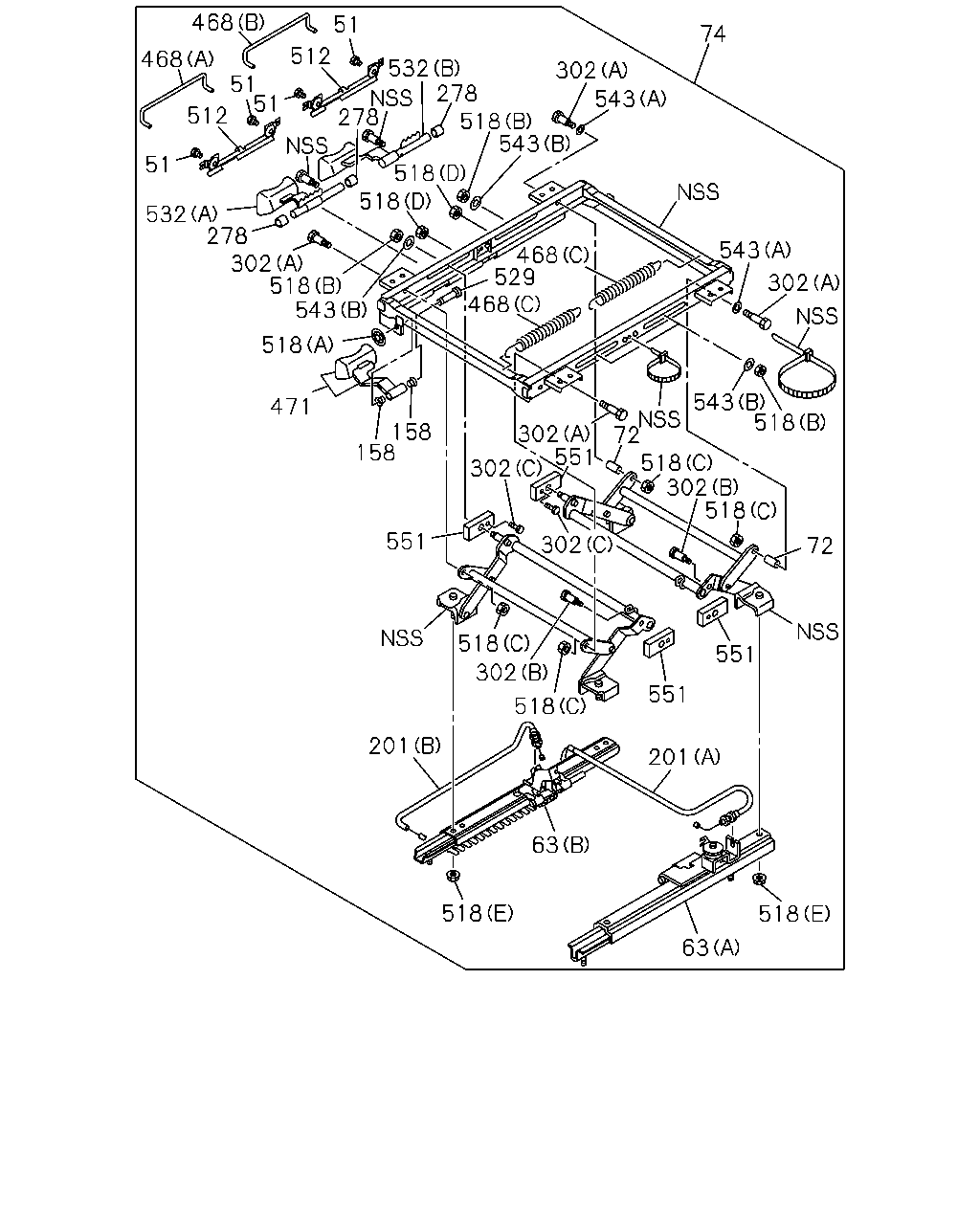

çizim 332312
468 468 512 51 51 51 512 51 532 278 532 518 518 278 518 518 278 302 74 543 543 302 518 543 471 468 529 468 543 543 302 518 518 72 302 302 158 158 551 302 302 72 518 551 551 201 302 518 201 518 63 63 518 518 551
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1302-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1302-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1302-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 1302-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1302-
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1302-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1302-
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1302-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1302-
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1302-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1302-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1302-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 1302-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1302-
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1302-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1302-
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1302-
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1302-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1302-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1302-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 1302-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1302-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
